mp-11124/CsLaHgSe3/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-11124.tar.gz

Harmonic properties

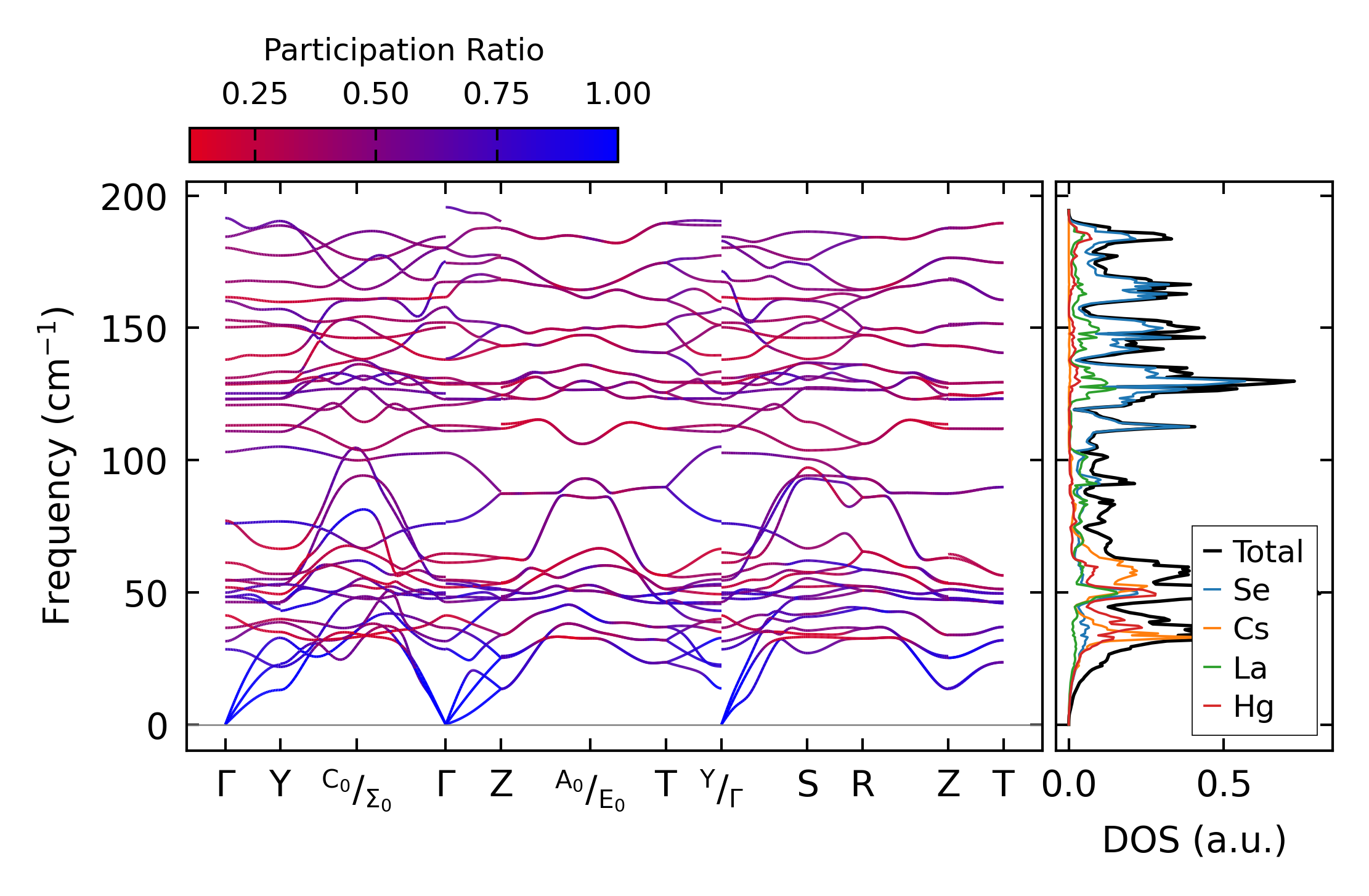

../../_images/fig_bandos_pr16775.png — (a) Phonon dispersion with participation ratio and DOS

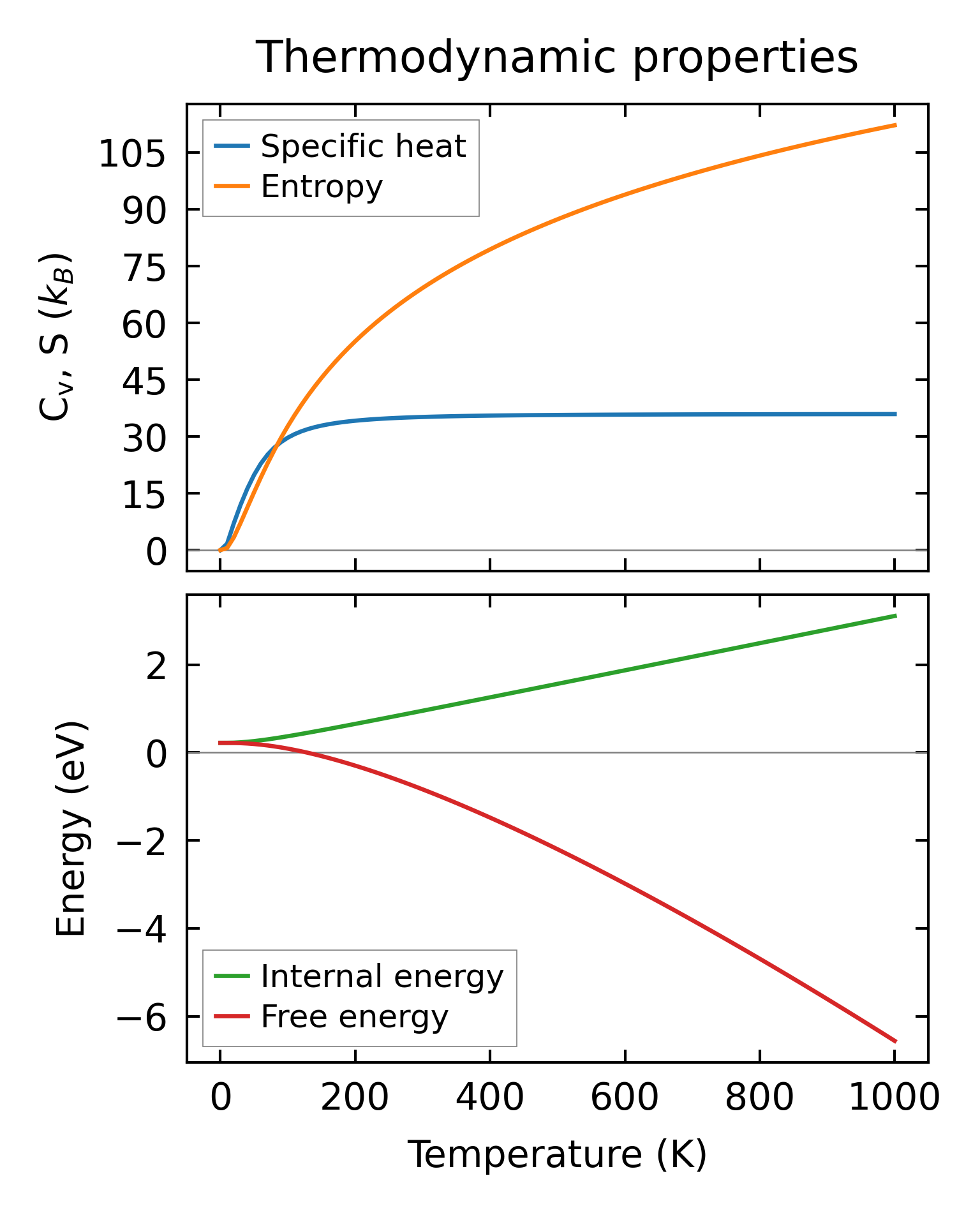

../../_images/fig_thermo16774.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all7323.png — (a) Grüneisen parameters

../../_images/fig_gruneisen7323.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x7, supercell: 3x1x2

../../_images/fig_kappa13811.png — (a) Temperature-dependent lattice thermal conductivity

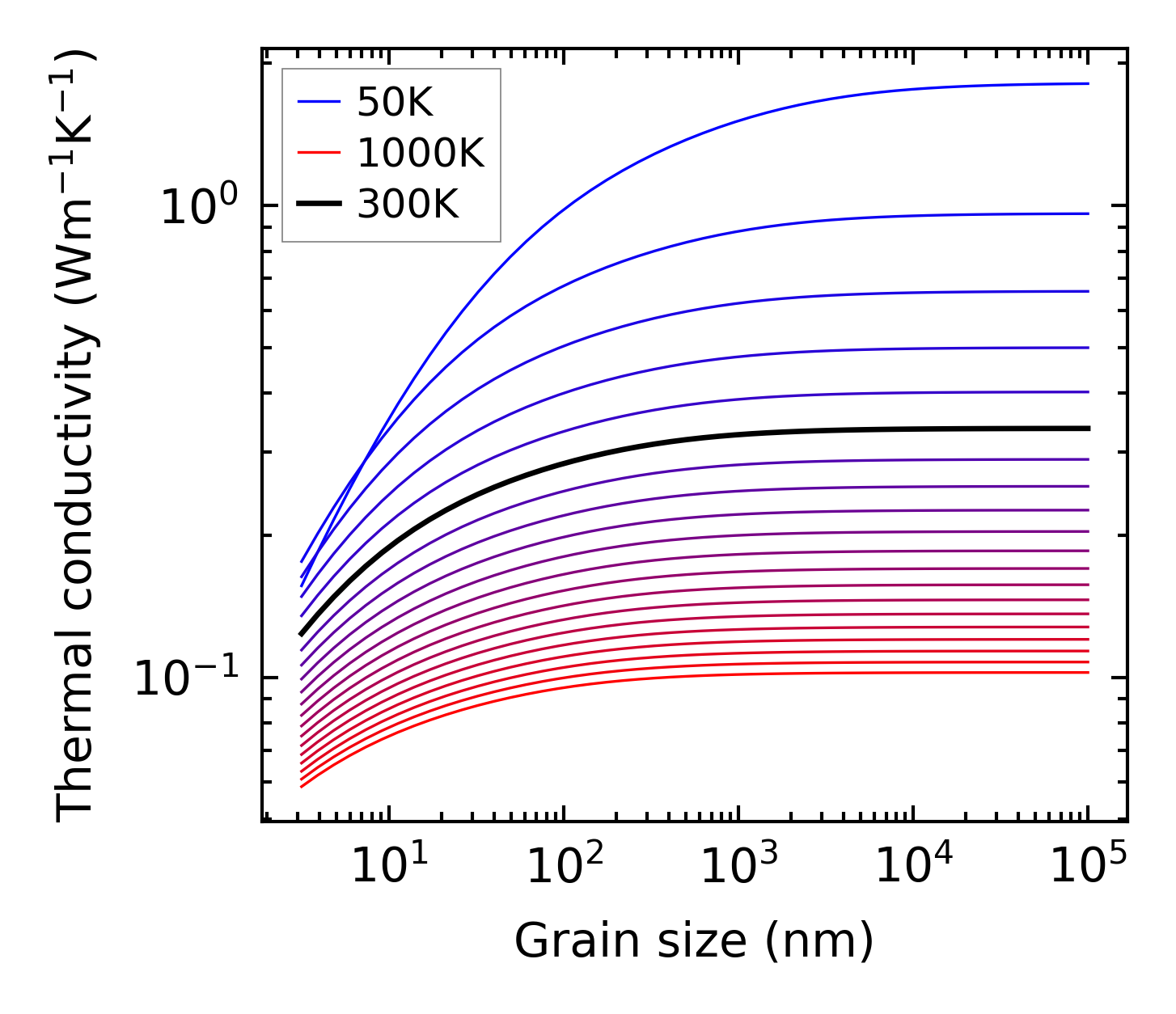

../../_images/fig_kappa_vs_grain_size7409.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

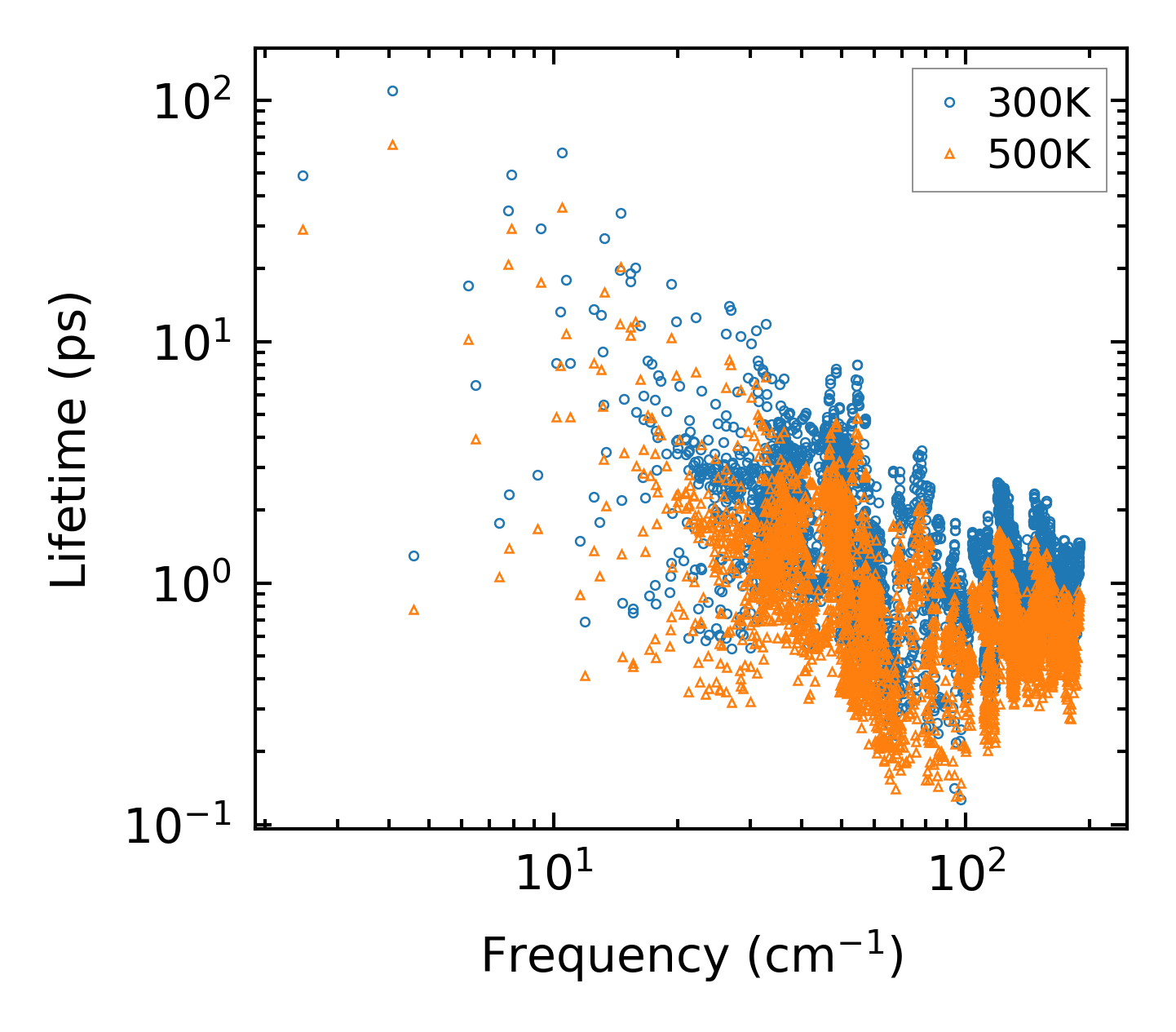

../../_images/fig_lifetime7257.png — (a) Phonon lifetime due to phonon-phonon scattering

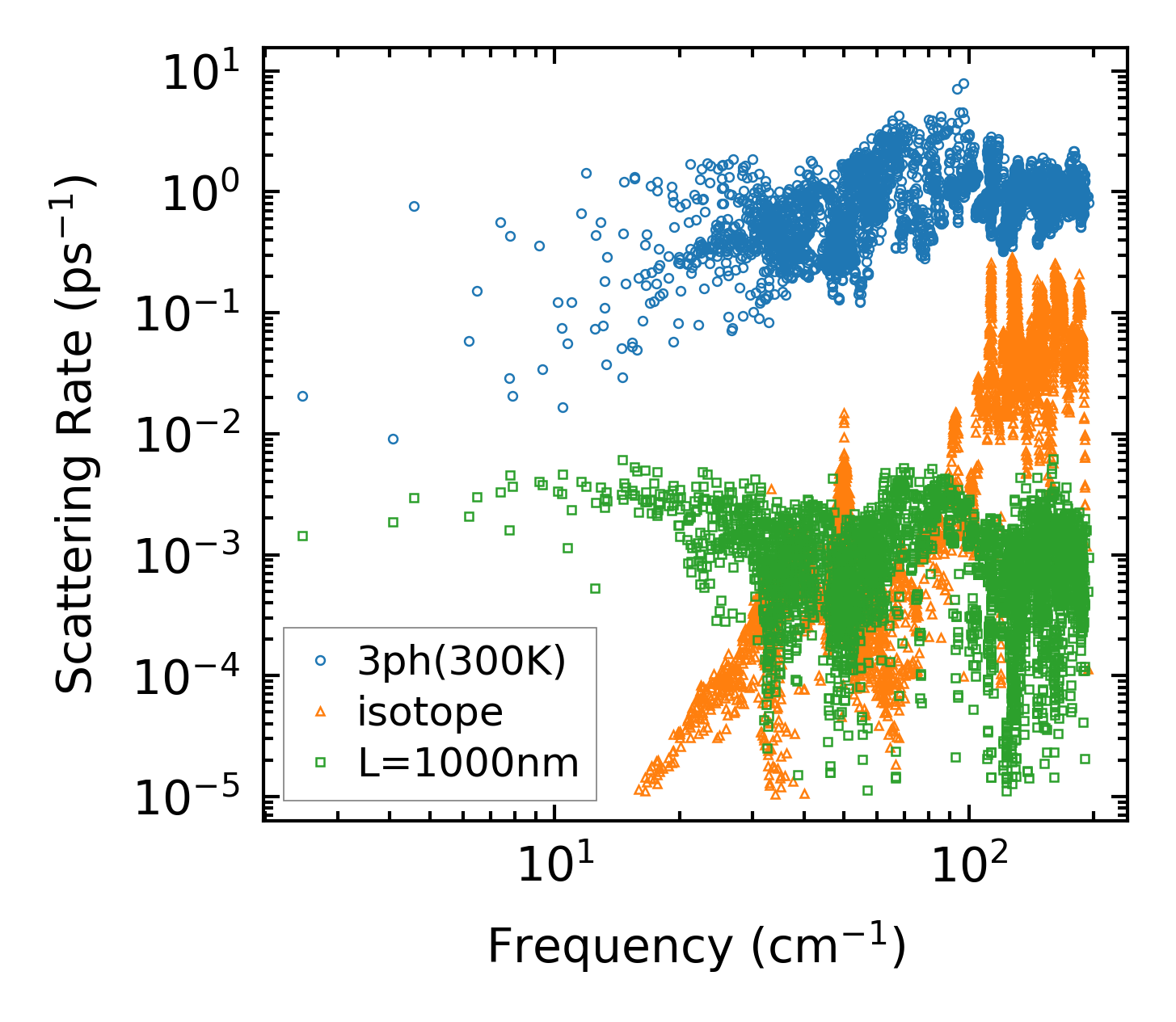

../../_images/fig_scat_rates7256.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency7257.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

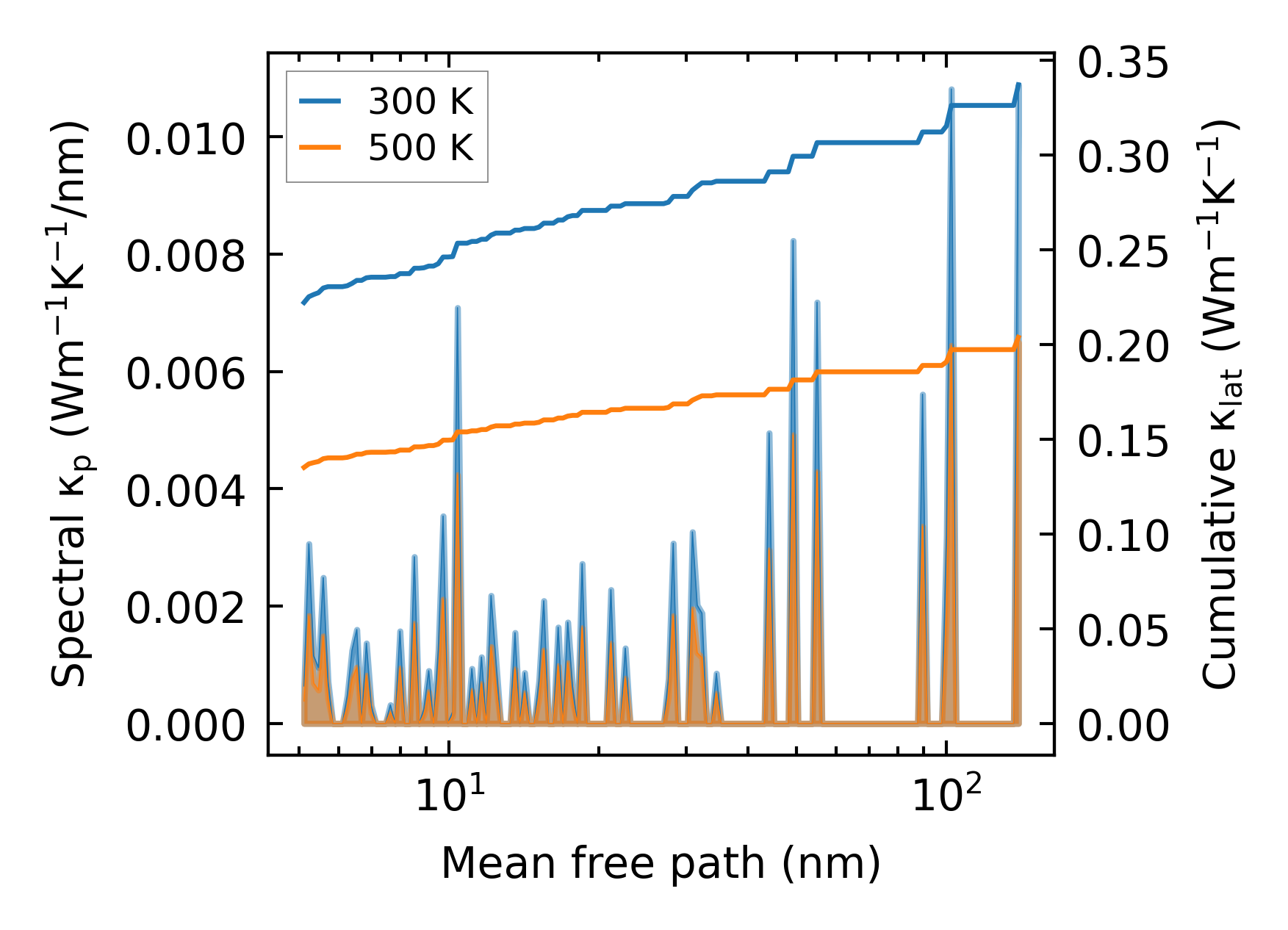

../../_images/fig_cumu_mfp7256.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

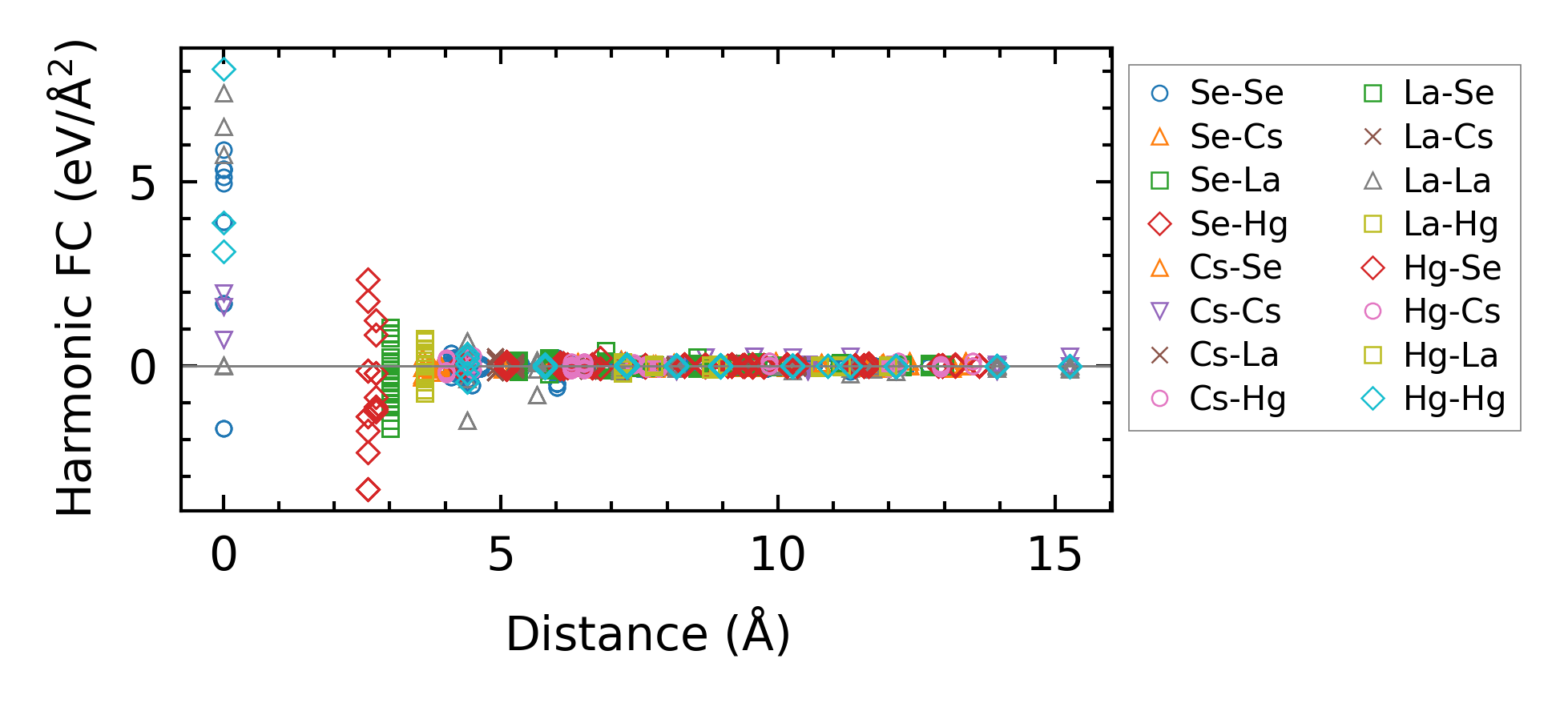

../../_images/fig_fc216333.png — (a) Force constants w.r.t atomic distance

Summary

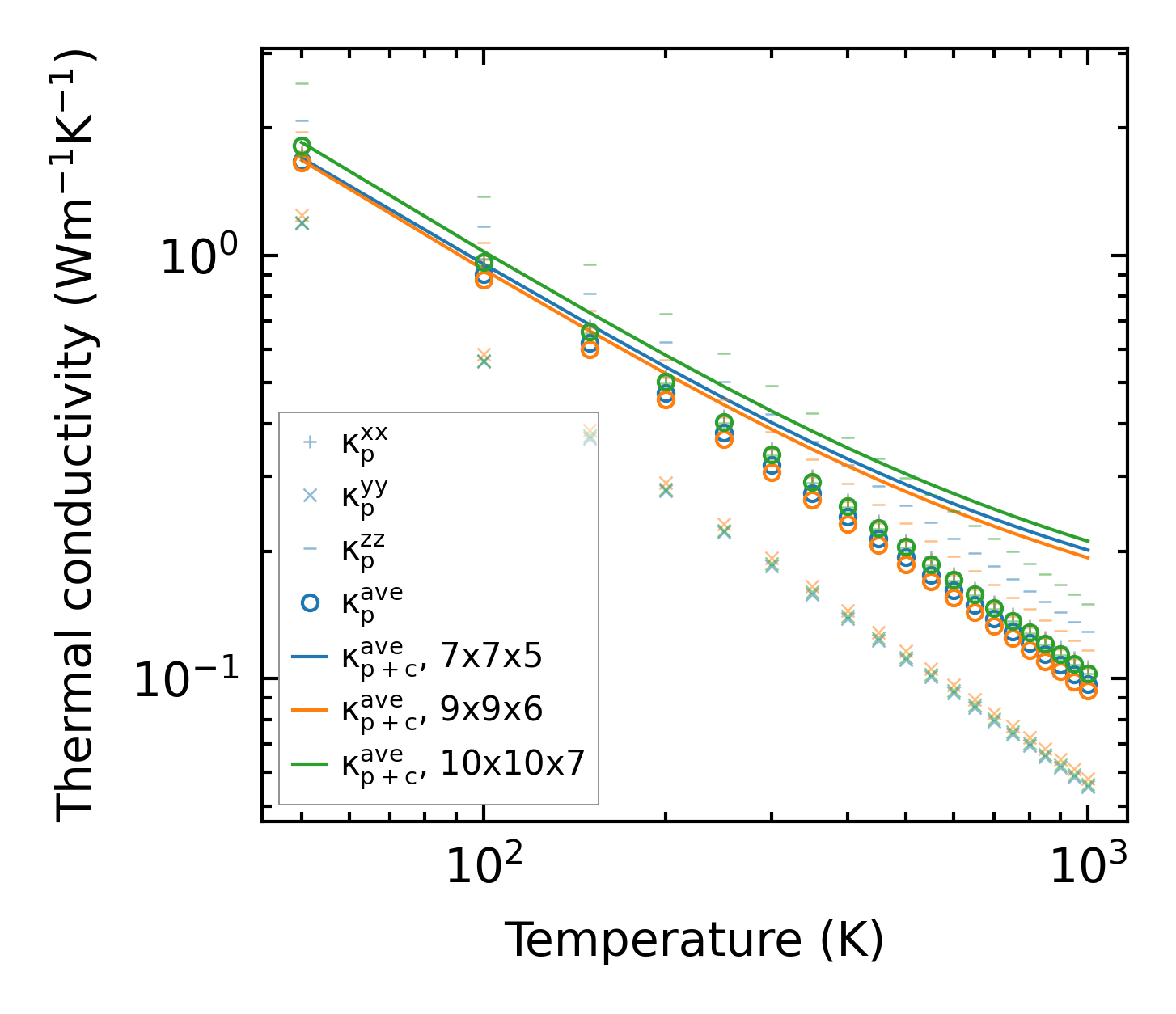

../../_images/fig_kappa13812.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times27392.png — (b) Computation time
