mp-11643/K2MgP2Se6/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-11643.tar.gz

Harmonic properties

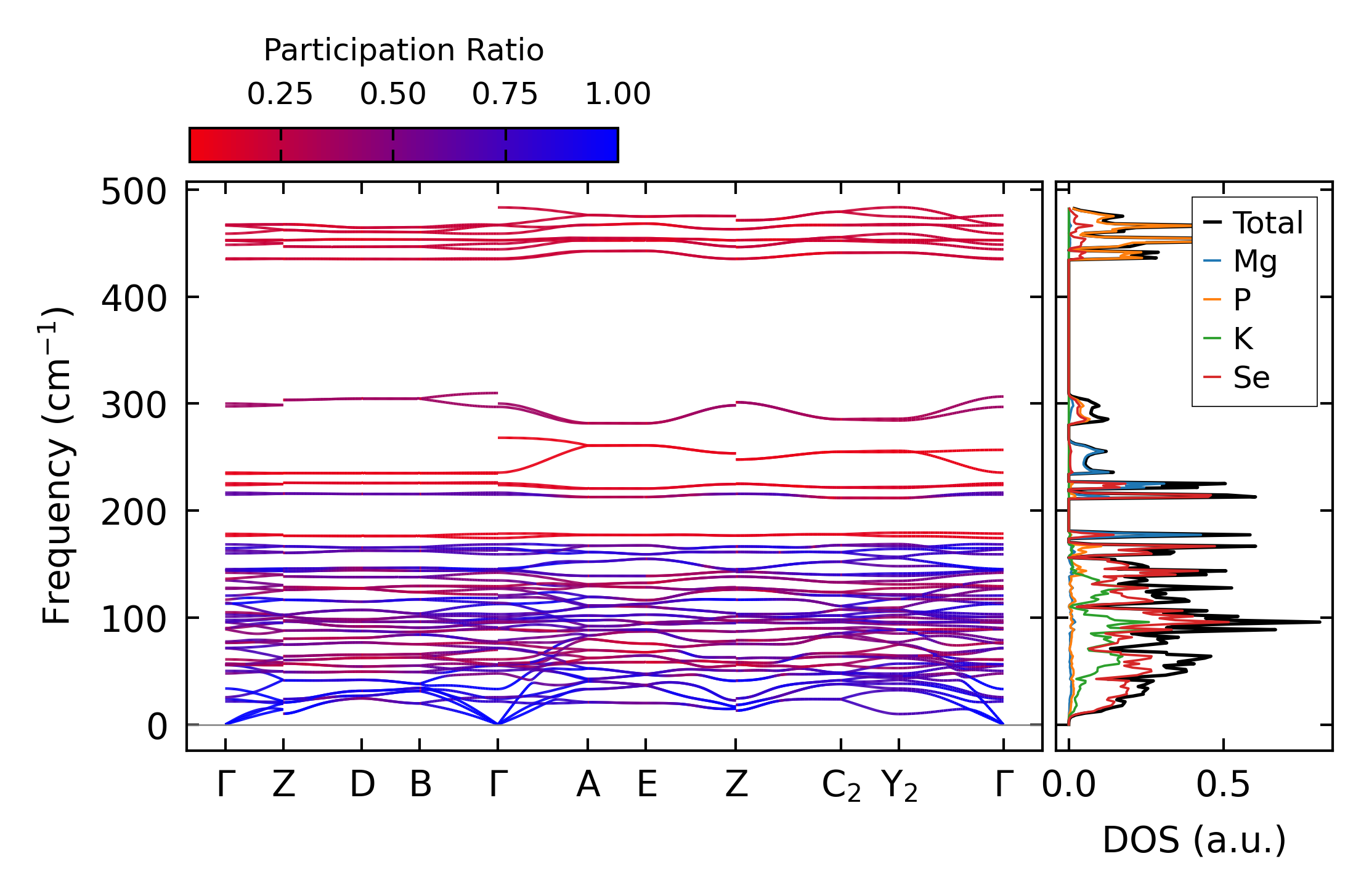

../../_images/fig_bandos_pr16820.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16819.png — (b) Thermodynamic properties

Grüneisen parameters

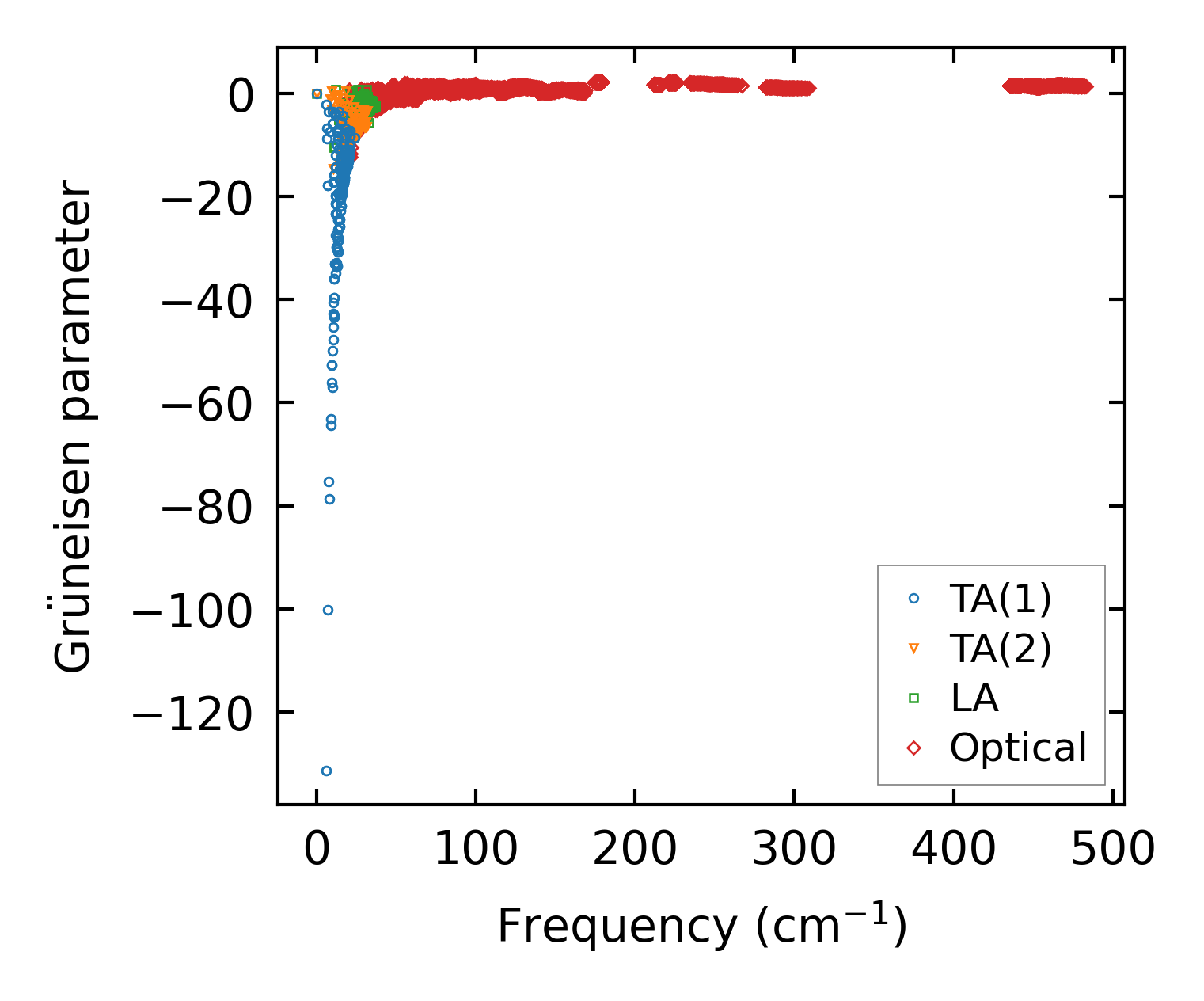

../../_images/fig_gru_all7352.png — (a) Grüneisen parameters

../../_images/fig_gruneisen7352.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x5x8, supercell: 2x1x2

../../_images/fig_kappa13869.png — (a) Temperature-dependent lattice thermal conductivity

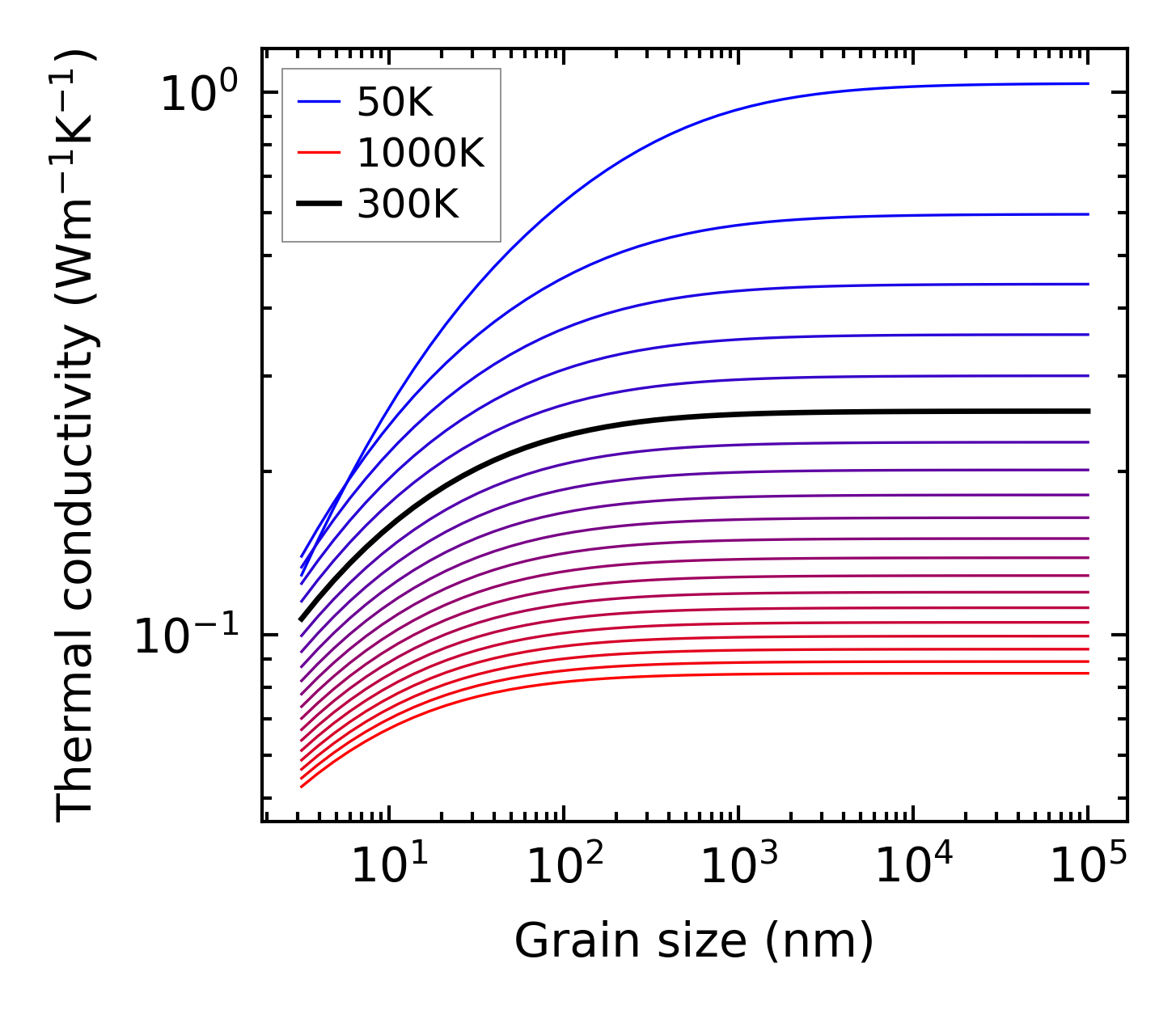

../../_images/fig_kappa_vs_grain_size7440.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

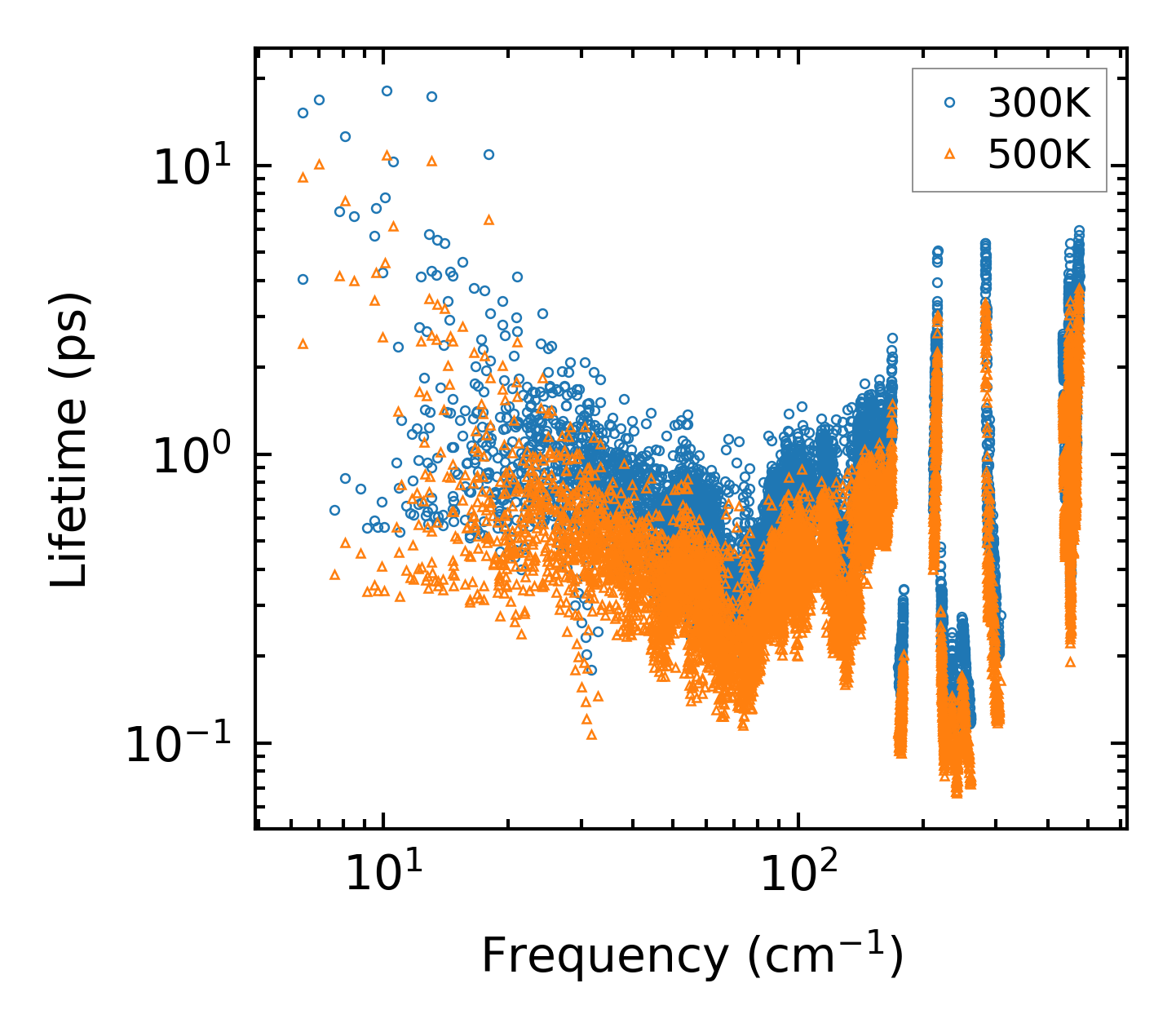

../../_images/fig_lifetime7286.png — (a) Phonon lifetime due to phonon-phonon scattering

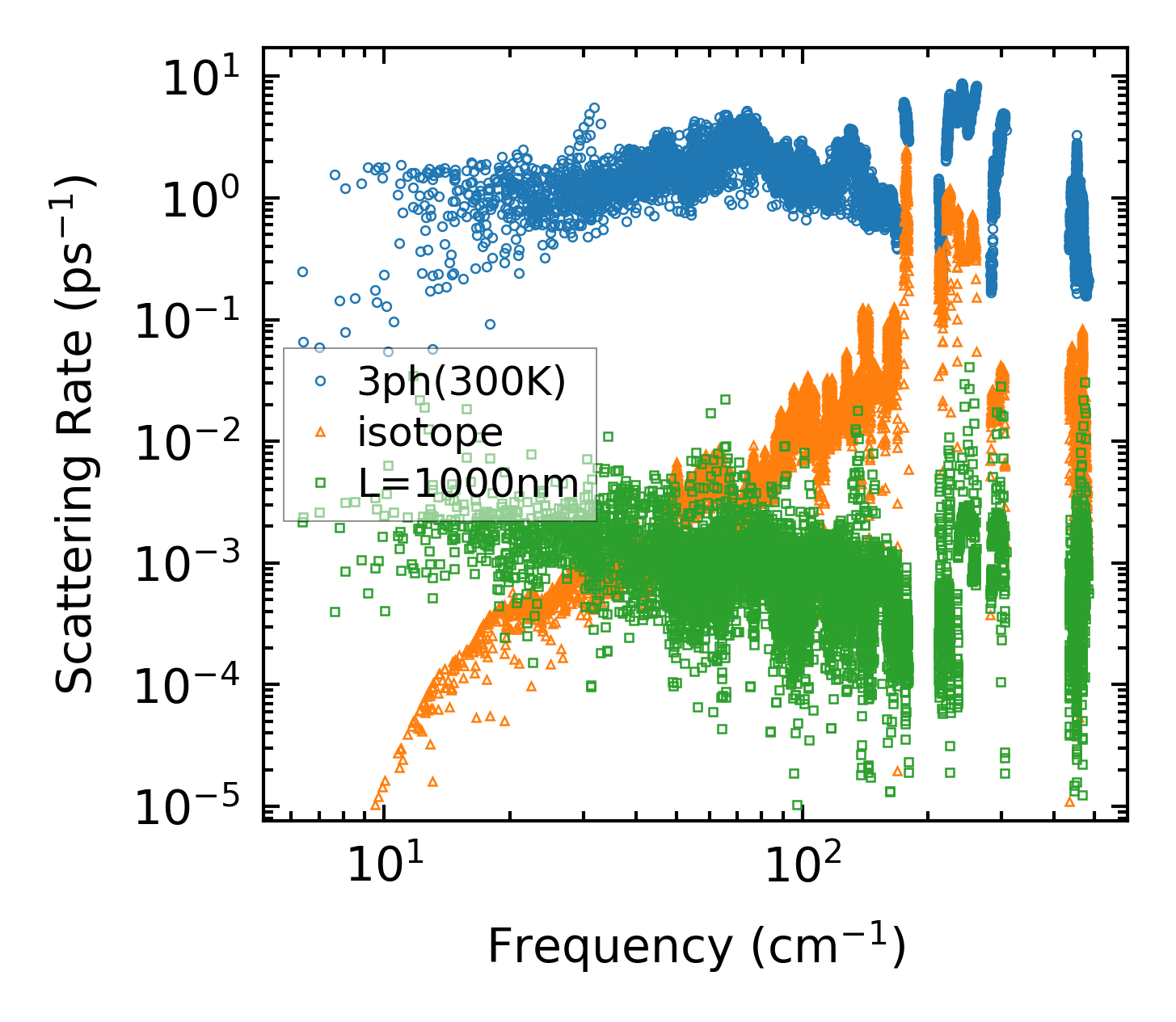

../../_images/fig_scat_rates7285.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency7286.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

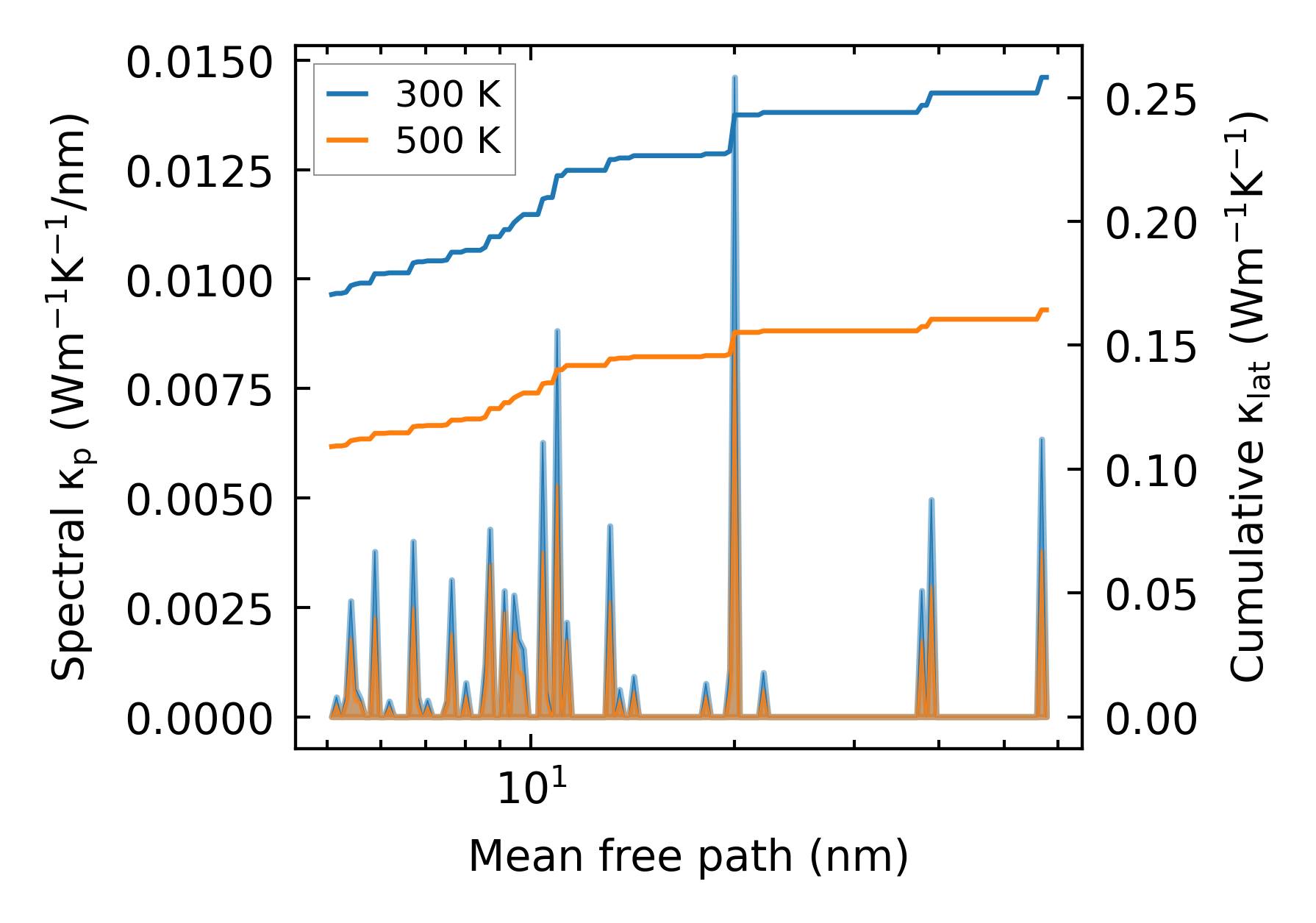

../../_images/fig_cumu_mfp7285.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

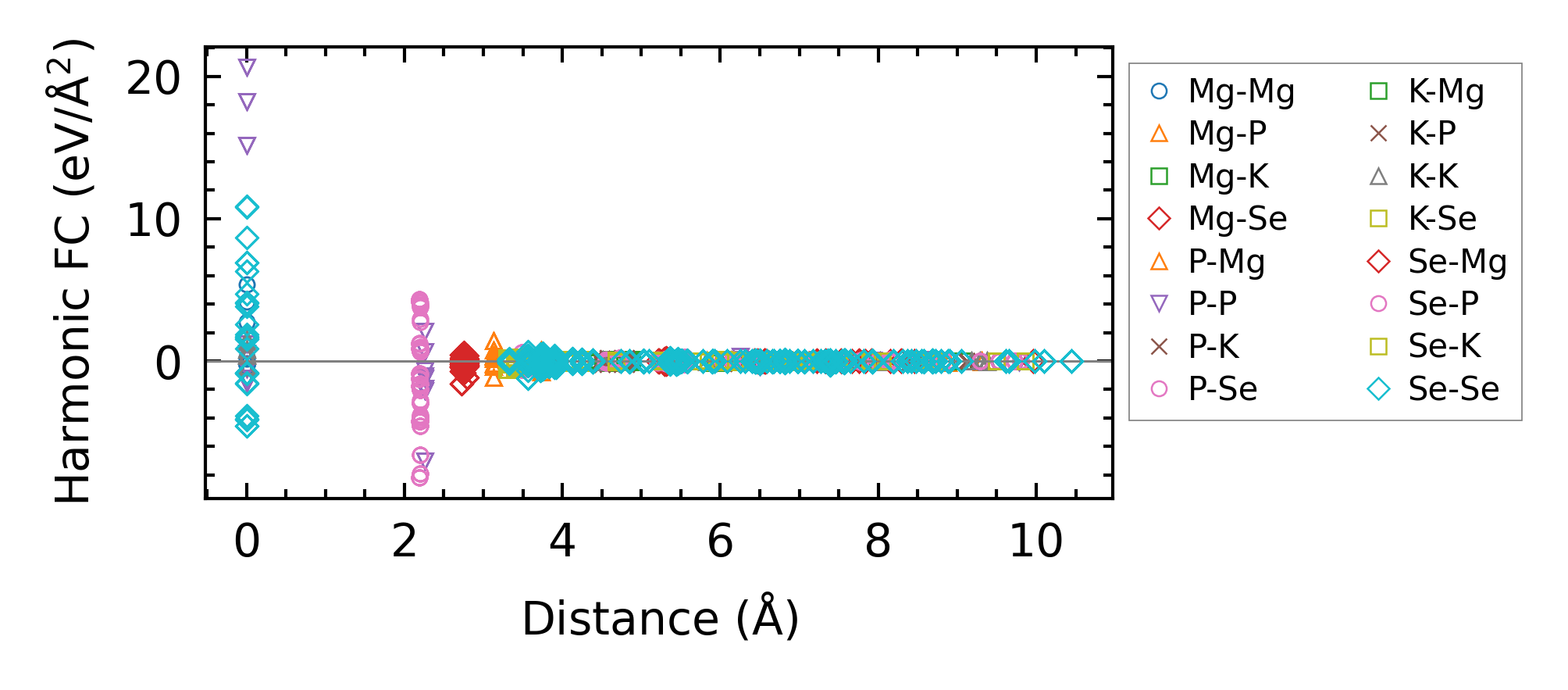

../../_images/fig_fc216375.png — (a) Force constants w.r.t atomic distance

Summary

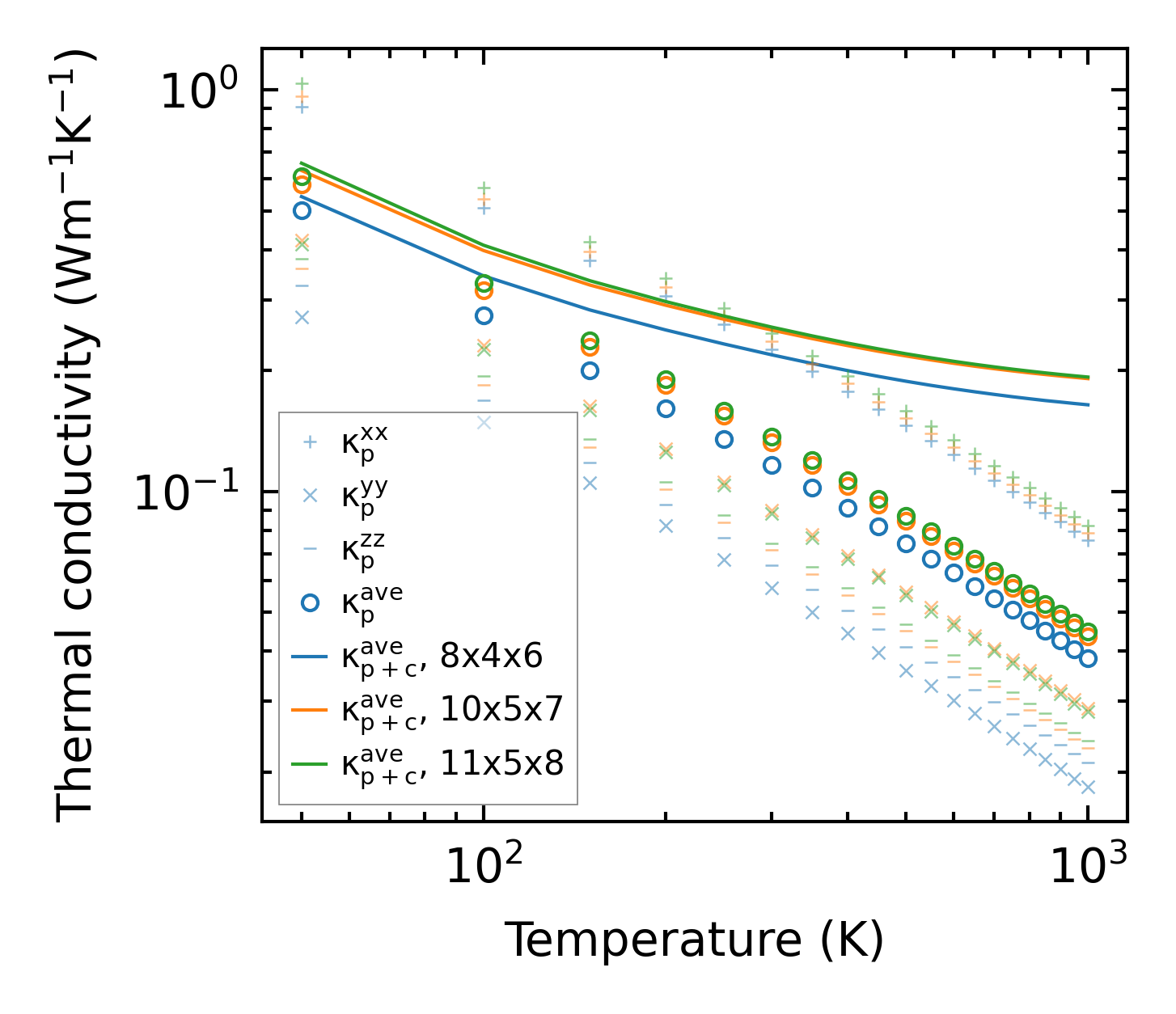

../../_images/fig_kappa13870.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times27445.png — (b) Computation time
