mp-1943/GaSe/anharm

Space group: P6_3/mmc (194)
Link: Materials Project
Download: mp-1943.tar.gz

Harmonic properties

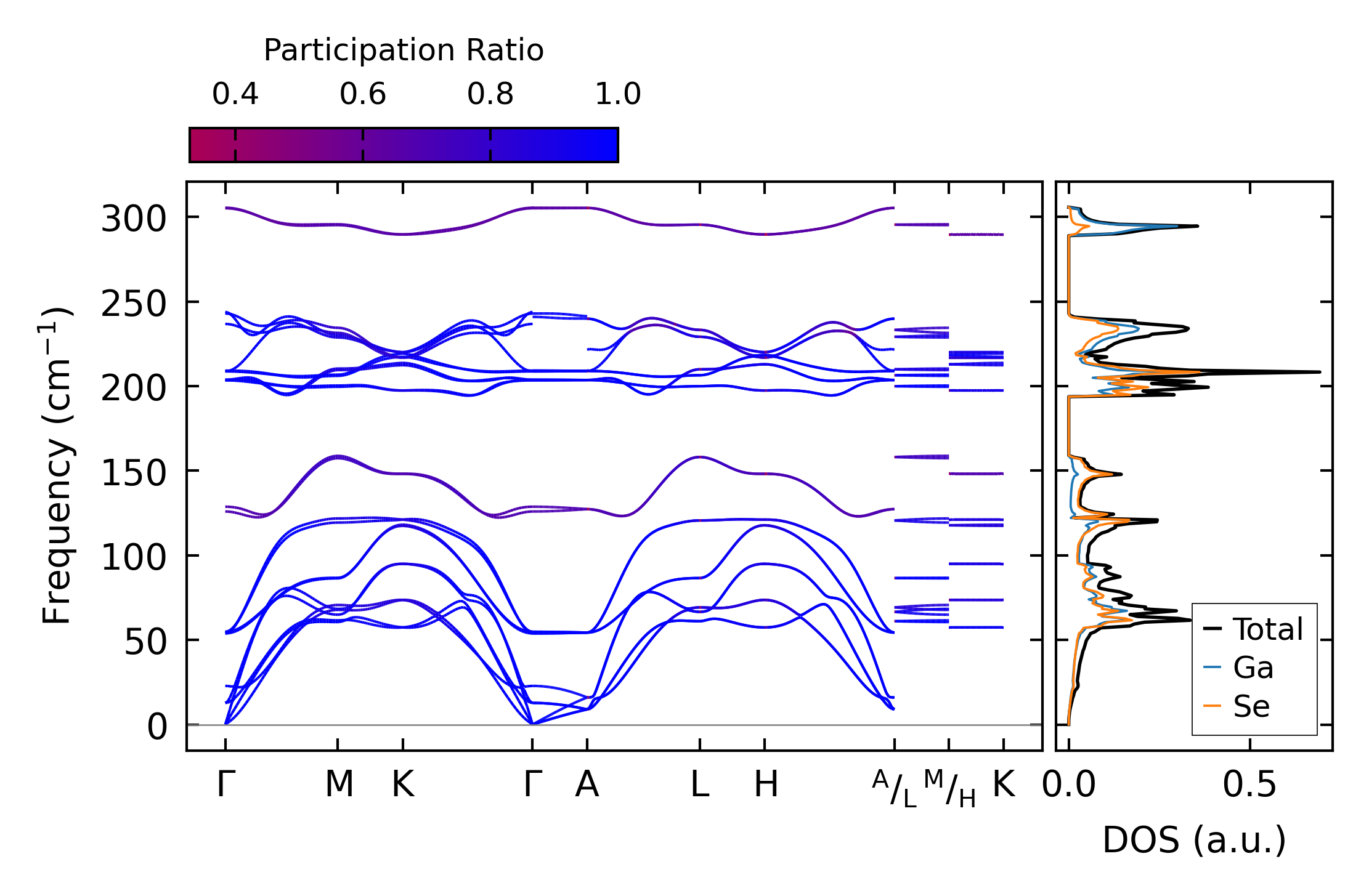

../../_images/fig_bandos_pr241.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo241.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all159.png — (a) Grüneisen parameters

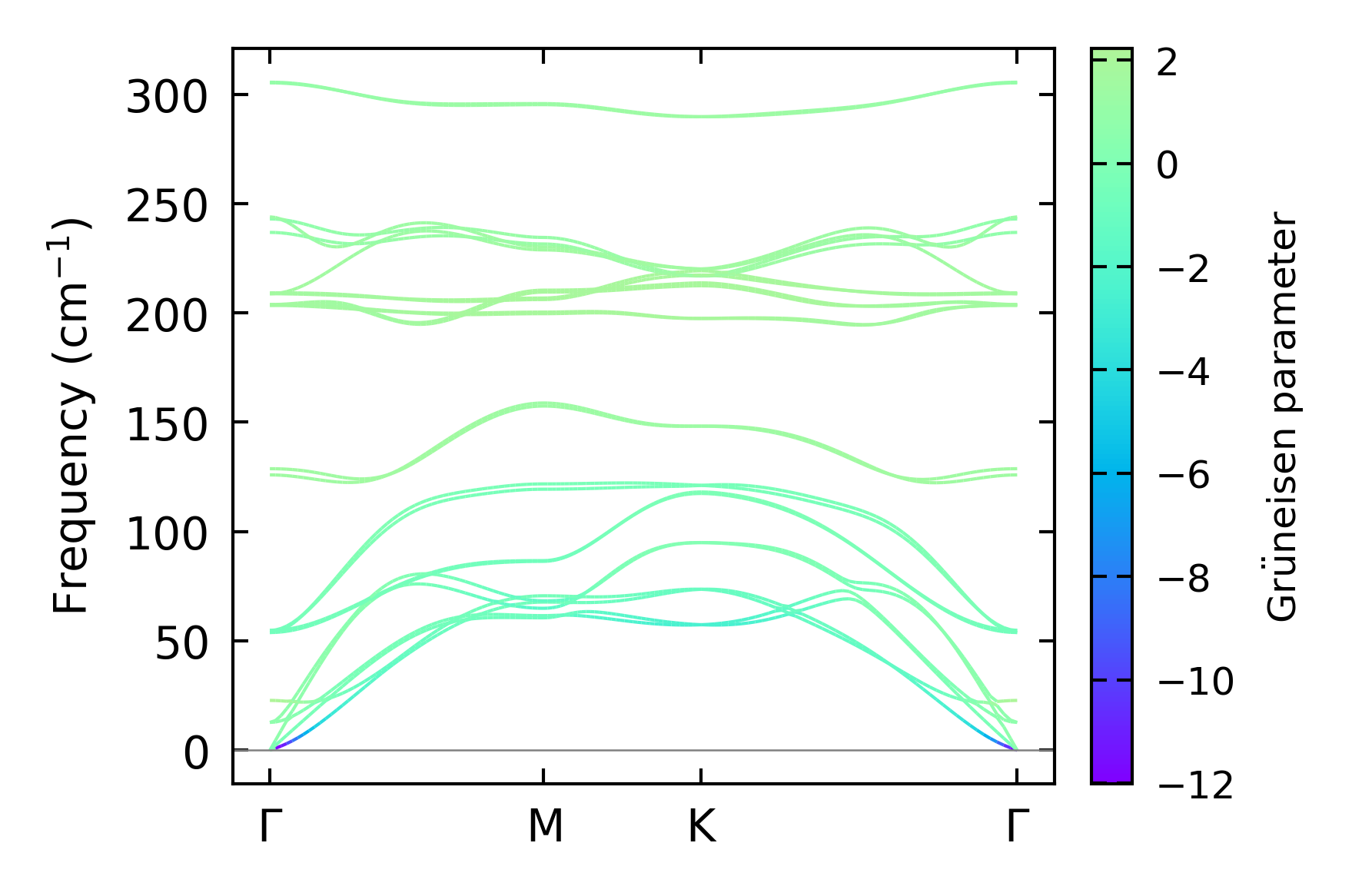

../../_images/fig_gruneisen159.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 20x20x4, supercell: 4x4x1

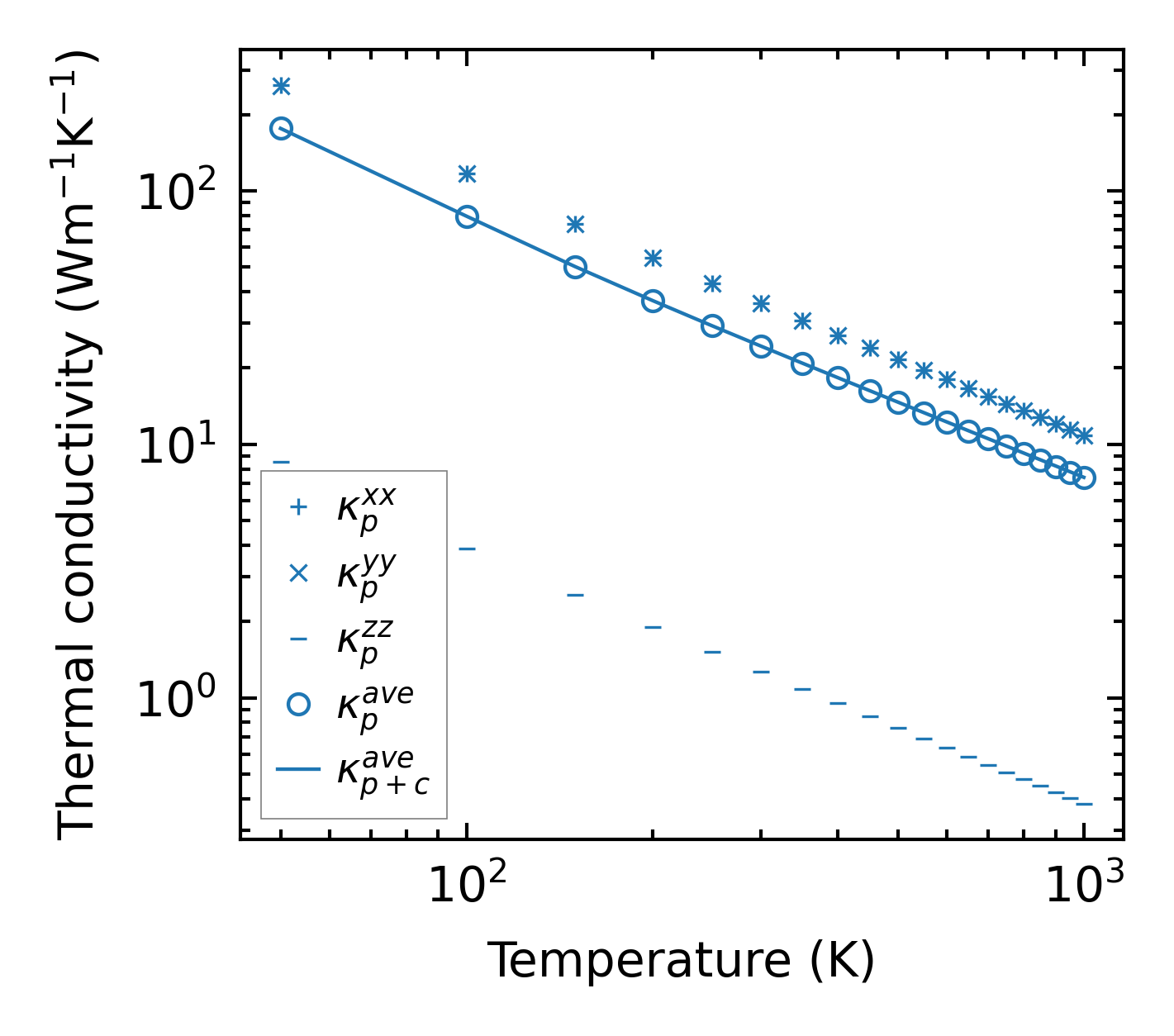

../../_images/fig_kappa308.png — (a) Temperature-dependent lattice thermal conductivity

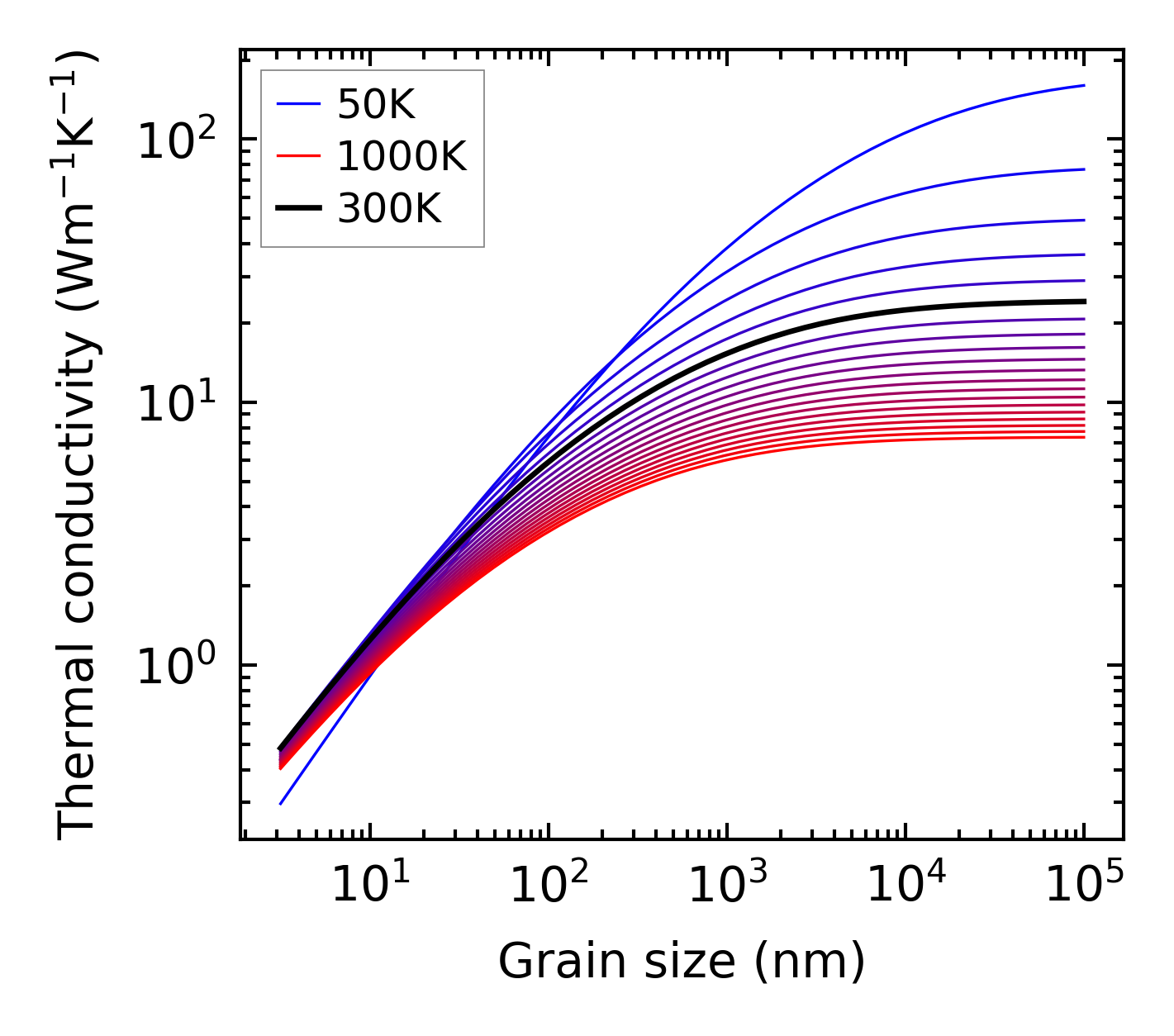

../../_images/fig_kappa_vs_grain_size160.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

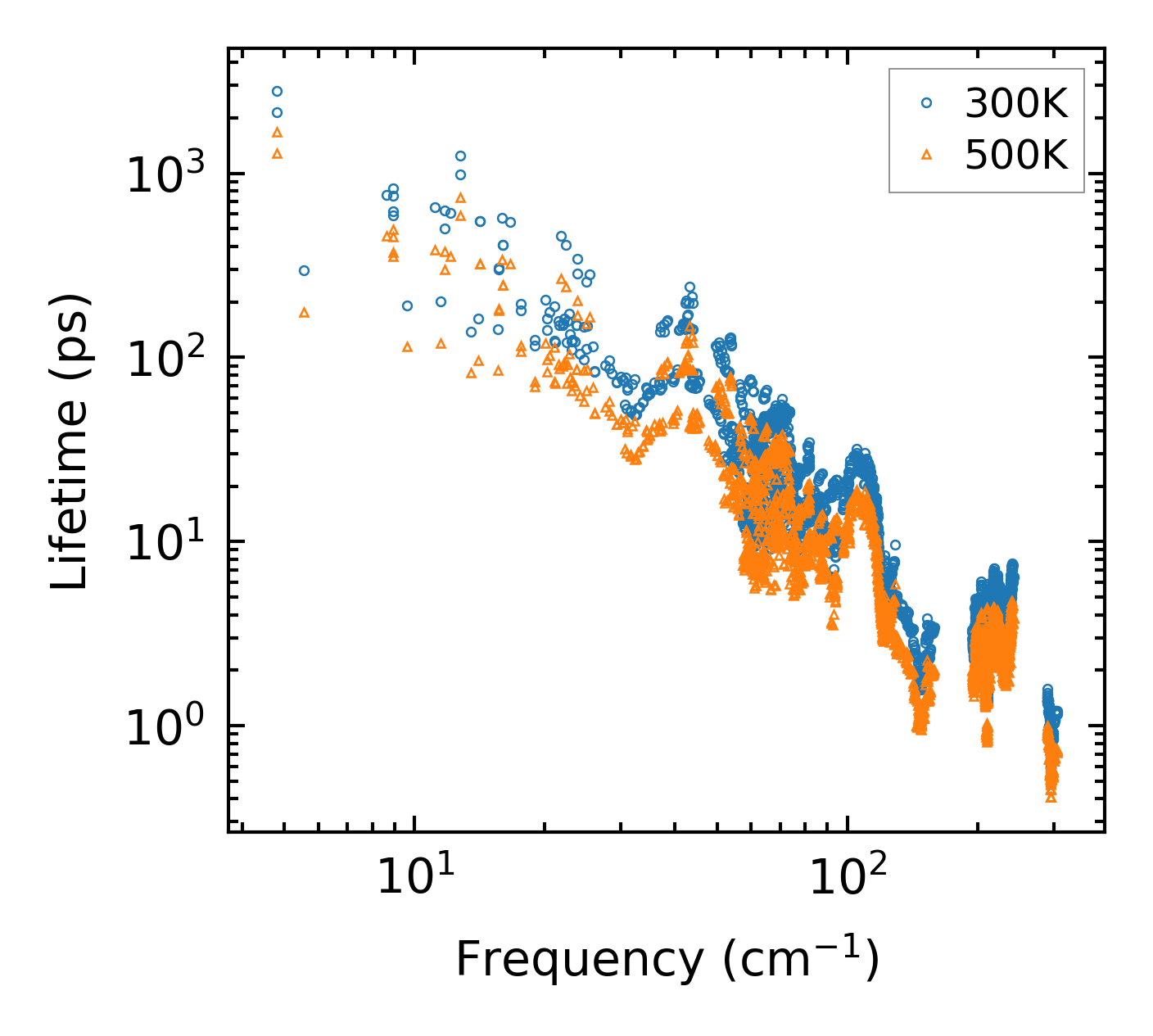

../../_images/fig_lifetime158.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates157.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

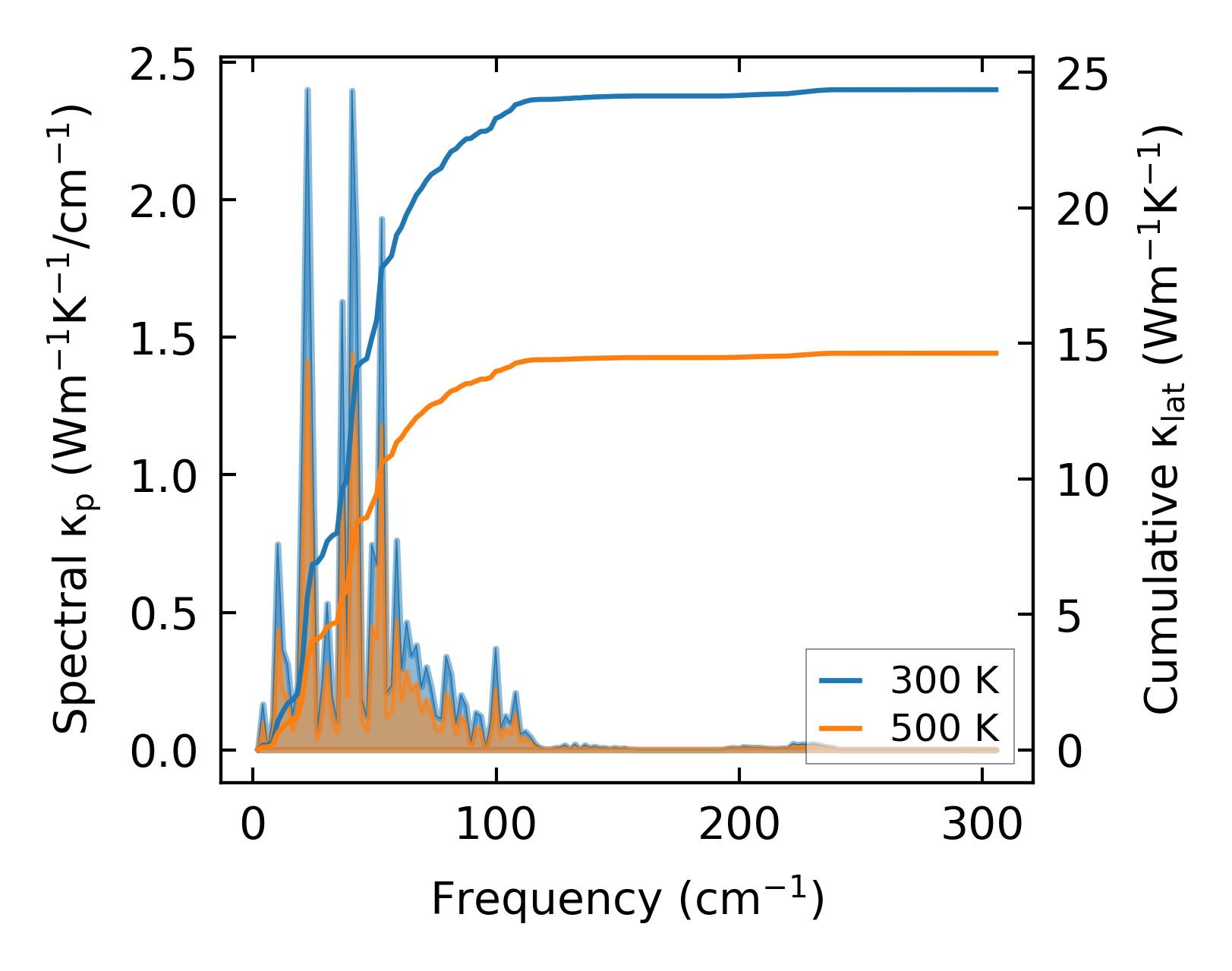

../../_images/fig_cumu_frequency158.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp158.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

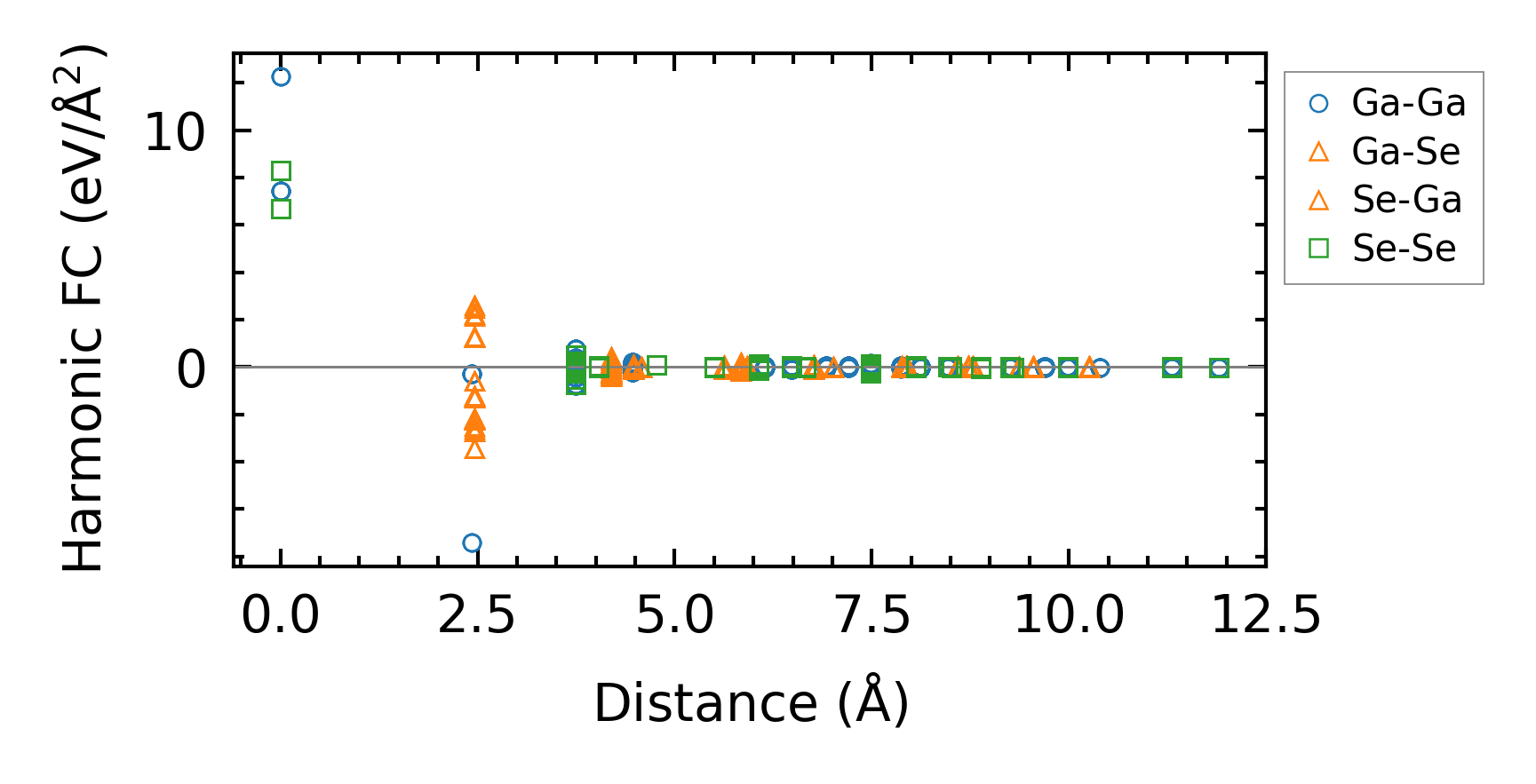

../../_images/fig_fc2216.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa309.png — (a) Temperature-dependent lattice thermal conductivity

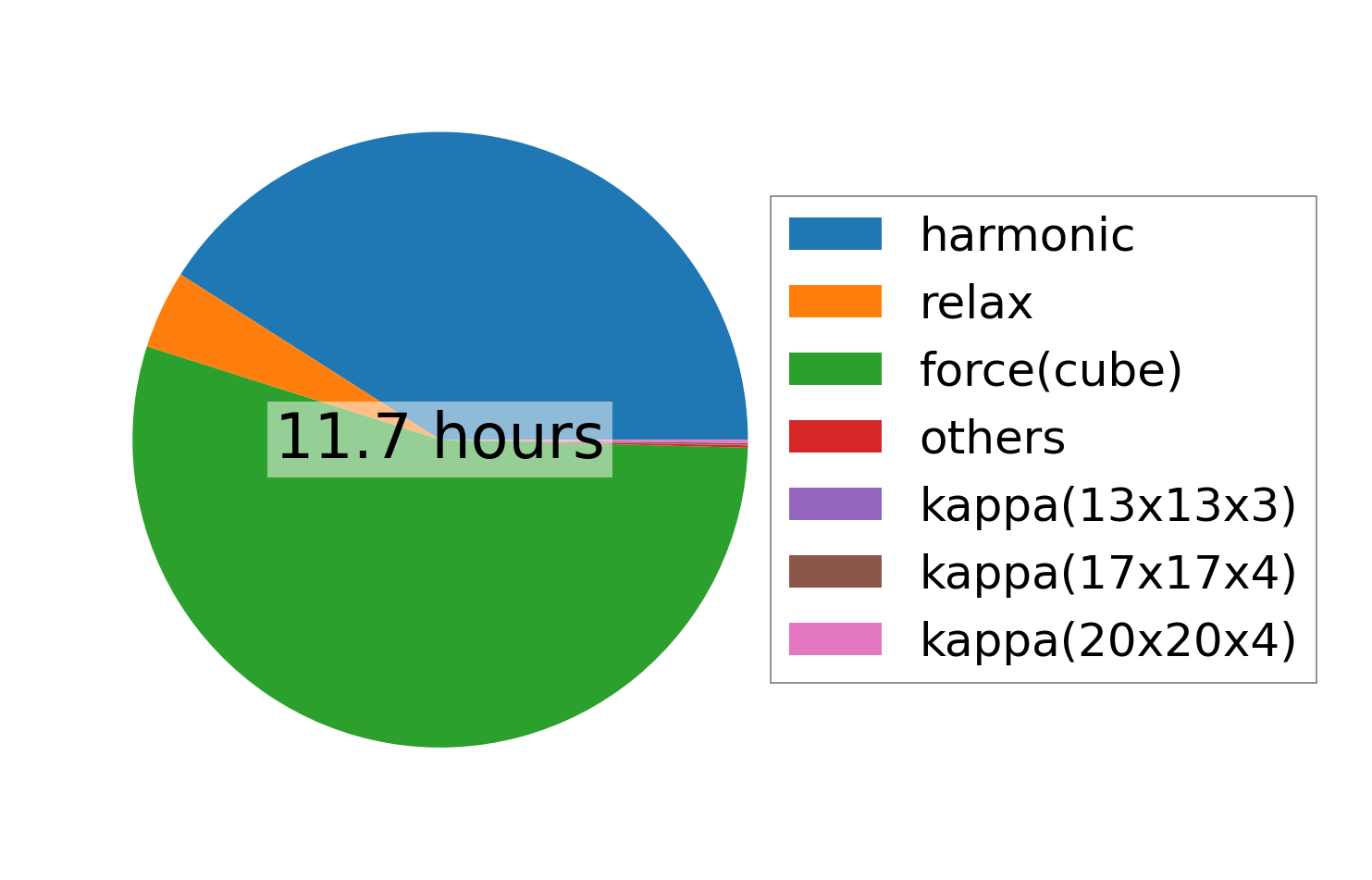

../../_images/fig_times390.png — (b) Computation time
