mp-1224/HgO/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-1224.tar.gz

Harmonic properties

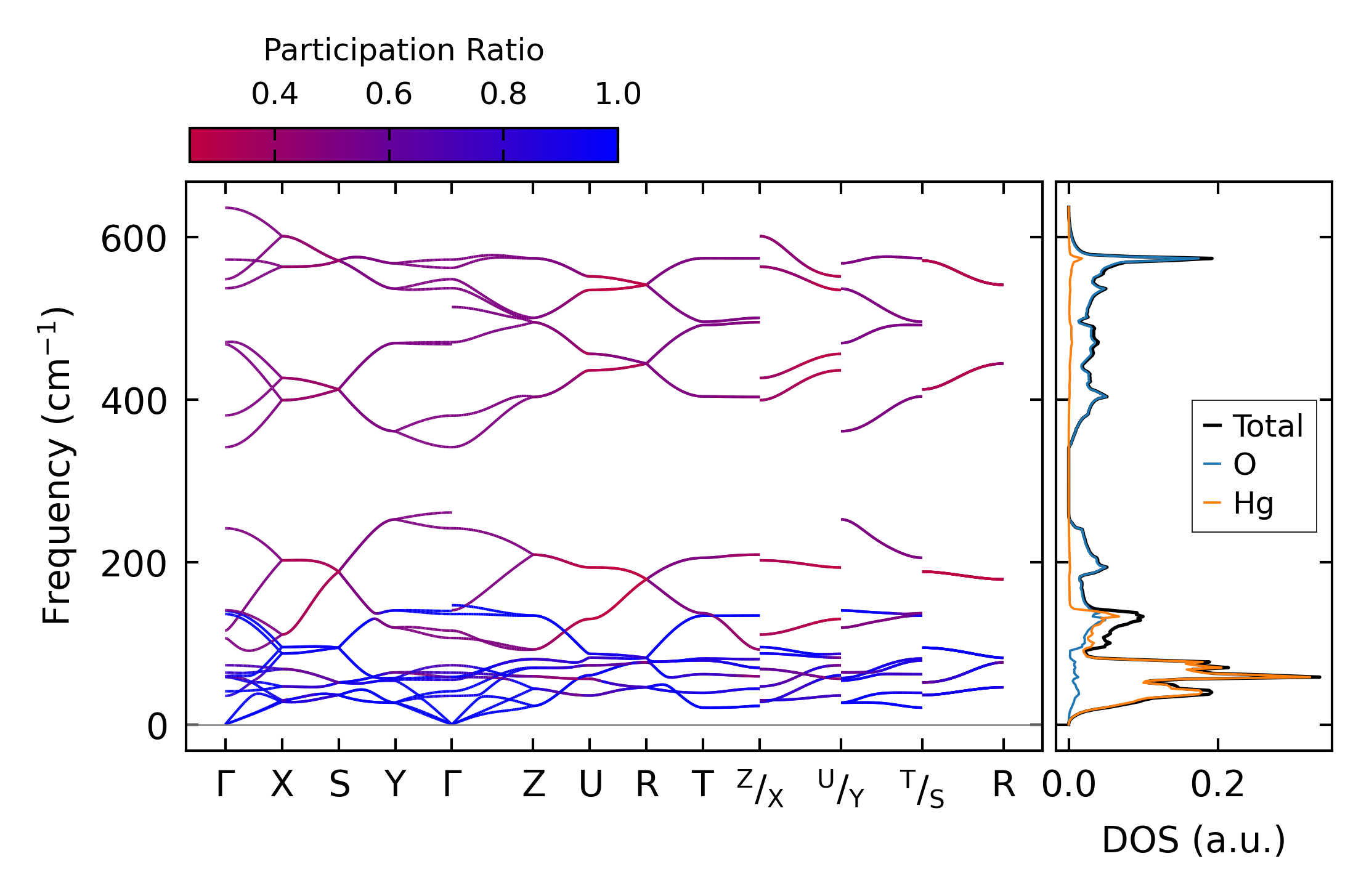

../../_images/fig_bandos_pr733.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo733.png — (b) Thermodynamic properties

Grüneisen parameters

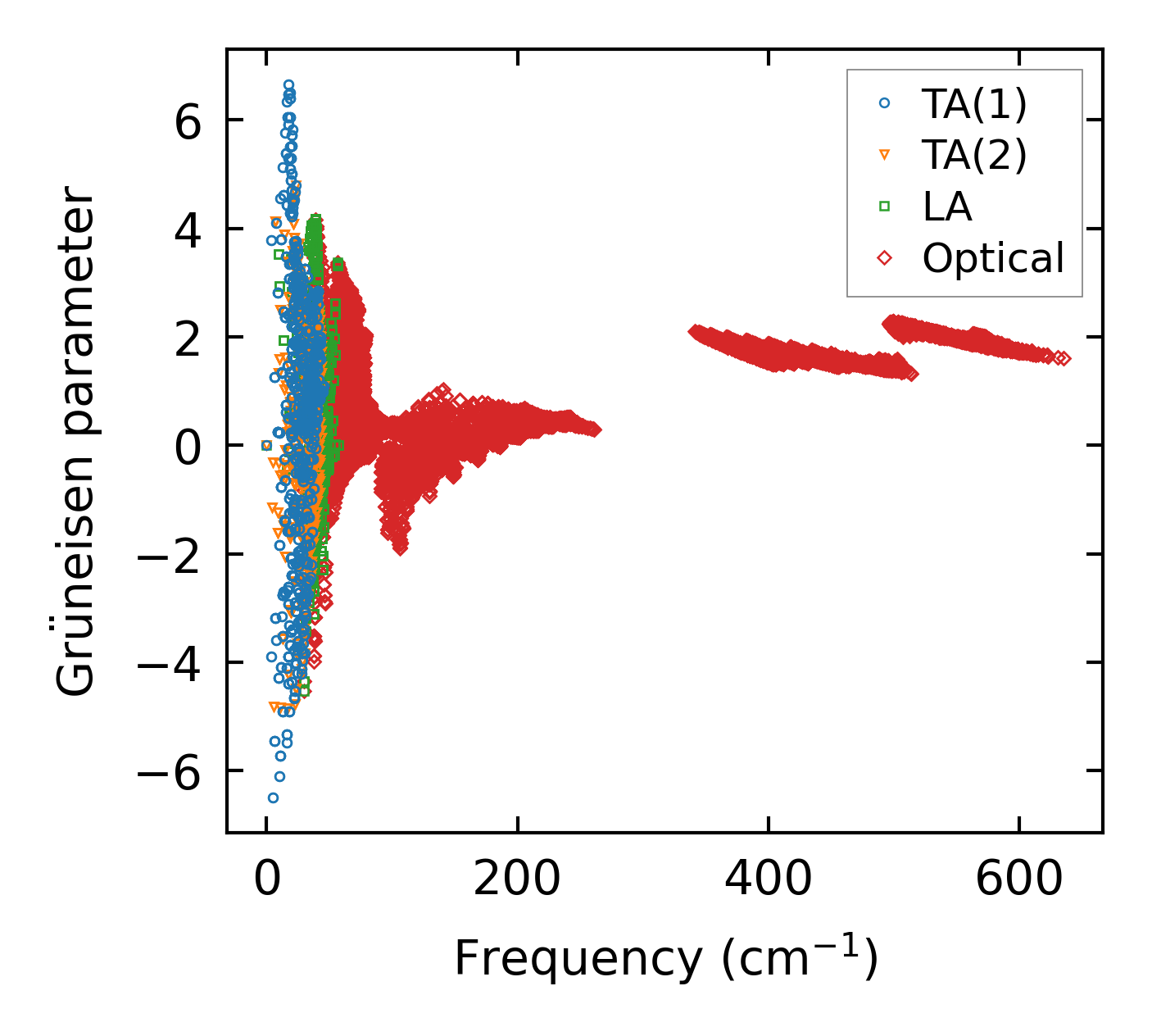

../../_images/fig_gru_all488.png — (a) Grüneisen parameters

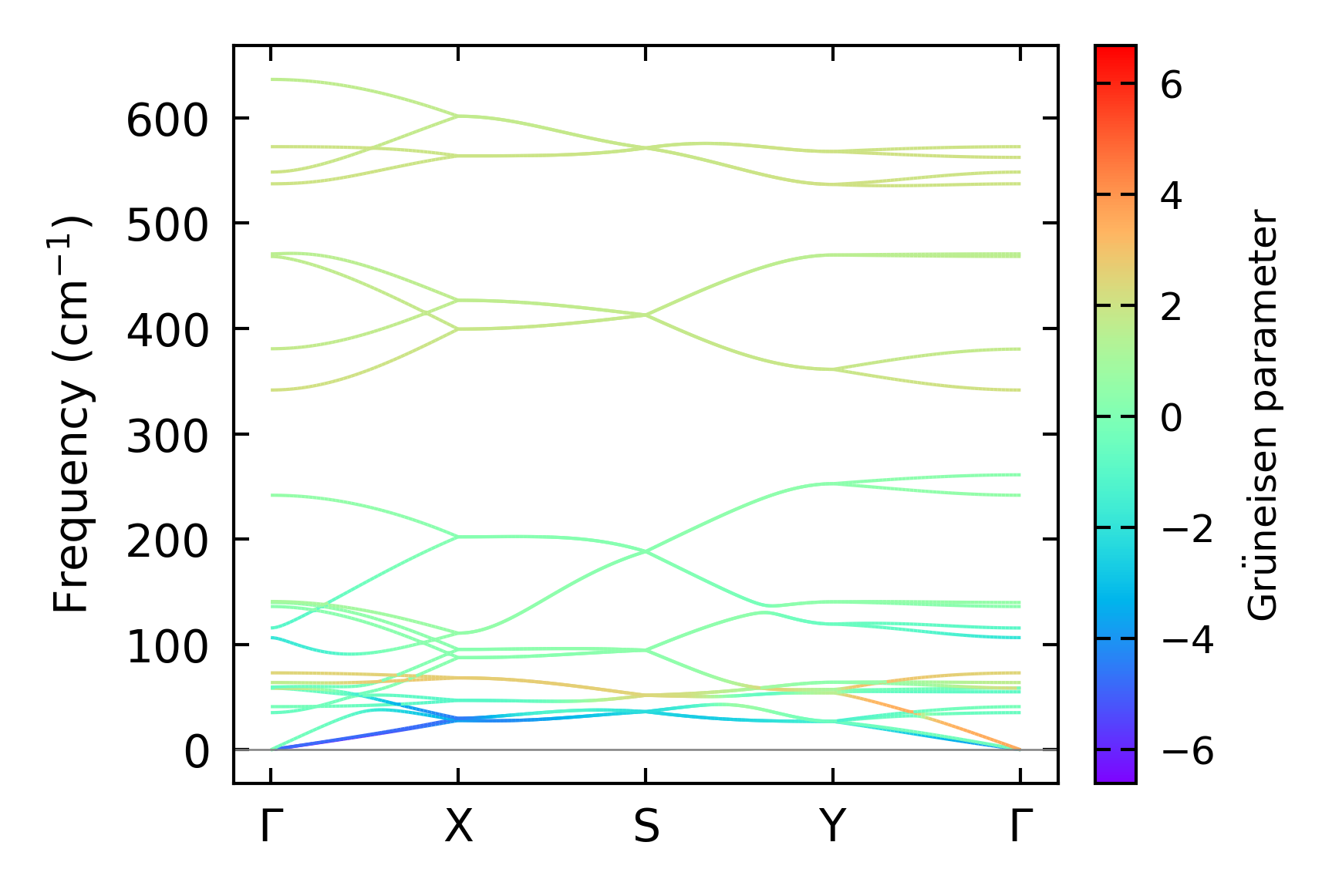

../../_images/fig_gruneisen488.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x13x20, supercell: 2x2x4

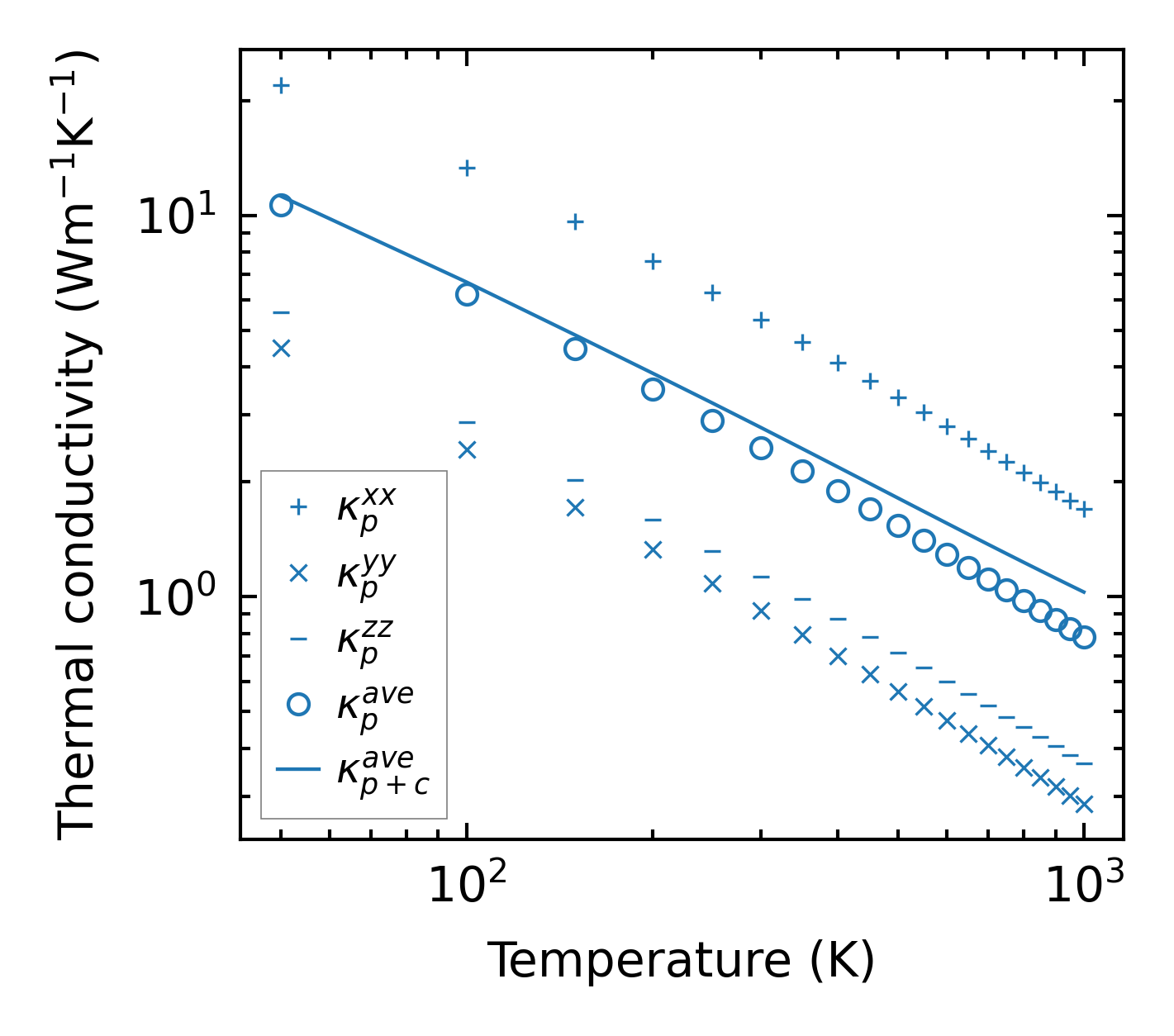

../../_images/fig_kappa949.png — (a) Temperature-dependent lattice thermal conductivity

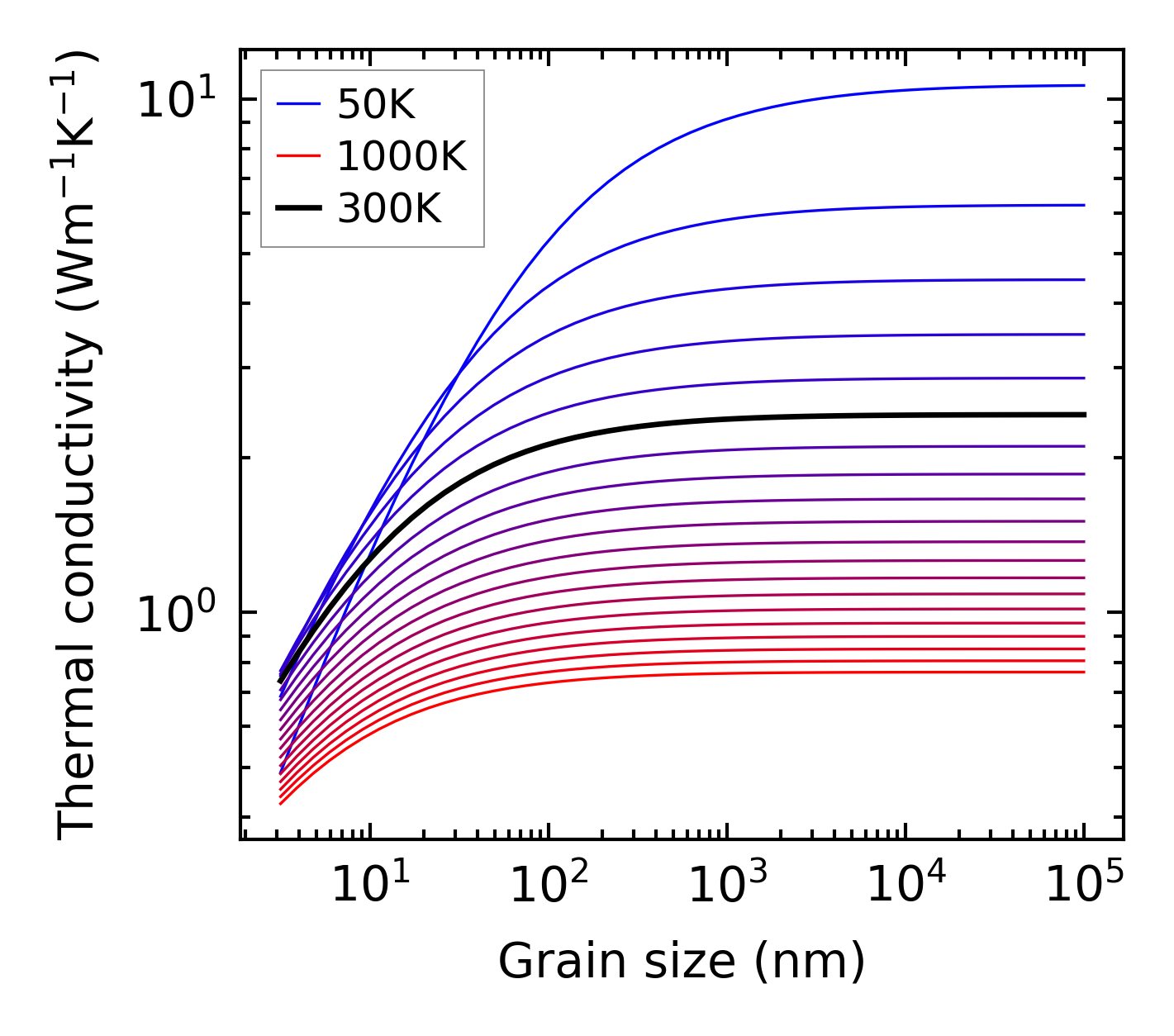

../../_images/fig_kappa_vs_grain_size495.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

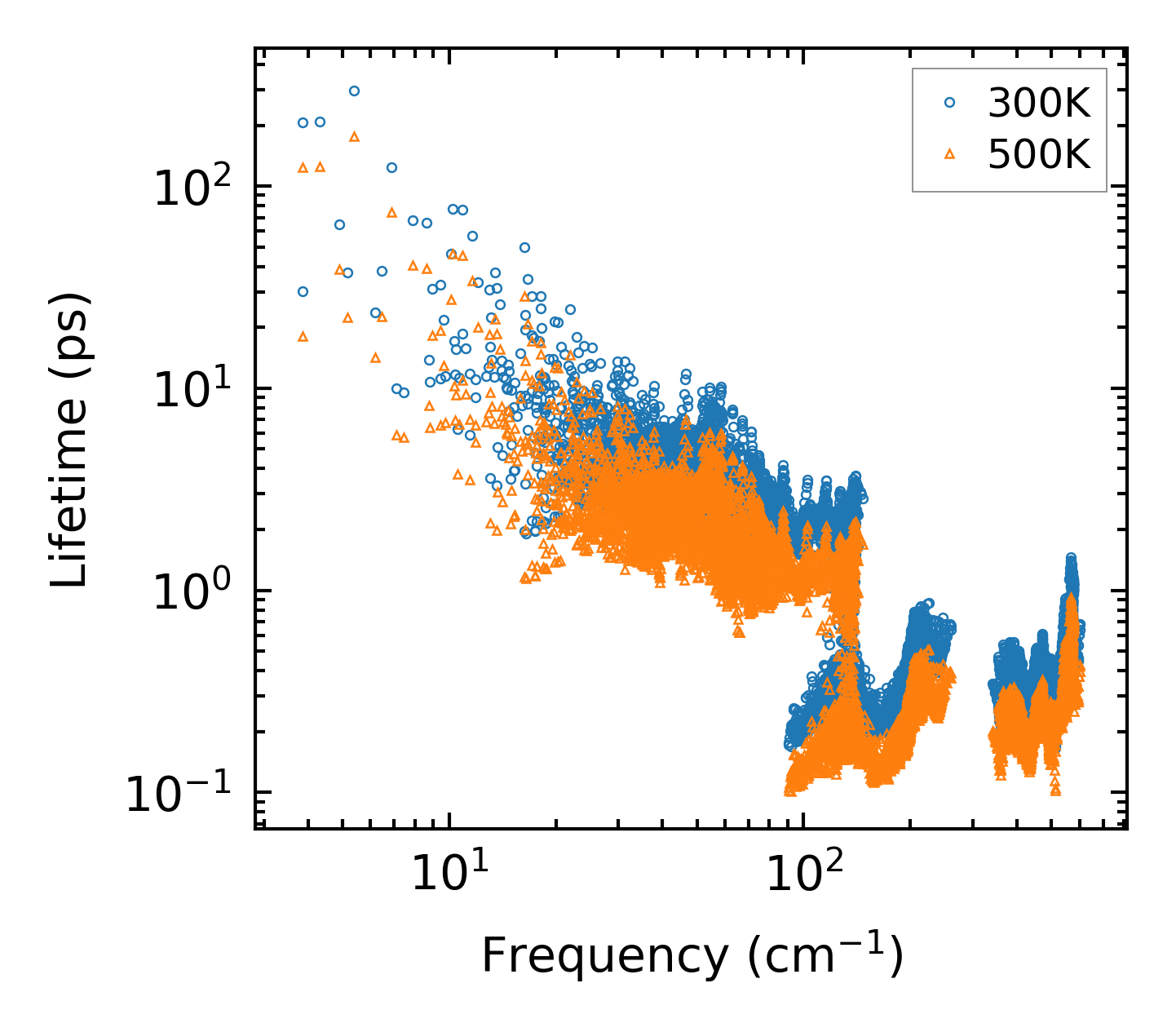

../../_images/fig_lifetime486.png — (a) Phonon lifetime due to phonon-phonon scattering

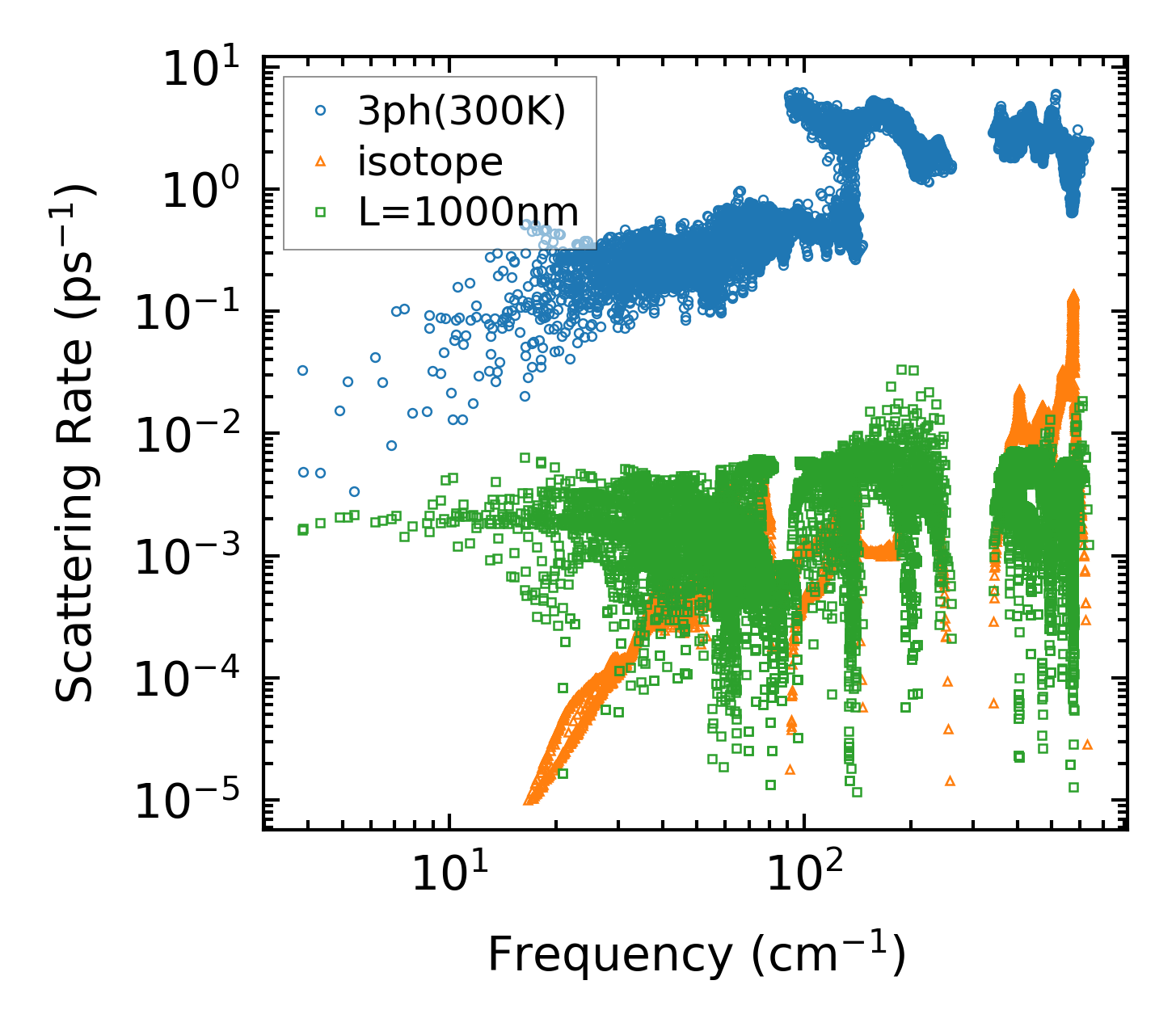

../../_images/fig_scat_rates485.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

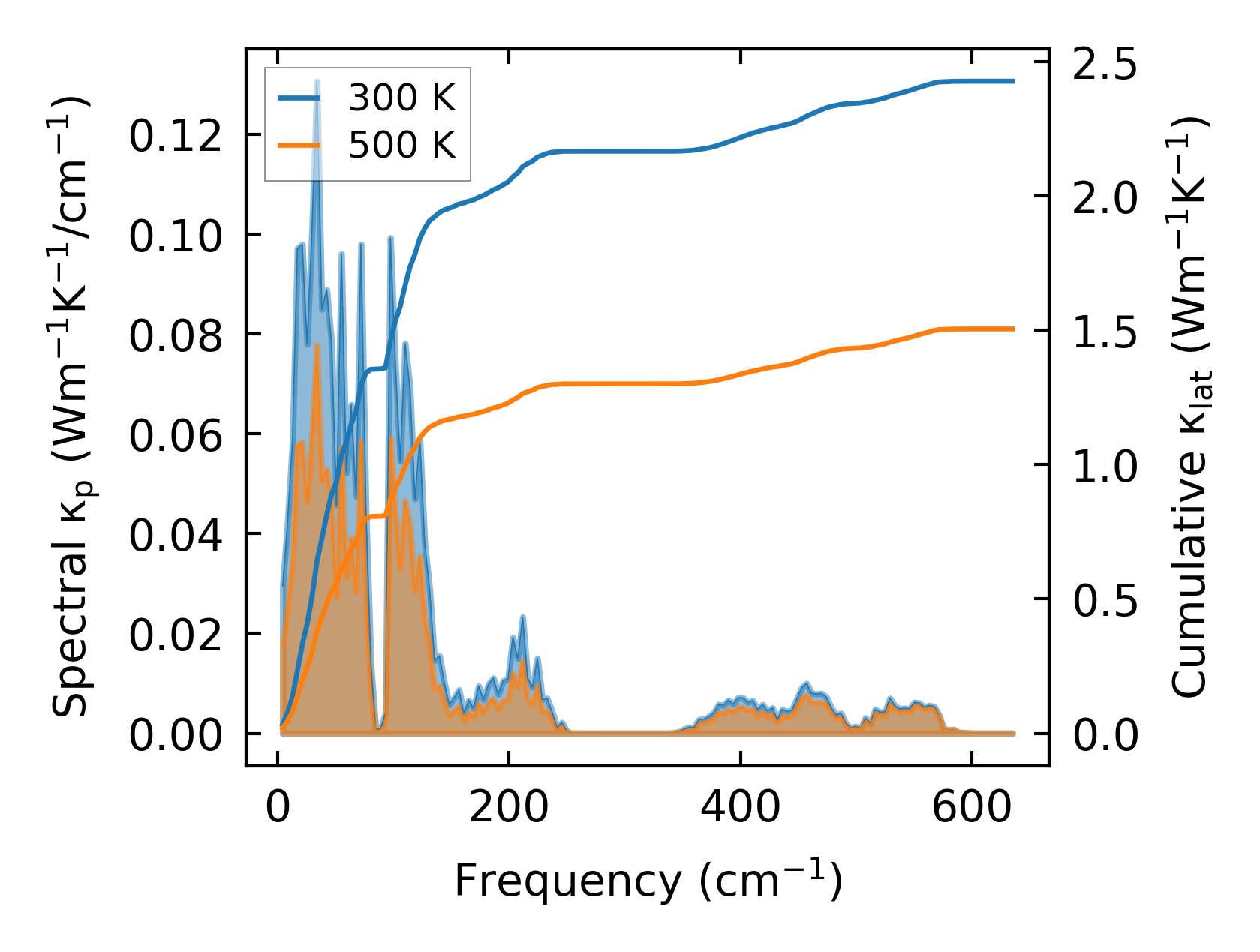

../../_images/fig_cumu_frequency486.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

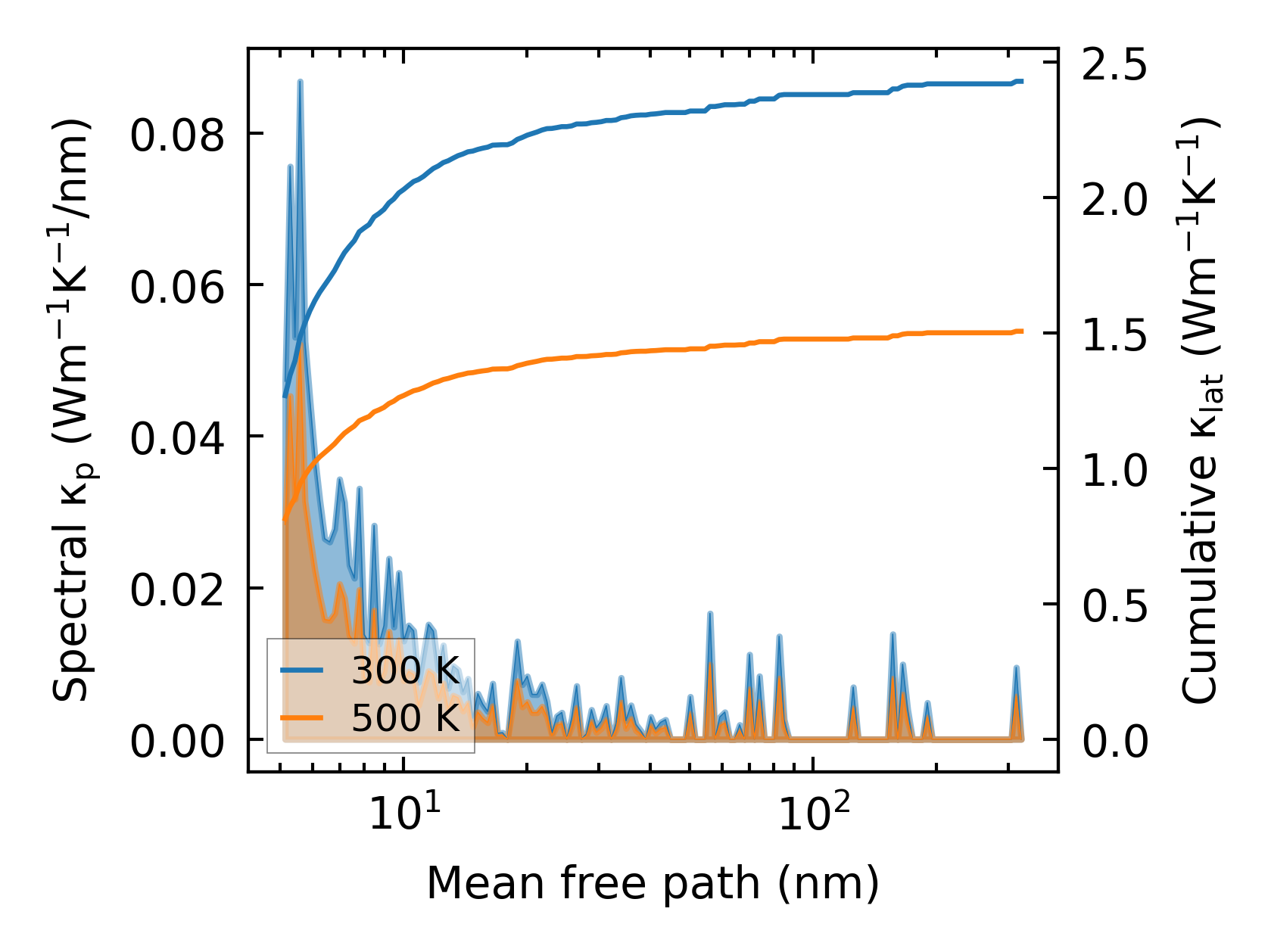

../../_images/fig_cumu_mfp486.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

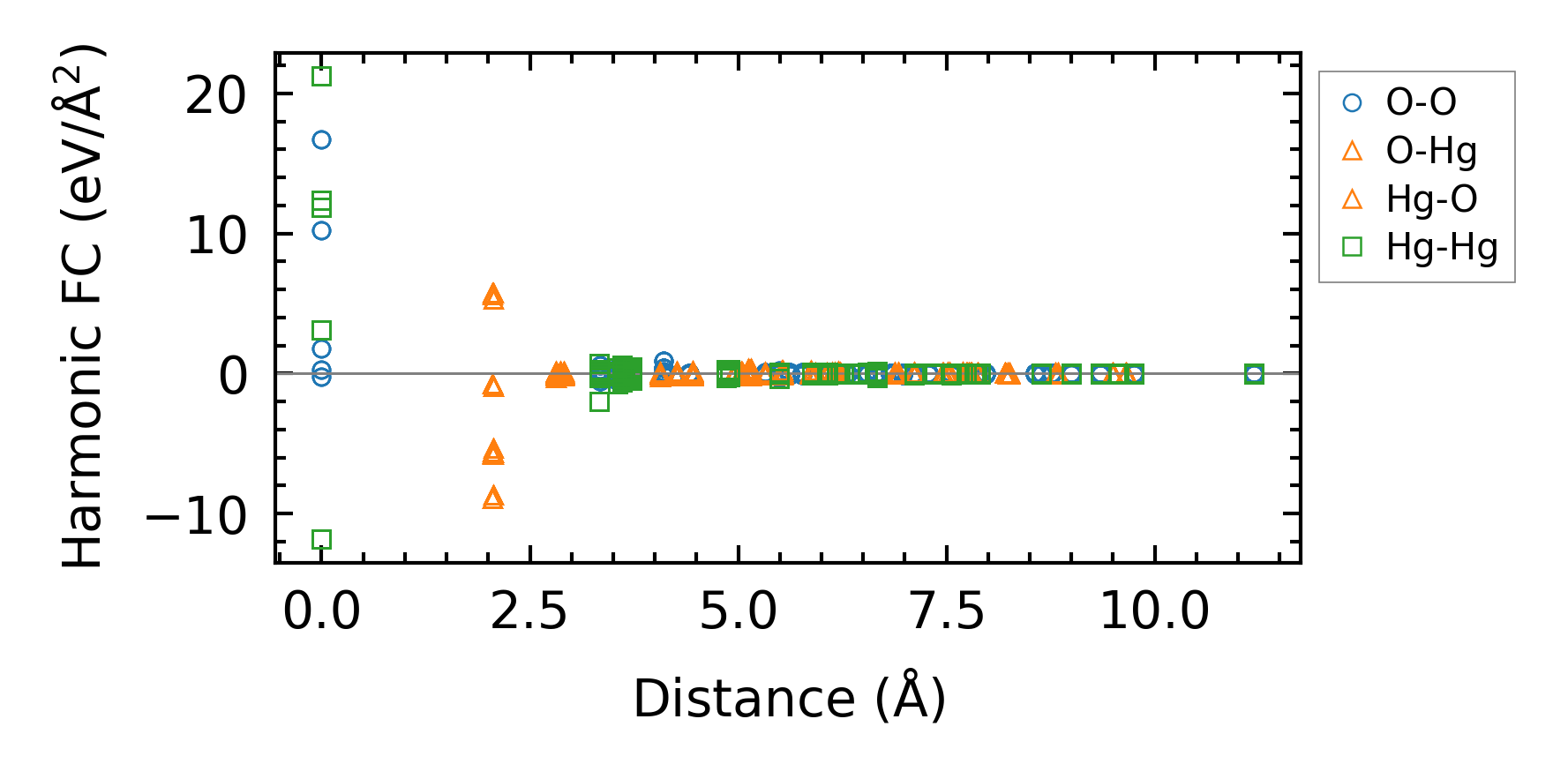

../../_images/fig_fc2637.png — (a) Force constants w.r.t atomic distance

Summary

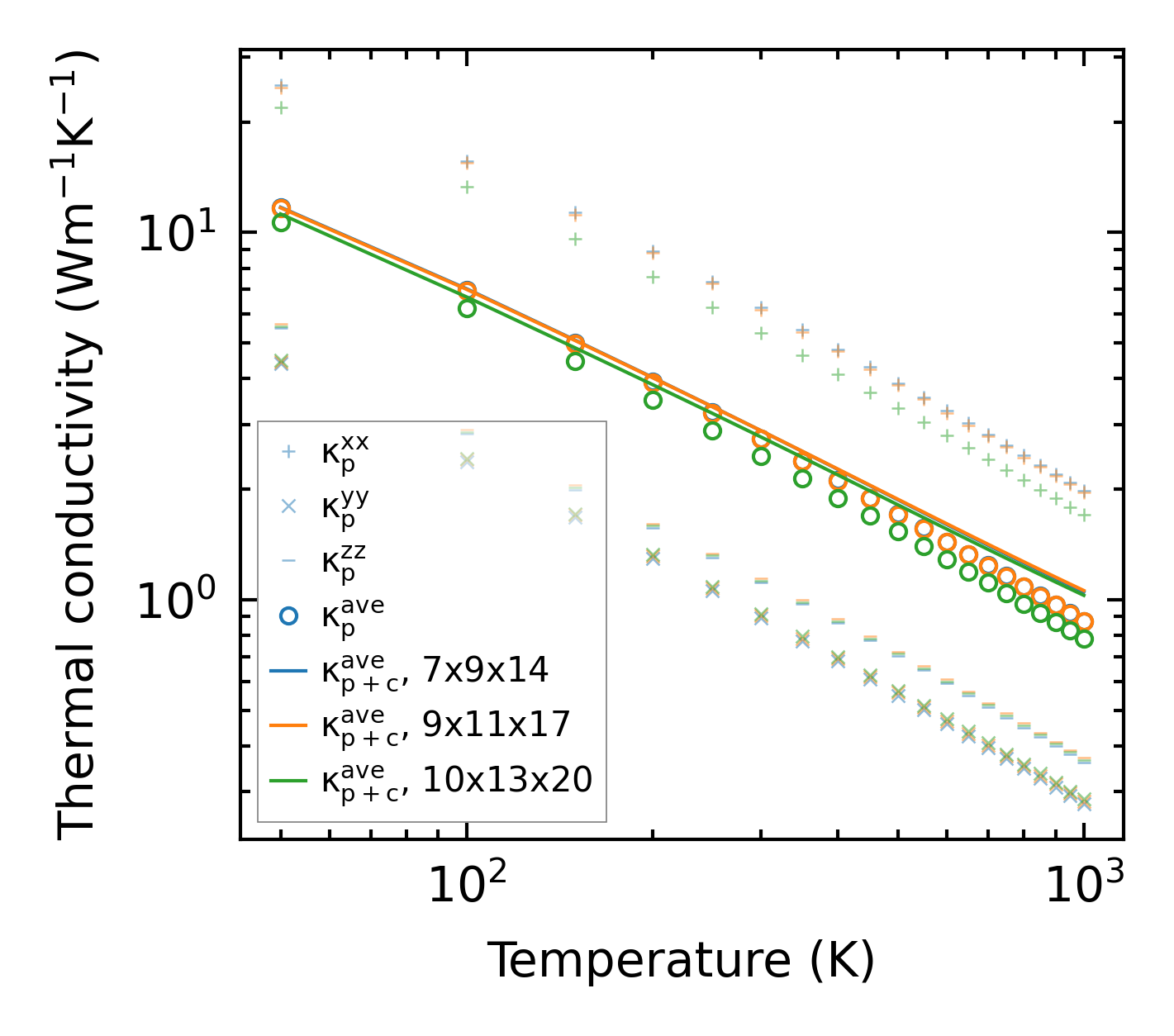

../../_images/fig_kappa950.png — (a) Temperature-dependent lattice thermal conductivity

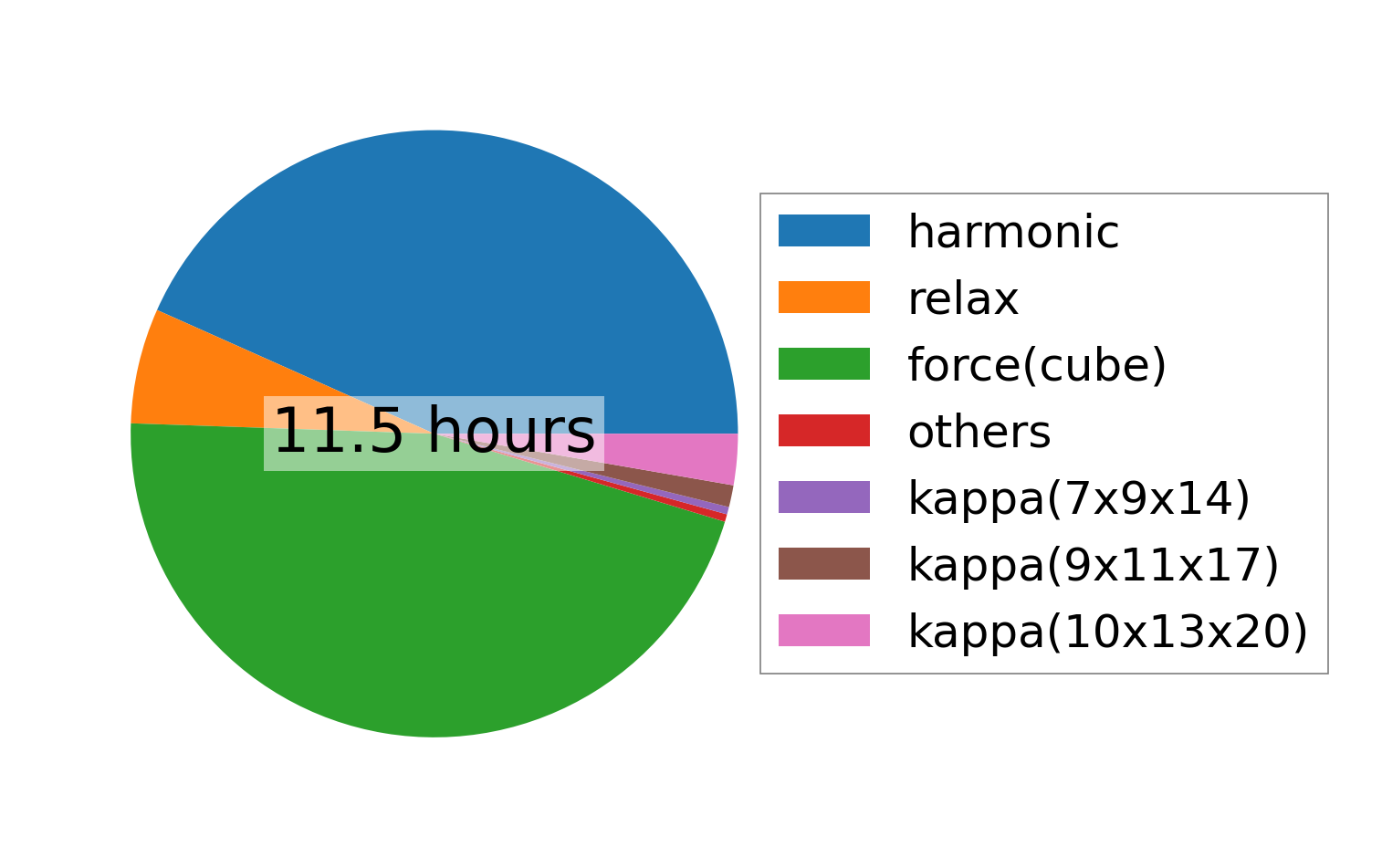

../../_images/fig_times1041.png — (b) Computation time
