mp-1186-2/ZrS2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-1186-2.tar.gz

Harmonic properties

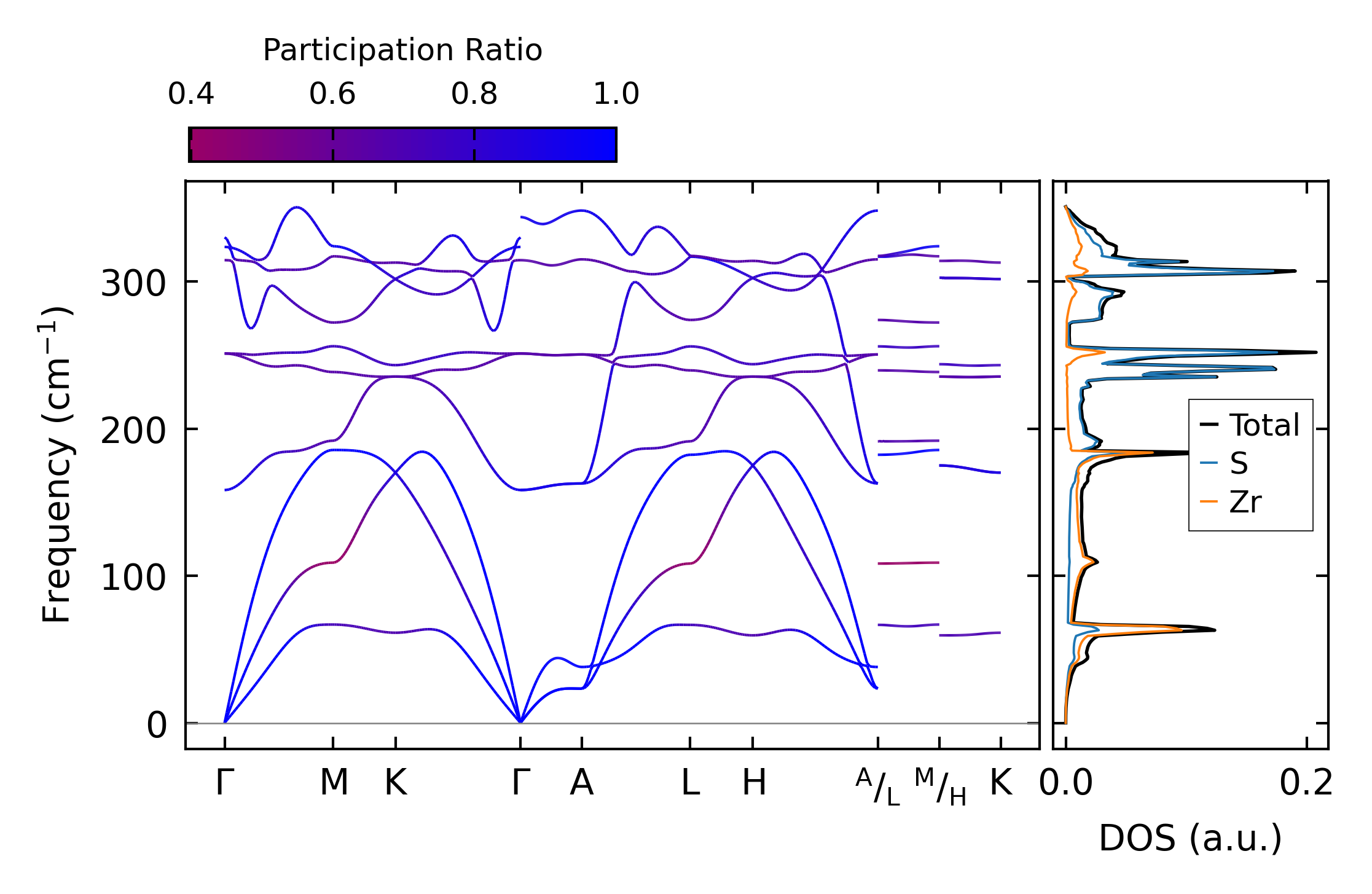

../../_images/fig_bandos_pr725.png — (a) Phonon dispersion with participation ratio and DOS

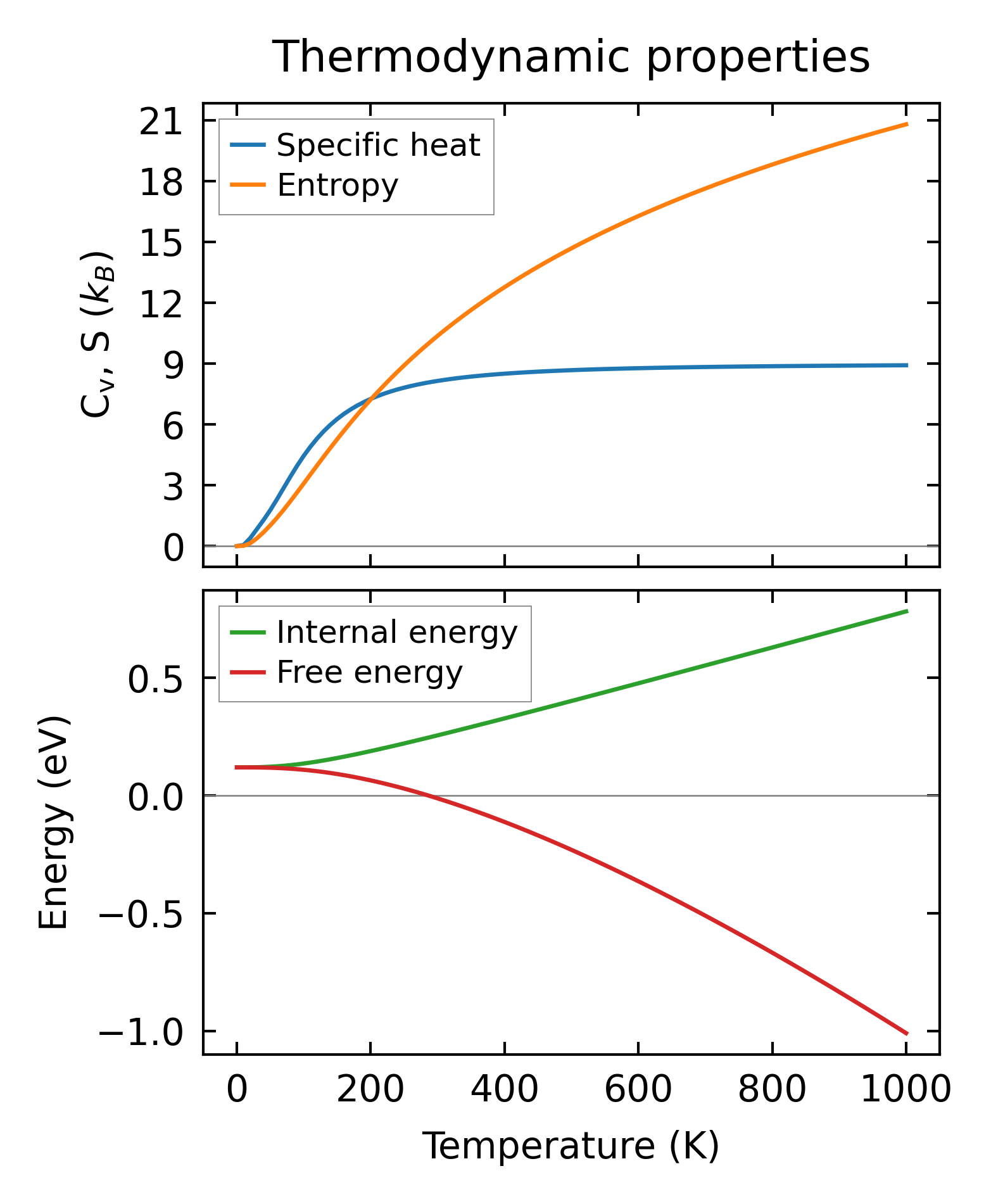

../../_images/fig_thermo725.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all483.png — (a) Grüneisen parameters

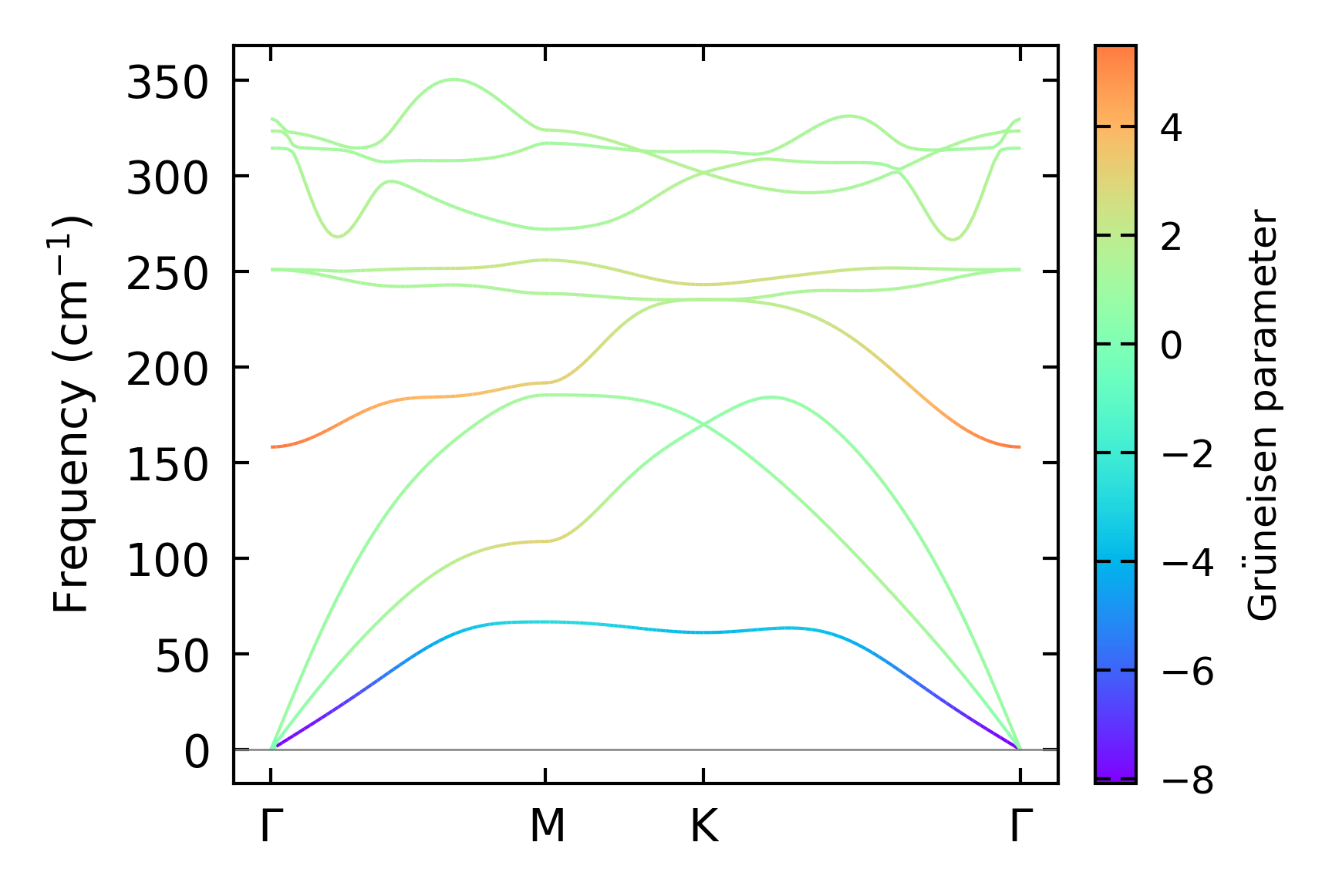

../../_images/fig_gruneisen483.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 20x20x12, supercell: 4x4x3

../../_images/fig_kappa939.png — (a) Temperature-dependent lattice thermal conductivity

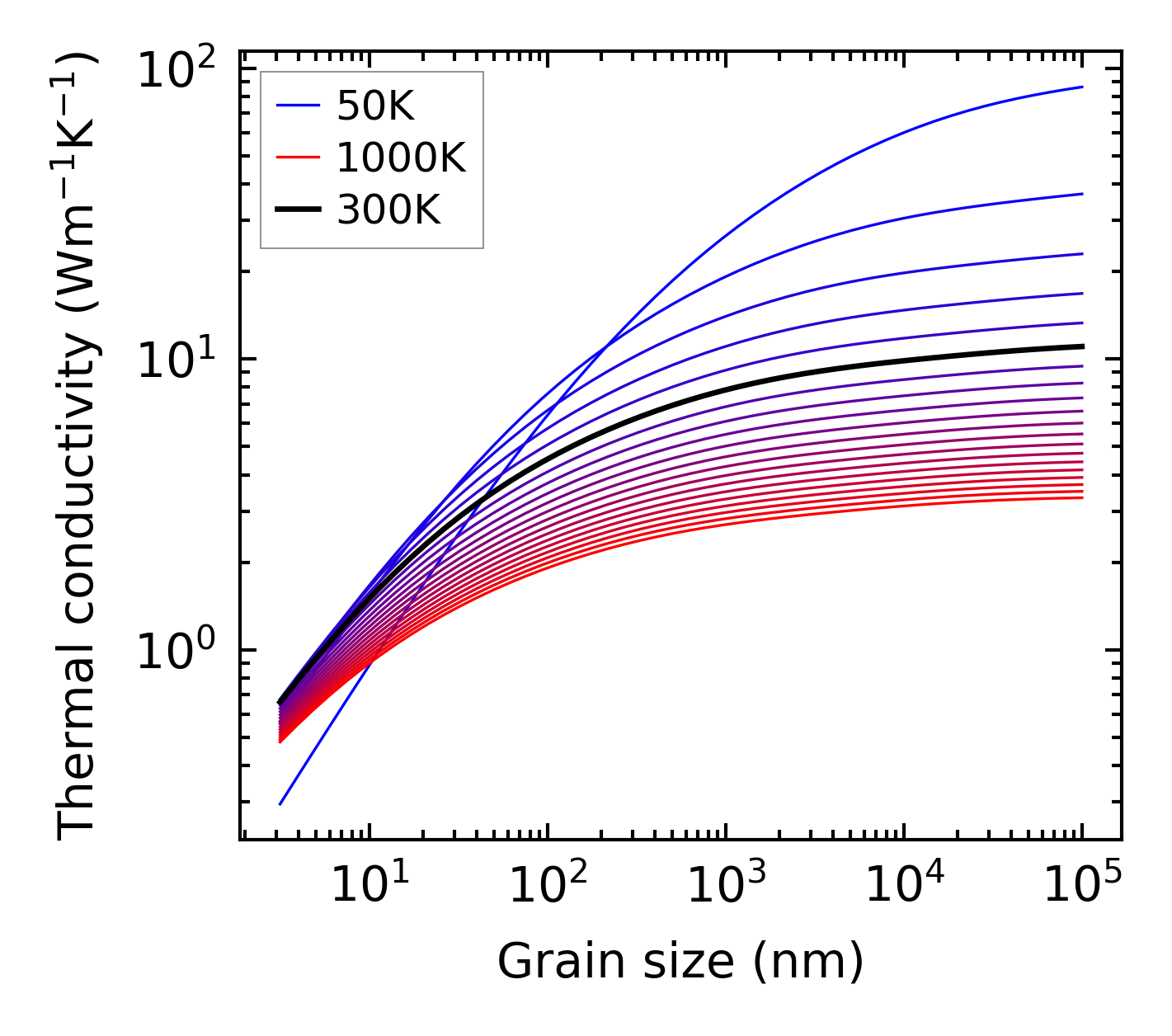

../../_images/fig_kappa_vs_grain_size490.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime481.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates480.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

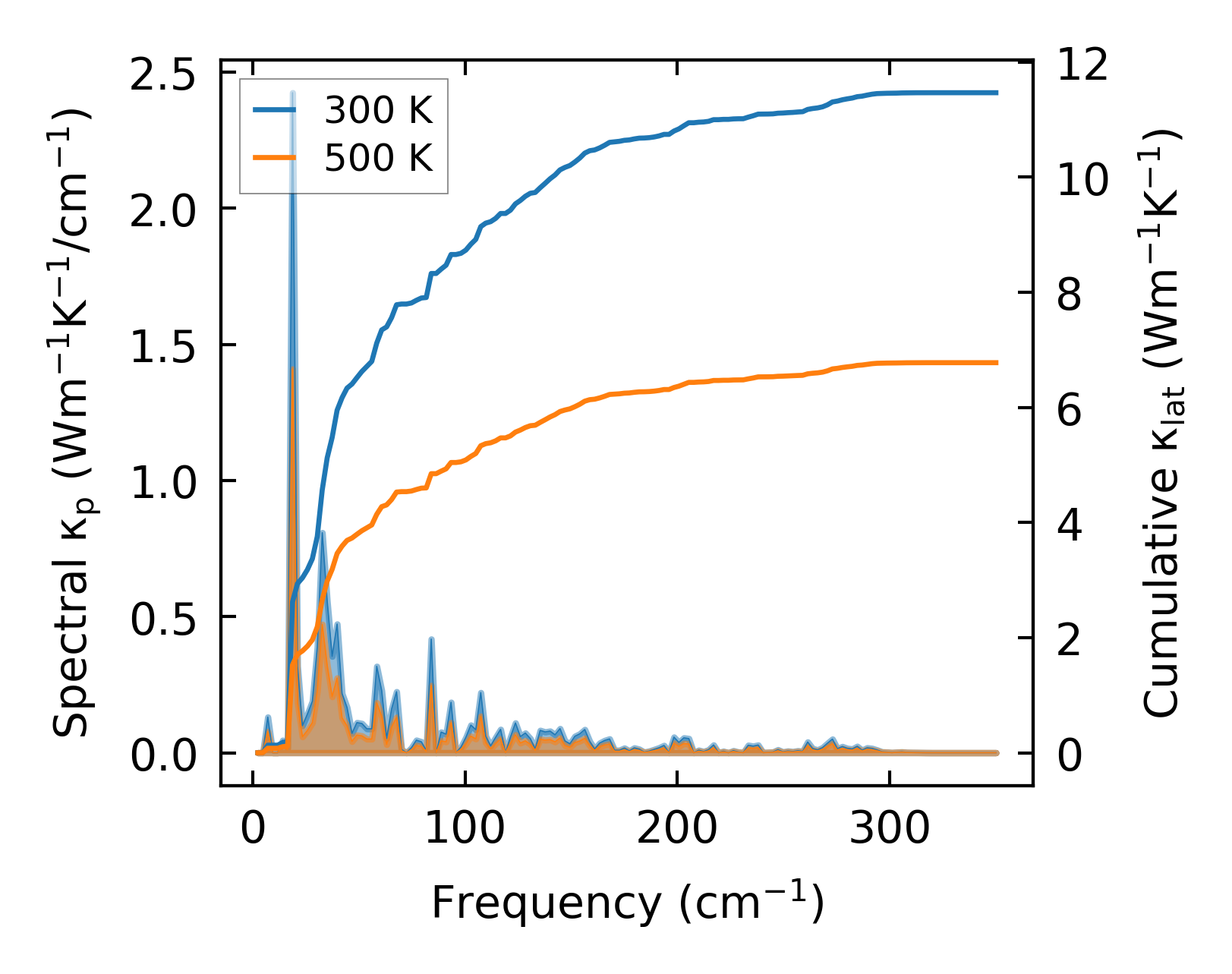

../../_images/fig_cumu_frequency481.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

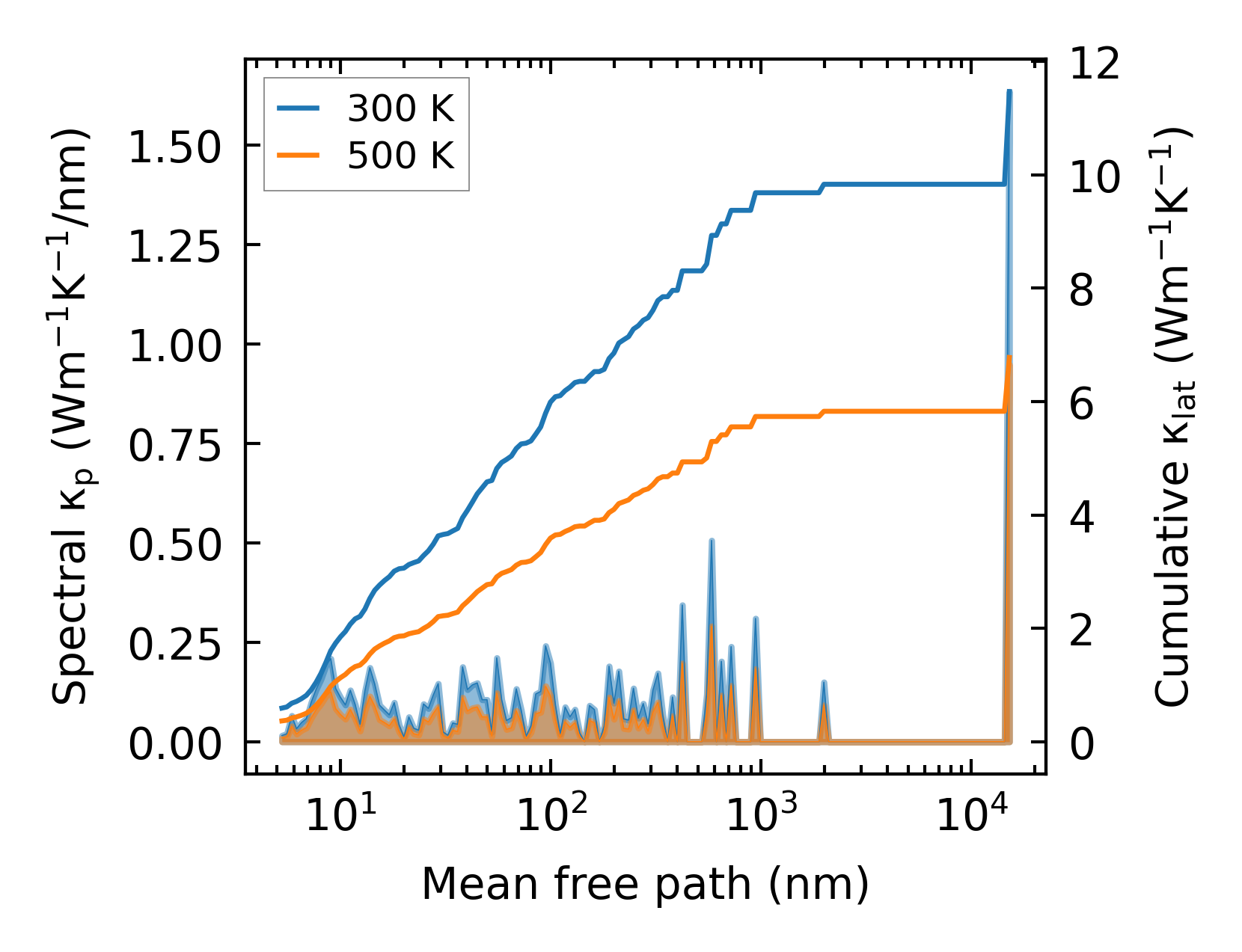

../../_images/fig_cumu_mfp481.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2631.png — (a) Force constants w.r.t atomic distance

Summary

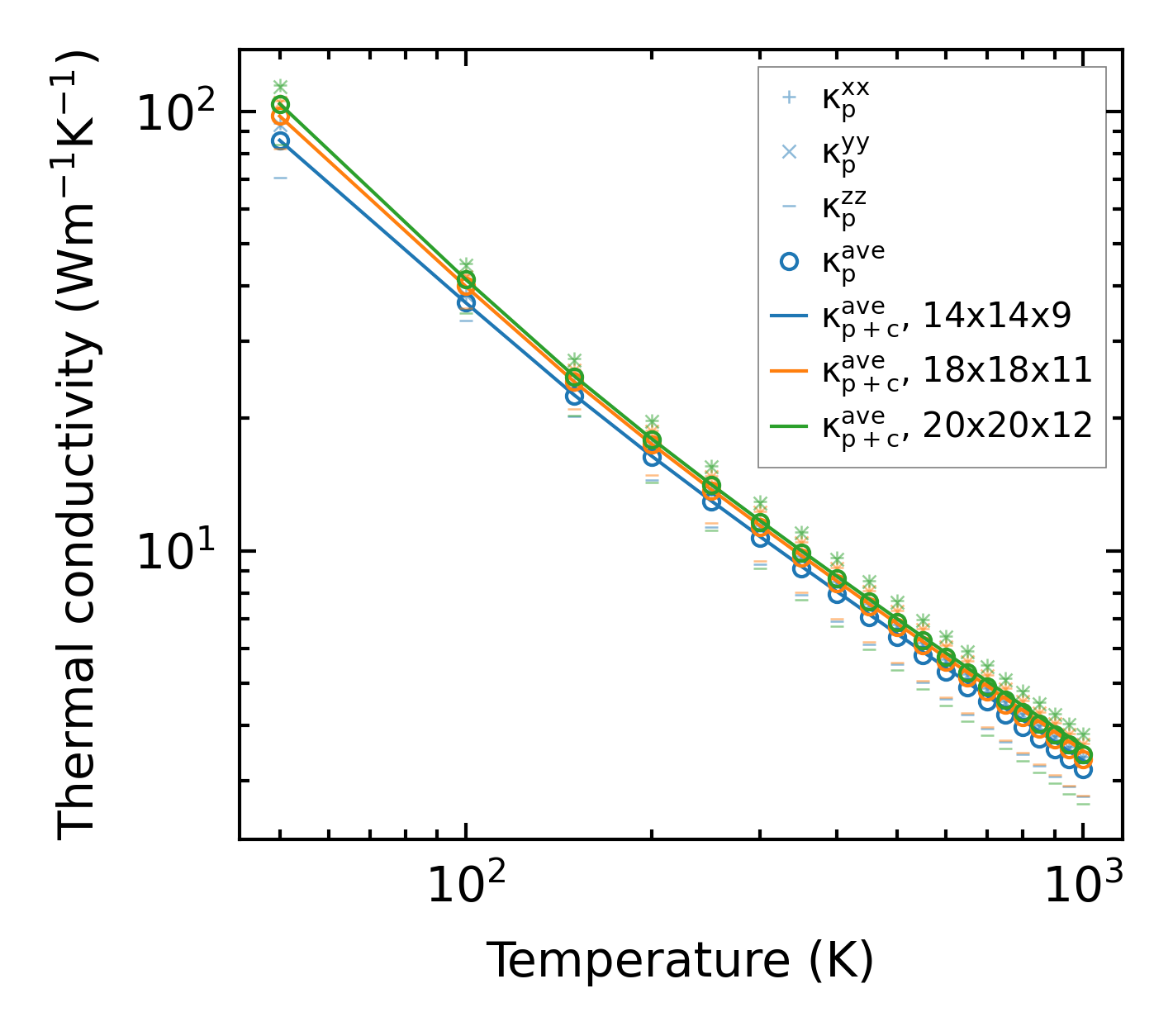

../../_images/fig_kappa940.png — (a) Temperature-dependent lattice thermal conductivity

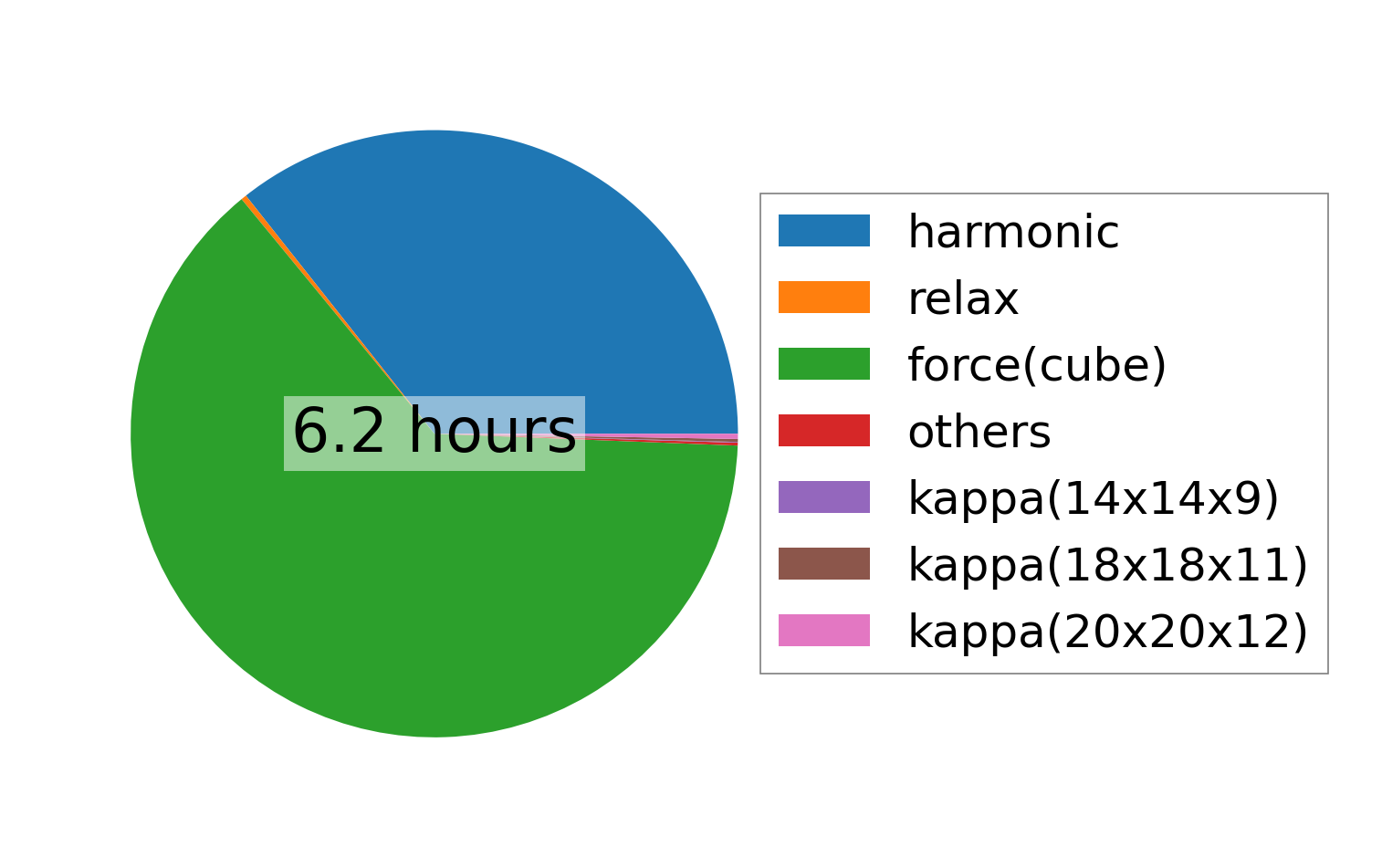

../../_images/fig_times1032.png — (b) Computation time
