mp-1569/Be2C/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-1569.tar.gz

Harmonic properties

../../_images/fig_bandos_pr192.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo192.png — (b) Thermodynamic properties

Grüneisen parameters

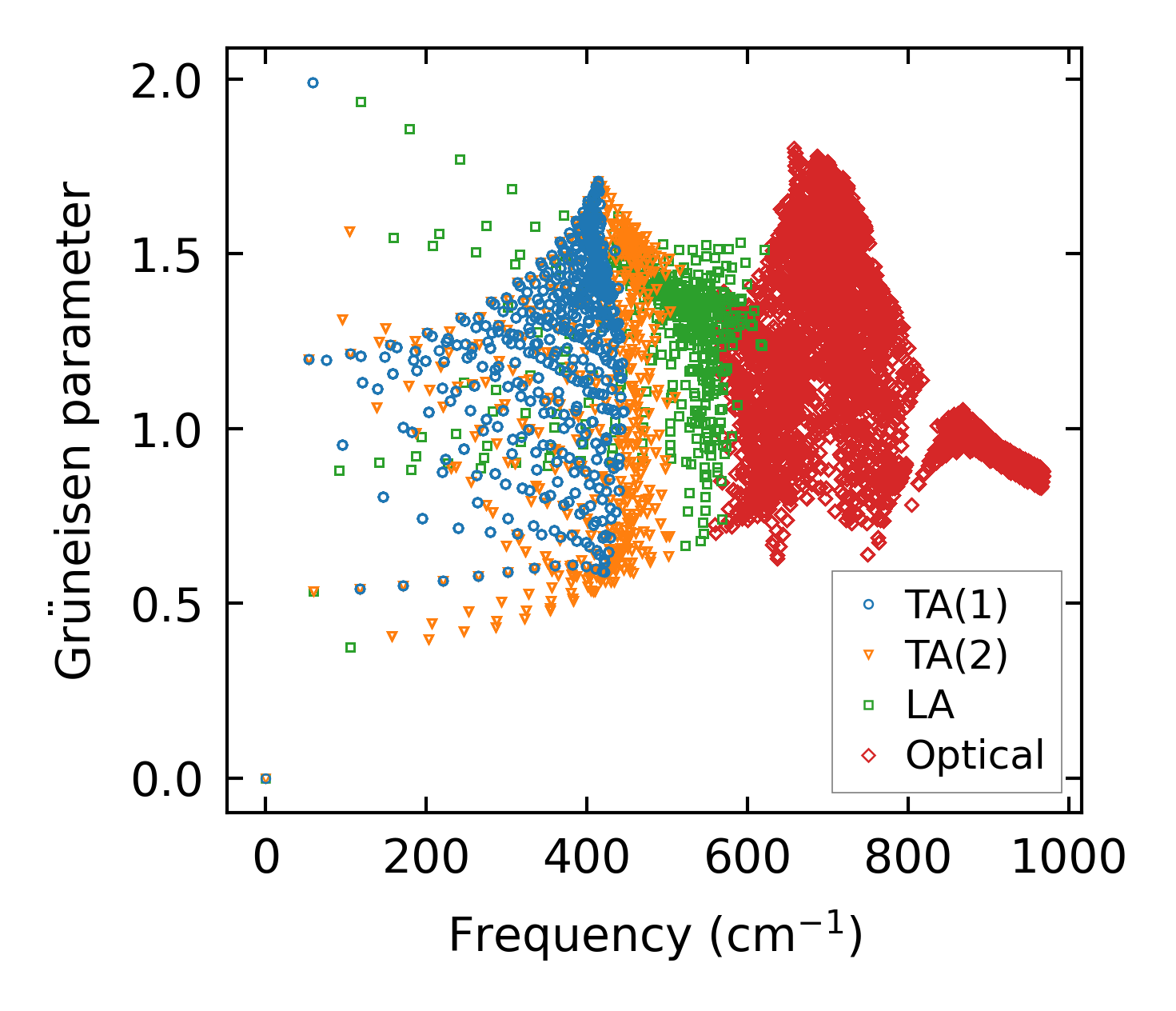

../../_images/fig_gru_all126.png — (a) Grüneisen parameters

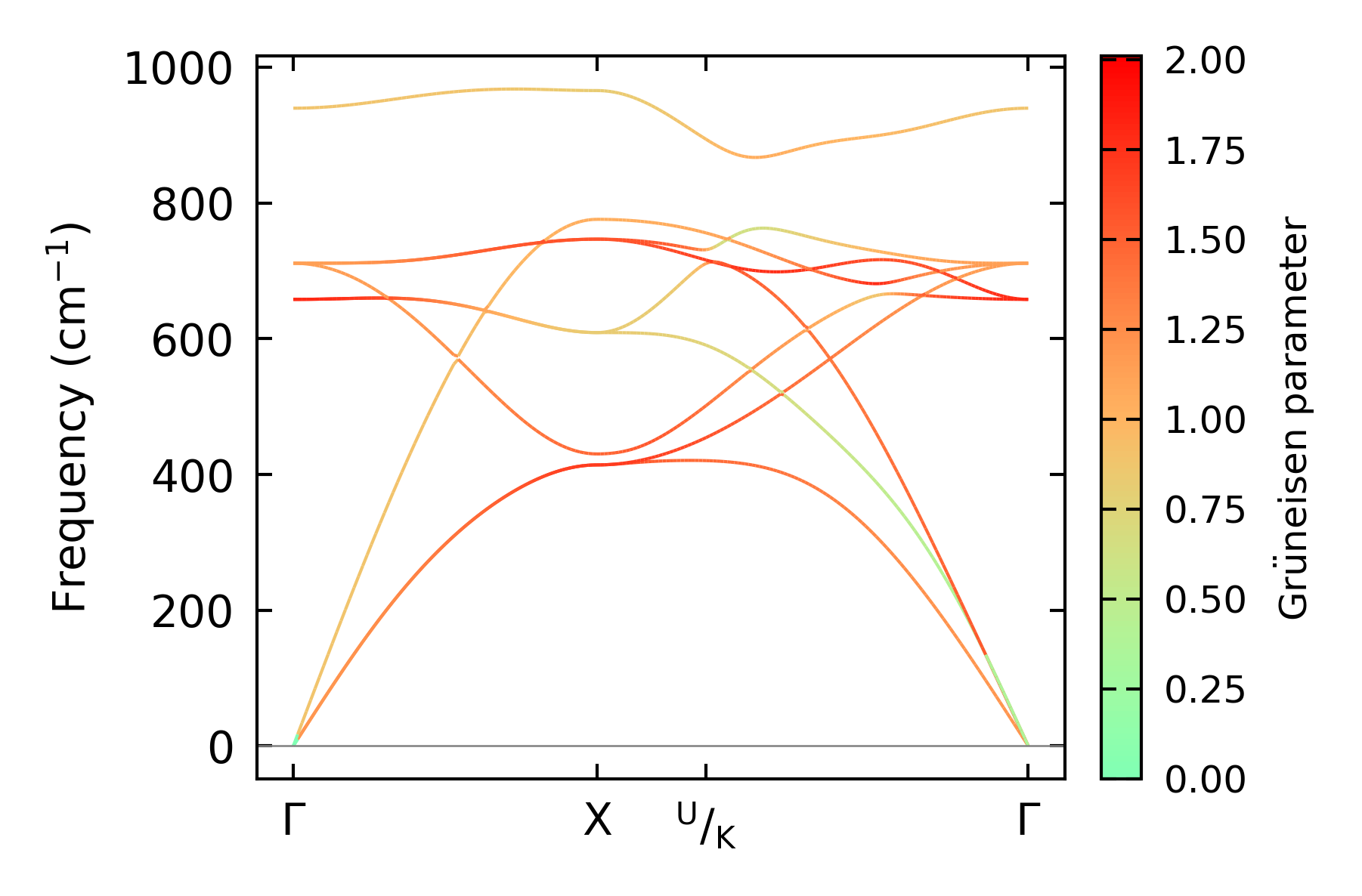

../../_images/fig_gruneisen126.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 26x26x26, supercell: 2x2x2

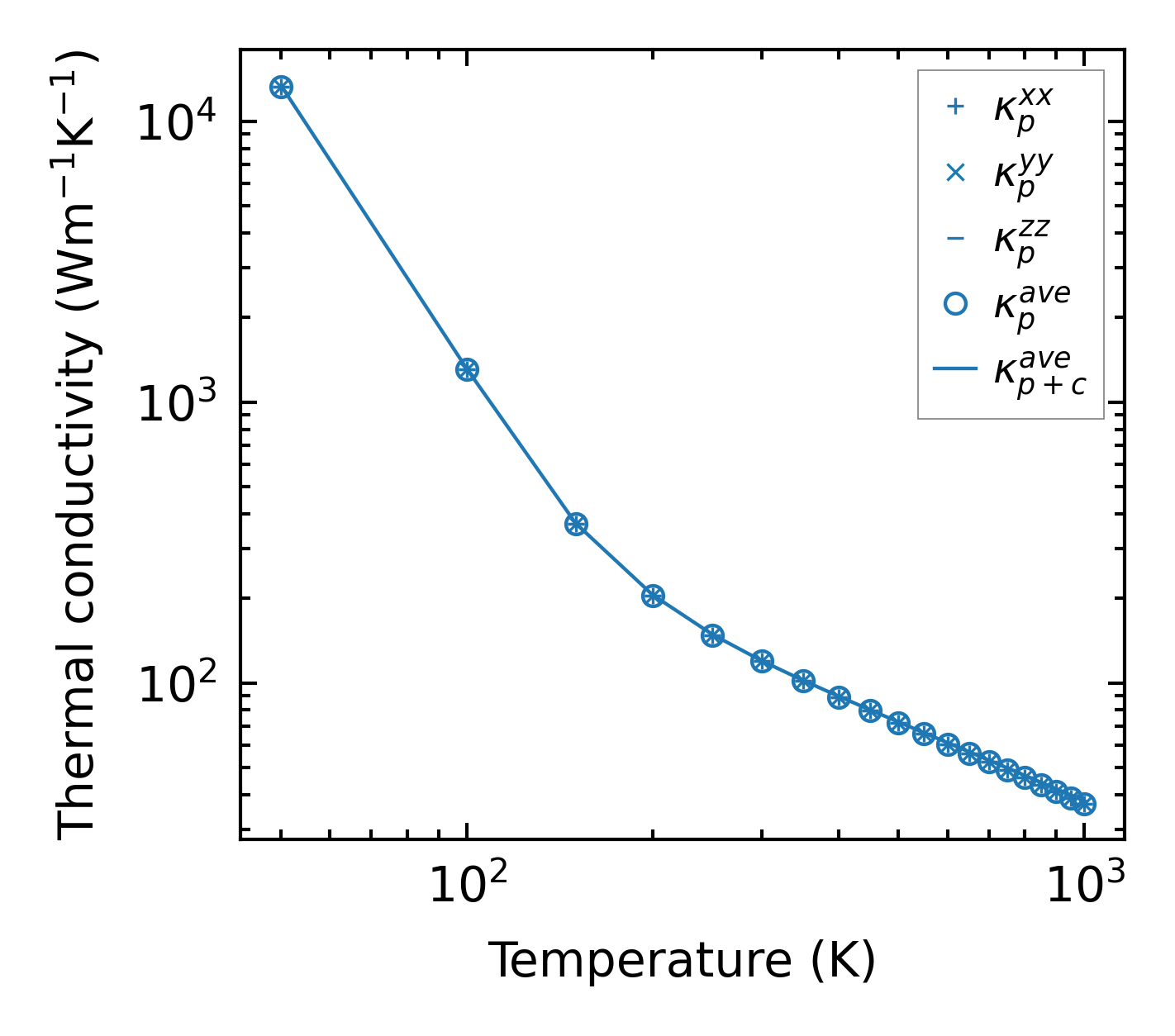

../../_images/fig_kappa246.png — (a) Temperature-dependent lattice thermal conductivity

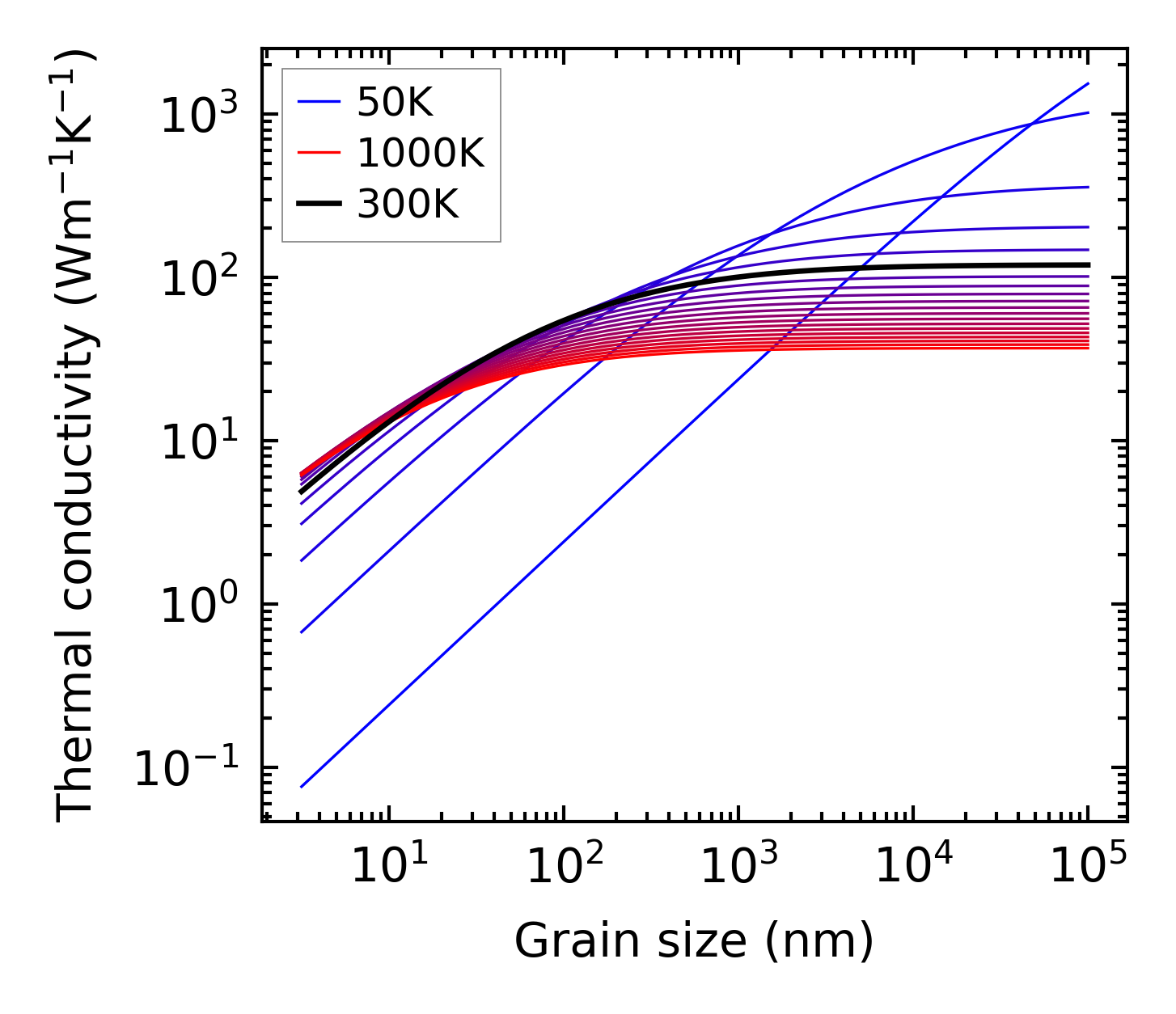

../../_images/fig_kappa_vs_grain_size127.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime125.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates124.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

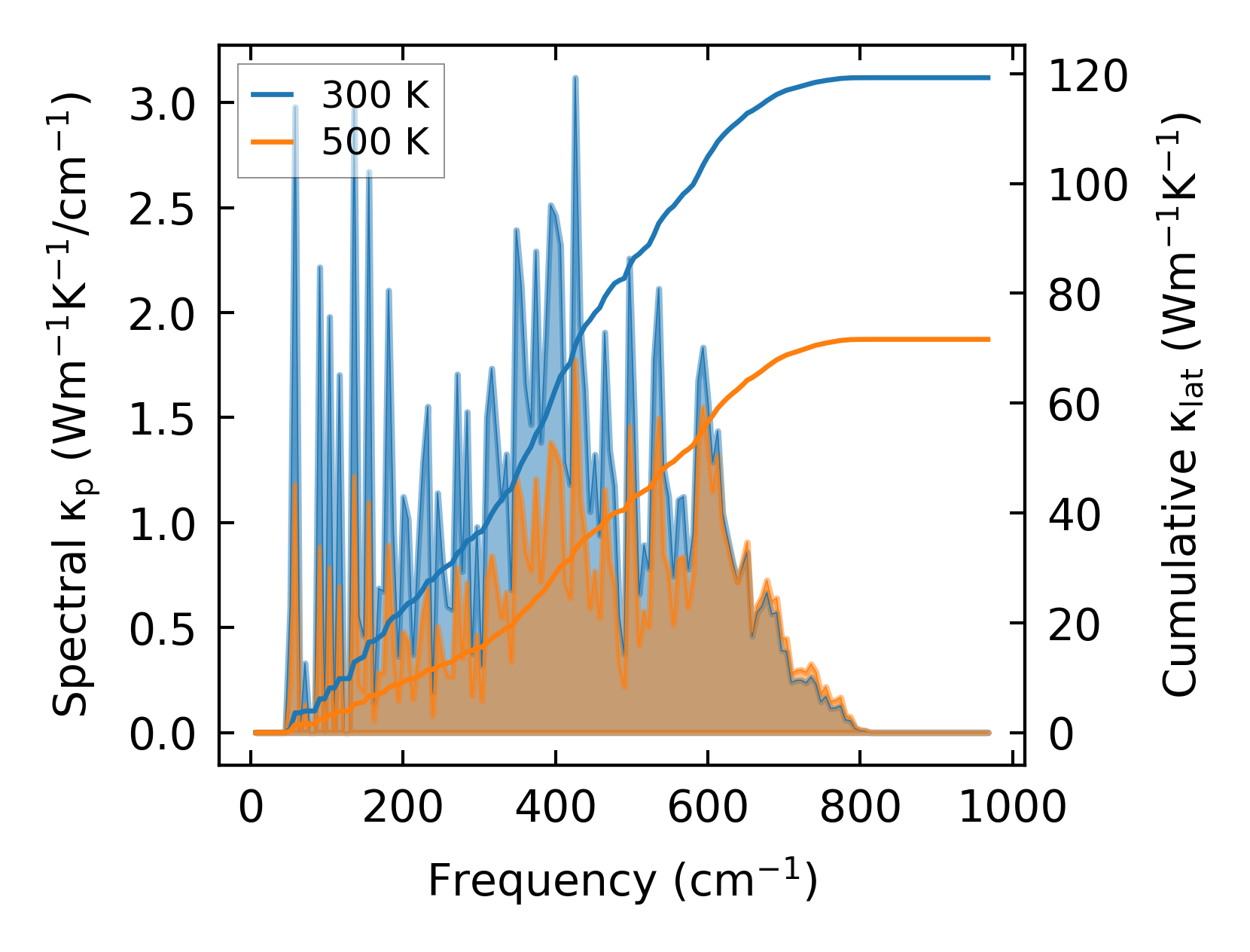

../../_images/fig_cumu_frequency125.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

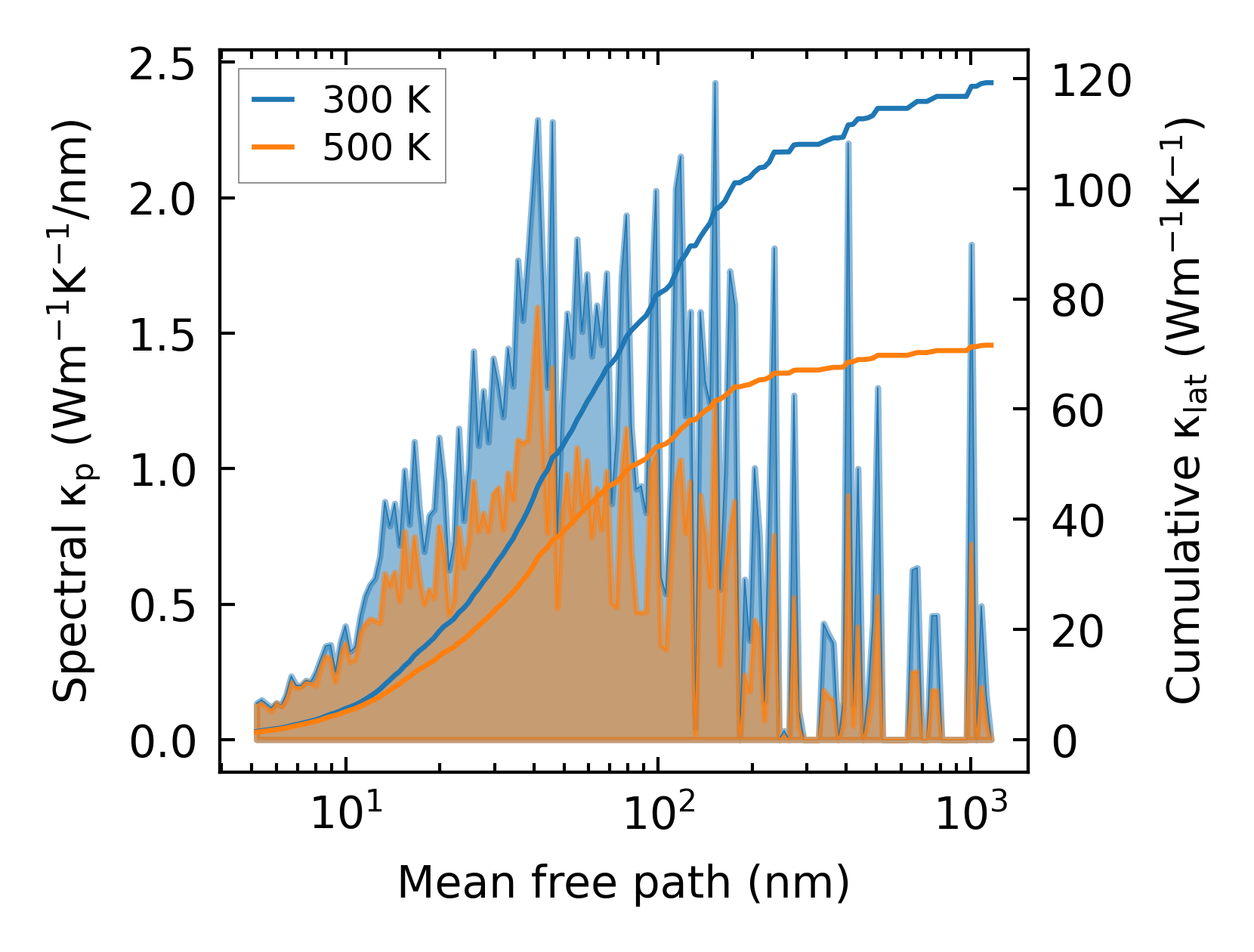

../../_images/fig_cumu_mfp125.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2178.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa247.png — (a) Temperature-dependent lattice thermal conductivity

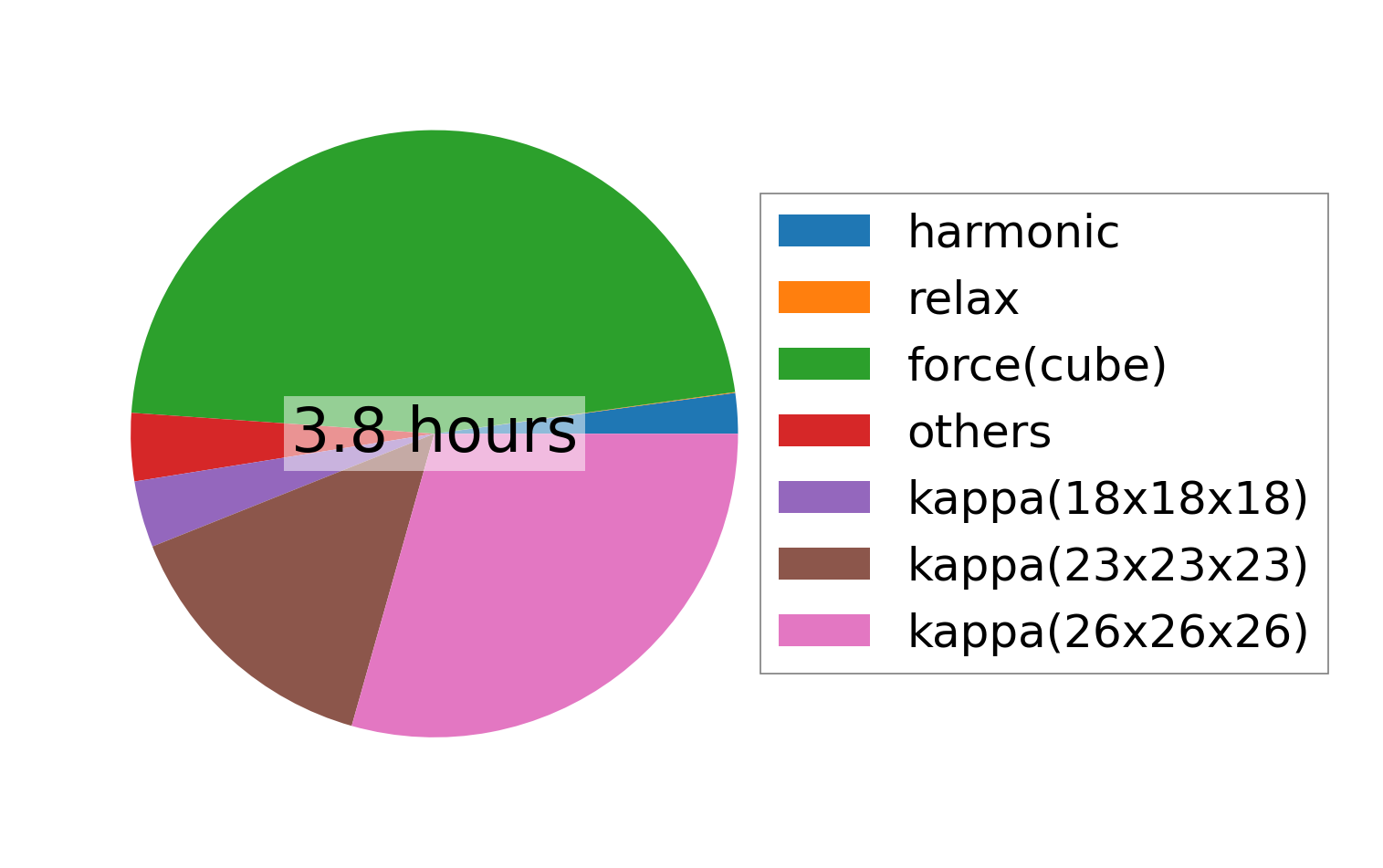

../../_images/fig_times317.png — (b) Computation time
