mp-1346/B6O/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-1346.tar.gz

Harmonic properties

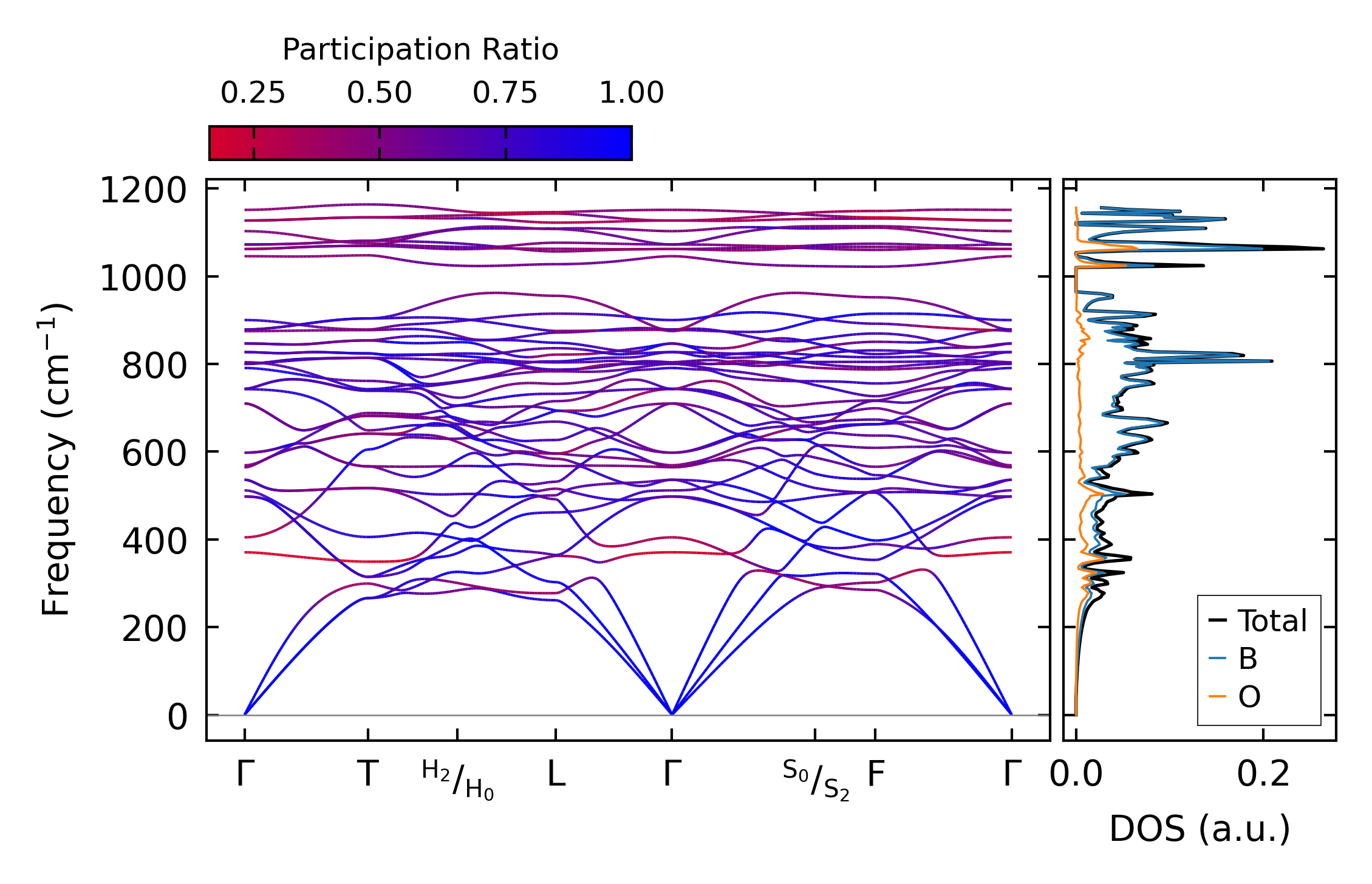

../../_images/fig_bandos_pr165.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo165.png — (b) Thermodynamic properties

Grüneisen parameters

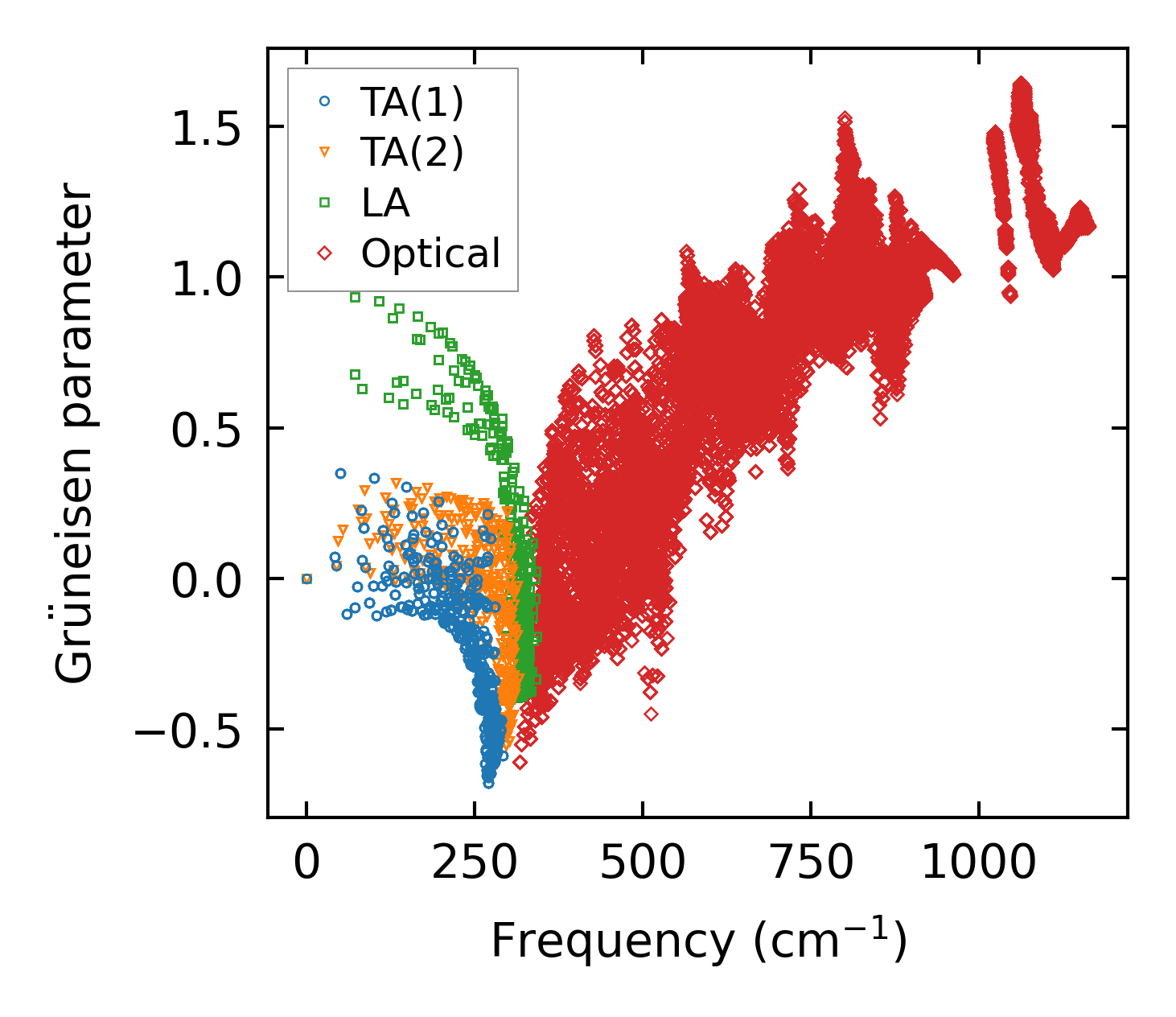

../../_images/fig_gru_all101.png — (a) Grüneisen parameters

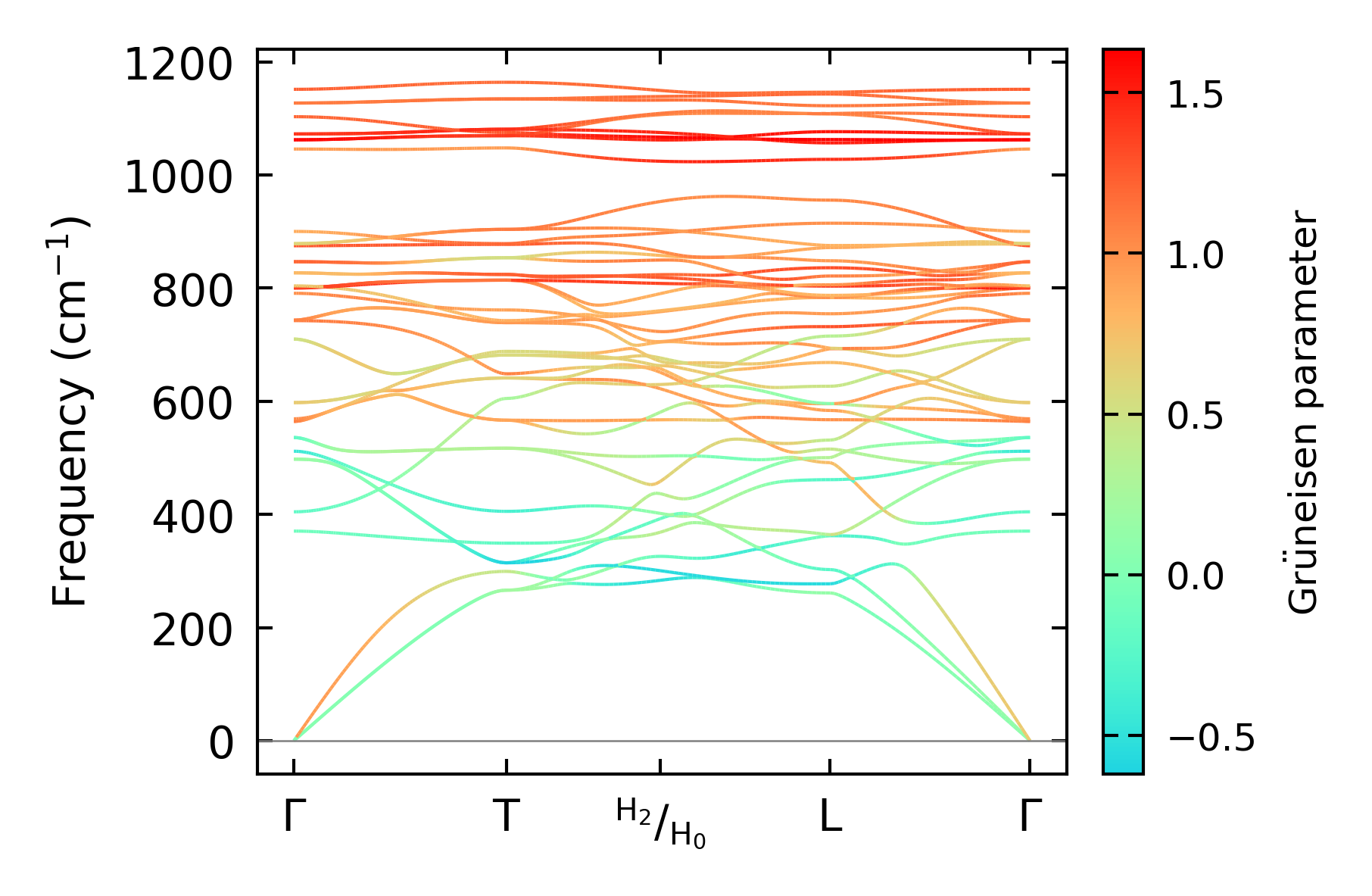

../../_images/fig_gruneisen101.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x15, supercell: 1x1x1

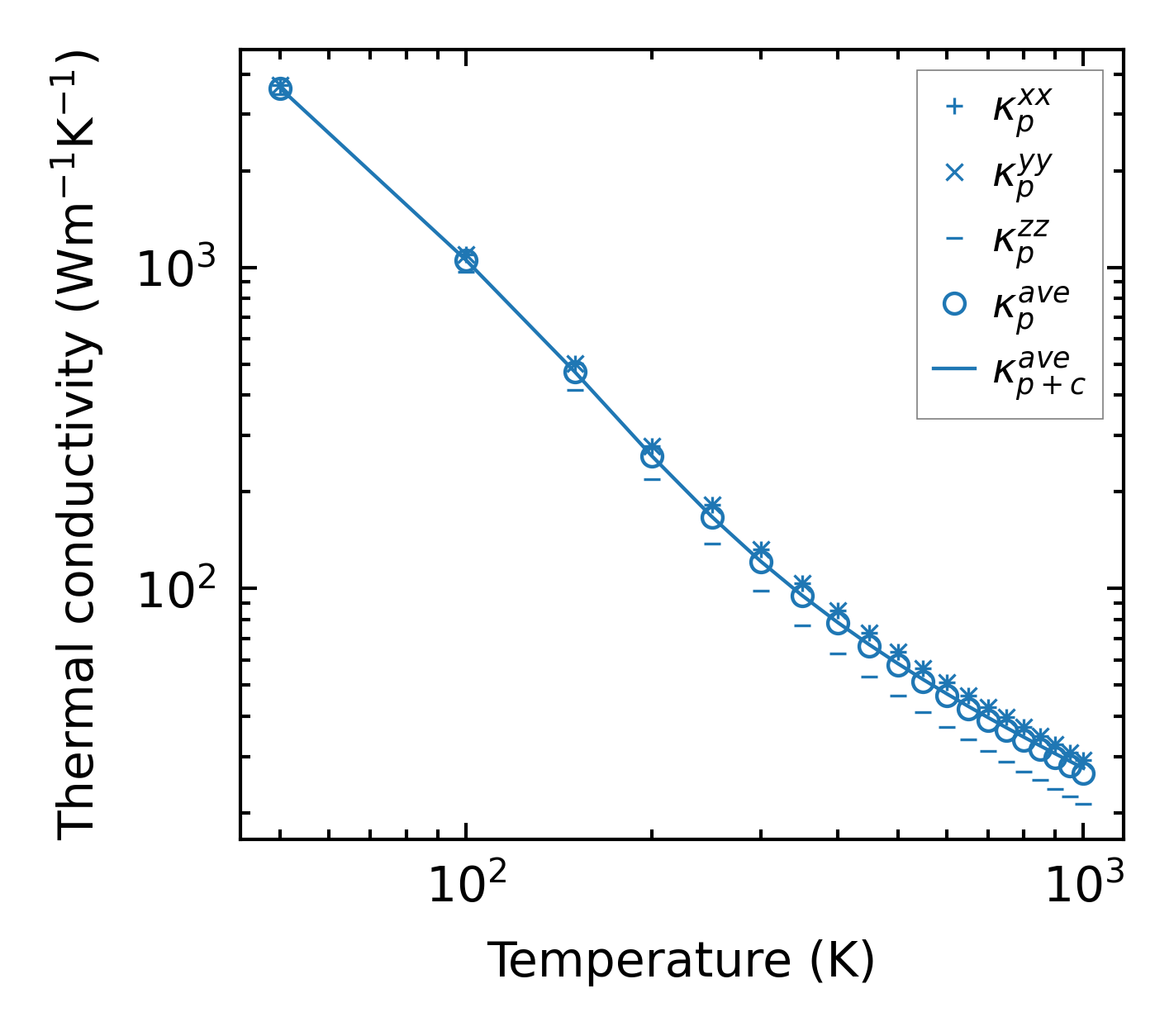

../../_images/fig_kappa197.png — (a) Temperature-dependent lattice thermal conductivity

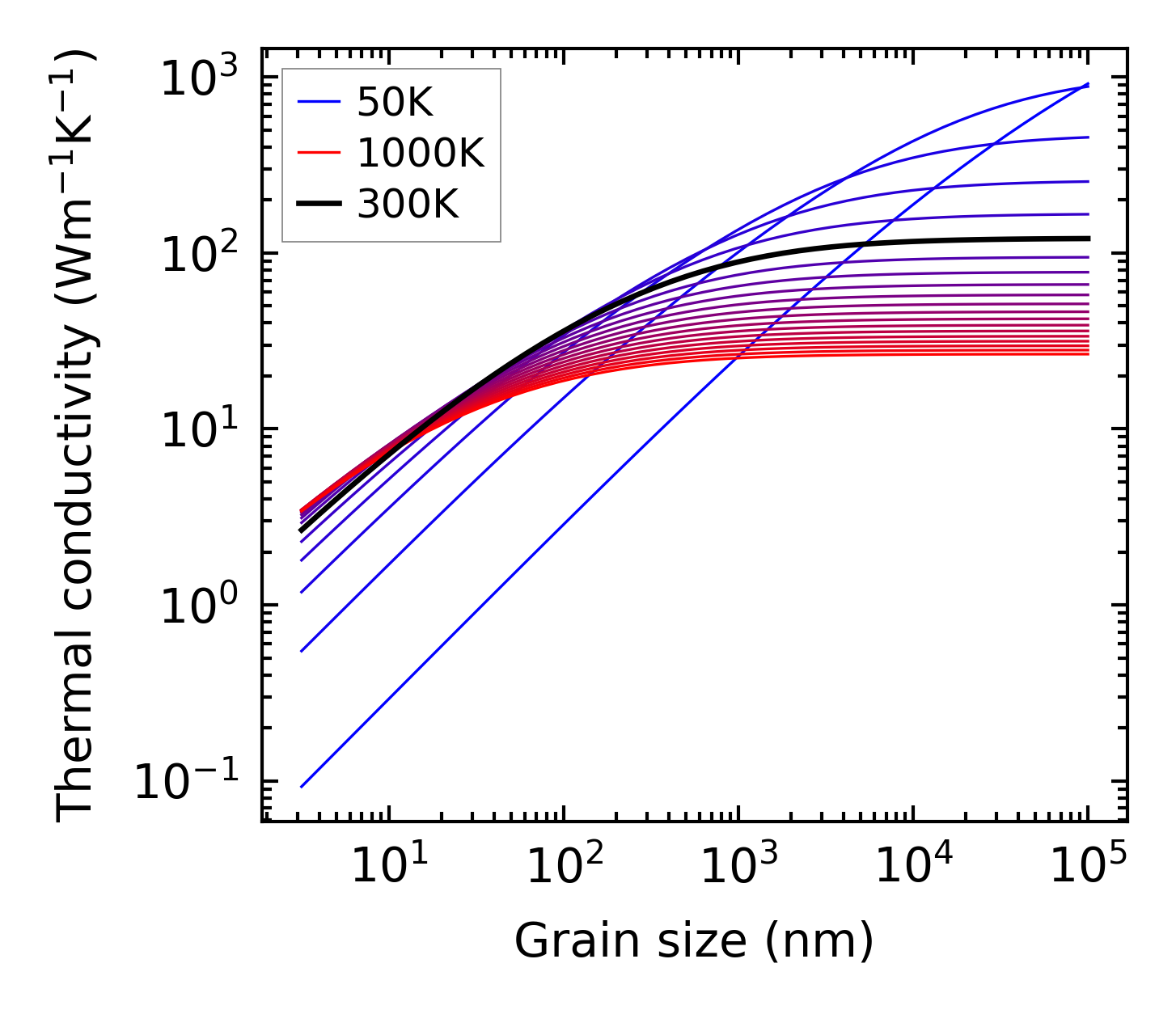

../../_images/fig_kappa_vs_grain_size103.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

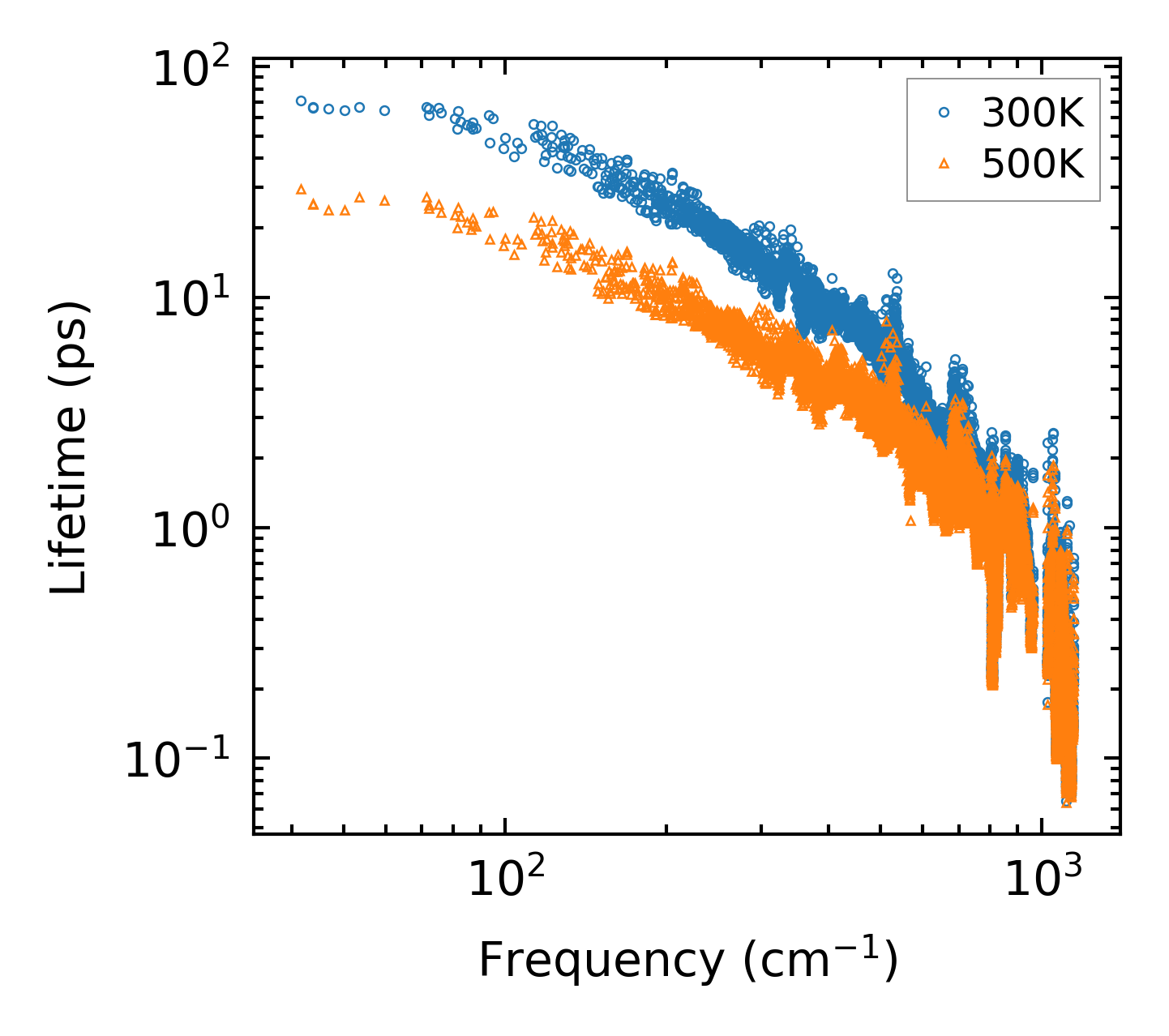

../../_images/fig_lifetime101.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates101.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

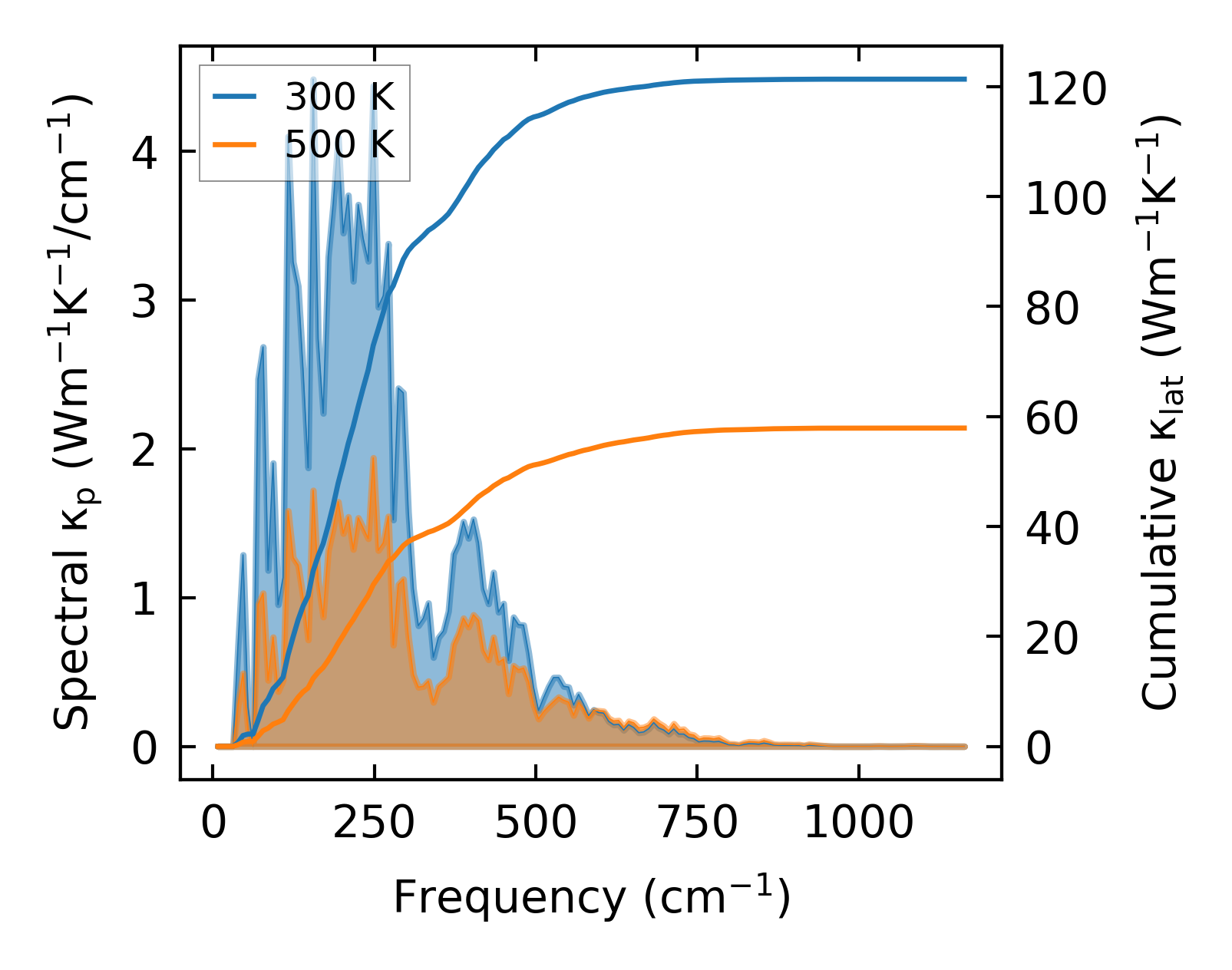

../../_images/fig_cumu_frequency101.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp101.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2158.png — (a) Force constants w.r.t atomic distance

Summary

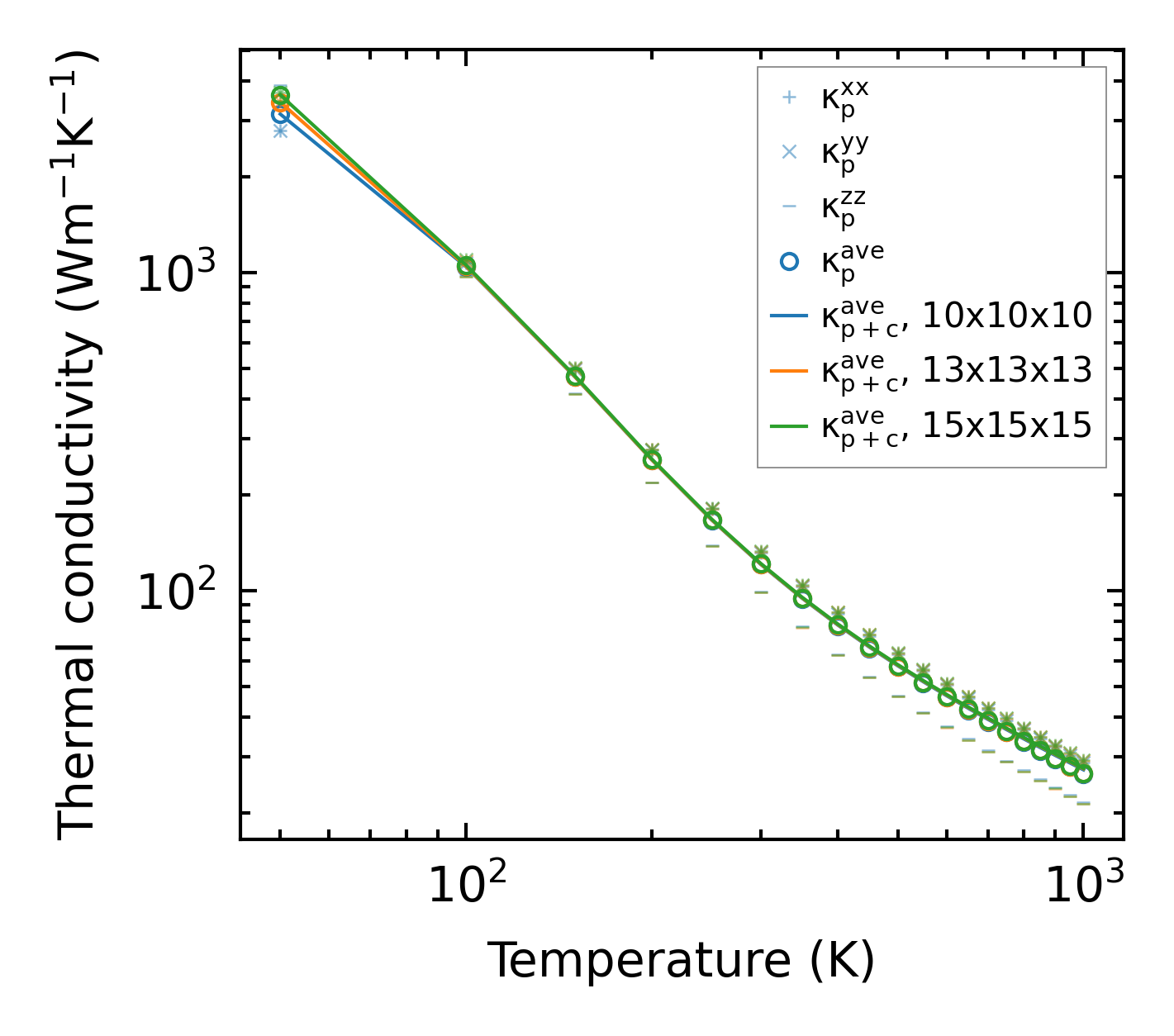

../../_images/fig_kappa198.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times277.png — (b) Computation time
