mp-1541/BeSe/anharm

Space group: F-43m (216)
Link: Materials Project
Download: mp-1541.tar.gz

Harmonic properties

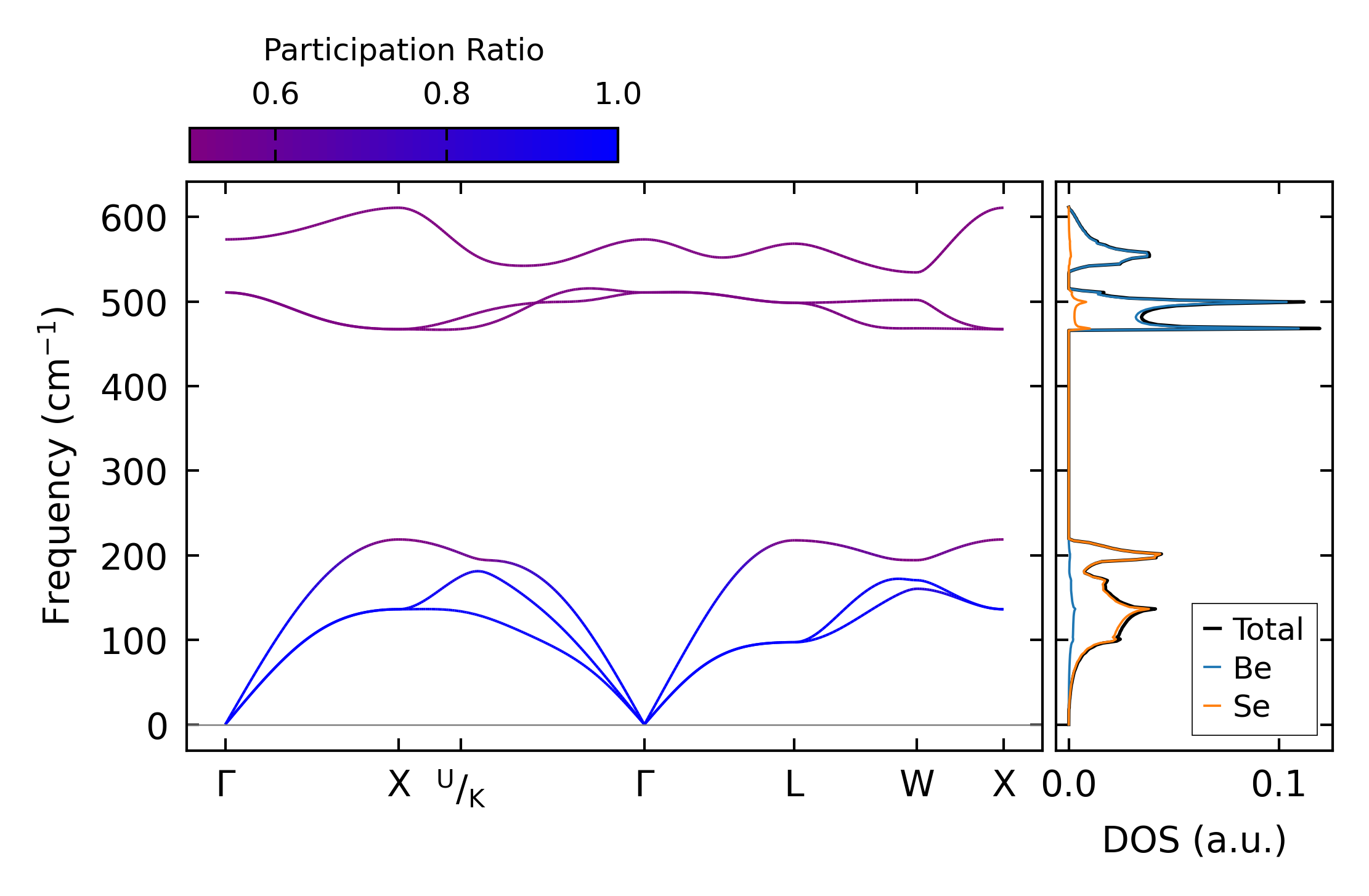

../../_images/fig_bandos_pr189.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo189.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all123.png — (a) Grüneisen parameters

../../_images/fig_gruneisen123.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 22x22x22, supercell: 2x2x2

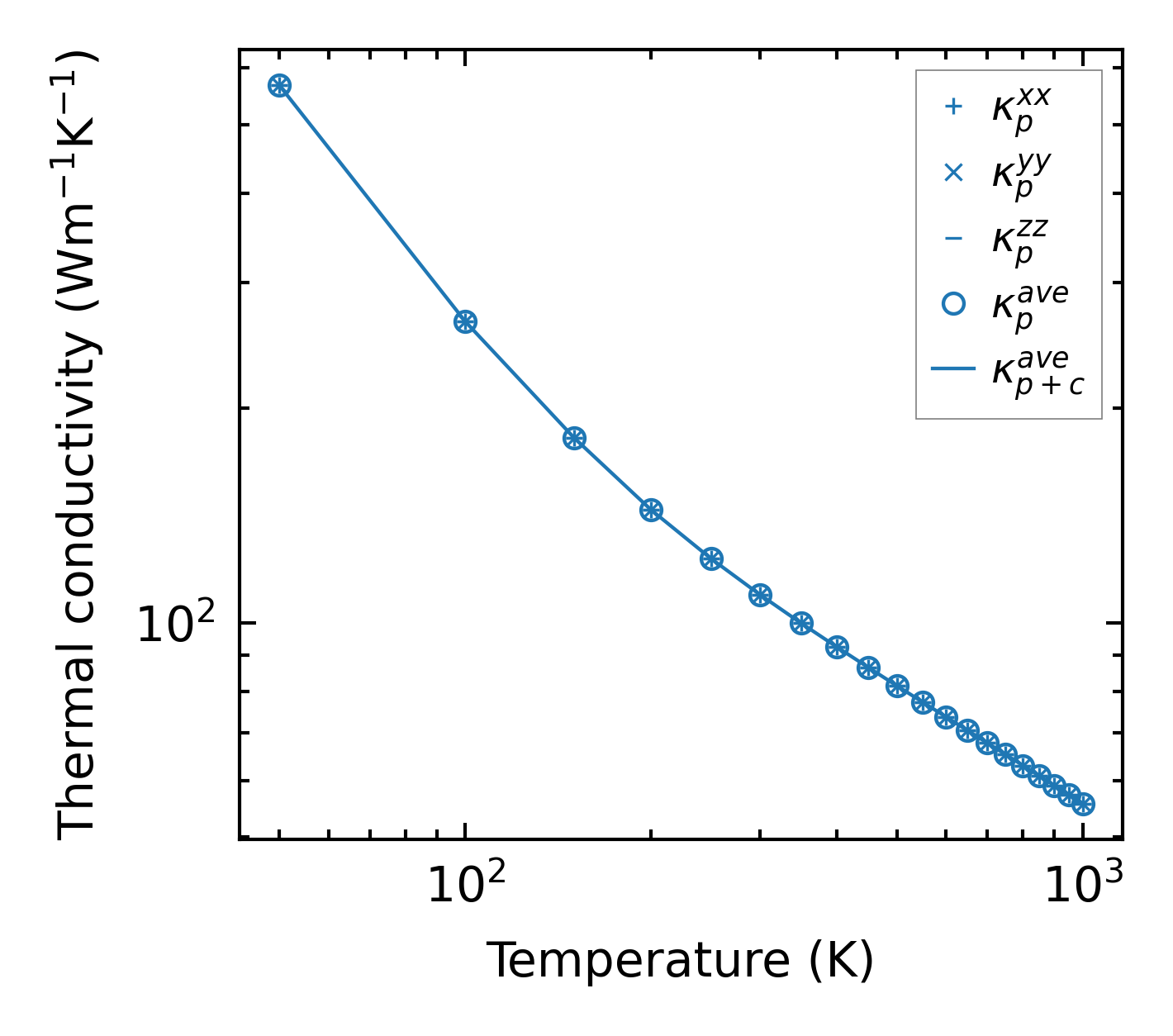

../../_images/fig_kappa241.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size125.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

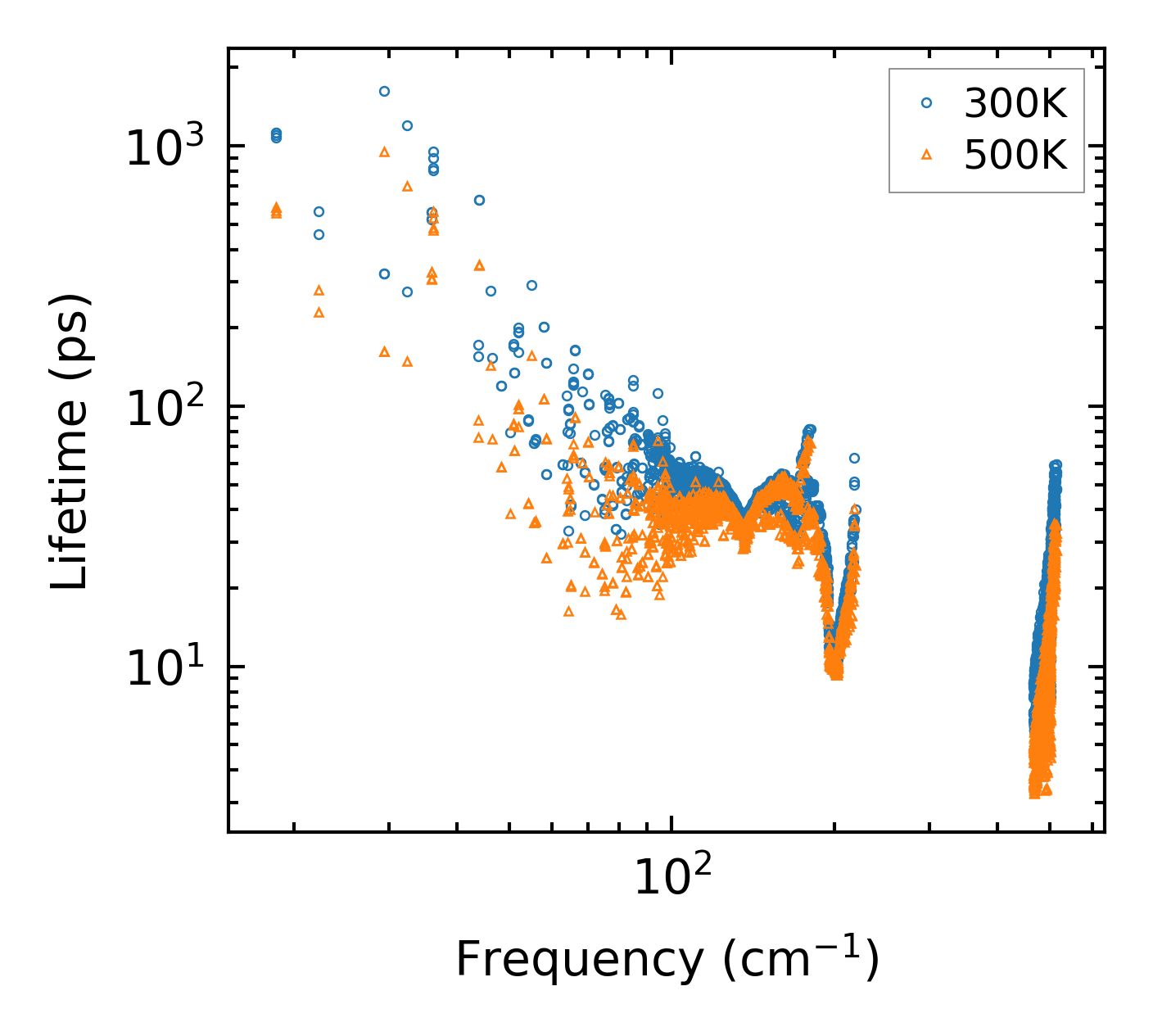

../../_images/fig_lifetime123.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates122.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

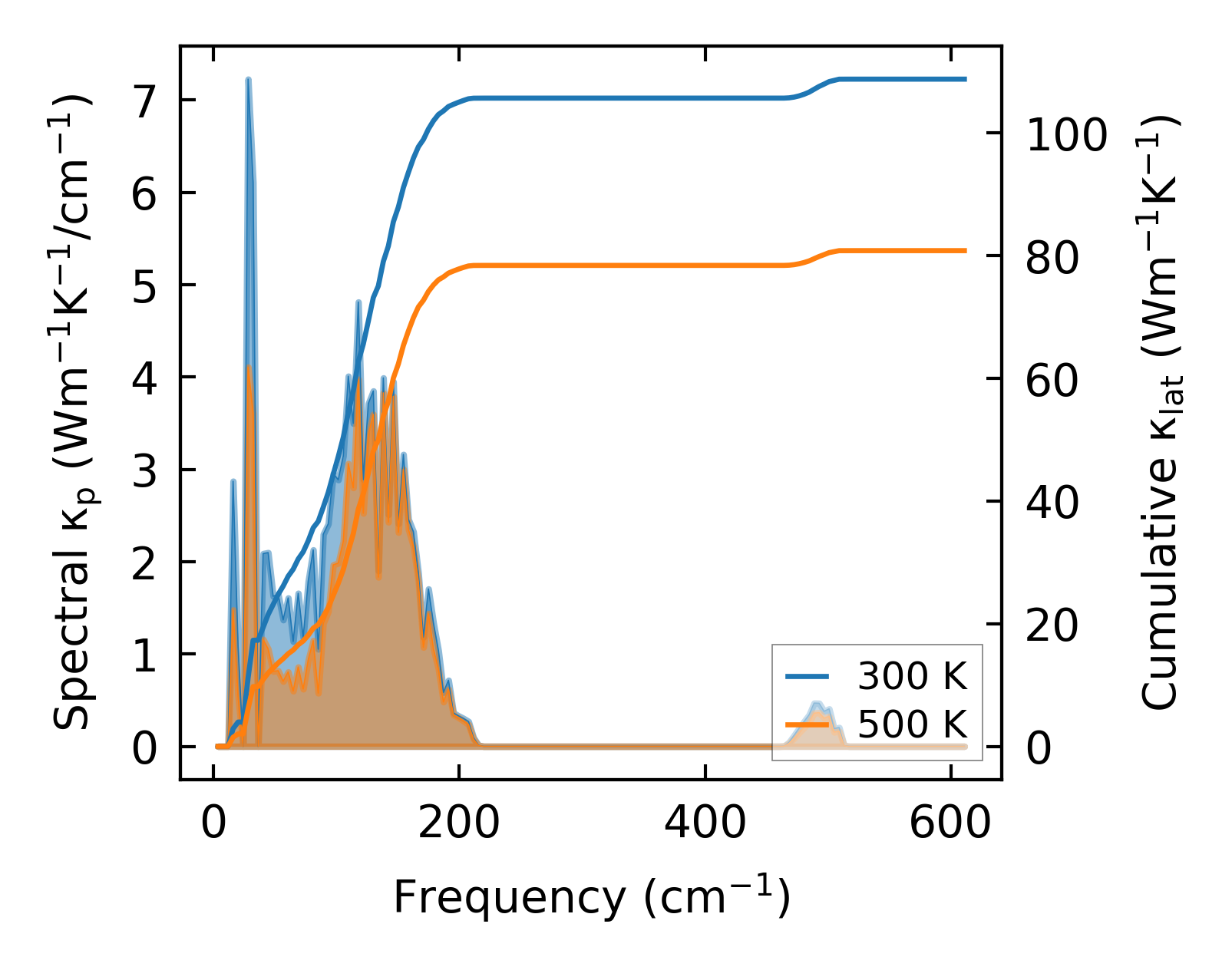

../../_images/fig_cumu_frequency123.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

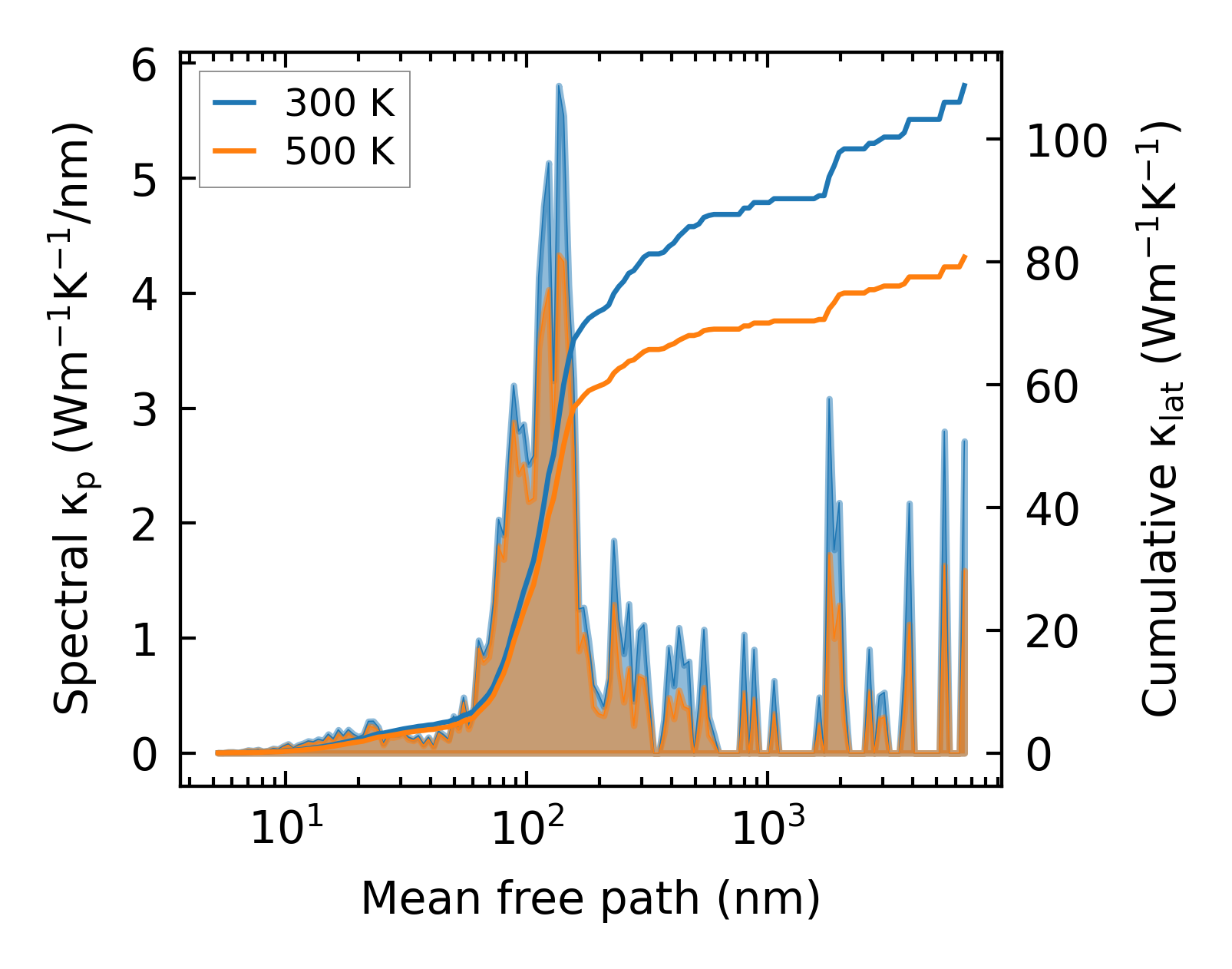

../../_images/fig_cumu_mfp123.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

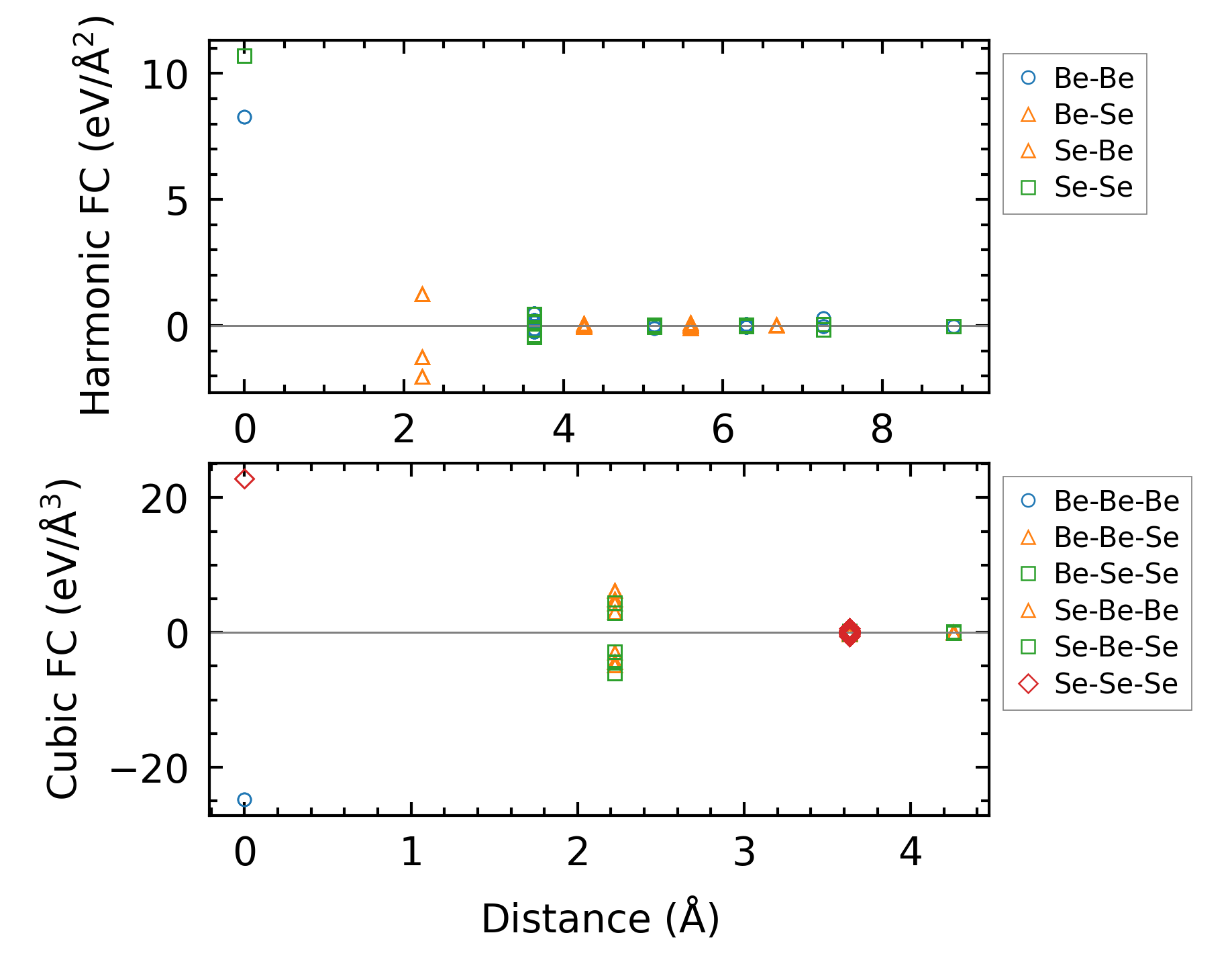

../../_images/fig_fc312.png — (a) Force constants w.r.t atomic distance

Summary

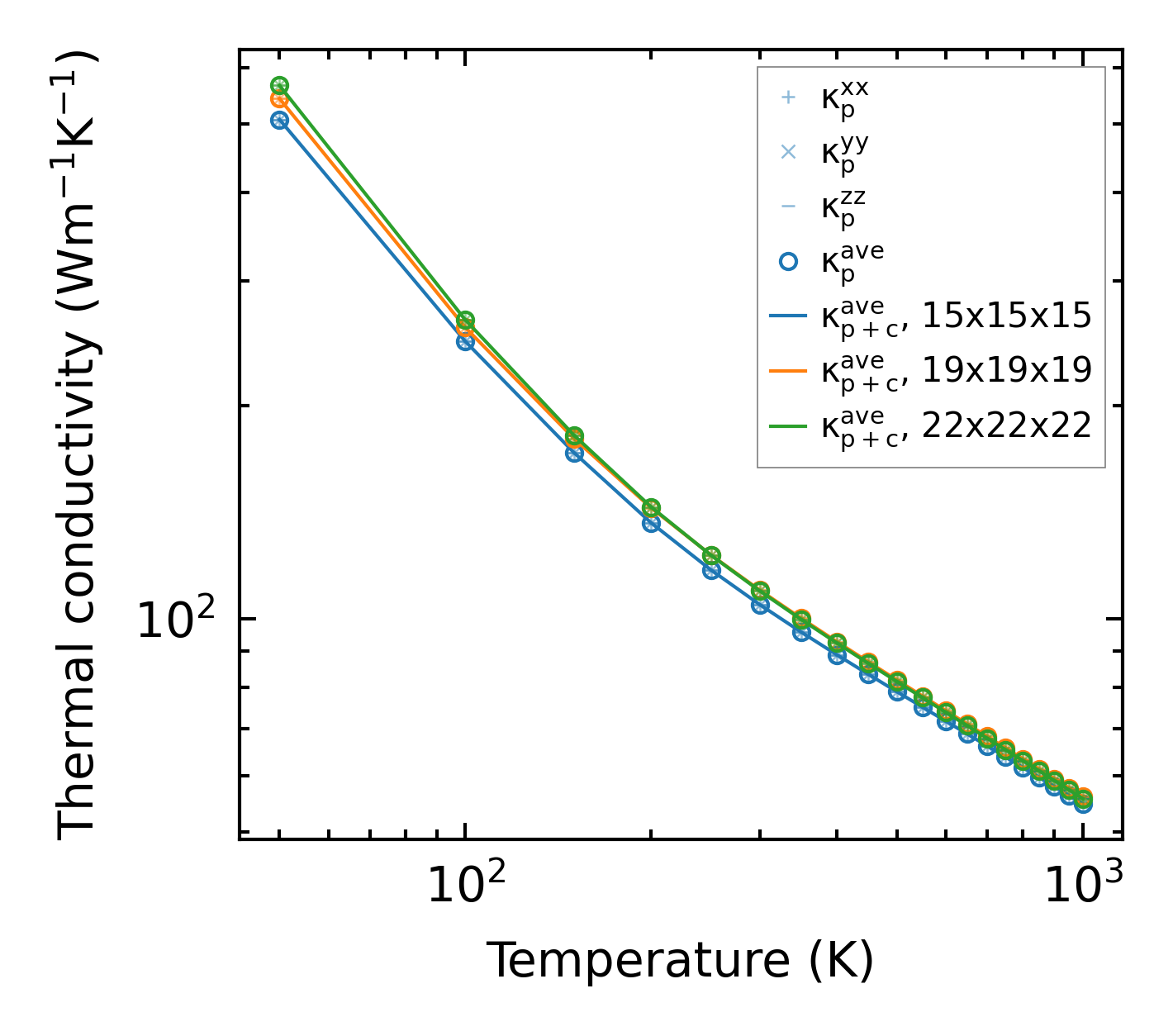

../../_images/fig_kappa242.png — (a) Temperature-dependent lattice thermal conductivity

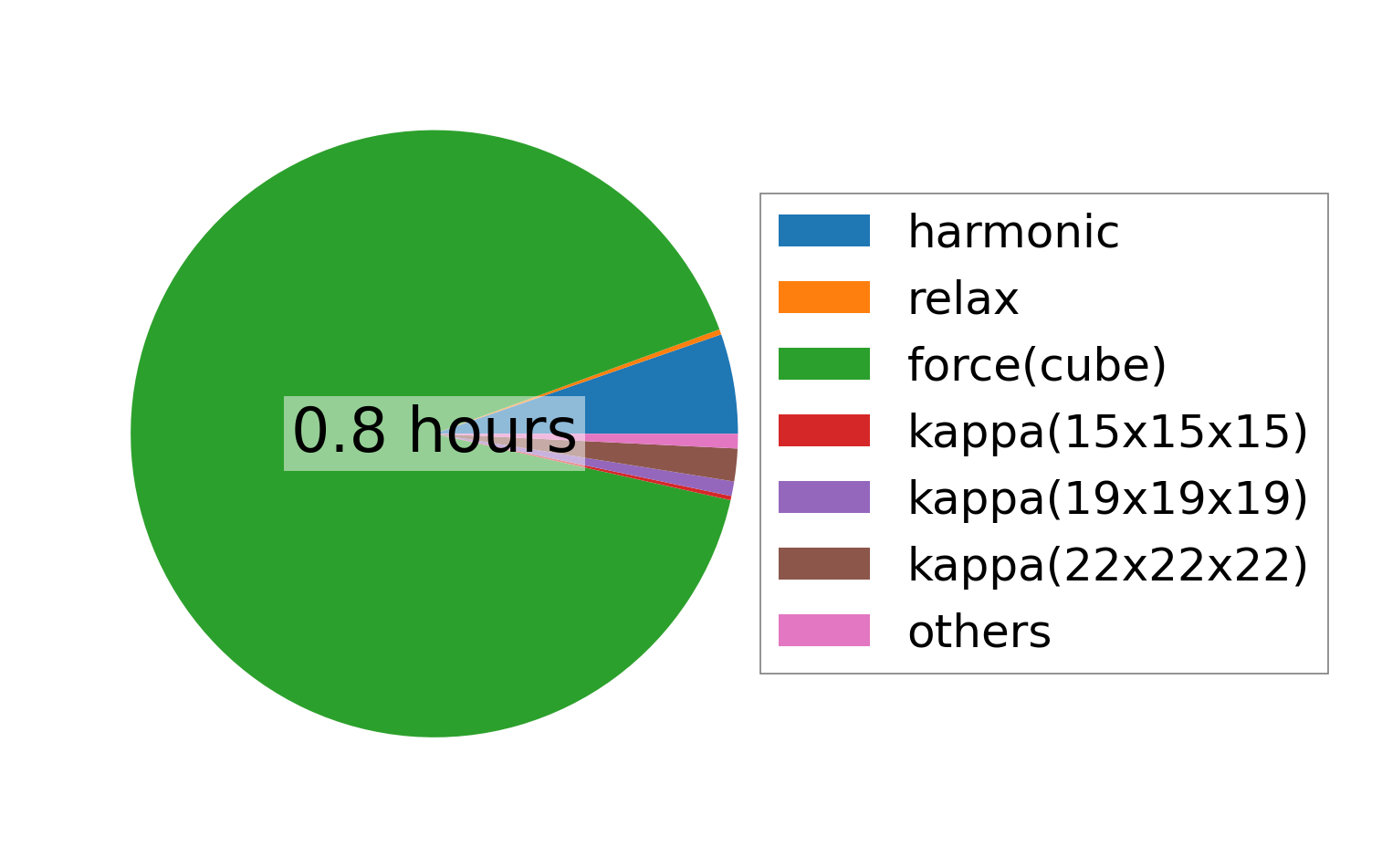

../../_images/fig_times310.png — (b) Computation time
