mp-1115/PtSe2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-1115.tar.gz

Harmonic properties

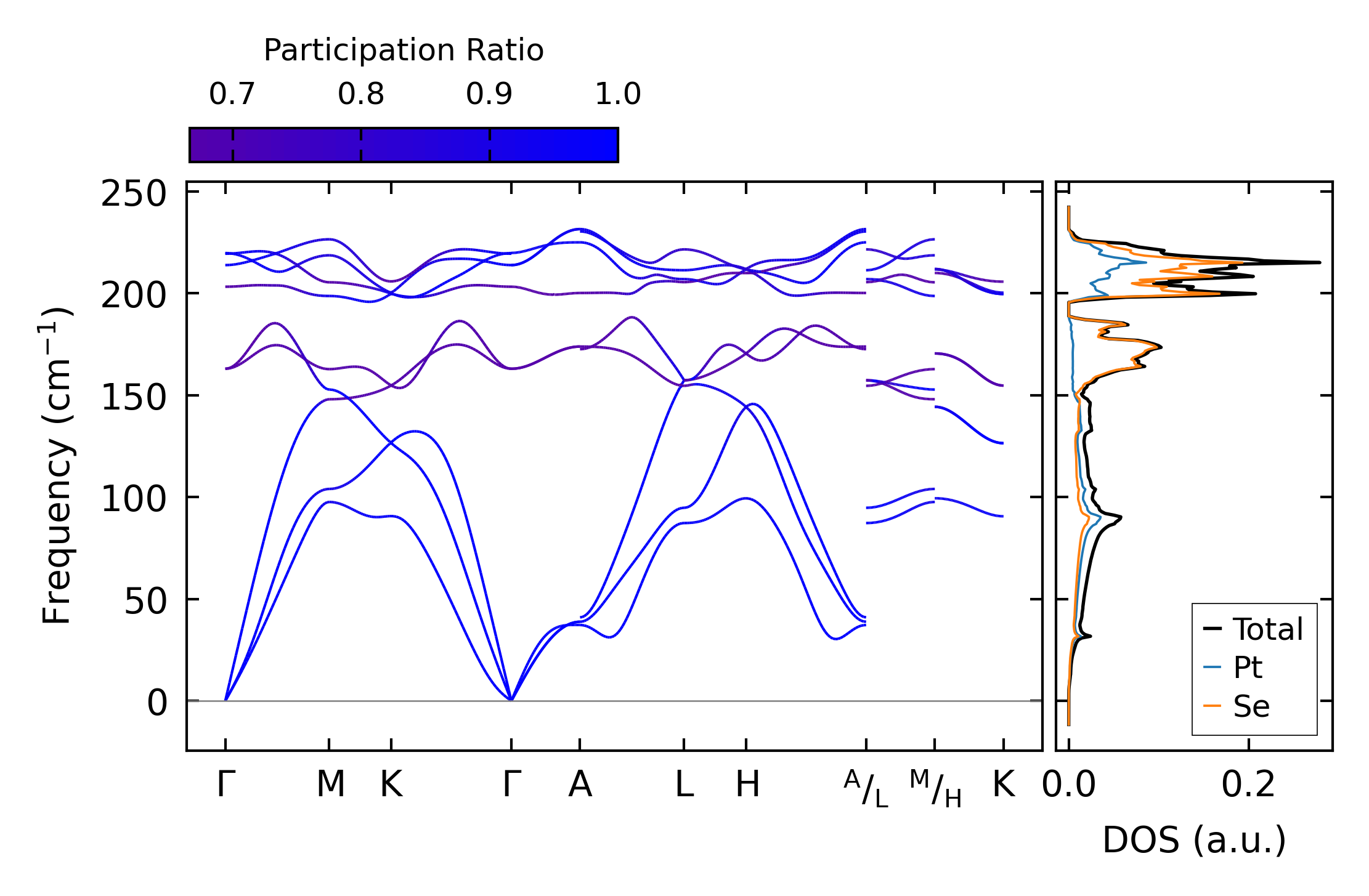

../../_images/fig_bandos_pr711.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo711.png — (b) Thermodynamic properties

Grüneisen parameters

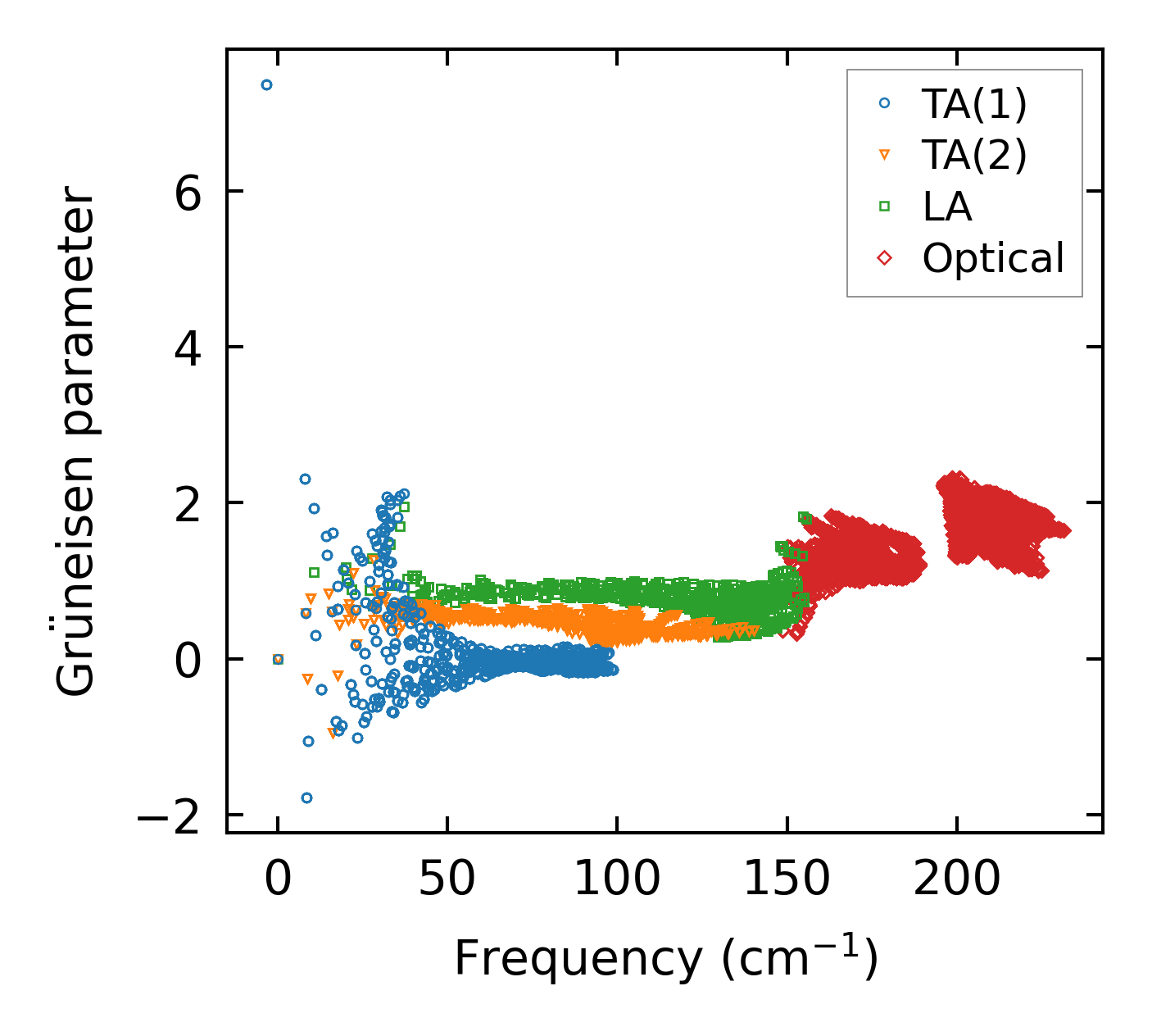

../../_images/fig_gru_all475.png — (a) Grüneisen parameters

../../_images/fig_gruneisen475.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 20x20x15, supercell: 4x4x3

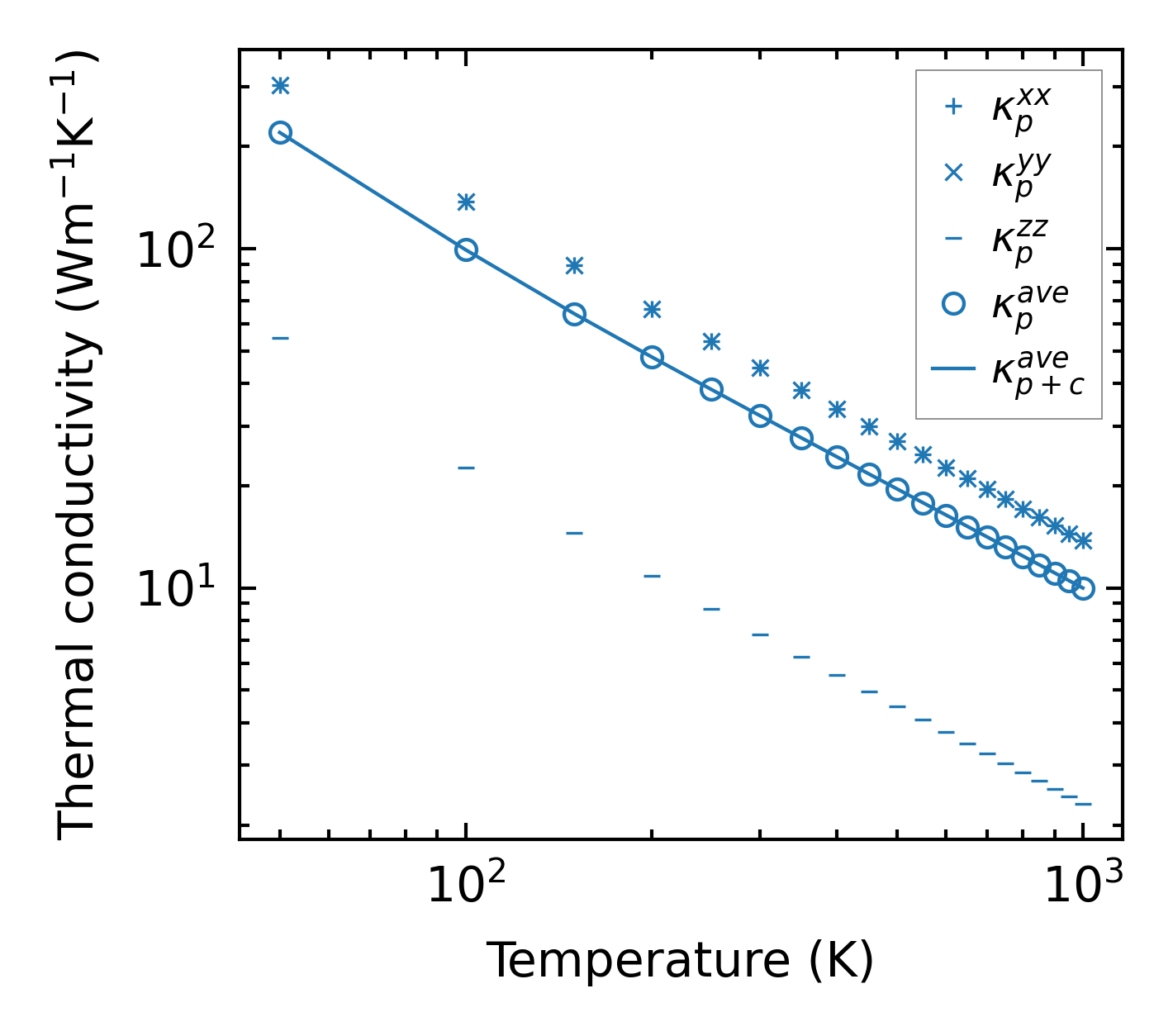

../../_images/fig_kappa923.png — (a) Temperature-dependent lattice thermal conductivity

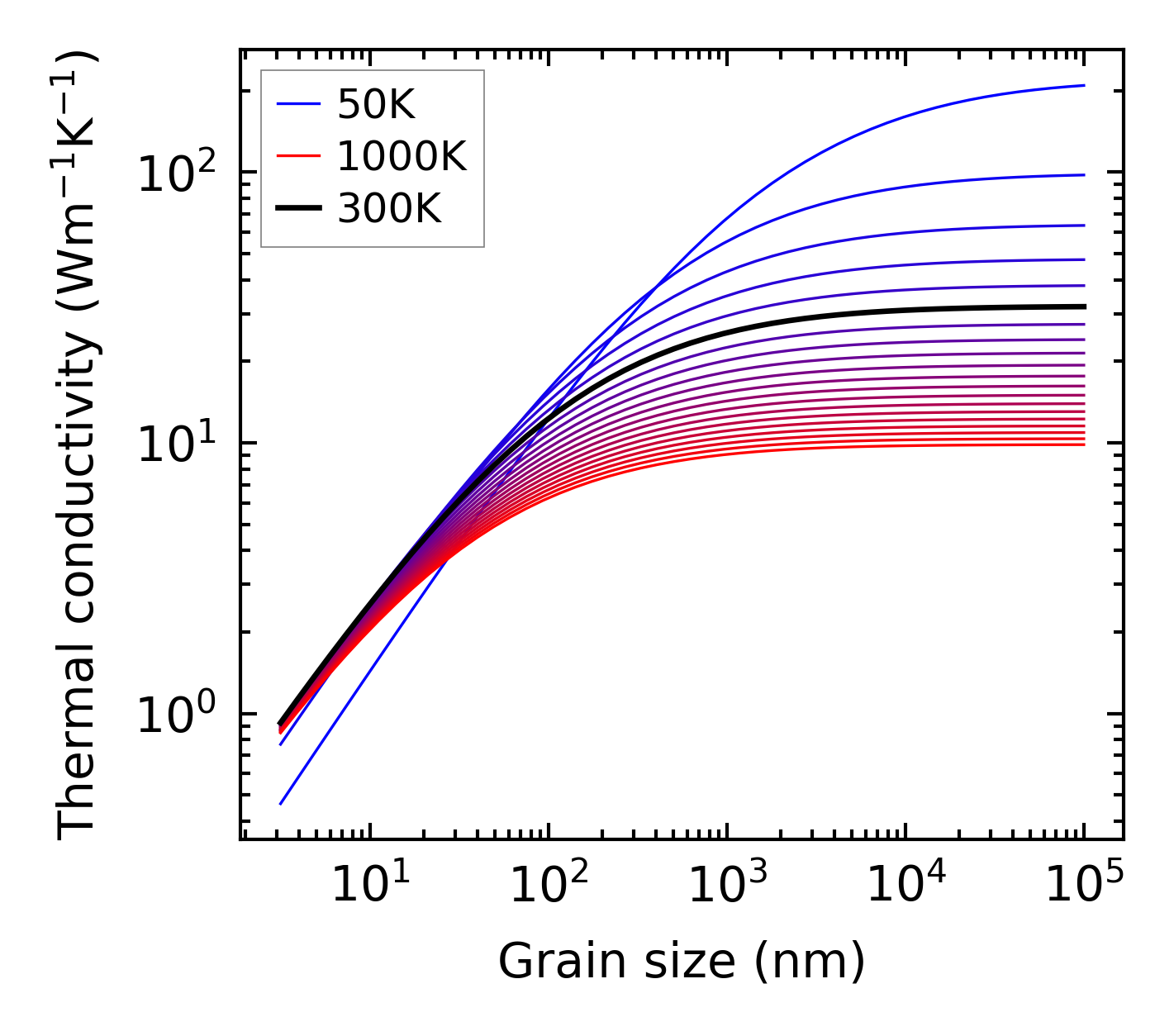

../../_images/fig_kappa_vs_grain_size482.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

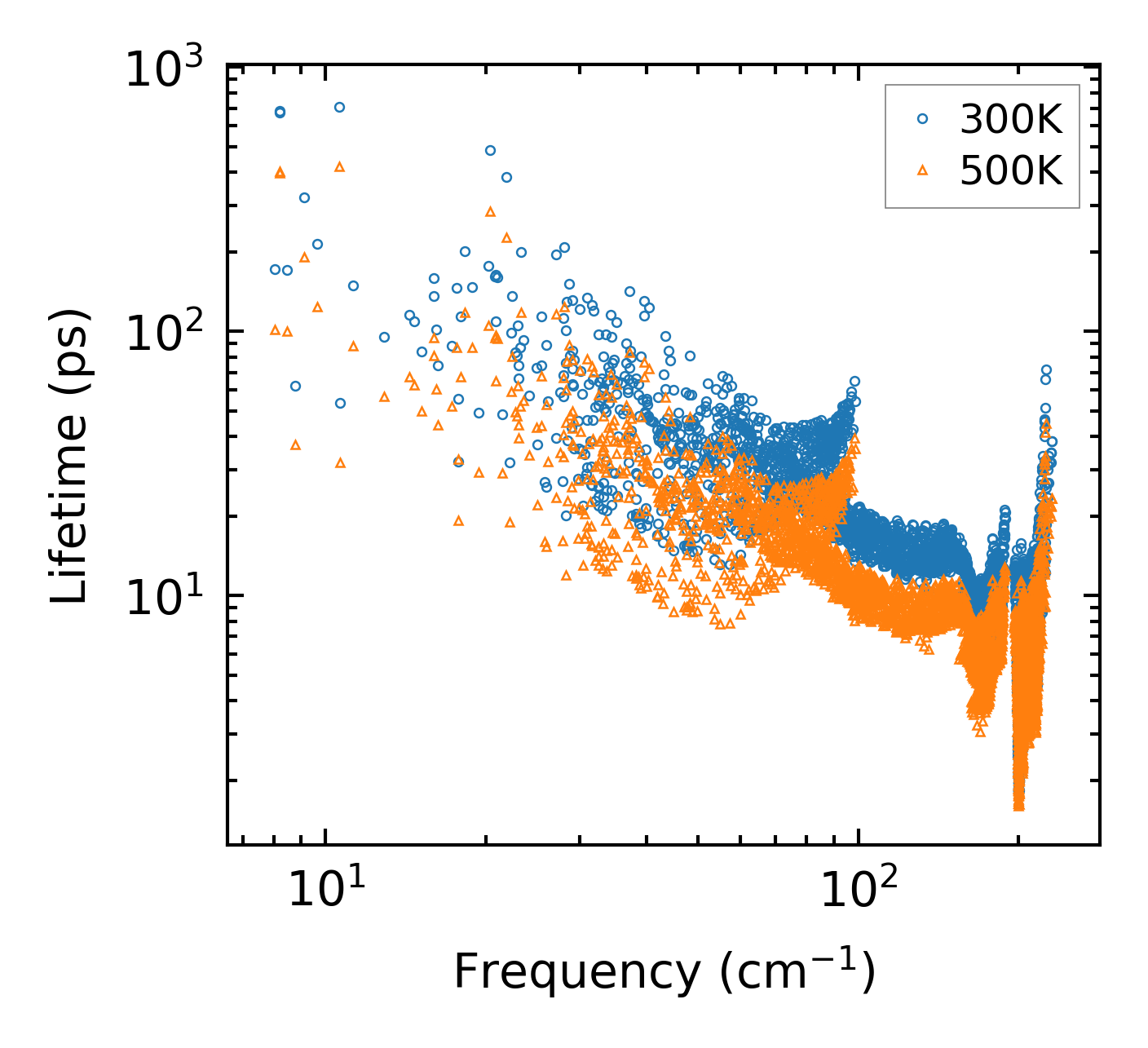

../../_images/fig_lifetime473.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates472.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

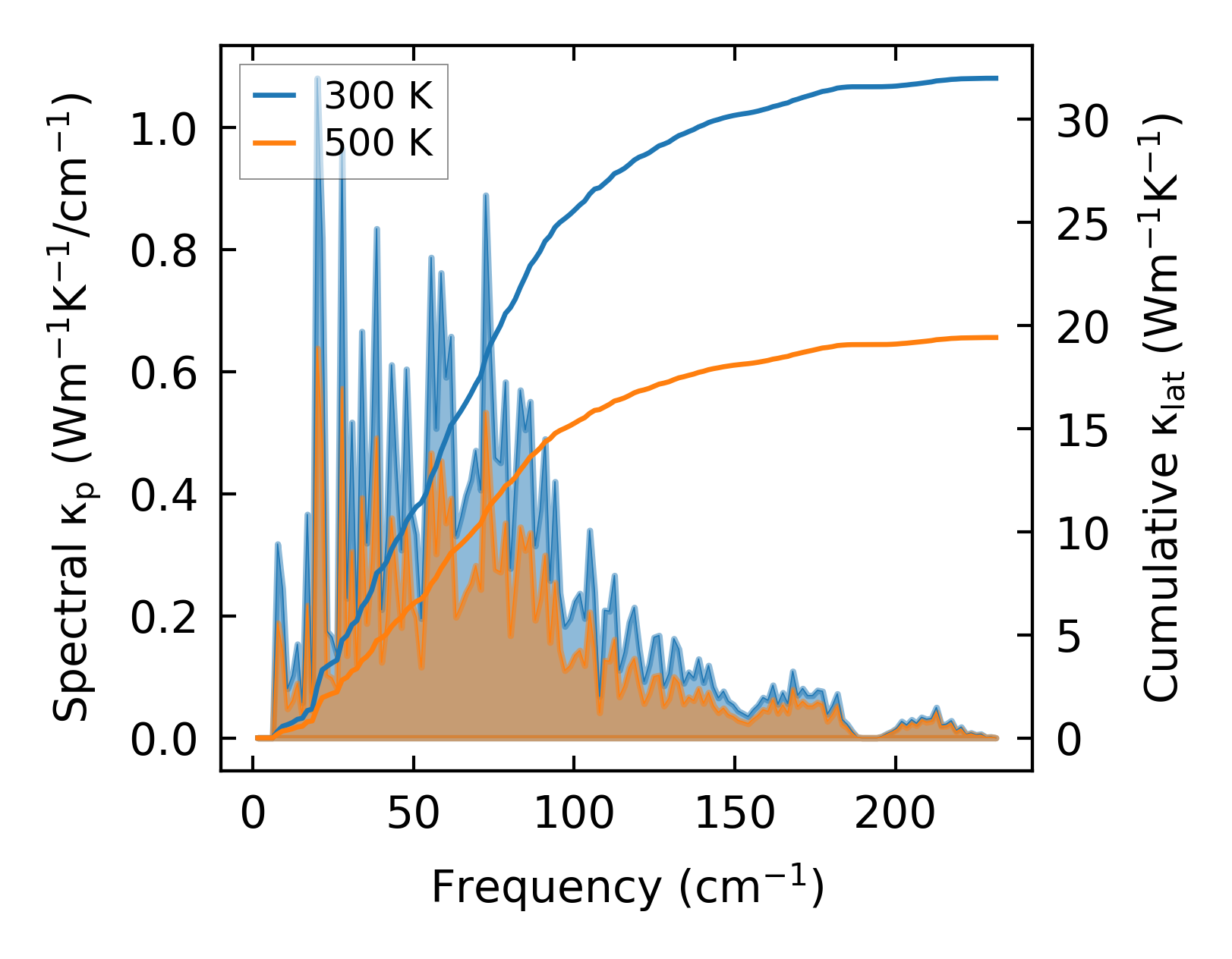

../../_images/fig_cumu_frequency473.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

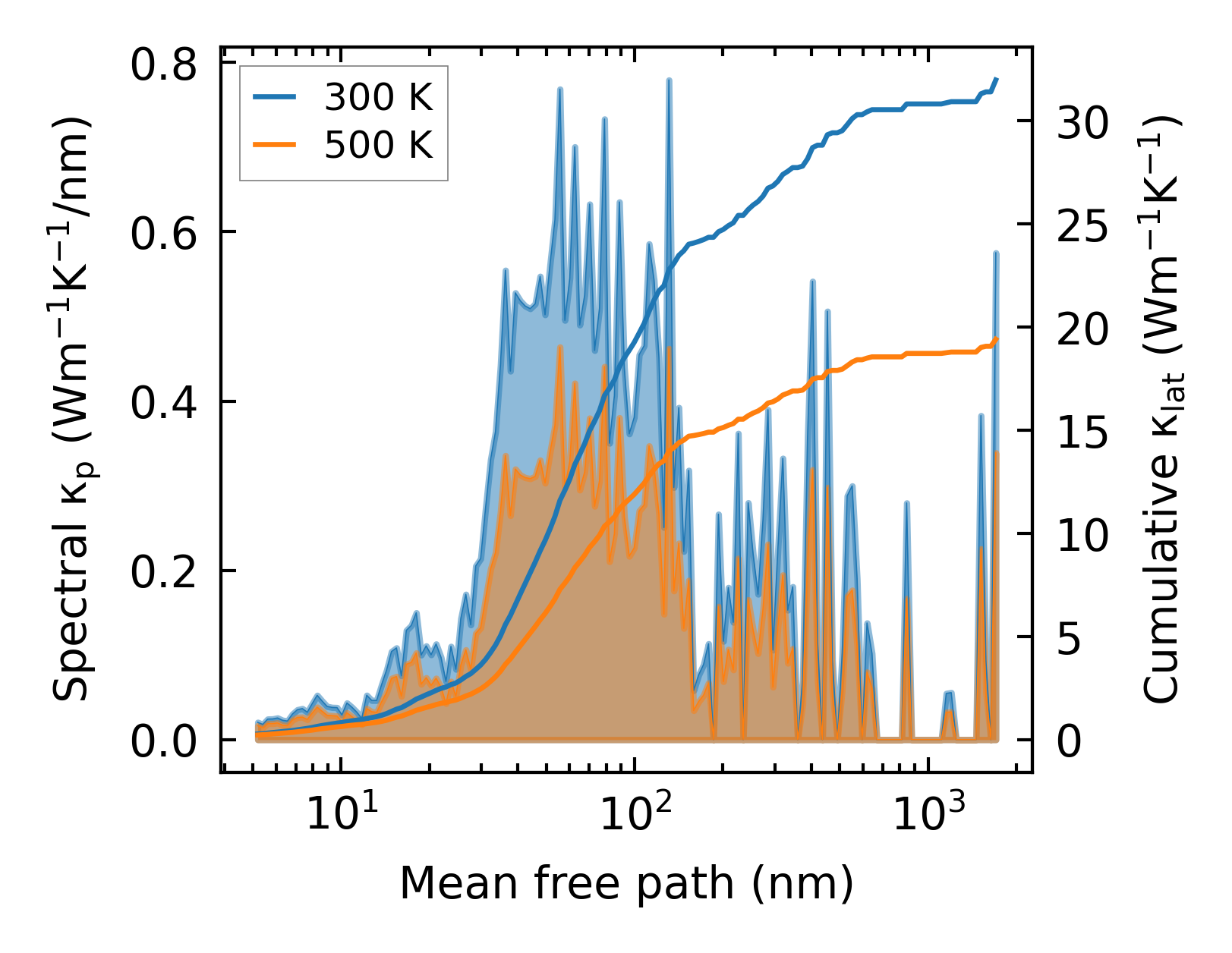

../../_images/fig_cumu_mfp473.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

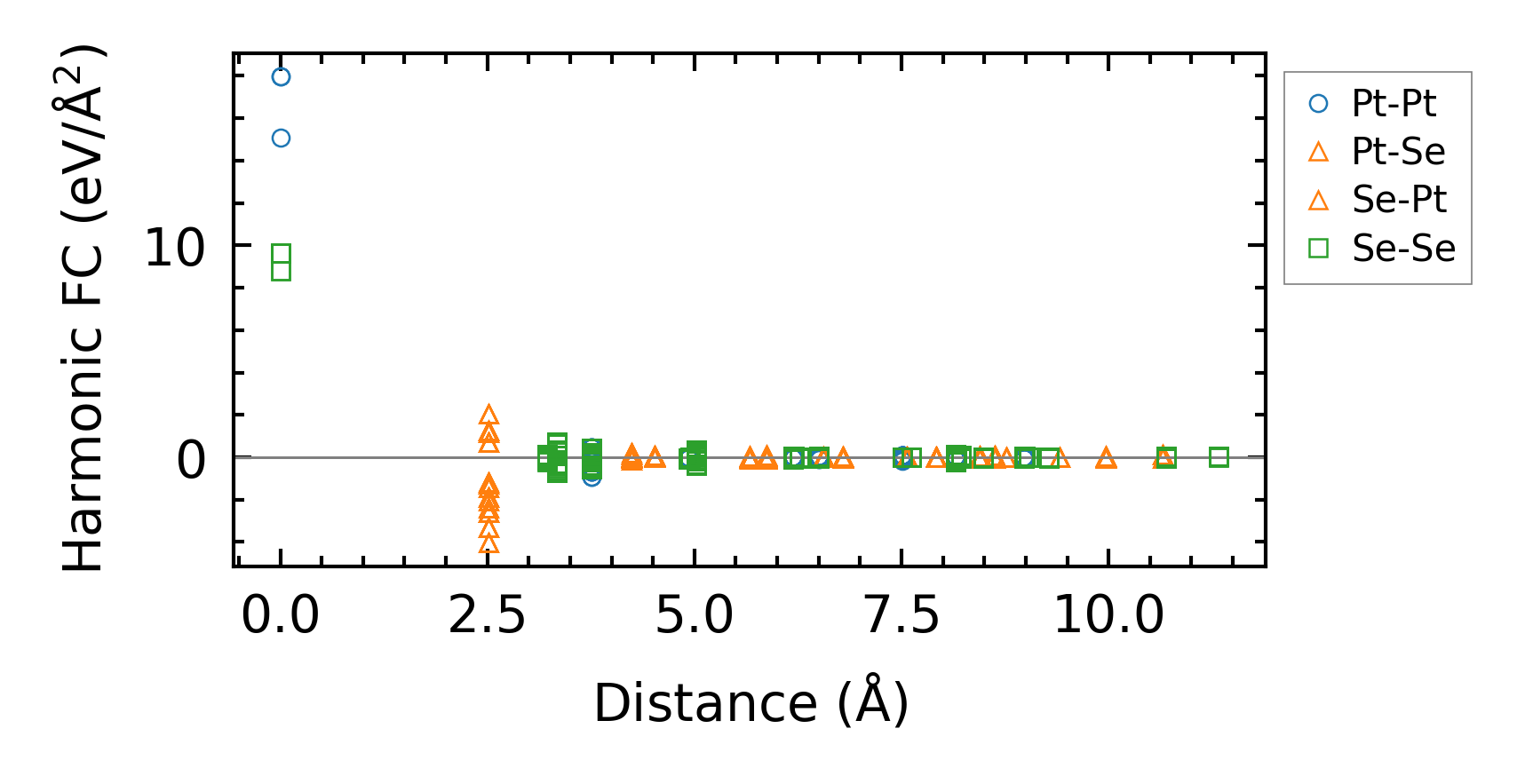

../../_images/fig_fc2619.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa924.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times1016.png — (b) Computation time
