mp-1394/Rb2O/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-1394.tar.gz

Harmonic properties

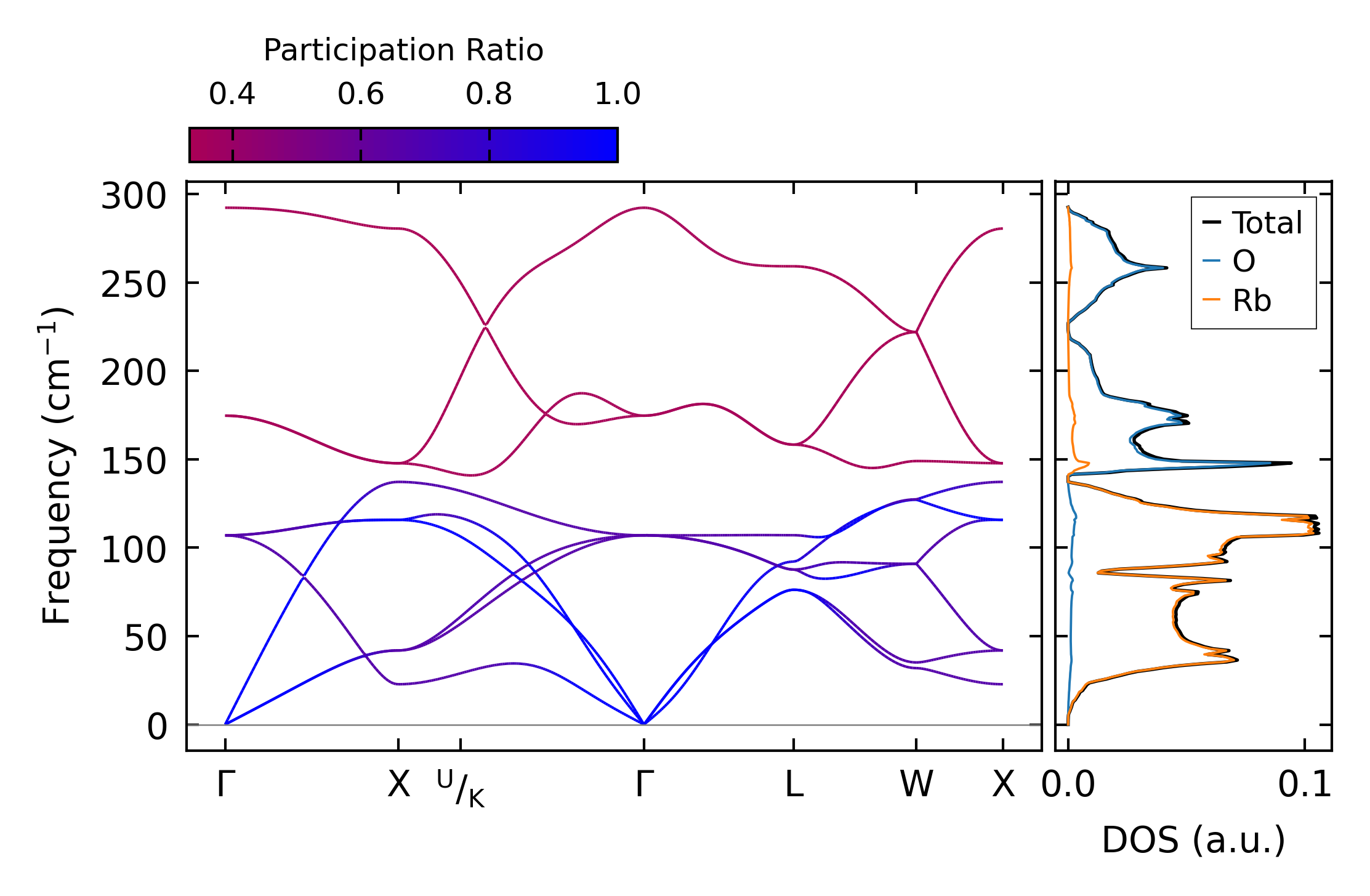

../../_images/fig_bandos_pr171.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo171.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all107.png — (a) Grüneisen parameters

../../_images/fig_gruneisen107.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 17x17x17, supercell: 2x2x2

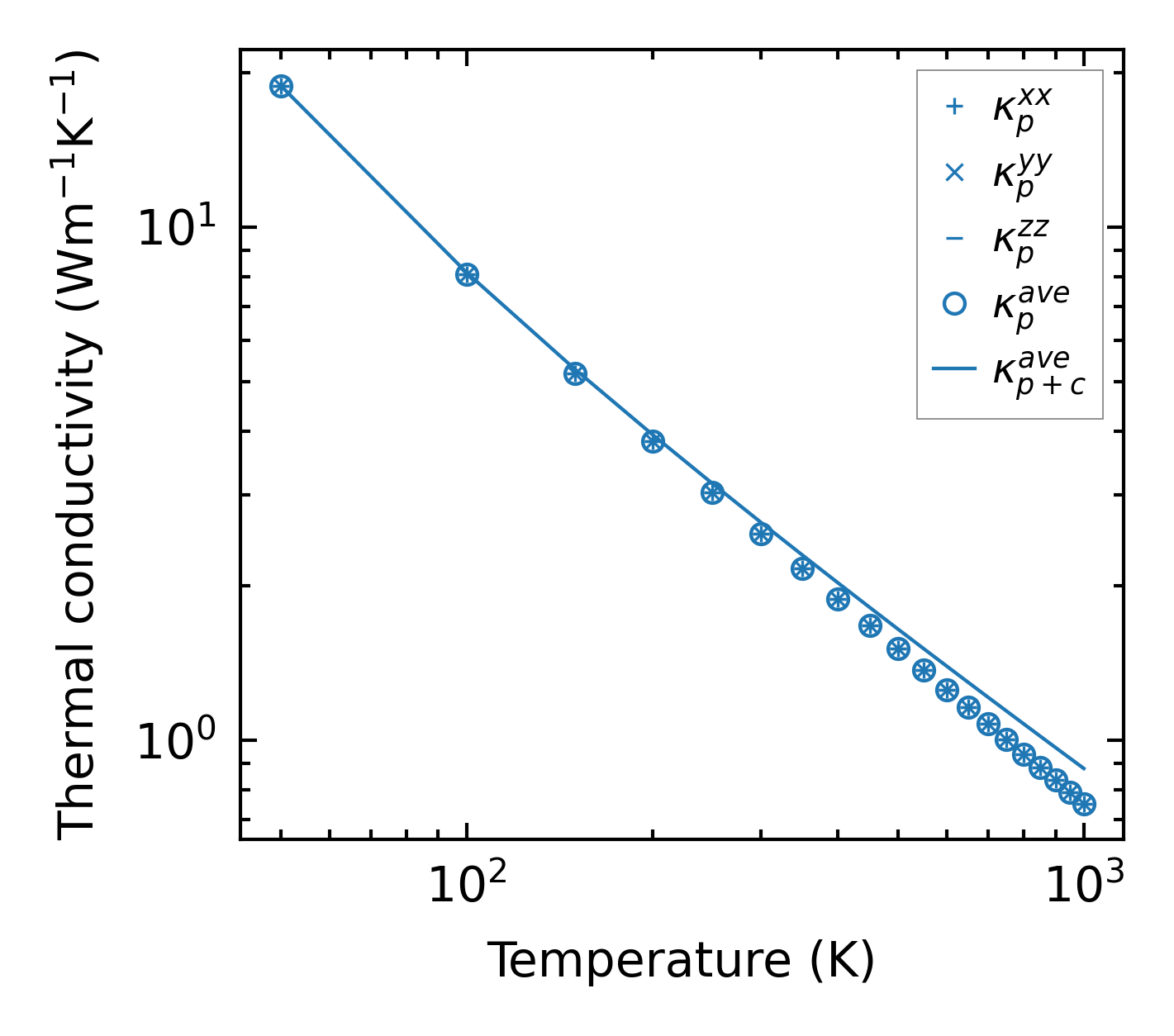

../../_images/fig_kappa209.png — (a) Temperature-dependent lattice thermal conductivity

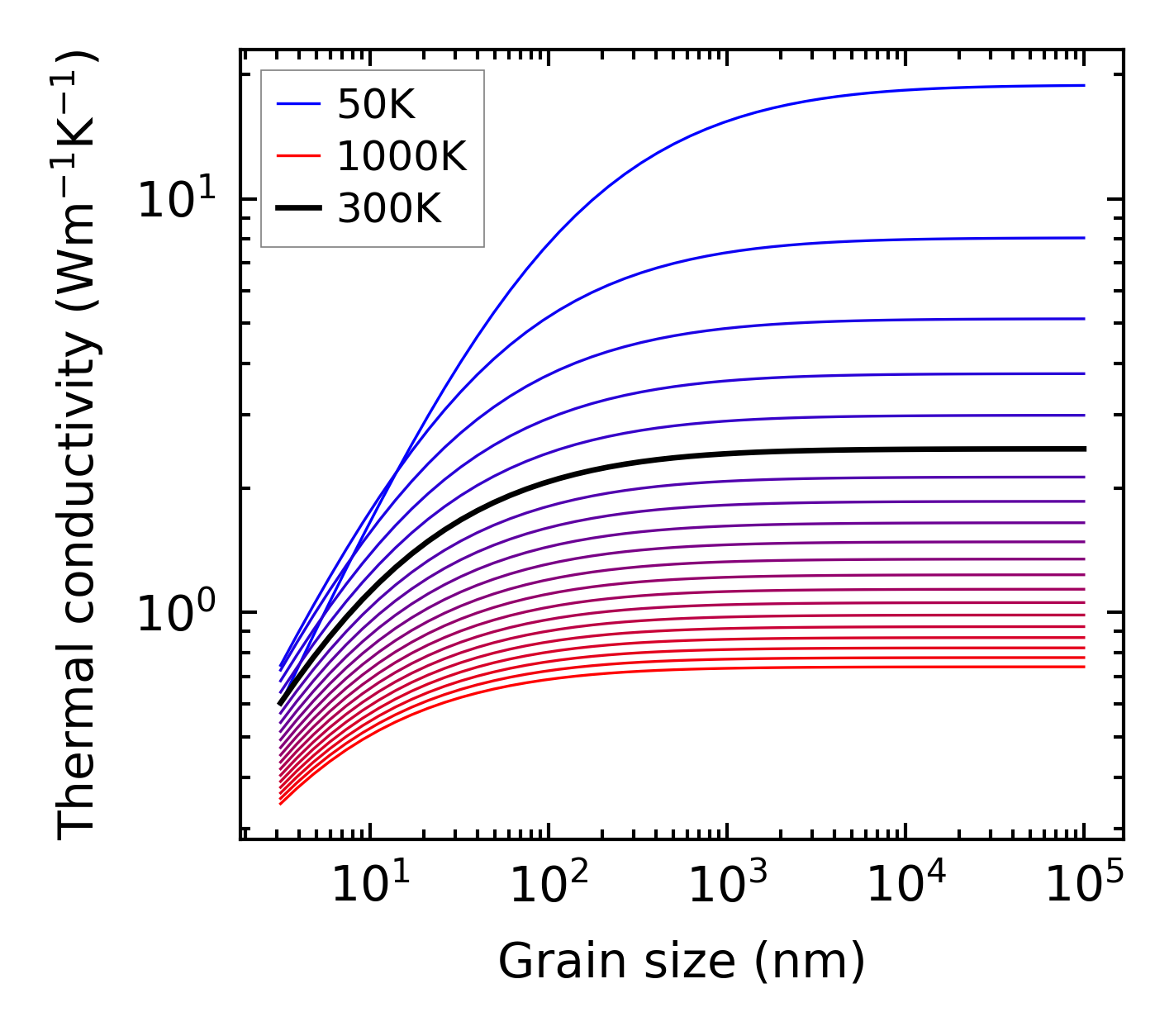

../../_images/fig_kappa_vs_grain_size109.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

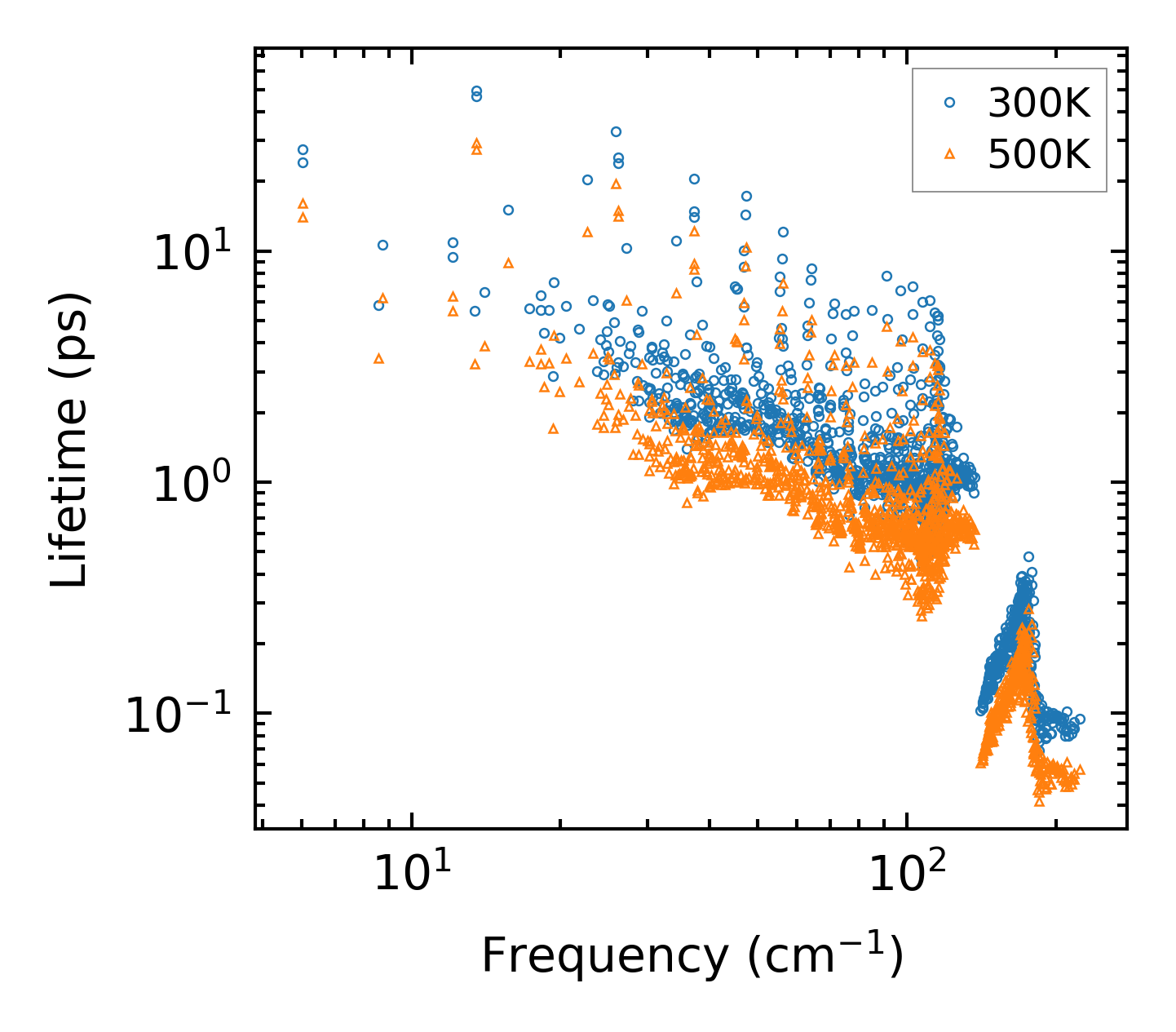

../../_images/fig_lifetime107.png — (a) Phonon lifetime due to phonon-phonon scattering

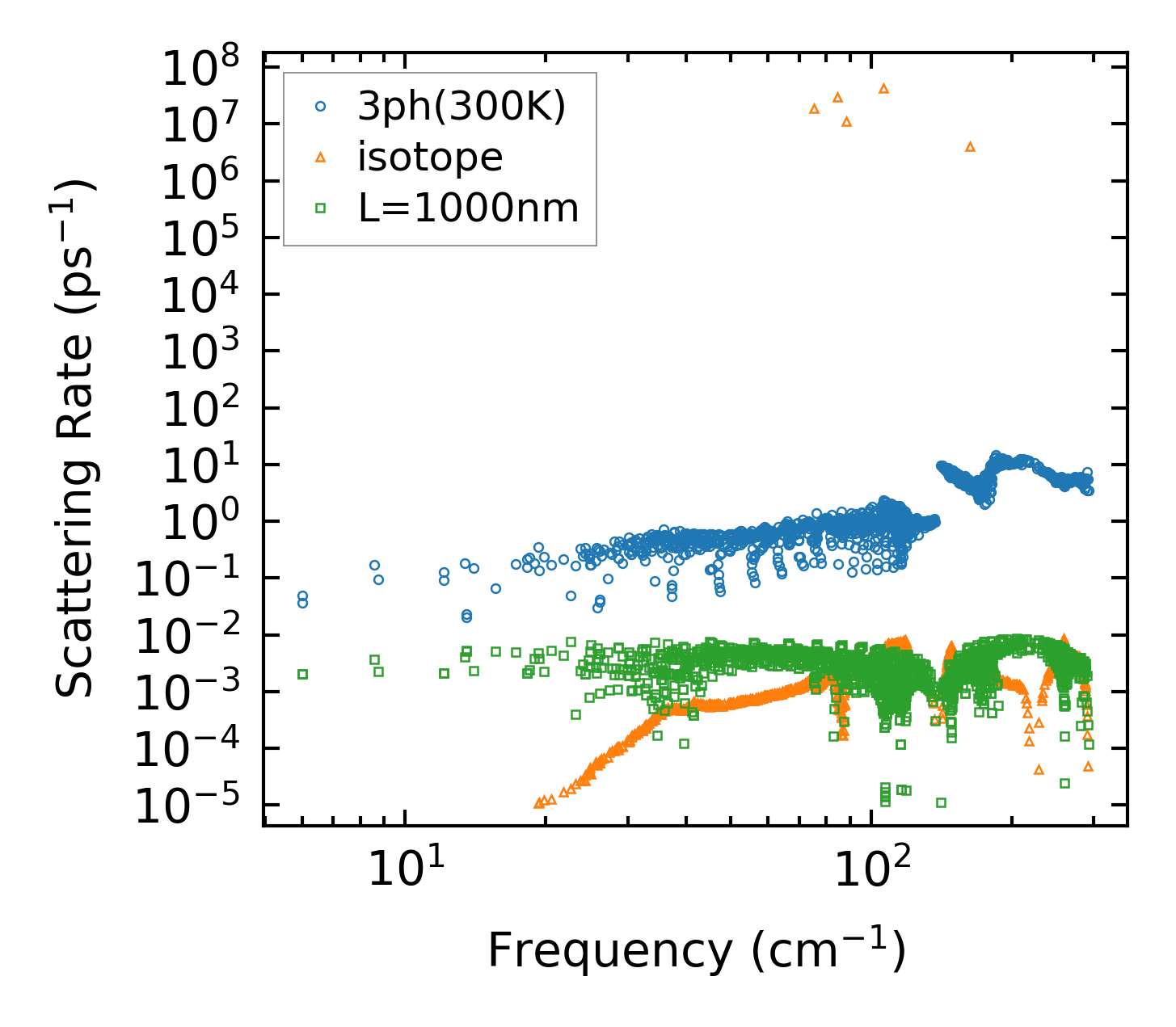

../../_images/fig_scat_rates106.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency107.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

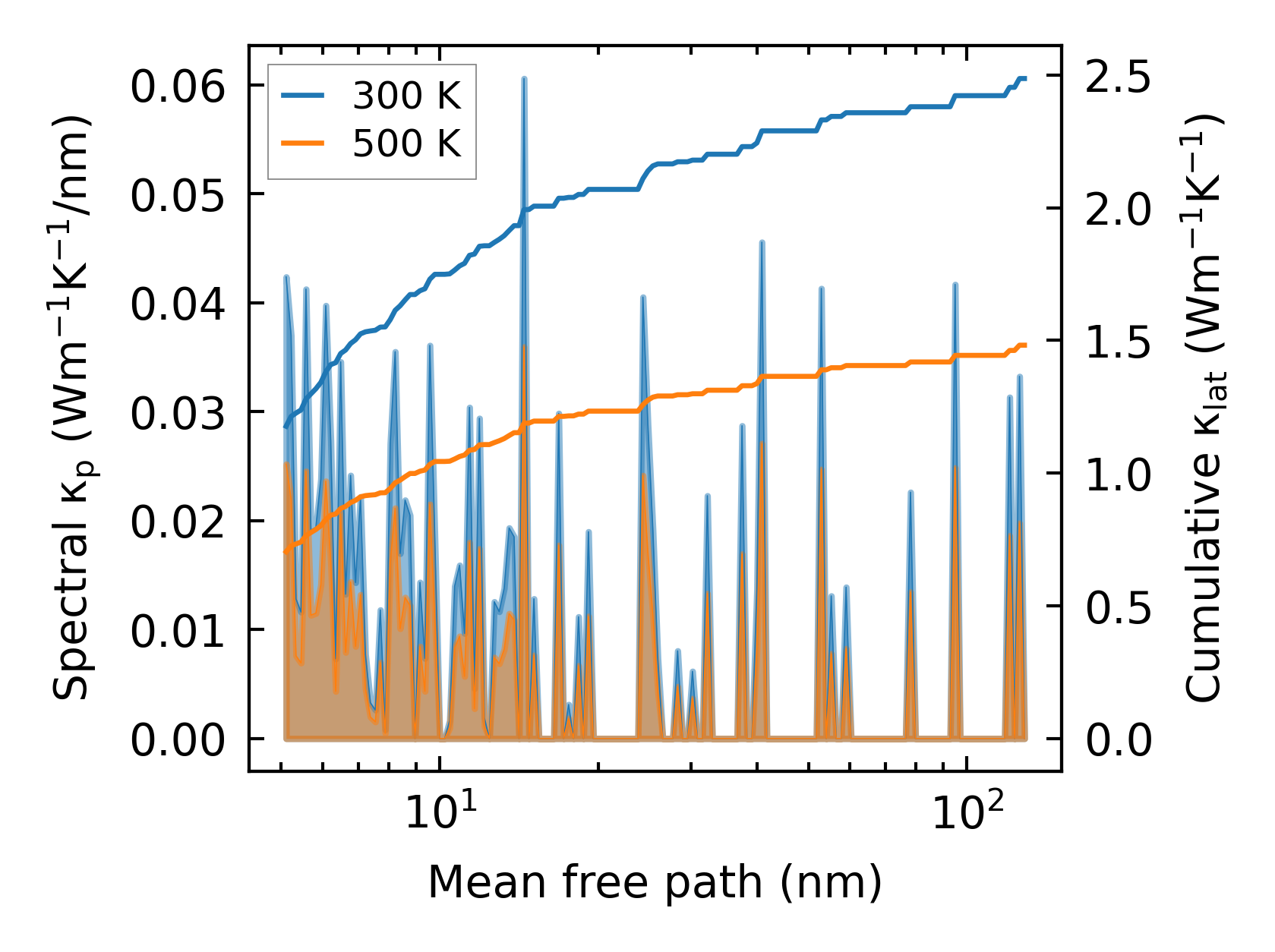

../../_images/fig_cumu_mfp107.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

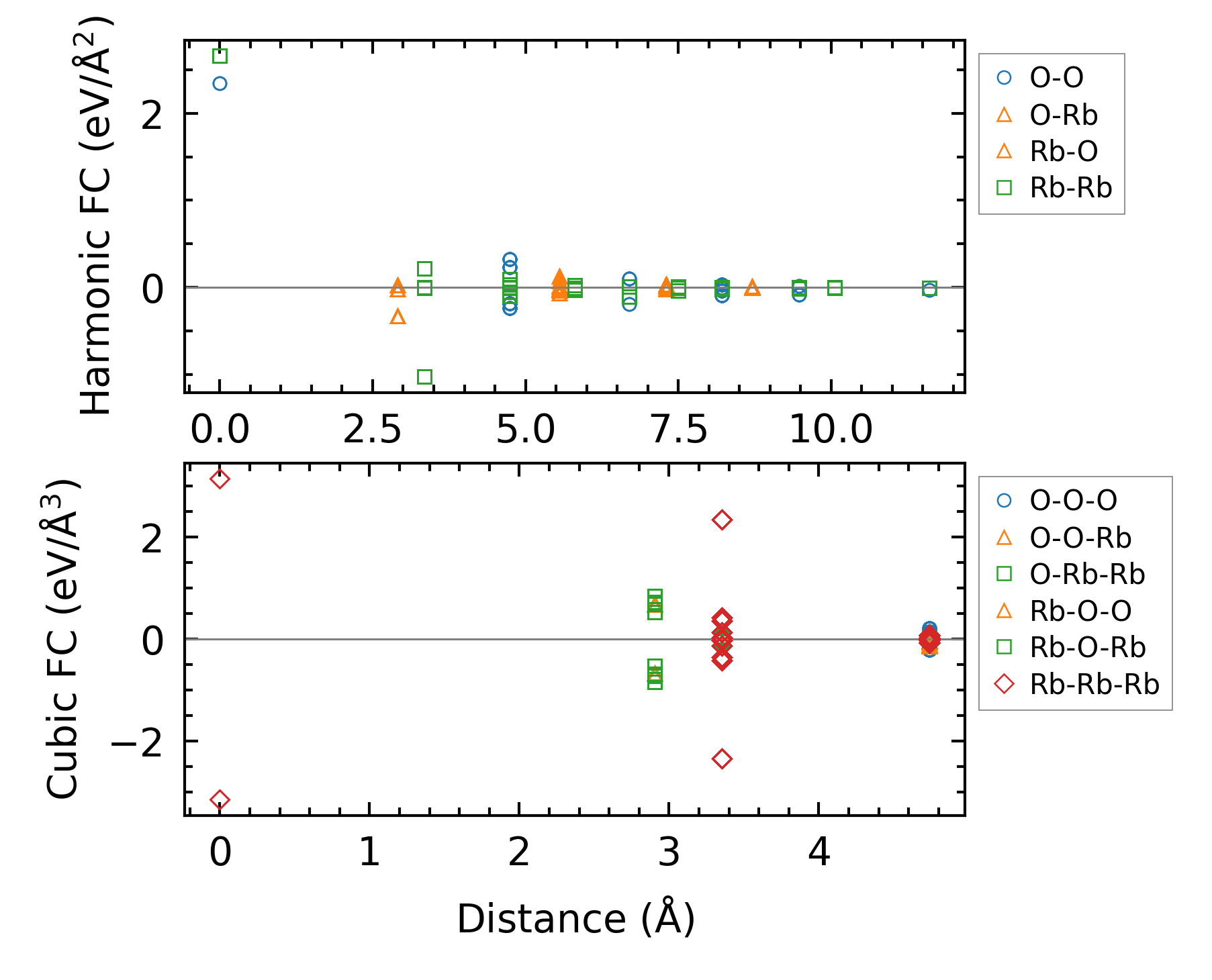

../../_images/fig_fc37.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa210.png — (a) Temperature-dependent lattice thermal conductivity

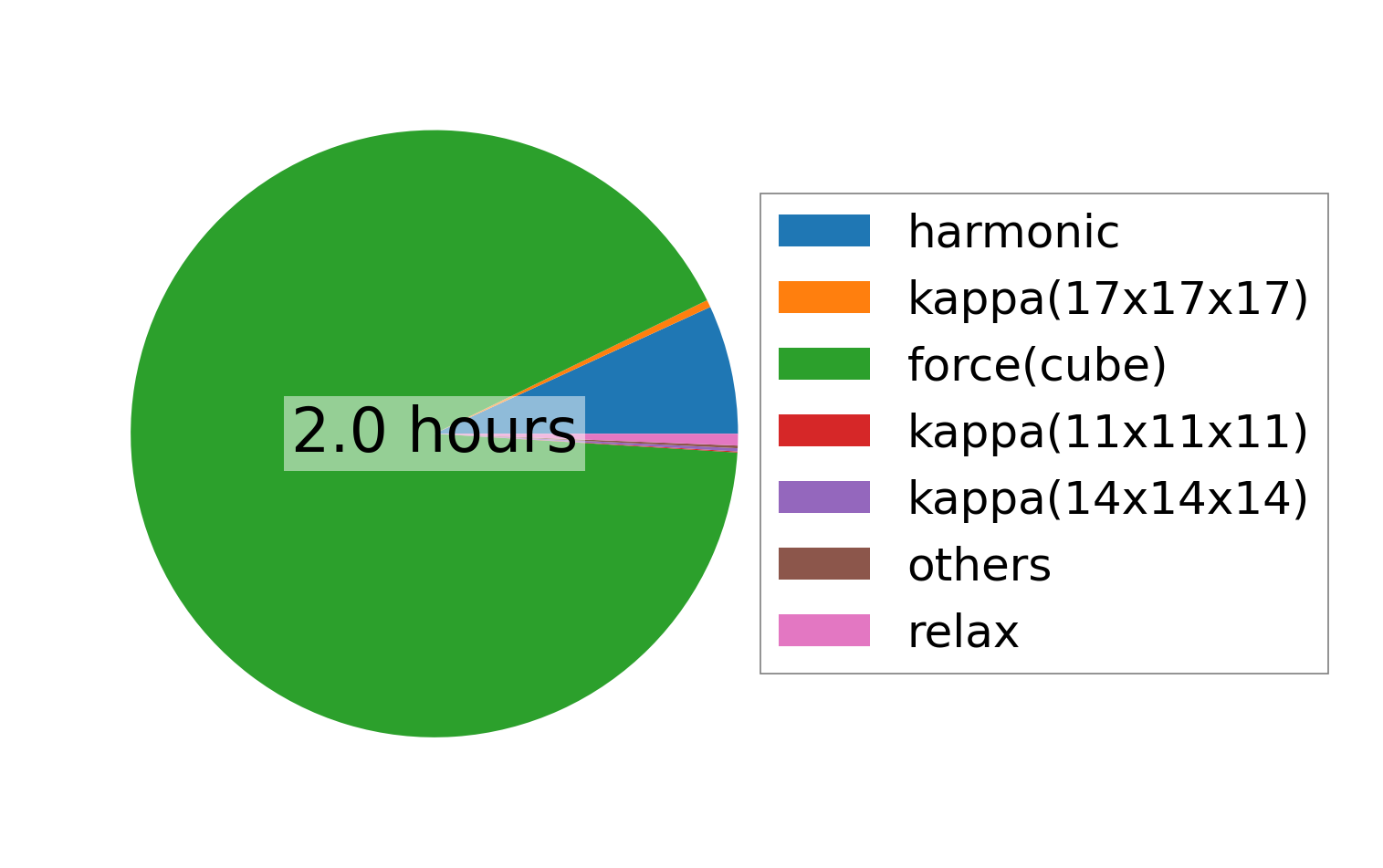

../../_images/fig_times283.png — (b) Computation time
