mp-1840/TiO2/anharm

Space group: Pbca (61)
Link: Materials Project
Download: mp-1840.tar.gz

Harmonic properties

../../_images/fig_bandos_pr227.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo227.png — (b) Thermodynamic properties

Grüneisen parameters

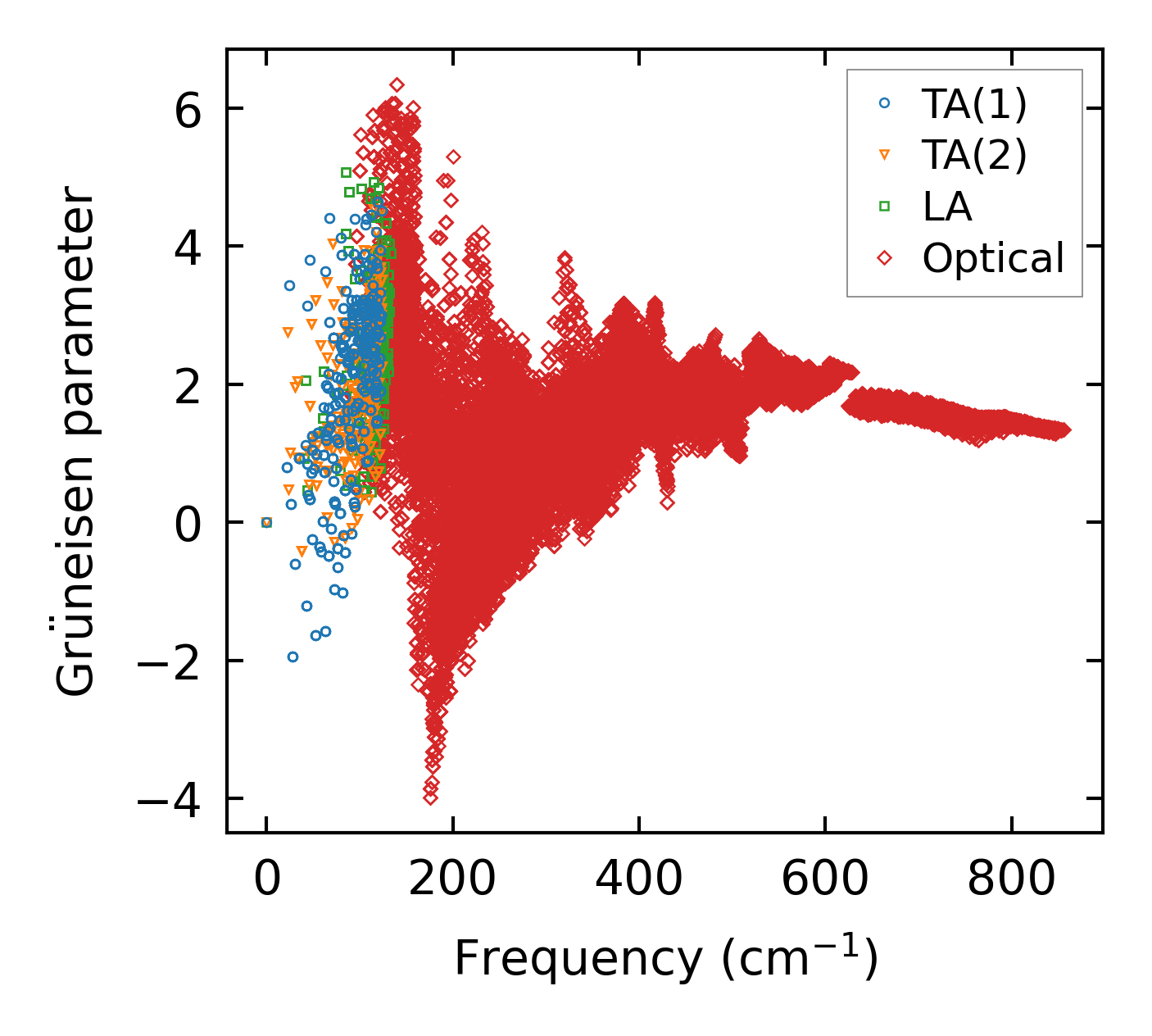

../../_images/fig_gru_all147.png — (a) Grüneisen parameters

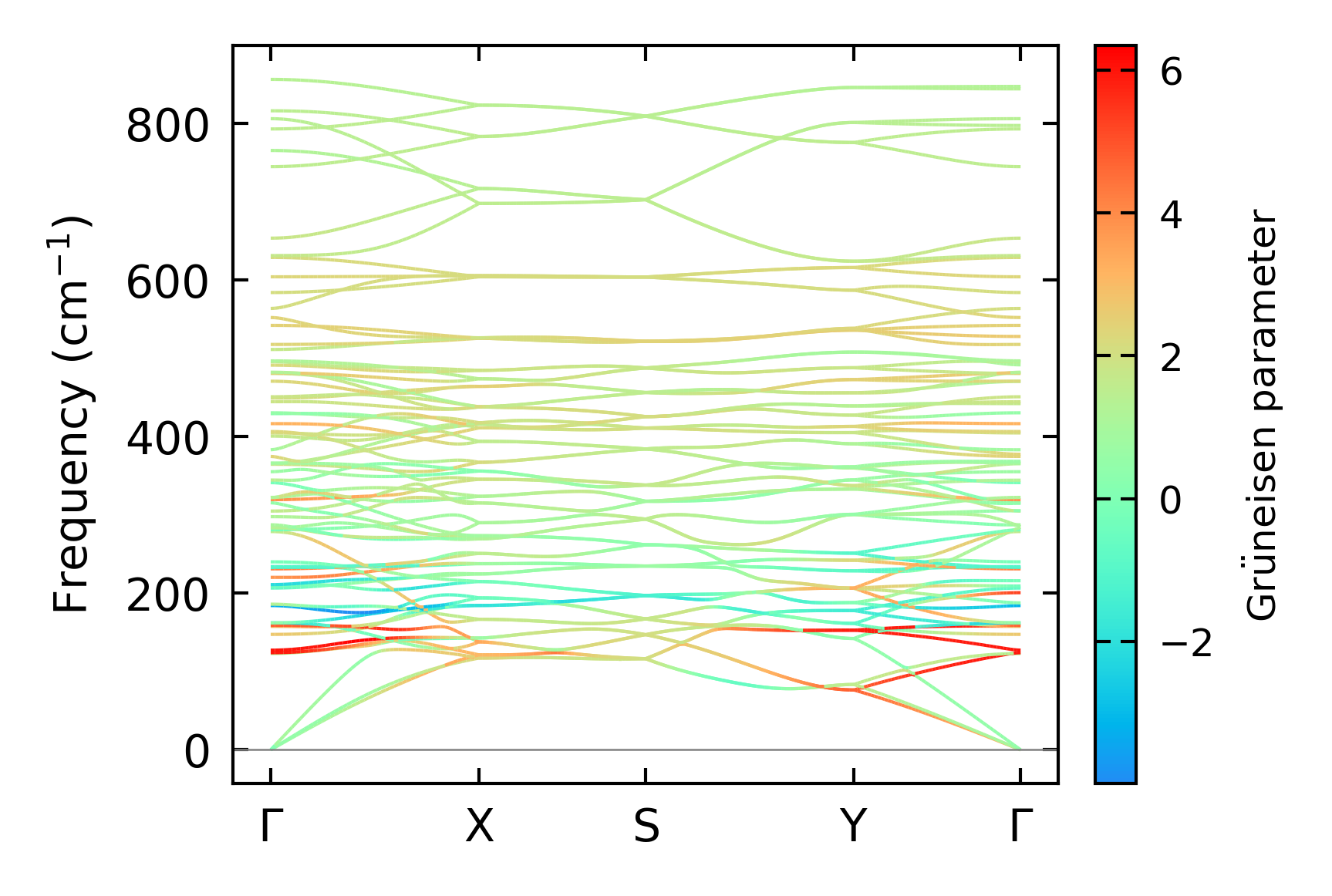

../../_images/fig_gruneisen147.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x7x13, supercell: 2x1x2

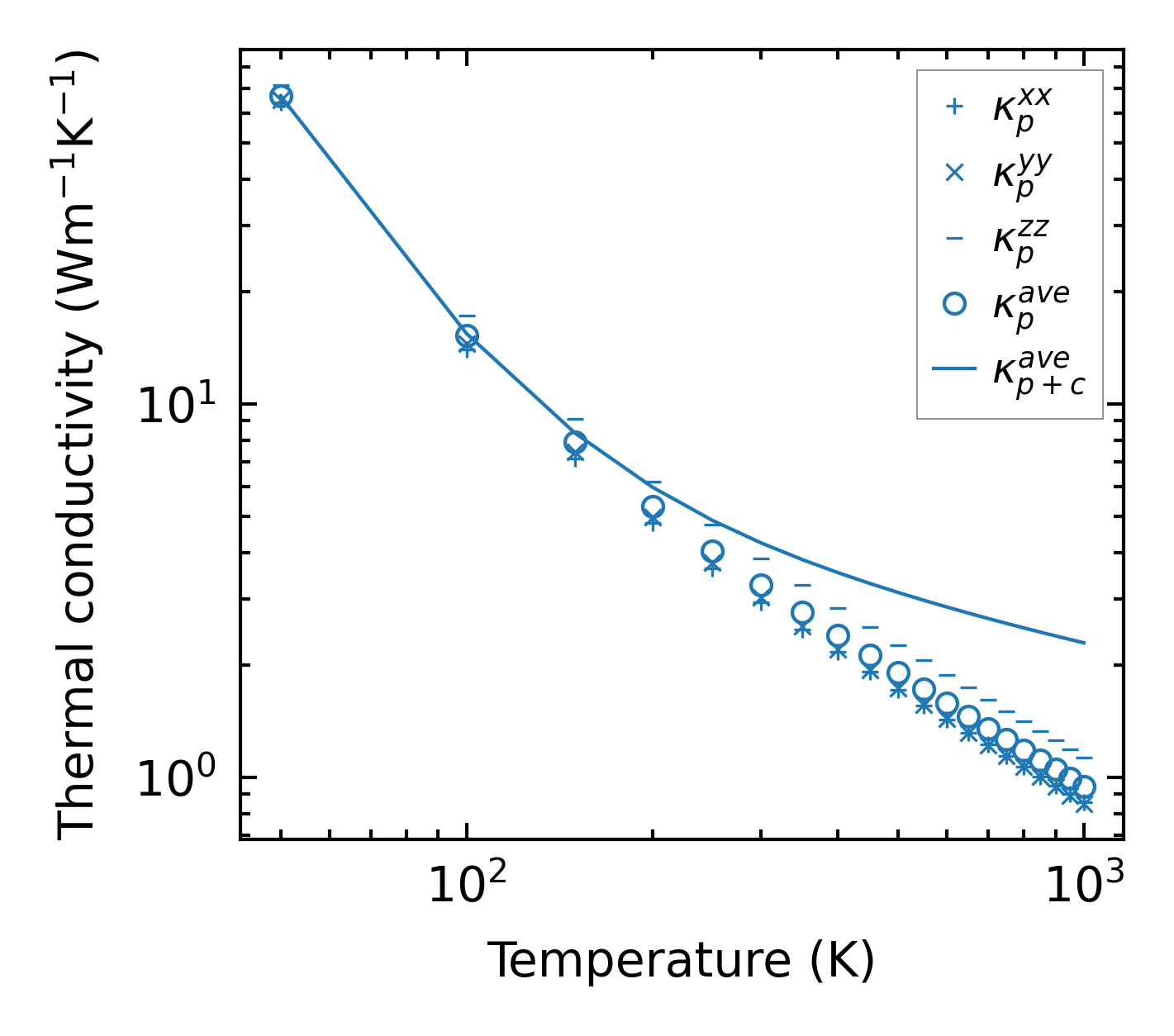

../../_images/fig_kappa285.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size148.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

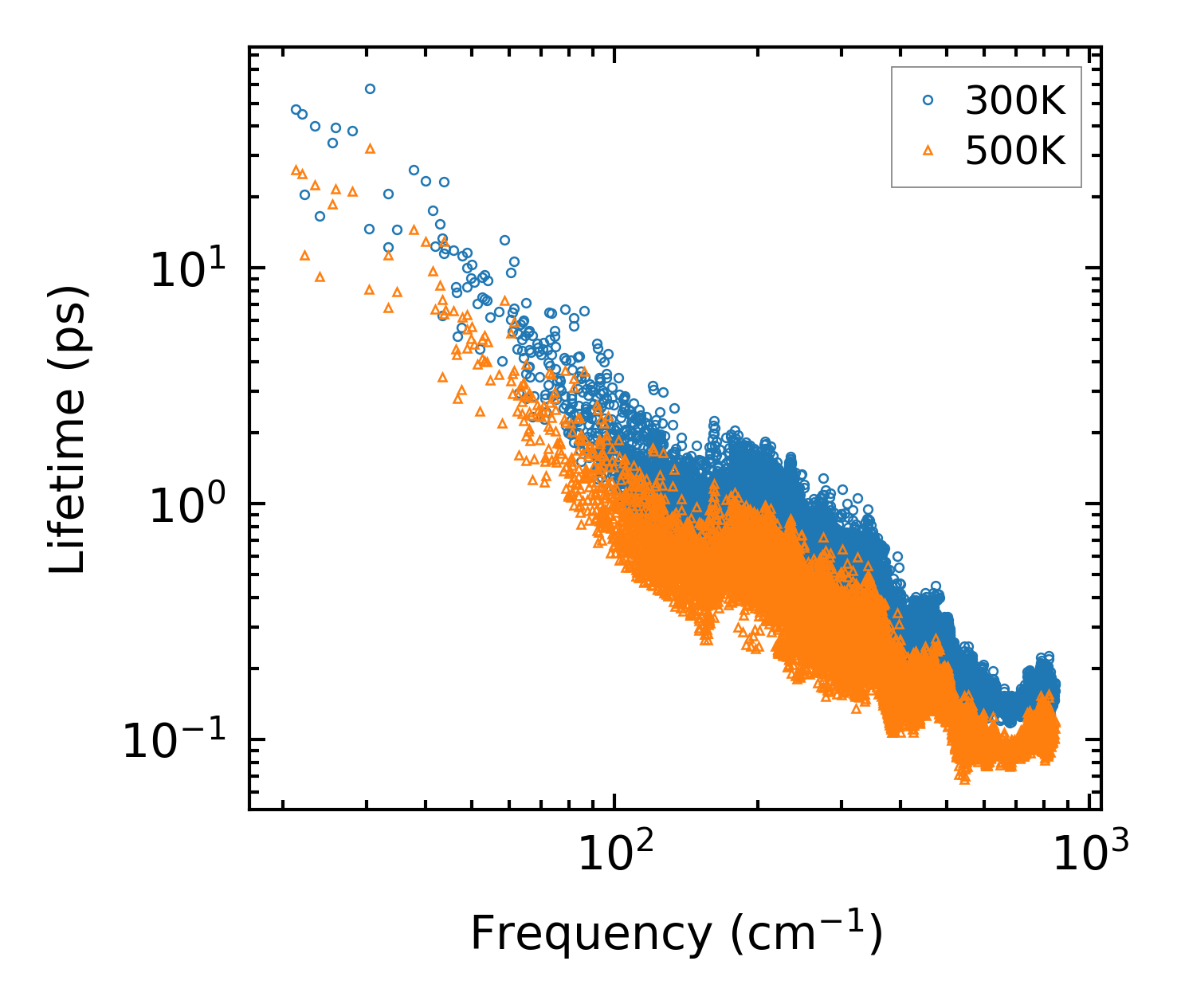

../../_images/fig_lifetime146.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates145.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

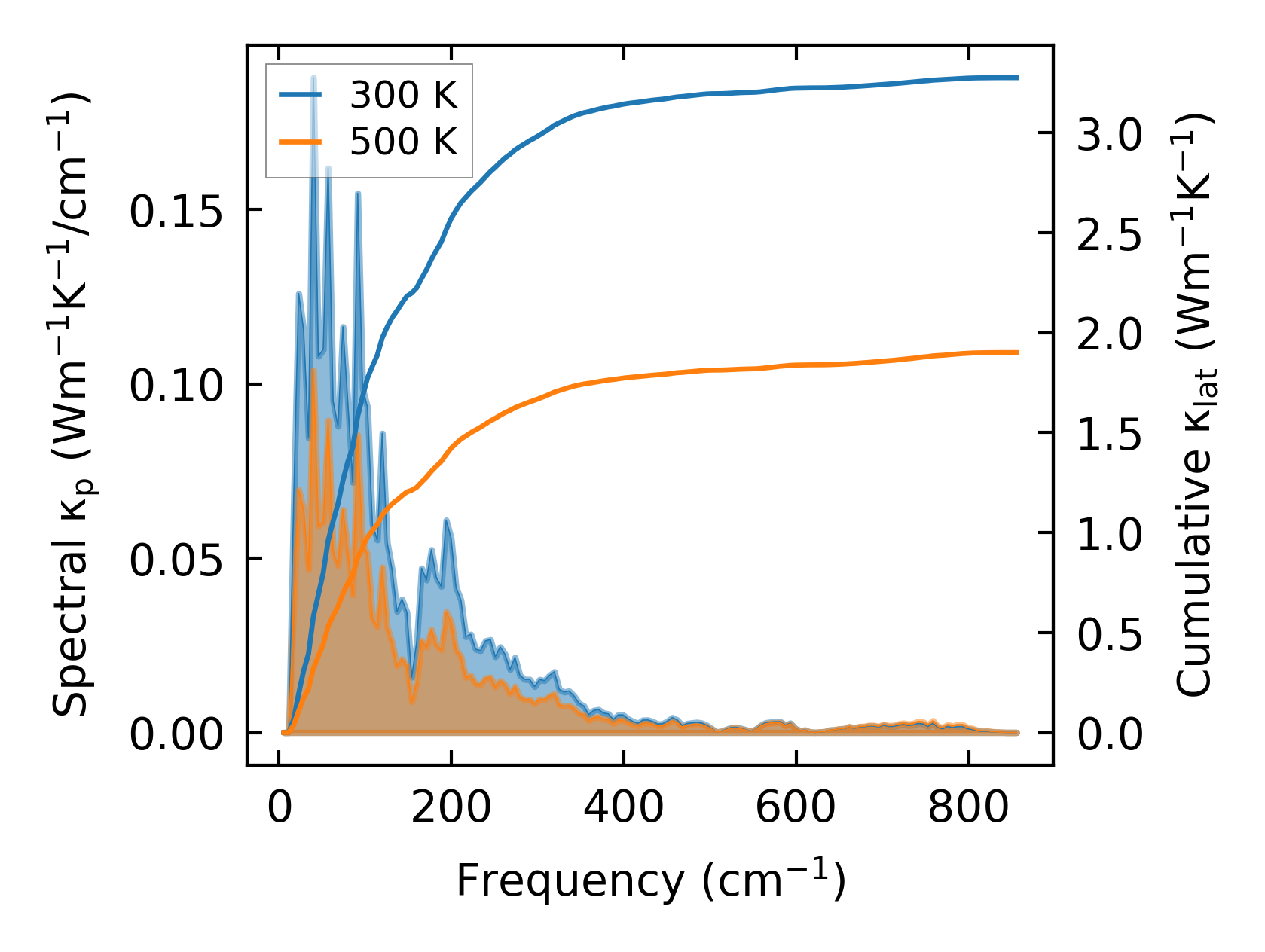

../../_images/fig_cumu_frequency146.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp146.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

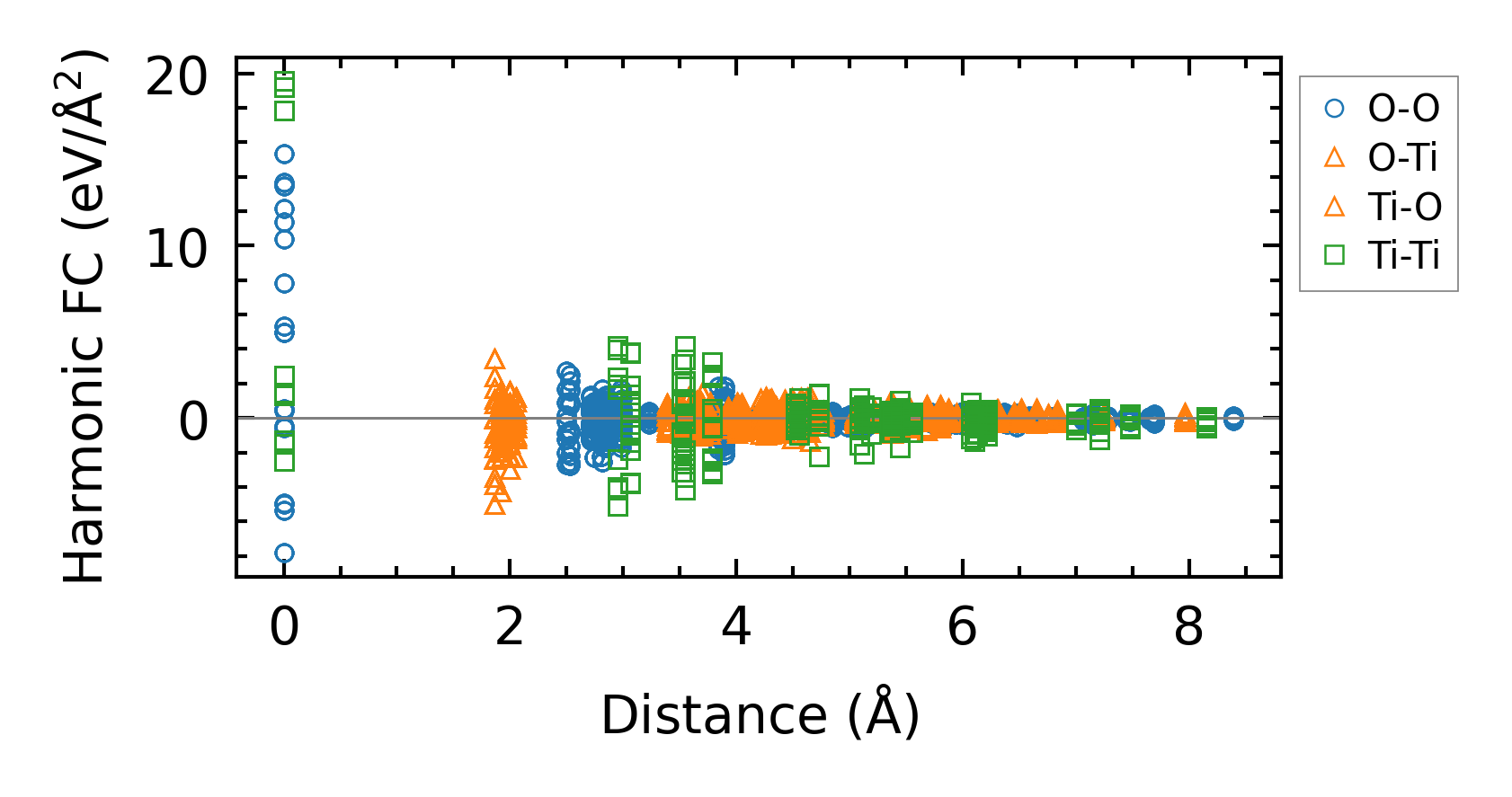

../../_images/fig_fc2204.png — (a) Force constants w.r.t atomic distance

Summary

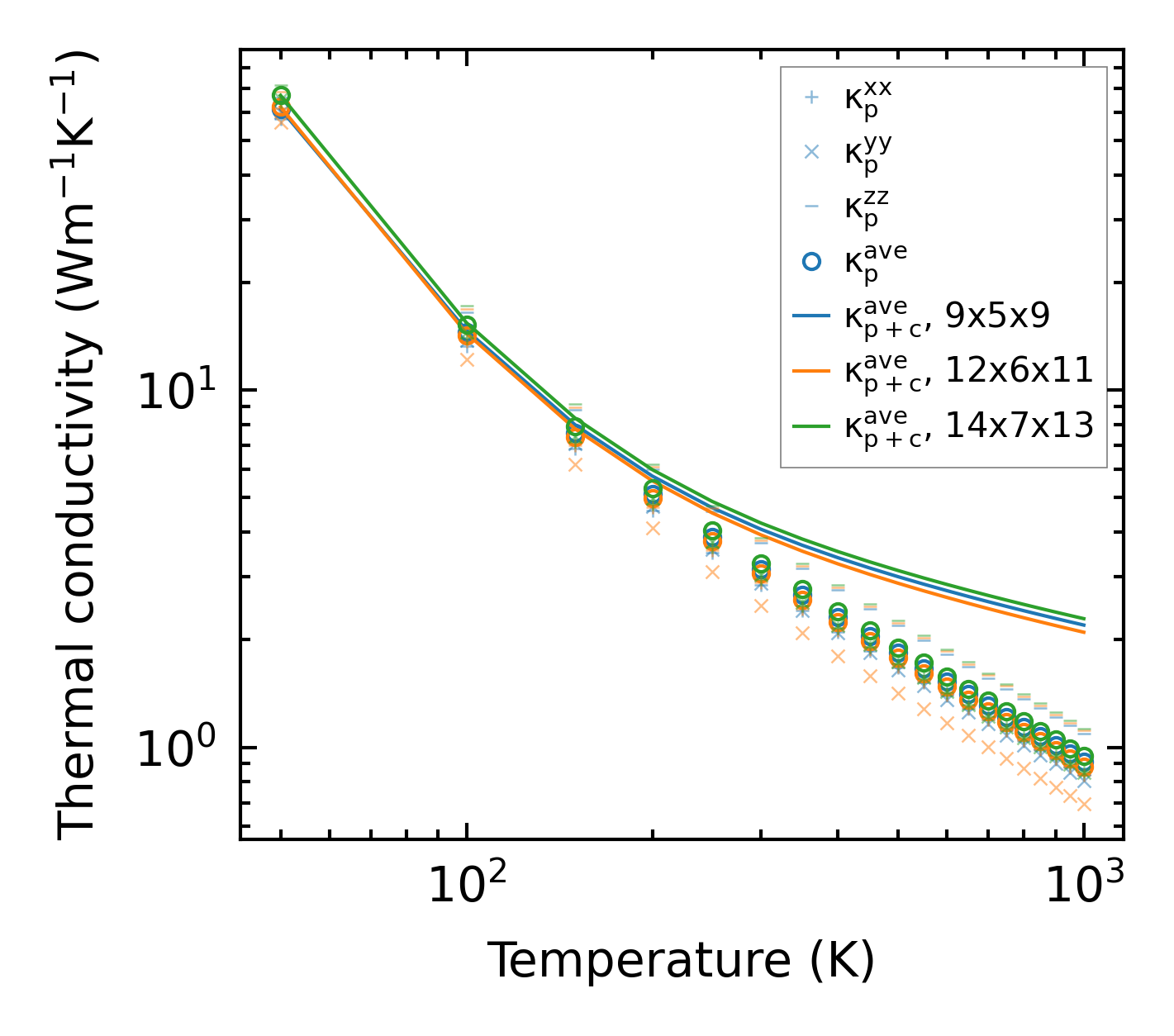

../../_images/fig_kappa286.png — (a) Temperature-dependent lattice thermal conductivity

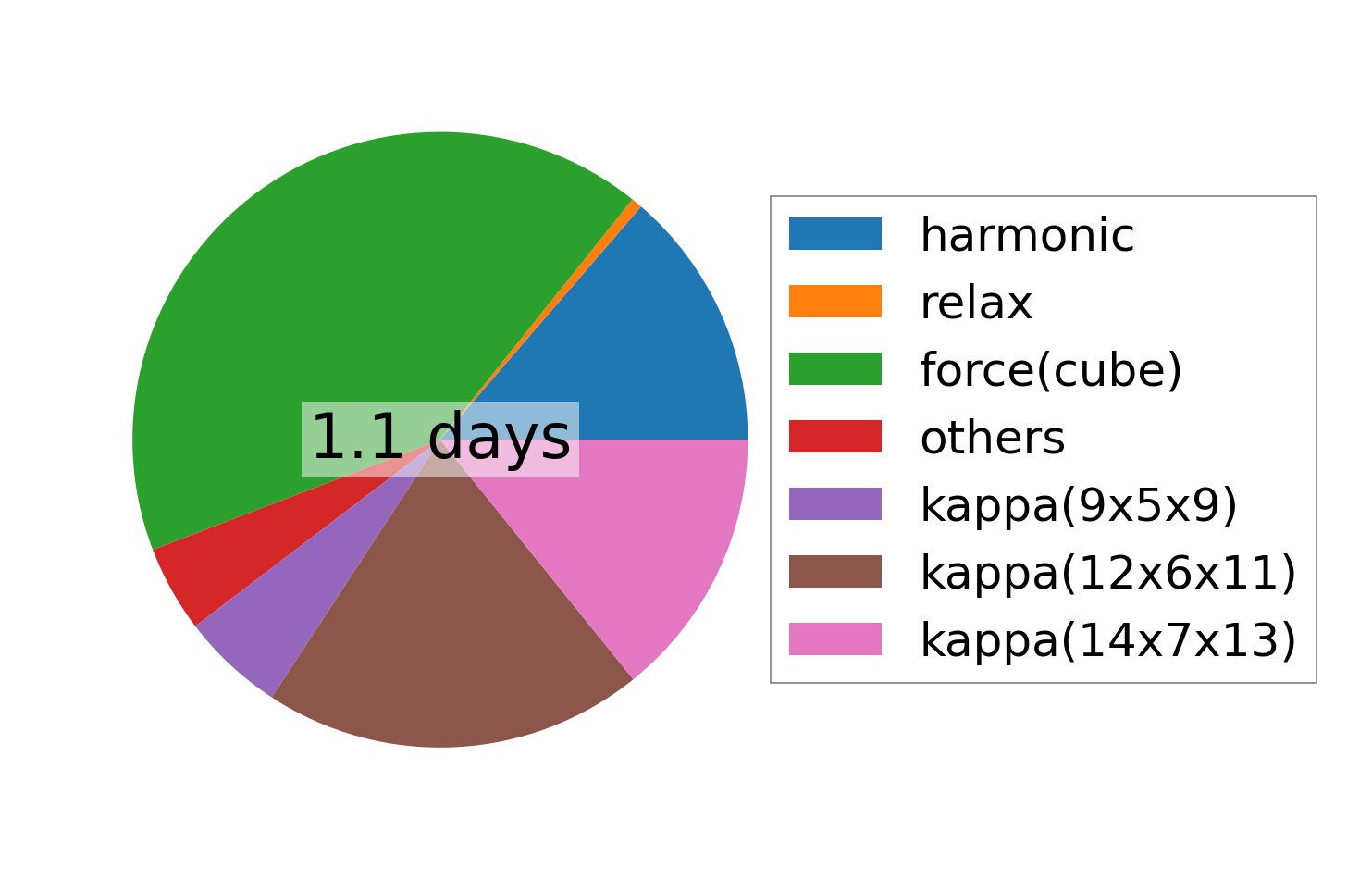

../../_images/fig_times373.png — (b) Computation time
