mp-1707-2/BaN6/anharm

Space group: P2_1/m (11)
Link: Materials Project
Download: mp-1707-2.tar.gz

Equation of state

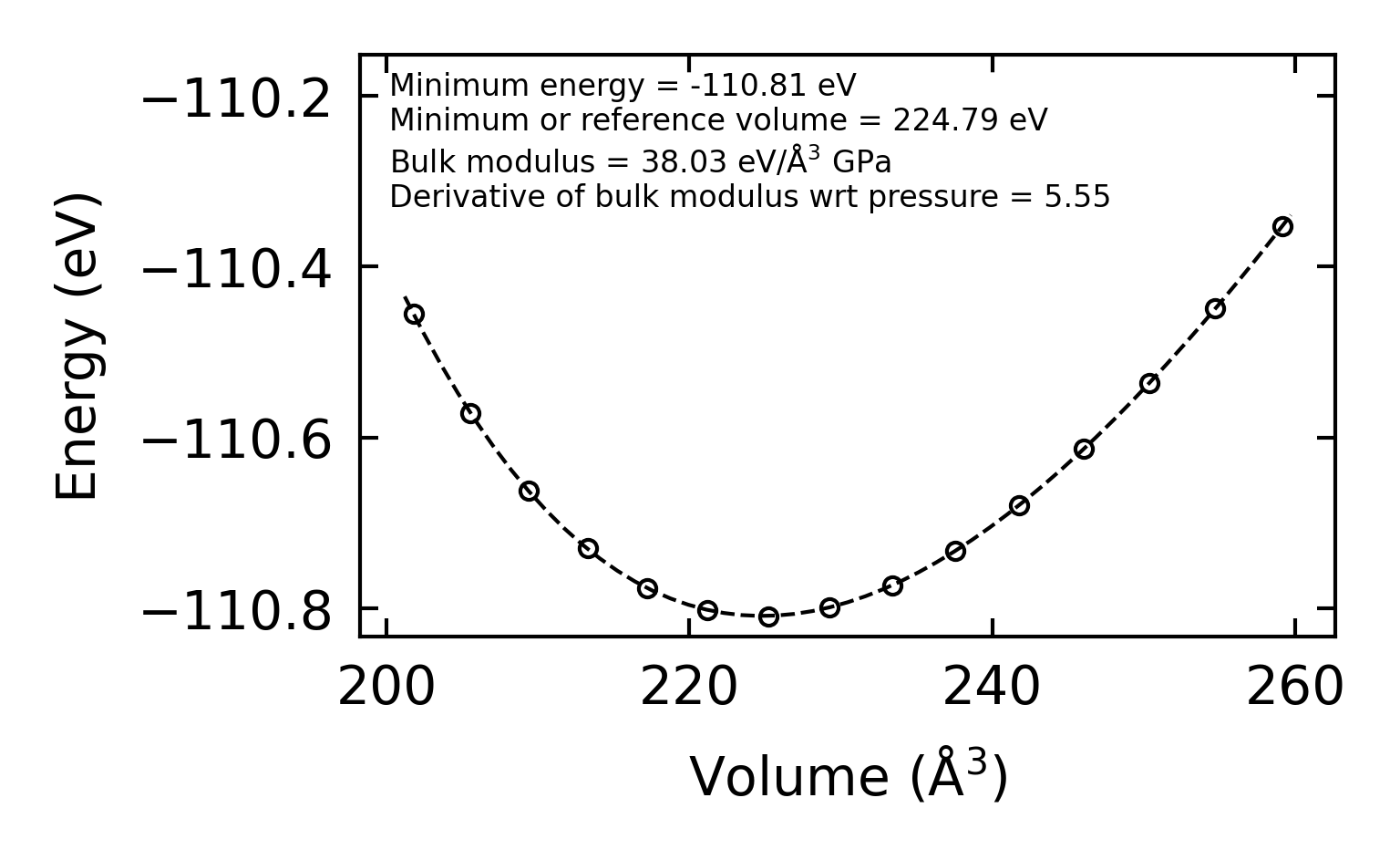

../../_images/fig_bm44.png — (a) Equation of state

Harmonic properties

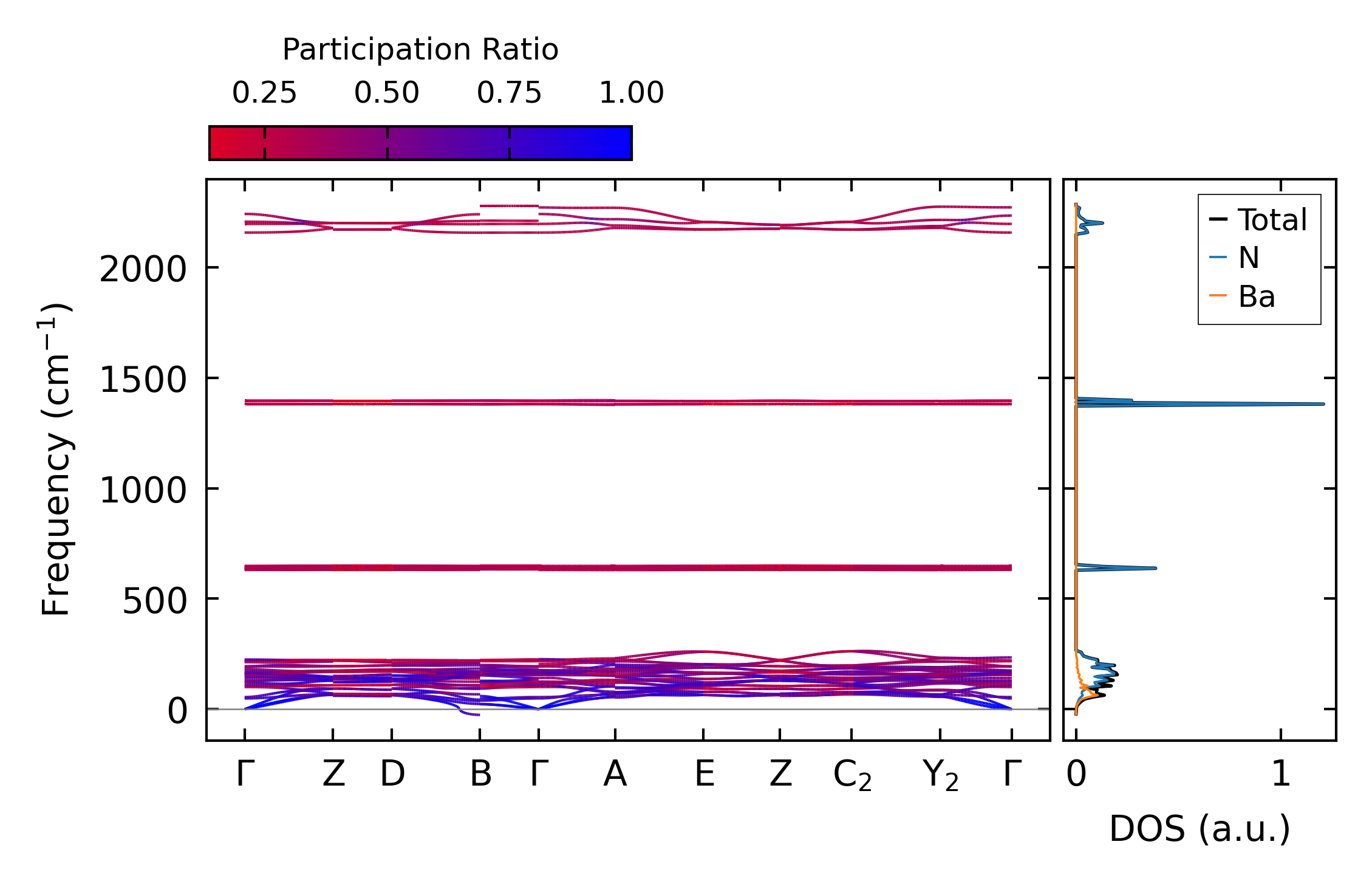

../../_images/fig_bandos_pr209.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos226.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo209.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all134.png — (a) Grüneisen parameters

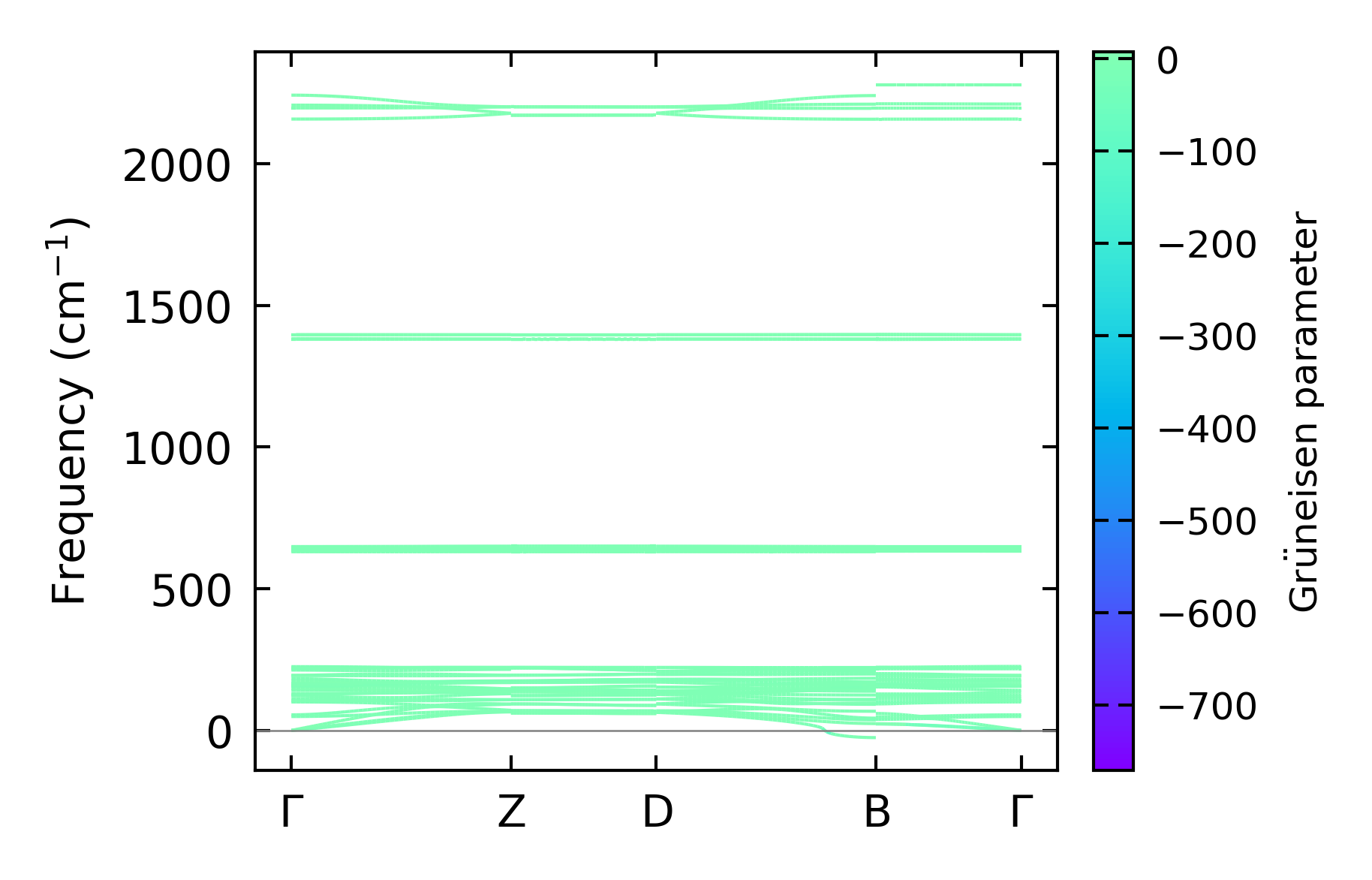

../../_images/fig_gruneisen134.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x3x2 — q-mesh: 13x16x7, supercell: 2x3x2

../../_images/fig_kappa261.png — (a) Temperature-dependent lattice thermal conductivity

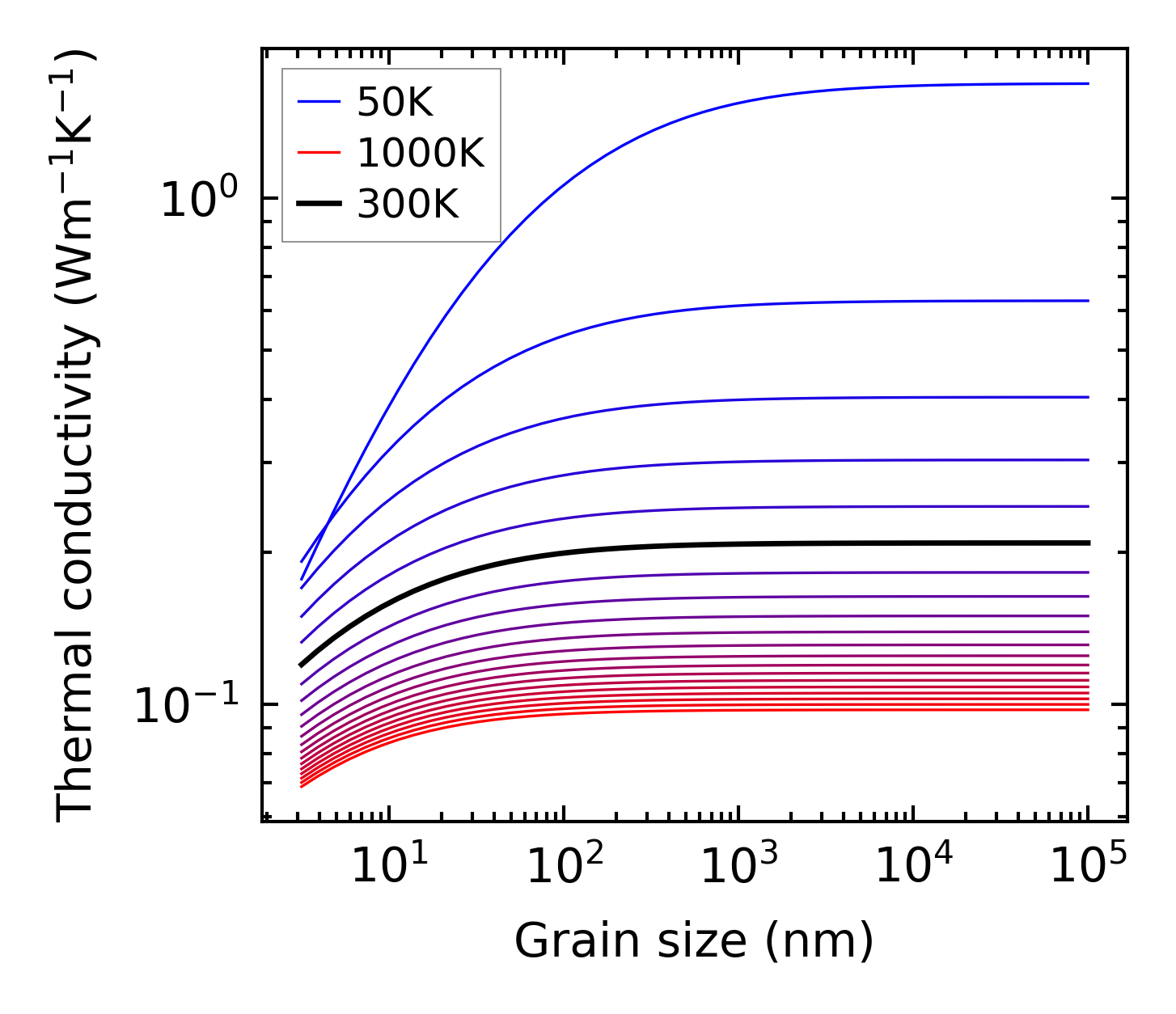

../../_images/fig_kappa_vs_grain_size135.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

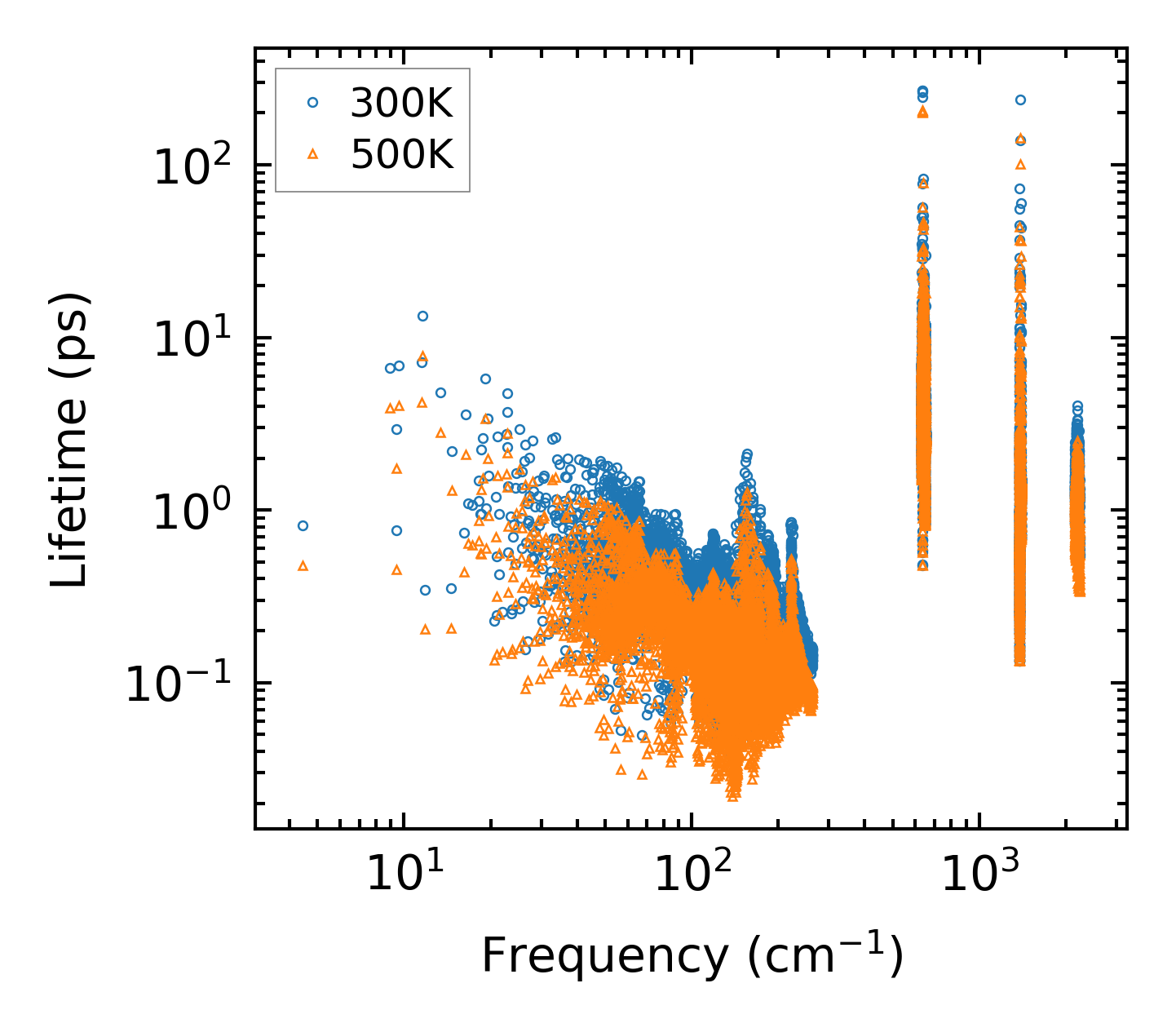

../../_images/fig_lifetime133.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates132.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

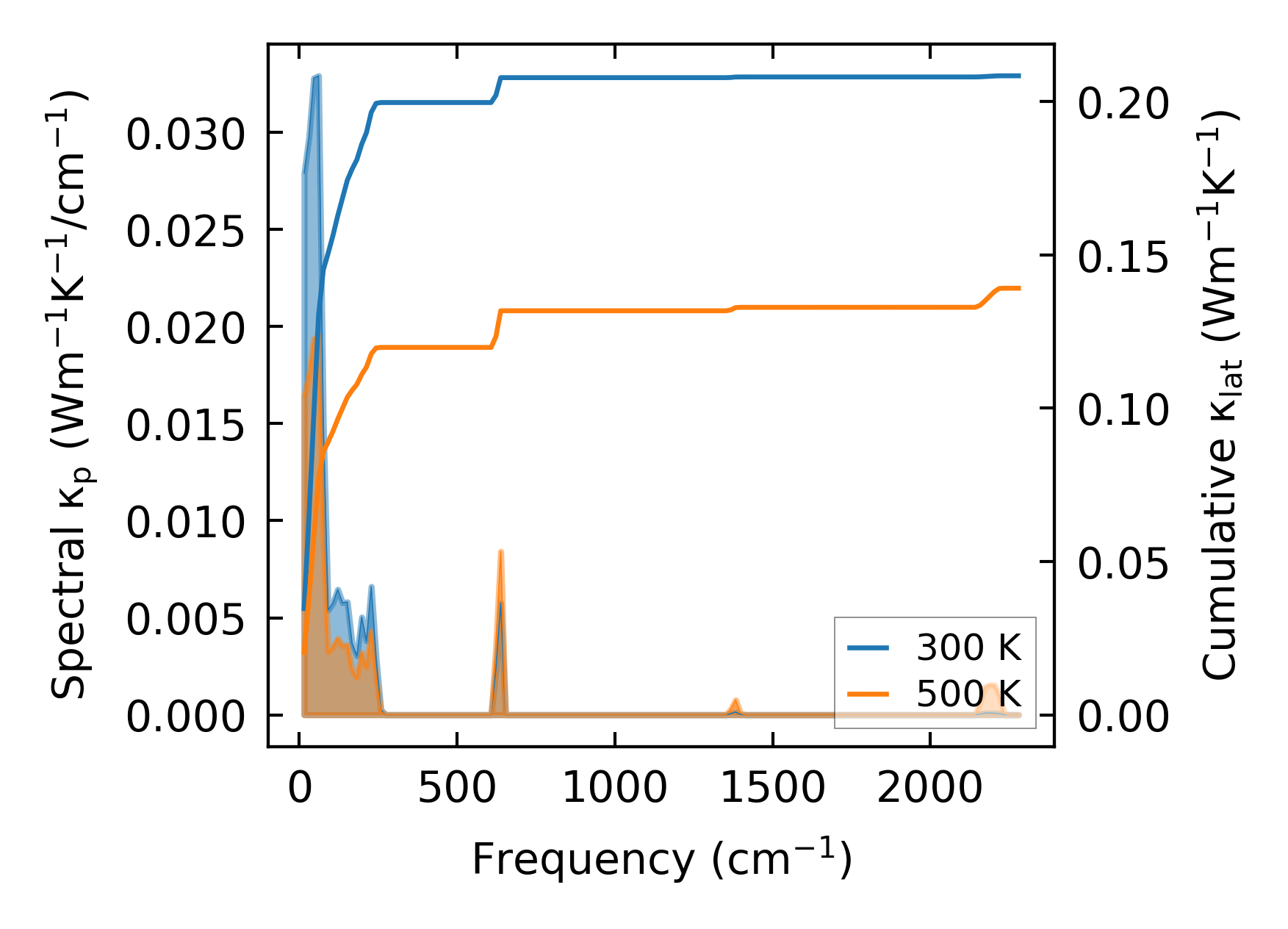

../../_images/fig_cumu_frequency133.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

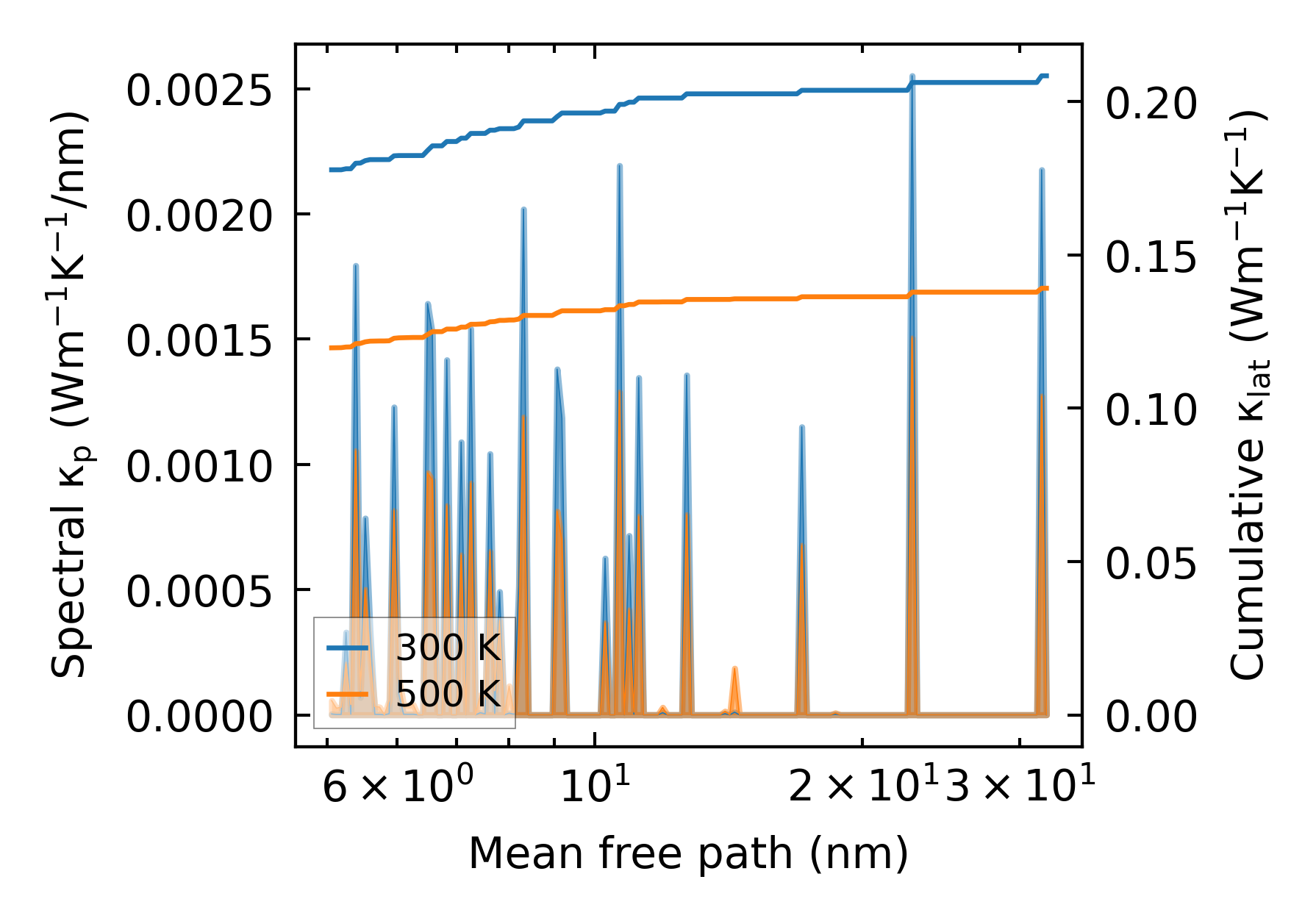

../../_images/fig_cumu_mfp133.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2193.png — (a) Force constants w.r.t atomic distance

Summary

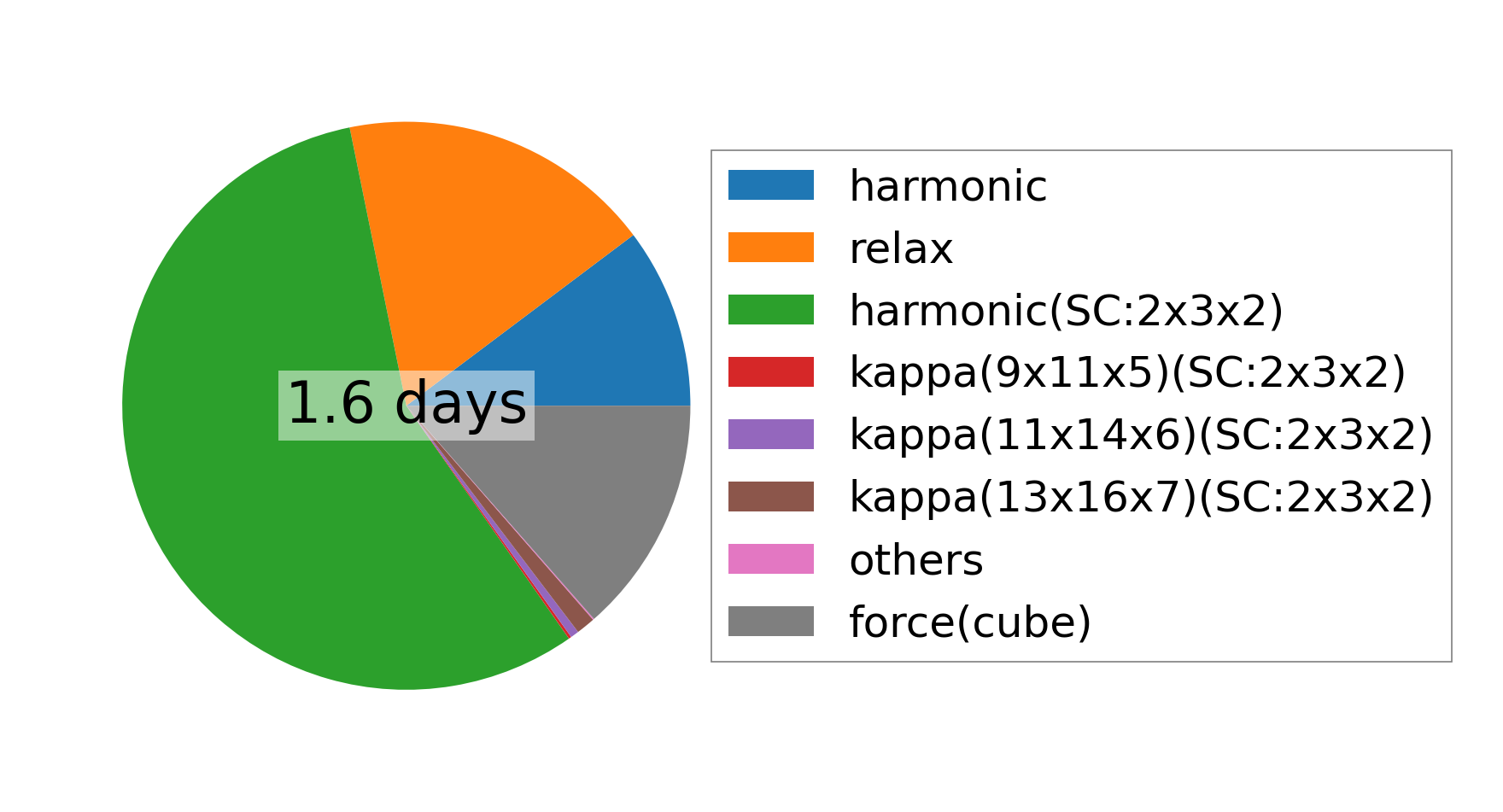

../../_images/fig_times347.png — (a) Computation time
