mp-1285/PtO2/anharm

Space group: Pnnm (58)
Link: Materials Project
Download: mp-1285.tar.gz

Harmonic properties

../../_images/fig_bandos_pr155.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo155.png — (b) Thermodynamic properties

Grüneisen parameters

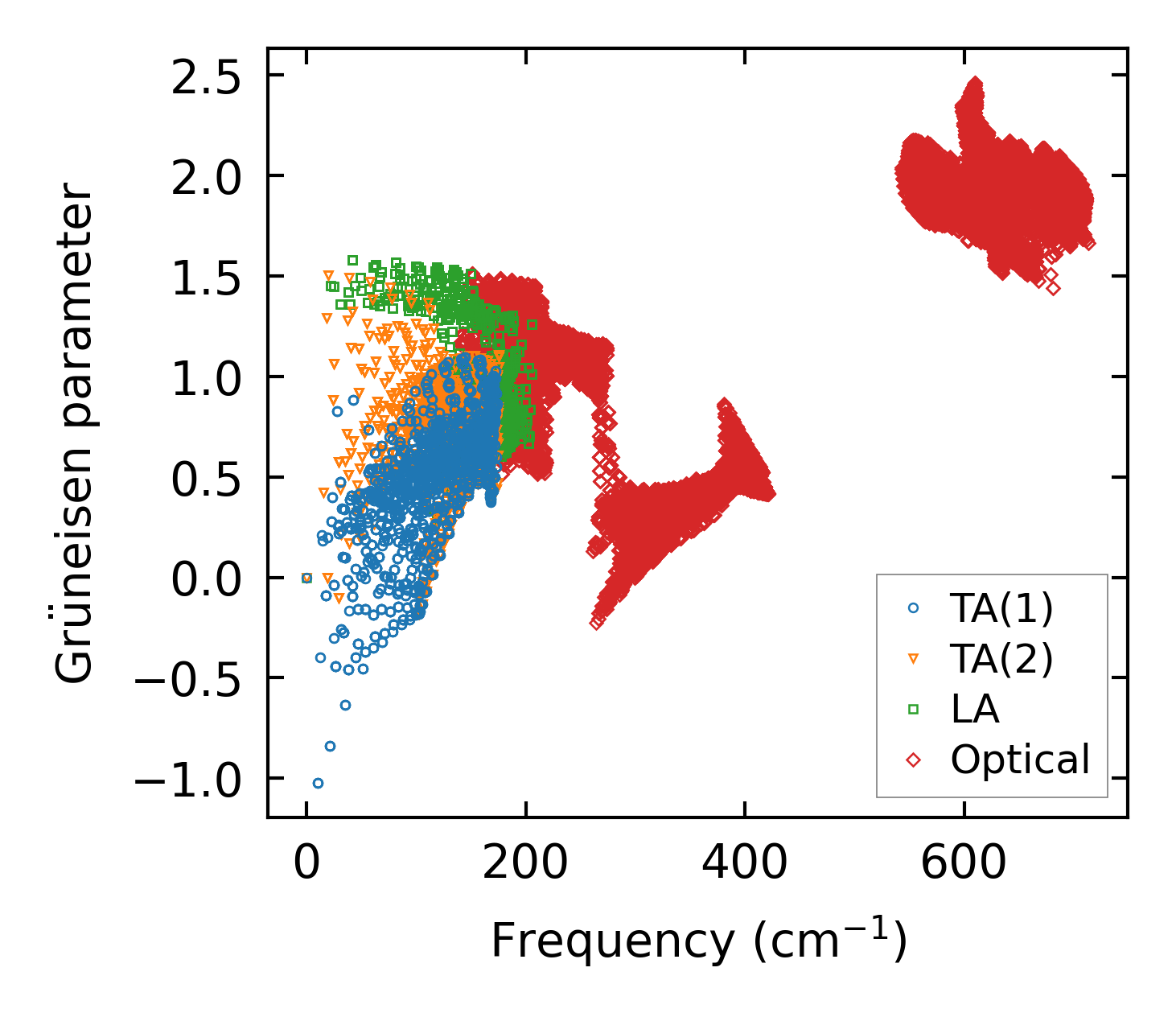

../../_images/fig_gru_all92.png — (a) Grüneisen parameters

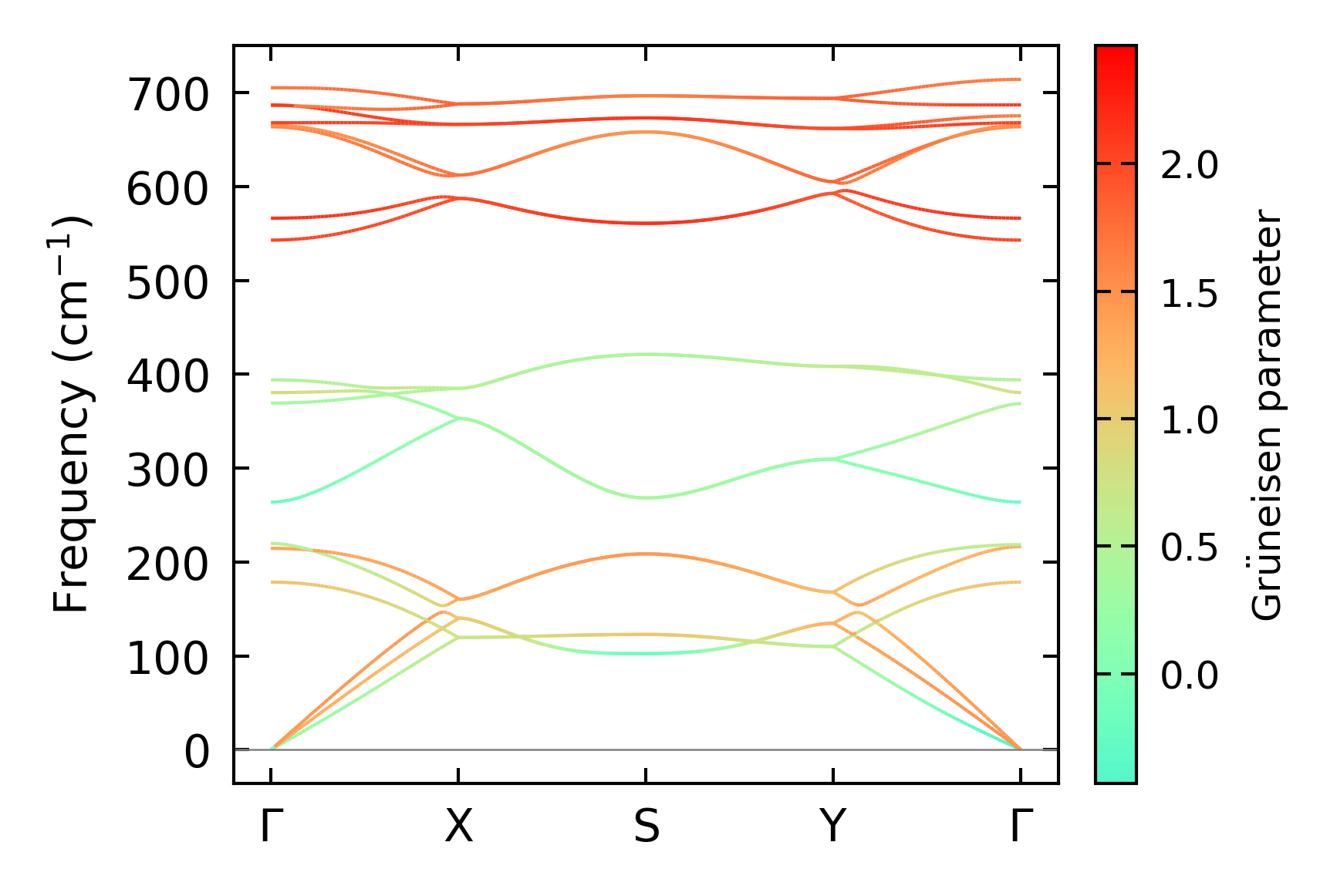

../../_images/fig_gruneisen92.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x15x22, supercell: 3x2x3

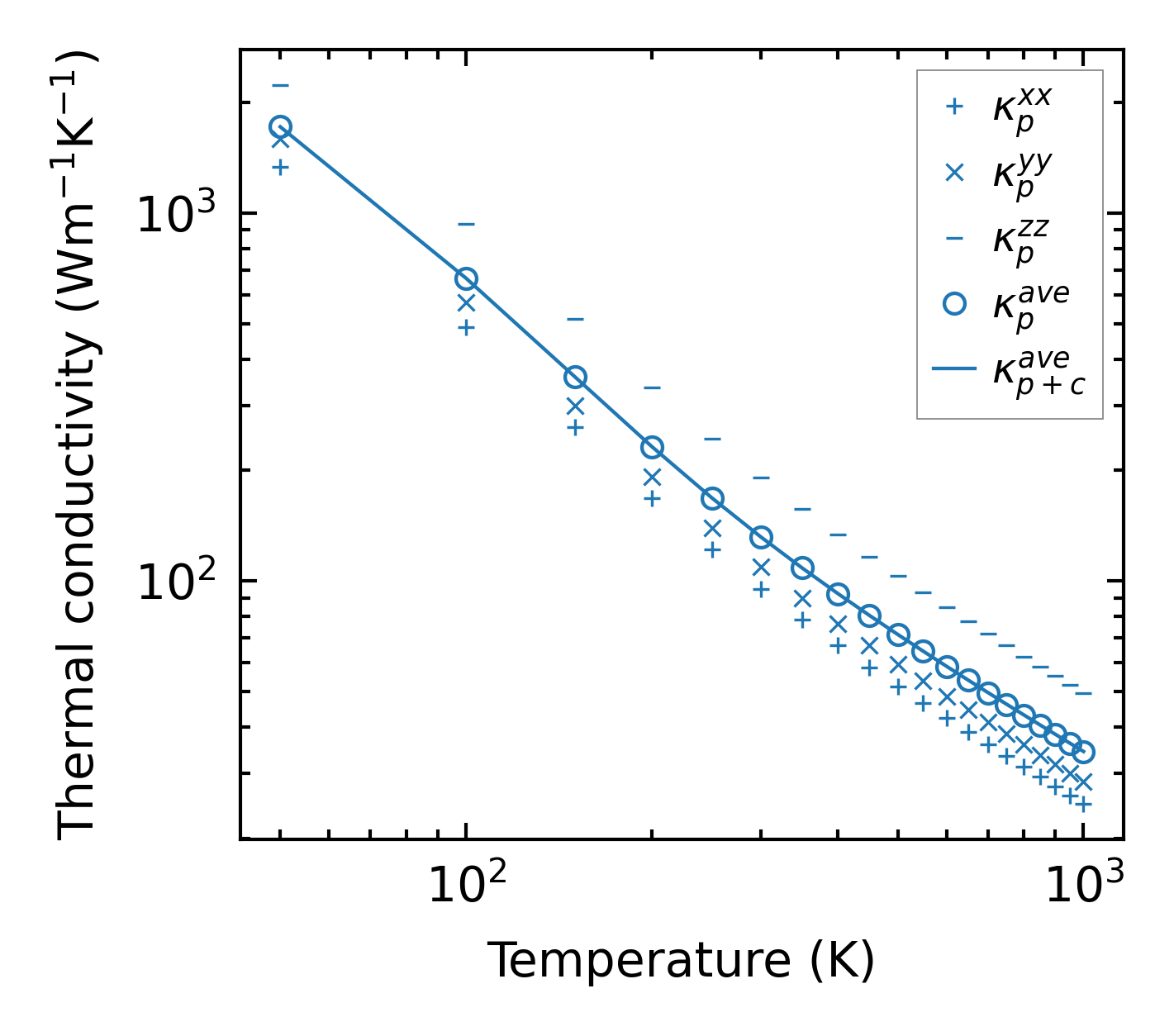

../../_images/fig_kappa179.png — (a) Temperature-dependent lattice thermal conductivity

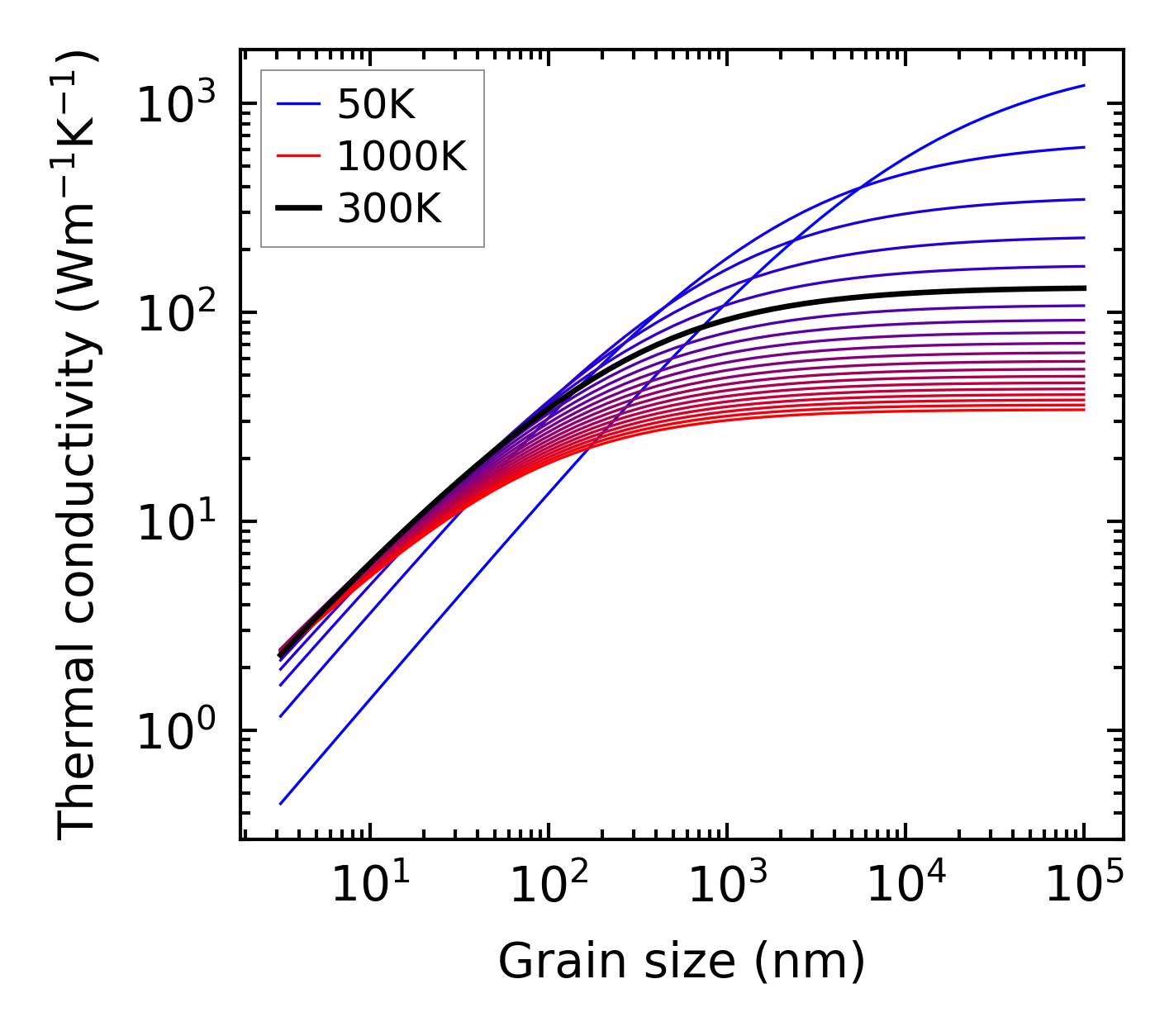

../../_images/fig_kappa_vs_grain_size94.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

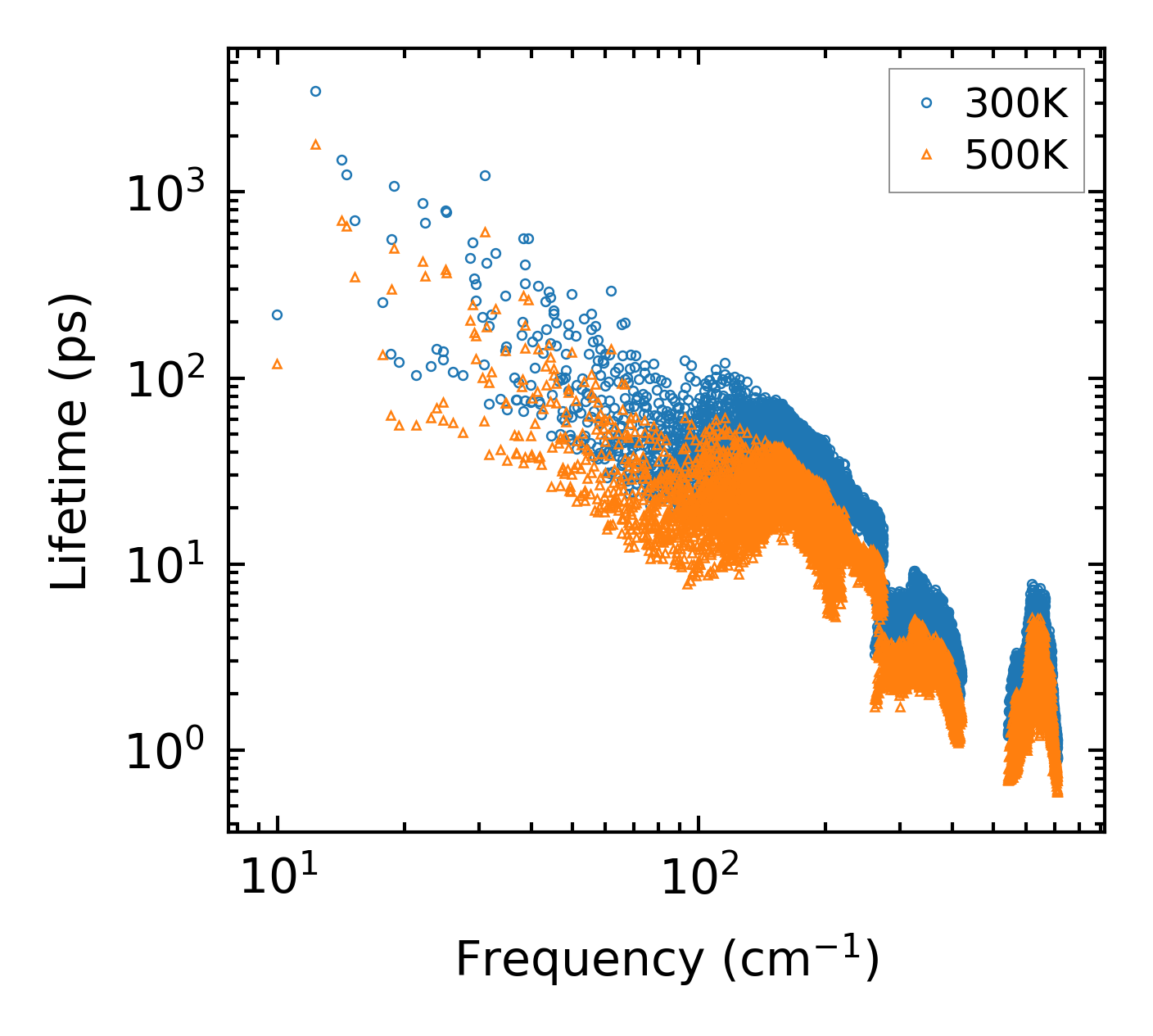

../../_images/fig_lifetime92.png — (a) Phonon lifetime due to phonon-phonon scattering

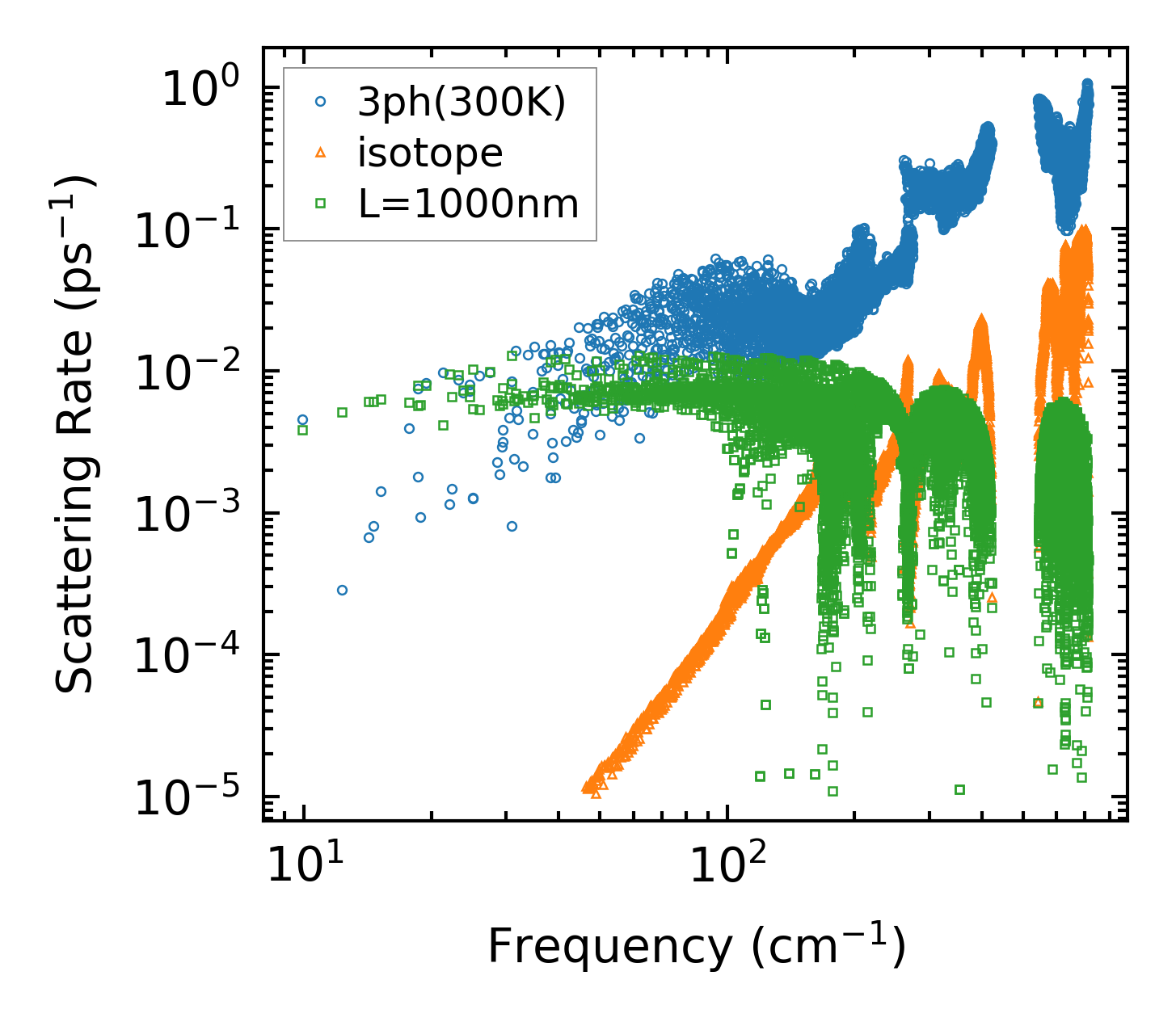

../../_images/fig_scat_rates92.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency92.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp92.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2151.png — (a) Force constants w.r.t atomic distance

Summary

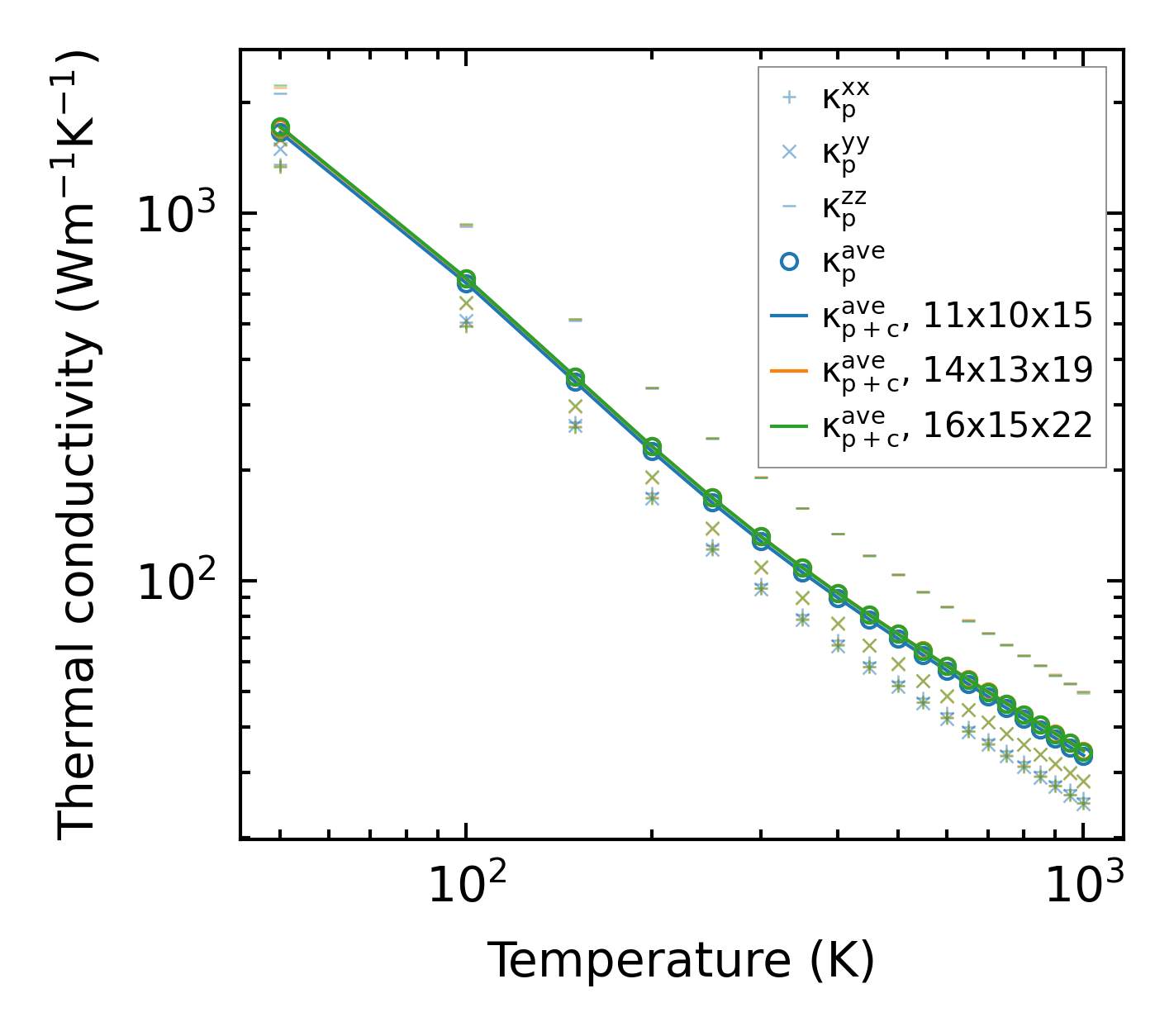

../../_images/fig_kappa180.png — (a) Temperature-dependent lattice thermal conductivity

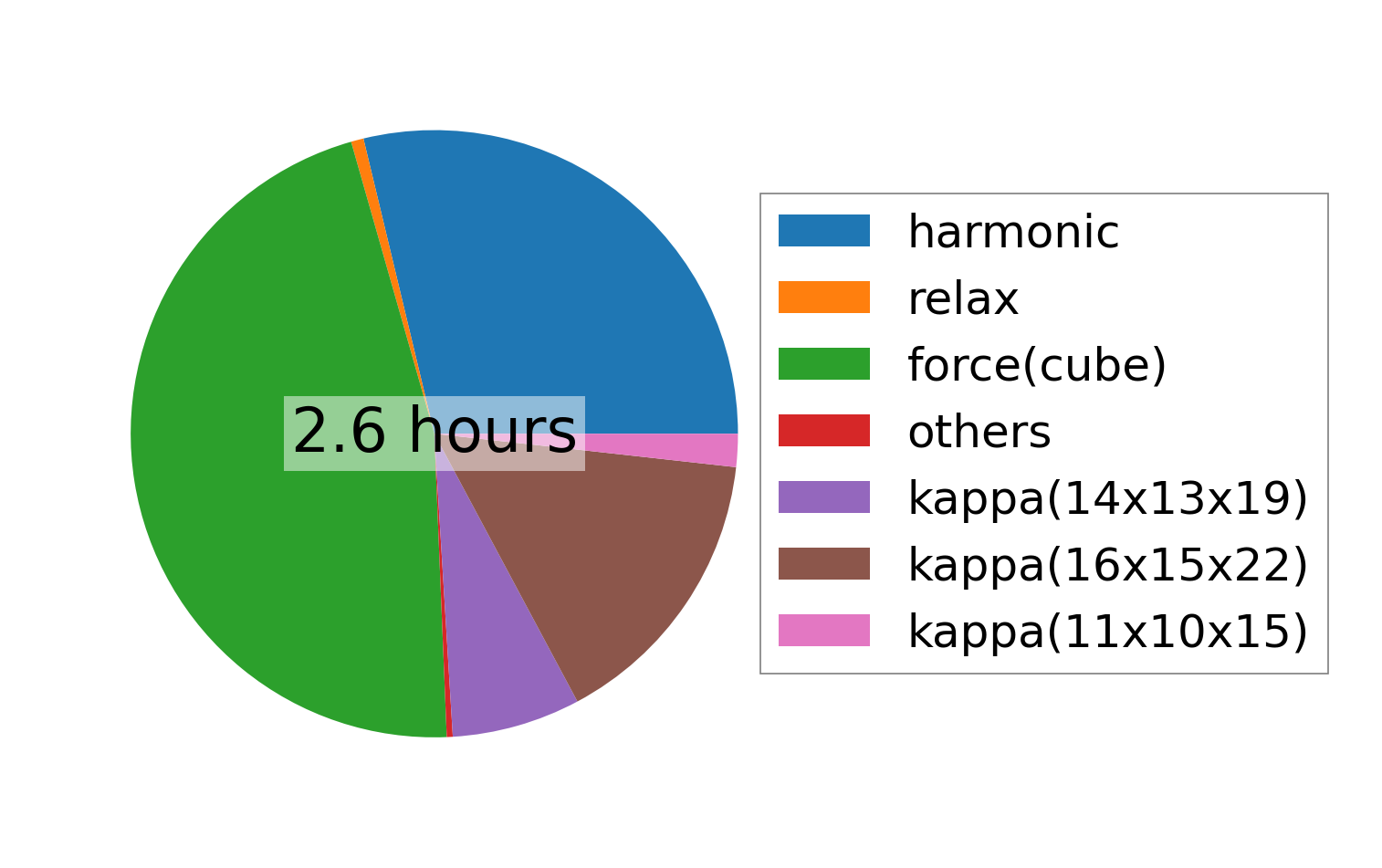

../../_images/fig_times266.png — (b) Computation time
