mp-1683-2/ZrSe3/anharm

Space group: P2_1/m (11)
Link: Materials Project
Download: mp-1683-2.tar.gz

Equation of state

../../_images/fig_bm42.png — (a) Equation of state

Harmonic properties

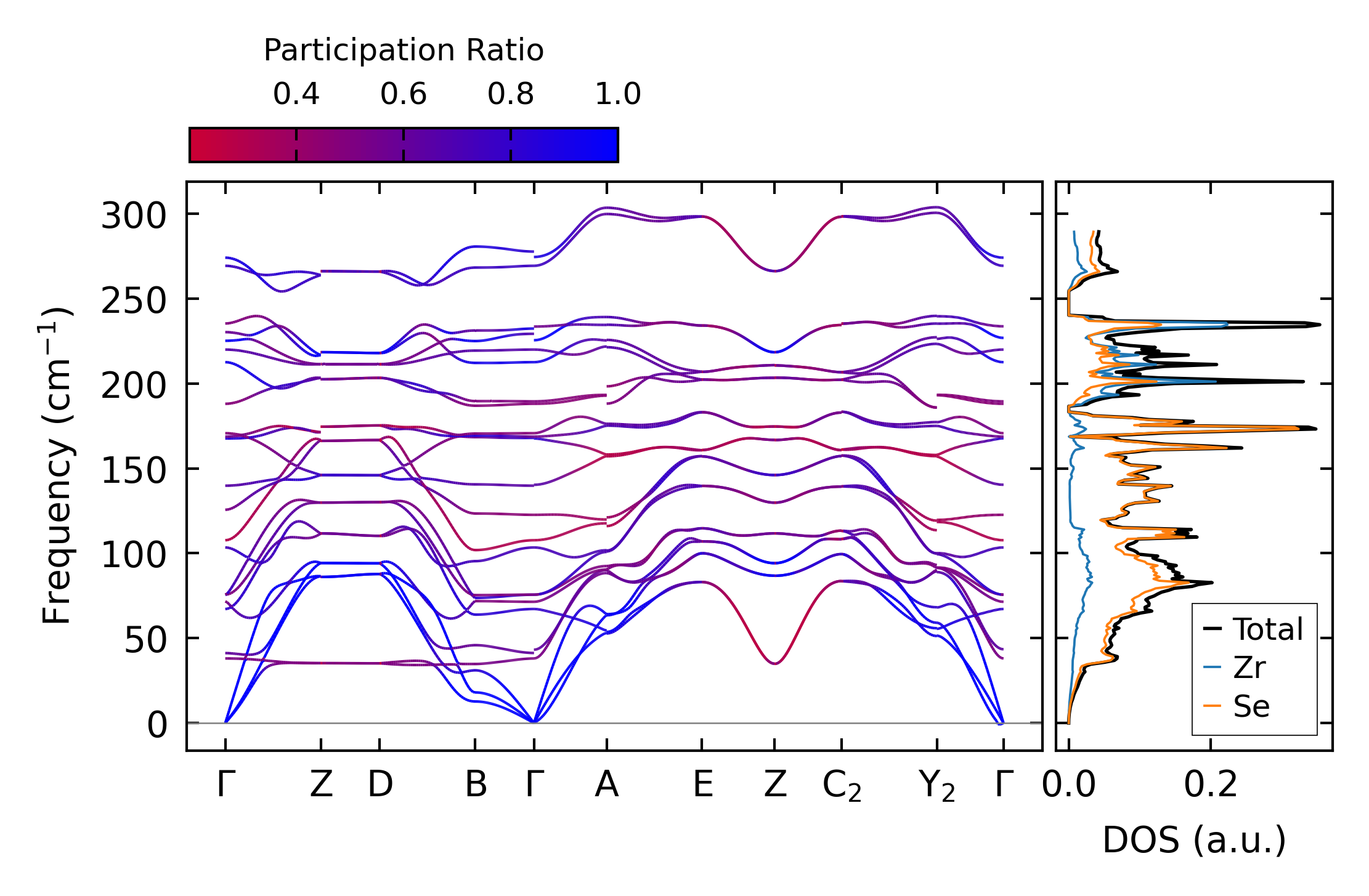

../../_images/fig_bandos_pr205.png — (a) Phonon dispersion with participation ratio and DOS

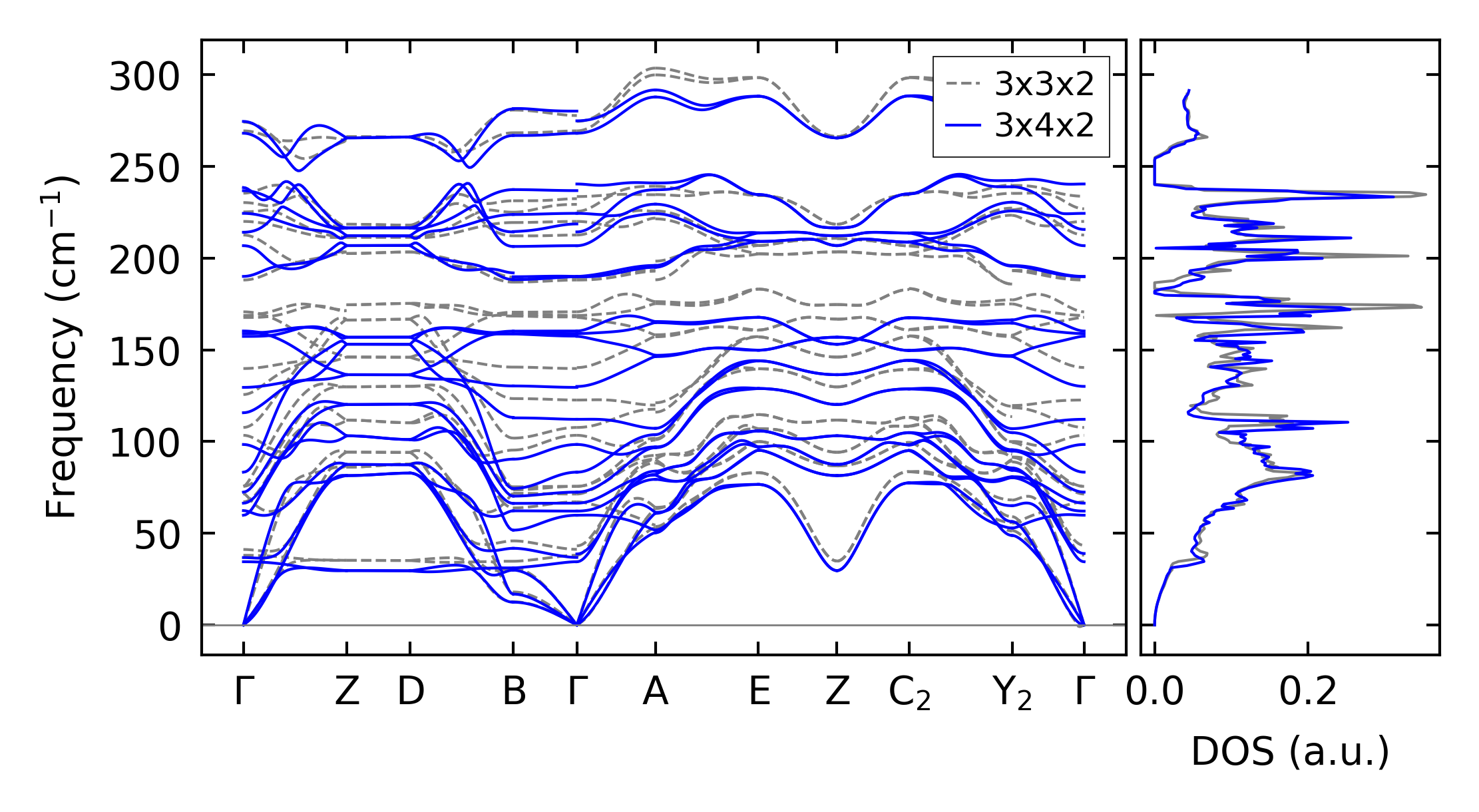

../../_images/fig_bandos222.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo205.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all132.png — (a) Grüneisen parameters

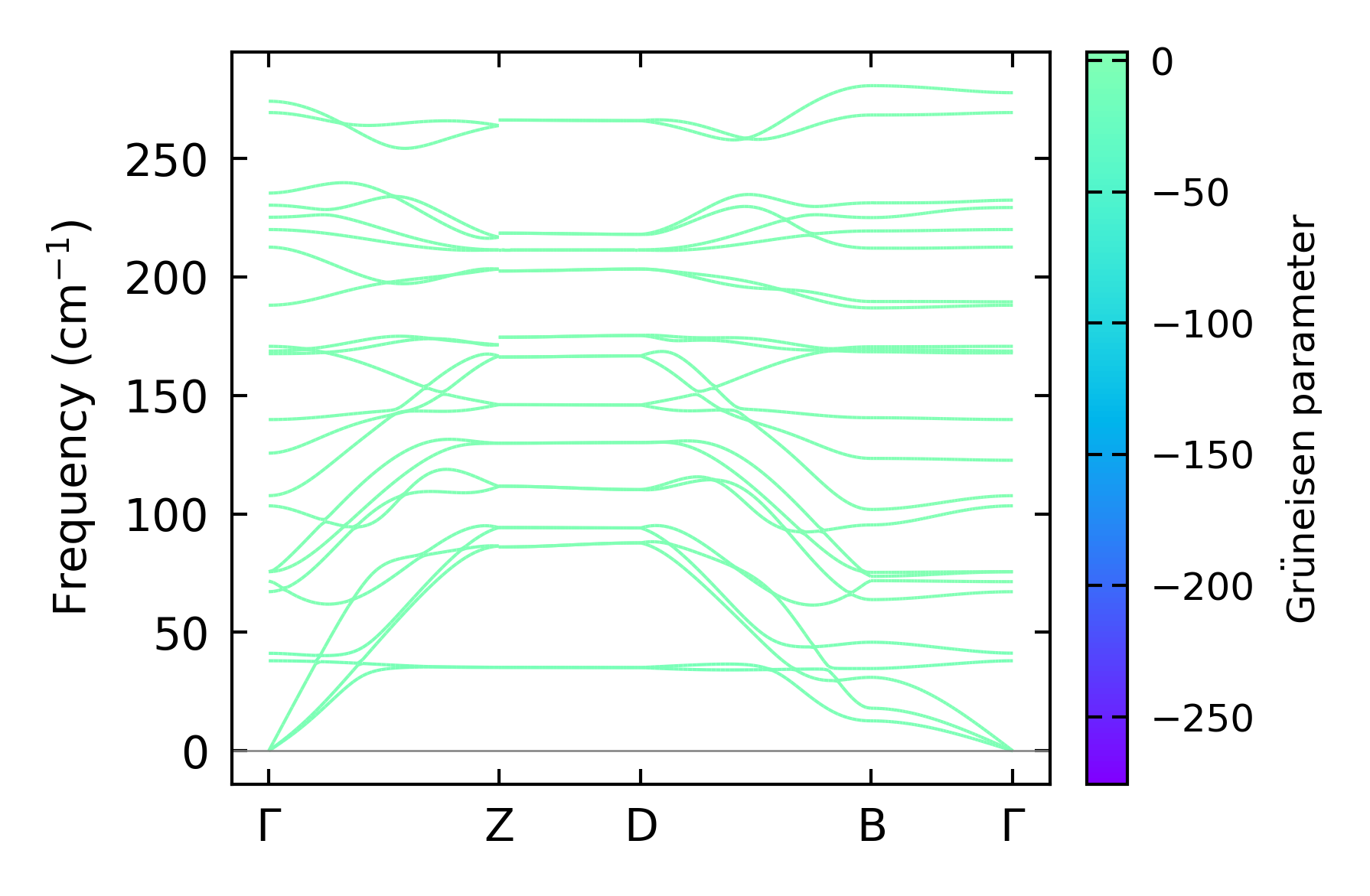

../../_images/fig_gruneisen132.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 3x4x2 — q-mesh: 13x19x7, supercell: 3x4x2

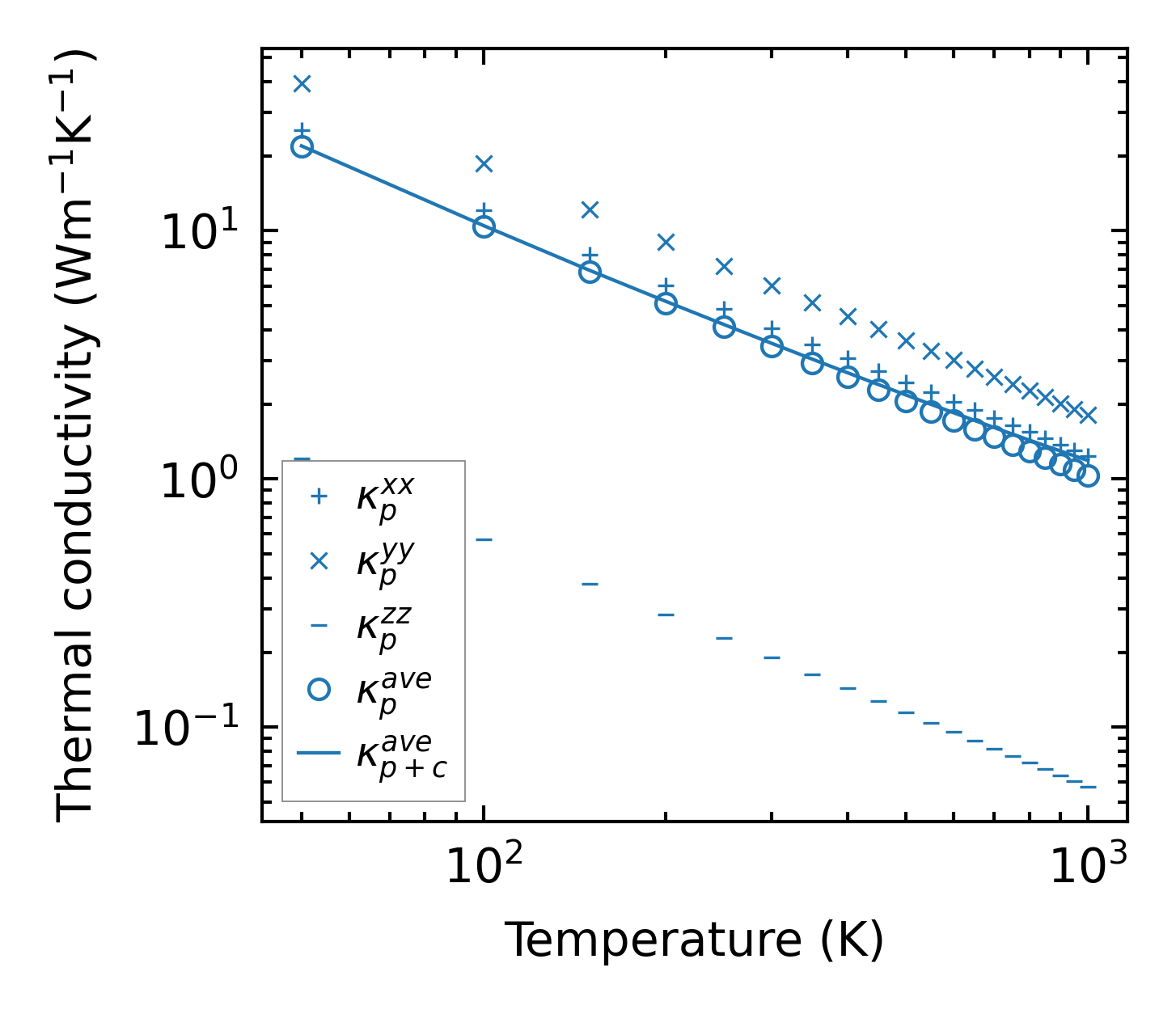

../../_images/fig_kappa258.png — (a) Temperature-dependent lattice thermal conductivity

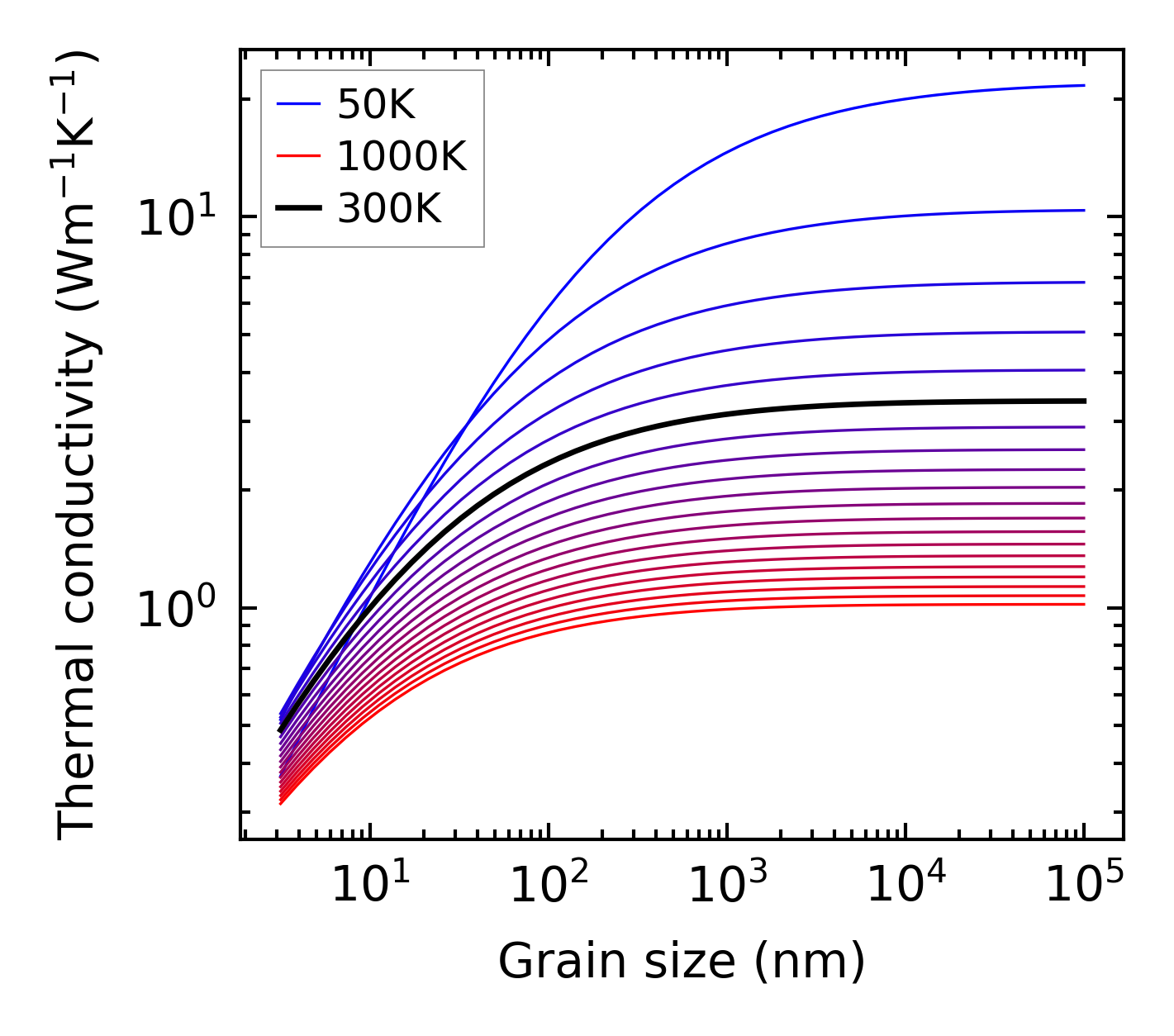

../../_images/fig_kappa_vs_grain_size133.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

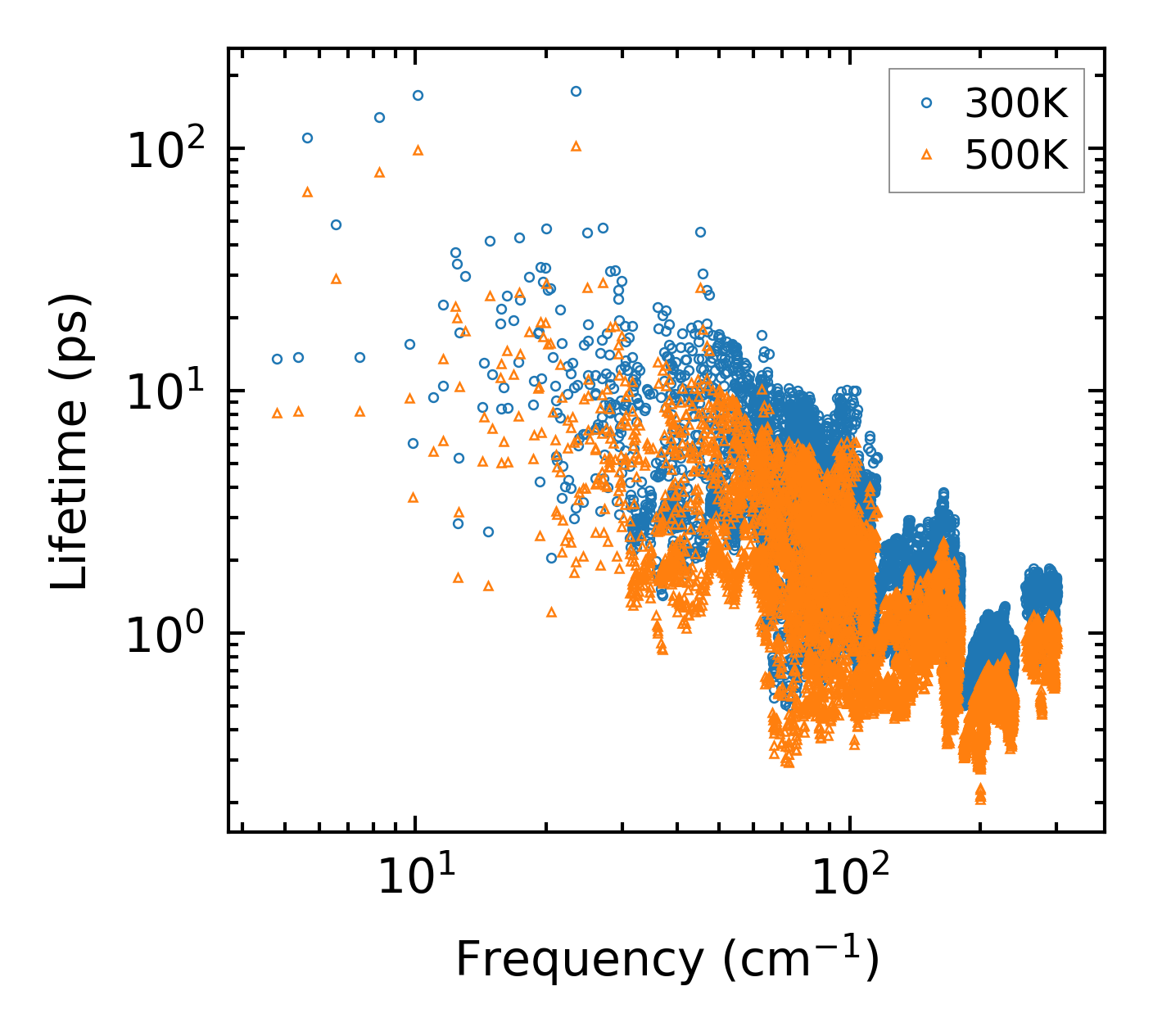

../../_images/fig_lifetime131.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates130.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

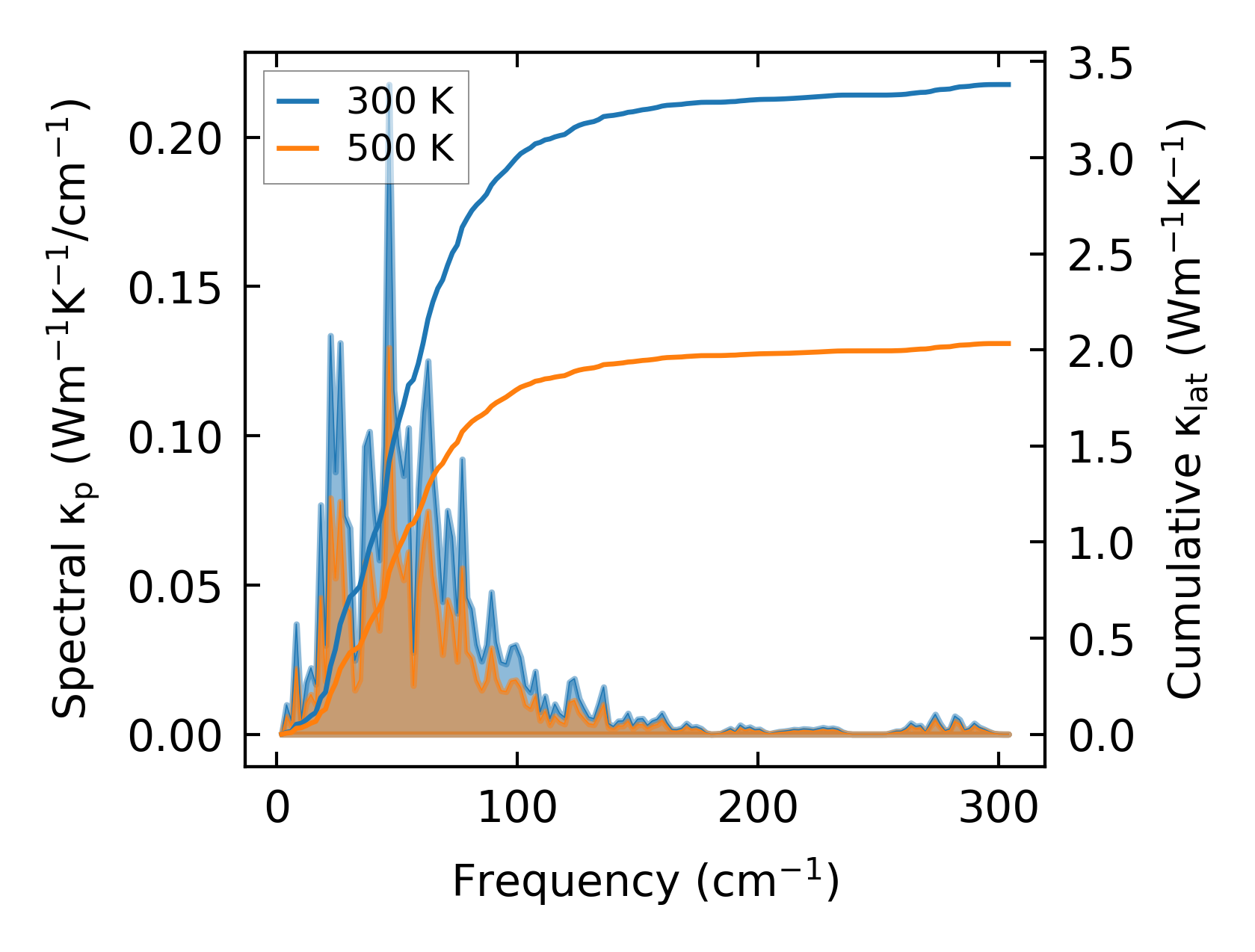

../../_images/fig_cumu_frequency131.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

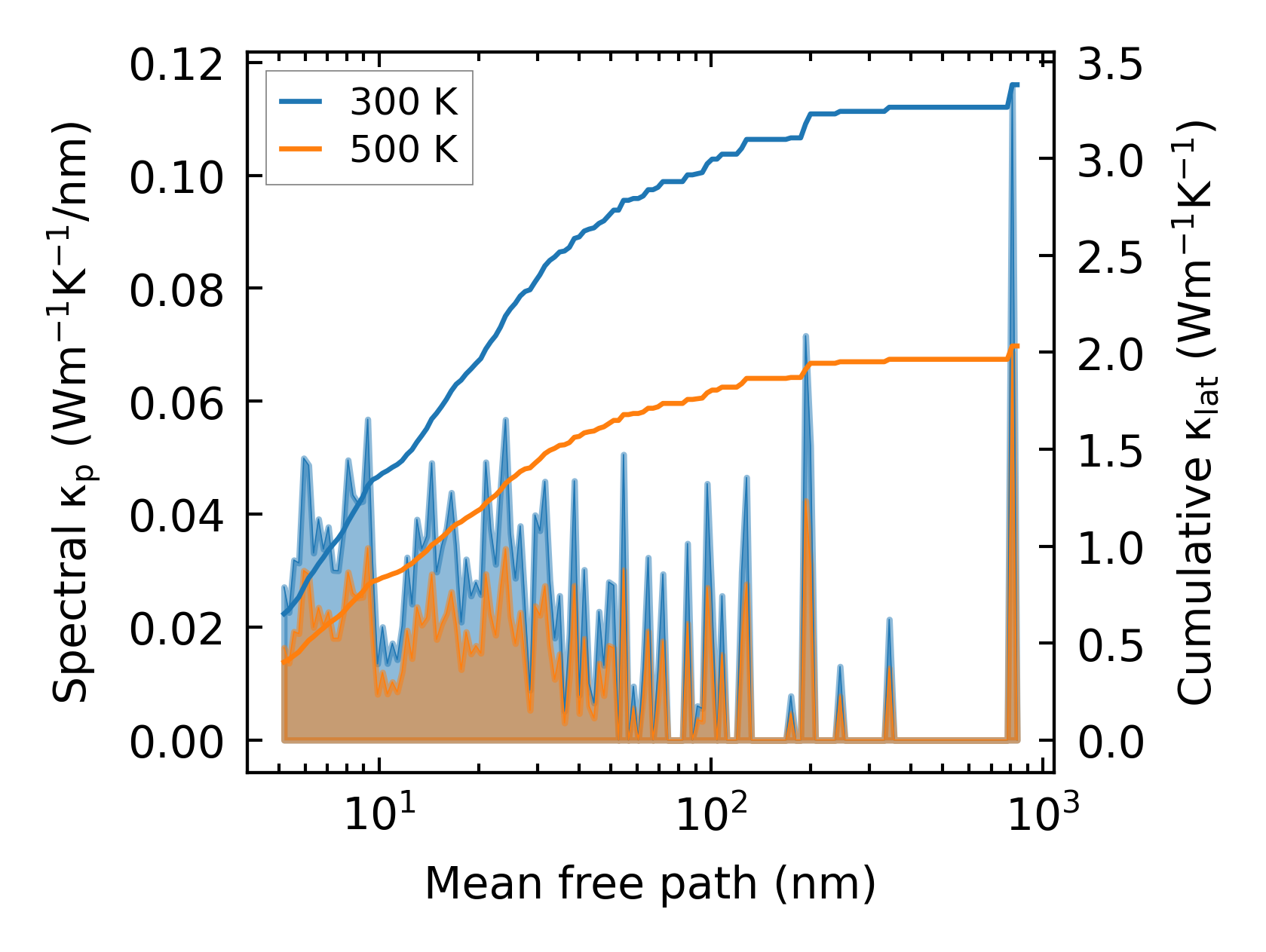

../../_images/fig_cumu_mfp131.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2189.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times342.png — (a) Computation time
