mp-1378-2/LiC/anharm

Space group: Immm (71)
Link: Materials Project
Download: mp-1378-2.tar.gz

Harmonic properties

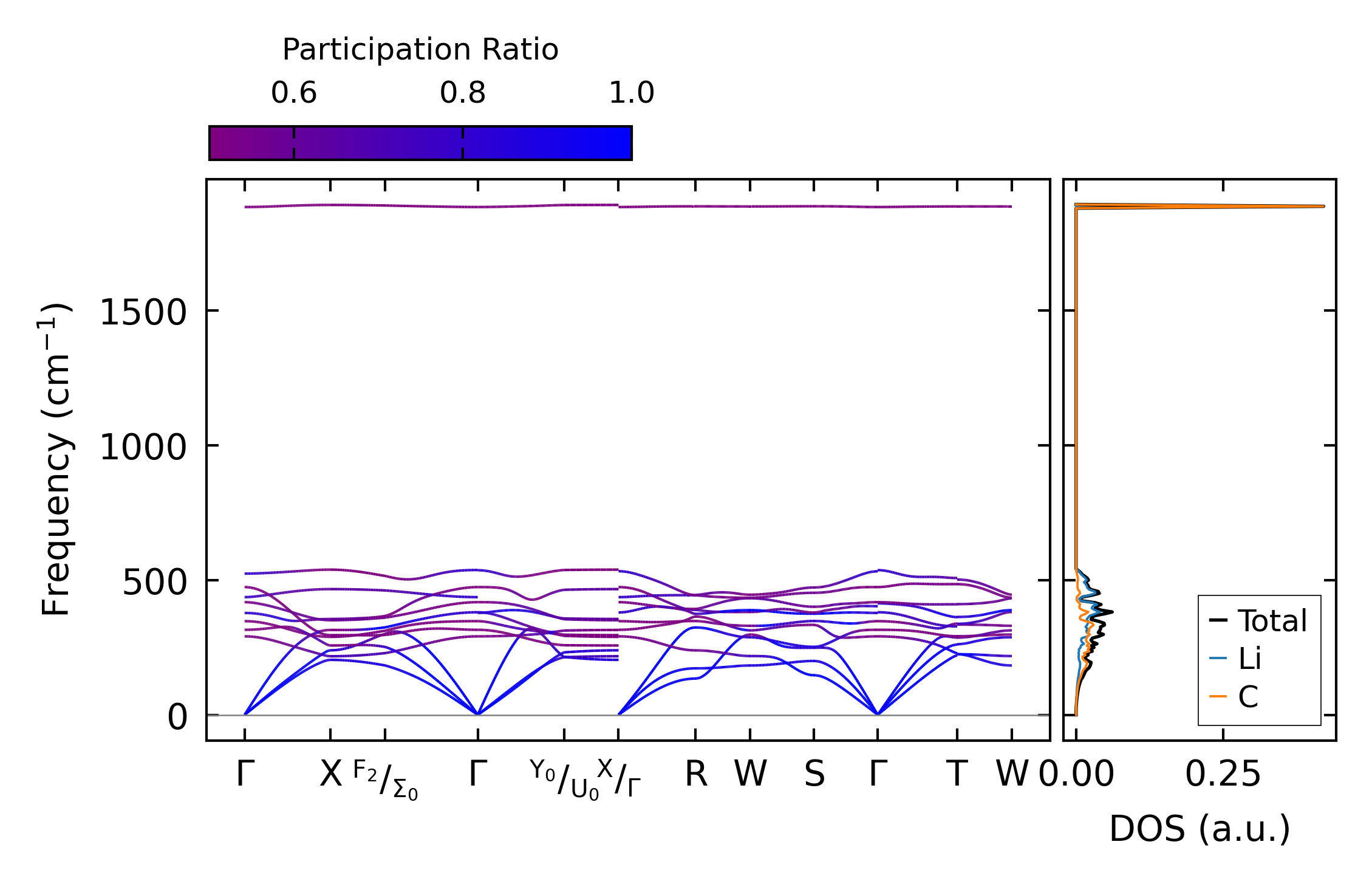

../../_images/fig_bandos_pr169.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo169.png — (b) Thermodynamic properties

Grüneisen parameters

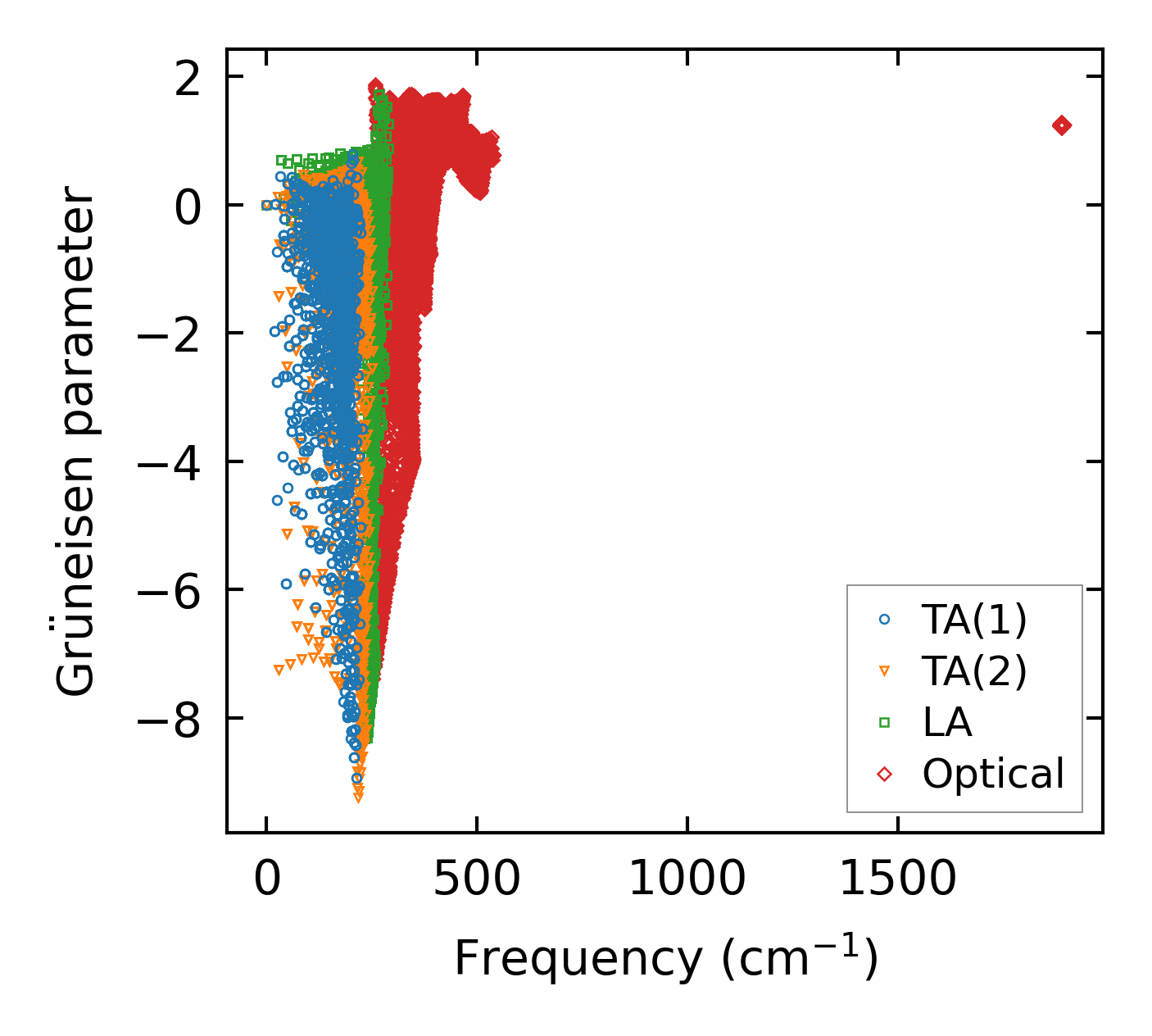

../../_images/fig_gru_all105.png — (a) Grüneisen parameters

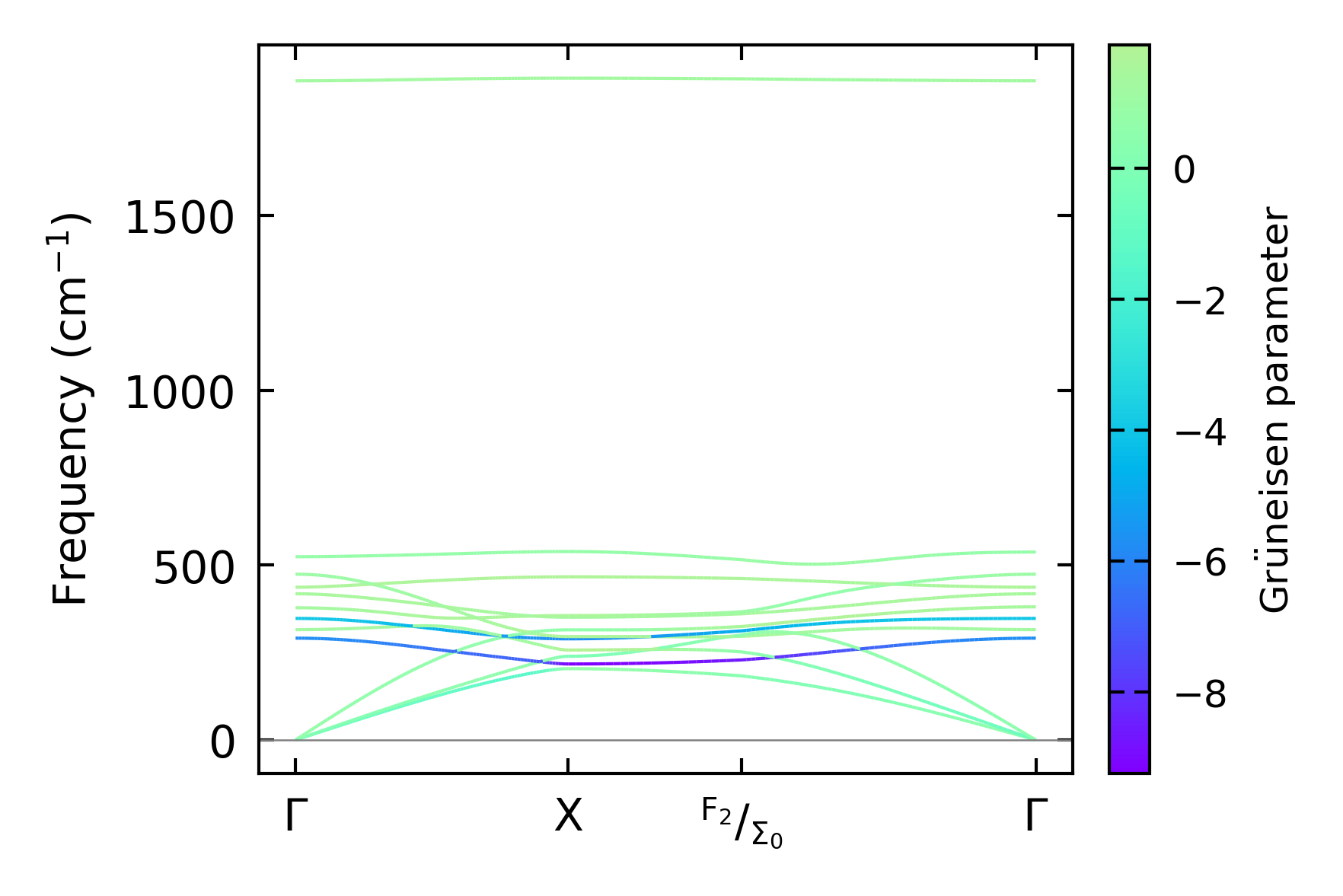

../../_images/fig_gruneisen105.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 20x20x20, supercell: 3x3x2

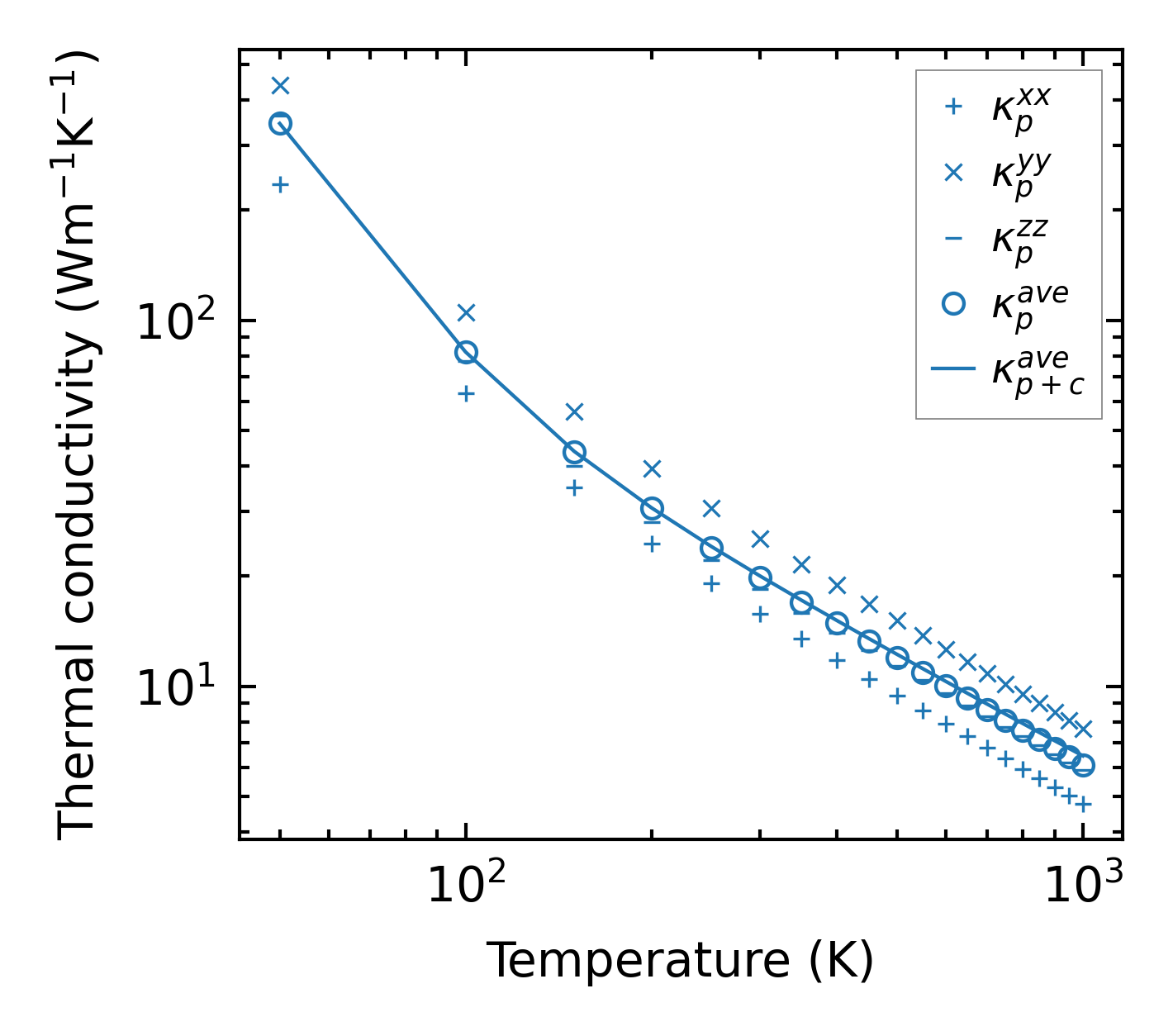

../../_images/fig_kappa205.png — (a) Temperature-dependent lattice thermal conductivity

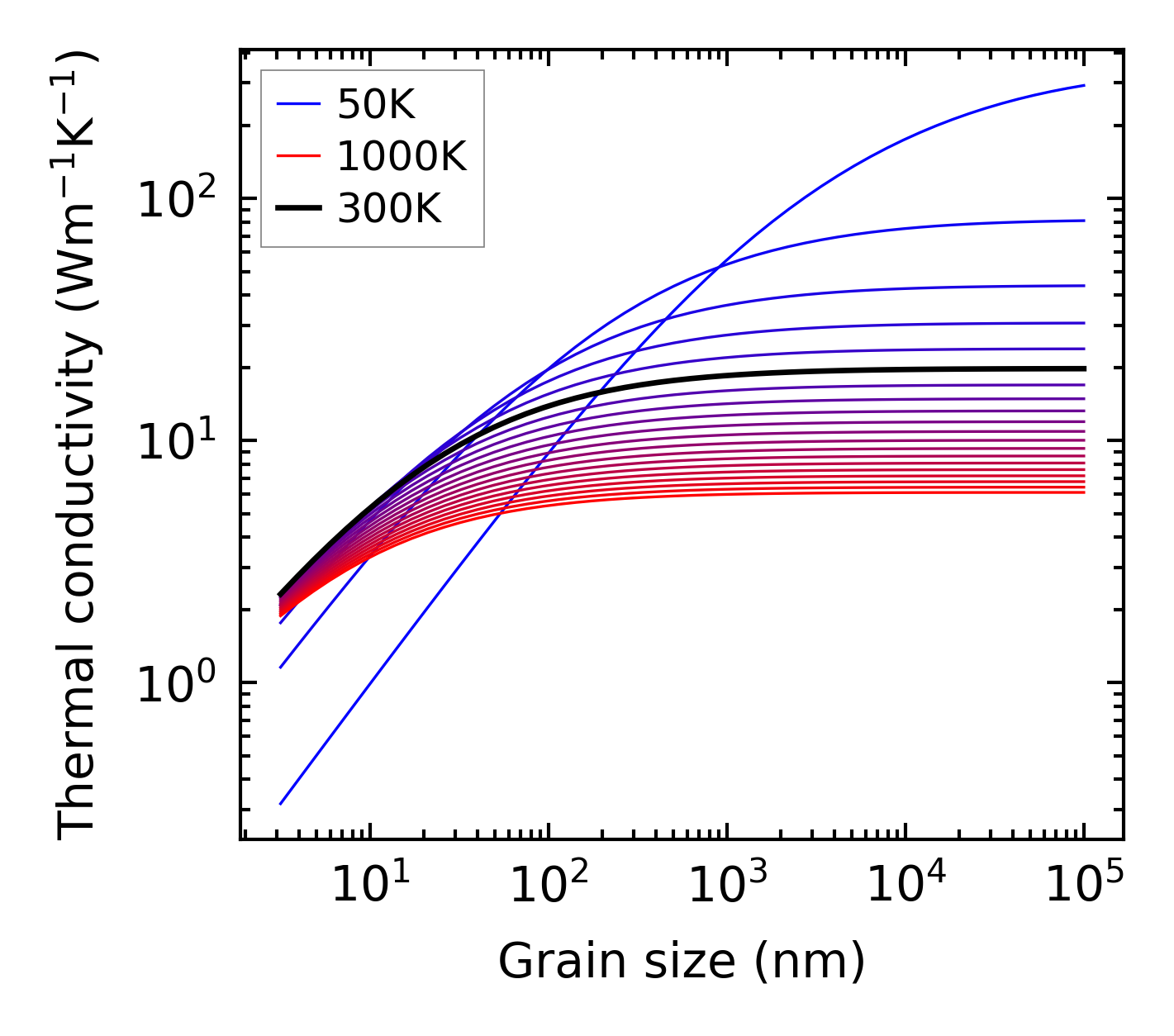

../../_images/fig_kappa_vs_grain_size107.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

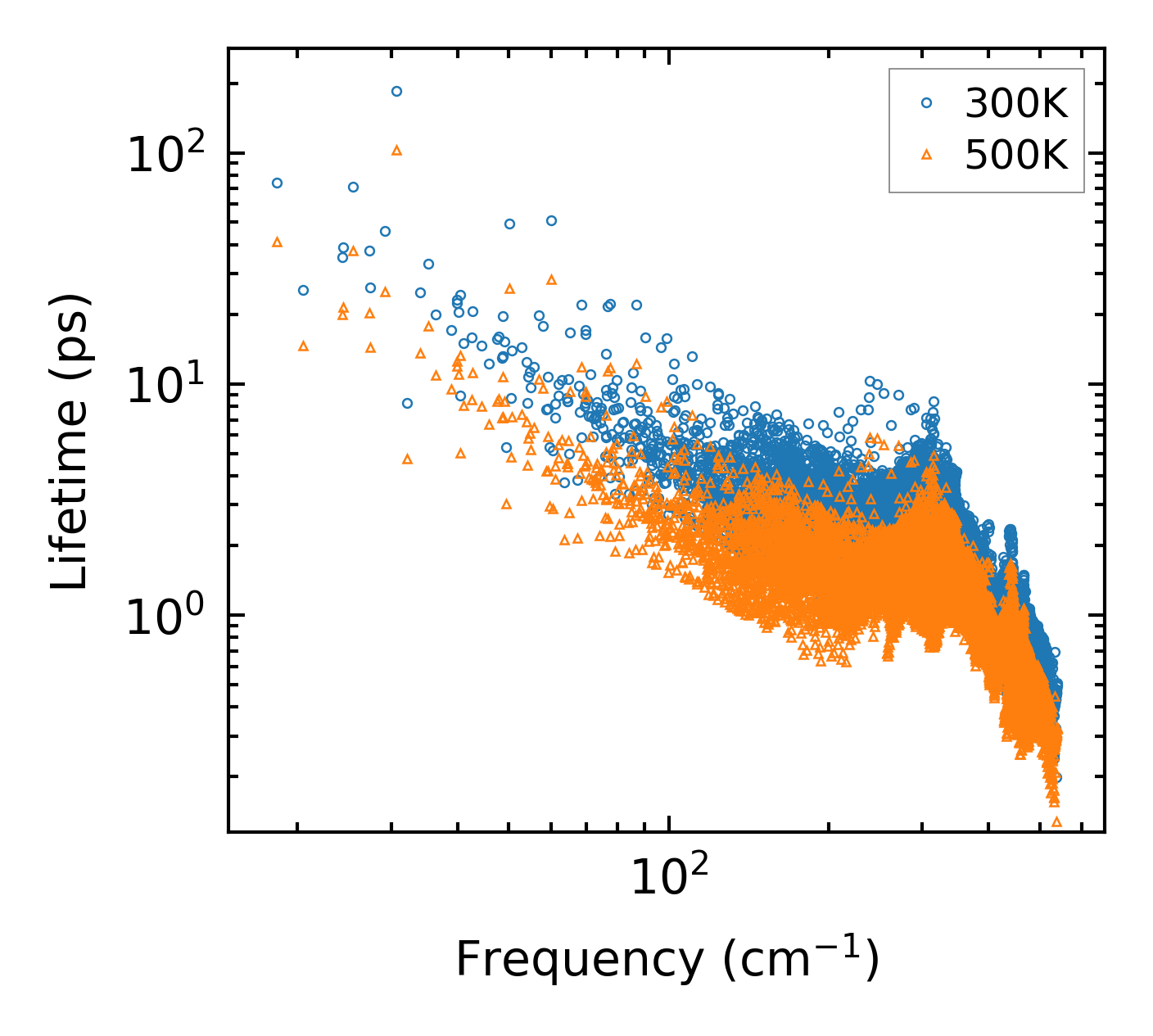

../../_images/fig_lifetime105.png — (a) Phonon lifetime due to phonon-phonon scattering

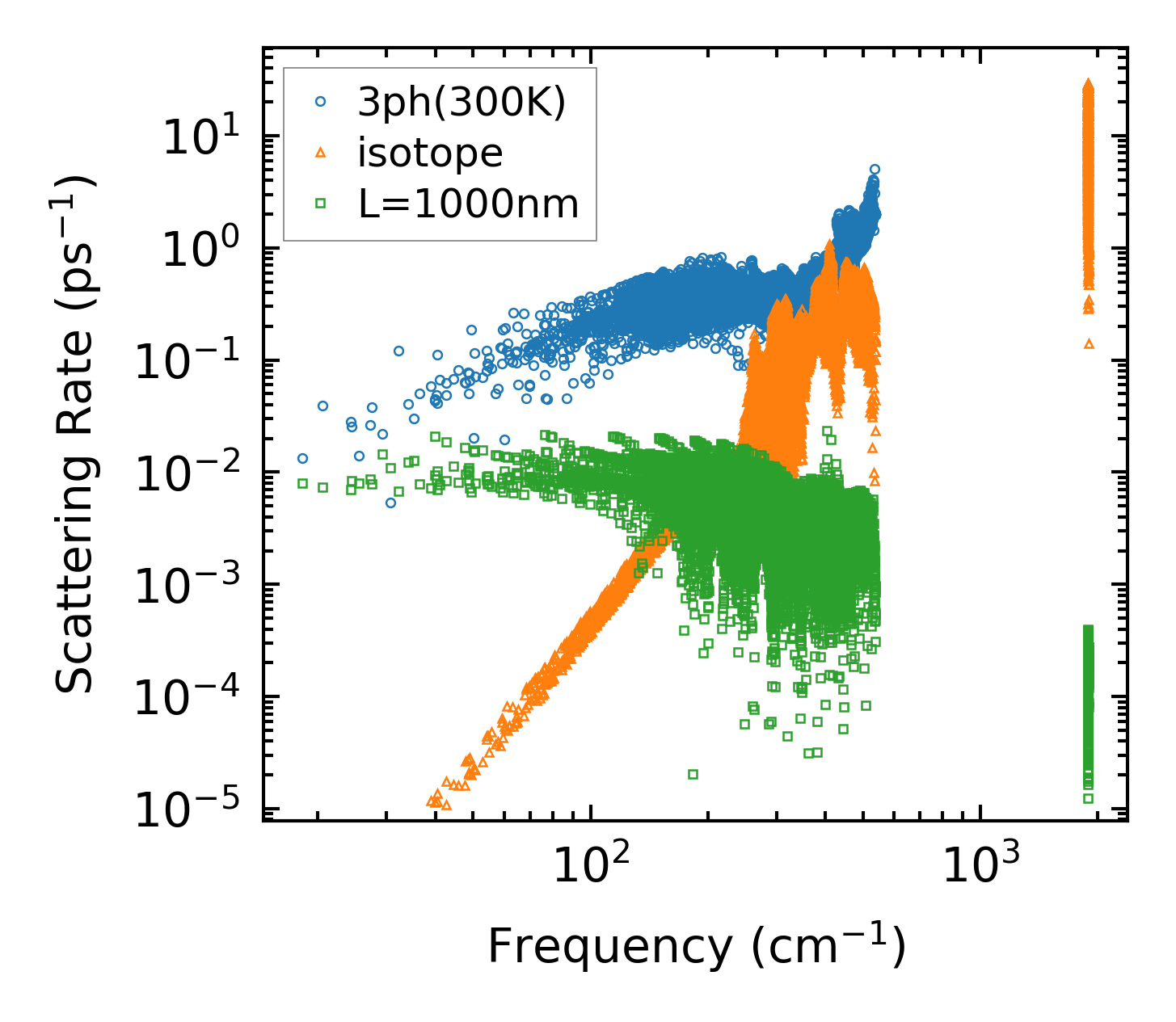

../../_images/fig_scat_rates104.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

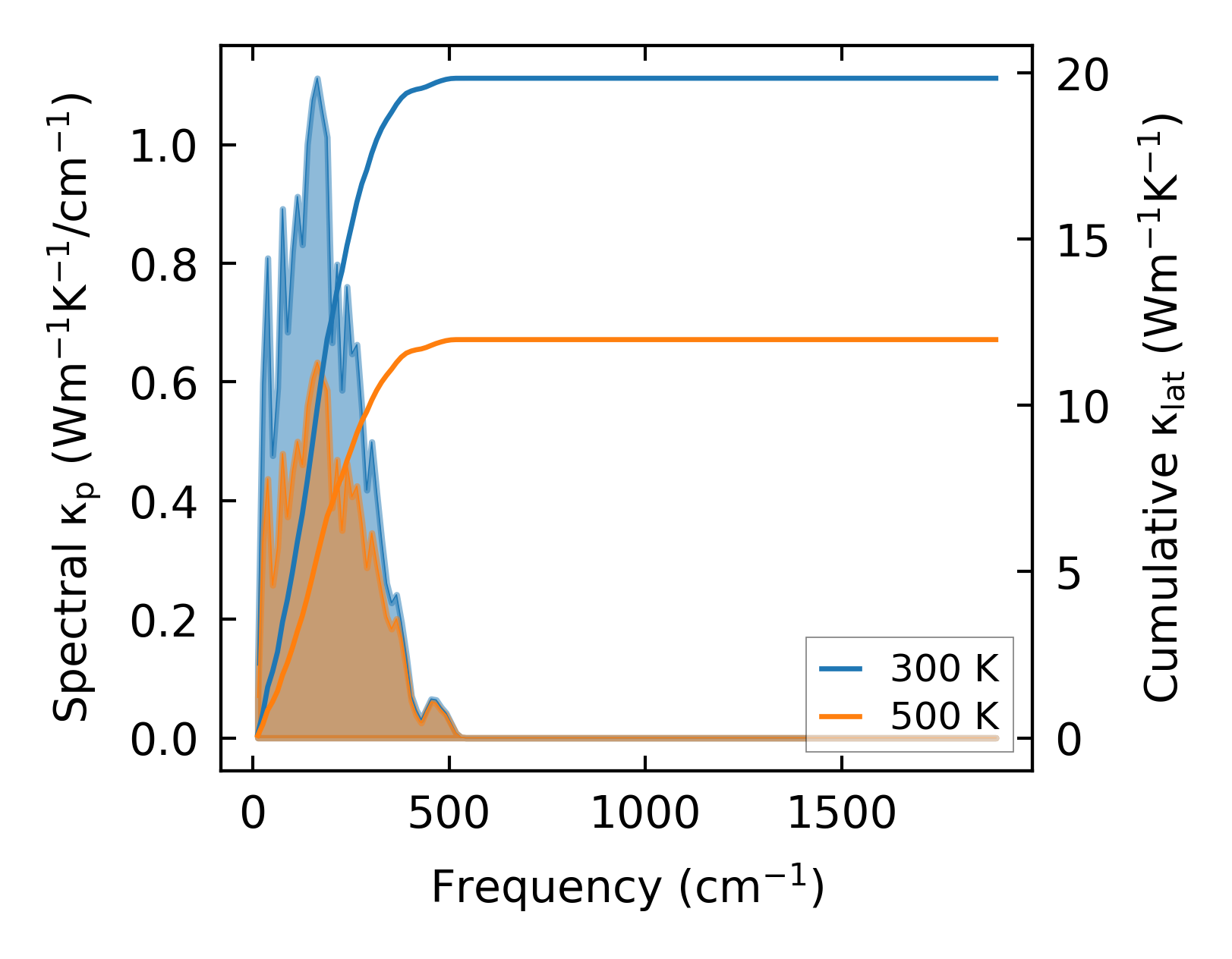

../../_images/fig_cumu_frequency105.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

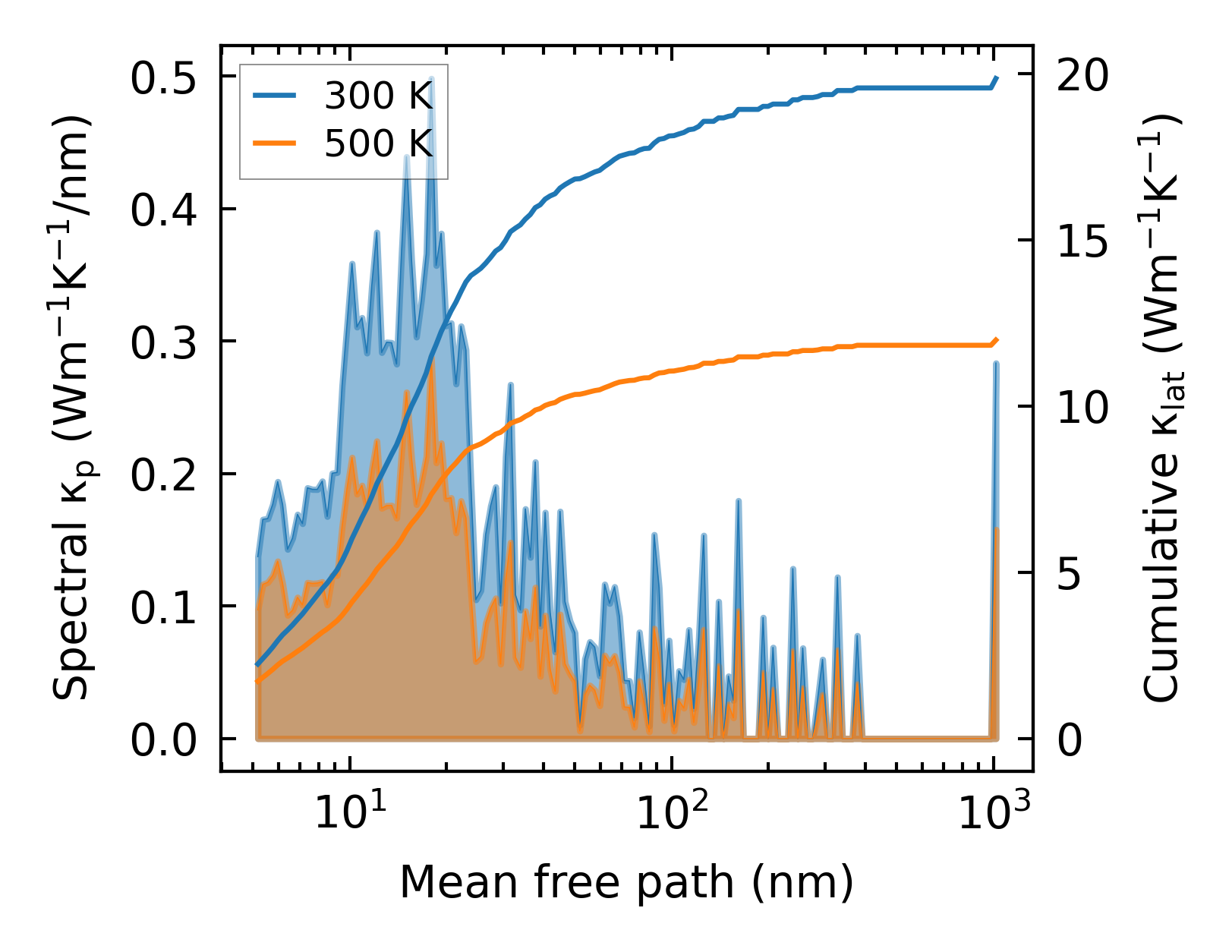

../../_images/fig_cumu_mfp105.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

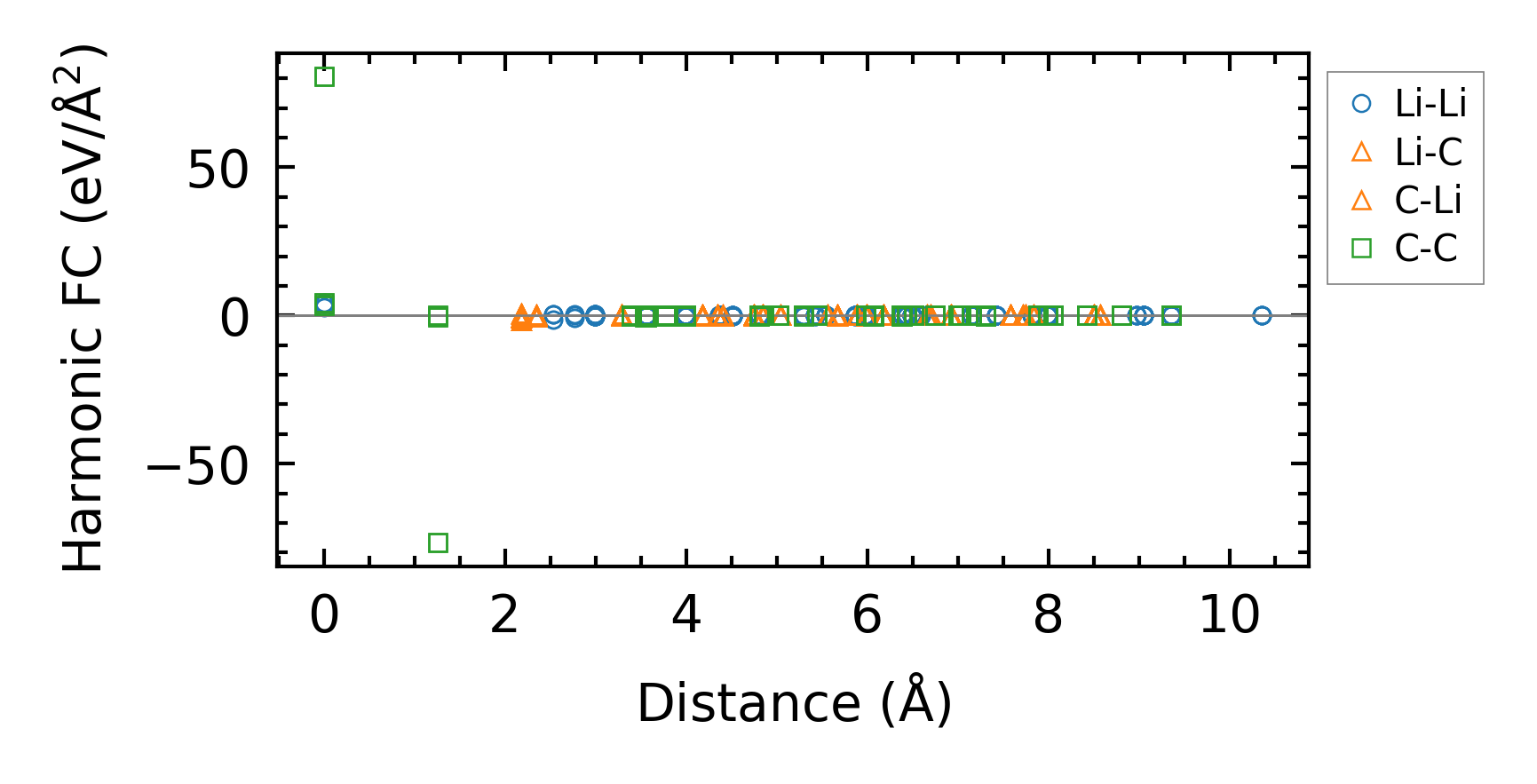

../../_images/fig_fc2162.png — (a) Force constants w.r.t atomic distance

Summary

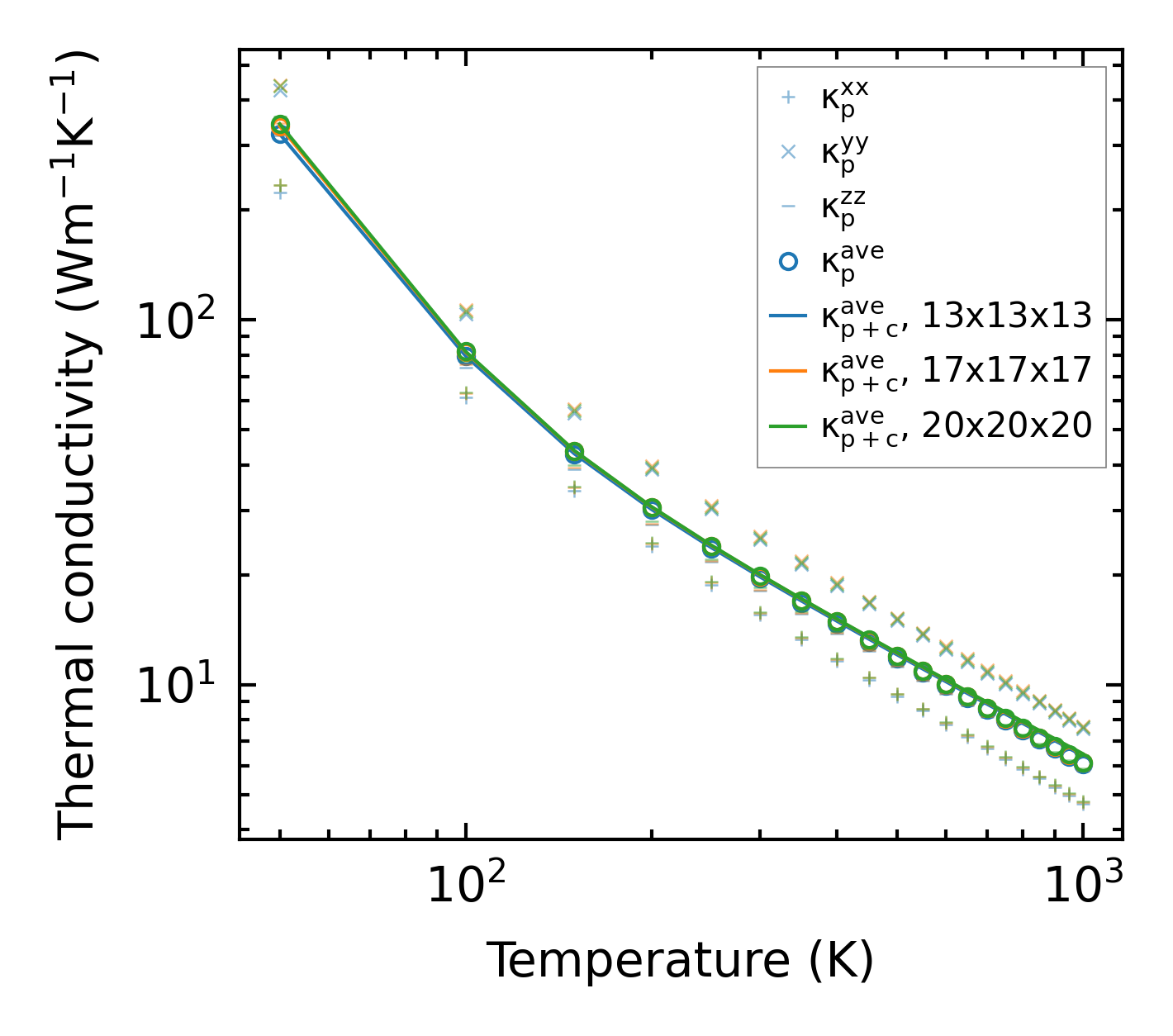

../../_images/fig_kappa206.png — (a) Temperature-dependent lattice thermal conductivity

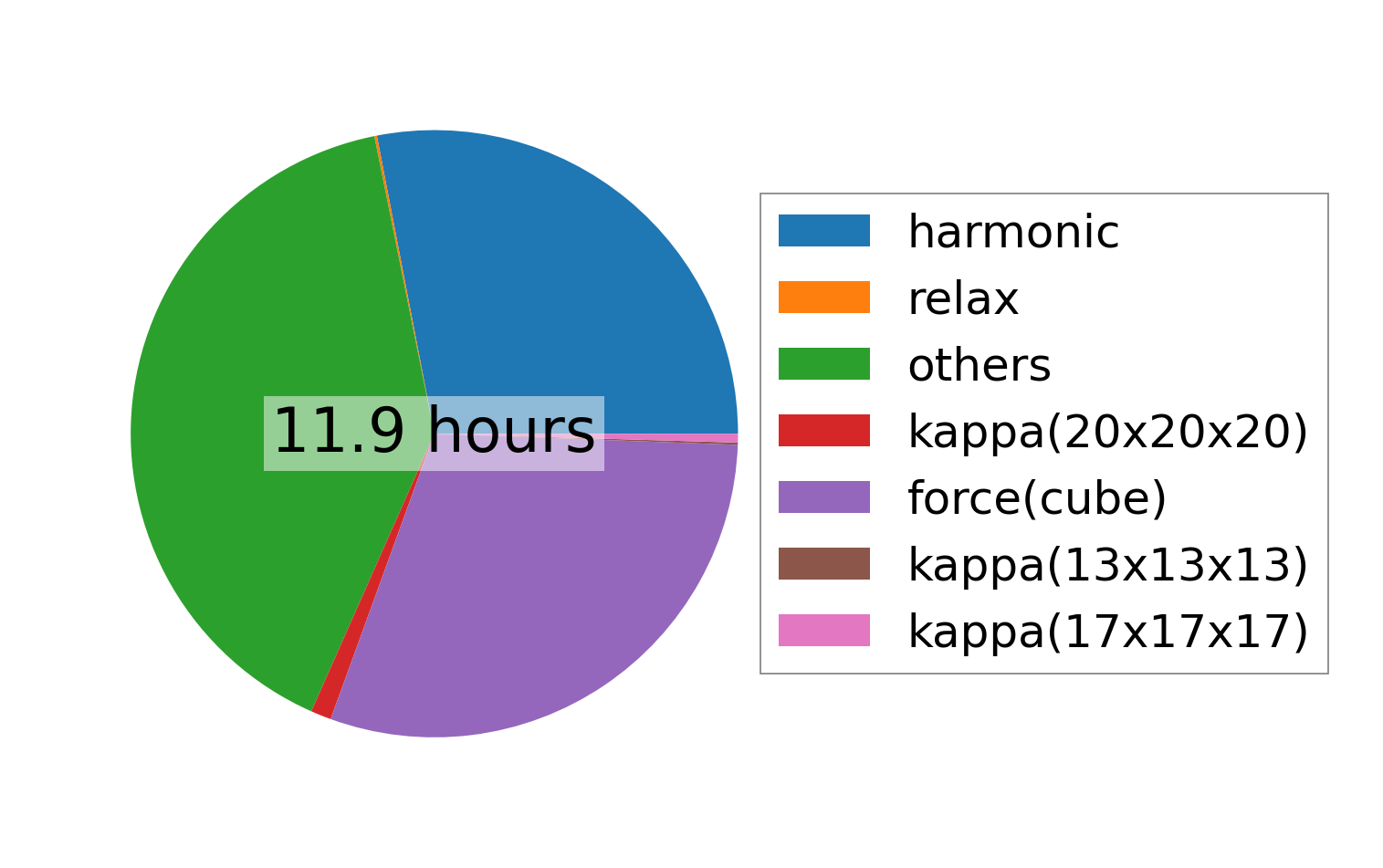

../../_images/fig_times281.png — (b) Computation time
