mp-1700/AlN/anharm

Space group: F-43m (216)
Link: Materials Project
Download: mp-1700.tar.gz

Harmonic properties

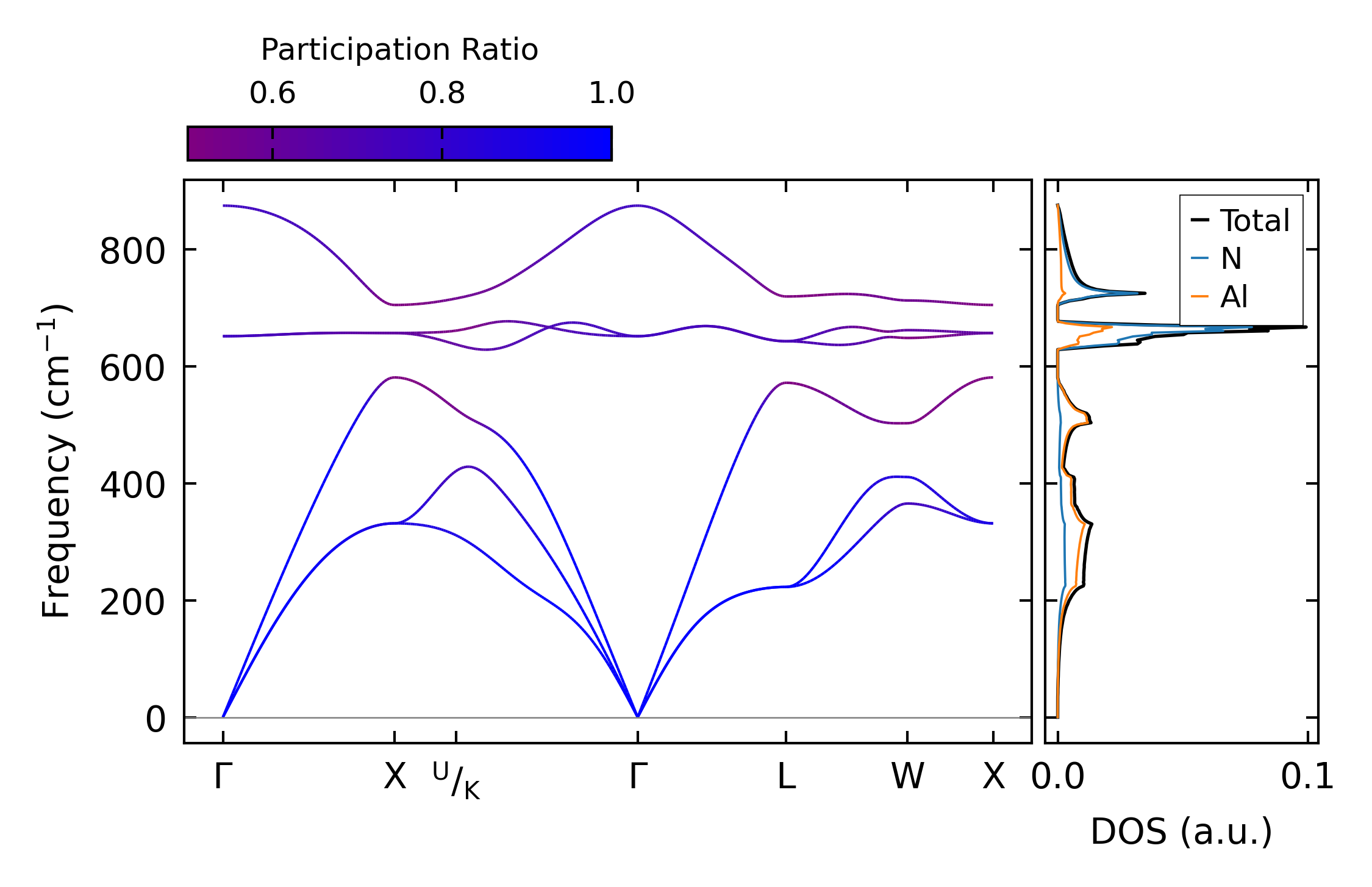

../../_images/fig_bandos_pr206.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo206.png — (b) Thermodynamic properties

Grüneisen parameters

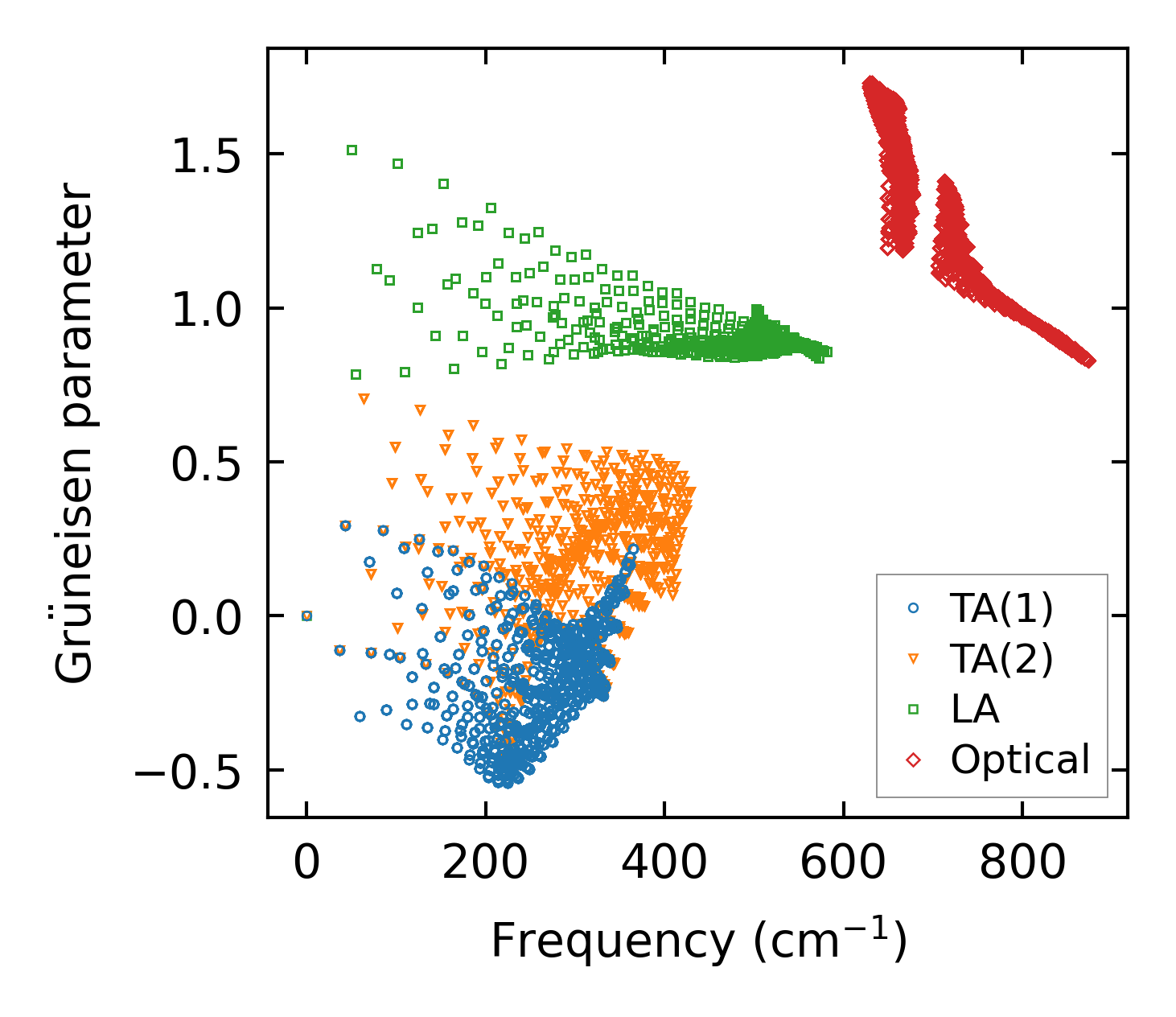

../../_images/fig_gru_all133.png — (a) Grüneisen parameters

../../_images/fig_gruneisen133.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 26x26x26, supercell: 2x2x2

../../_images/fig_kappa259.png — (a) Temperature-dependent lattice thermal conductivity

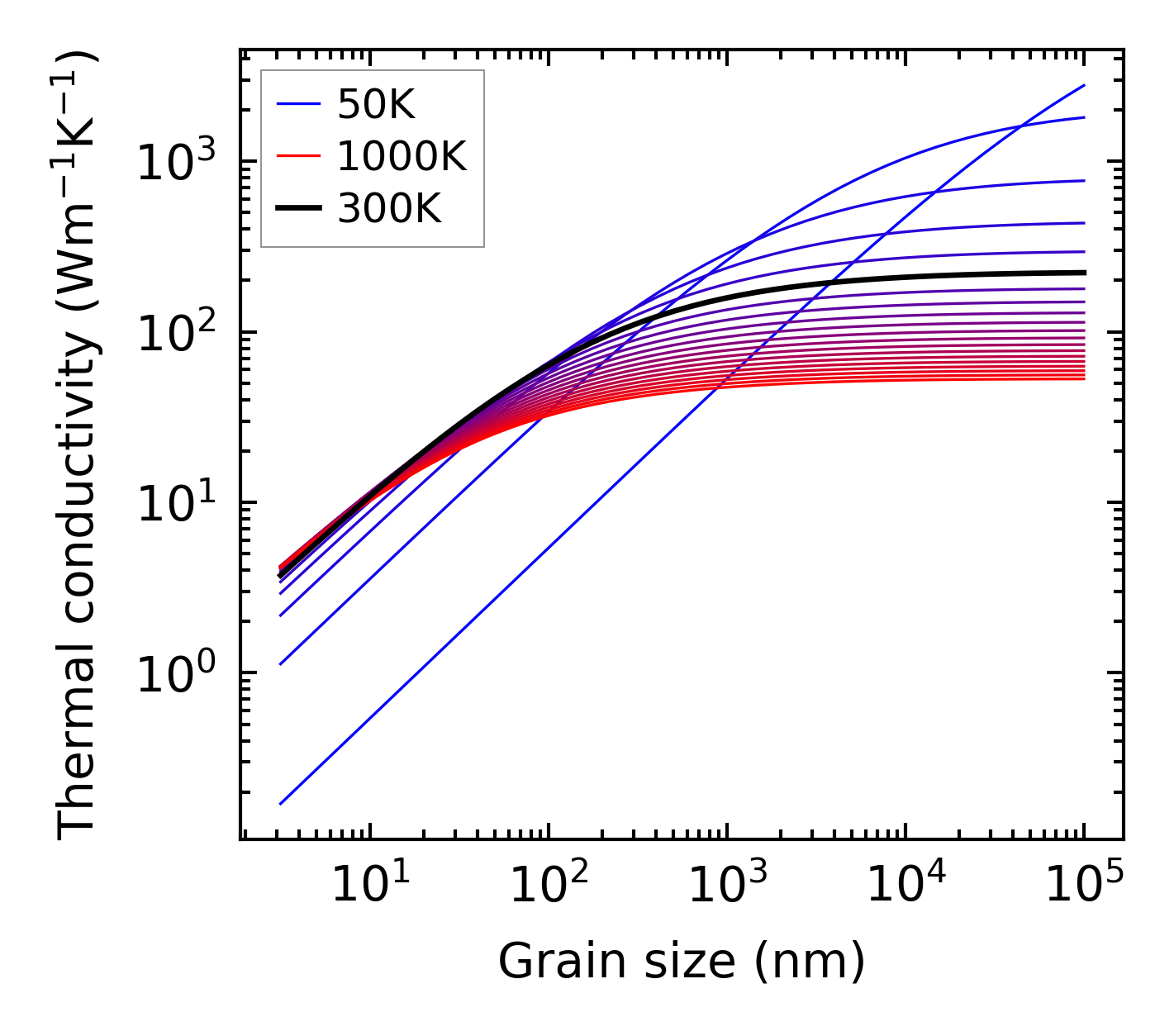

../../_images/fig_kappa_vs_grain_size134.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime132.png — (a) Phonon lifetime due to phonon-phonon scattering

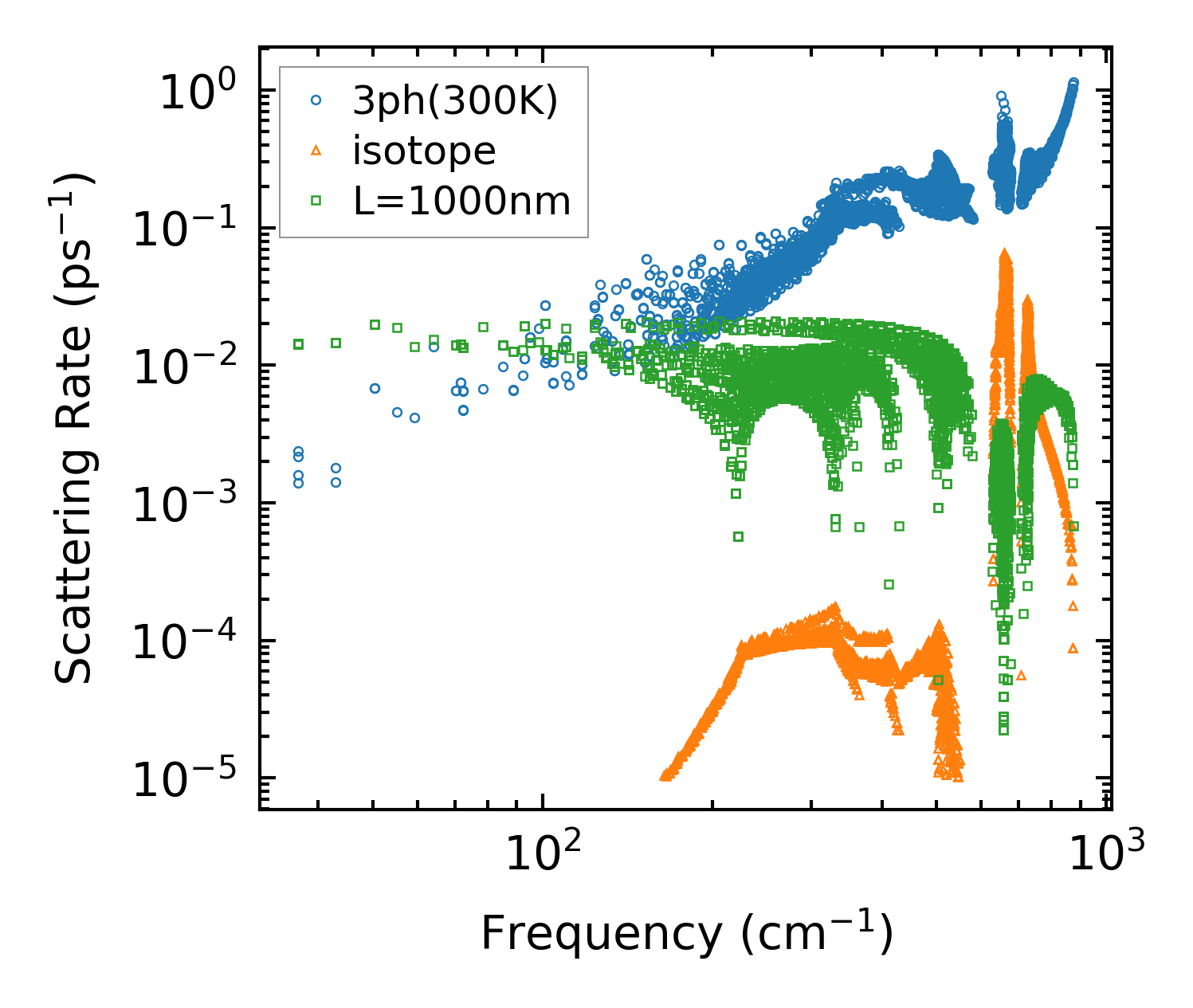

../../_images/fig_scat_rates131.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency132.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

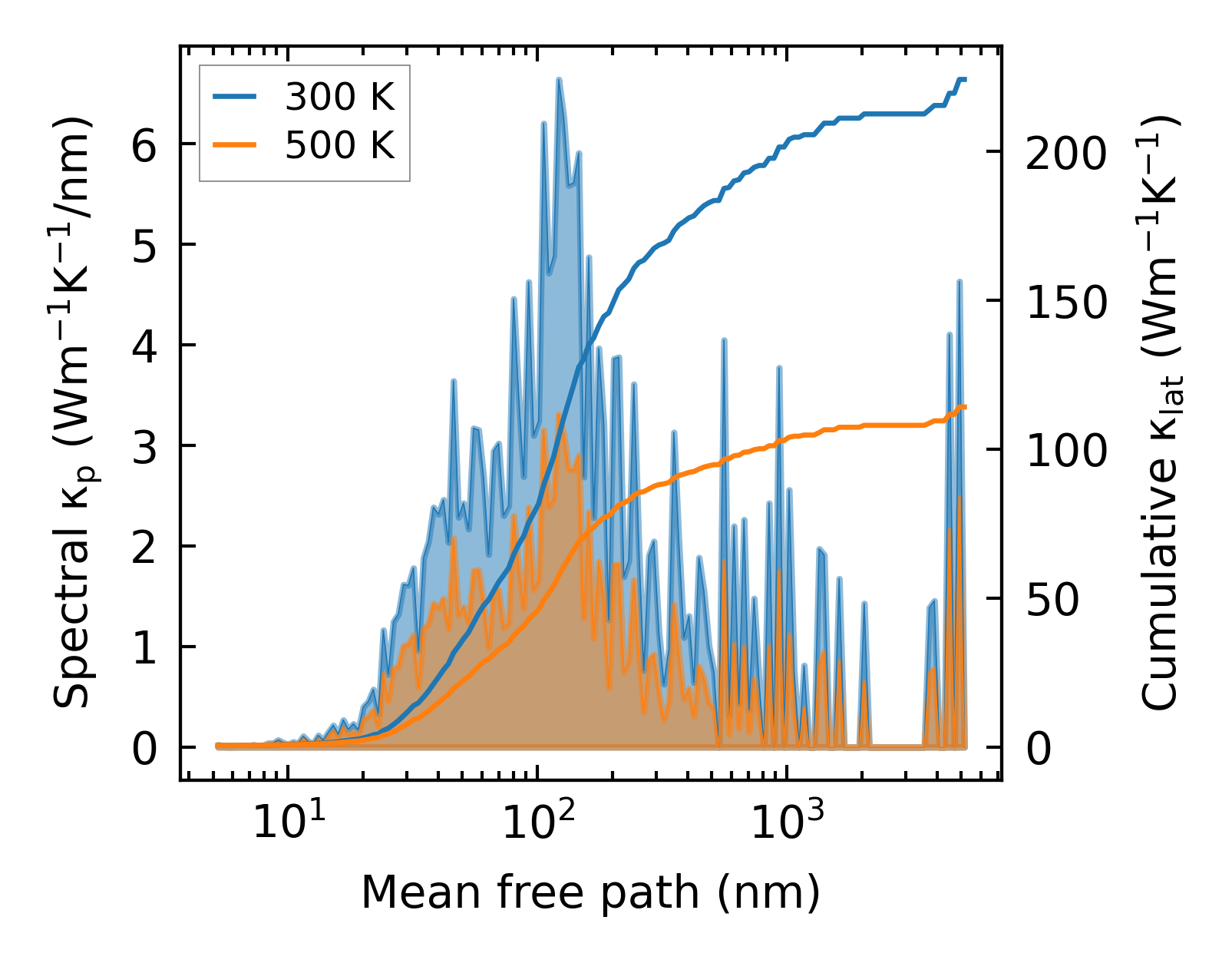

../../_images/fig_cumu_mfp132.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

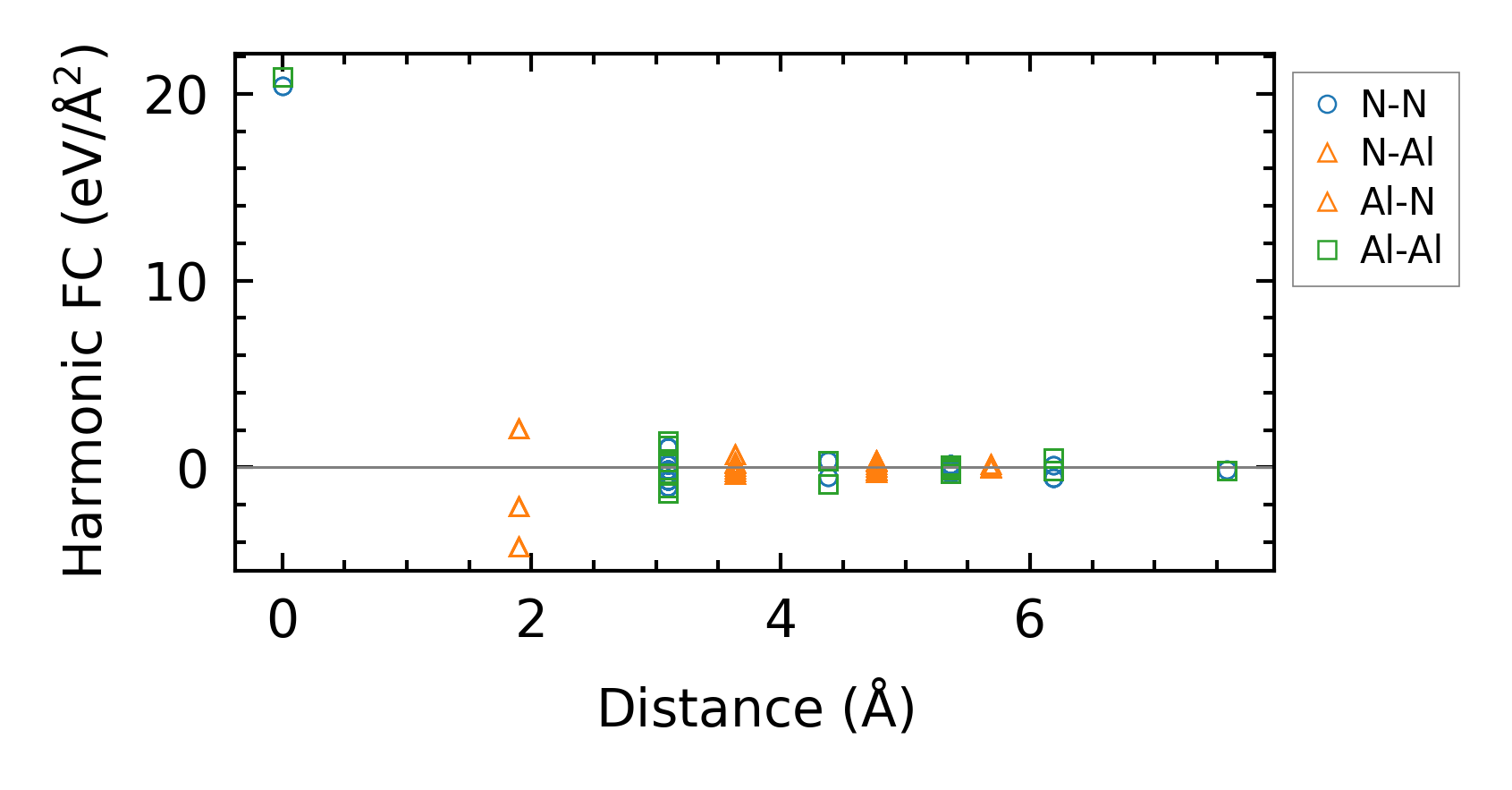

../../_images/fig_fc2190.png — (a) Force constants w.r.t atomic distance

Summary

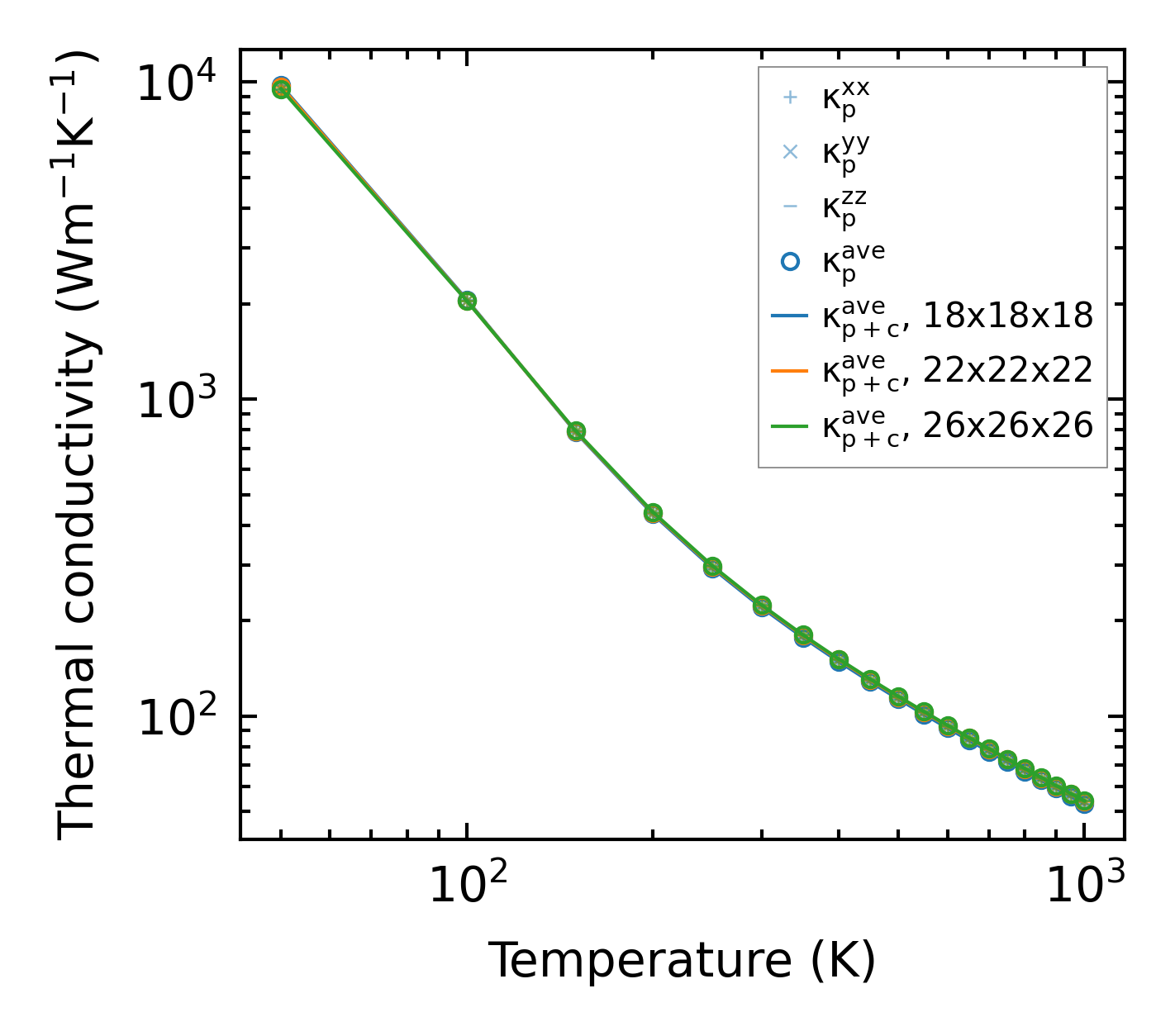

../../_images/fig_kappa260.png — (a) Temperature-dependent lattice thermal conductivity

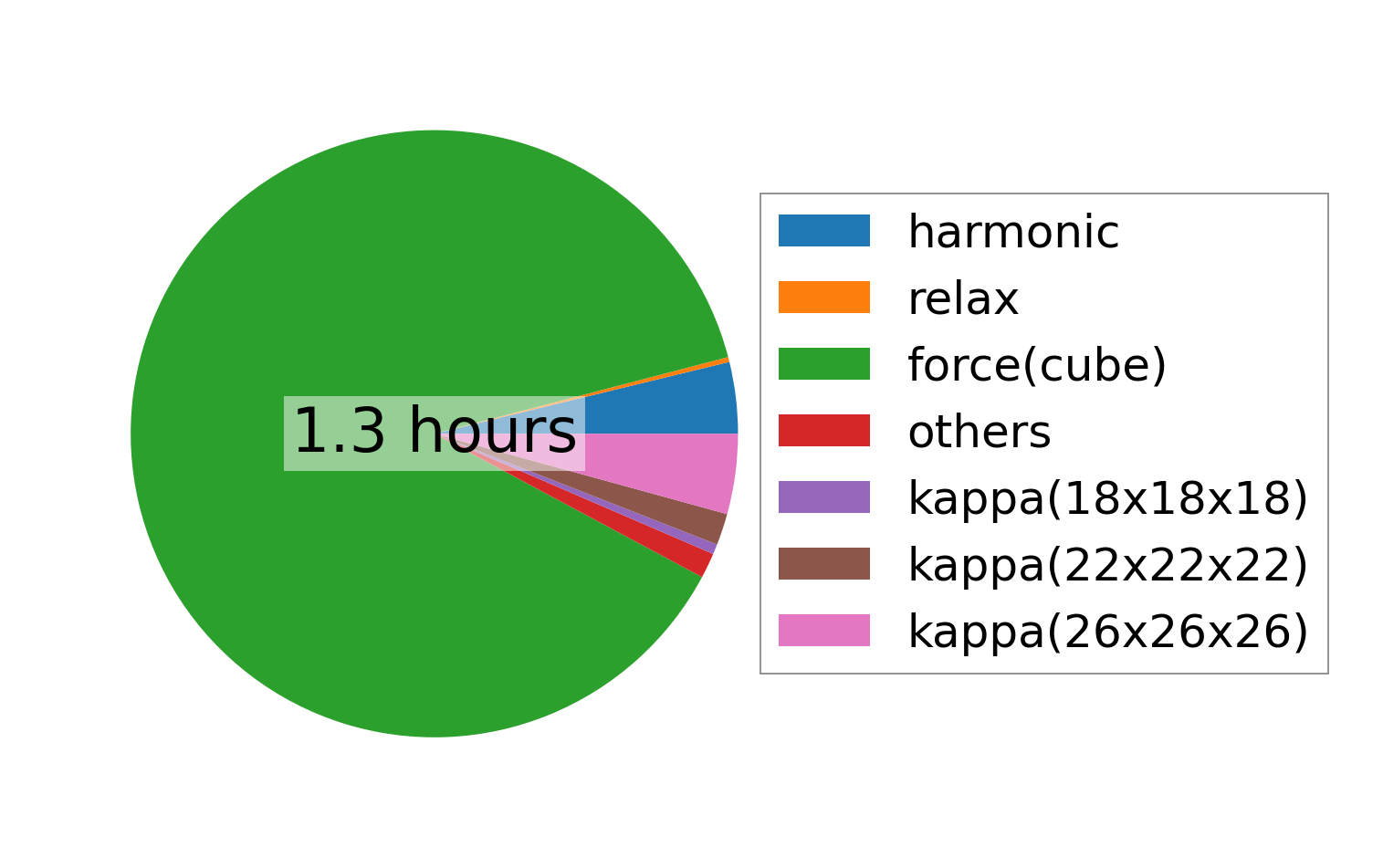

../../_images/fig_times343.png — (b) Computation time
