mp-1778/BeO/anharm

Space group: F-43m (216)
Link: Materials Project
Download: mp-1778.tar.gz

Harmonic properties

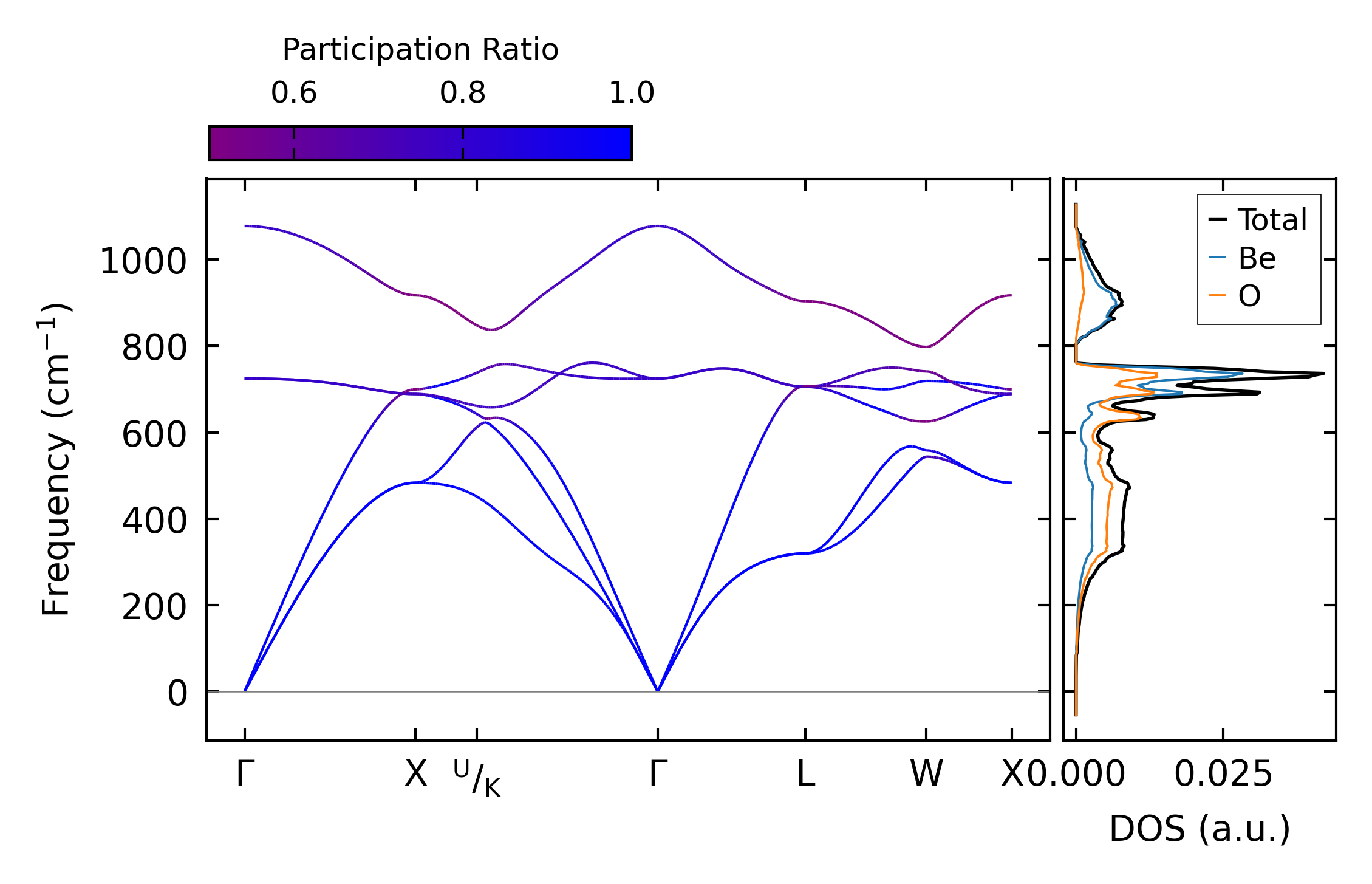

../../_images/fig_bandos_pr215.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo215.png — (b) Thermodynamic properties

Grüneisen parameters

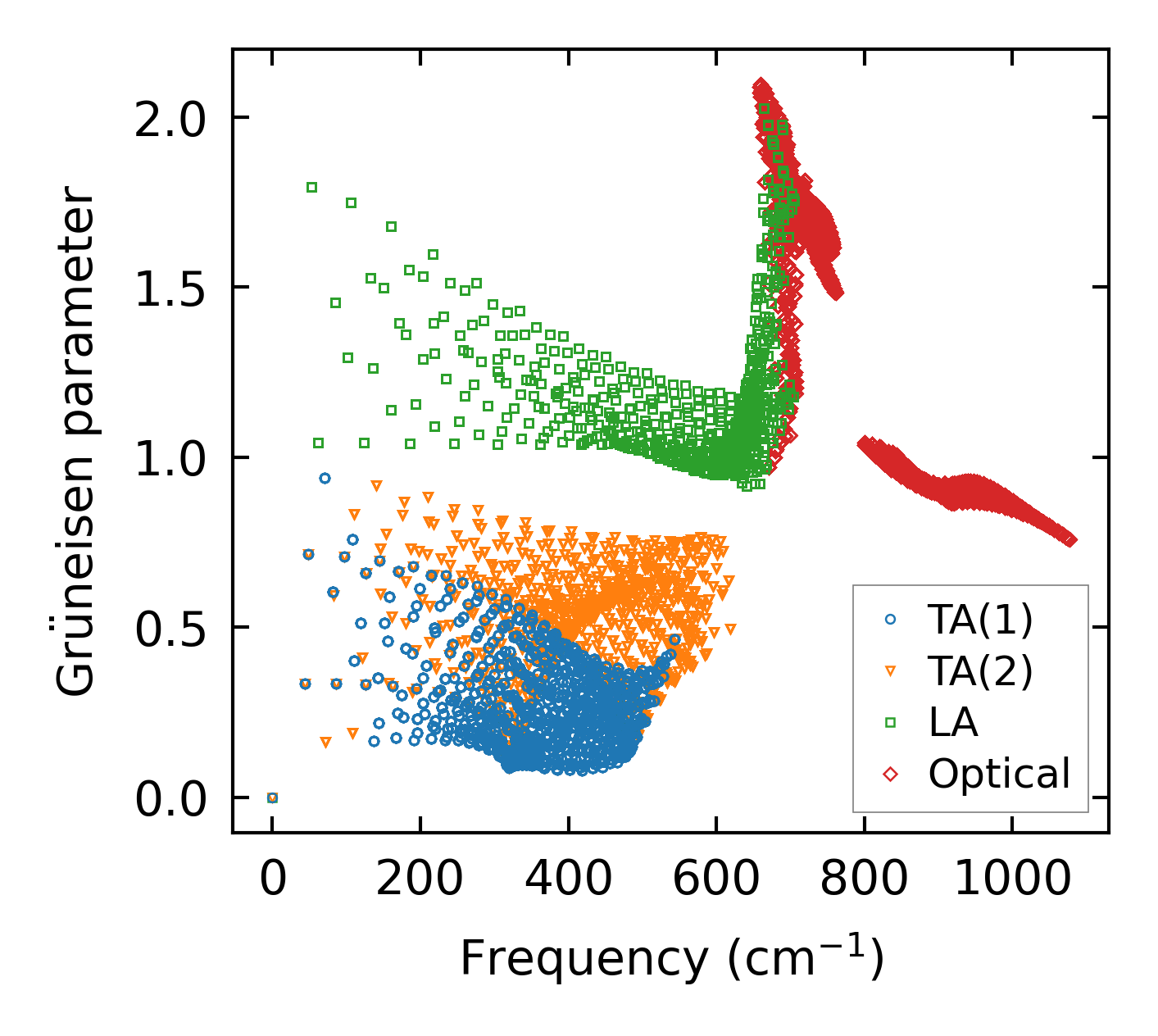

../../_images/fig_gru_all140.png — (a) Grüneisen parameters

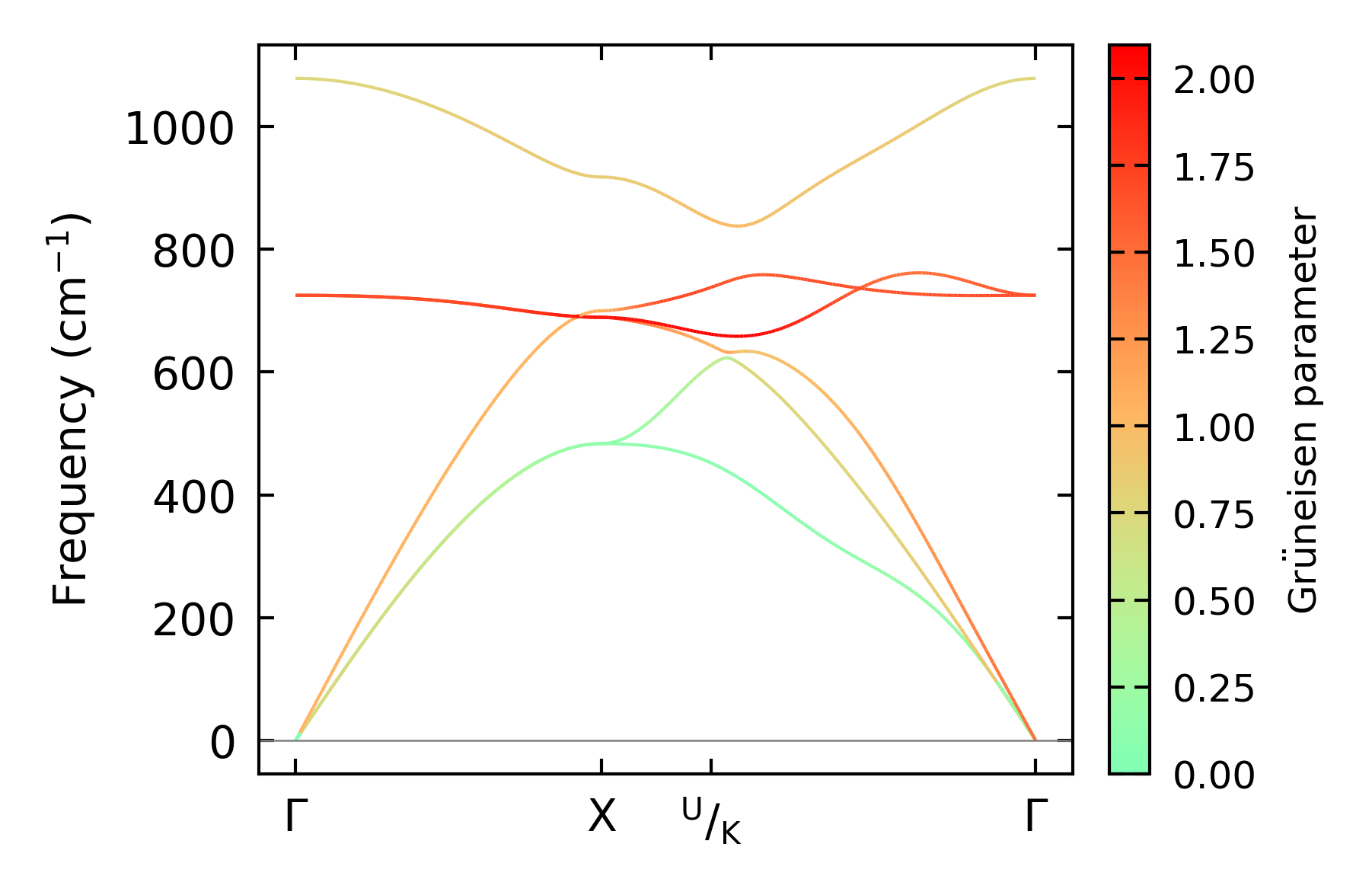

../../_images/fig_gruneisen140.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 30x30x30, supercell: 2x2x2

../../_images/fig_kappa272.png — (a) Temperature-dependent lattice thermal conductivity

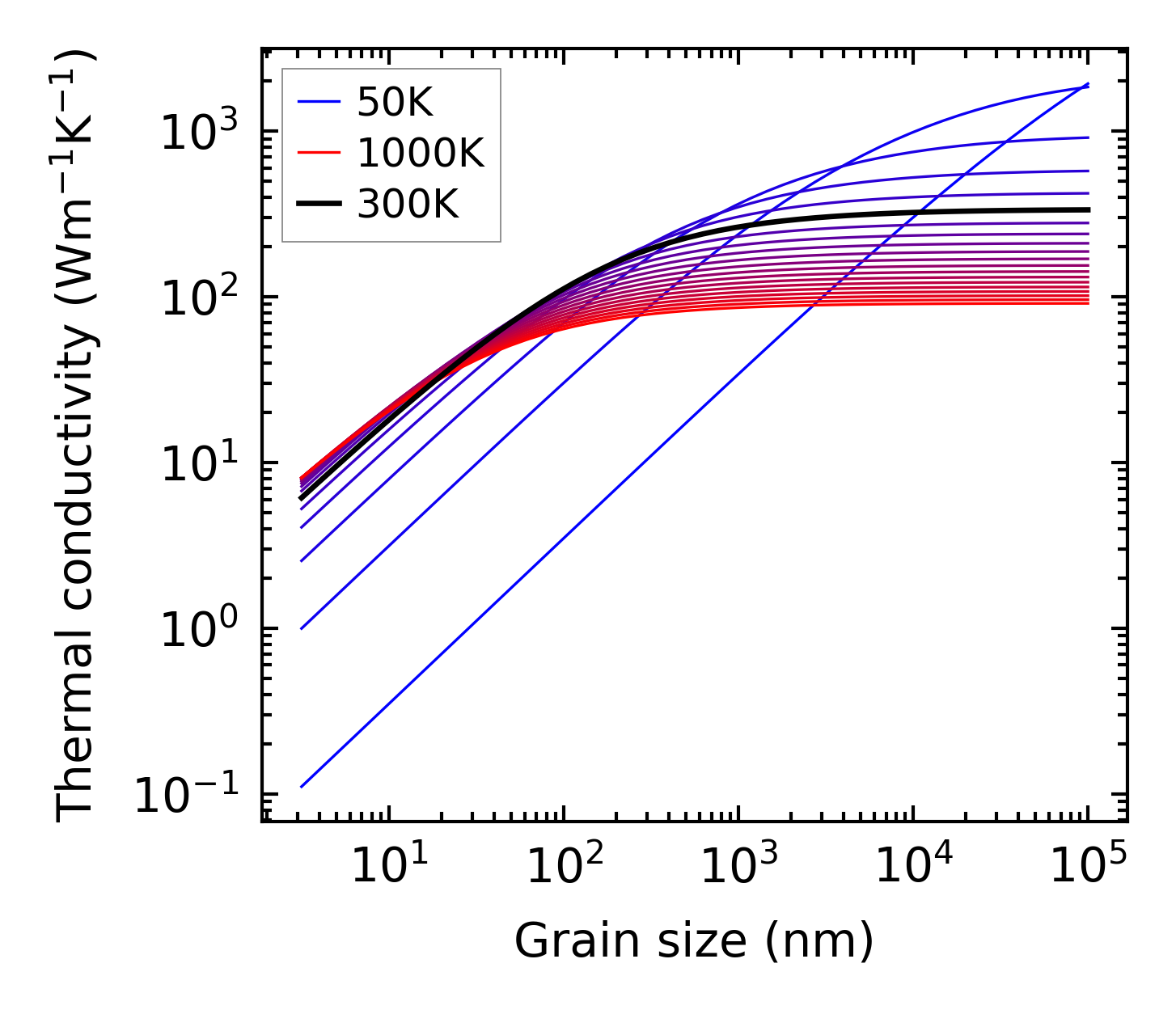

../../_images/fig_kappa_vs_grain_size141.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

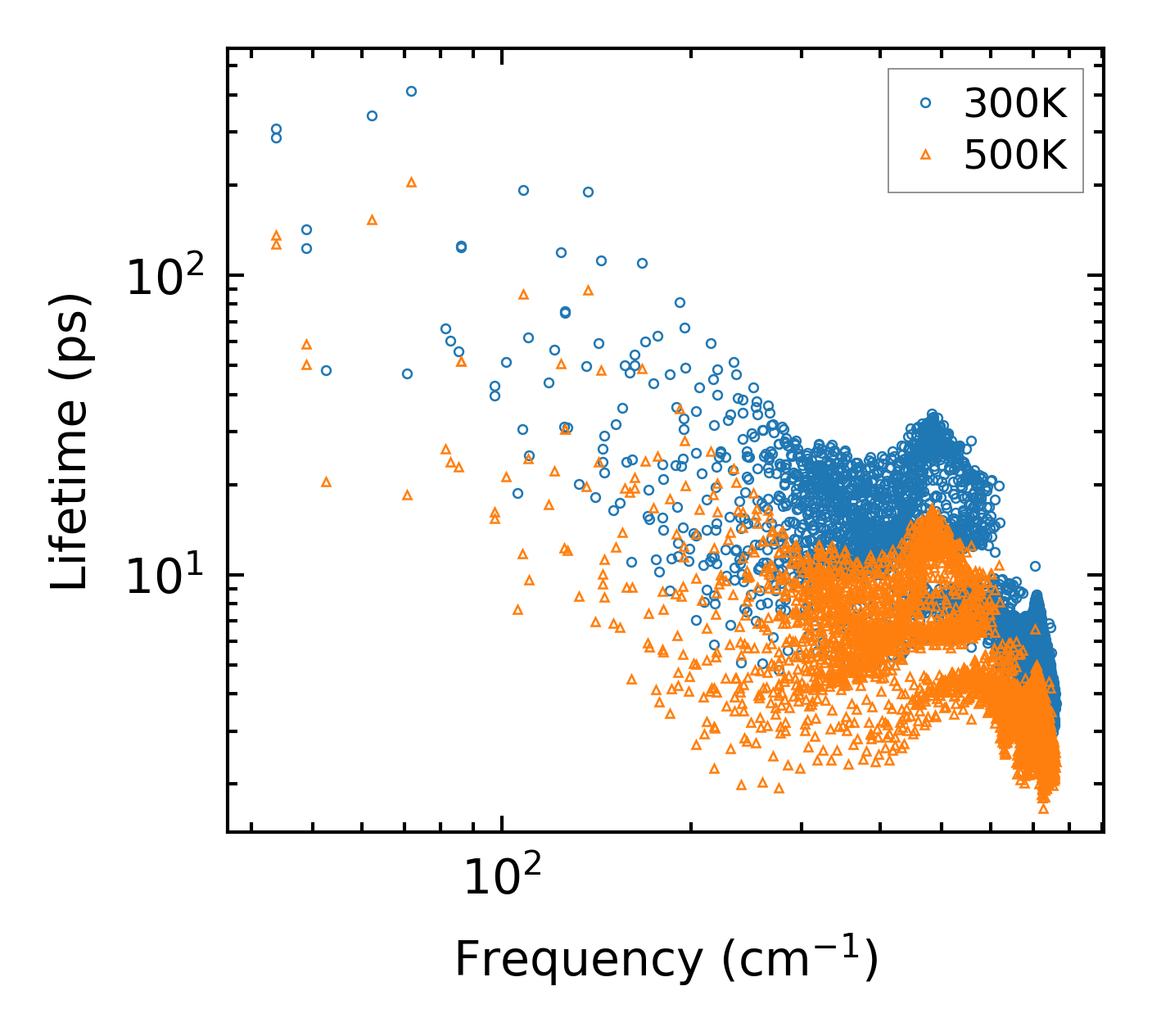

../../_images/fig_lifetime139.png — (a) Phonon lifetime due to phonon-phonon scattering

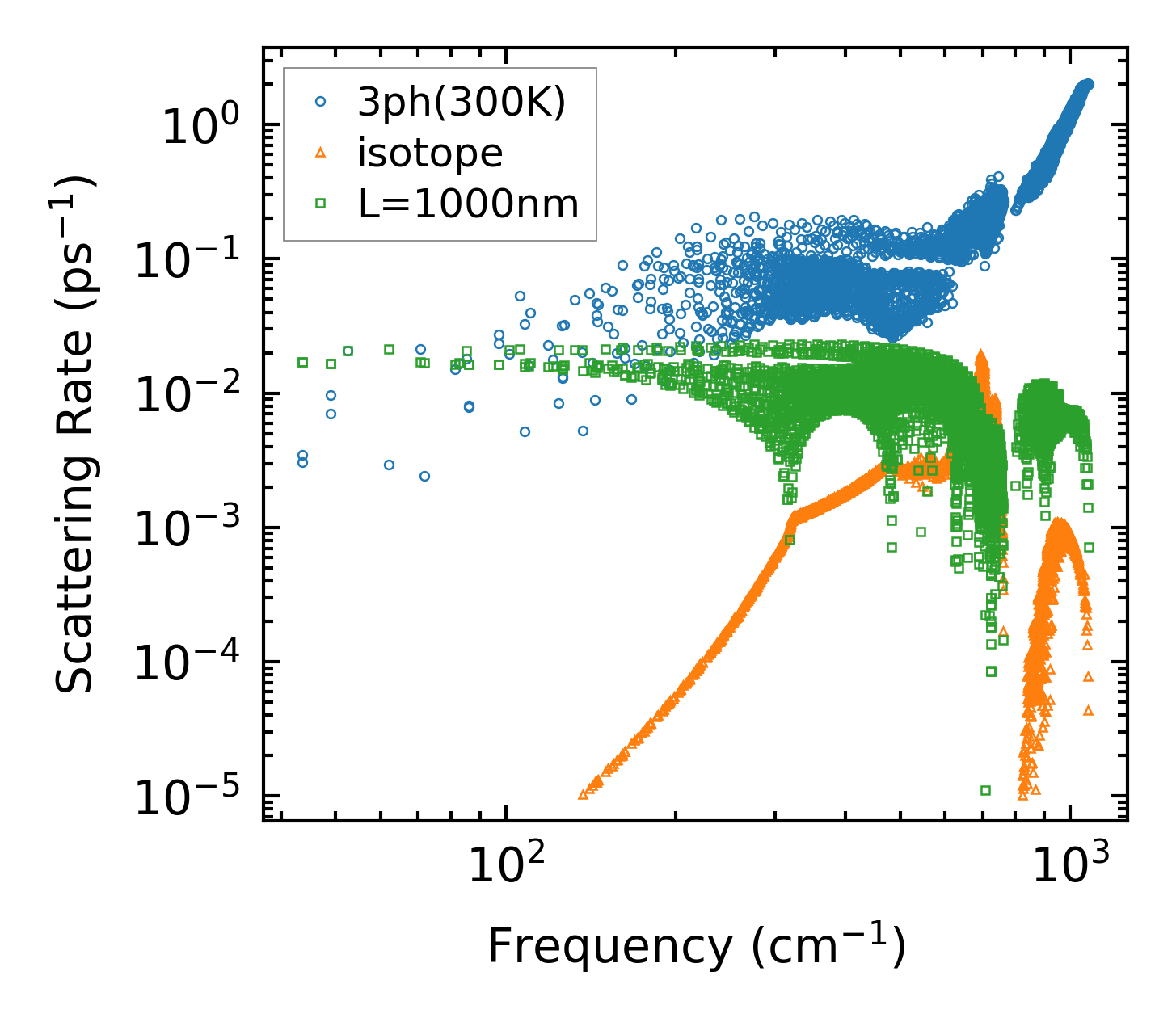

../../_images/fig_scat_rates138.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency139.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp139.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

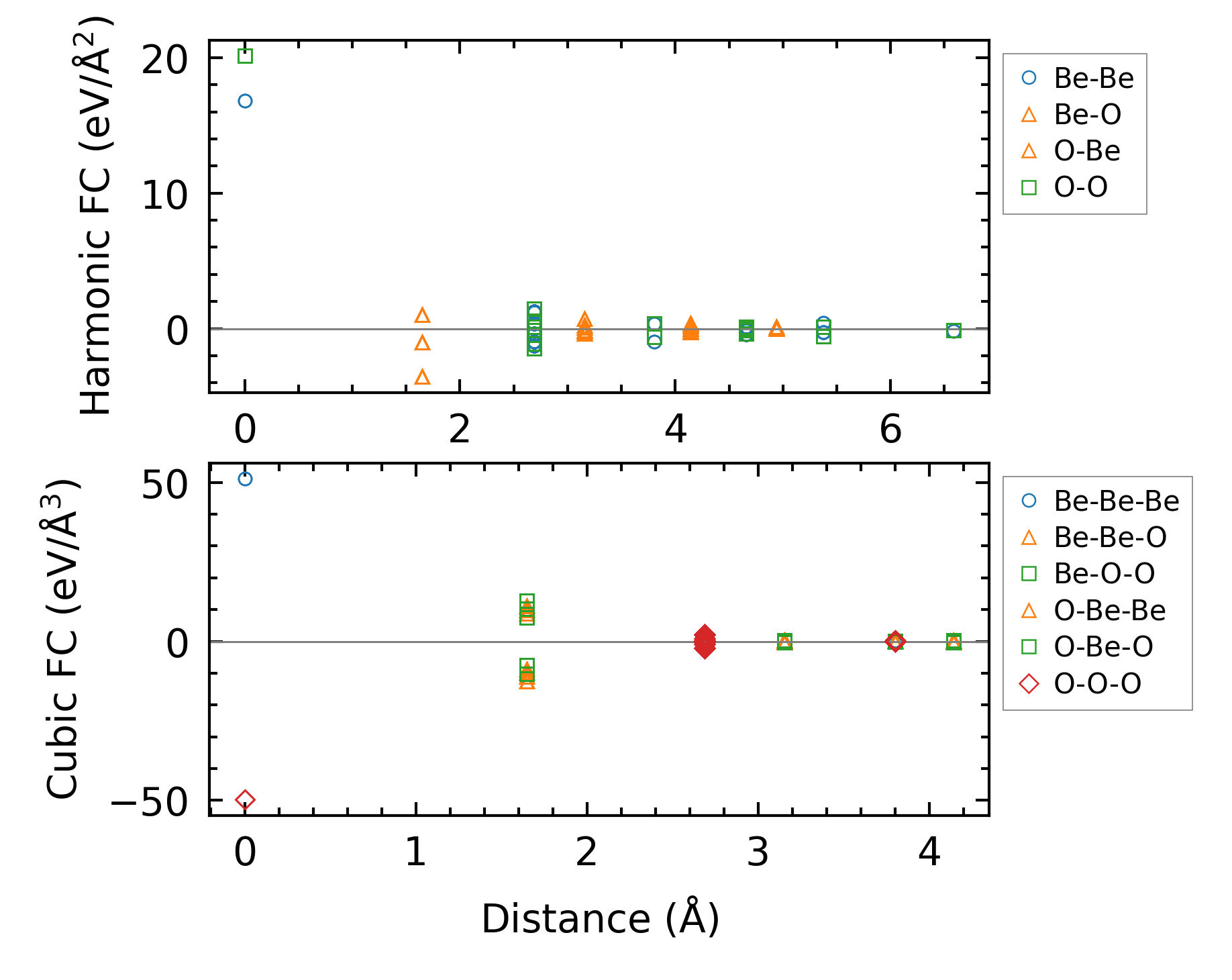

../../_images/fig_fc317.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa273.png — (a) Temperature-dependent lattice thermal conductivity

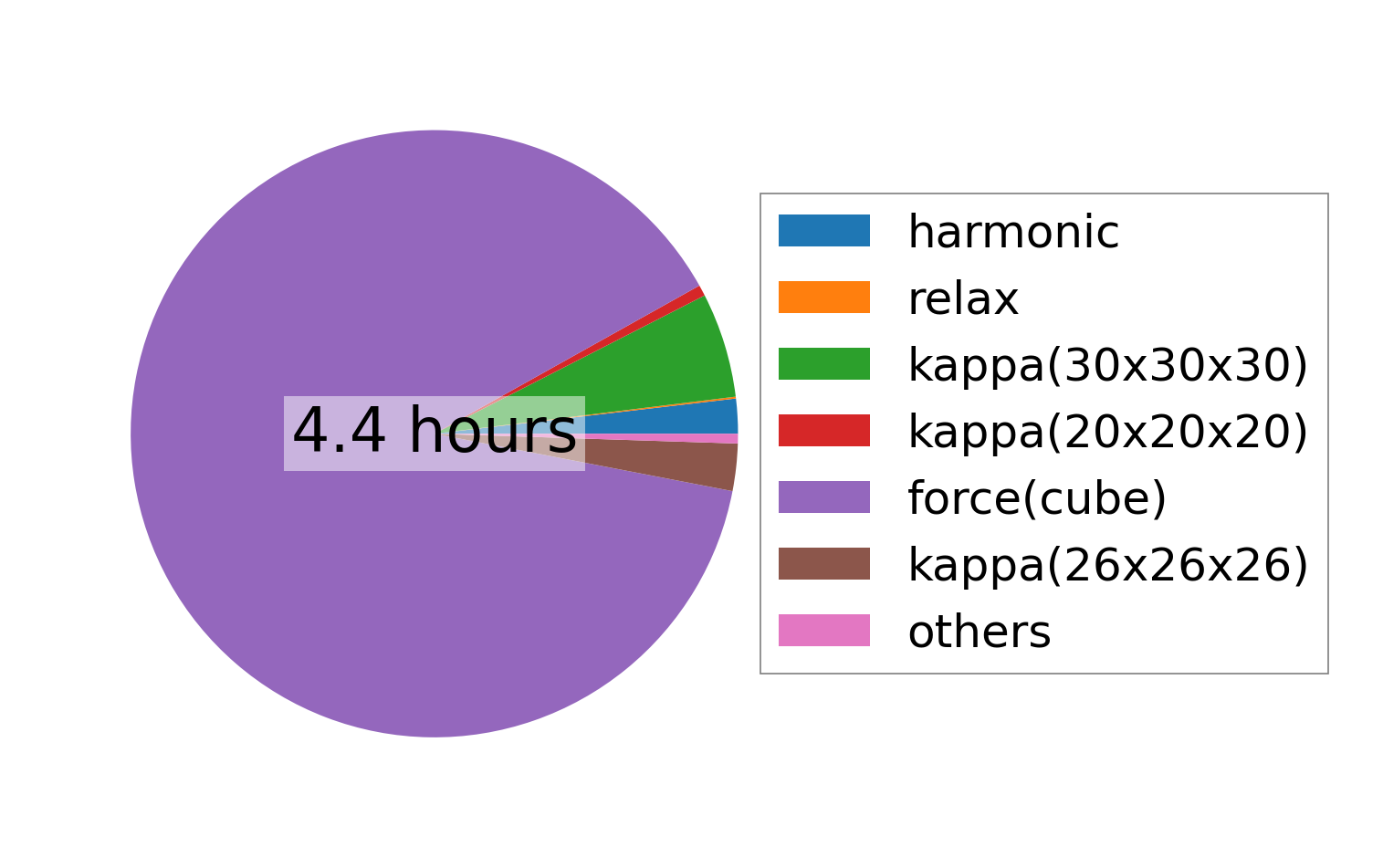

../../_images/fig_times361.png — (b) Computation time
