mp-1818-2/SiF4/anharm

Space group: I-43m (217)
Link: Materials Project
Download: mp-1818-2.tar.gz

Equation of state

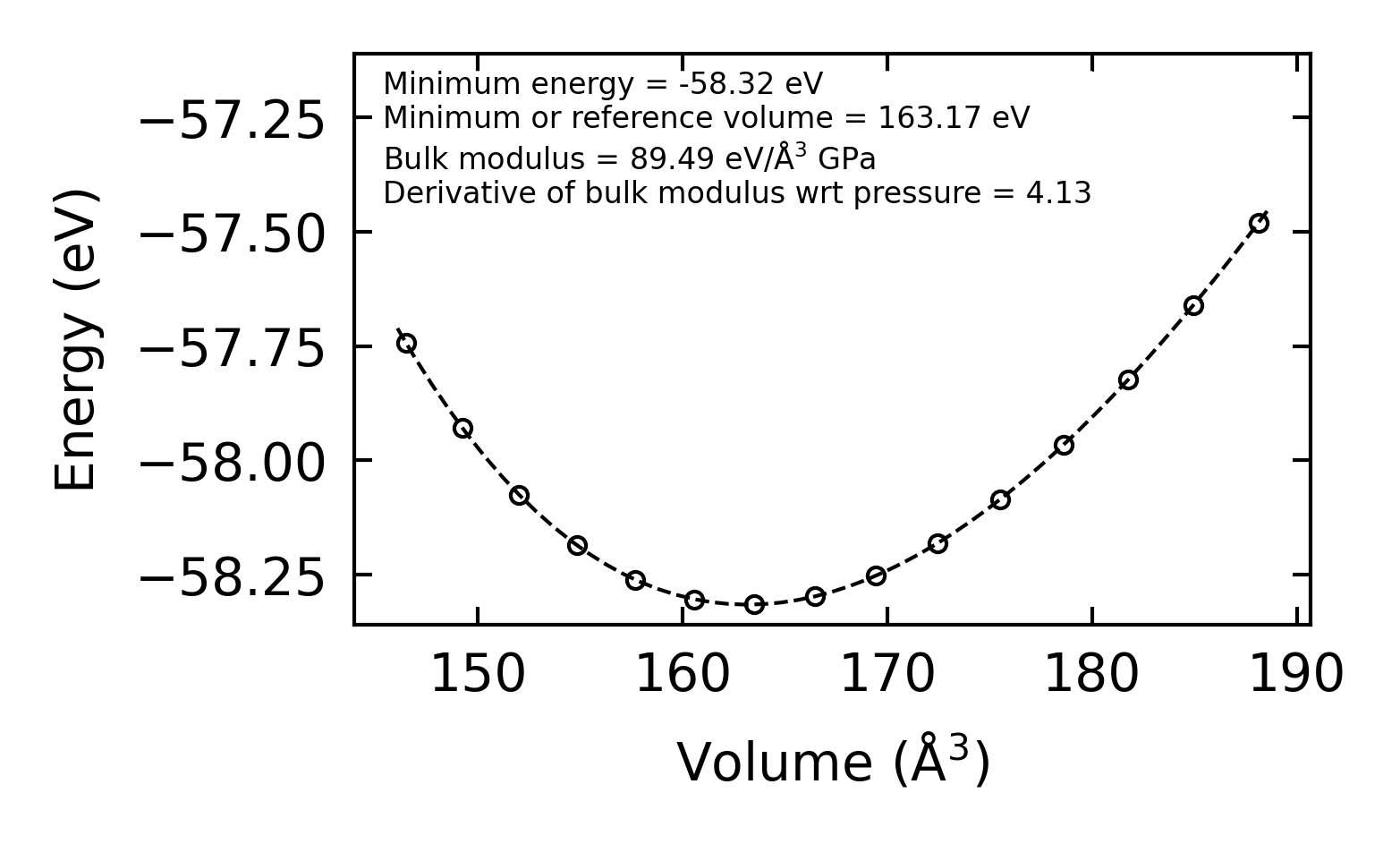

../../_images/fig_bm51.png — (a) Equation of state

Harmonic properties

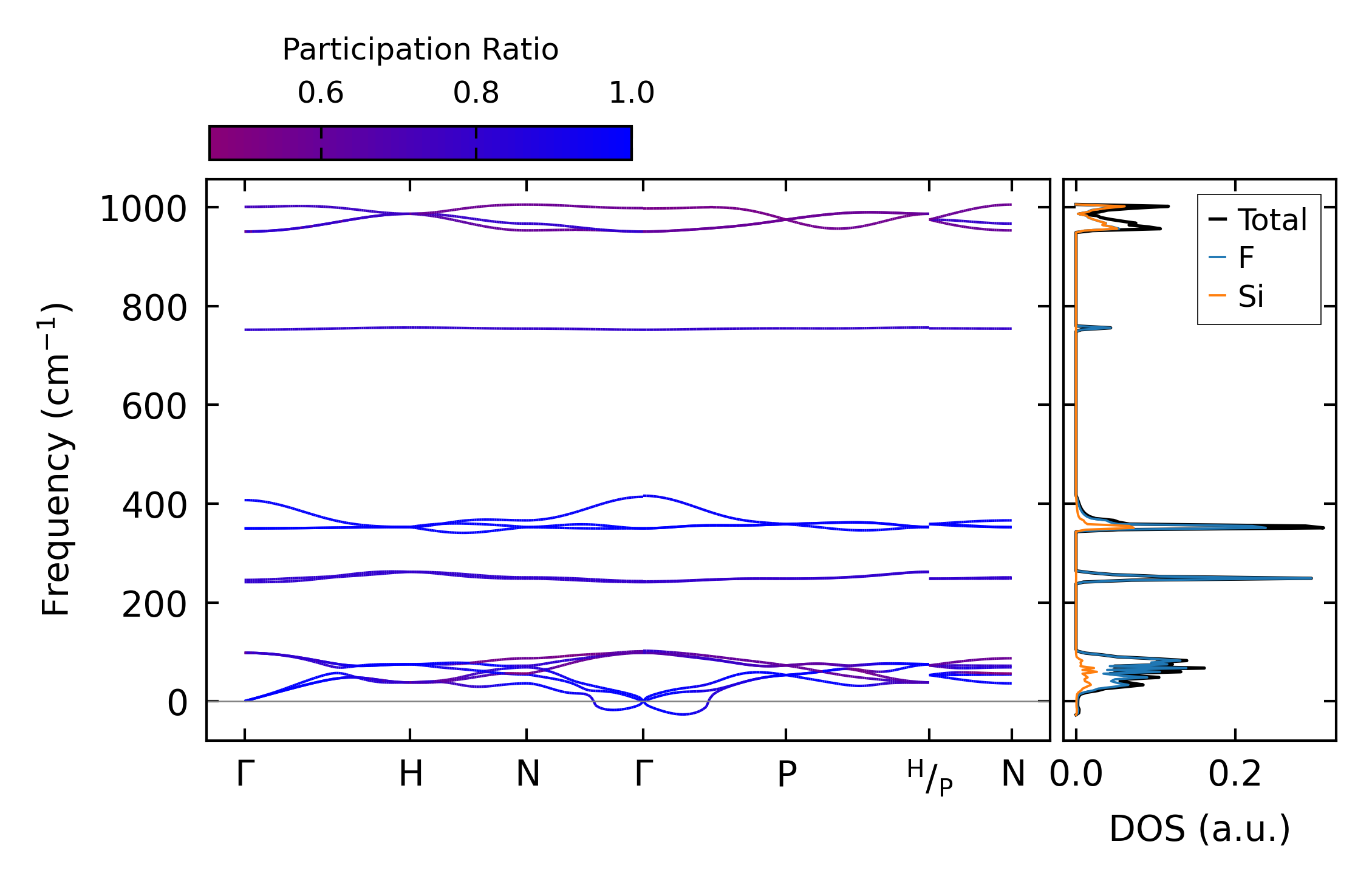

../../_images/fig_bandos_pr222.png — (a) Phonon dispersion with participation ratio and DOS

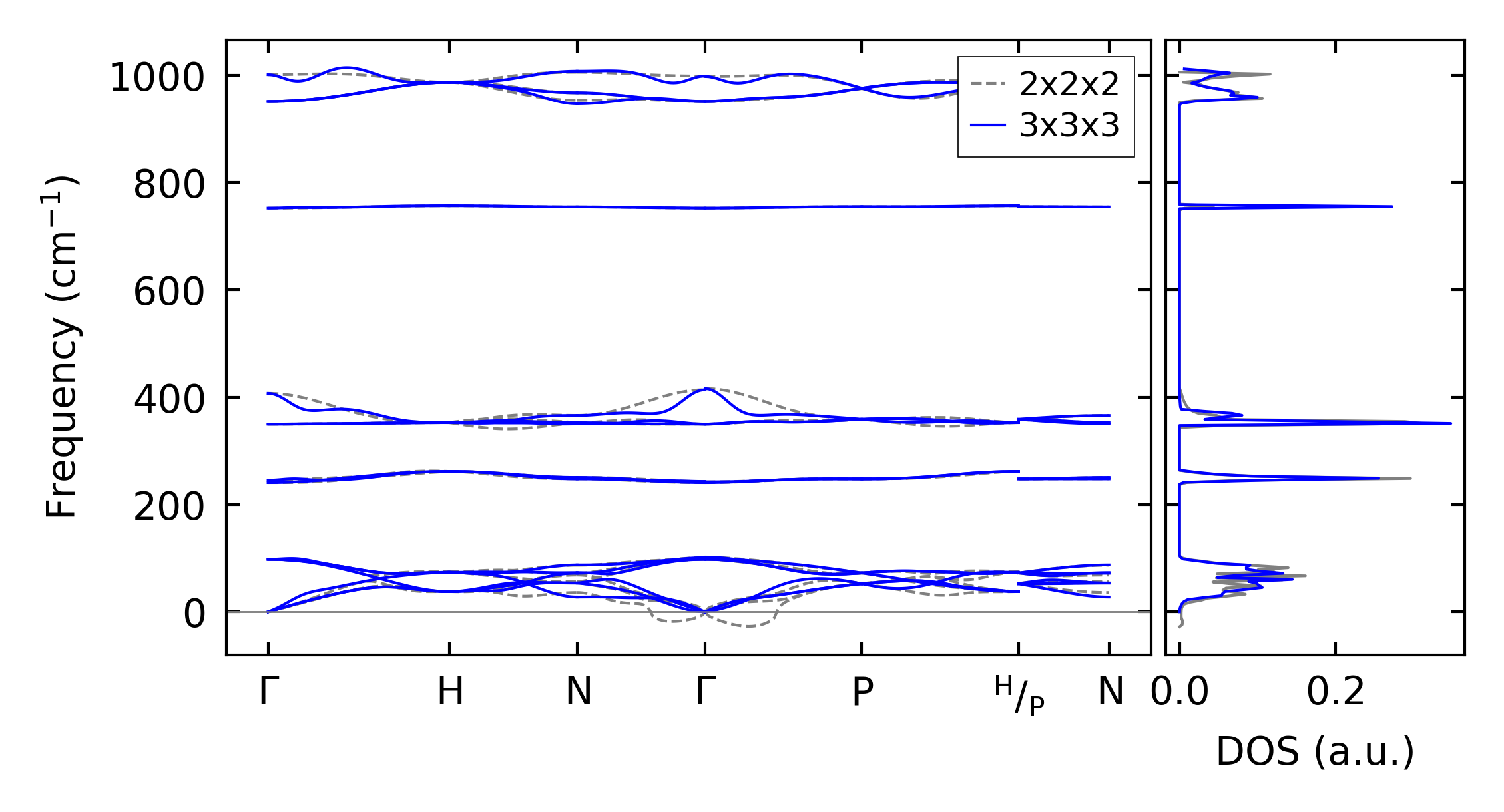

../../_images/fig_bandos238.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo222.png — (c) Thermodynamic properties

Grüneisen parameters

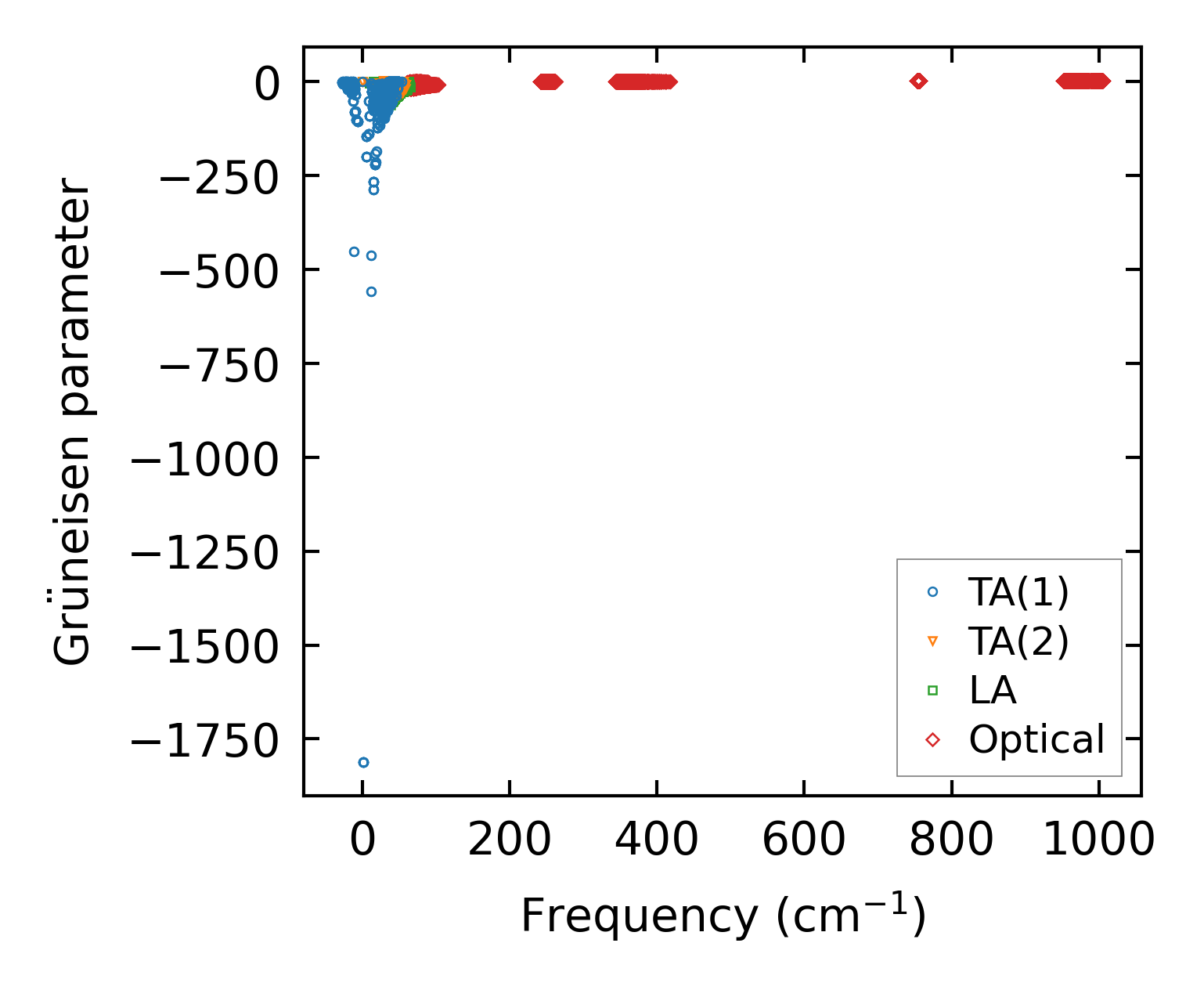

../../_images/fig_gru_all144.png — (a) Grüneisen parameters

../../_images/fig_gruneisen144.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon, supercell 3x3x3 — q-mesh: 16x16x16, supercell: 3x3x3

../../_images/fig_kappa280.png — (a) Temperature-dependent lattice thermal conductivity

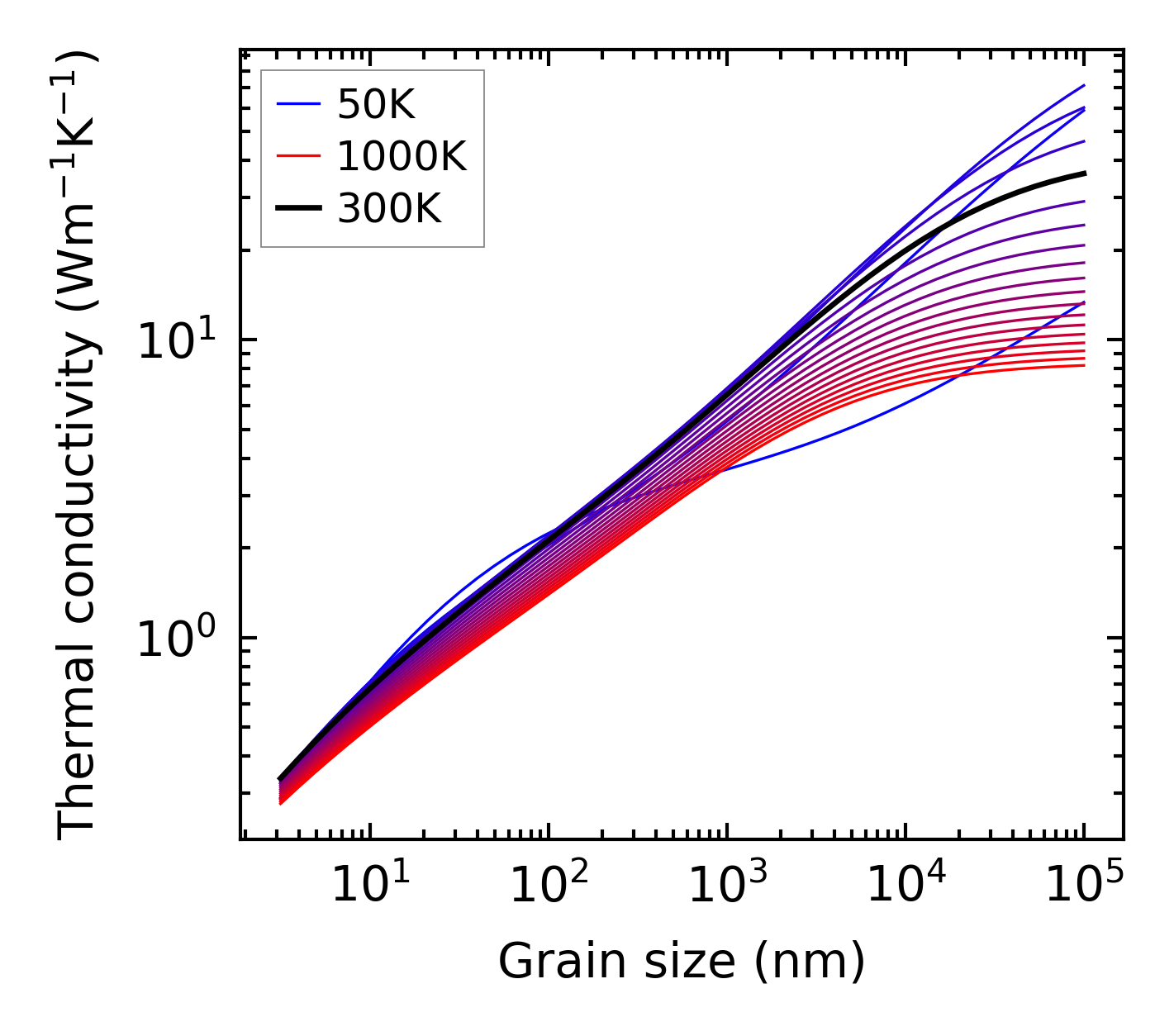

../../_images/fig_kappa_vs_grain_size145.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

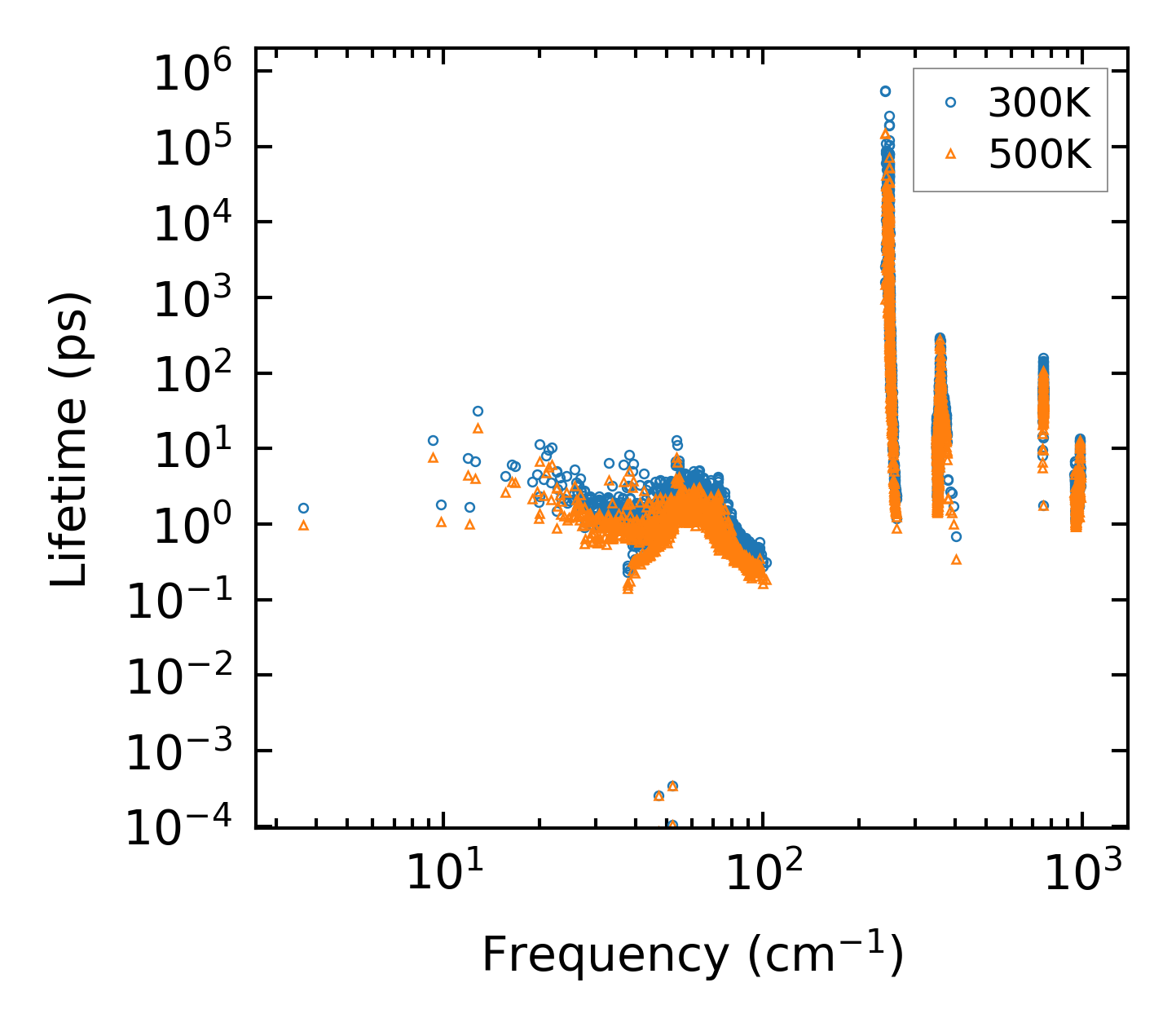

../../_images/fig_lifetime143.png — (a) Phonon lifetime due to phonon-phonon scattering

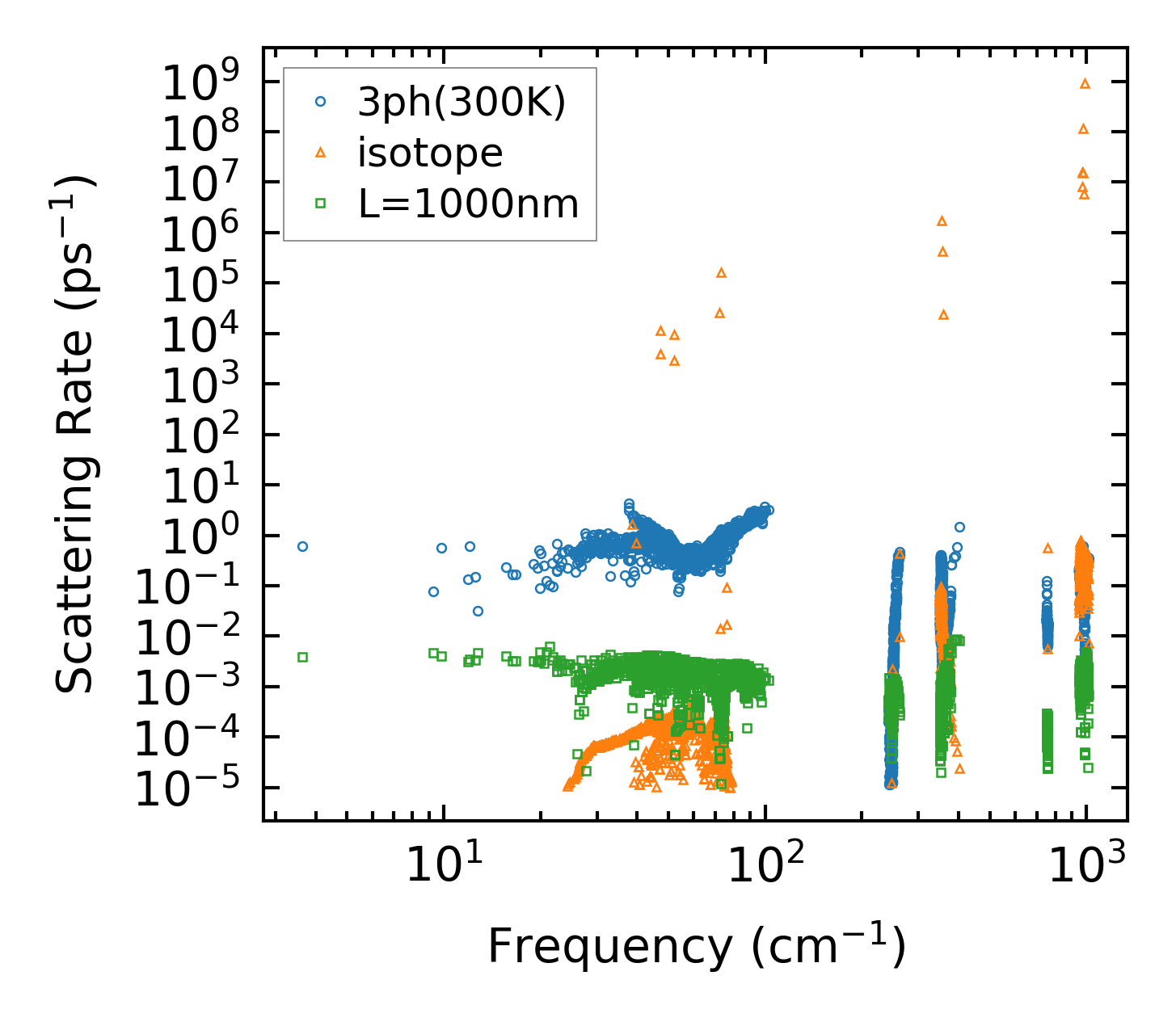

../../_images/fig_scat_rates142.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency143.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp143.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

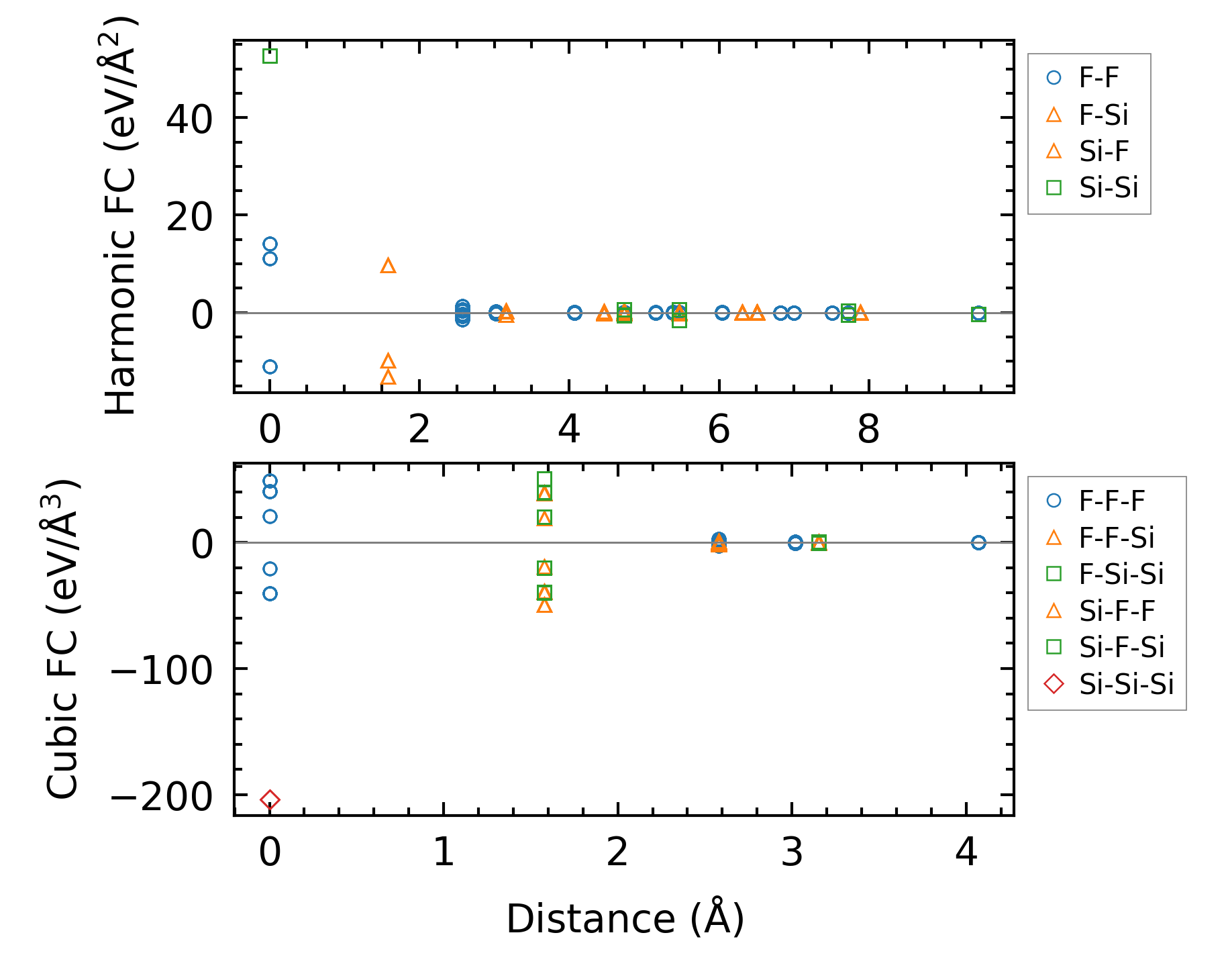

../../_images/fig_fc321.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times368.png — (a) Computation time
