mp-1784/CsF/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-1784.tar.gz

Harmonic properties

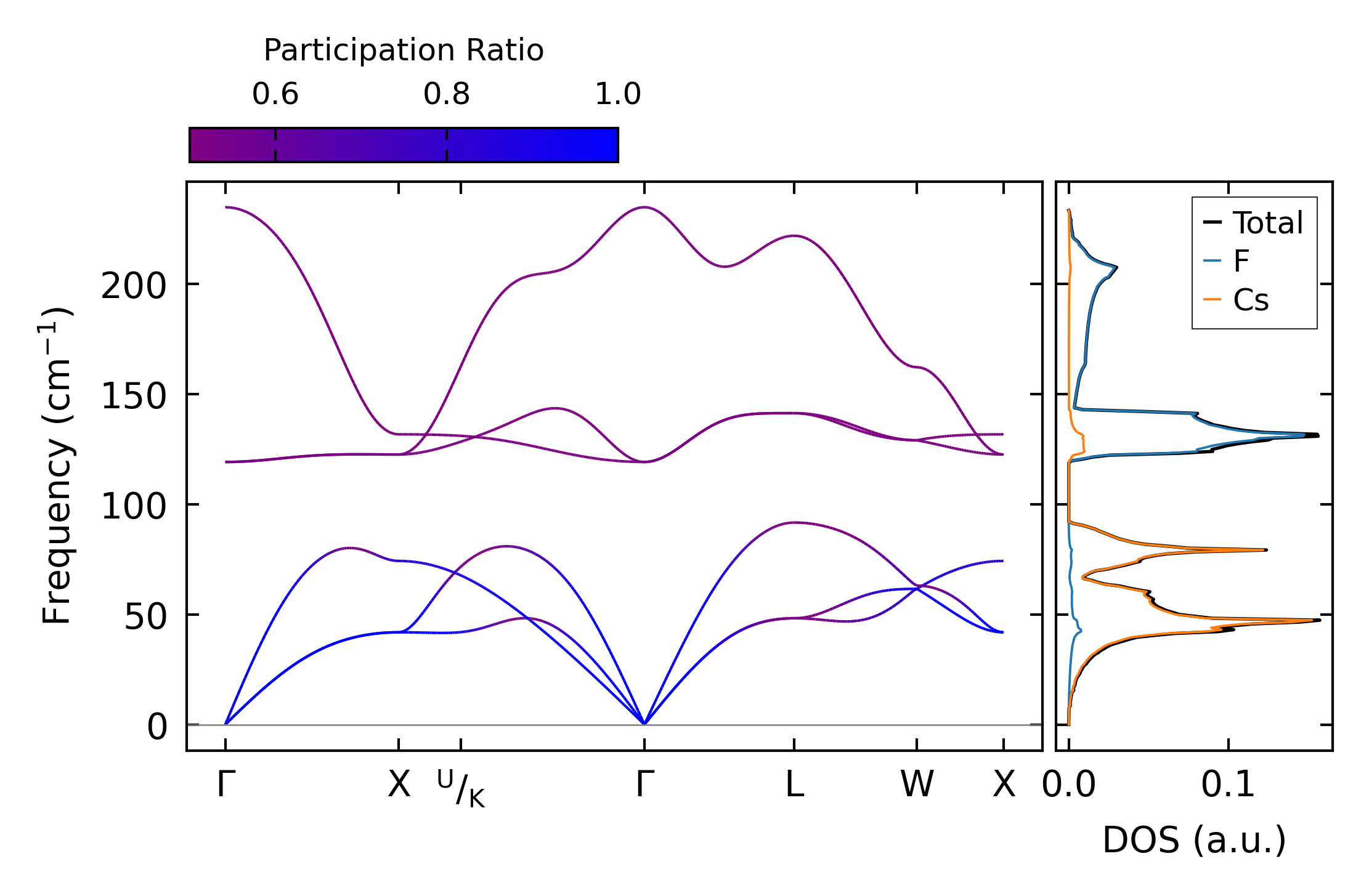

../../_images/fig_bandos_pr217.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo217.png — (b) Thermodynamic properties

Grüneisen parameters

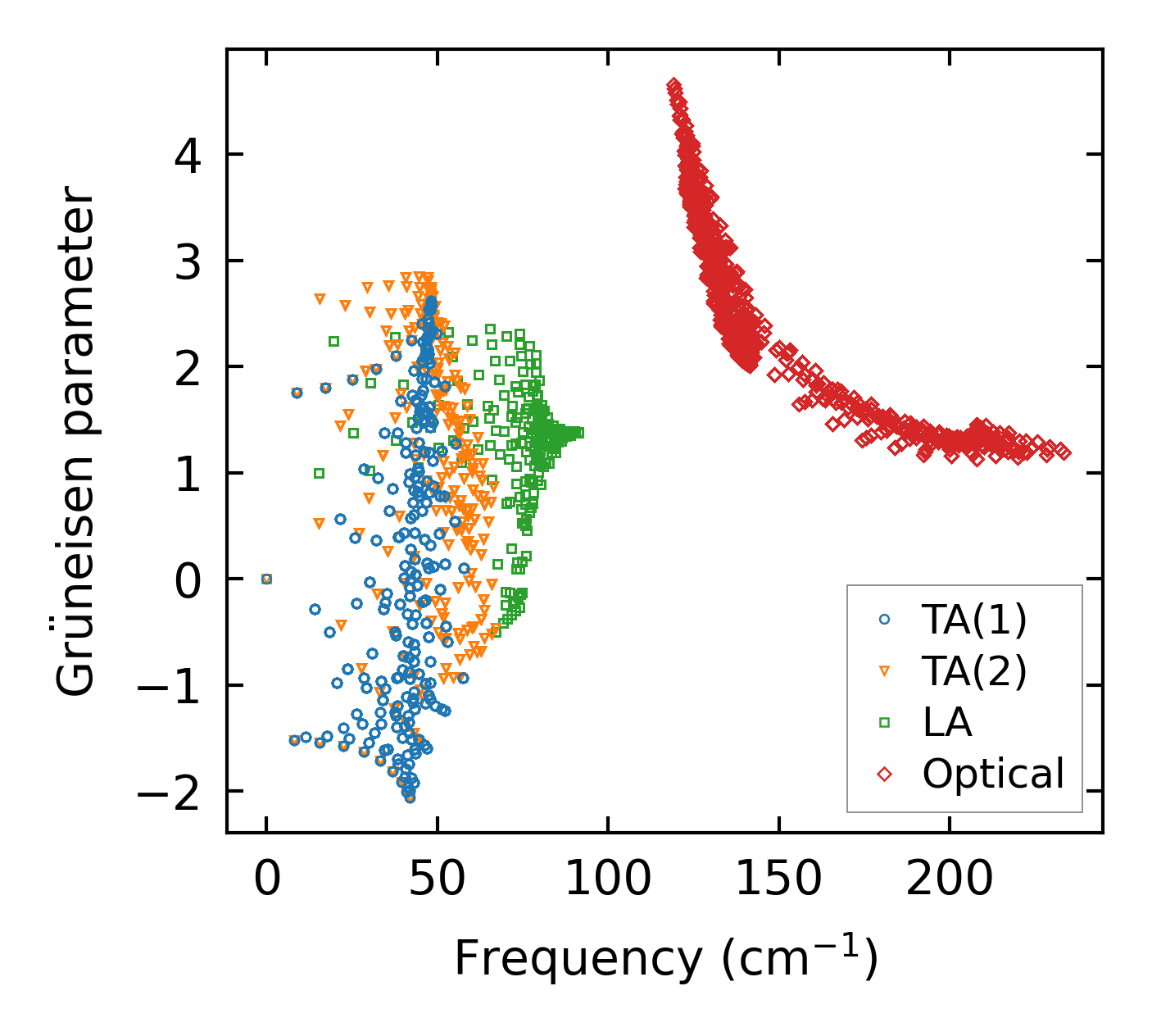

../../_images/fig_gru_all142.png — (a) Grüneisen parameters

../../_images/fig_gruneisen142.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 19x19x19, supercell: 2x2x2

../../_images/fig_kappa276.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size143.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

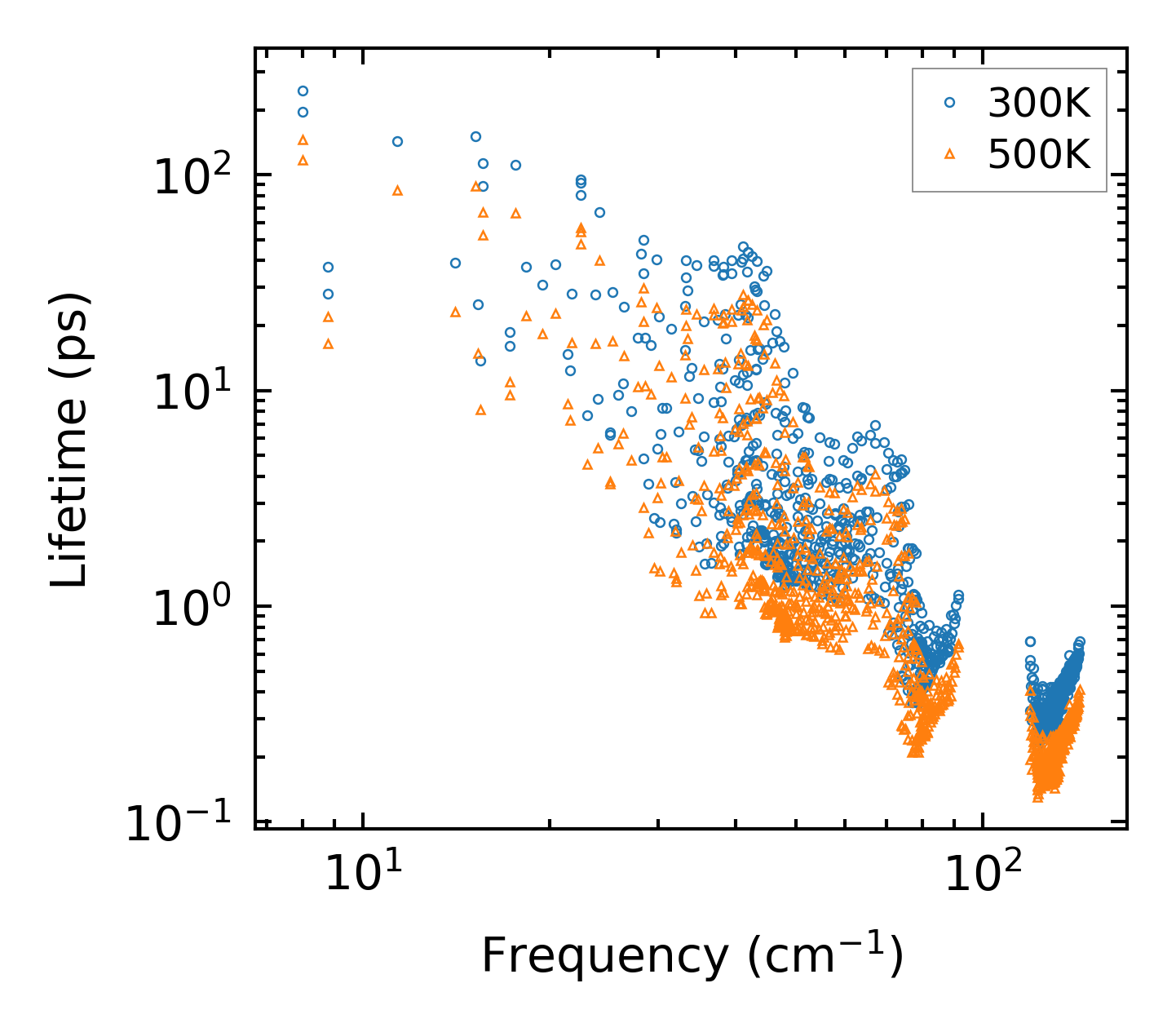

../../_images/fig_lifetime141.png — (a) Phonon lifetime due to phonon-phonon scattering

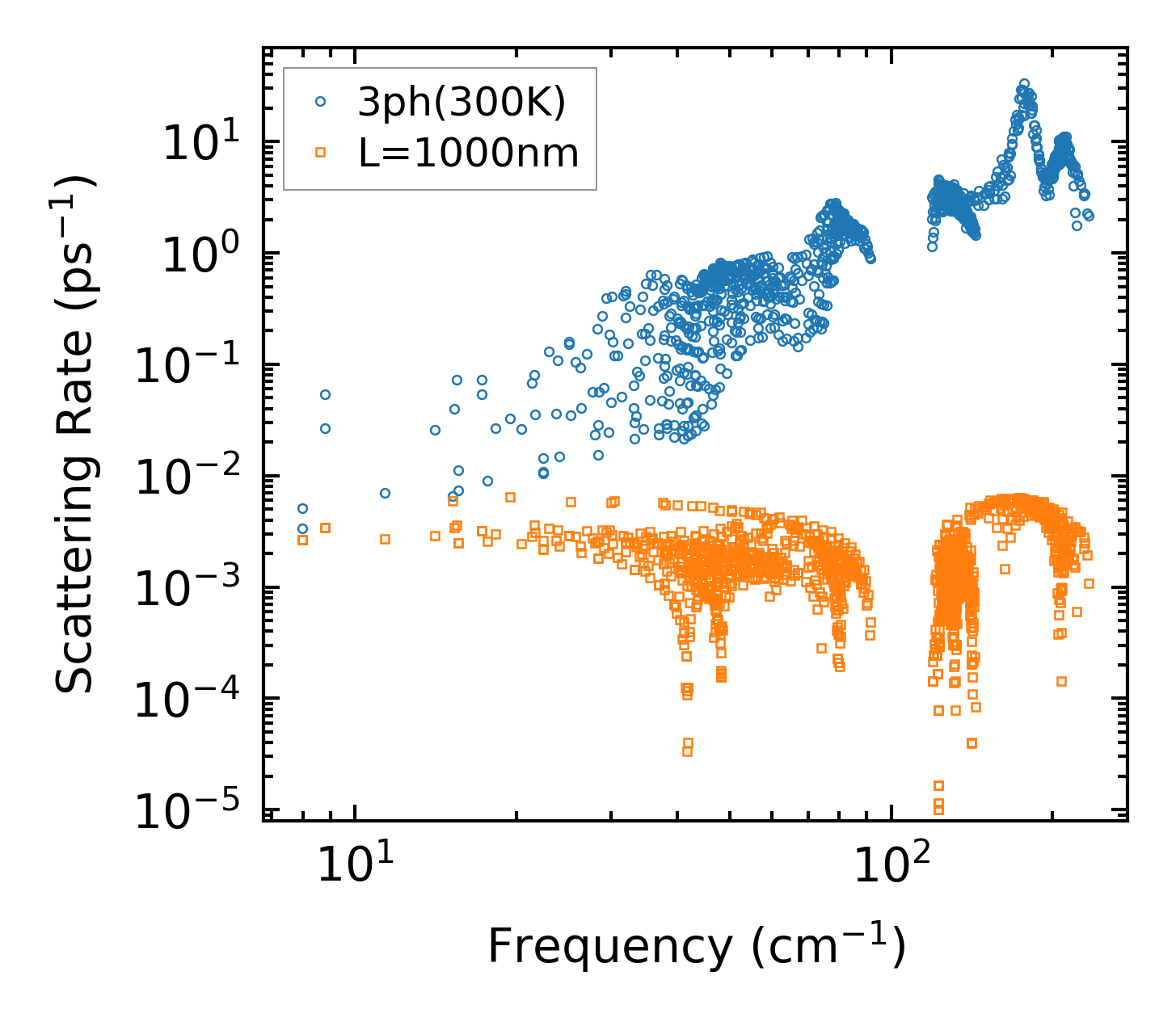

../../_images/fig_scat_rates140.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

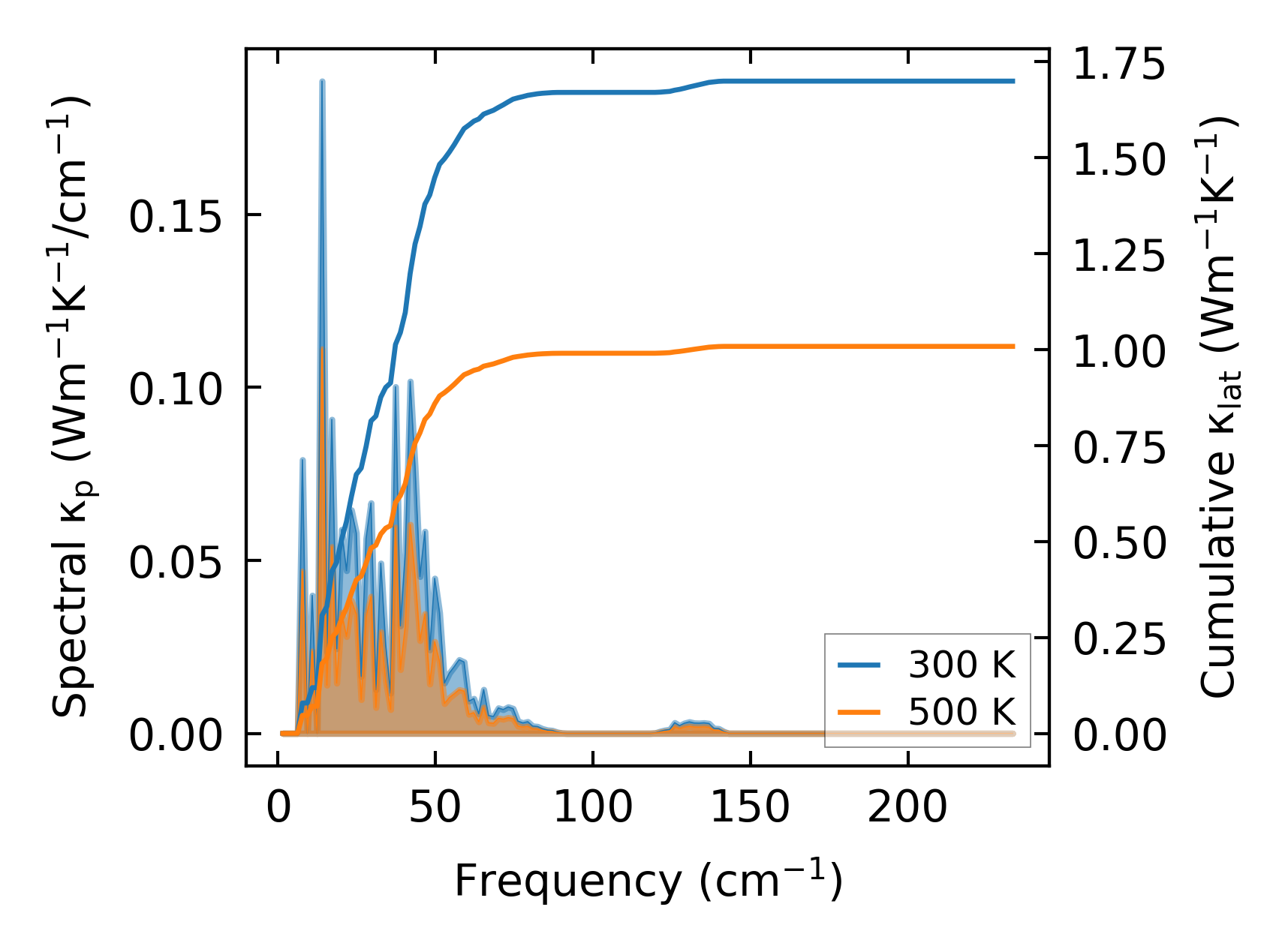

../../_images/fig_cumu_frequency141.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

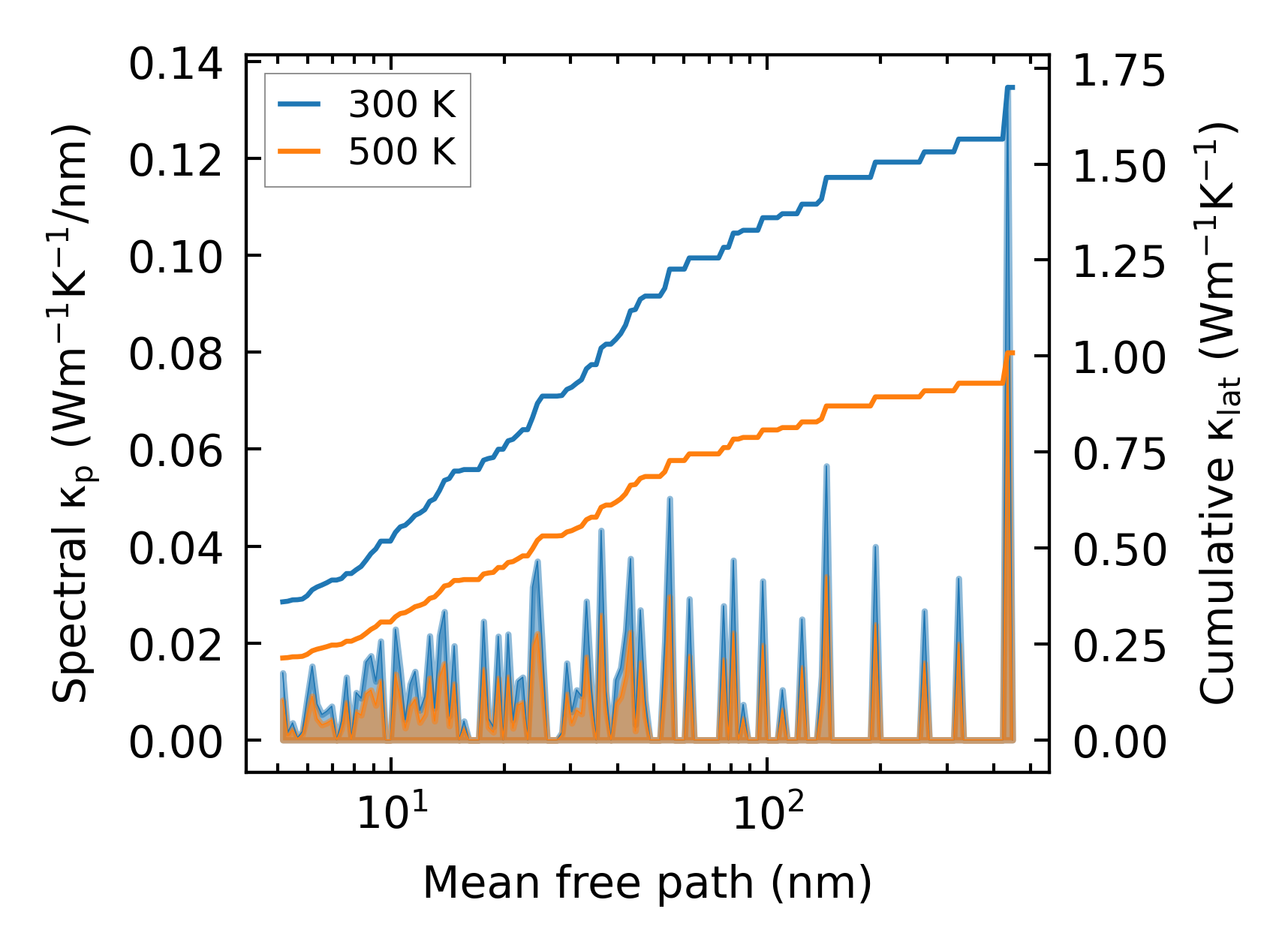

../../_images/fig_cumu_mfp141.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc319.png — (a) Force constants w.r.t atomic distance

Summary

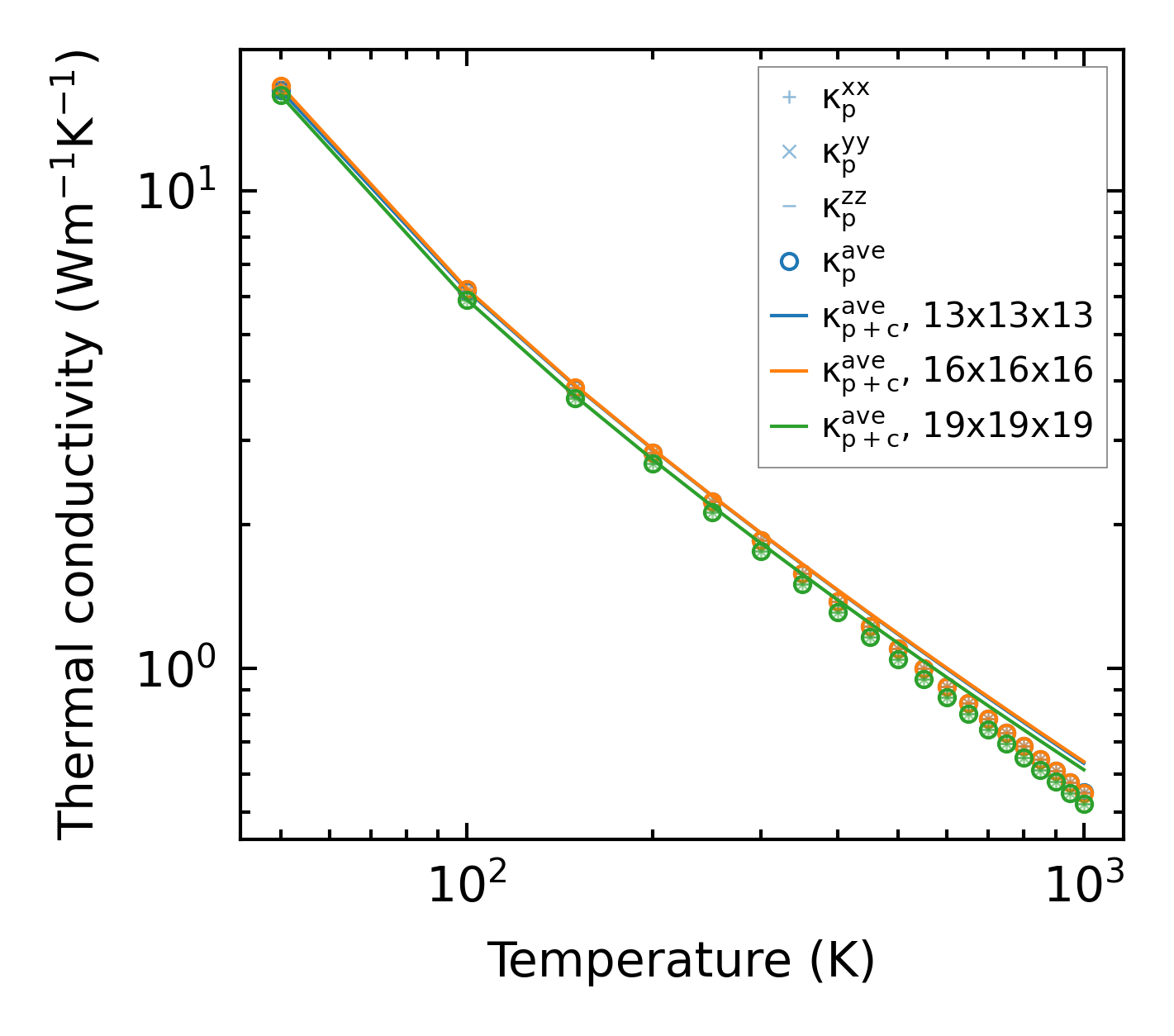

../../_images/fig_kappa277.png — (a) Temperature-dependent lattice thermal conductivity

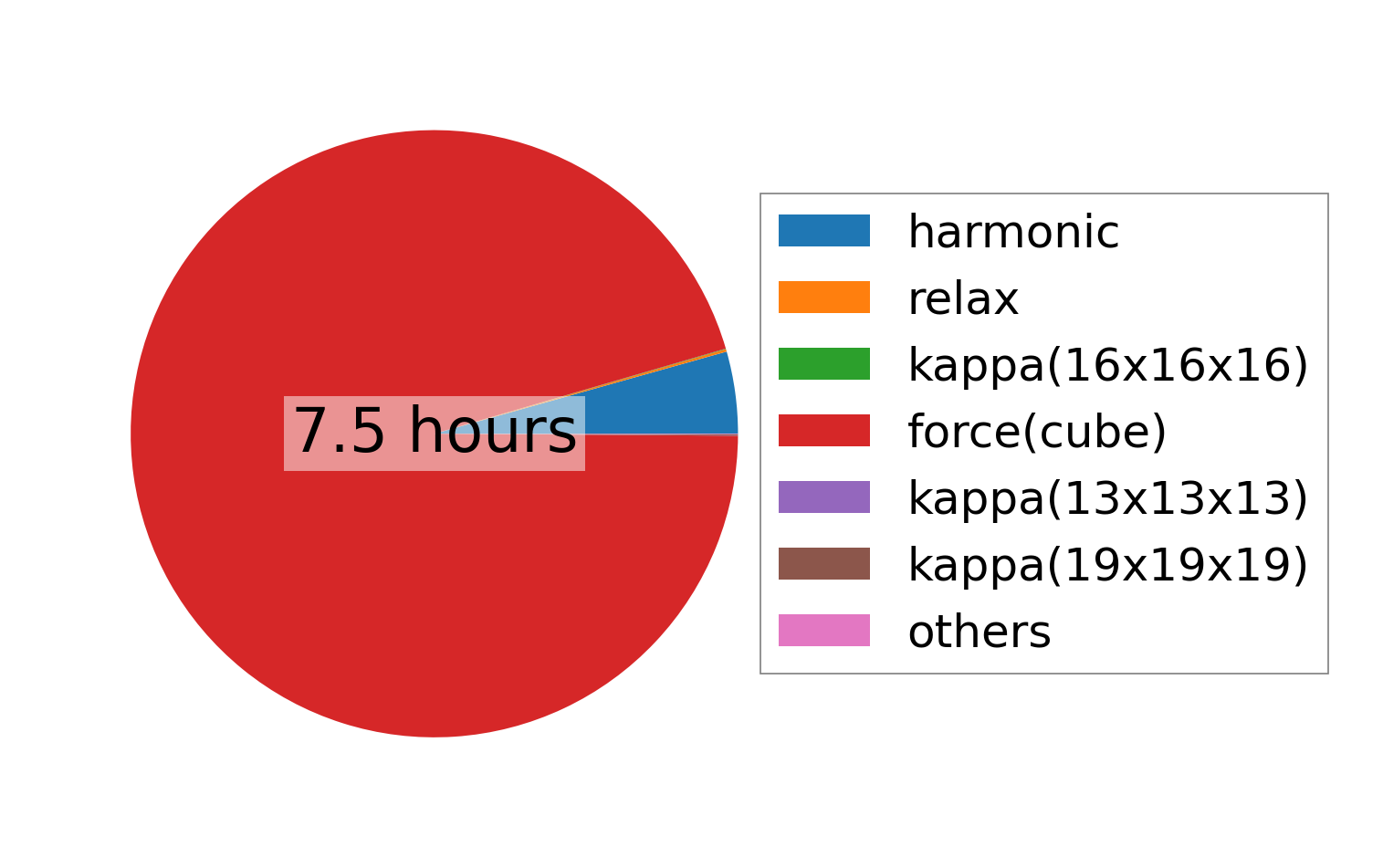

../../_images/fig_times363.png — (b) Computation time
