mp-13985-2/Li2PdF6/anharm

Space group: P4_2/mnm (136)
Link: Materials Project
Download: mp-13985-2.tar.gz

Equation of state

../../_images/fig_bm7537.png — (a) Equation of state

Harmonic properties

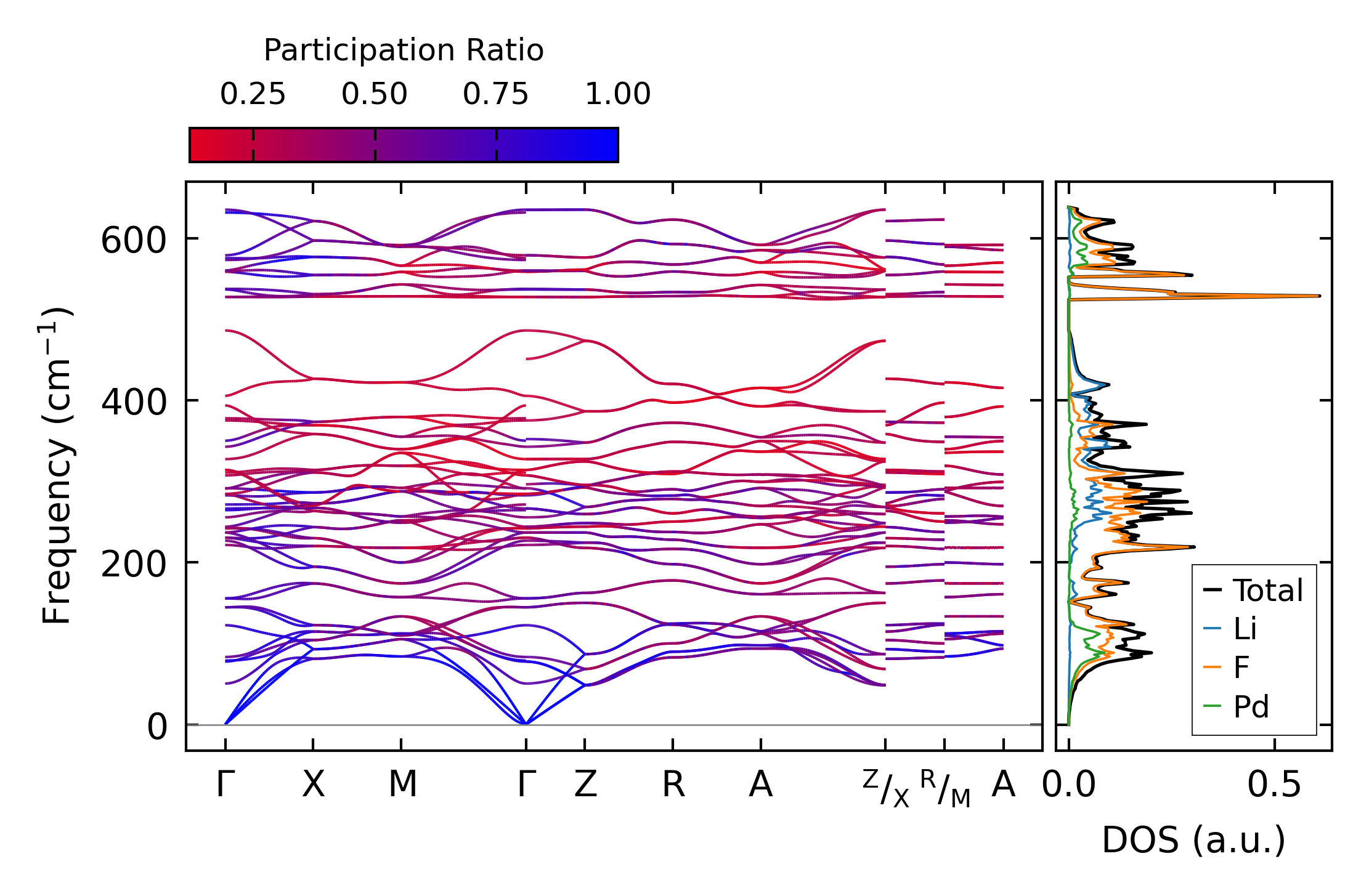

../../_images/fig_bandos_pr15026.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15025.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6457.png — (a) Grüneisen parameters

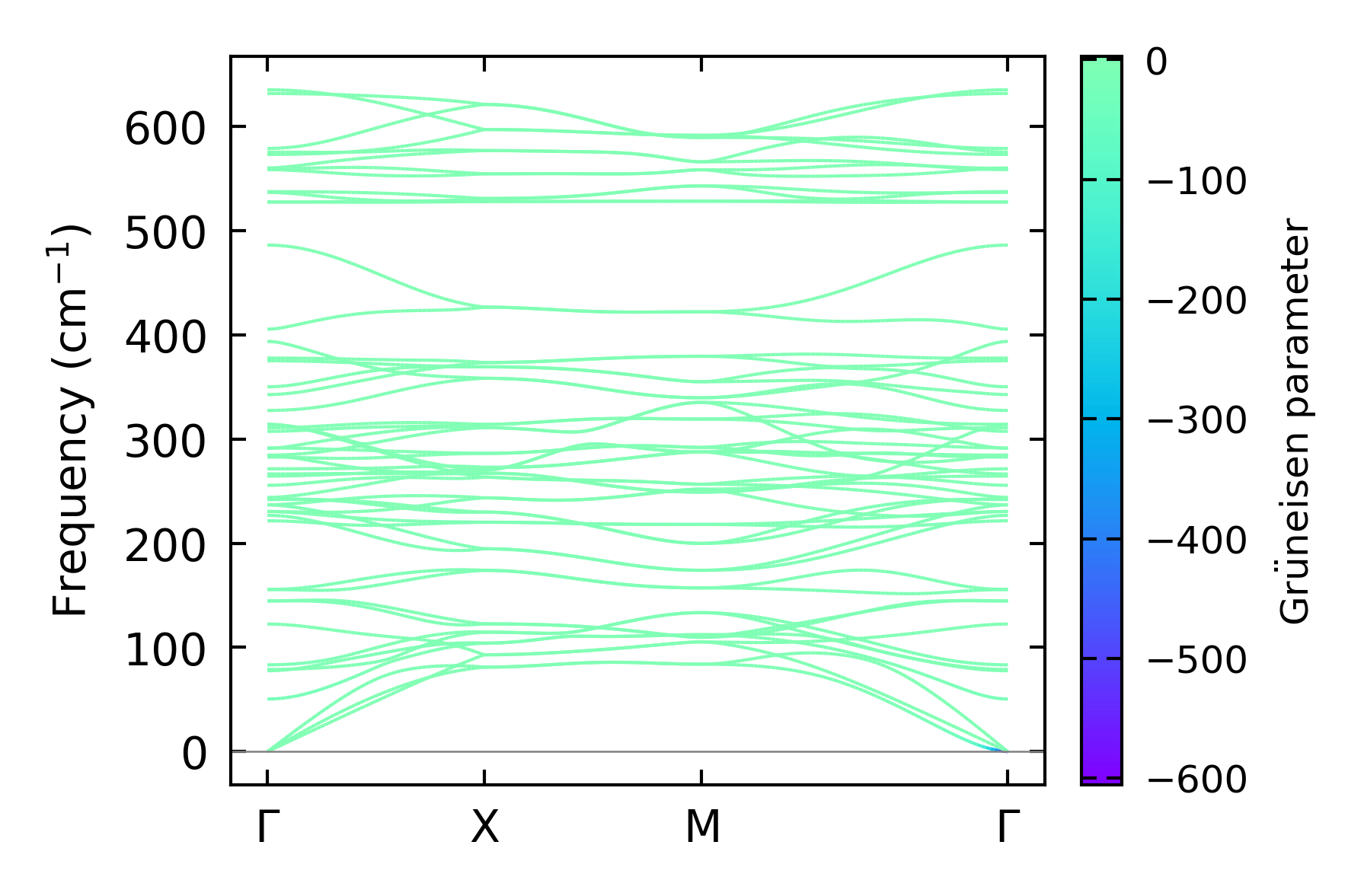

../../_images/fig_gruneisen6457.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x7, supercell: 2x2x2

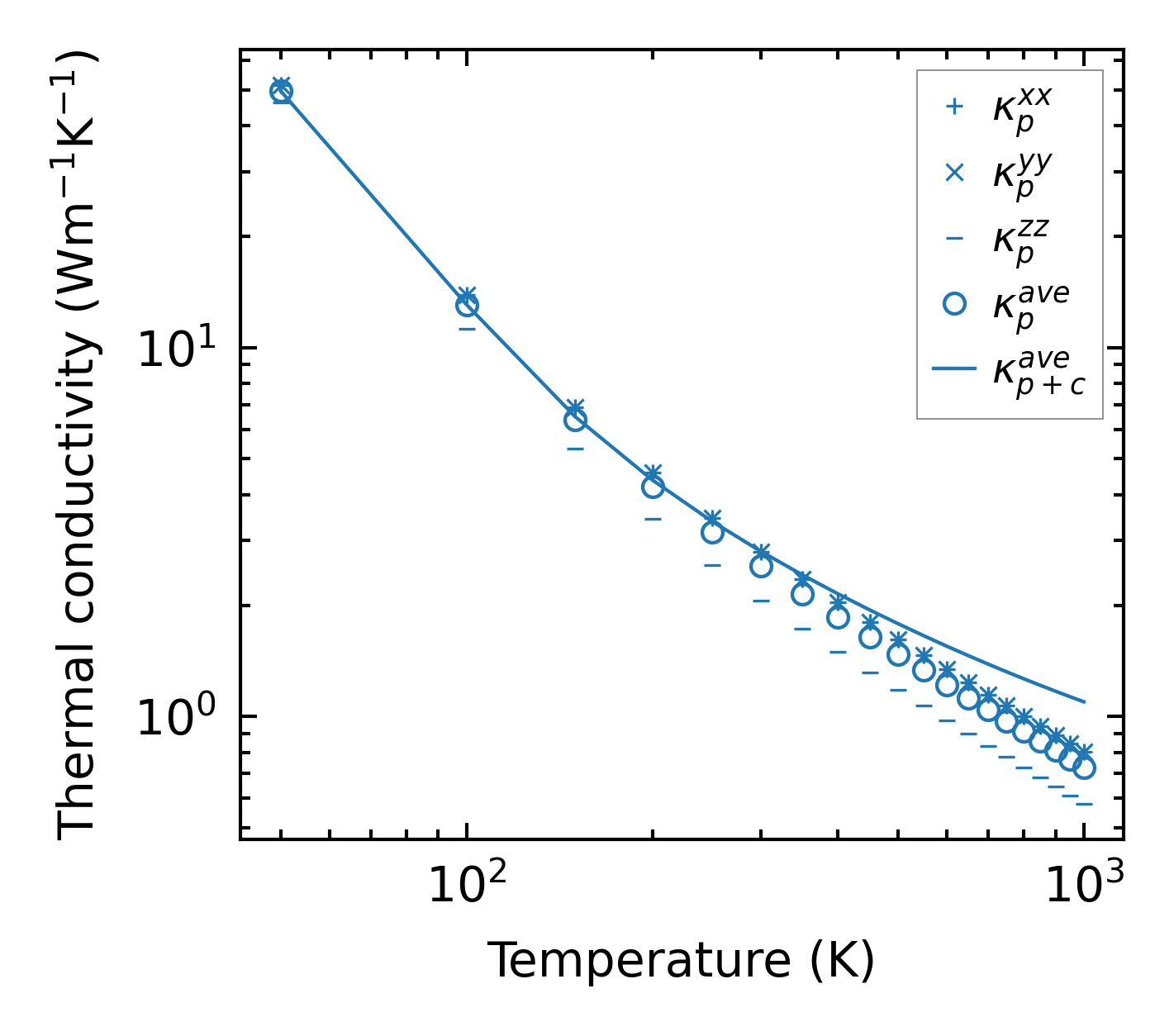

../../_images/fig_kappa12144.png — (a) Temperature-dependent lattice thermal conductivity

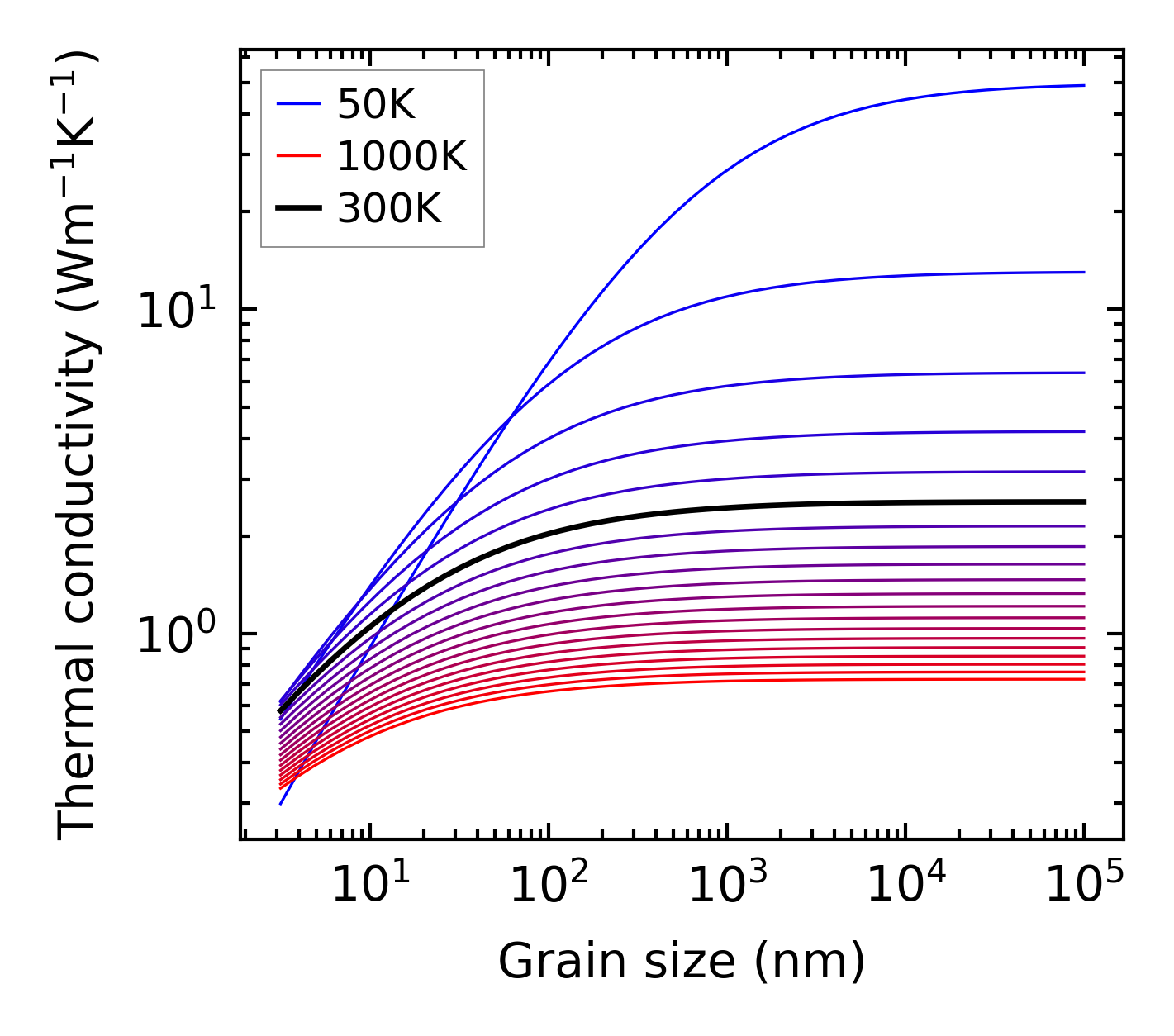

../../_images/fig_kappa_vs_grain_size6534.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

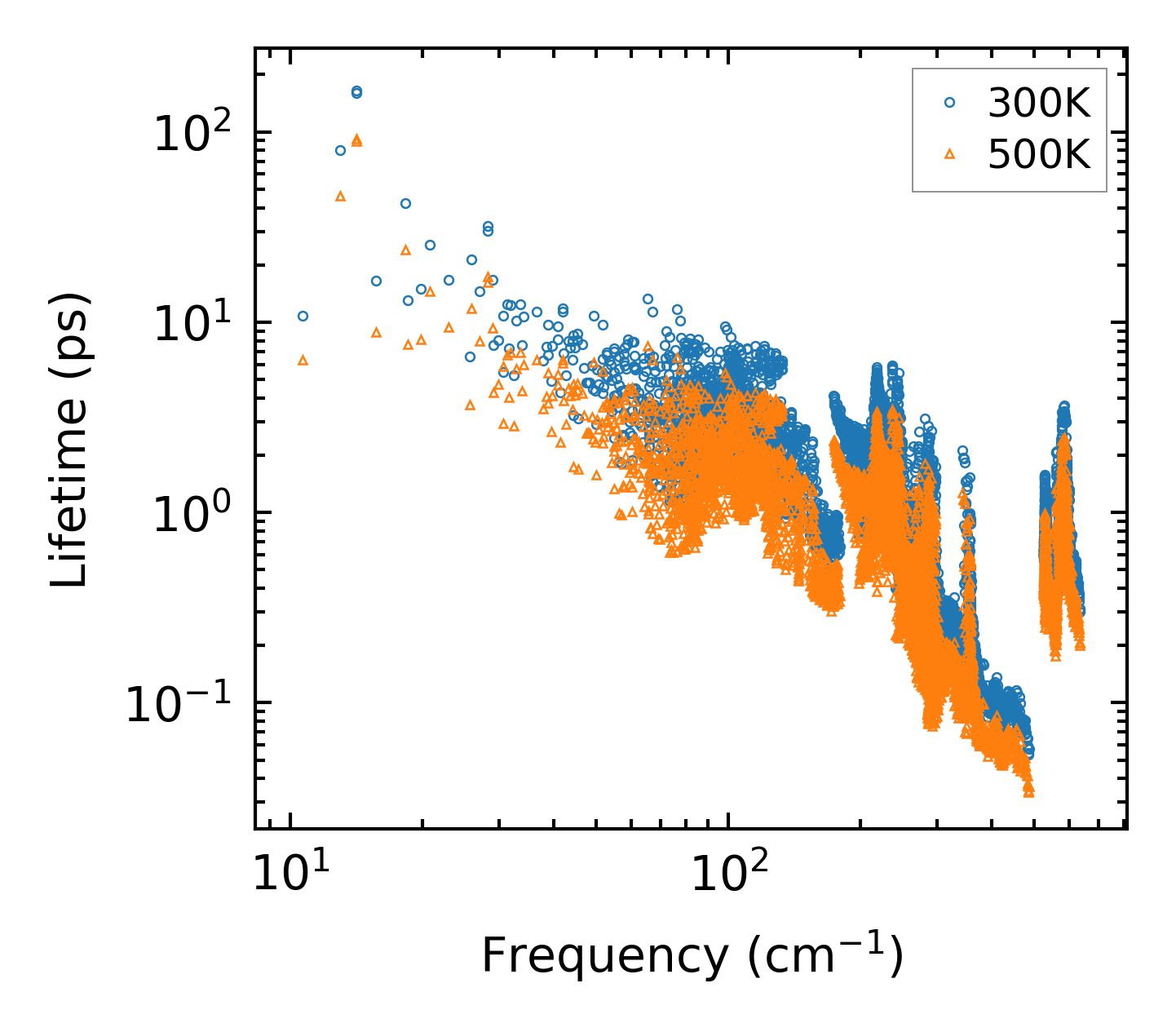

../../_images/fig_lifetime6391.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6390.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6391.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

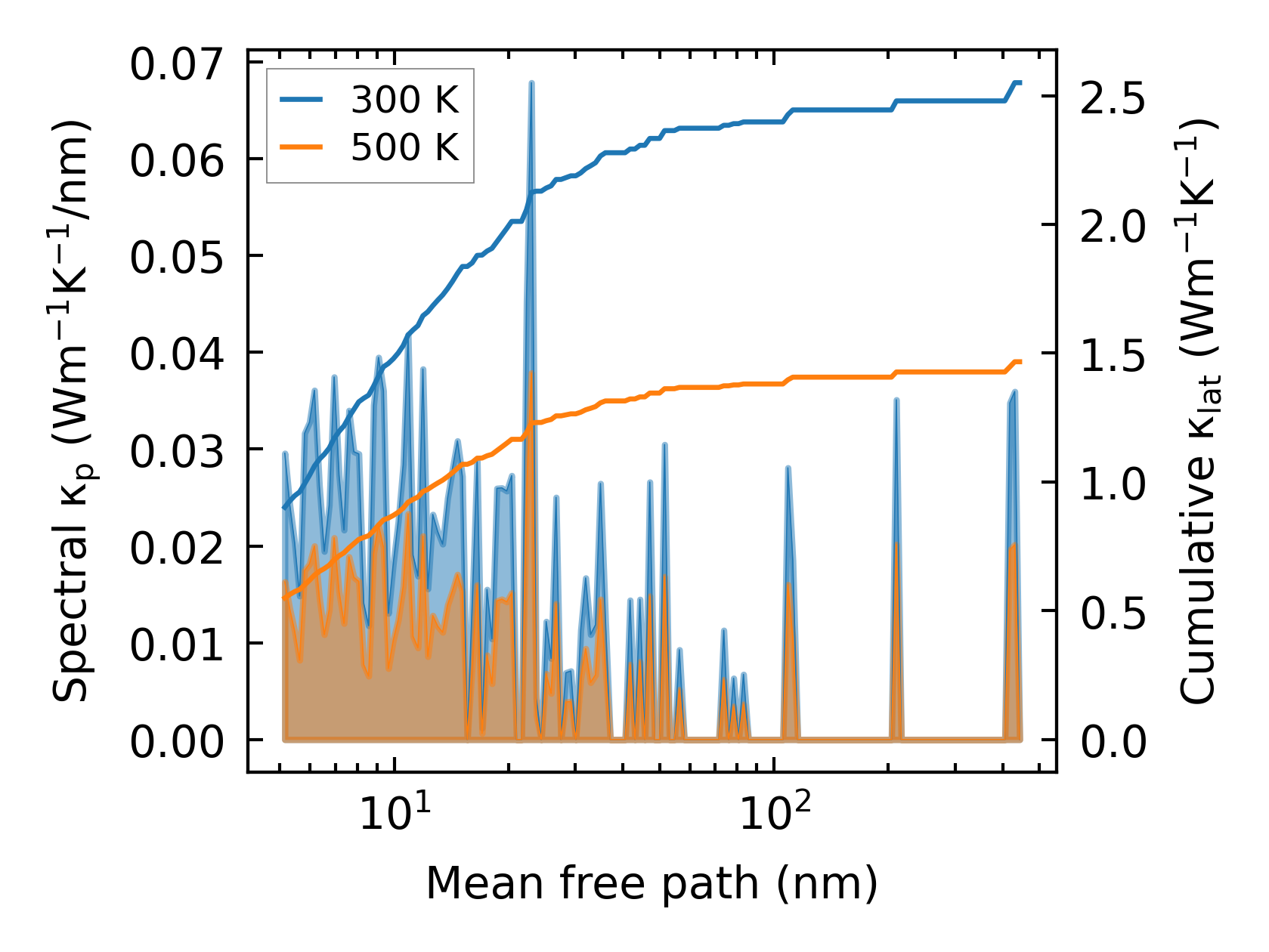

../../_images/fig_cumu_mfp6390.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

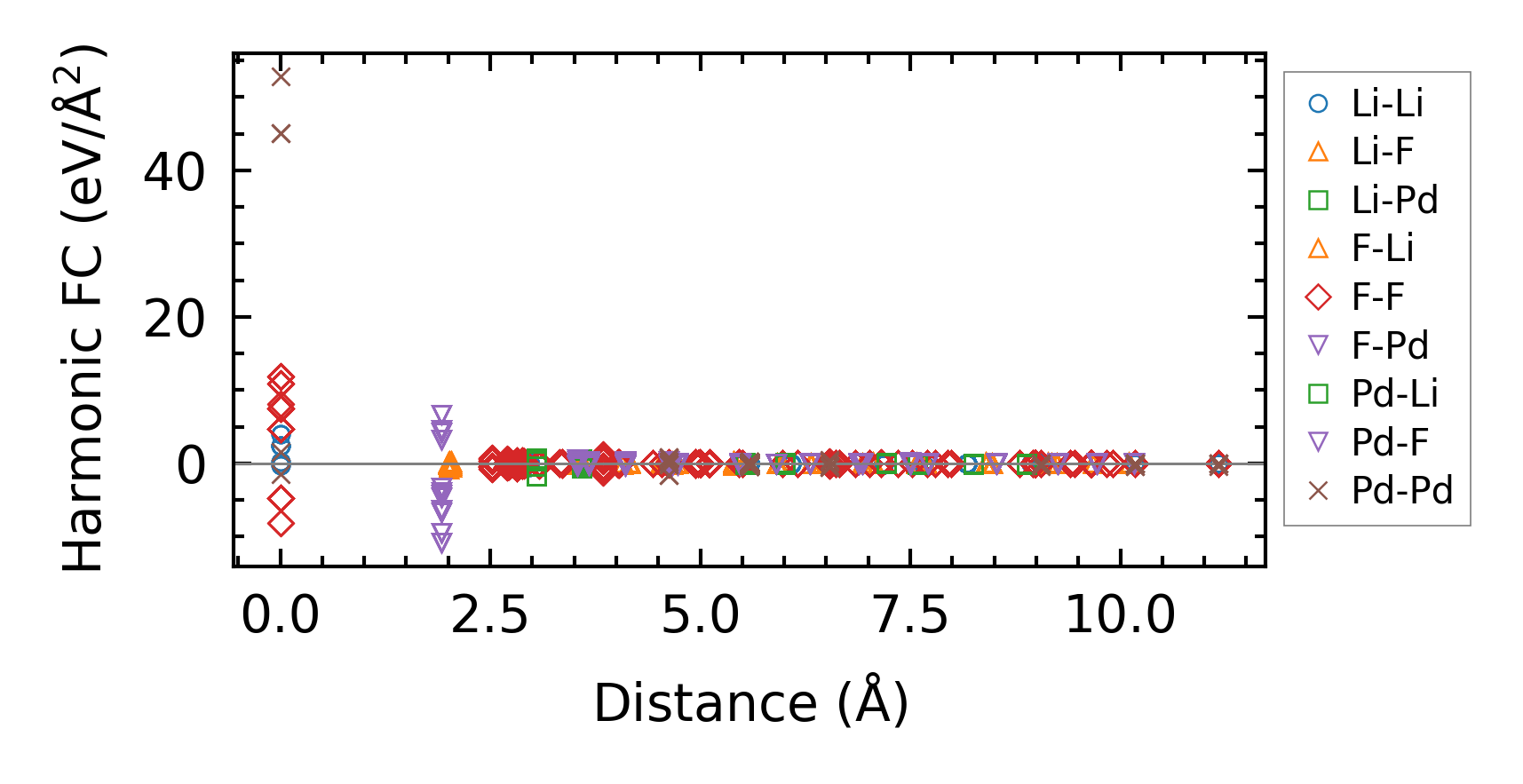

../../_images/fig_fc214643.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa12145.png — (a) Temperature-dependent lattice thermal conductivity

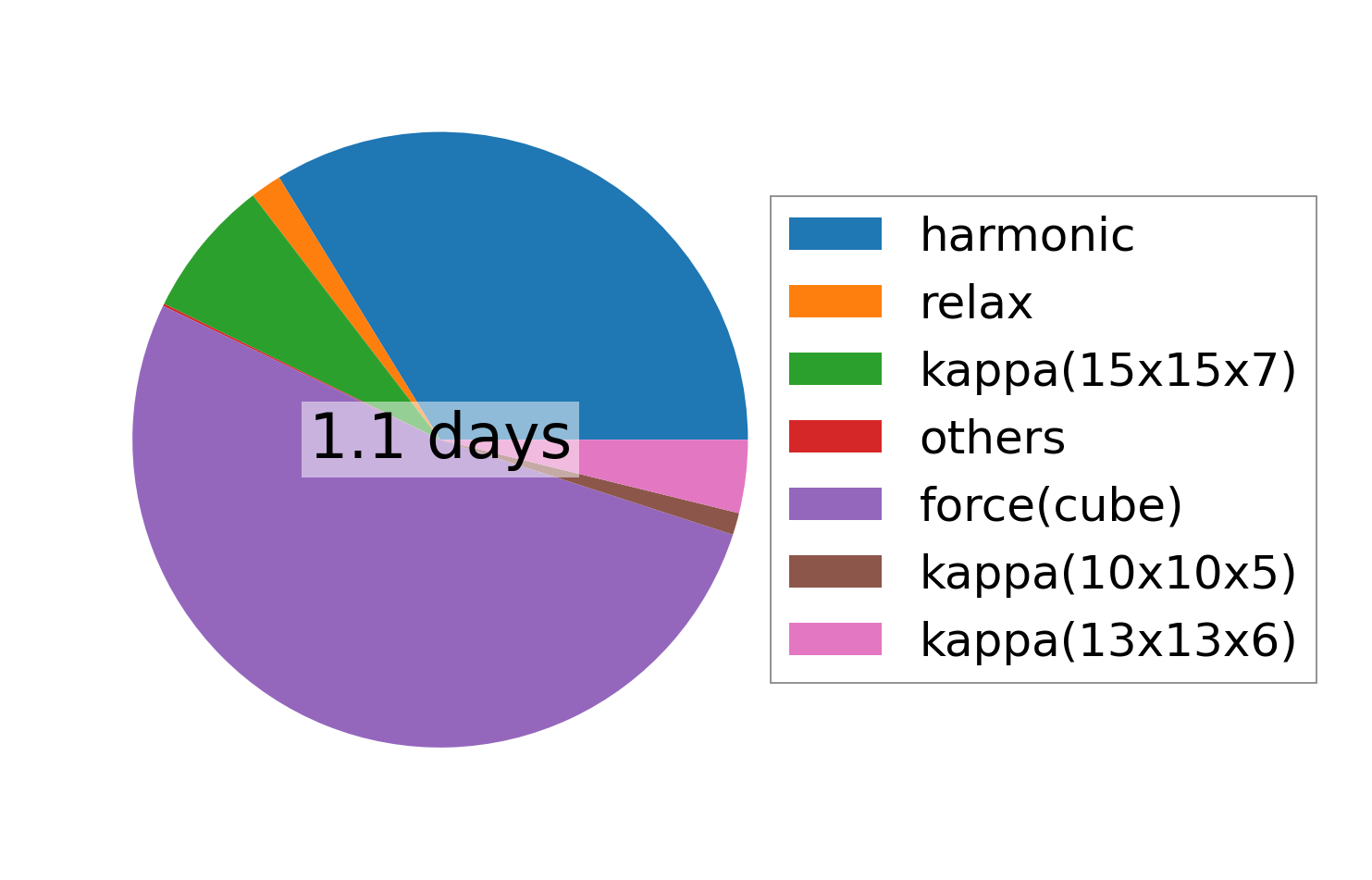

../../_images/fig_times24867.png — (b) Computation time
