mp-13676-2/TlPO4/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-13676-2.tar.gz

Equation of state

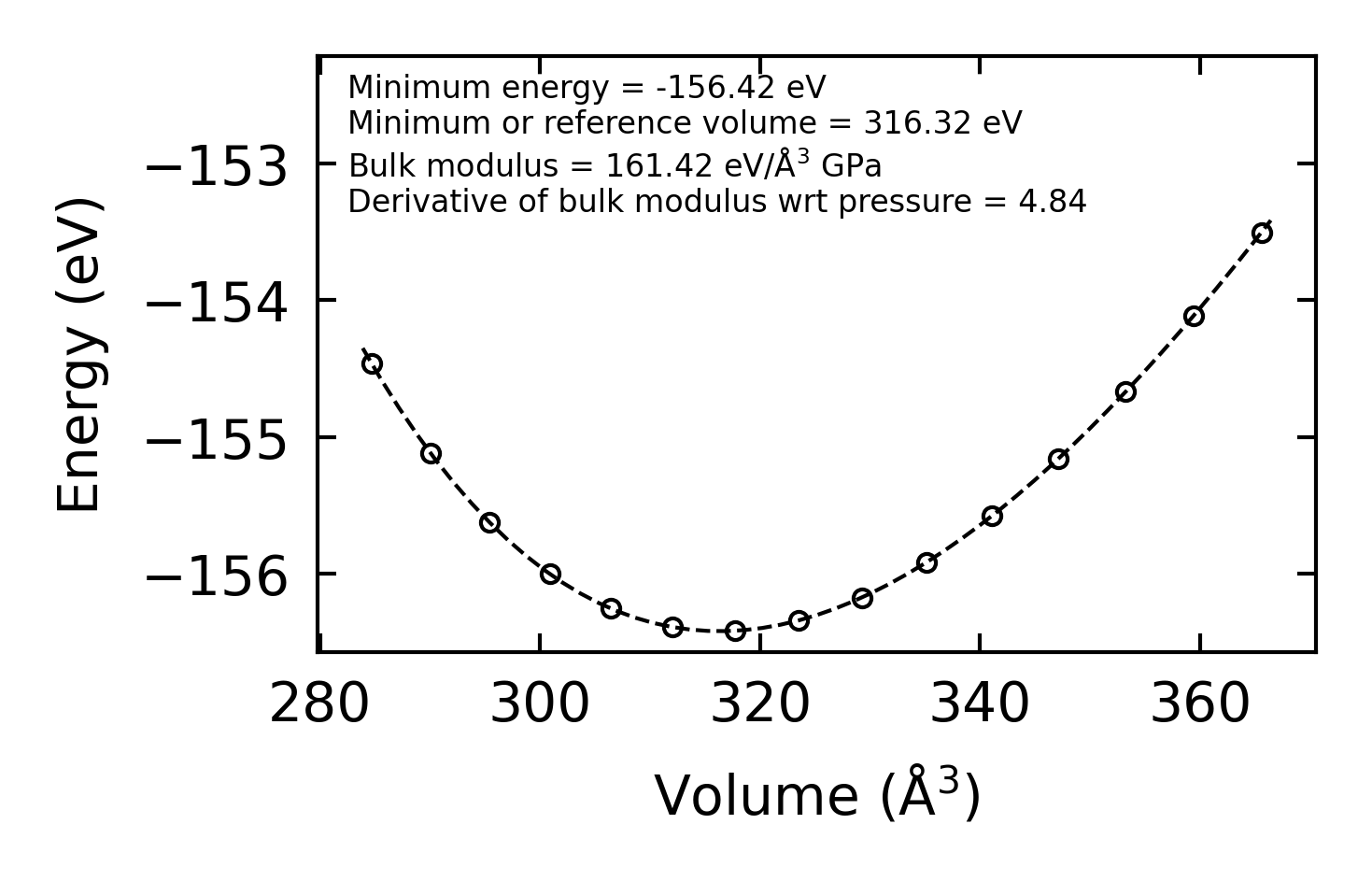

../../_images/fig_bm7481.png — (a) Equation of state

Harmonic properties

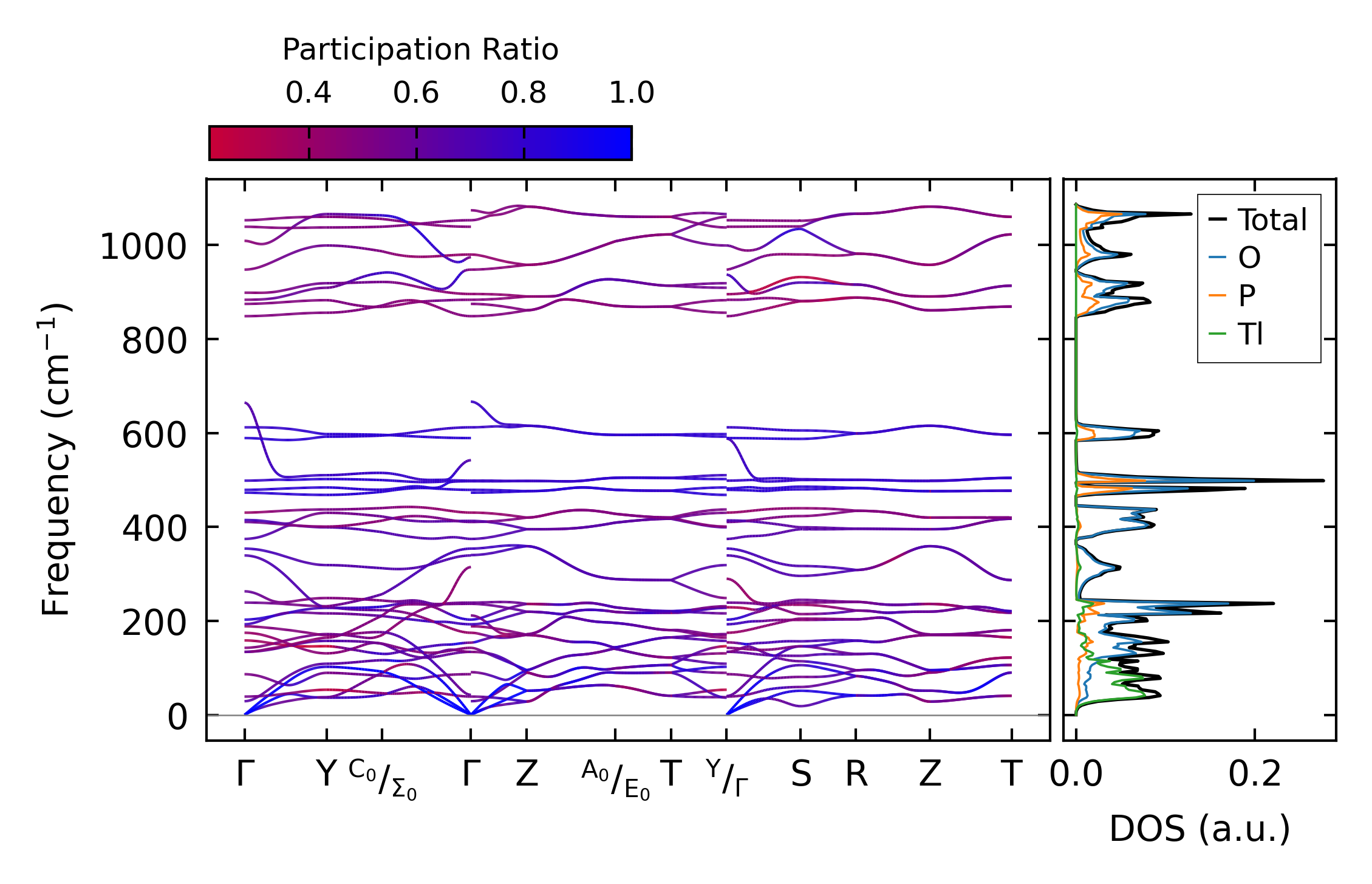

../../_images/fig_bandos_pr14929.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14929.png — (b) Thermodynamic properties

Grüneisen parameters

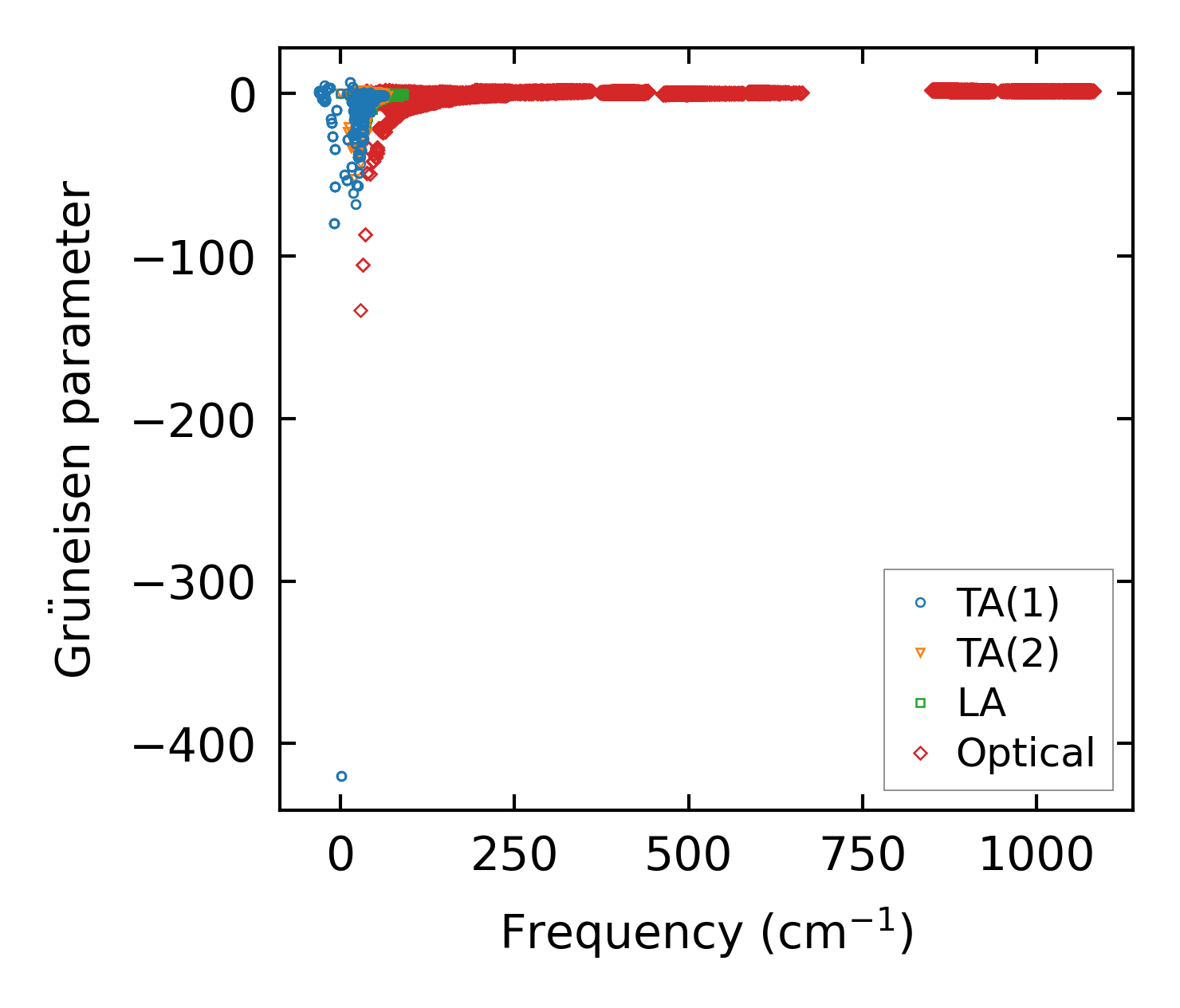

../../_images/fig_gru_all6407.png — (a) Grüneisen parameters

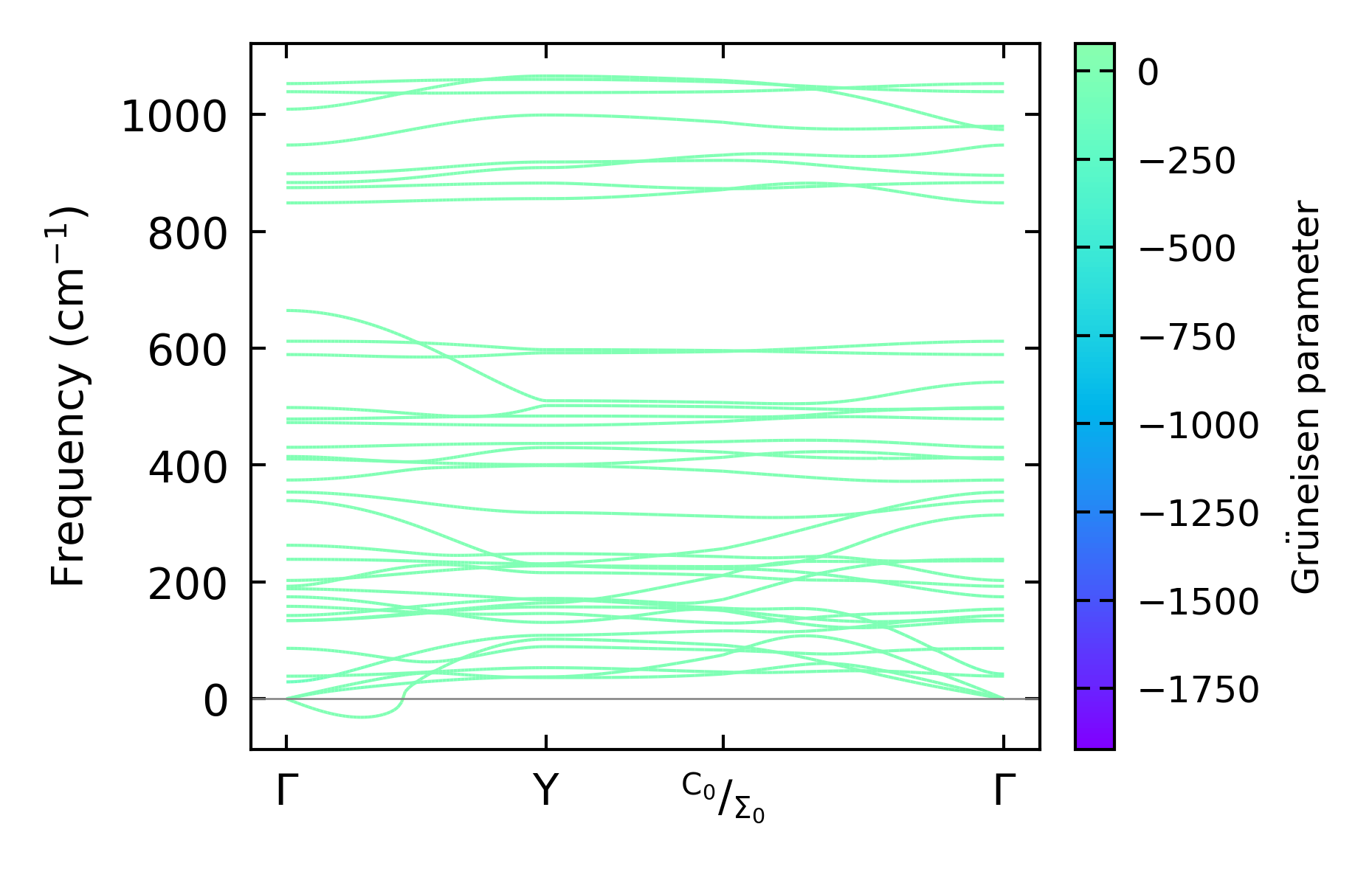

../../_images/fig_gruneisen6407.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x10, supercell: 2x1x2

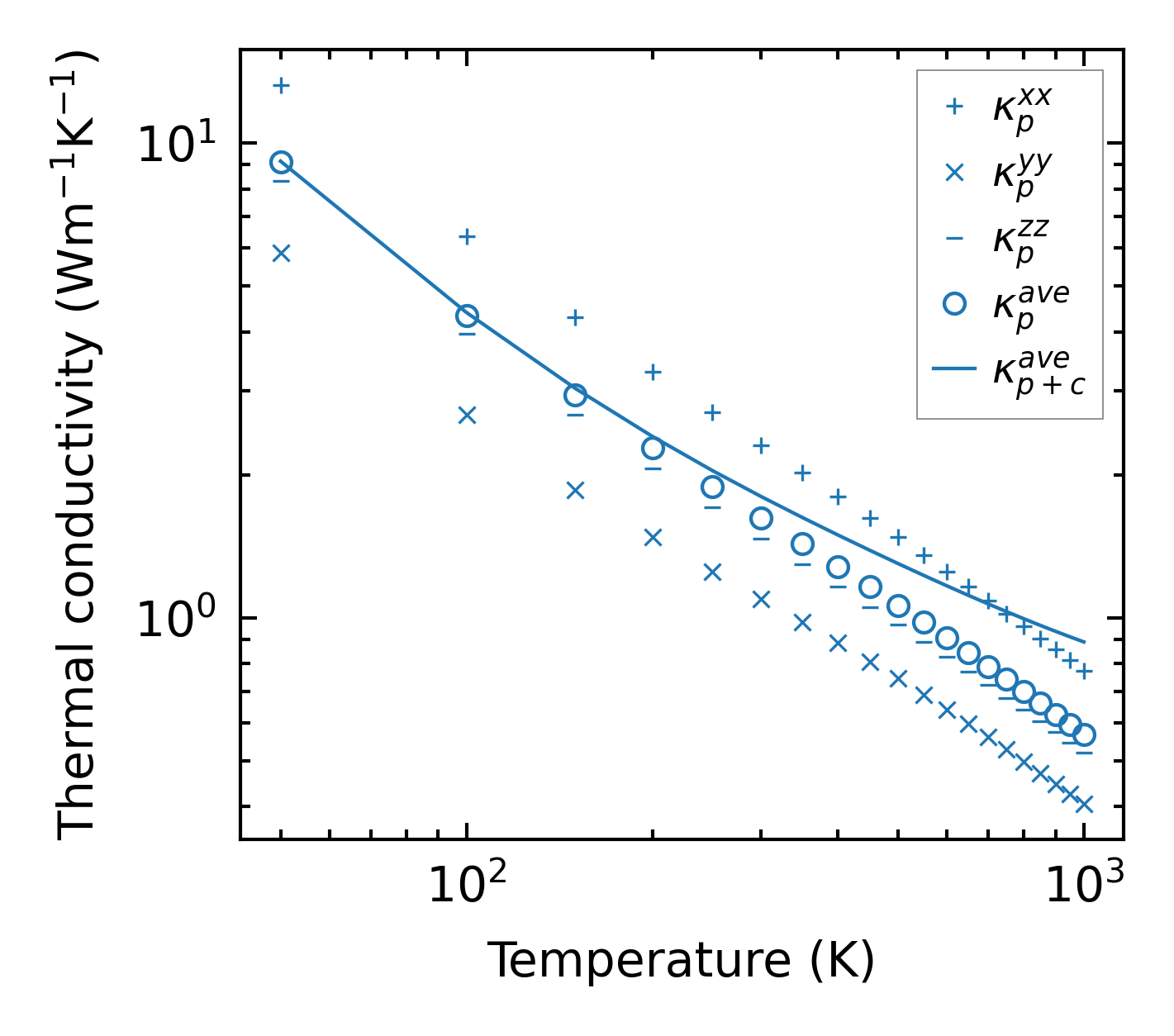

../../_images/fig_kappa12048.png — (a) Temperature-dependent lattice thermal conductivity

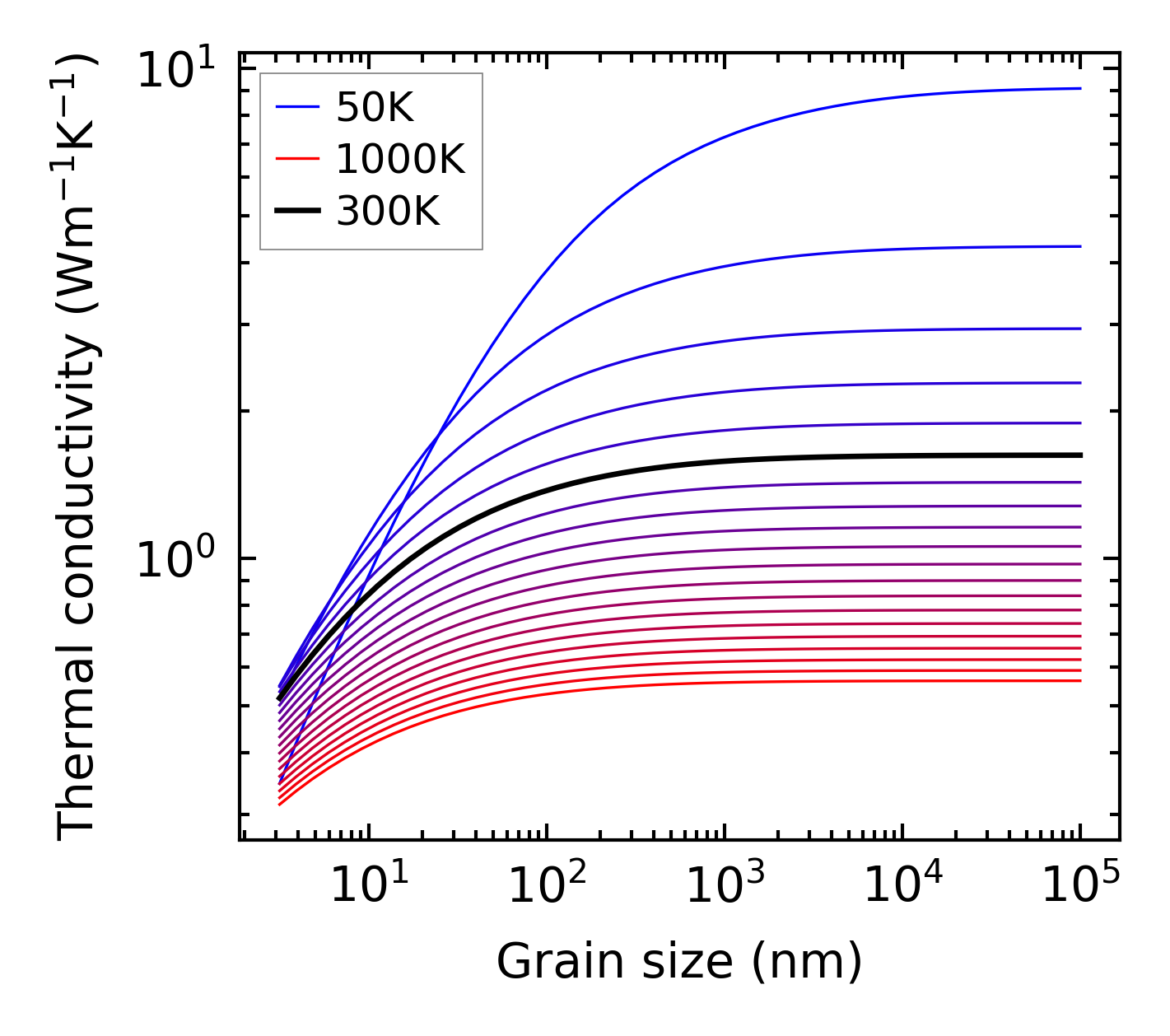

../../_images/fig_kappa_vs_grain_size6483.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 15x15x10, supercell: 2x2x2

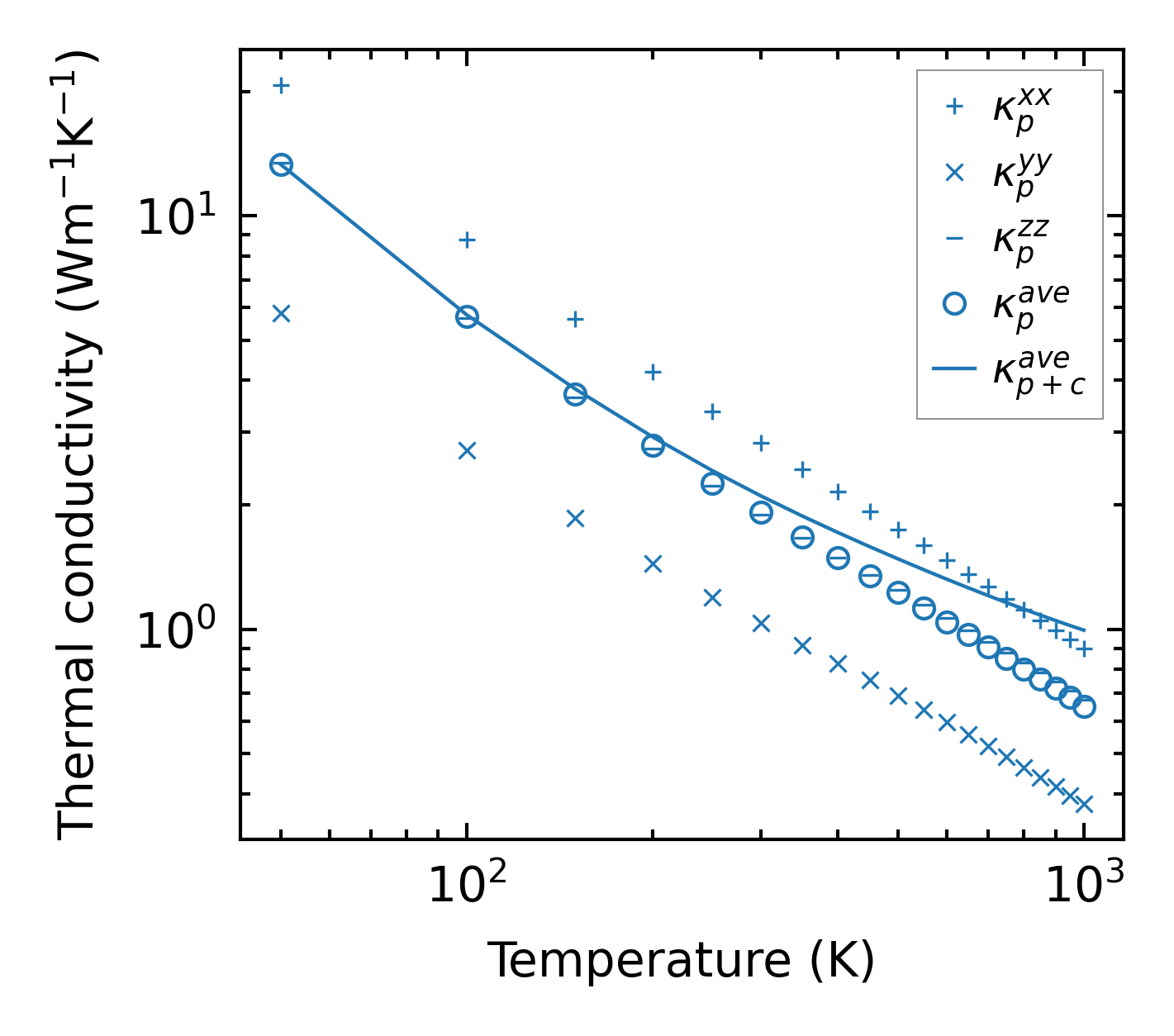

../../_images/fig_kappa12049.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6484.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

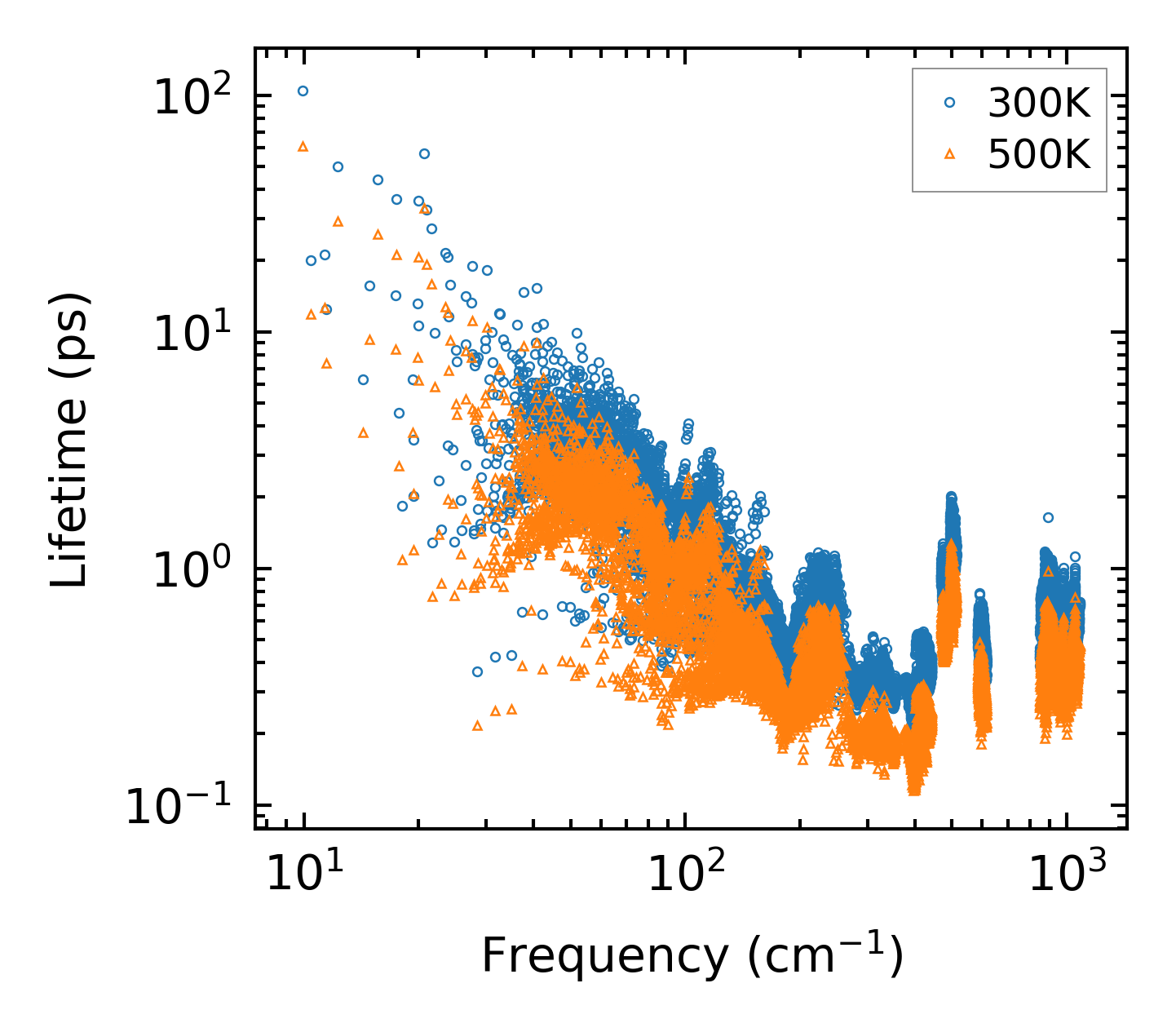

../../_images/fig_lifetime6341.png — (a) Phonon lifetime due to phonon-phonon scattering

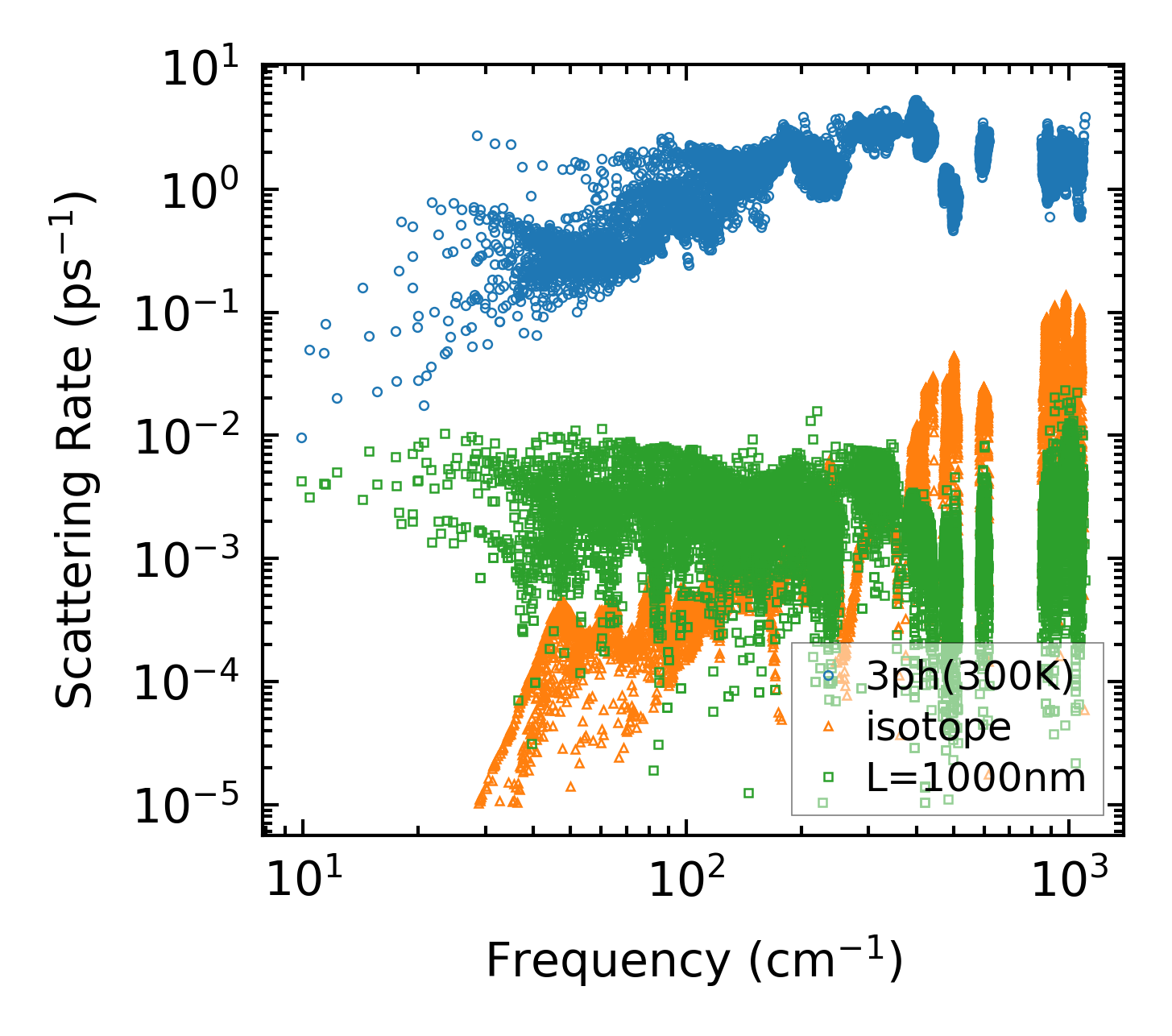

../../_images/fig_scat_rates6340.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

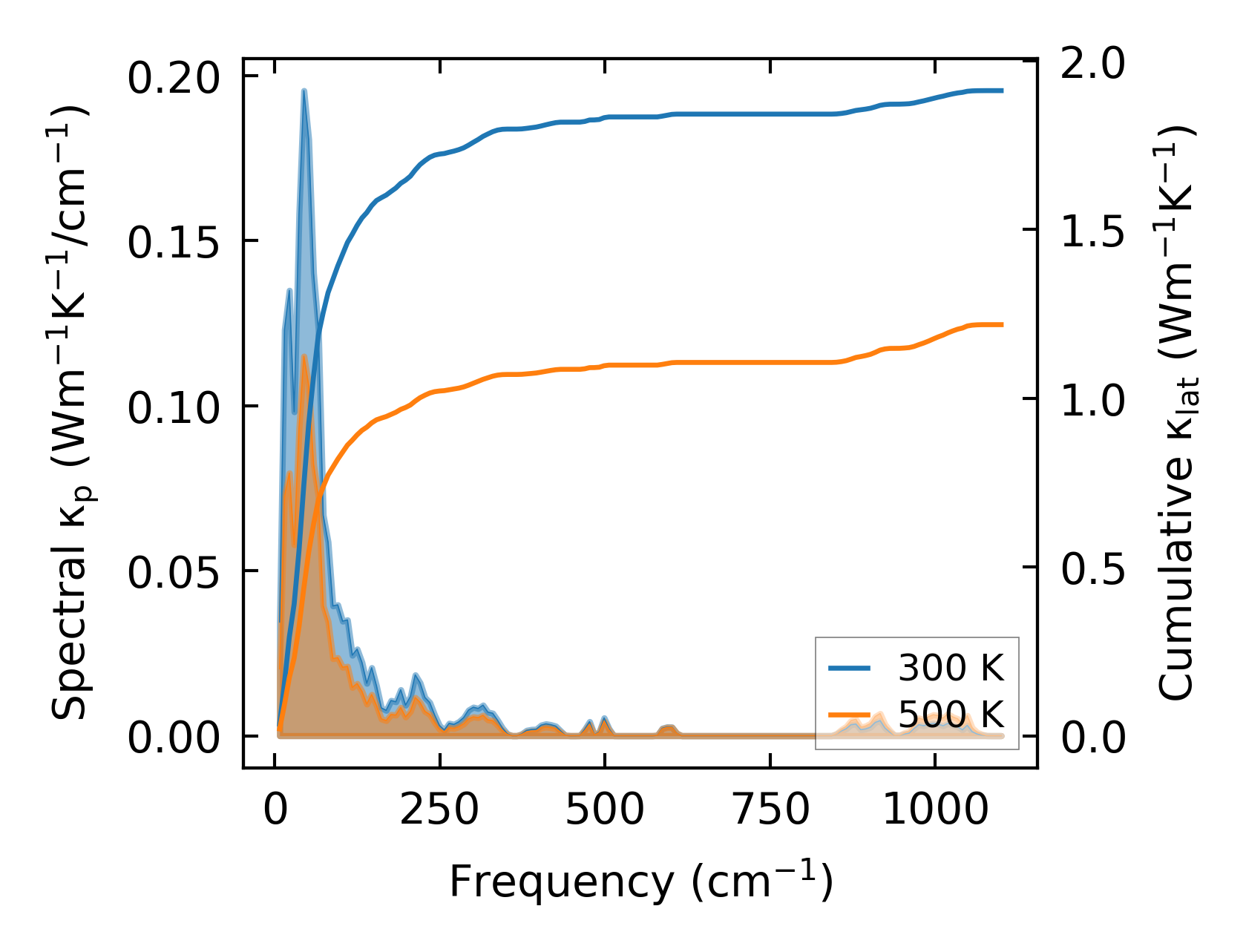

../../_images/fig_cumu_frequency6341.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

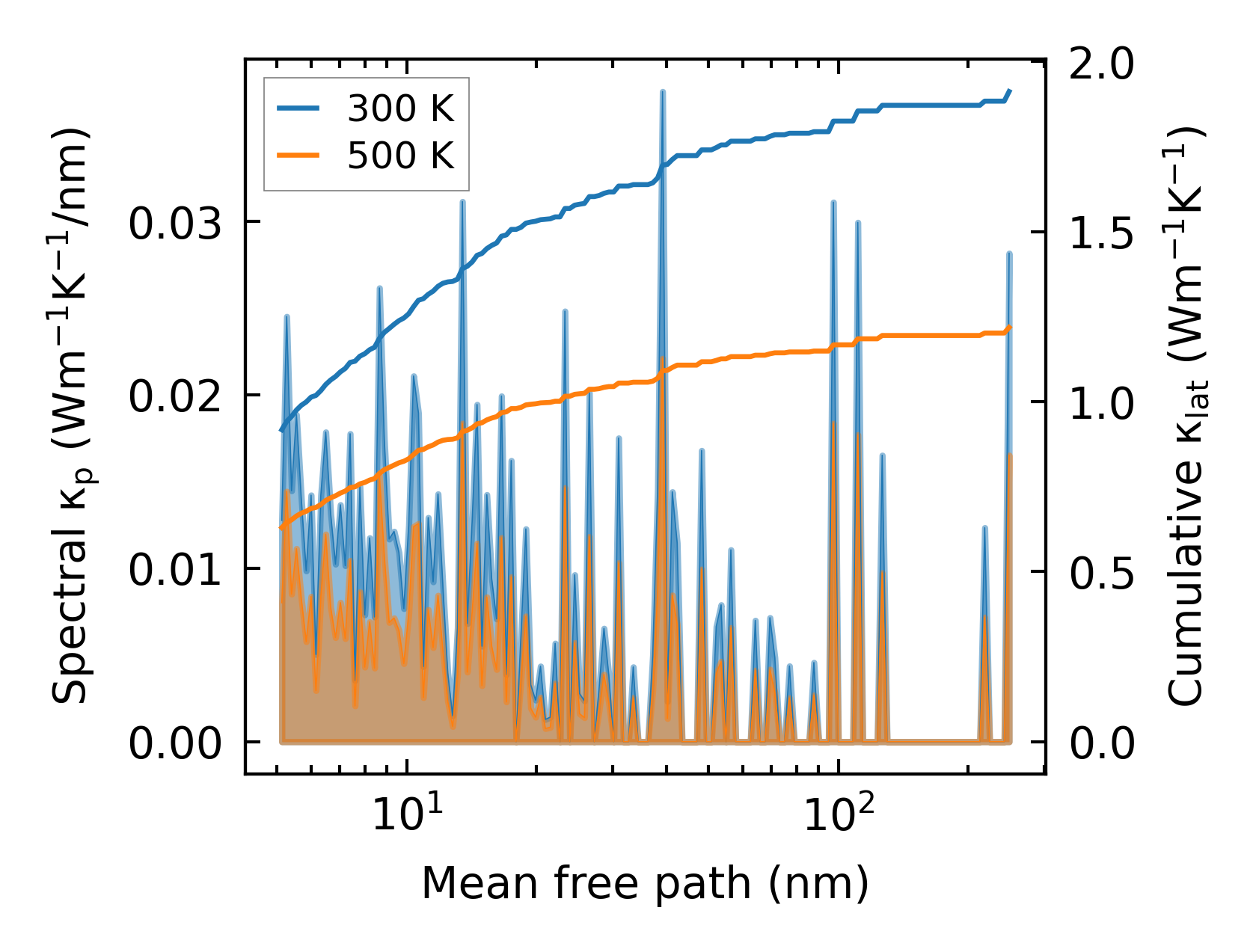

../../_images/fig_cumu_mfp6340.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

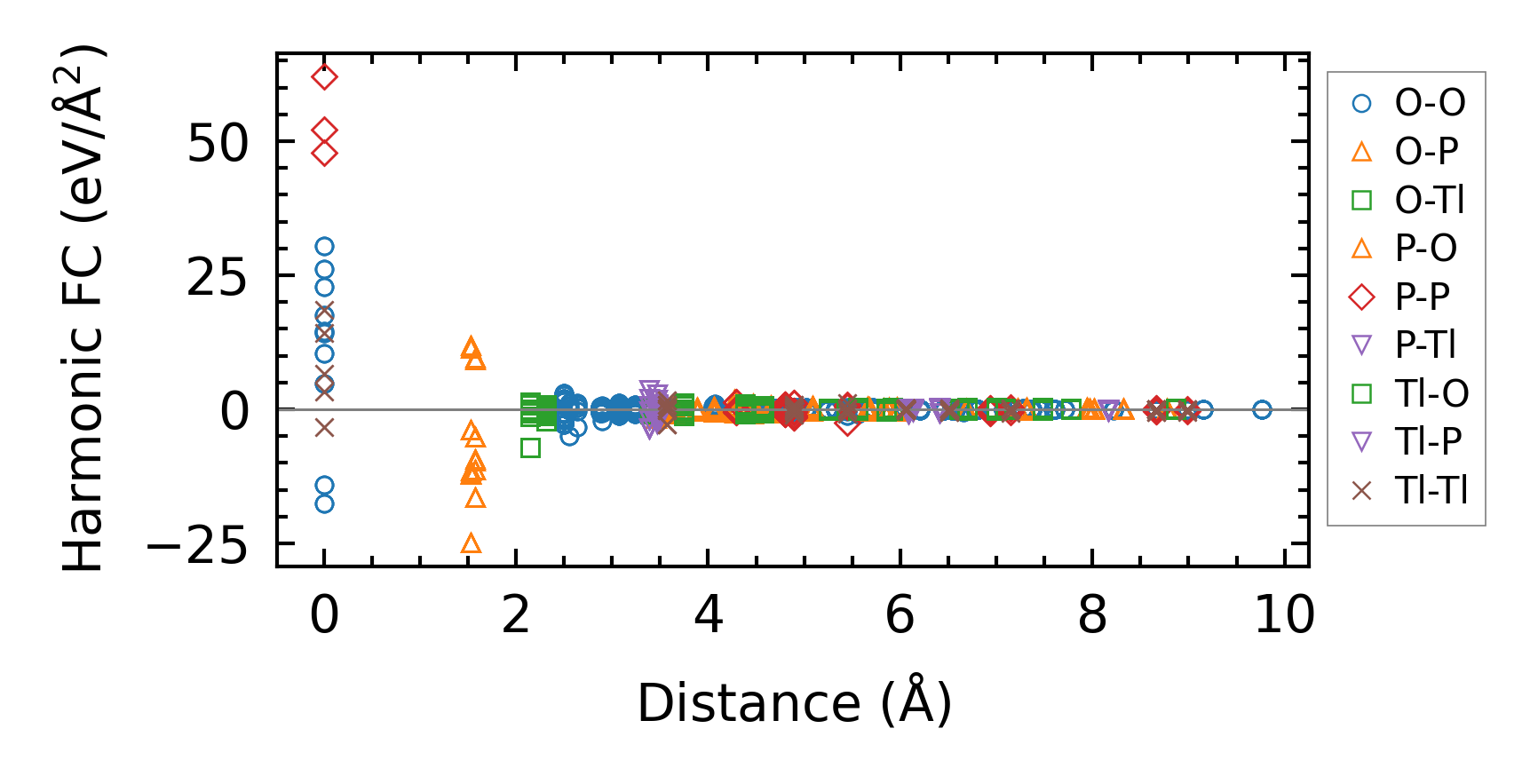

../../_images/fig_fc214546.png — (a) Force constants w.r.t atomic distance

Summary

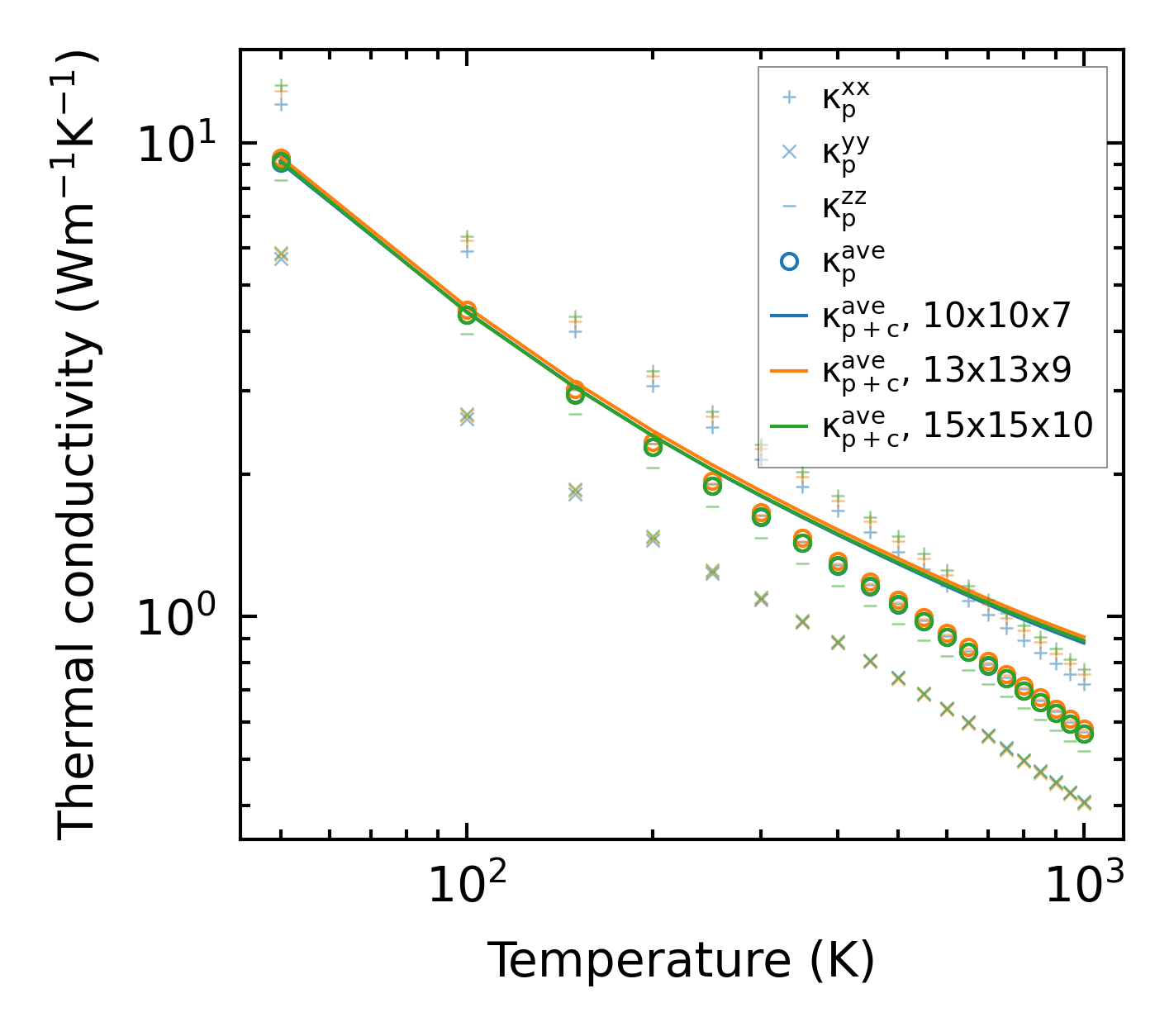

../../_images/fig_kappa12050.png — (a) Temperature-dependent lattice thermal conductivity

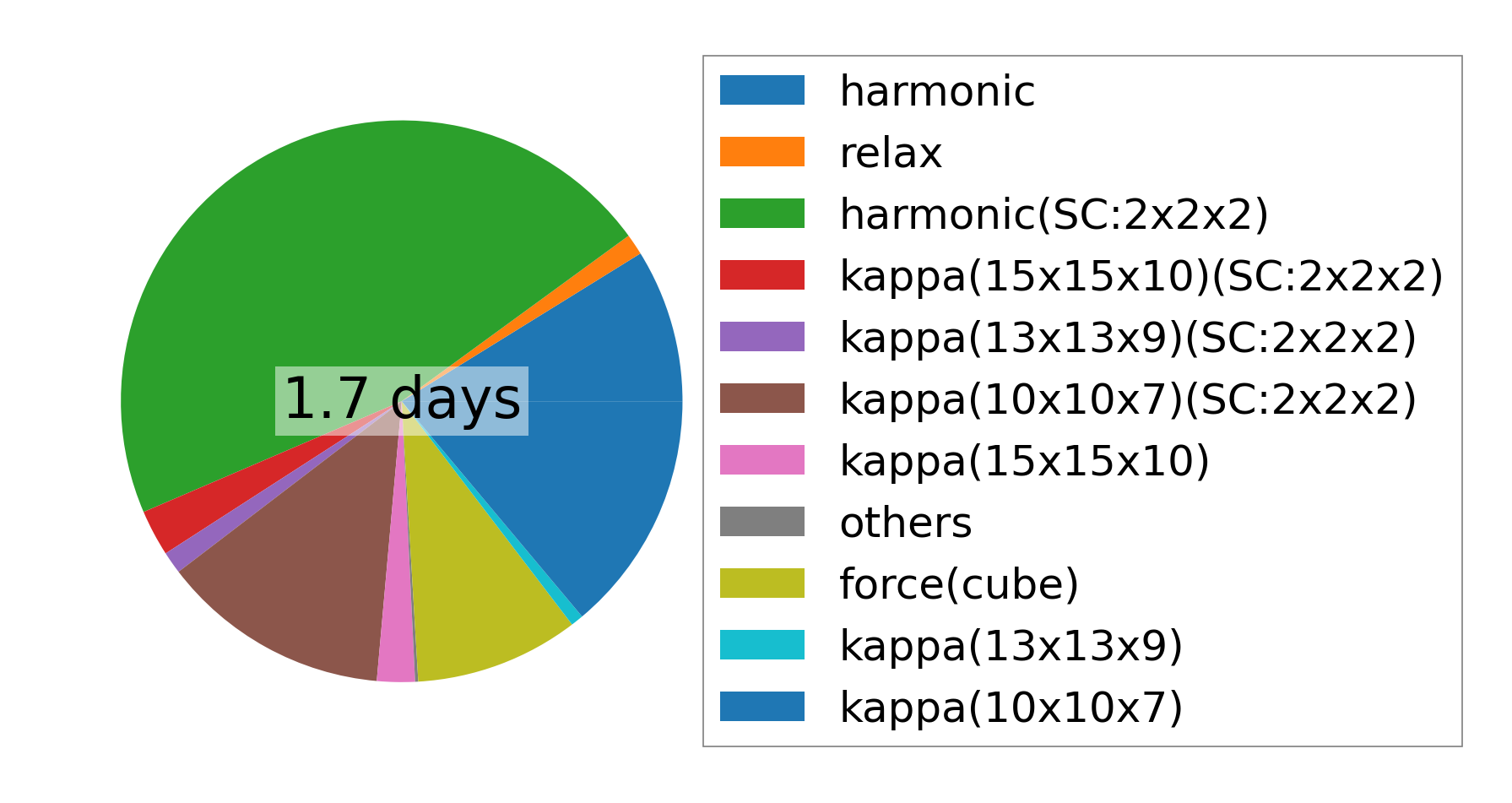

../../_images/fig_times24748.png — (b) Computation time
