mp-13975/Er2SeO2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-13975.tar.gz

Harmonic properties

../../_images/fig_bandos_pr15016.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15015.png — (b) Thermodynamic properties

Grüneisen parameters

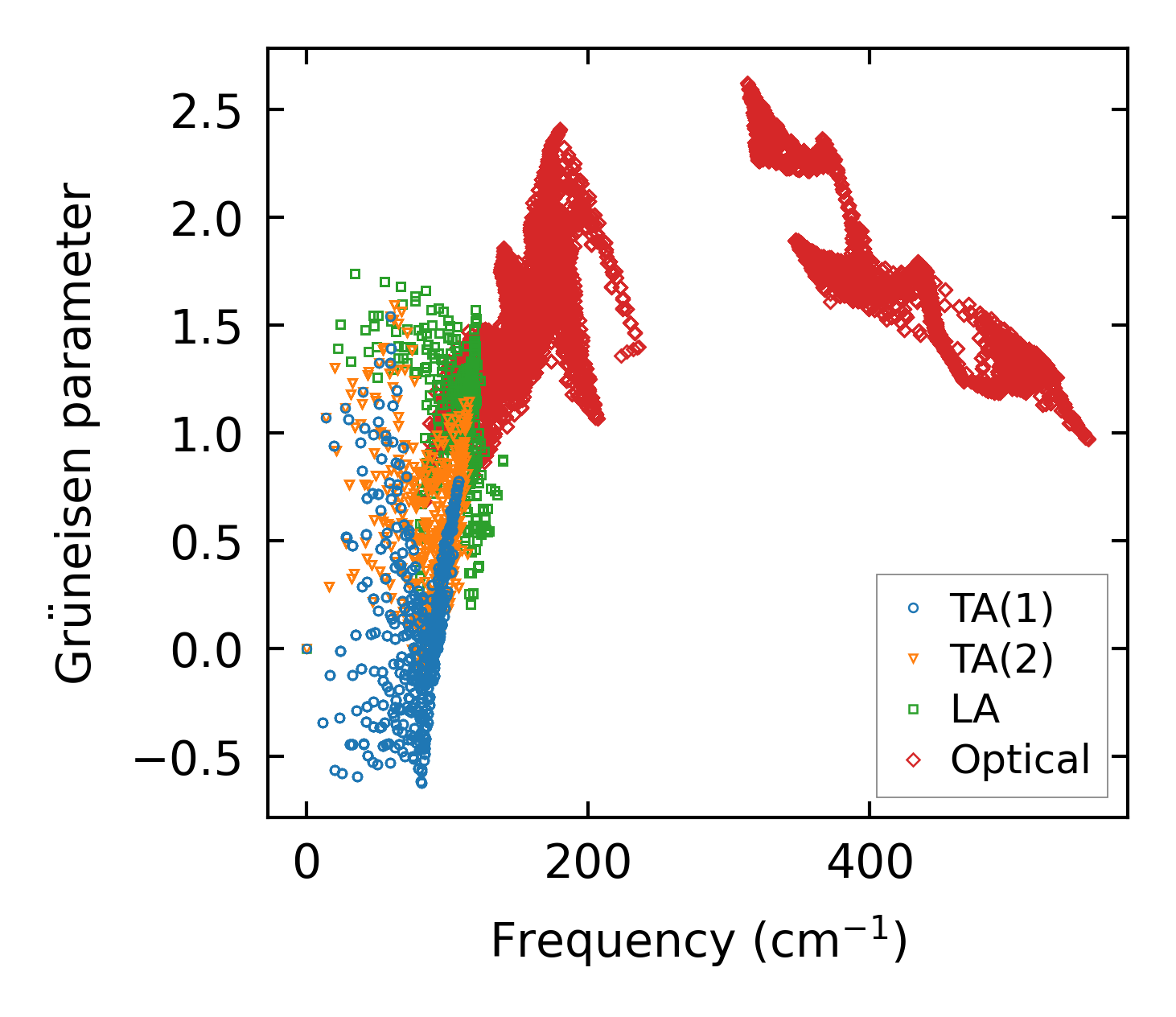

../../_images/fig_gru_all6451.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6451.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 20x20x11, supercell: 3x3x2

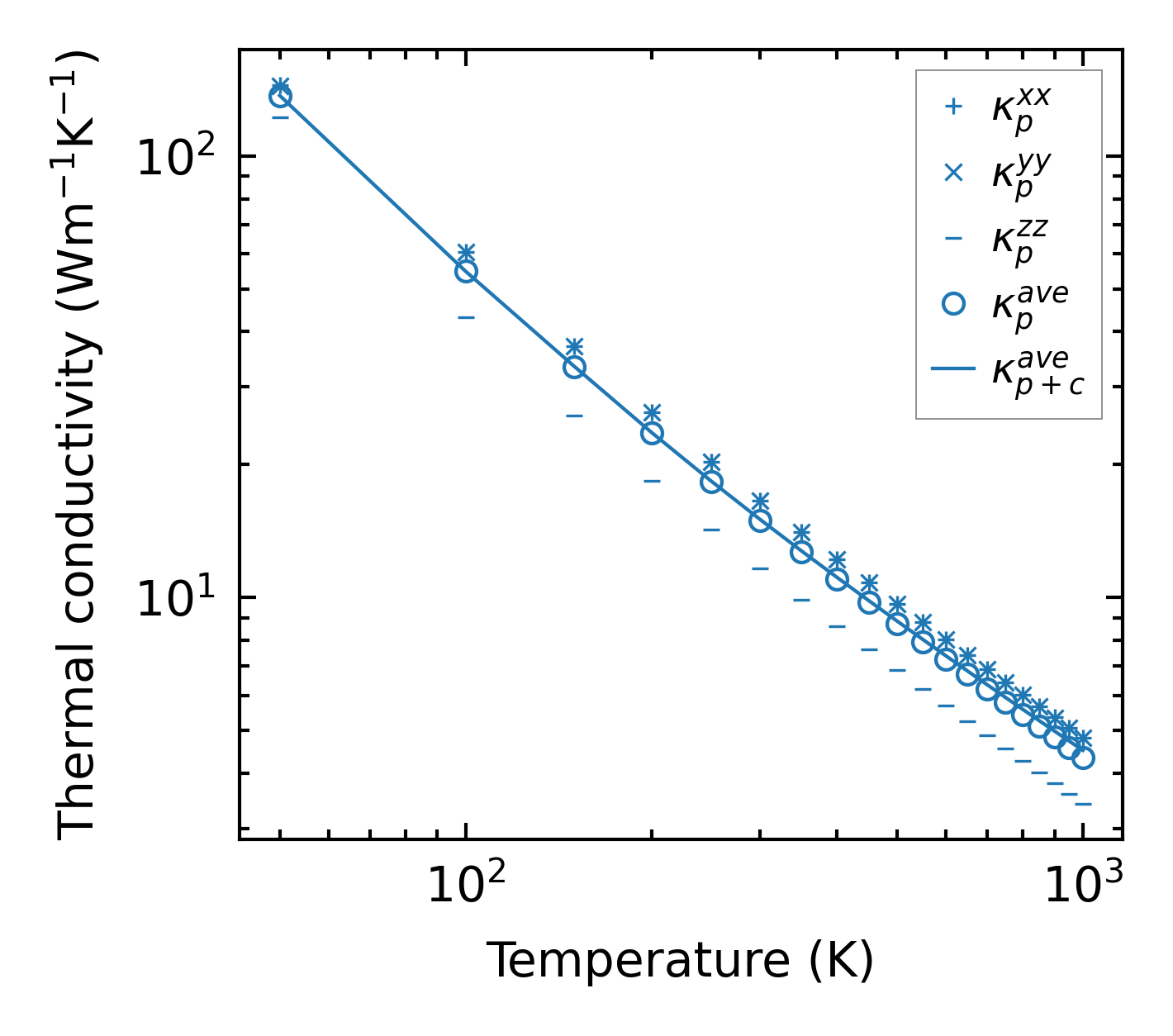

../../_images/fig_kappa12132.png — (a) Temperature-dependent lattice thermal conductivity

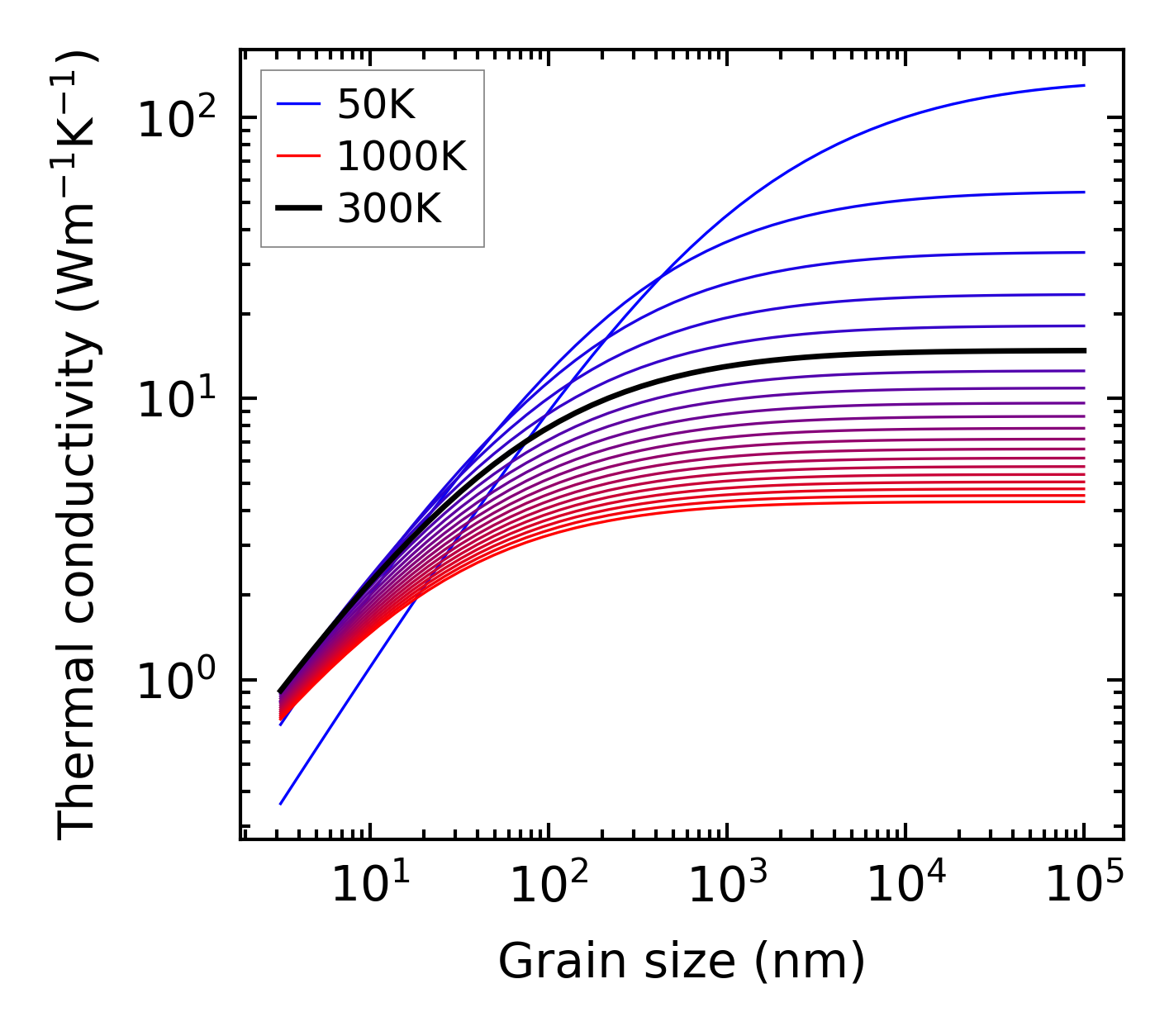

../../_images/fig_kappa_vs_grain_size6528.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

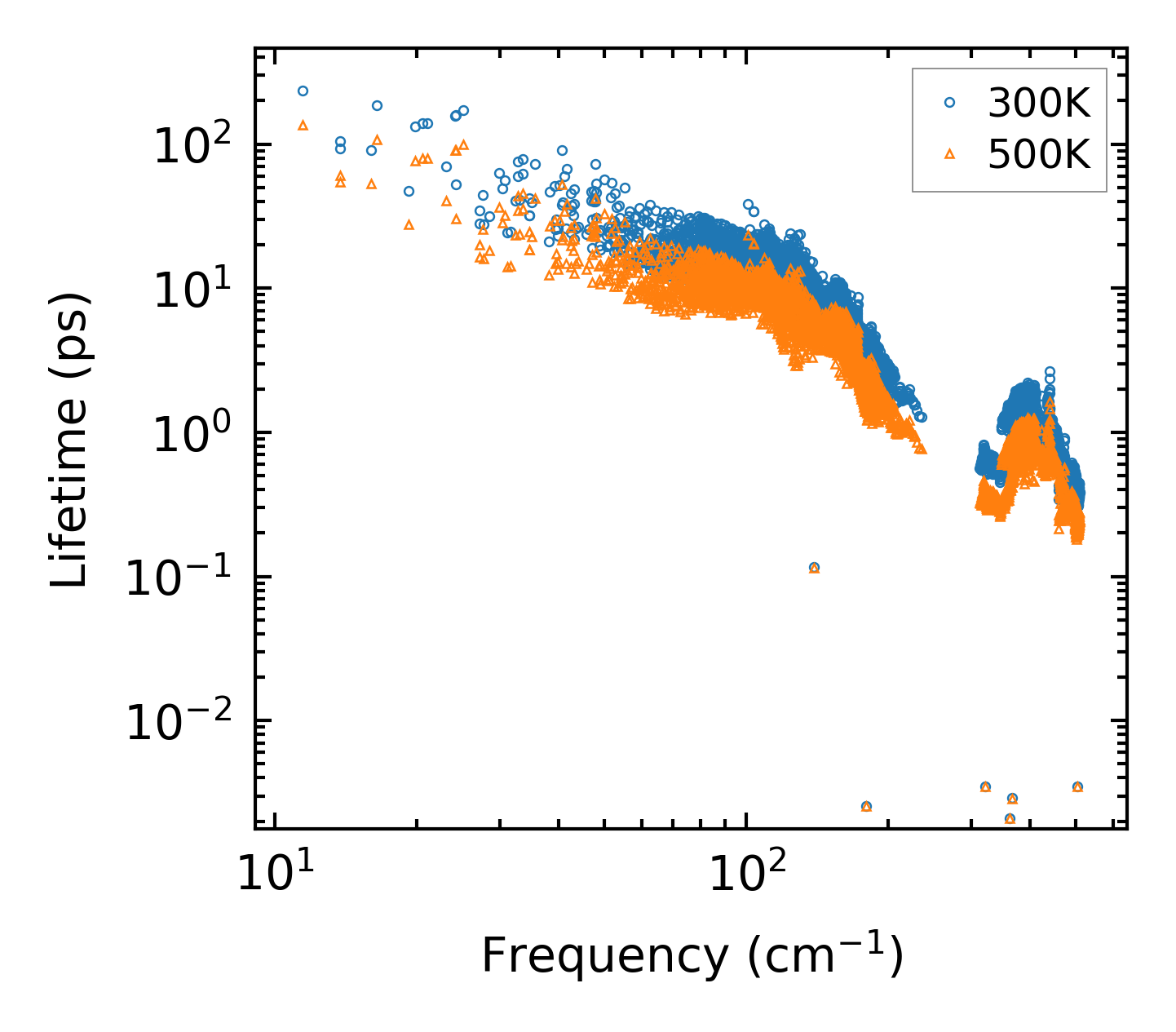

../../_images/fig_lifetime6385.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6384.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

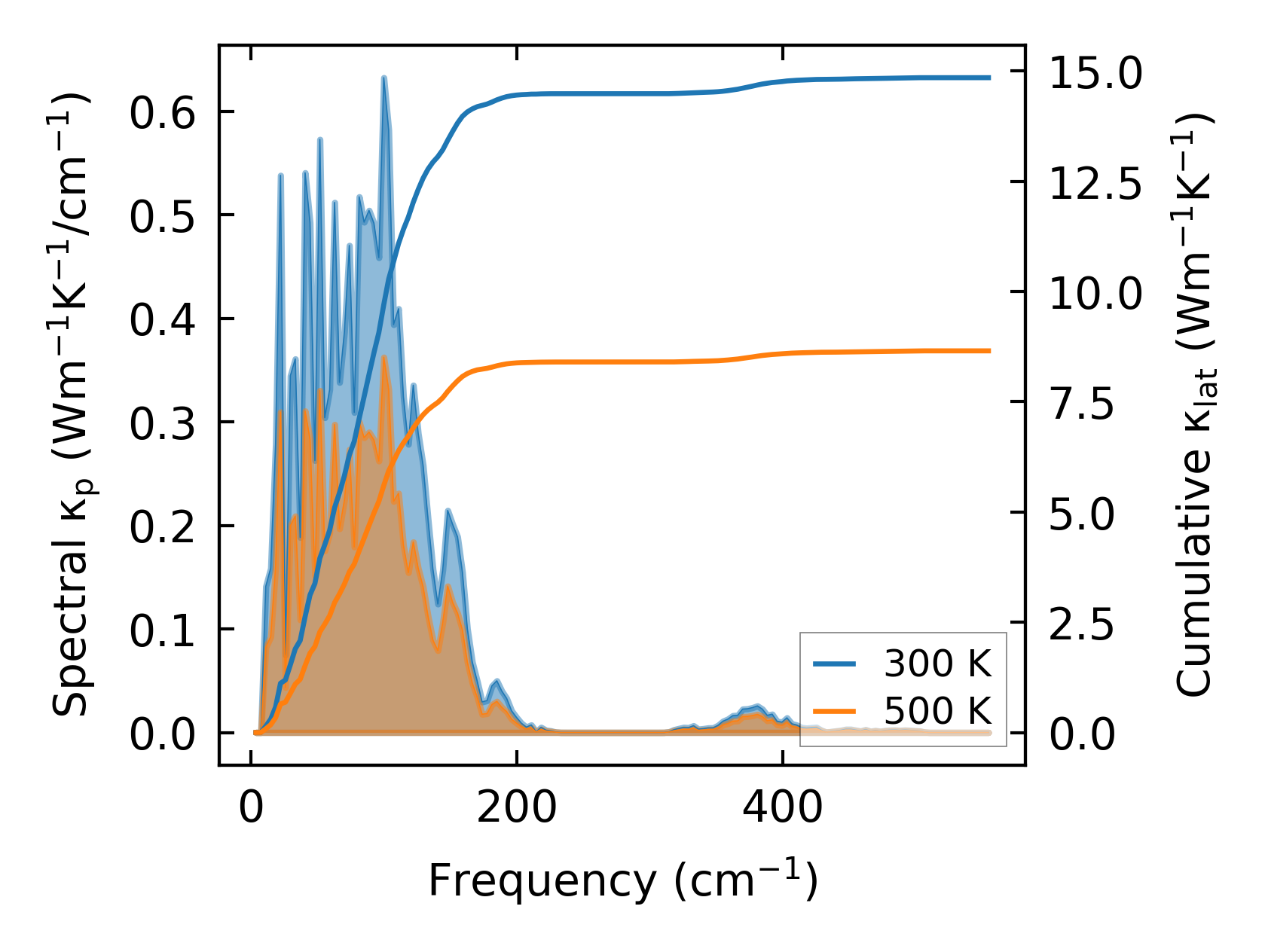

../../_images/fig_cumu_frequency6385.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

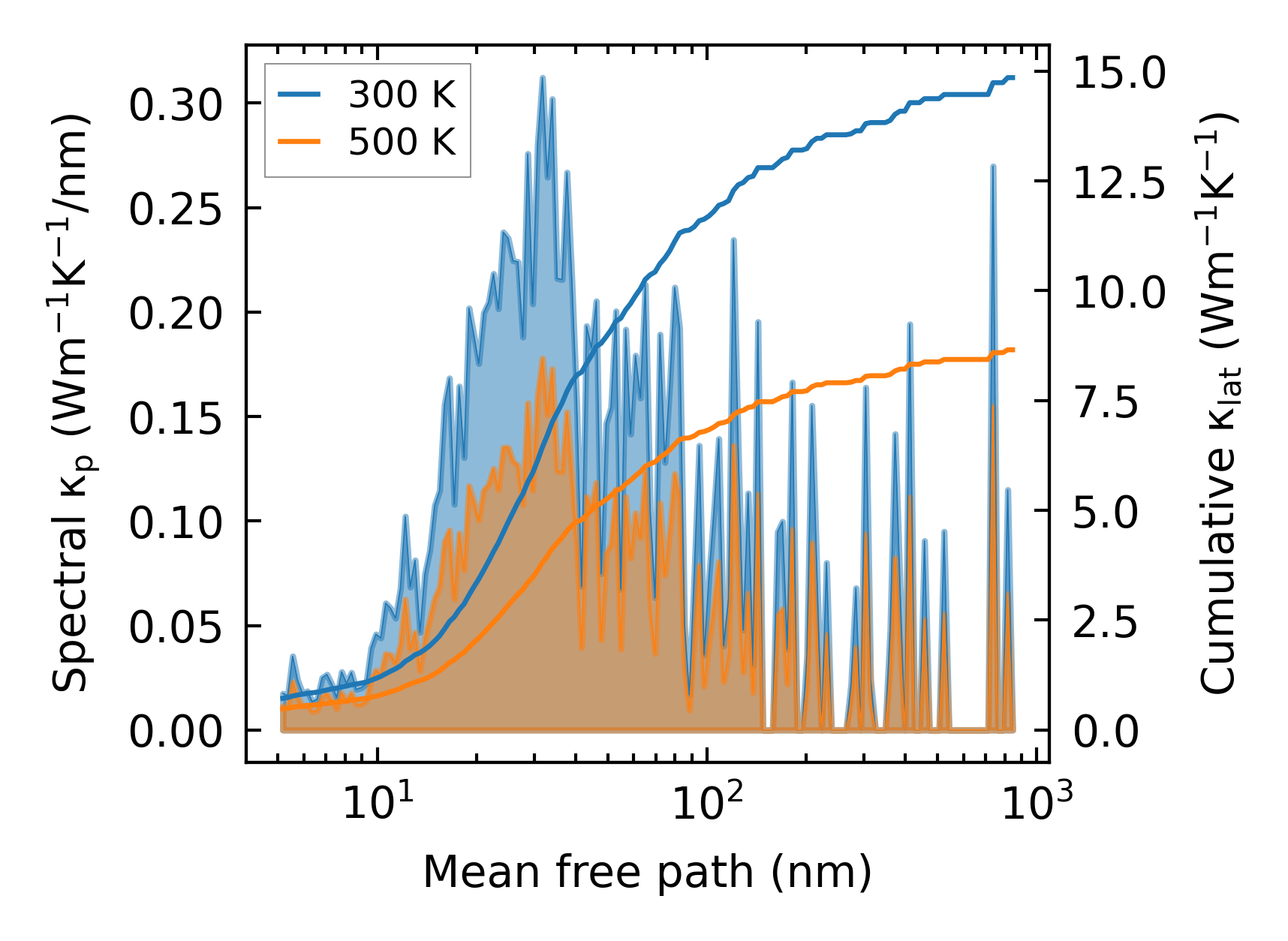

../../_images/fig_cumu_mfp6384.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

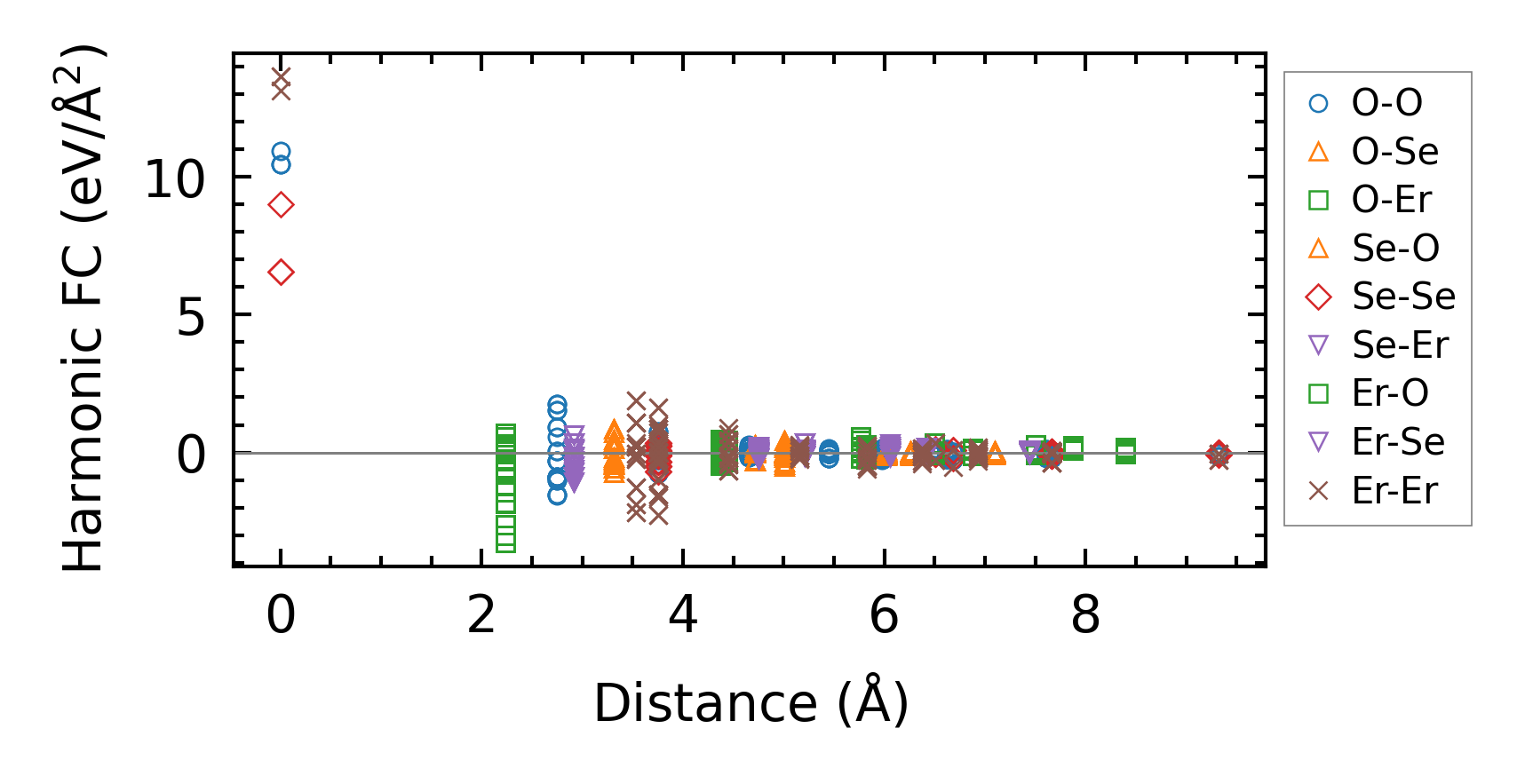

../../_images/fig_fc214633.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa12133.png — (a) Temperature-dependent lattice thermal conductivity

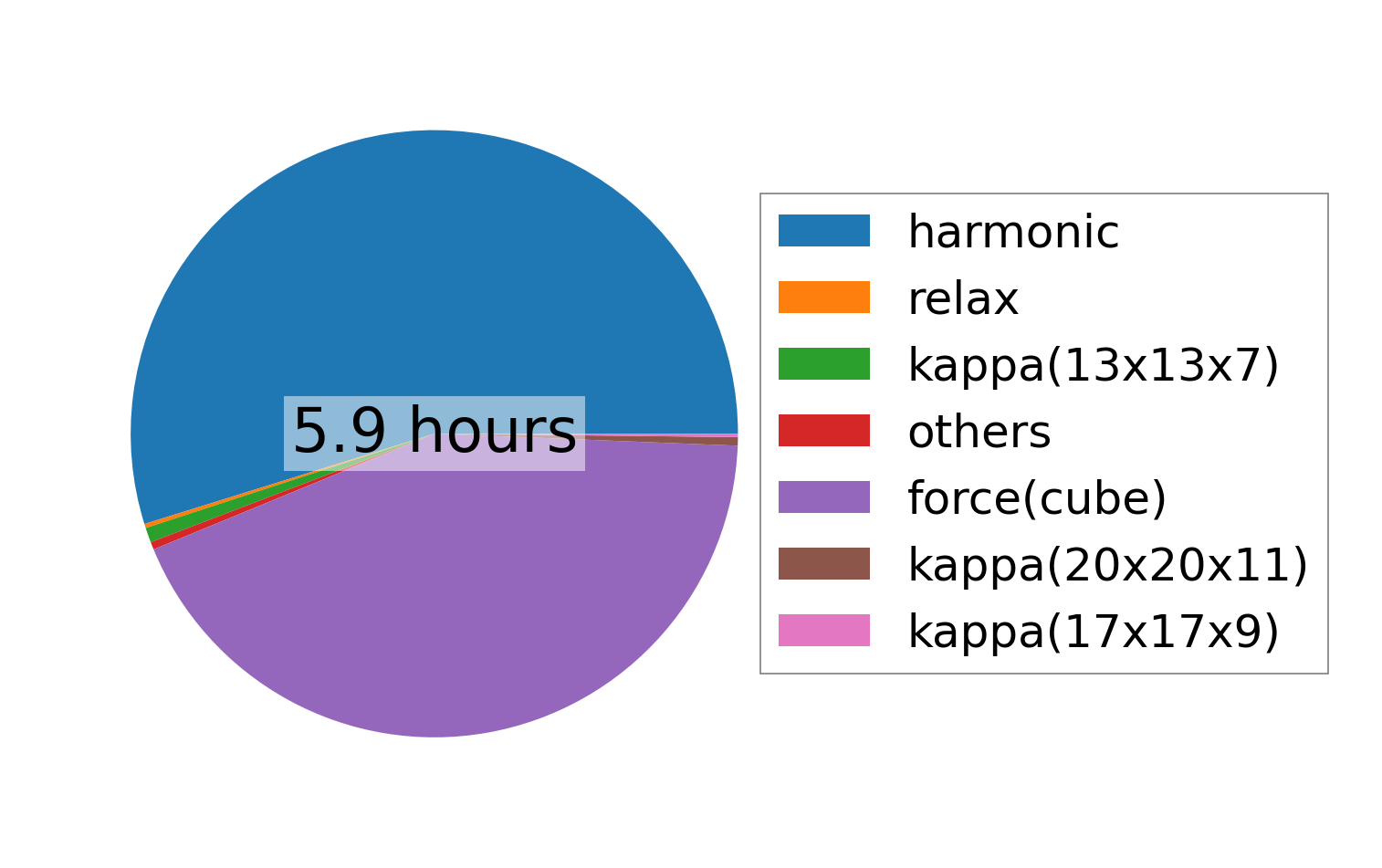

../../_images/fig_times24855.png — (b) Computation time
