mp-13276/SrLiP/anharm

Space group: P6_3/mmc (194)
Link: Materials Project
Download: mp-13276.tar.gz

Equation of state

../../_images/fig_bm7441.png — (a) Equation of state

Harmonic properties

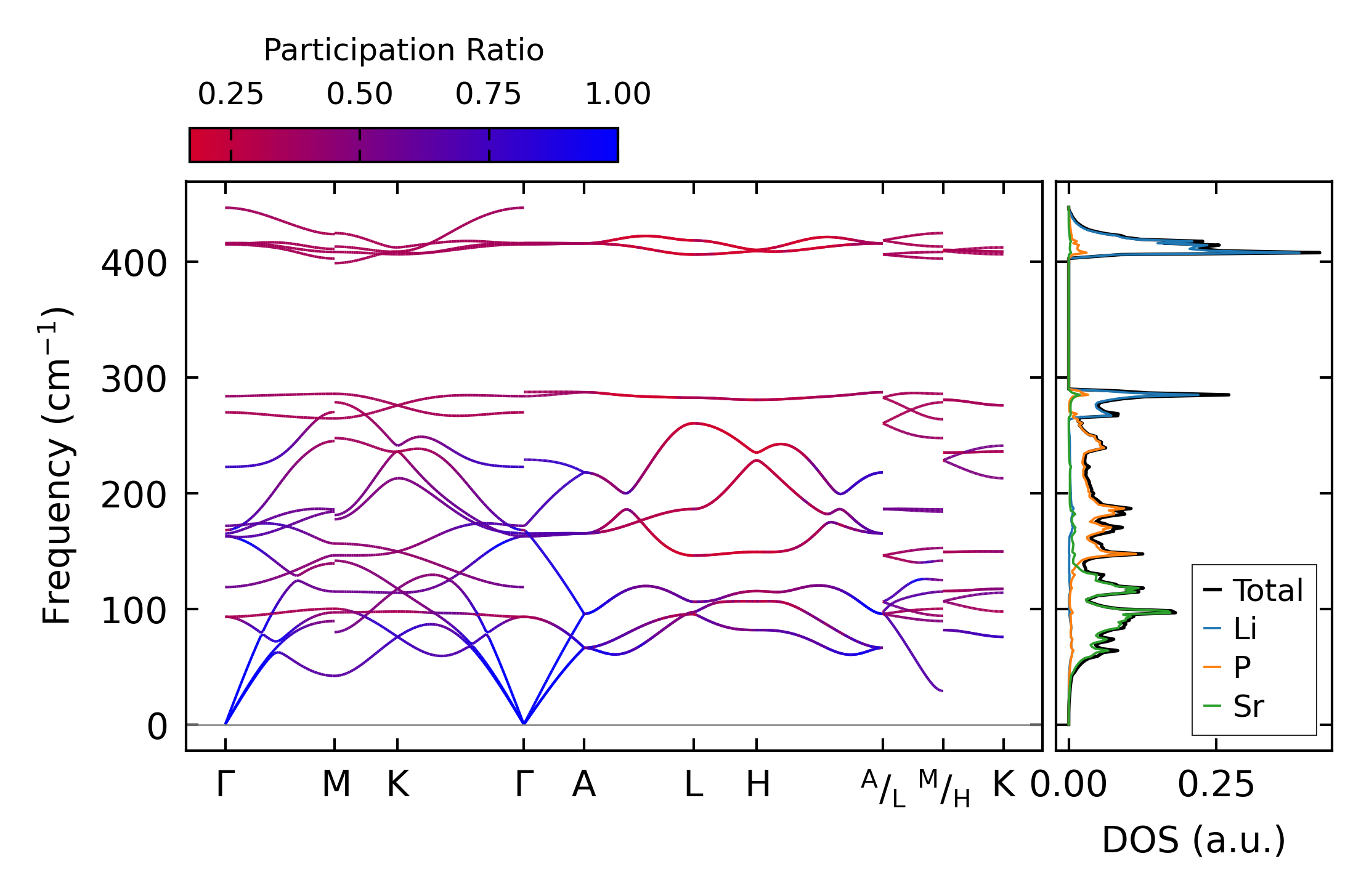

../../_images/fig_bandos_pr14857.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14857.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6368.png — (a) Grüneisen parameters

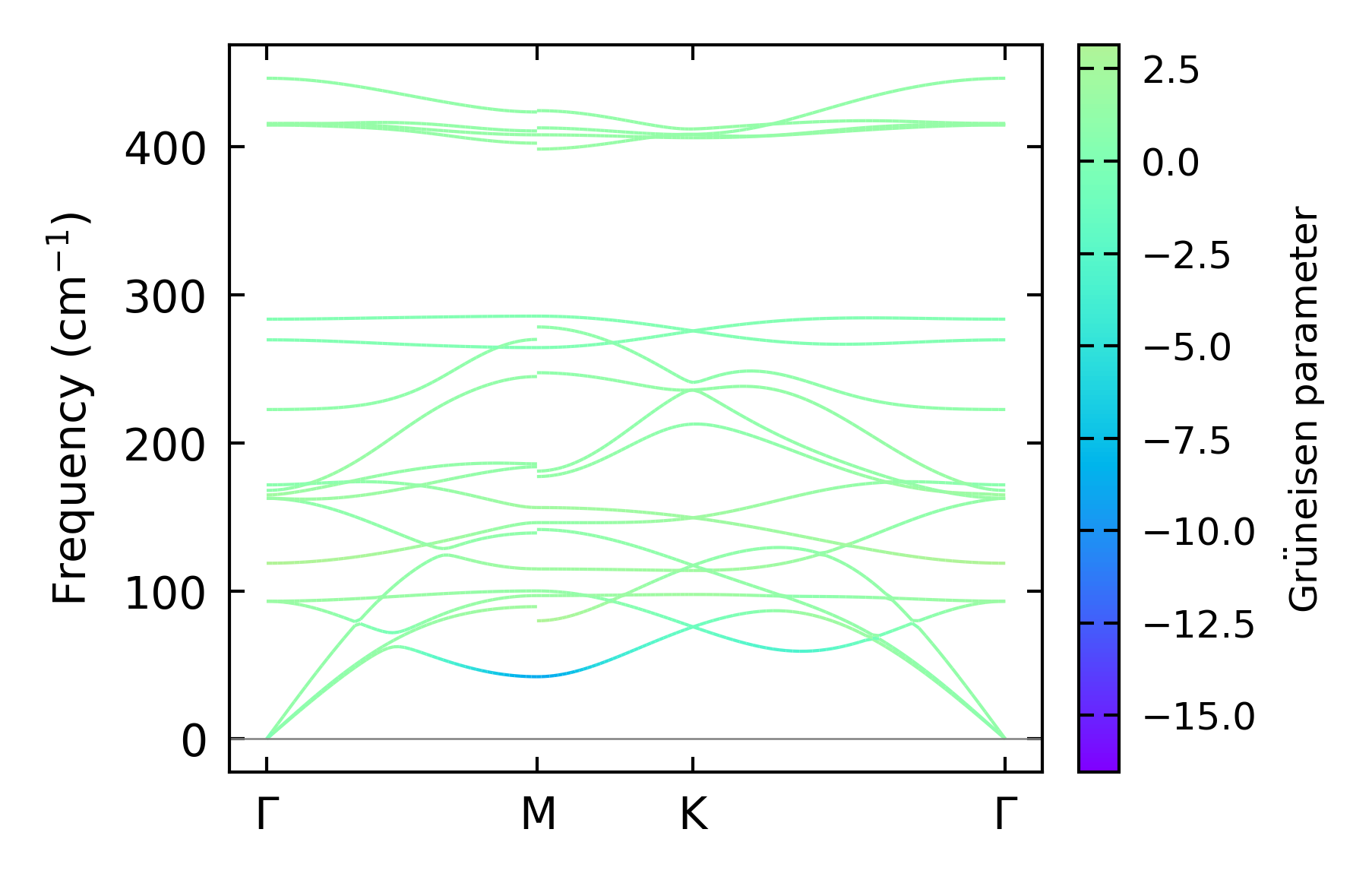

../../_images/fig_gruneisen6368.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x17x9, supercell: 3x3x2

../../_images/fig_kappa11976.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6444.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime6303.png — (a) Phonon lifetime due to phonon-phonon scattering

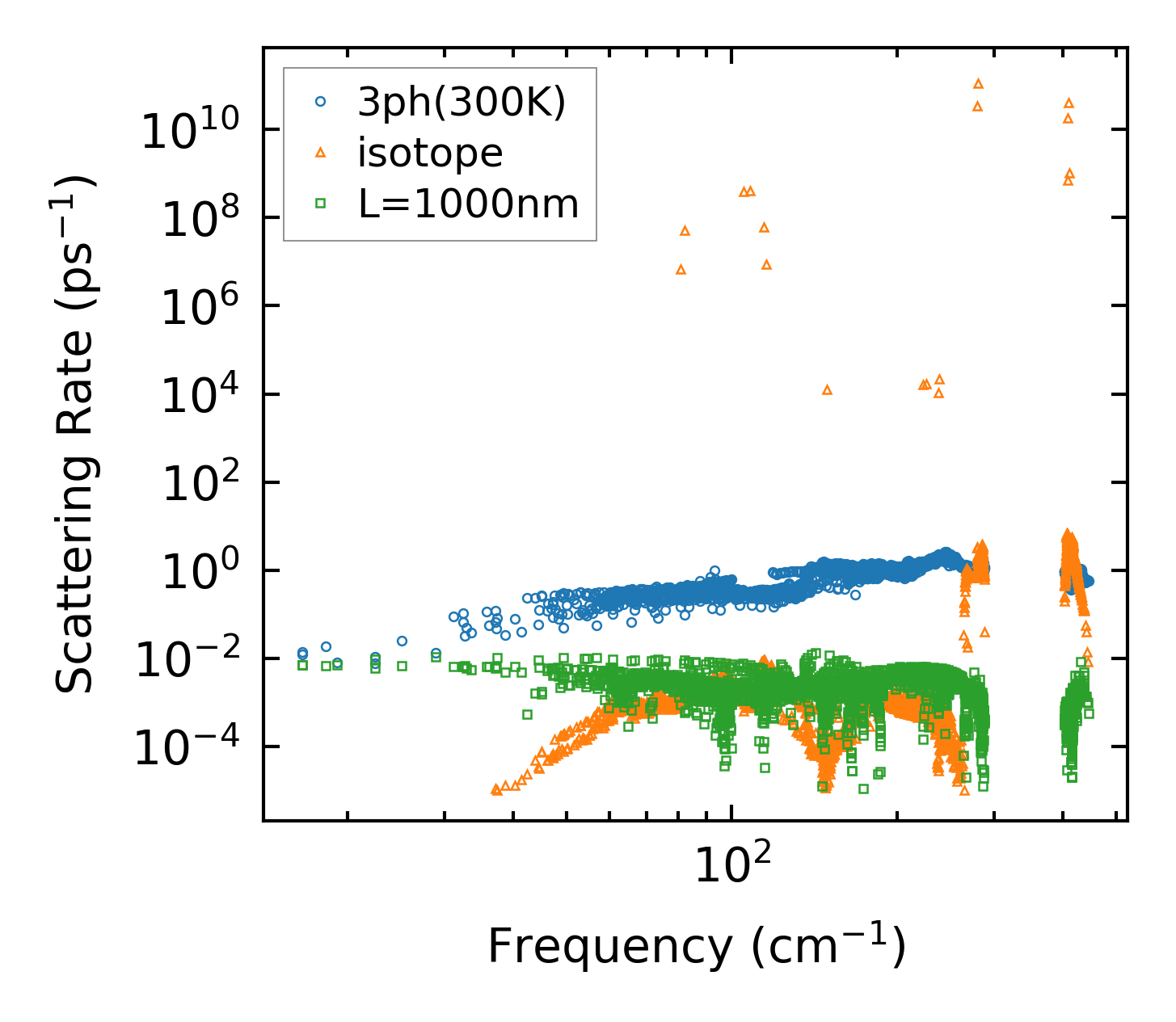

../../_images/fig_scat_rates6302.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

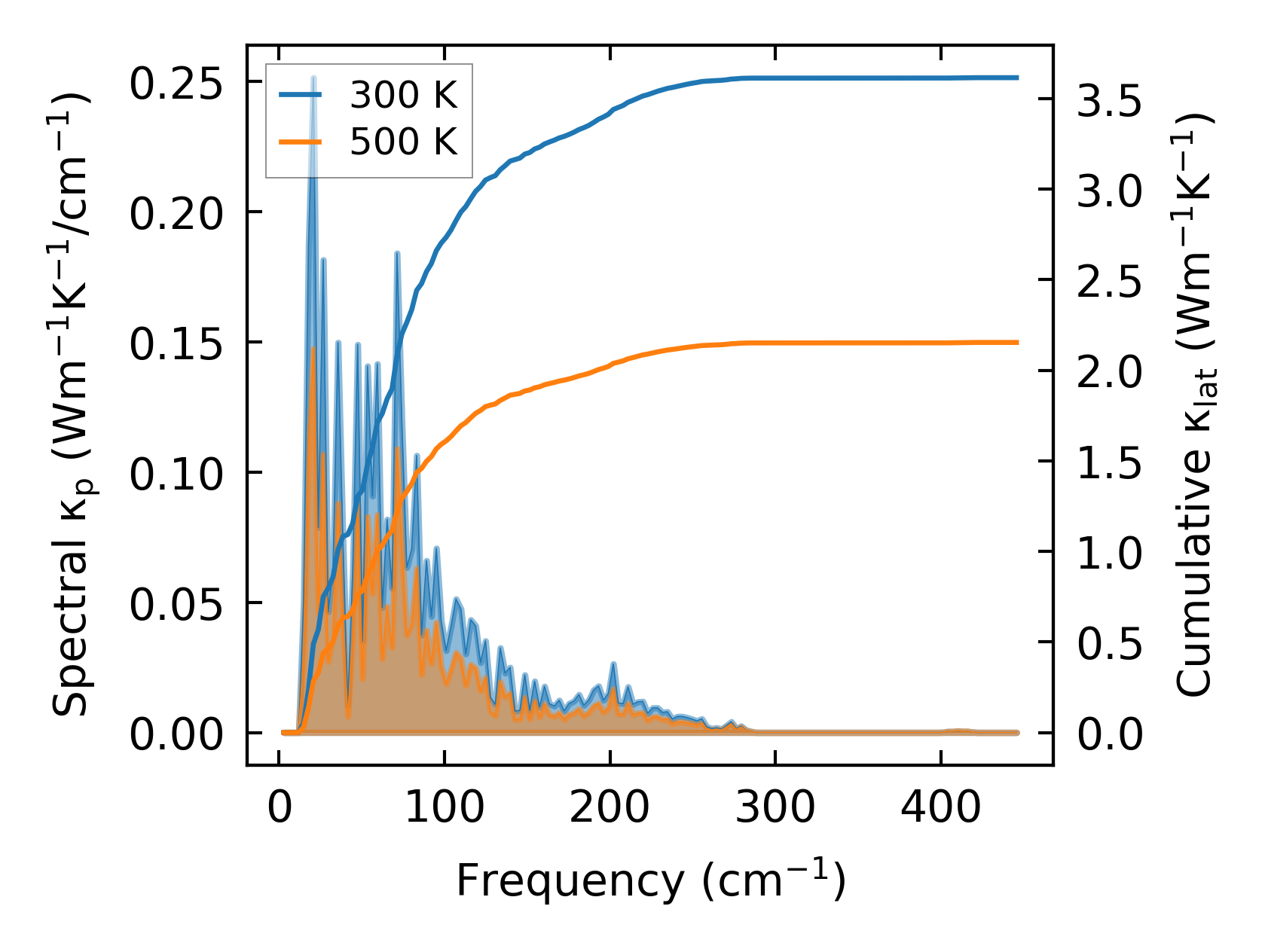

../../_images/fig_cumu_frequency6303.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

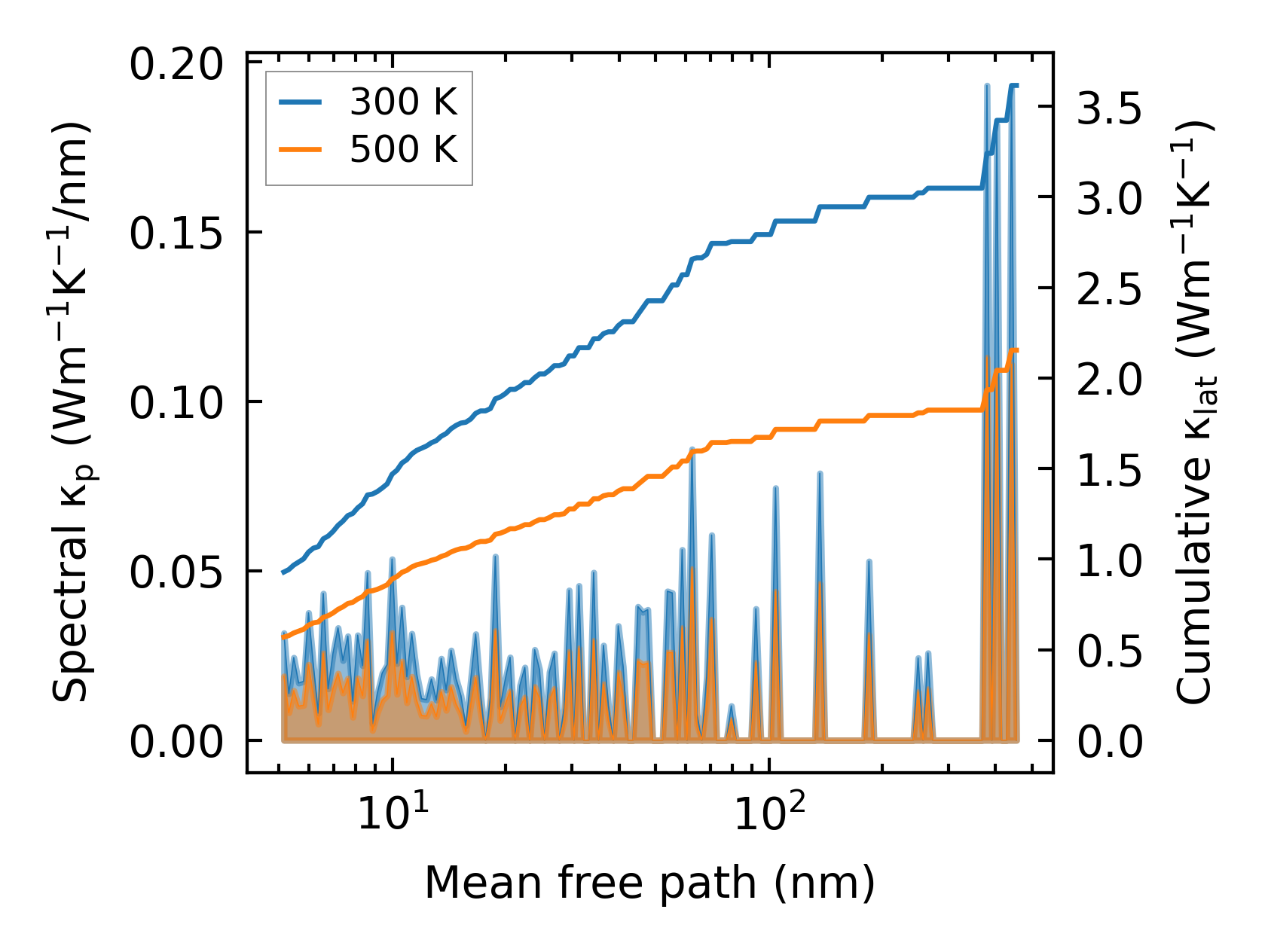

../../_images/fig_cumu_mfp6302.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

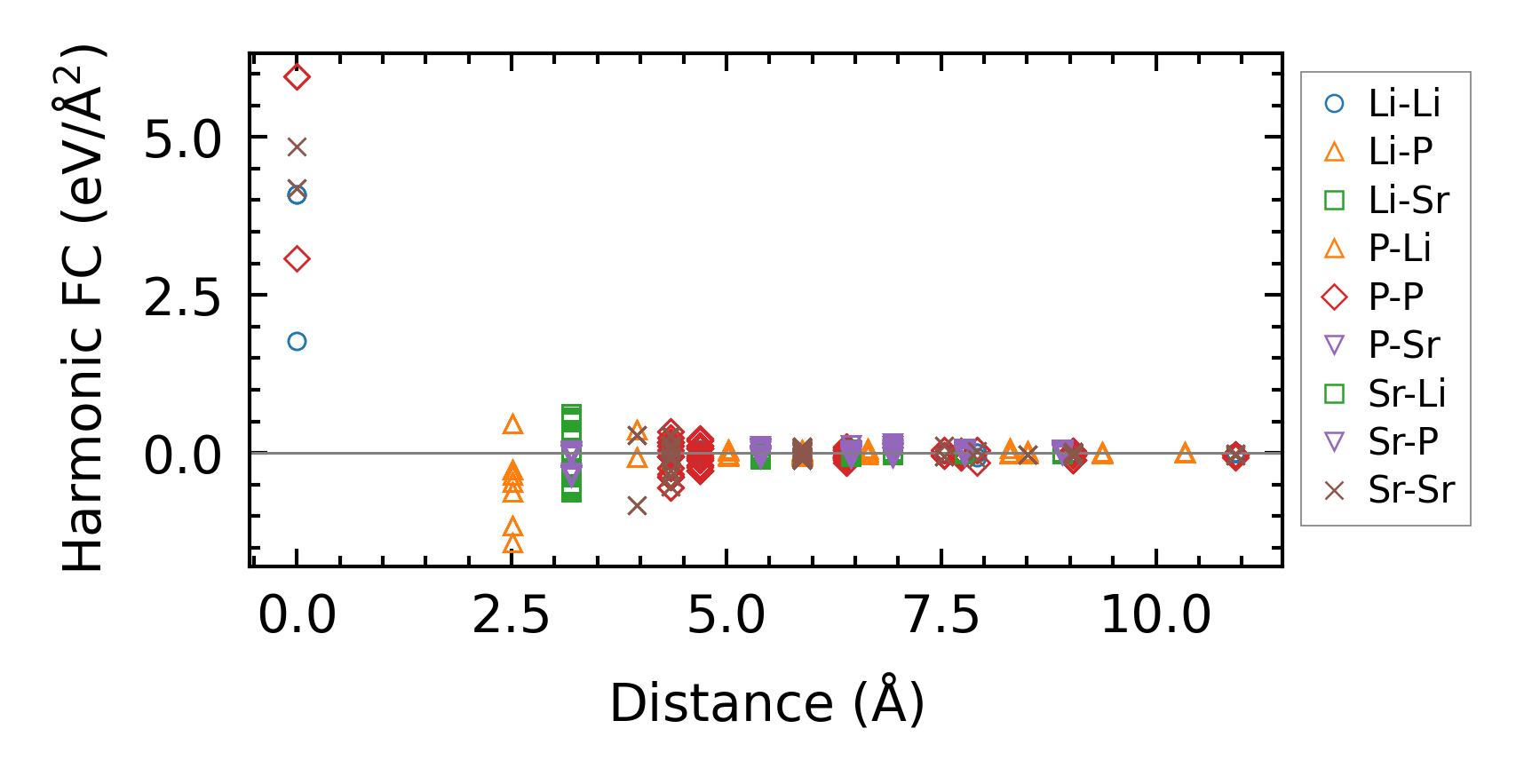

../../_images/fig_fc214475.png — (a) Force constants w.r.t atomic distance

Summary

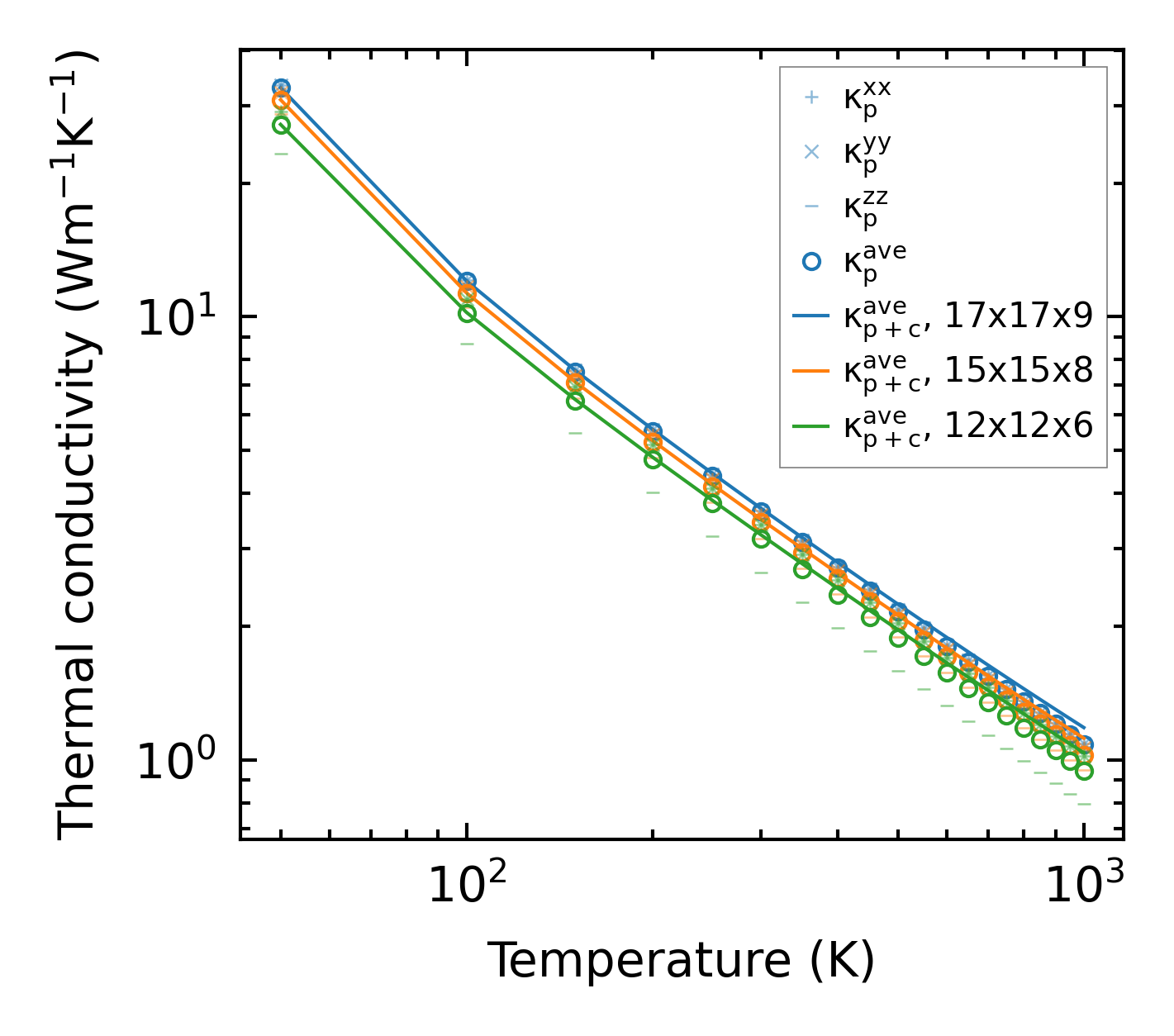

../../_images/fig_kappa11977.png — (a) Temperature-dependent lattice thermal conductivity

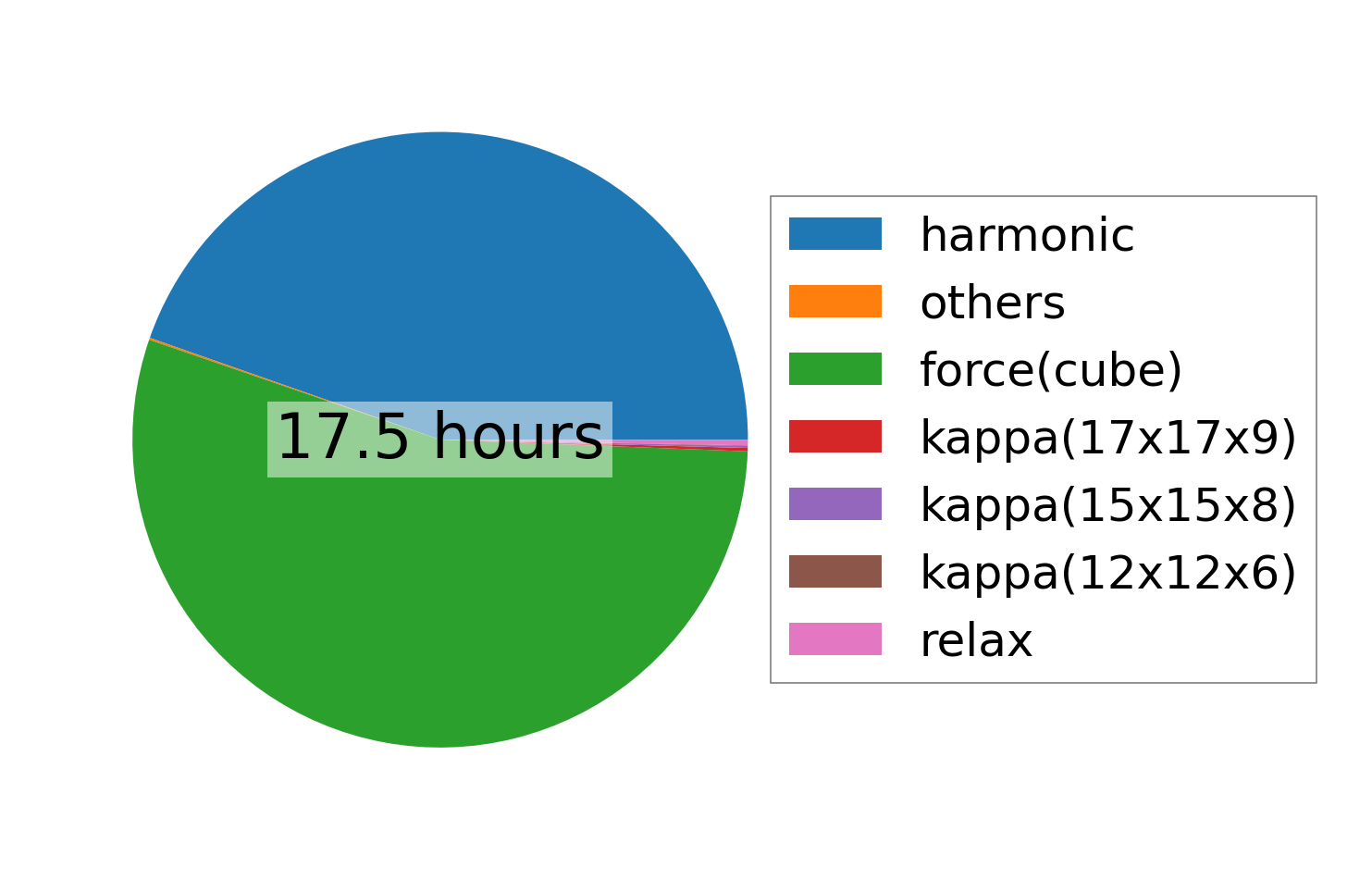

../../_images/fig_times24658.png — (b) Computation time
