mp-13836/URh2O6/anharm

Space group: P4_2/mnm (136)
Link: Materials Project
Download: mp-13836.tar.gz

Harmonic properties

../../_images/fig_bandos_pr14975.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14974.png — (b) Thermodynamic properties

Grüneisen parameters

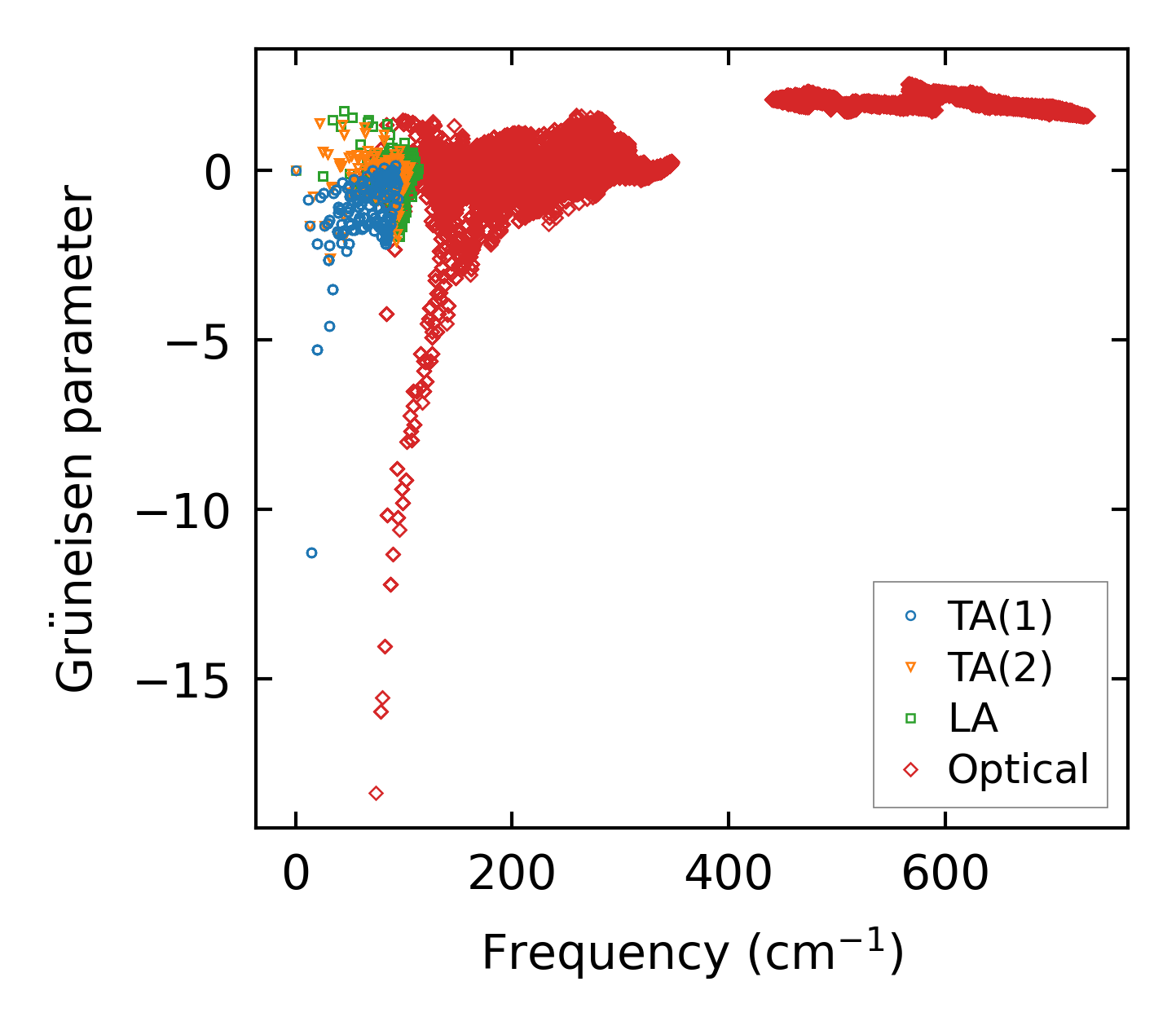

../../_images/fig_gru_all6429.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6429.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x7, supercell: 2x2x2

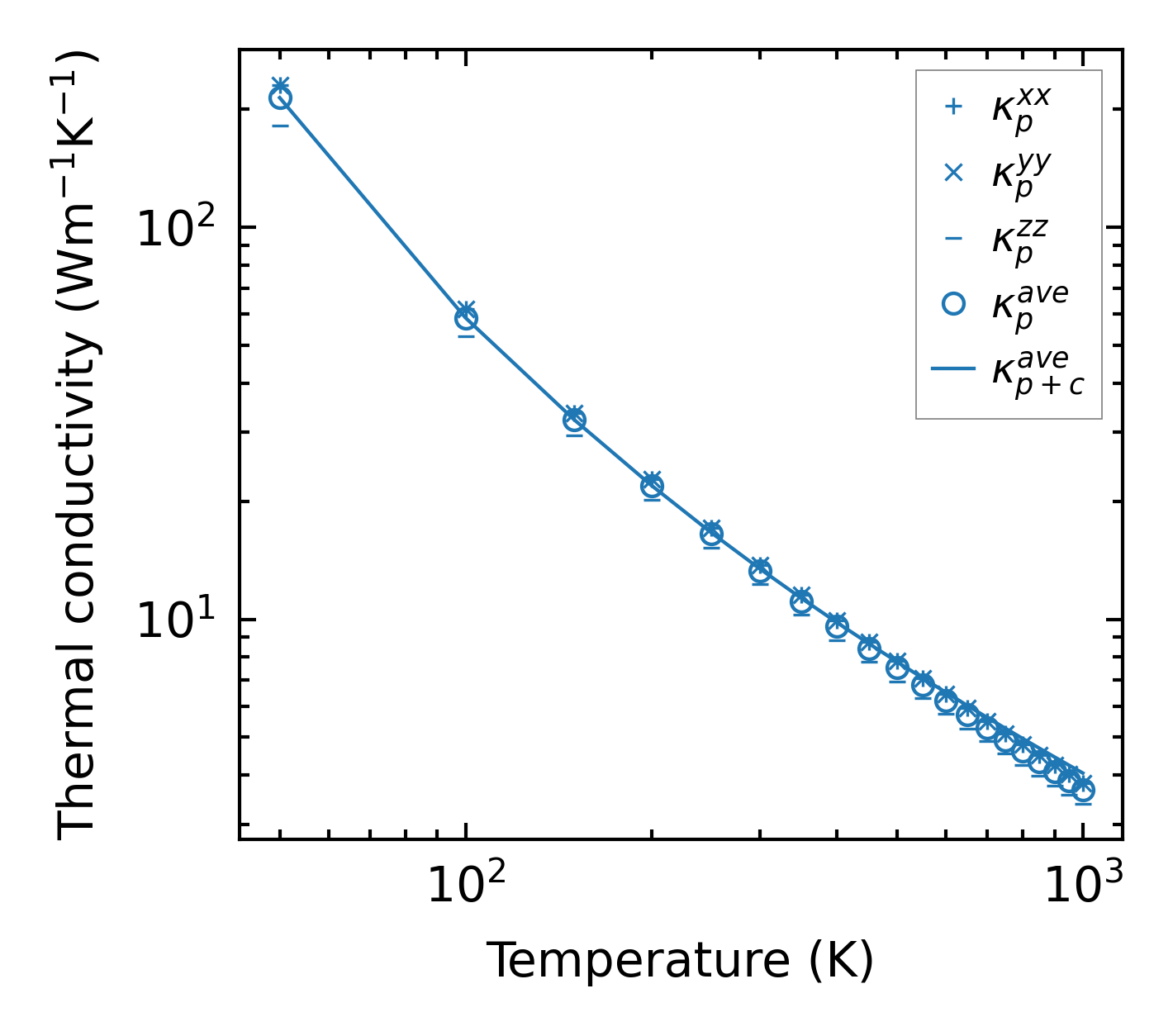

../../_images/fig_kappa12090.png — (a) Temperature-dependent lattice thermal conductivity

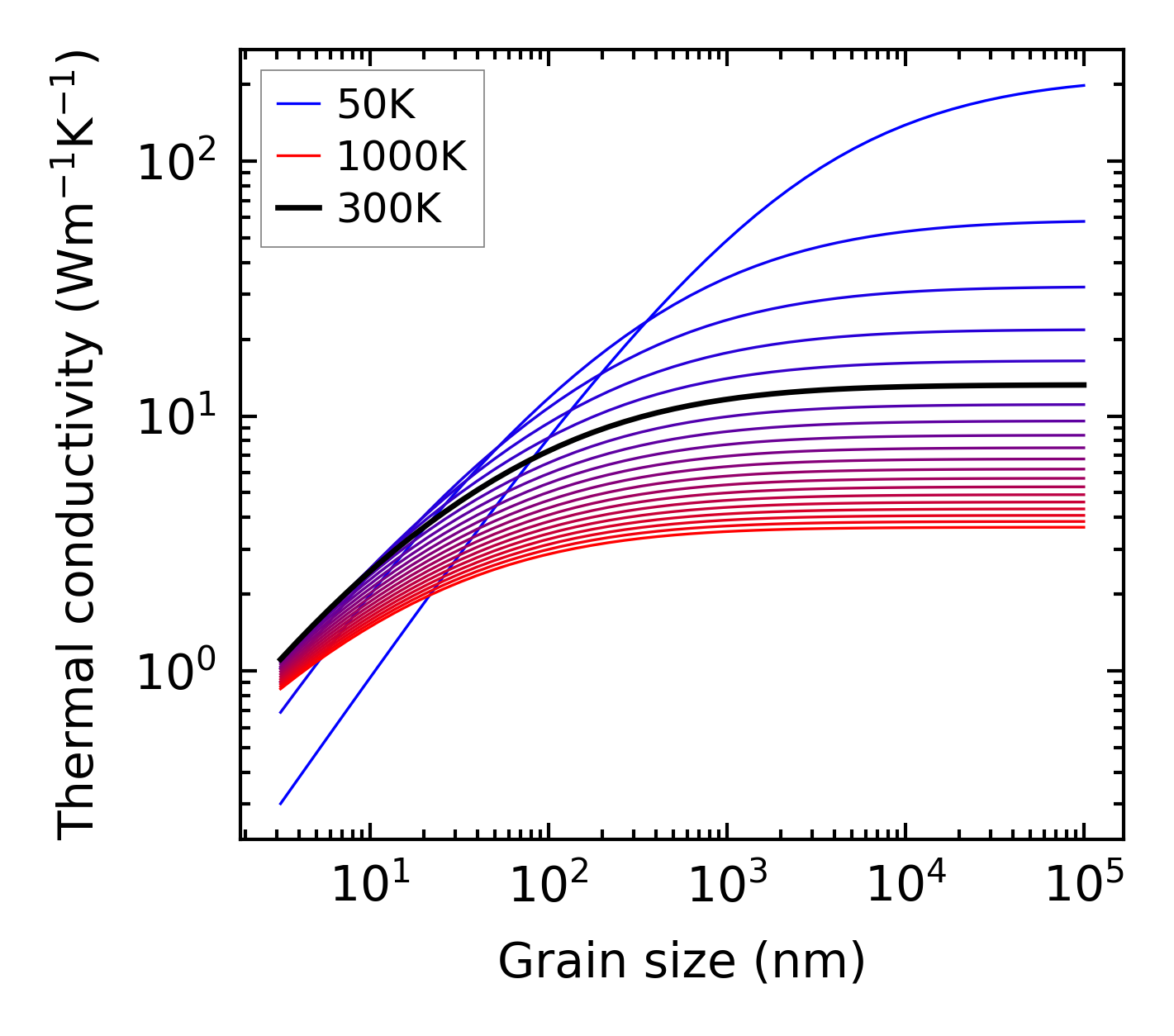

../../_images/fig_kappa_vs_grain_size6506.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

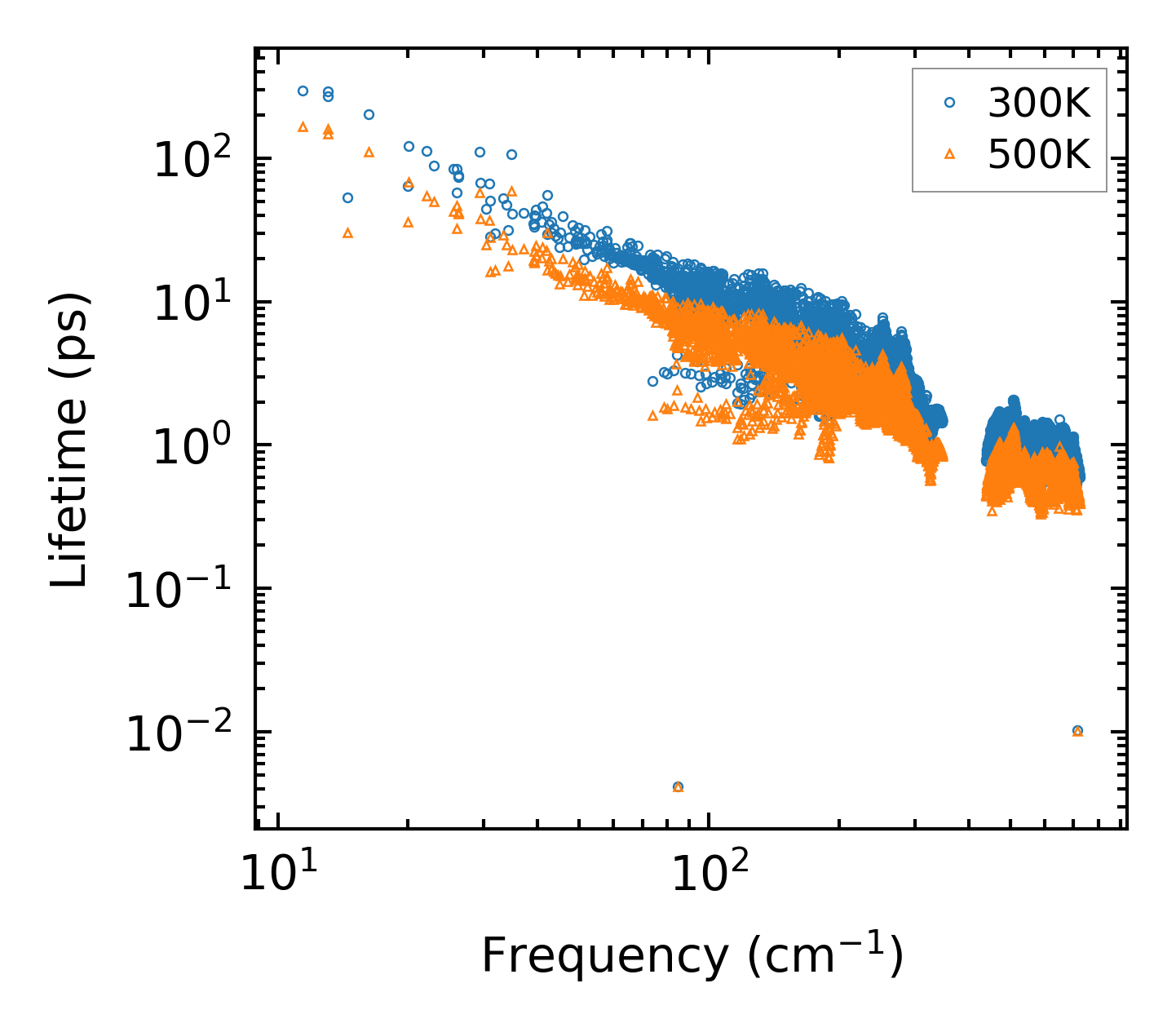

../../_images/fig_lifetime6363.png — (a) Phonon lifetime due to phonon-phonon scattering

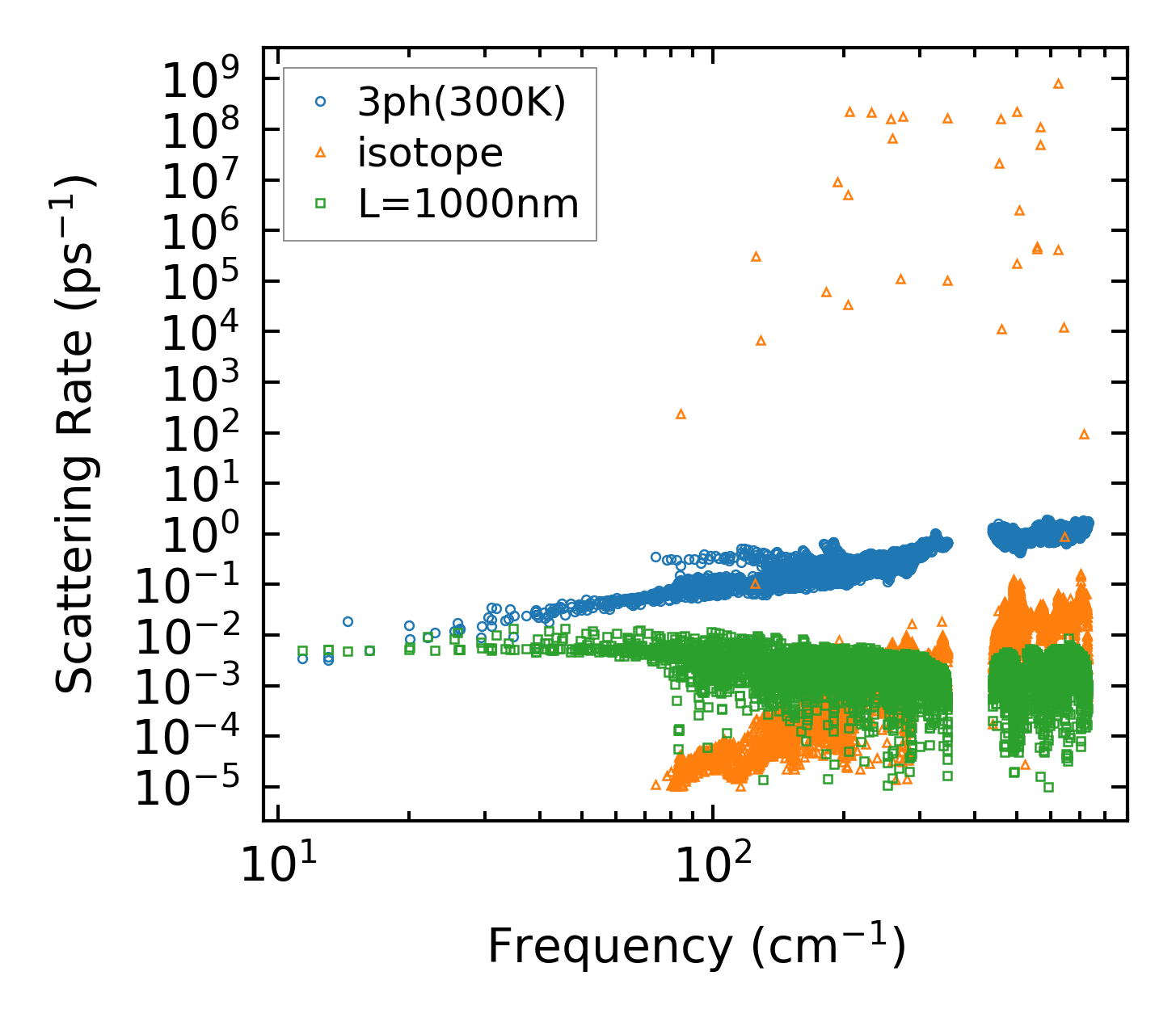

../../_images/fig_scat_rates6362.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

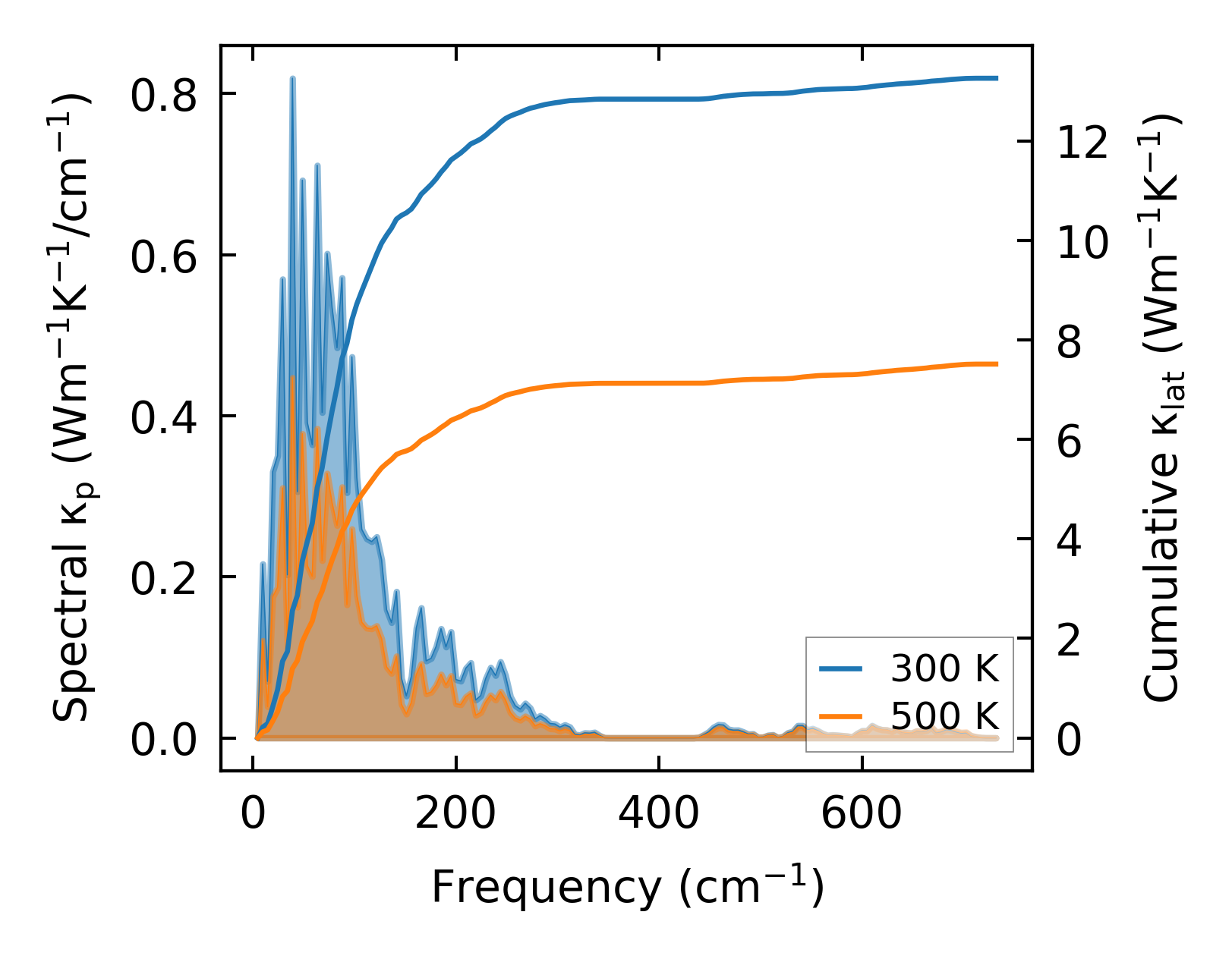

../../_images/fig_cumu_frequency6363.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

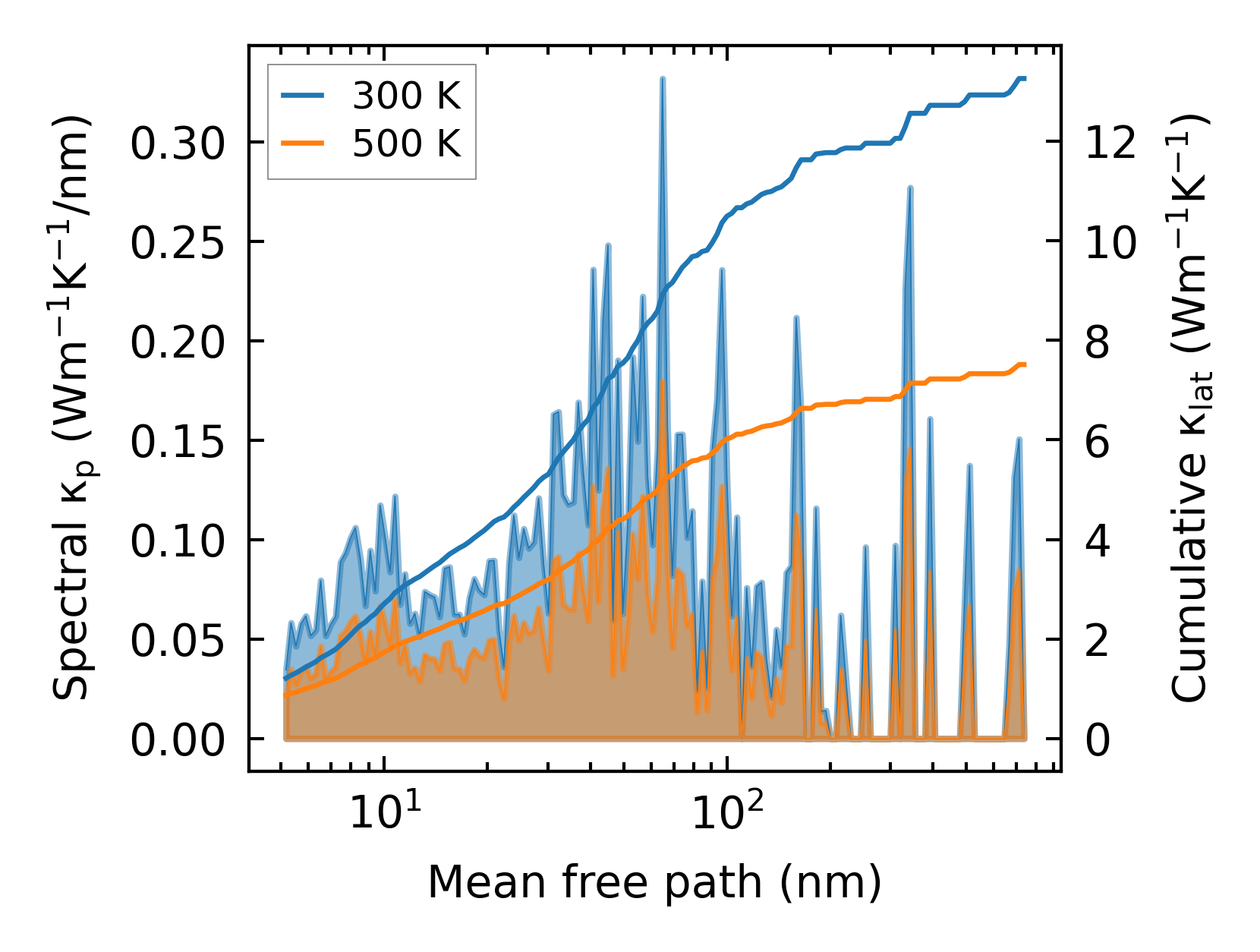

../../_images/fig_cumu_mfp6362.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214592.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa12091.png — (a) Temperature-dependent lattice thermal conductivity

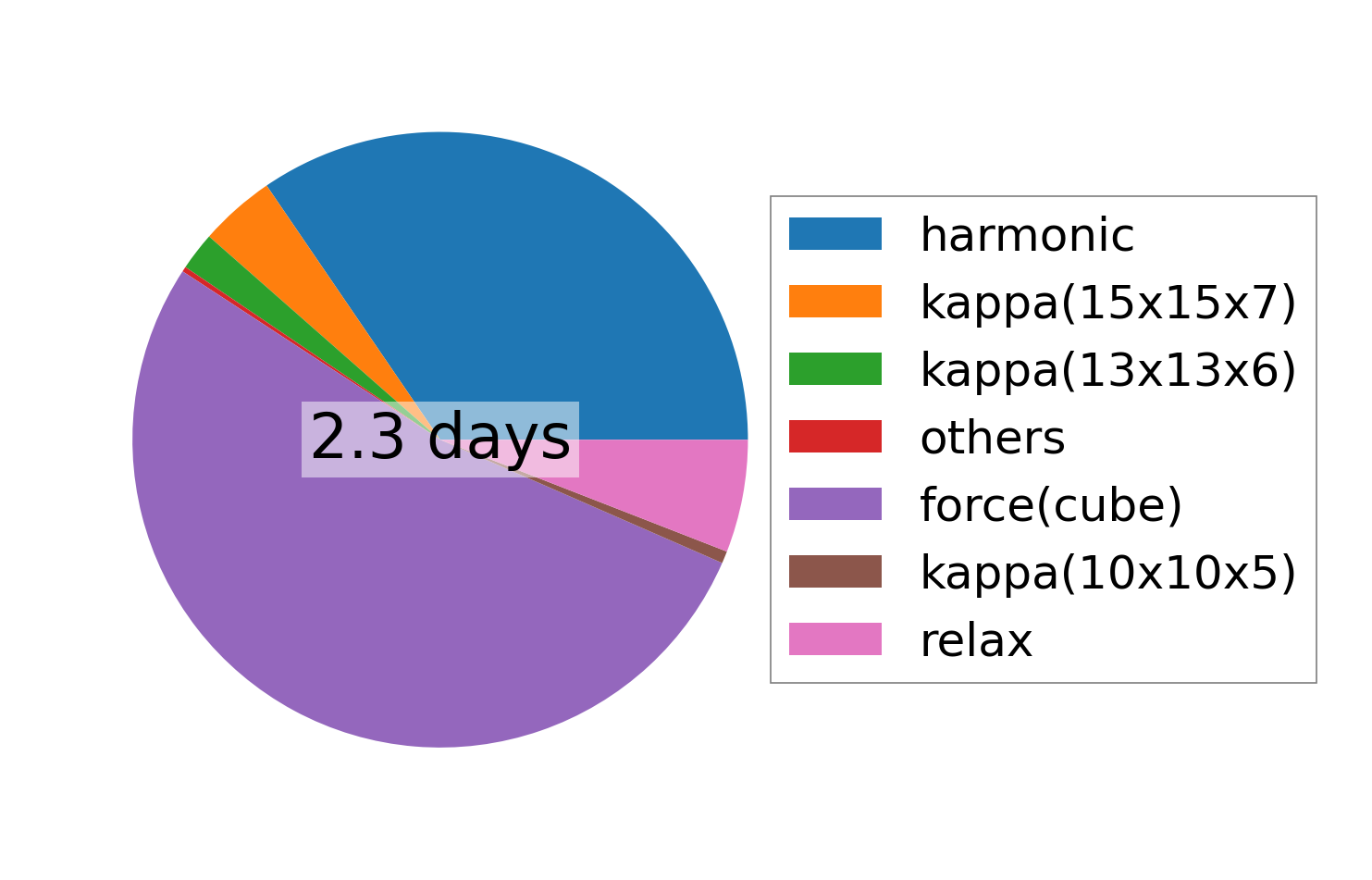

../../_images/fig_times24811.png — (b) Computation time
