mp-13820-2/Cd3SiO5/anharm

Space group: P4/nmm (129)
Link: Materials Project
Download: mp-13820-2.tar.gz

Equation of state

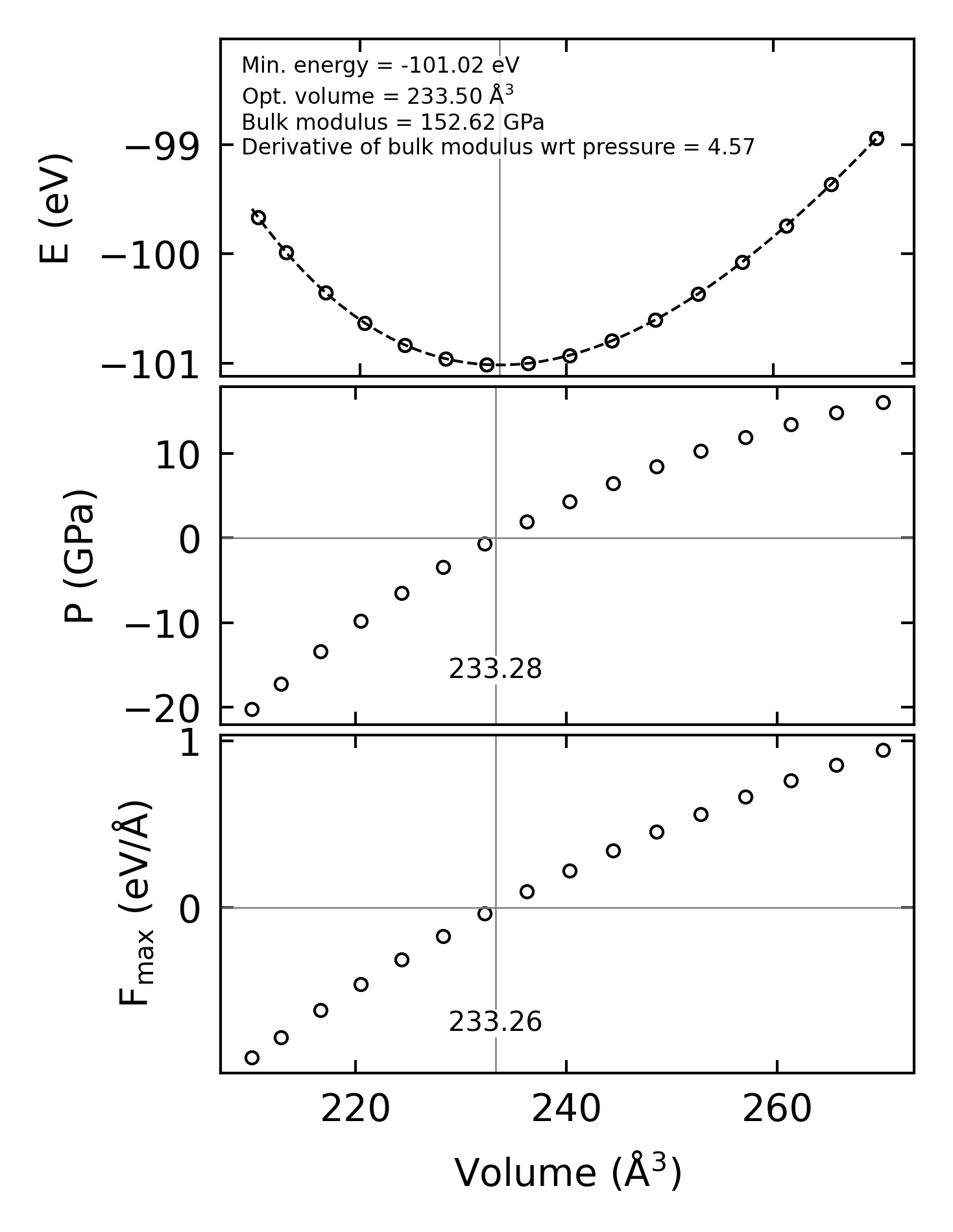

../../_images/fig_bm7510.png — (a) Equation of state

Harmonic properties

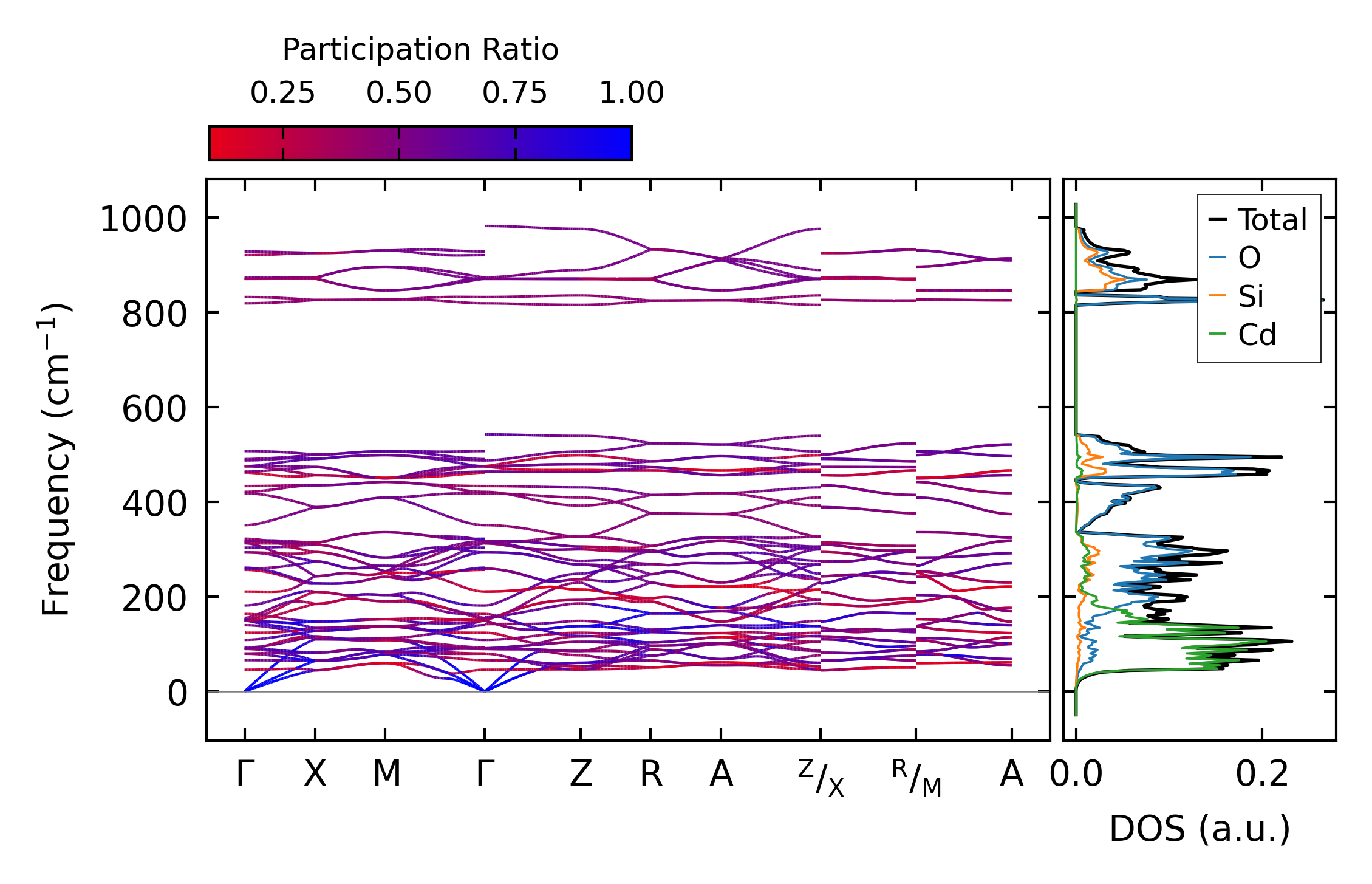

../../_images/fig_bandos_pr14972.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14971.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6426.png — (a) Grüneisen parameters

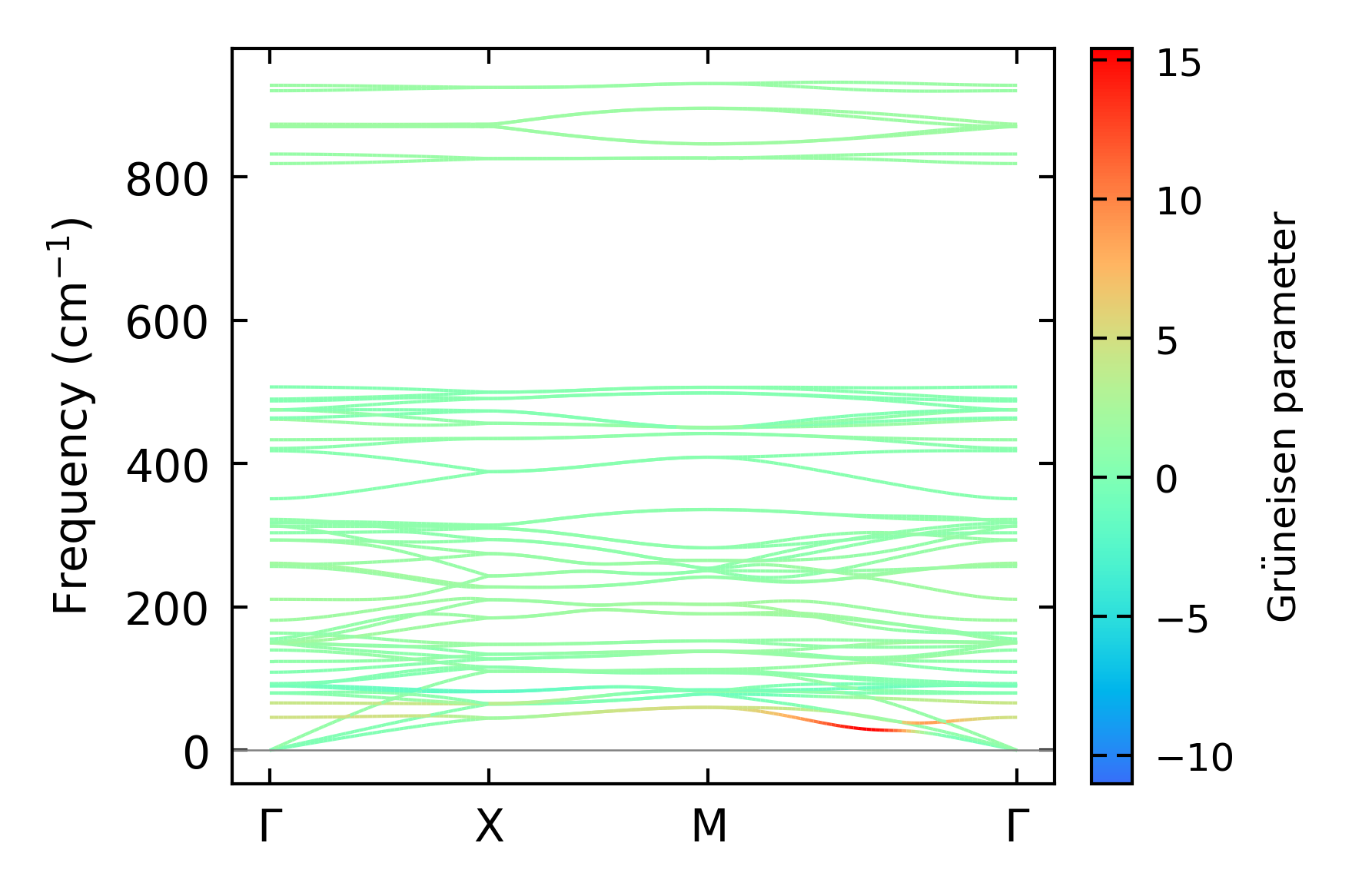

../../_images/fig_gruneisen6426.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x14, supercell: 2x2x2

../../_images/fig_kappa12084.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6503.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

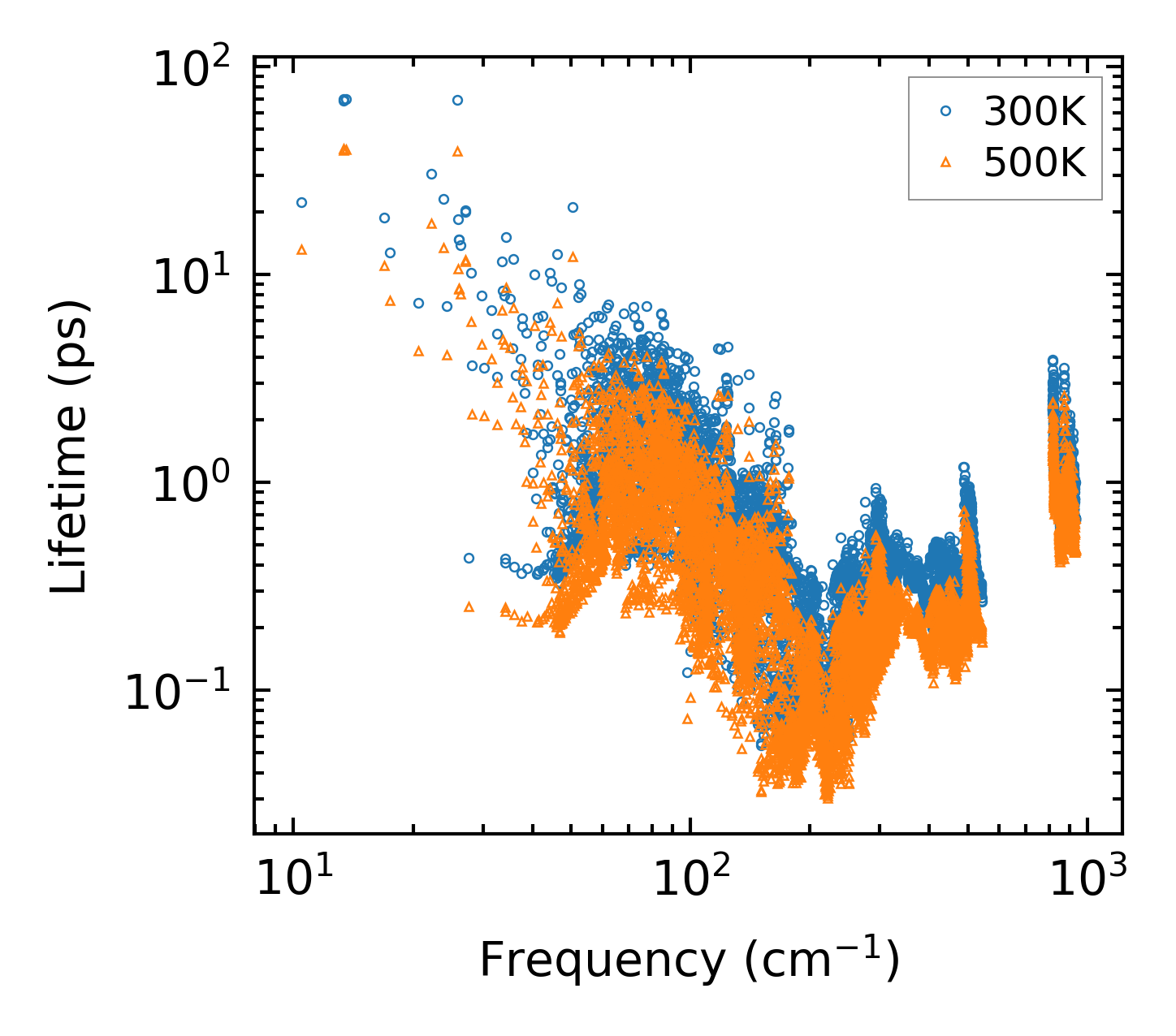

../../_images/fig_lifetime6360.png — (a) Phonon lifetime due to phonon-phonon scattering

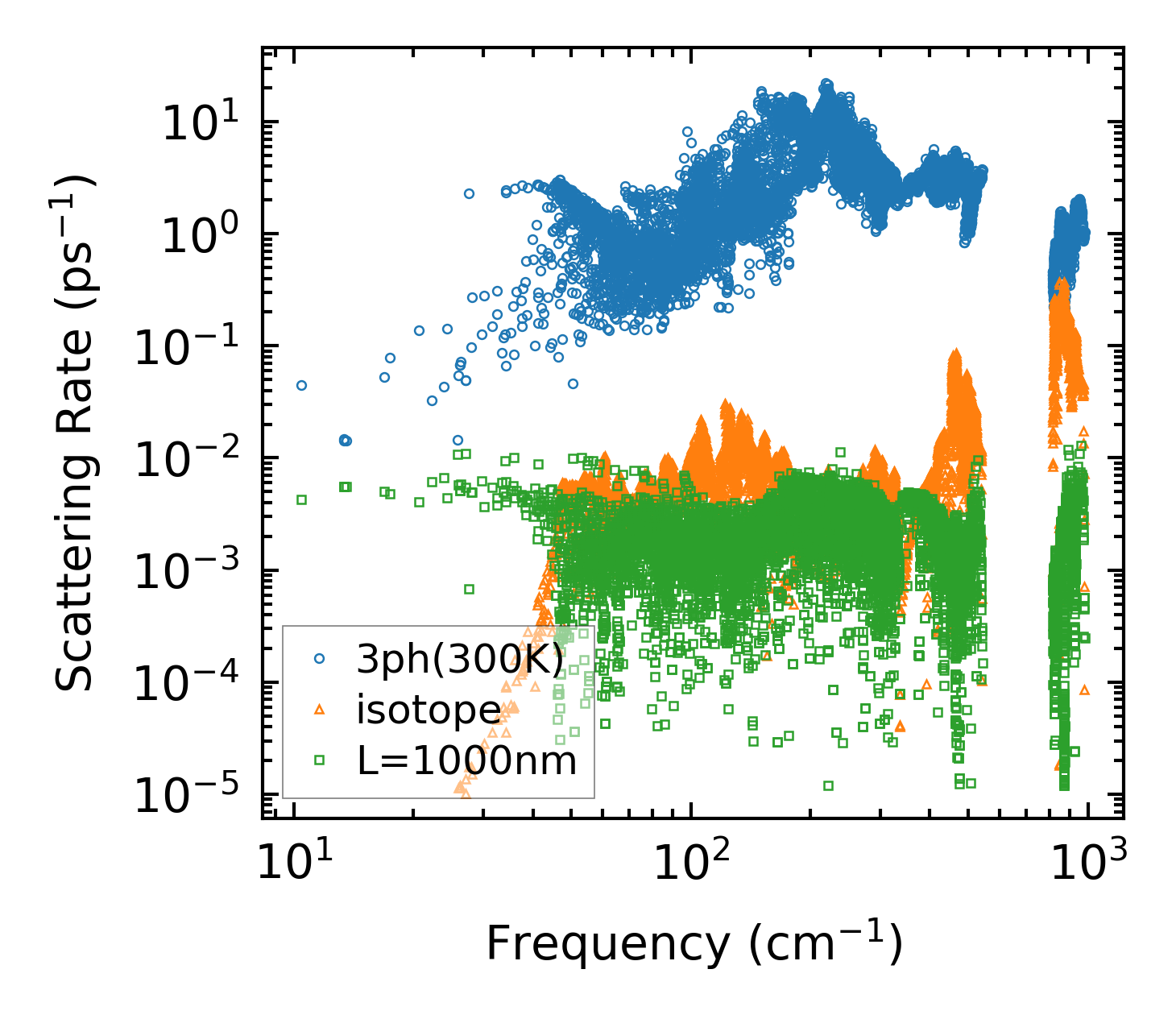

../../_images/fig_scat_rates6359.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

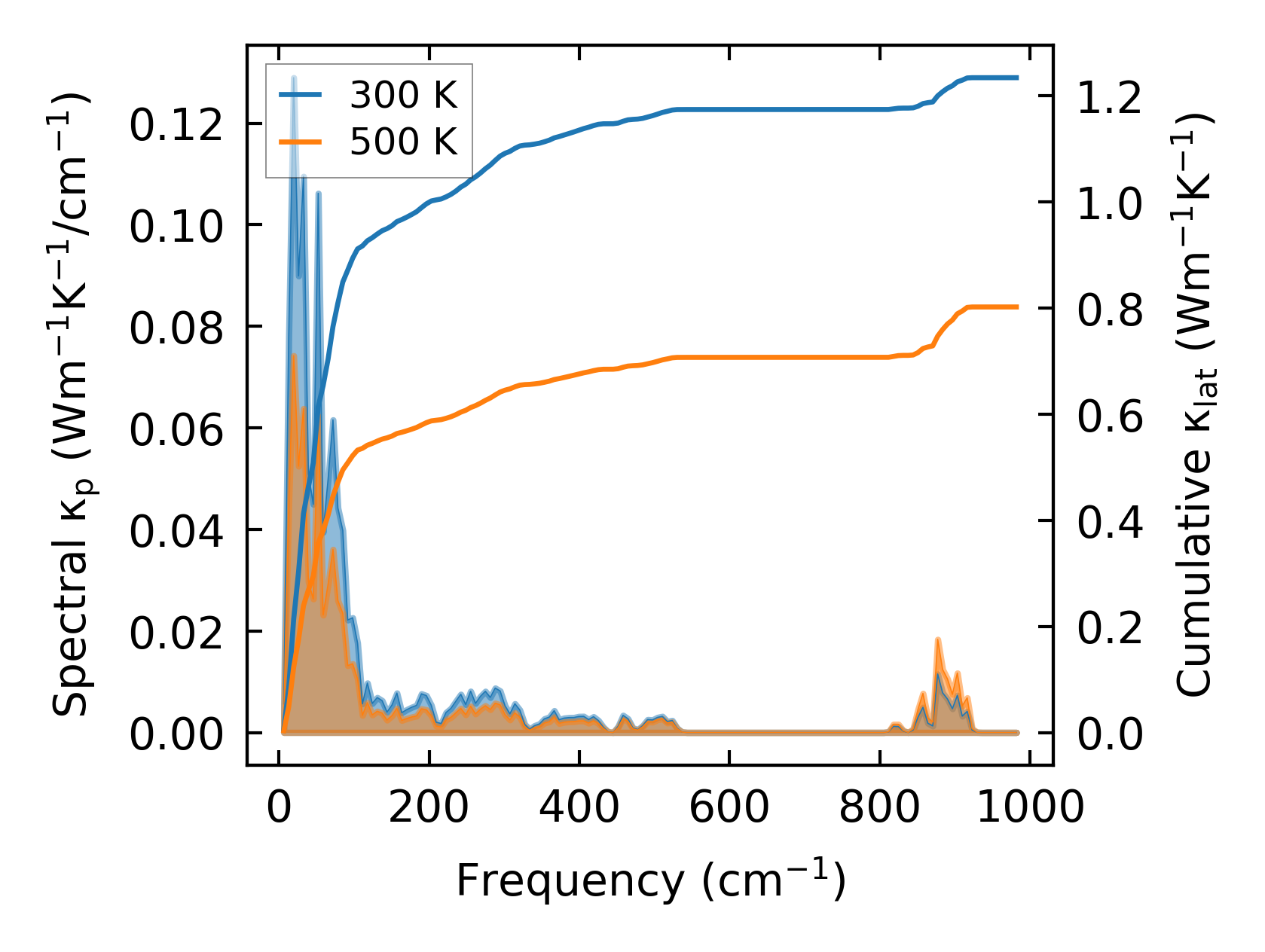

../../_images/fig_cumu_frequency6360.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6359.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214589.png — (a) Force constants w.r.t atomic distance

Summary

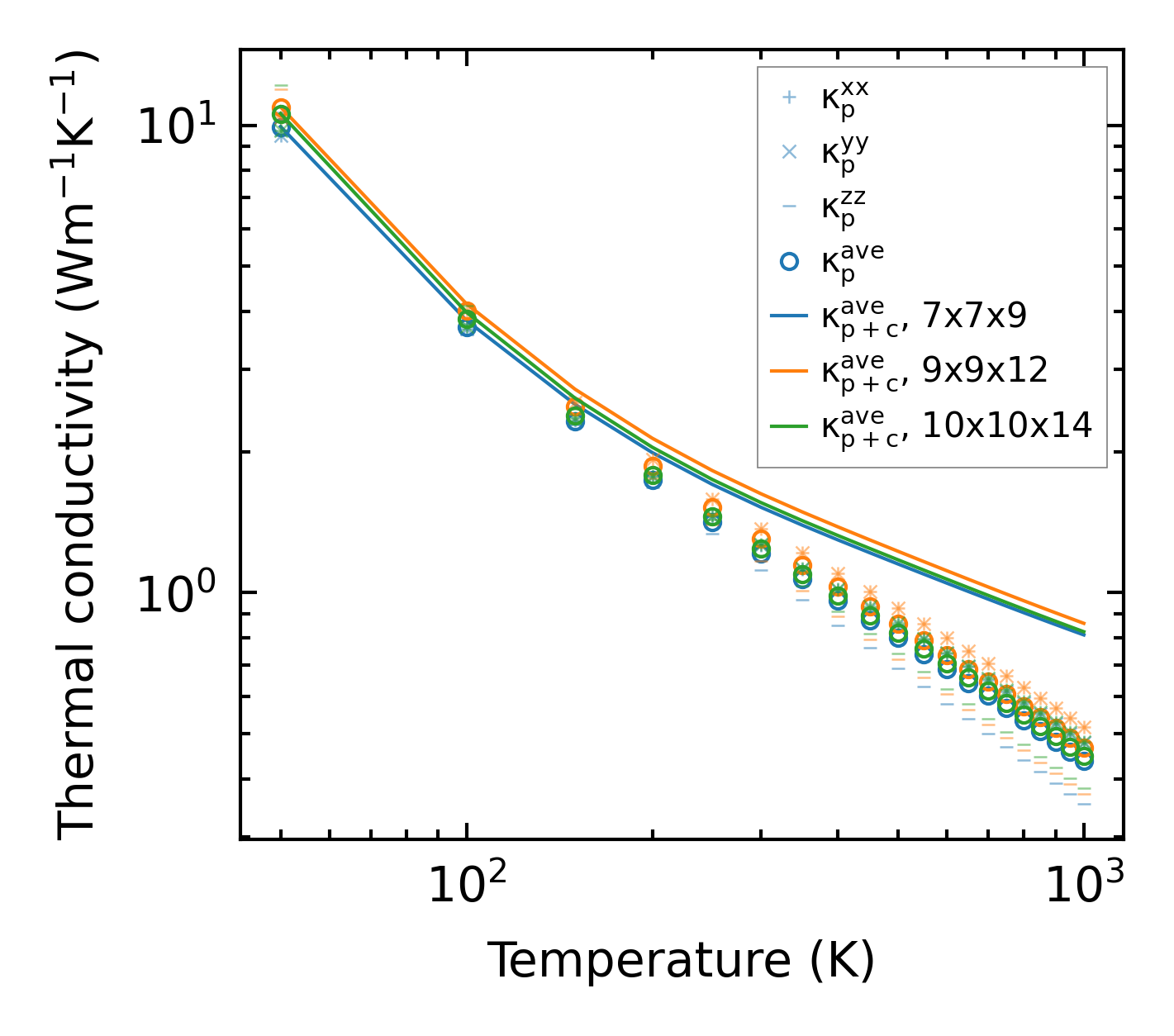

../../_images/fig_kappa12085.png — (a) Temperature-dependent lattice thermal conductivity

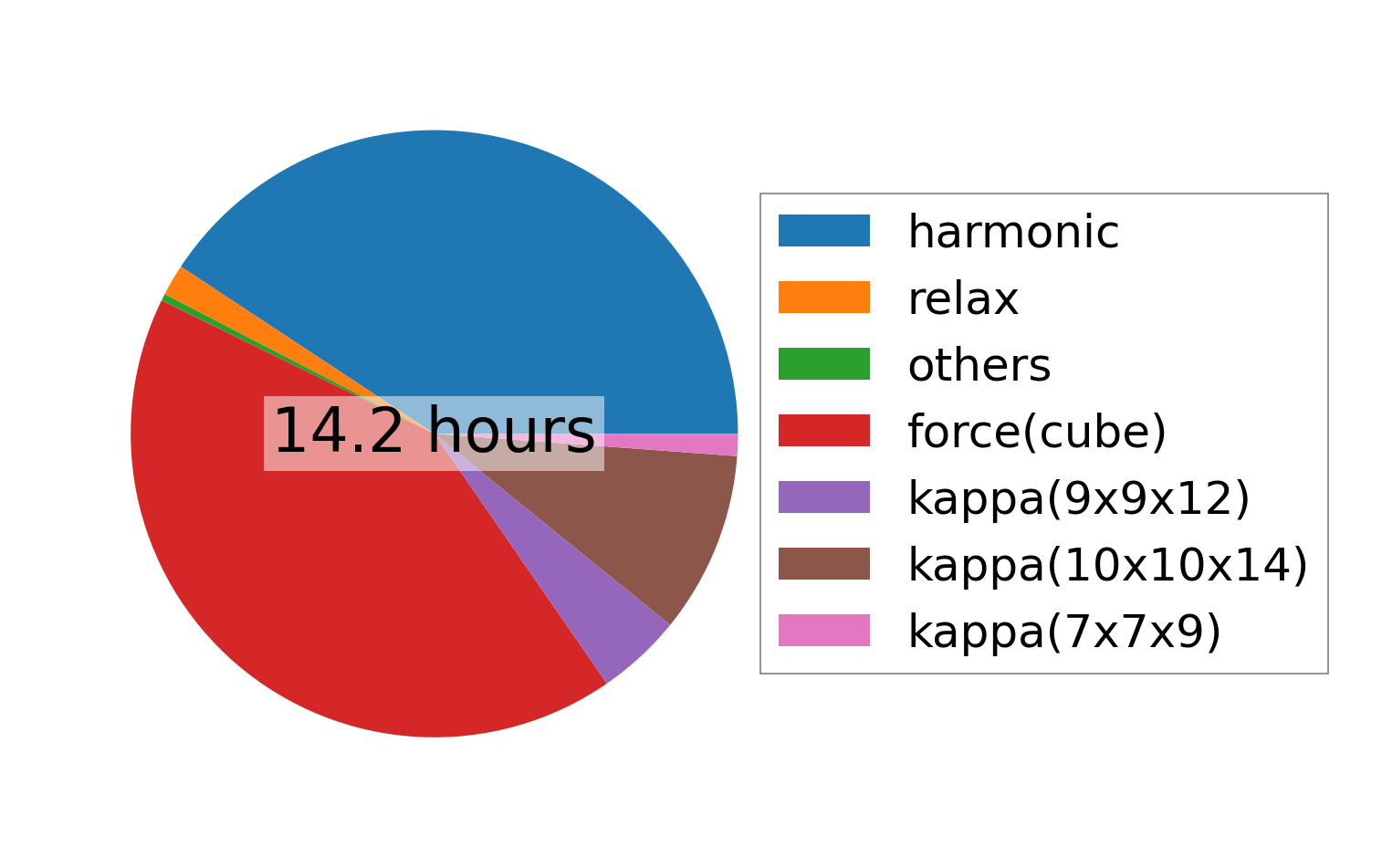

../../_images/fig_times24806.png — (b) Computation time
