mp-13151/BN/anharm

Space group: P4_2/mnm (136)
Link: Materials Project
Download: mp-13151.tar.gz

Harmonic properties

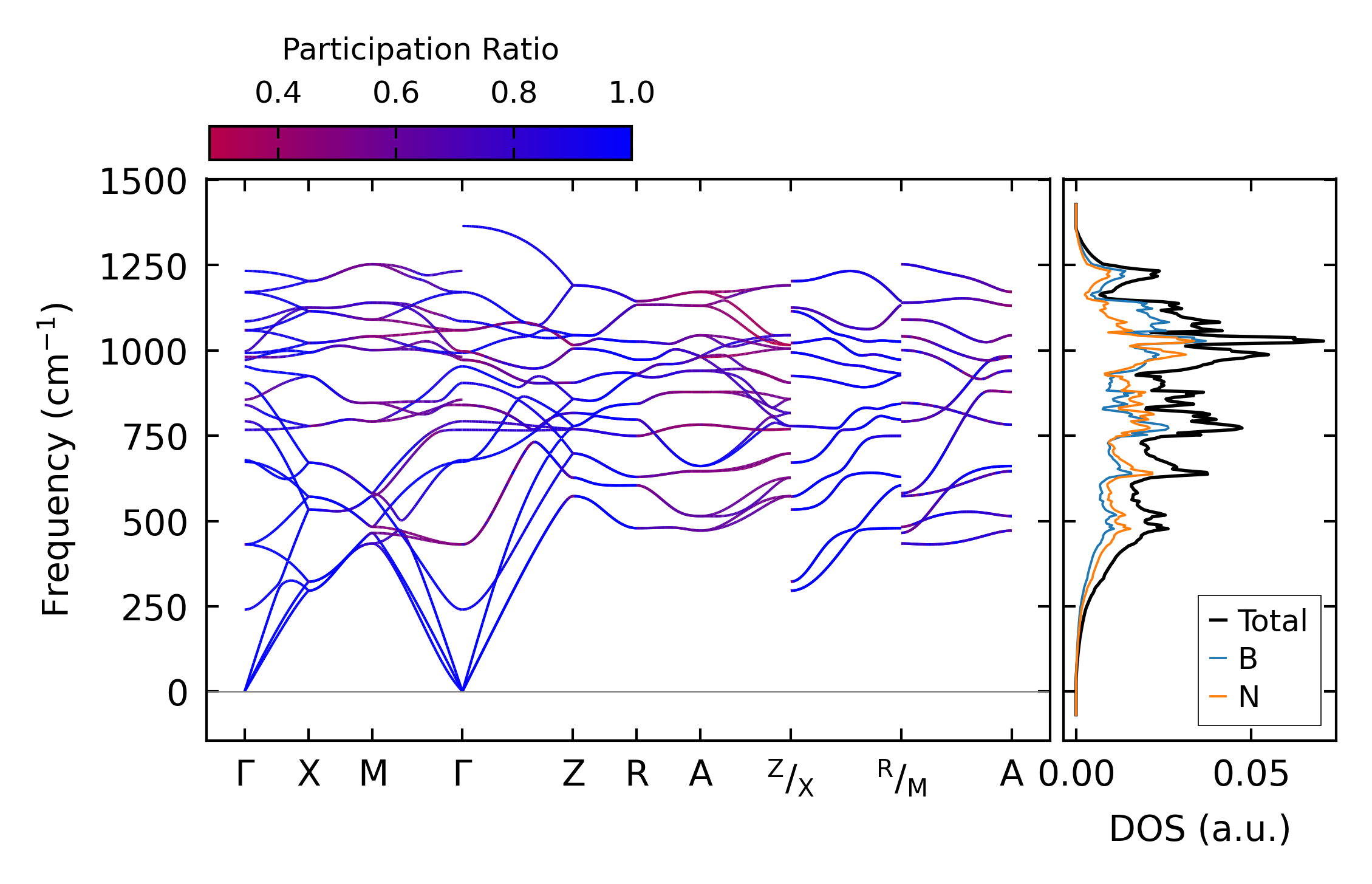

../../_images/fig_bandos_pr14842.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14842.png — (b) Thermodynamic properties

Grüneisen parameters

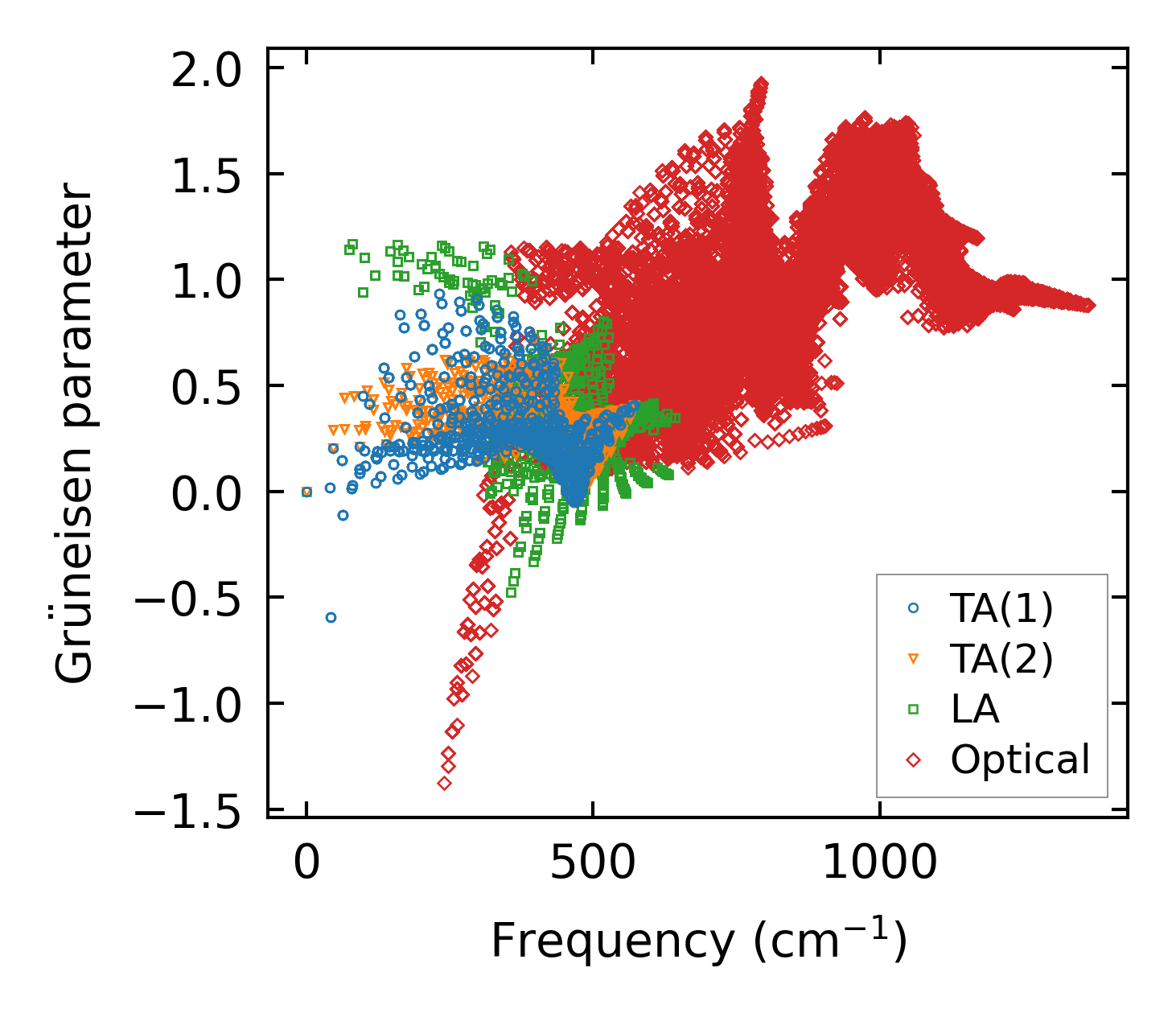

../../_images/fig_gru_all6364.png — (a) Grüneisen parameters

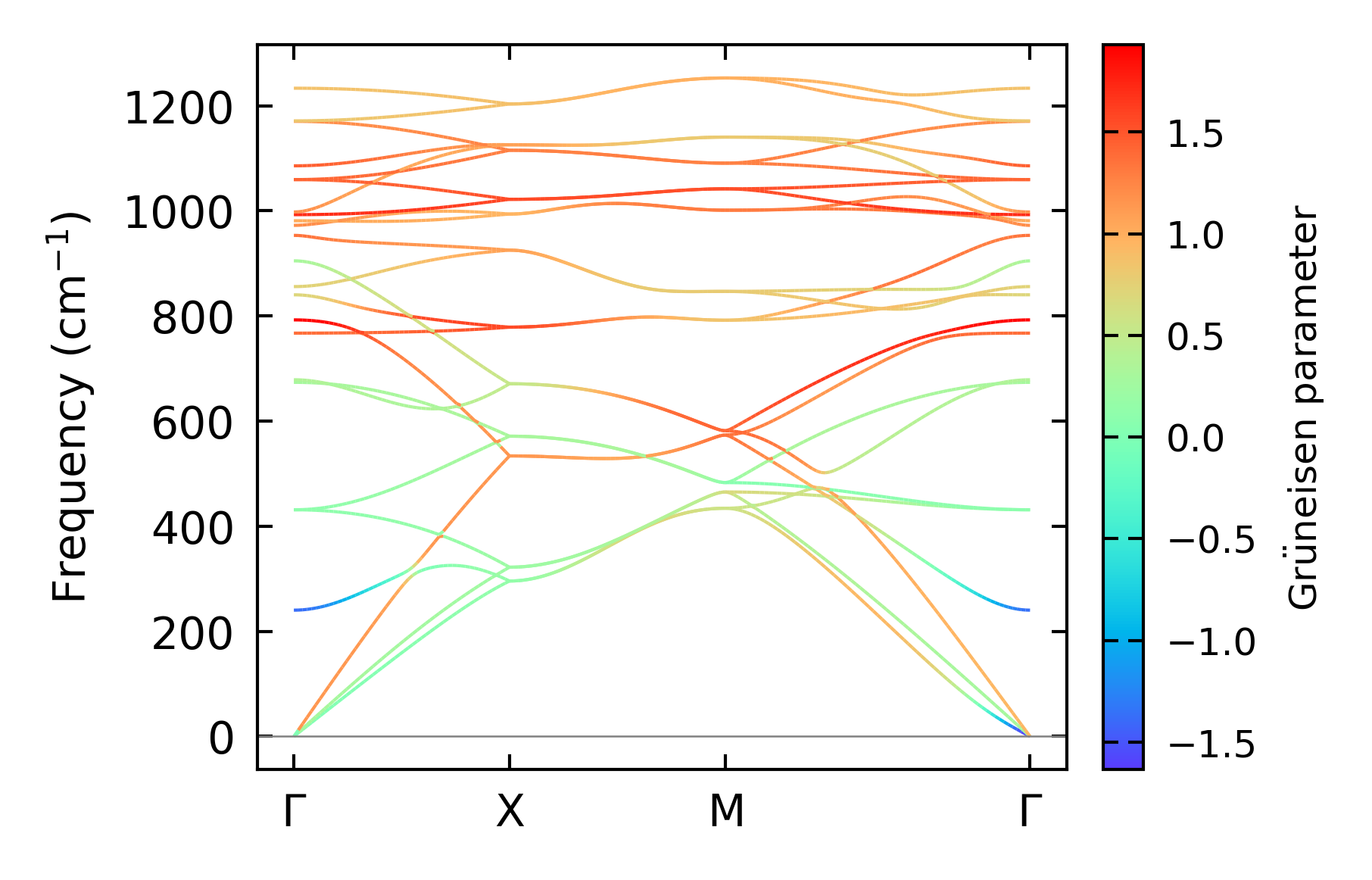

../../_images/fig_gruneisen6364.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x16x28, supercell: 2x2x4

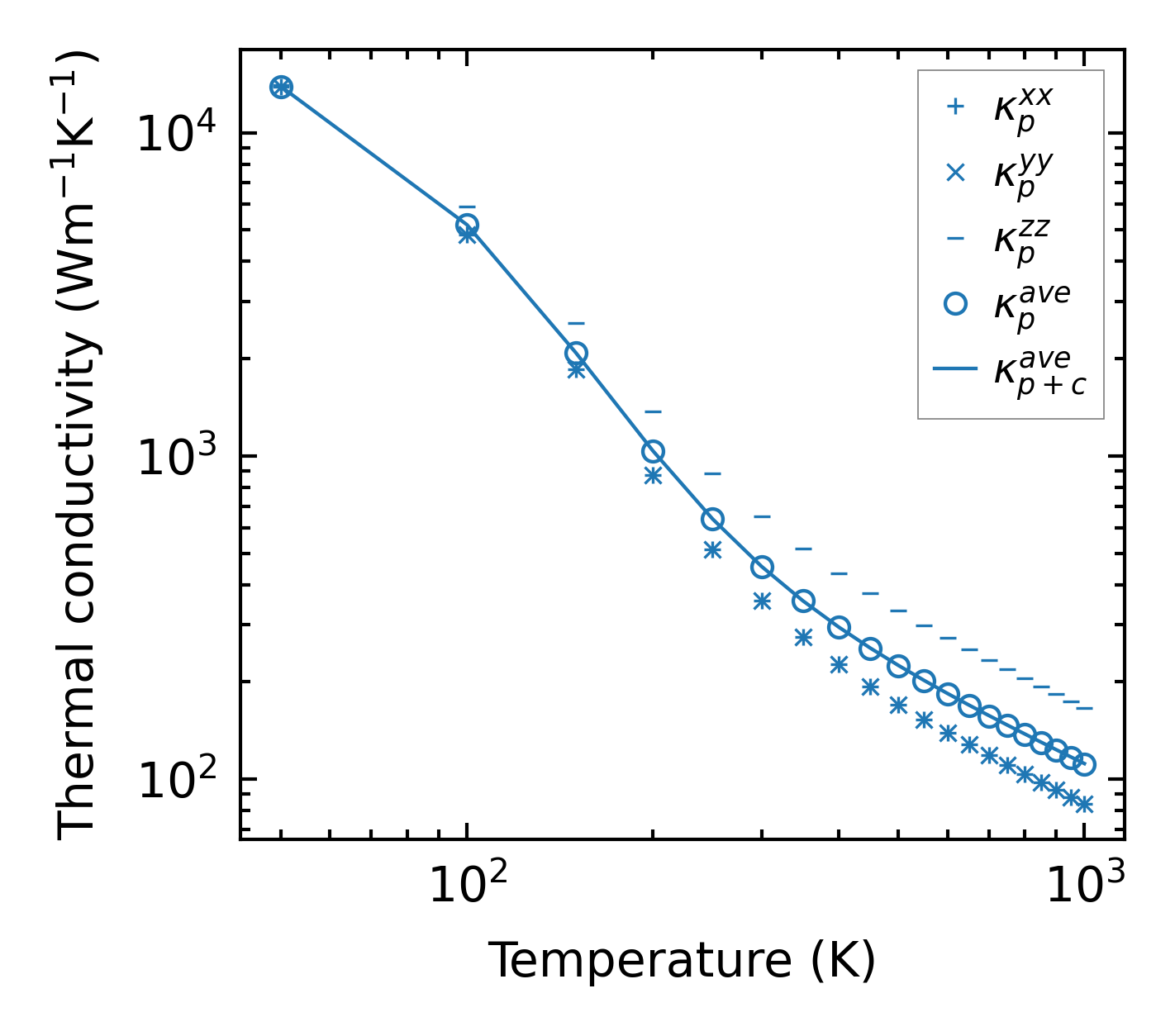

../../_images/fig_kappa11968.png — (a) Temperature-dependent lattice thermal conductivity

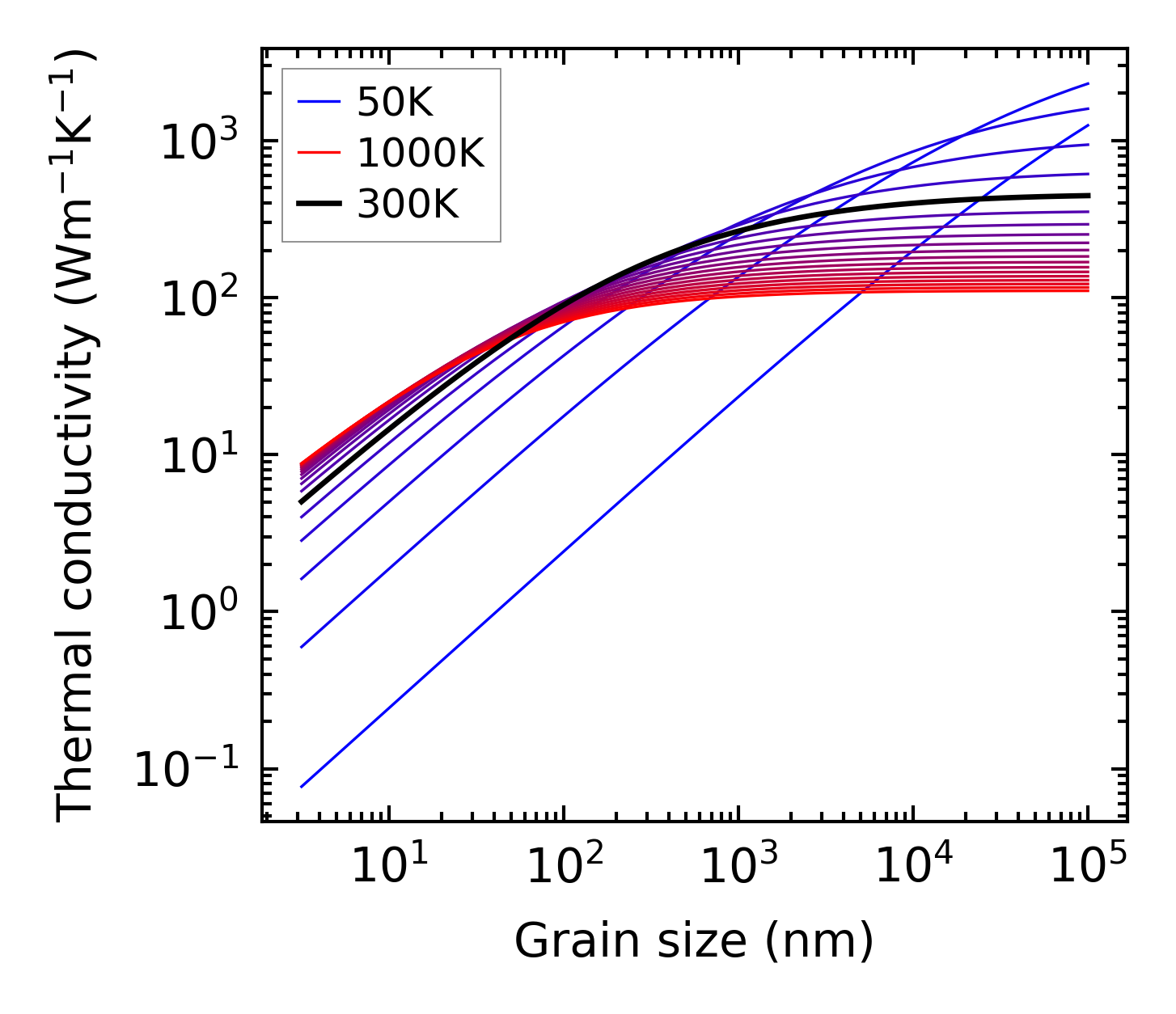

../../_images/fig_kappa_vs_grain_size6440.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

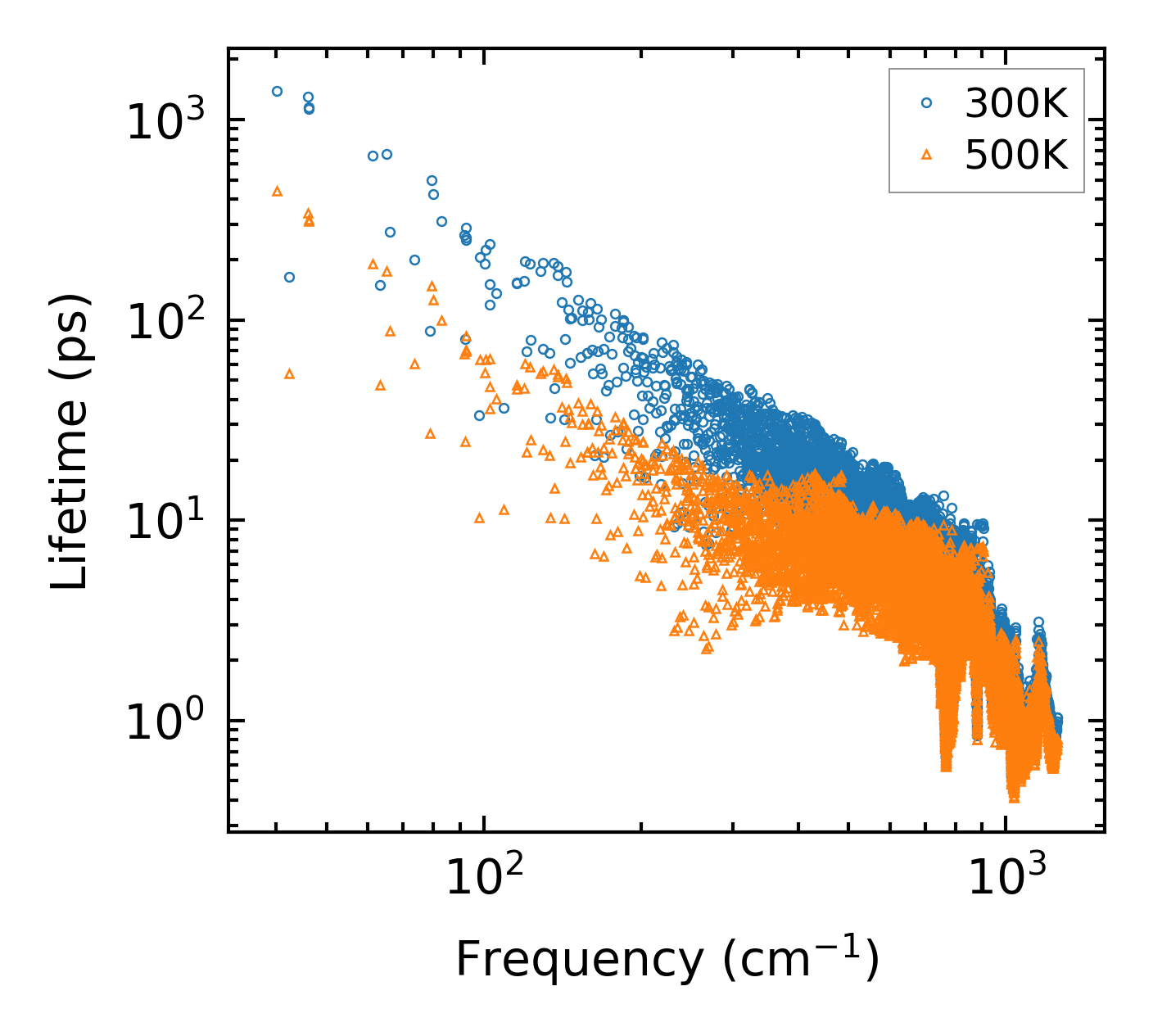

../../_images/fig_lifetime6299.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6298.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6299.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6298.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

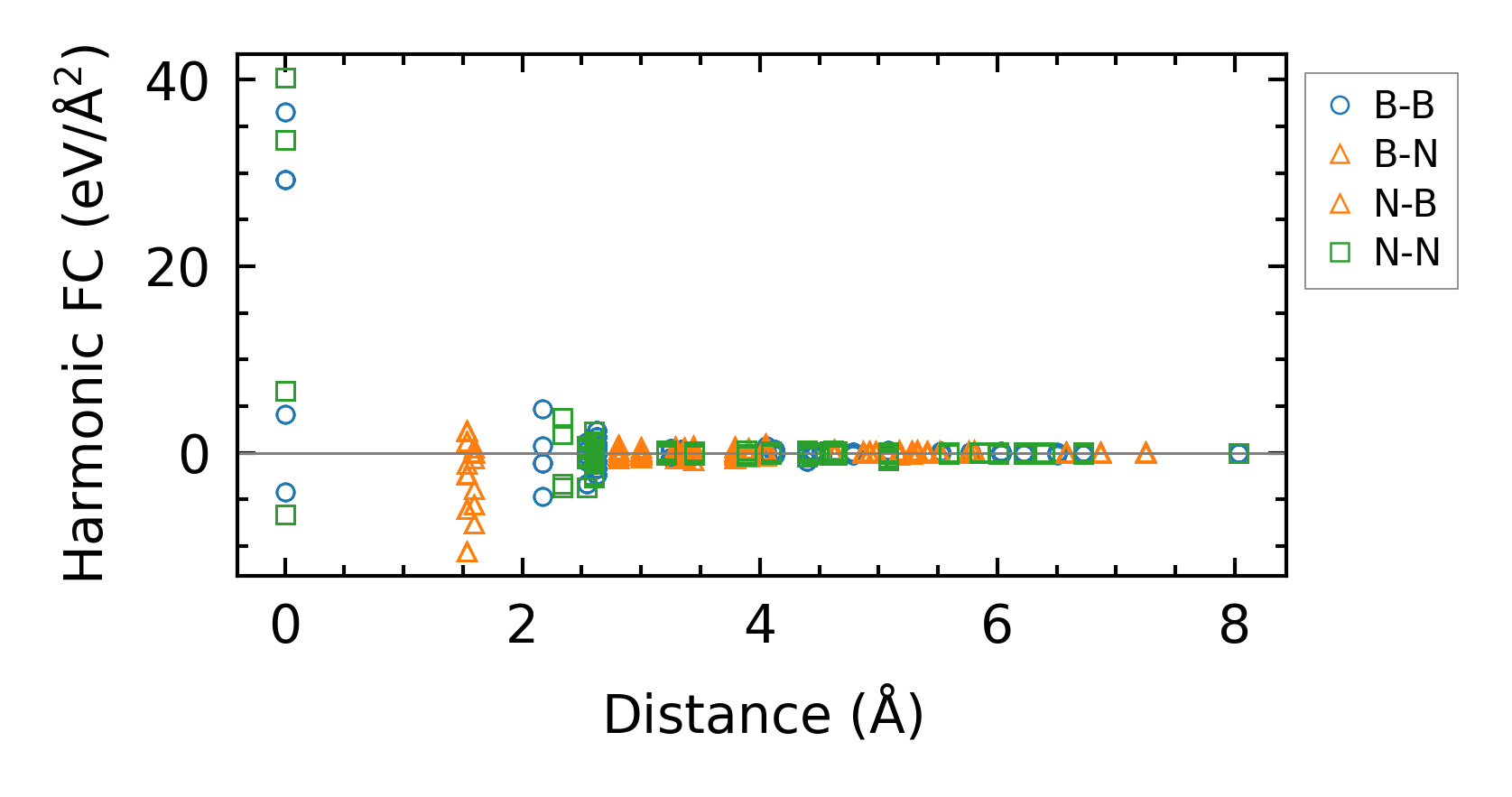

../../_images/fig_fc214460.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa11969.png — (a) Temperature-dependent lattice thermal conductivity

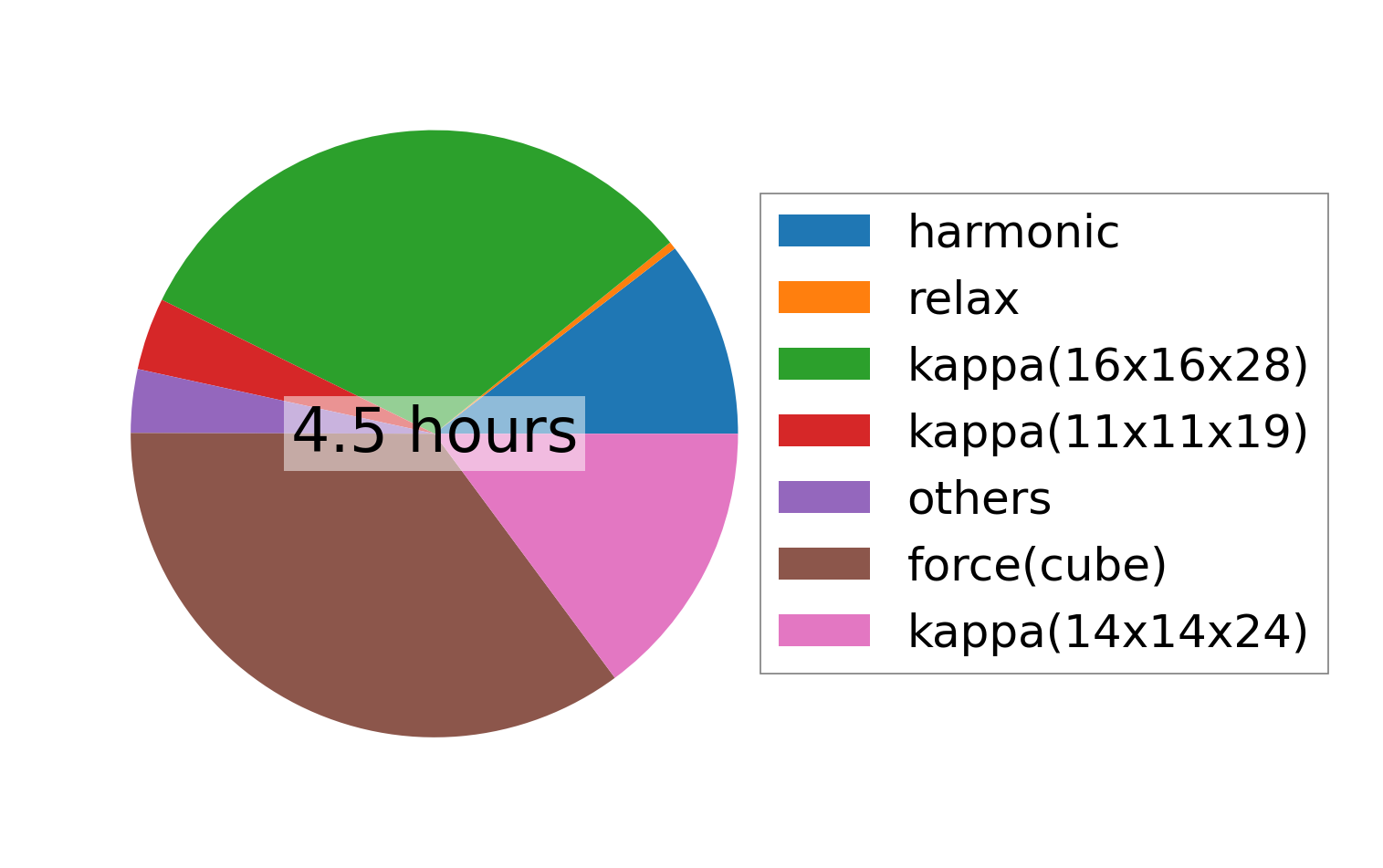

../../_images/fig_times24632.png — (b) Computation time
