mp-13946-2/Rb2ZrF6/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-13946-2.tar.gz

Equation of state

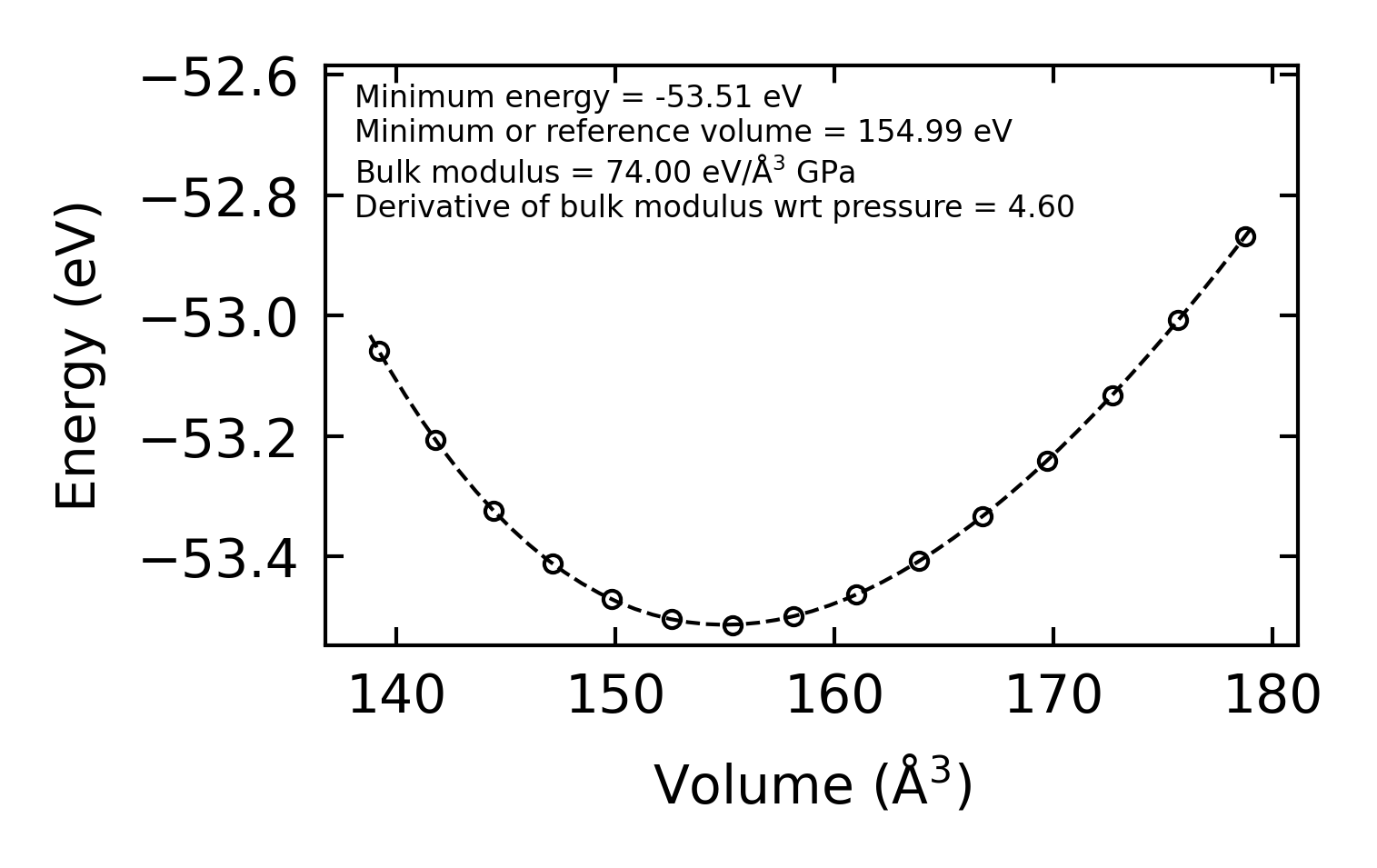

../../_images/fig_bm7524.png — (a) Equation of state

Harmonic properties

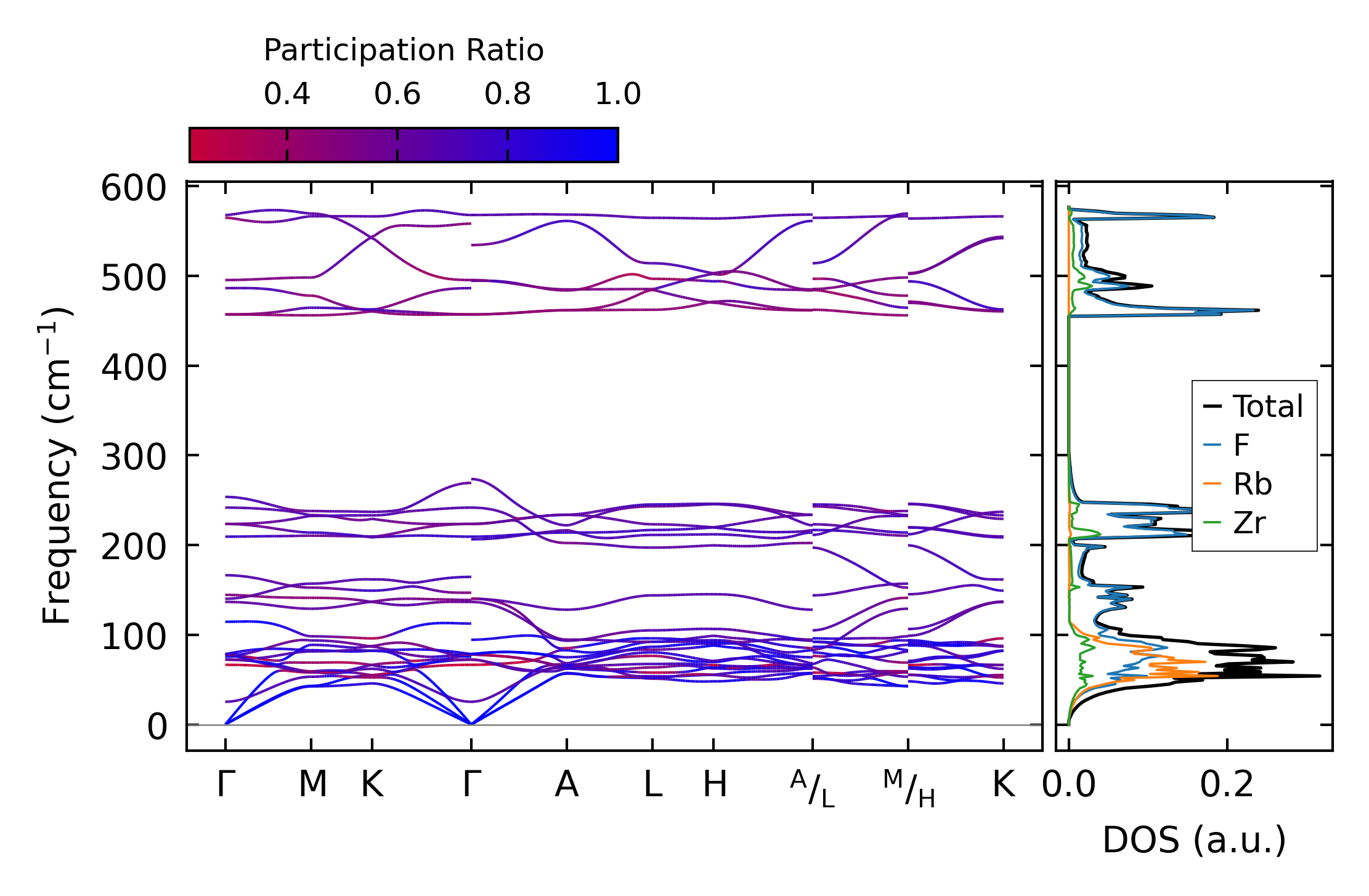

../../_images/fig_bandos_pr14998.png — (a) Phonon dispersion with participation ratio and DOS

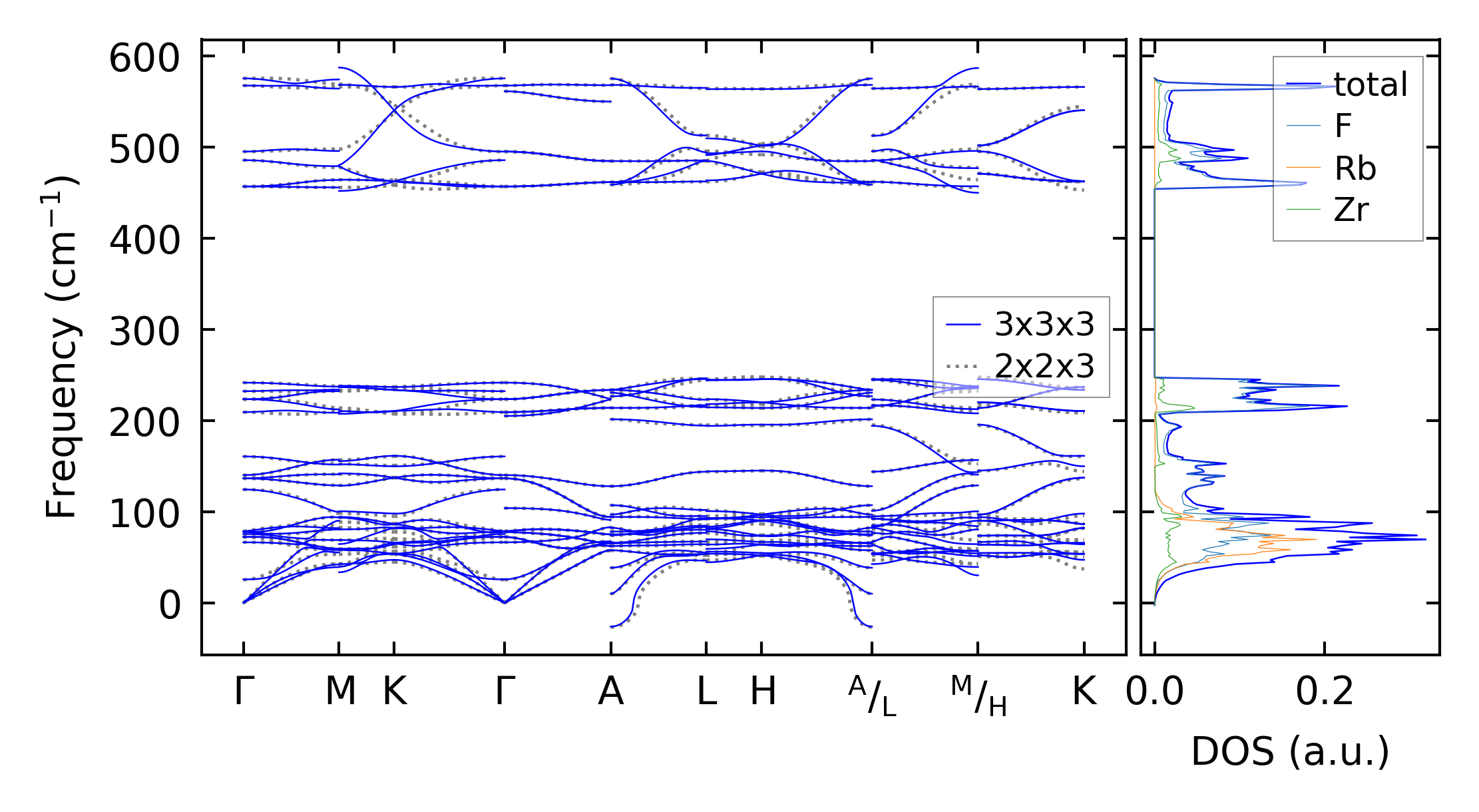

../../_images/fig_bandos19355.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo14997.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6441.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6441.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x15, supercell: 2x2x3

../../_images/fig_kappa12113.png — (a) Temperature-dependent lattice thermal conductivity

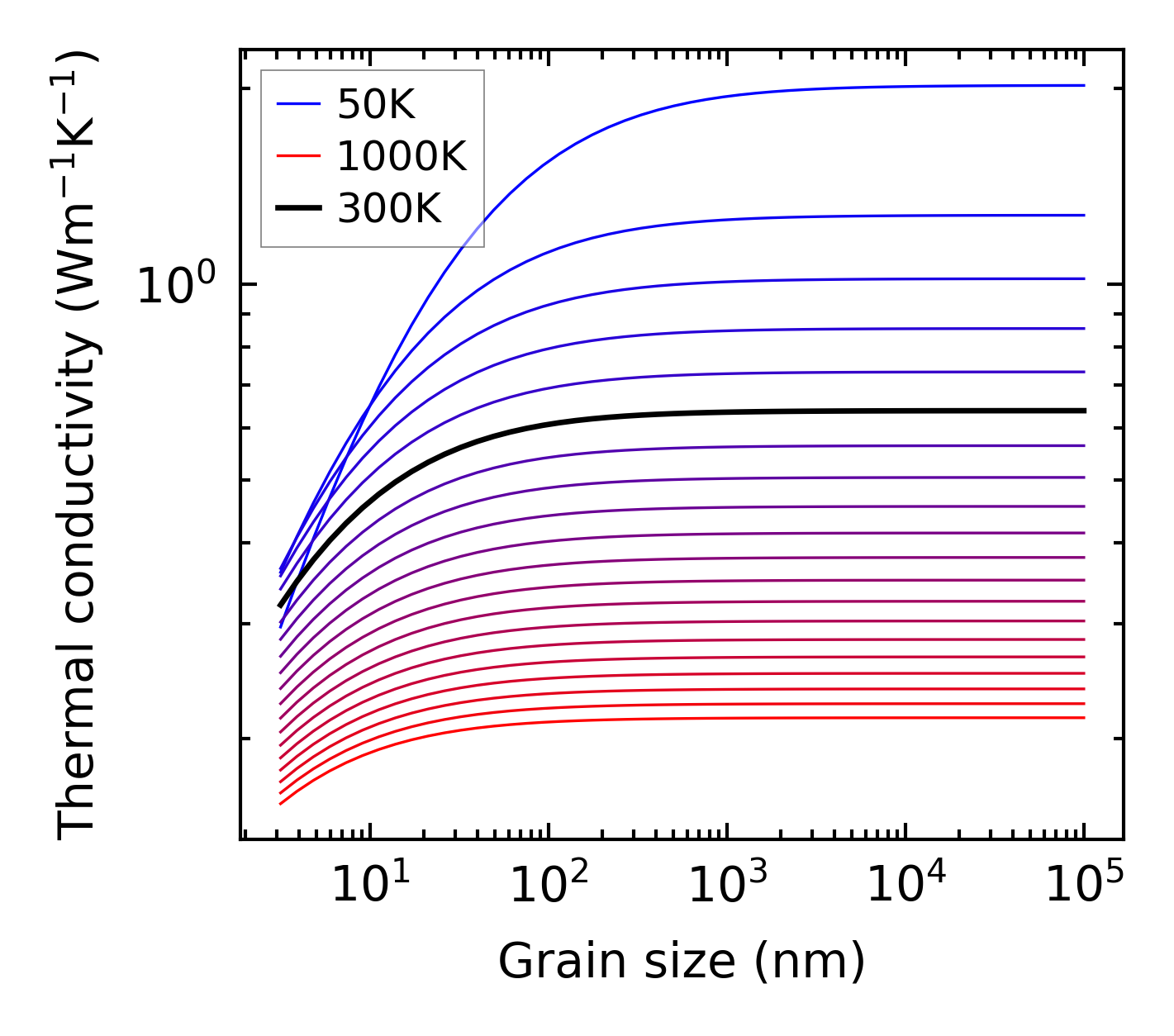

../../_images/fig_kappa_vs_grain_size6518.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

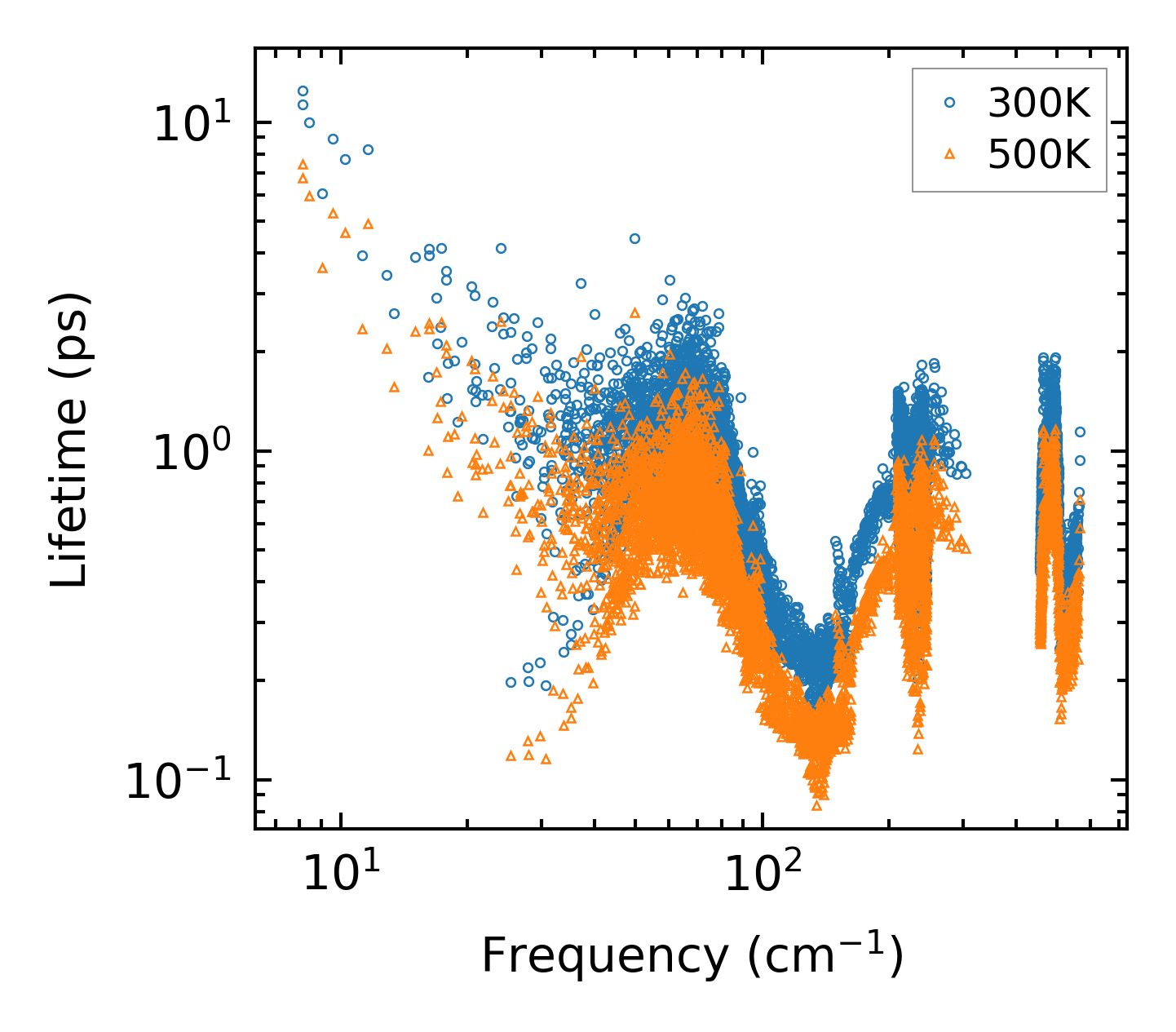

../../_images/fig_lifetime6375.png — (a) Phonon lifetime due to phonon-phonon scattering

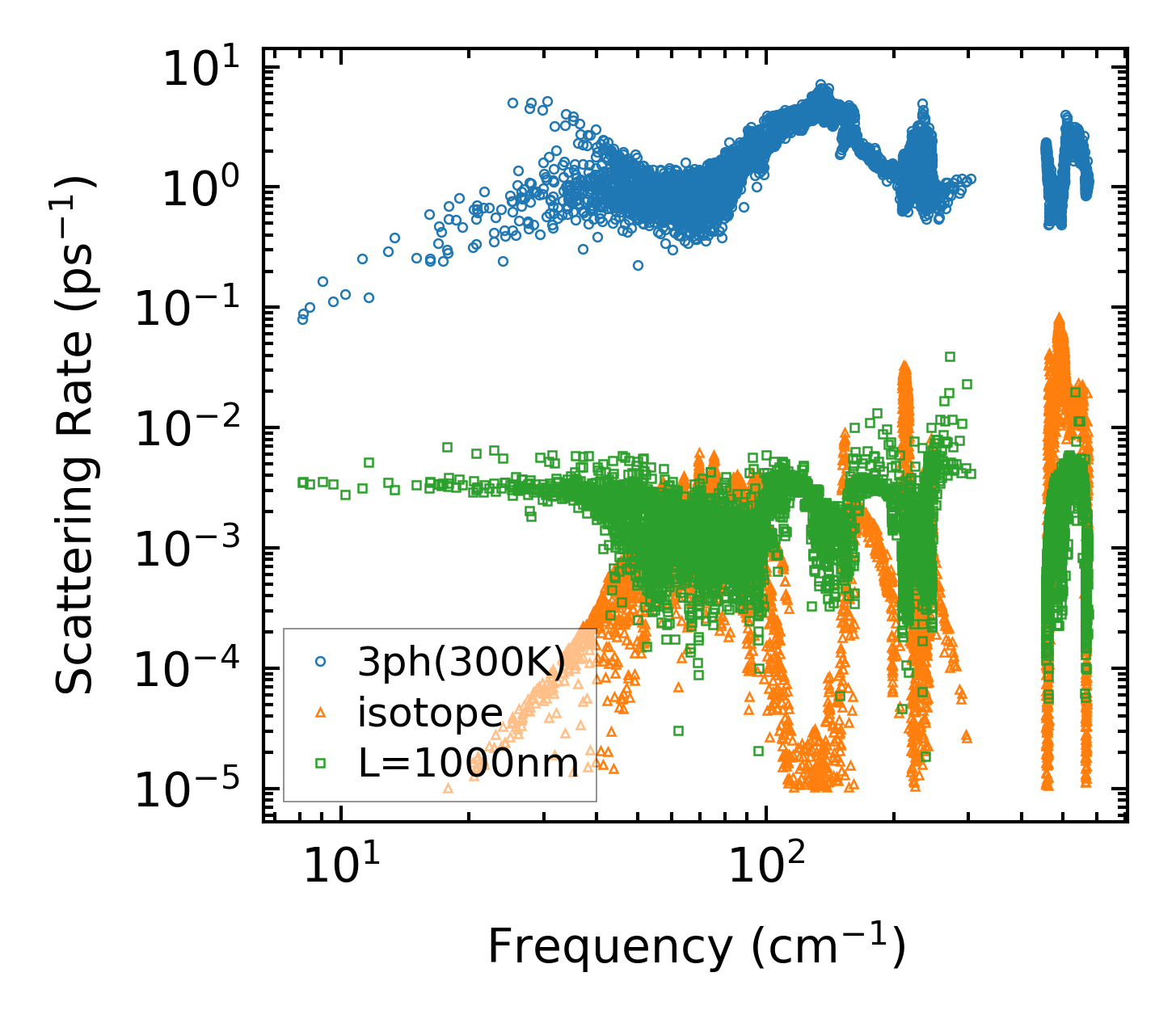

../../_images/fig_scat_rates6374.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

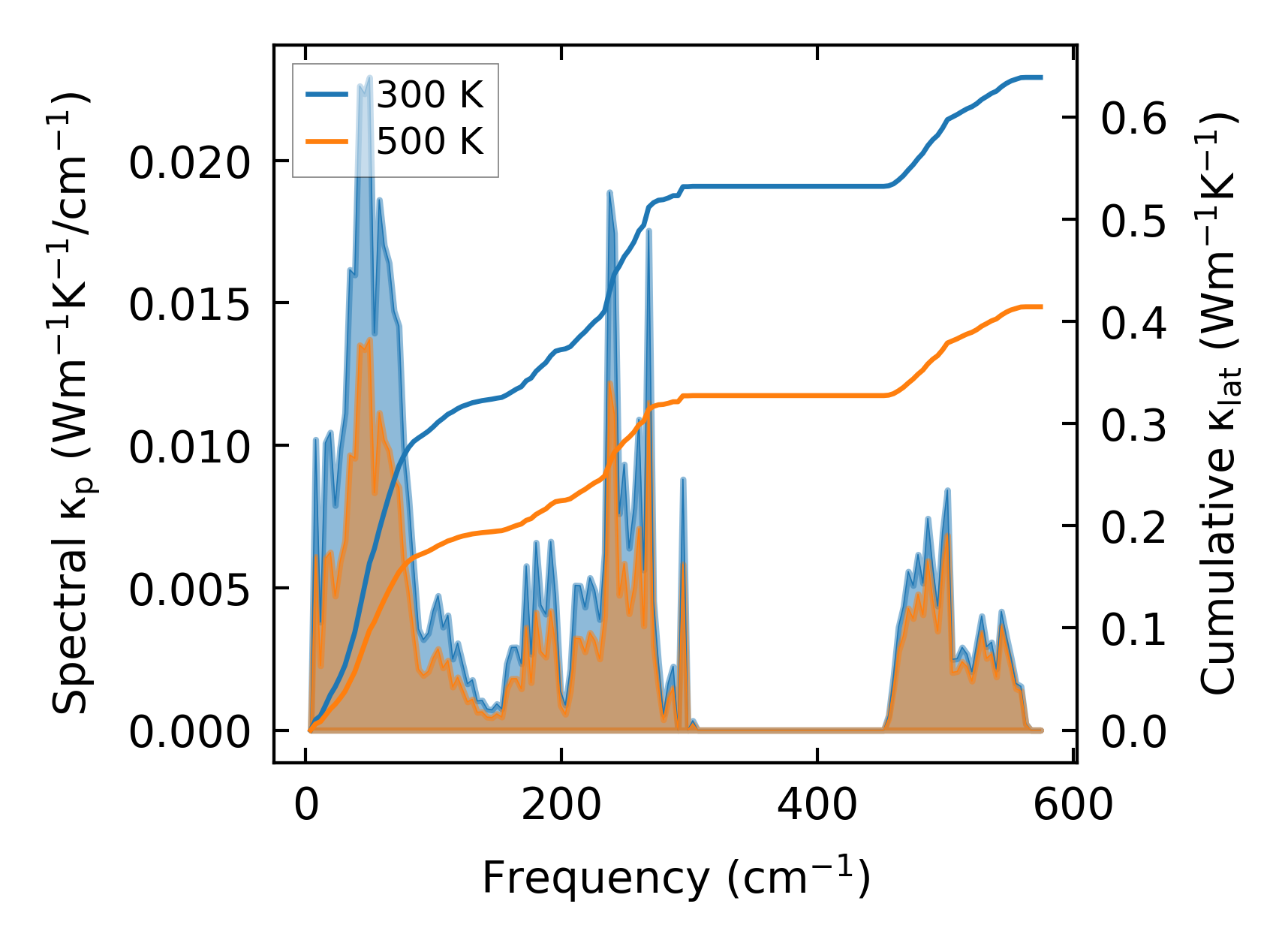

../../_images/fig_cumu_frequency6375.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6374.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214615.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa12114.png — (a) Temperature-dependent lattice thermal conductivity

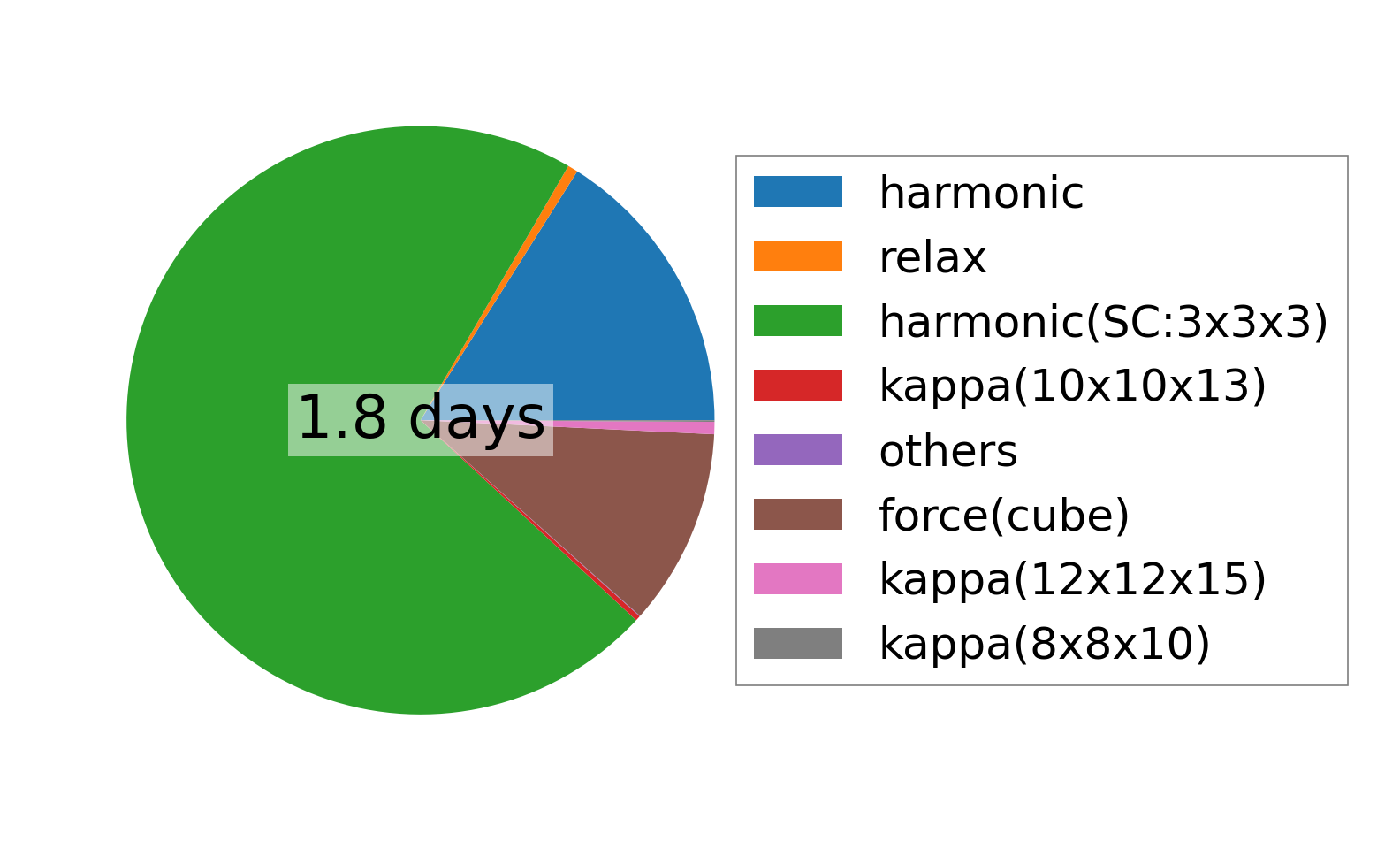

../../_images/fig_times24837.png — (b) Computation time
