mp-13610/ZnPbF6/anharm

Space group: R-3 (148)
Link: Materials Project
Download: mp-13610.tar.gz

Harmonic properties

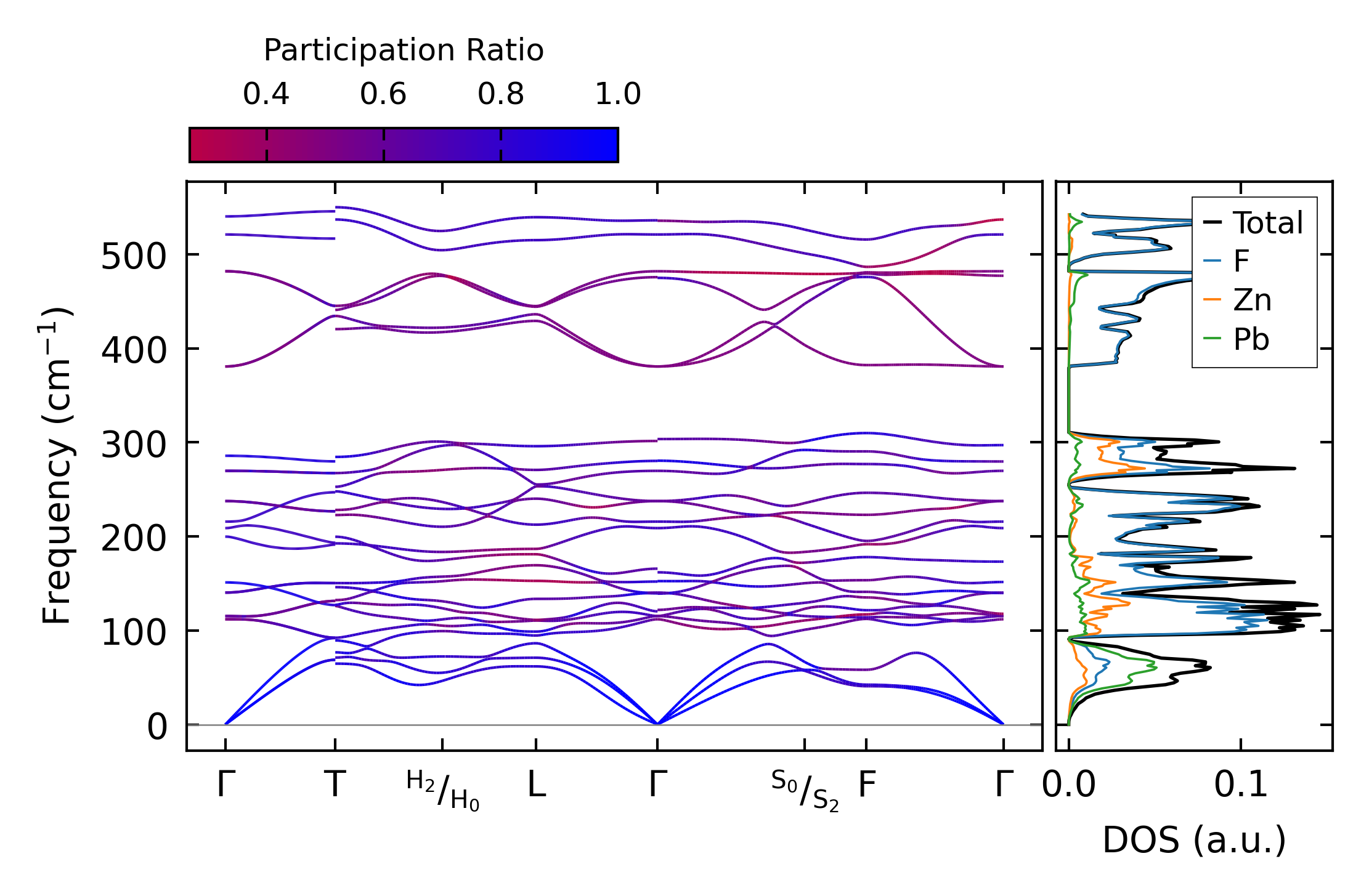

../../_images/fig_bandos_pr14908.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14908.png — (b) Thermodynamic properties

Grüneisen parameters

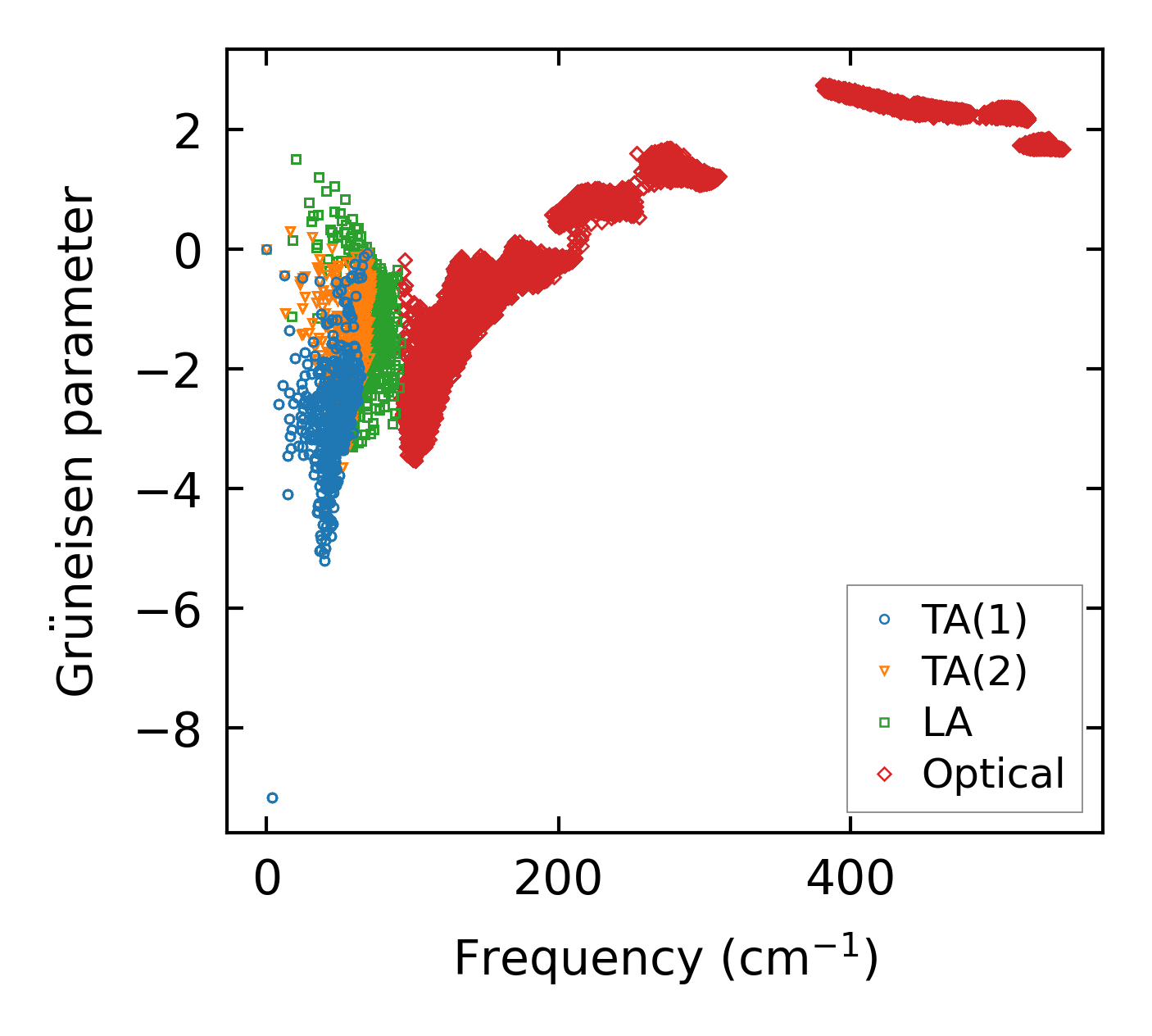

../../_images/fig_gru_all6400.png — (a) Grüneisen parameters

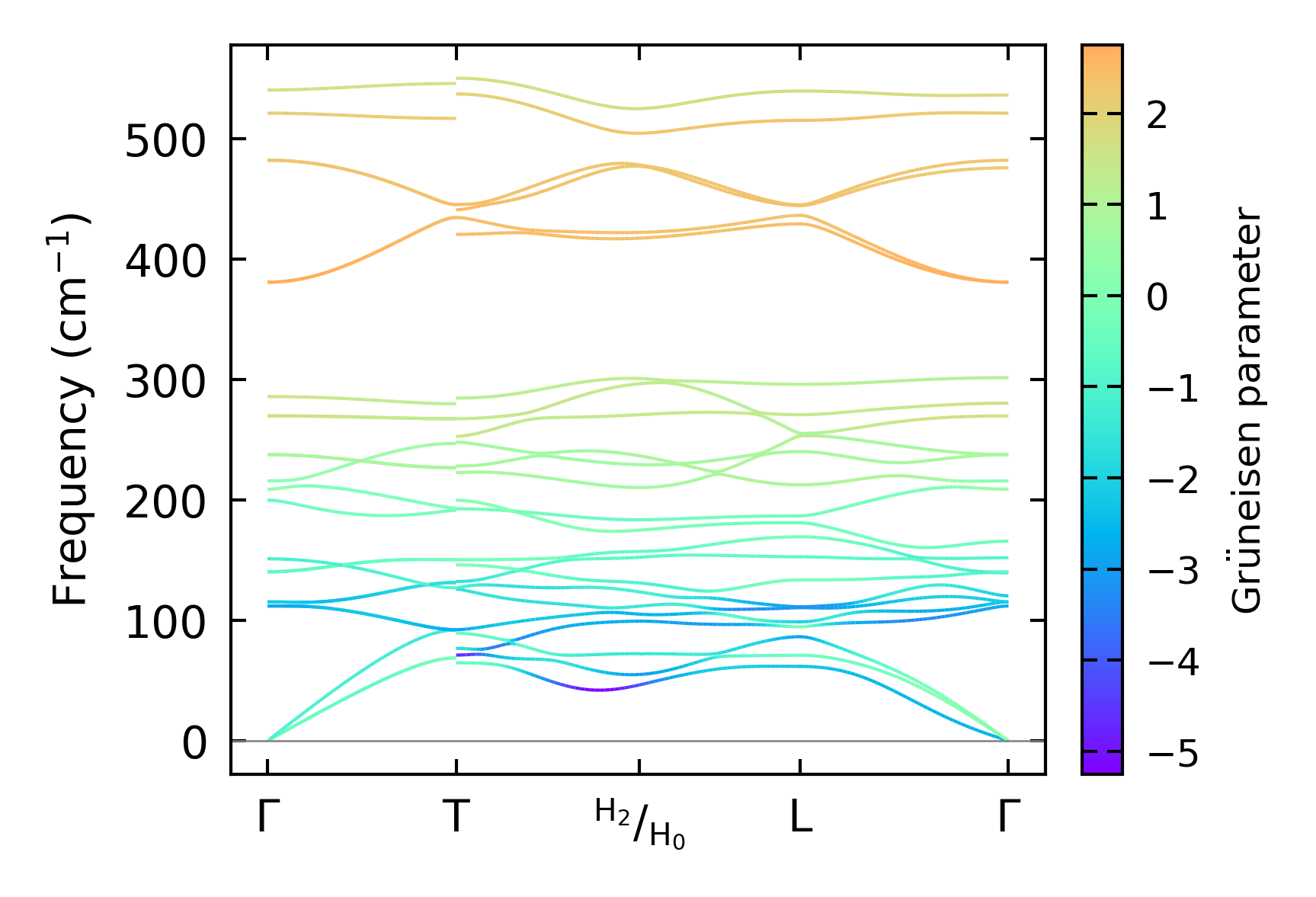

../../_images/fig_gruneisen6400.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 2x2x1

../../_images/fig_kappa12037.png — (a) Temperature-dependent lattice thermal conductivity

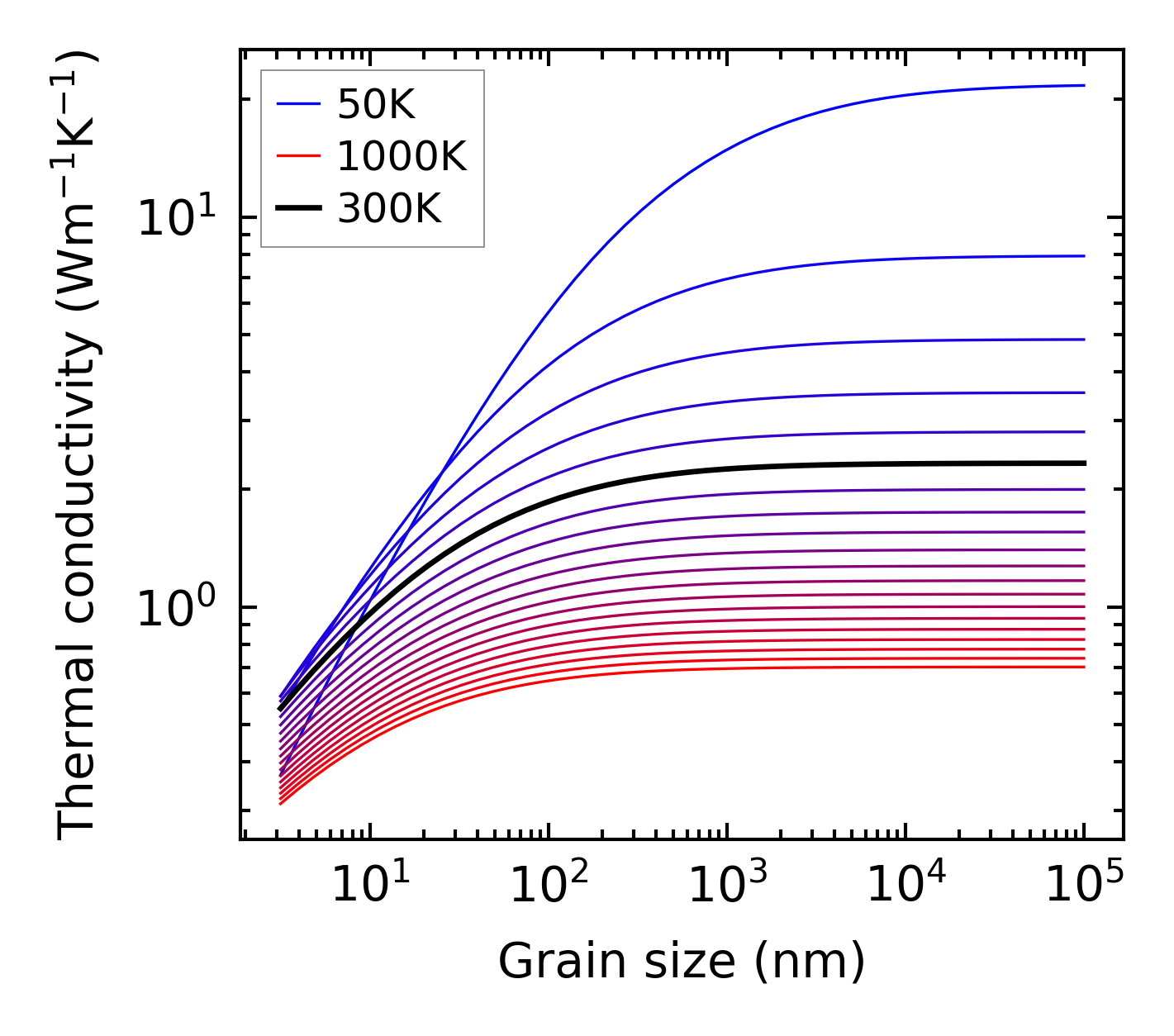

../../_images/fig_kappa_vs_grain_size6477.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

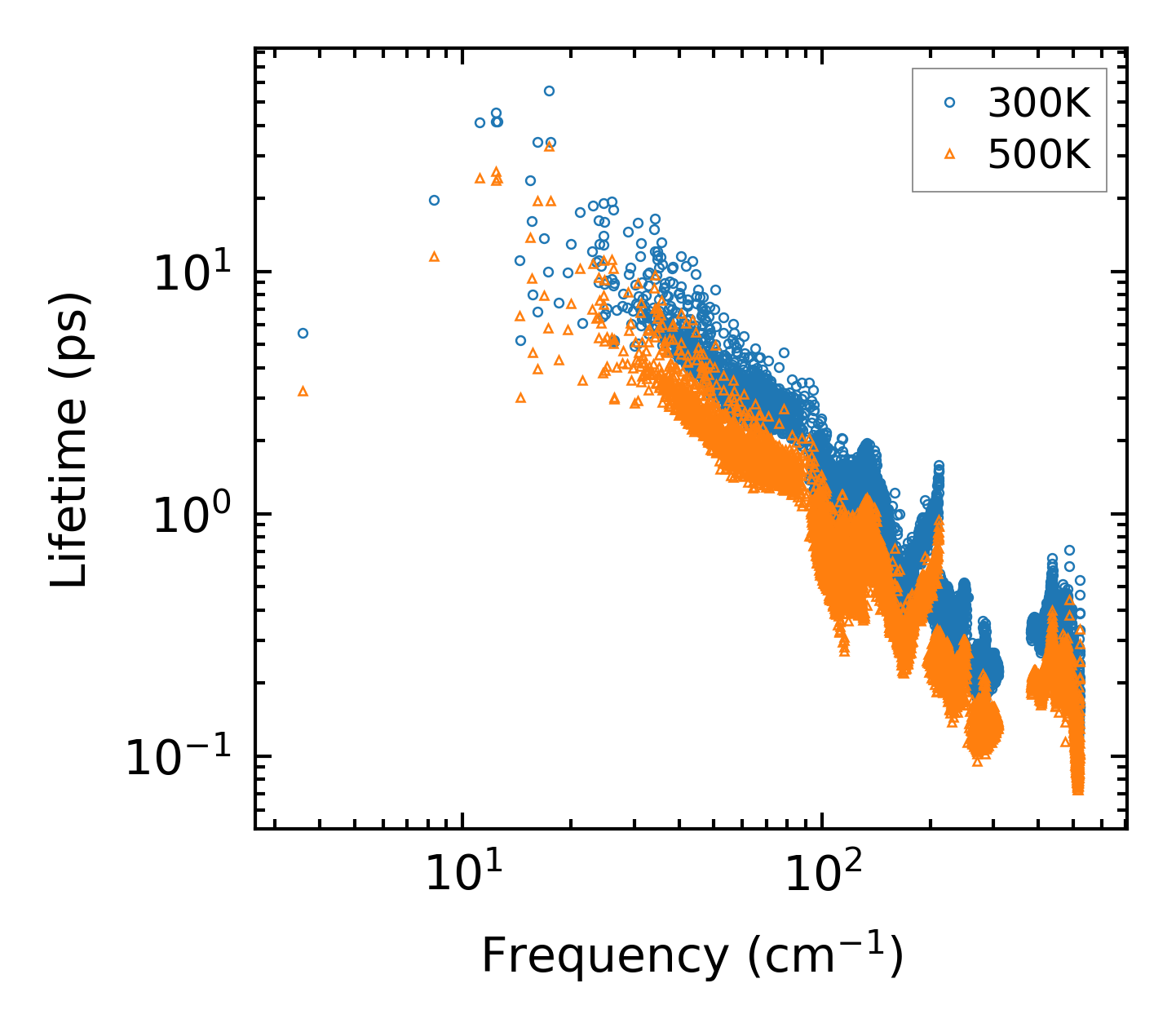

../../_images/fig_lifetime6335.png — (a) Phonon lifetime due to phonon-phonon scattering

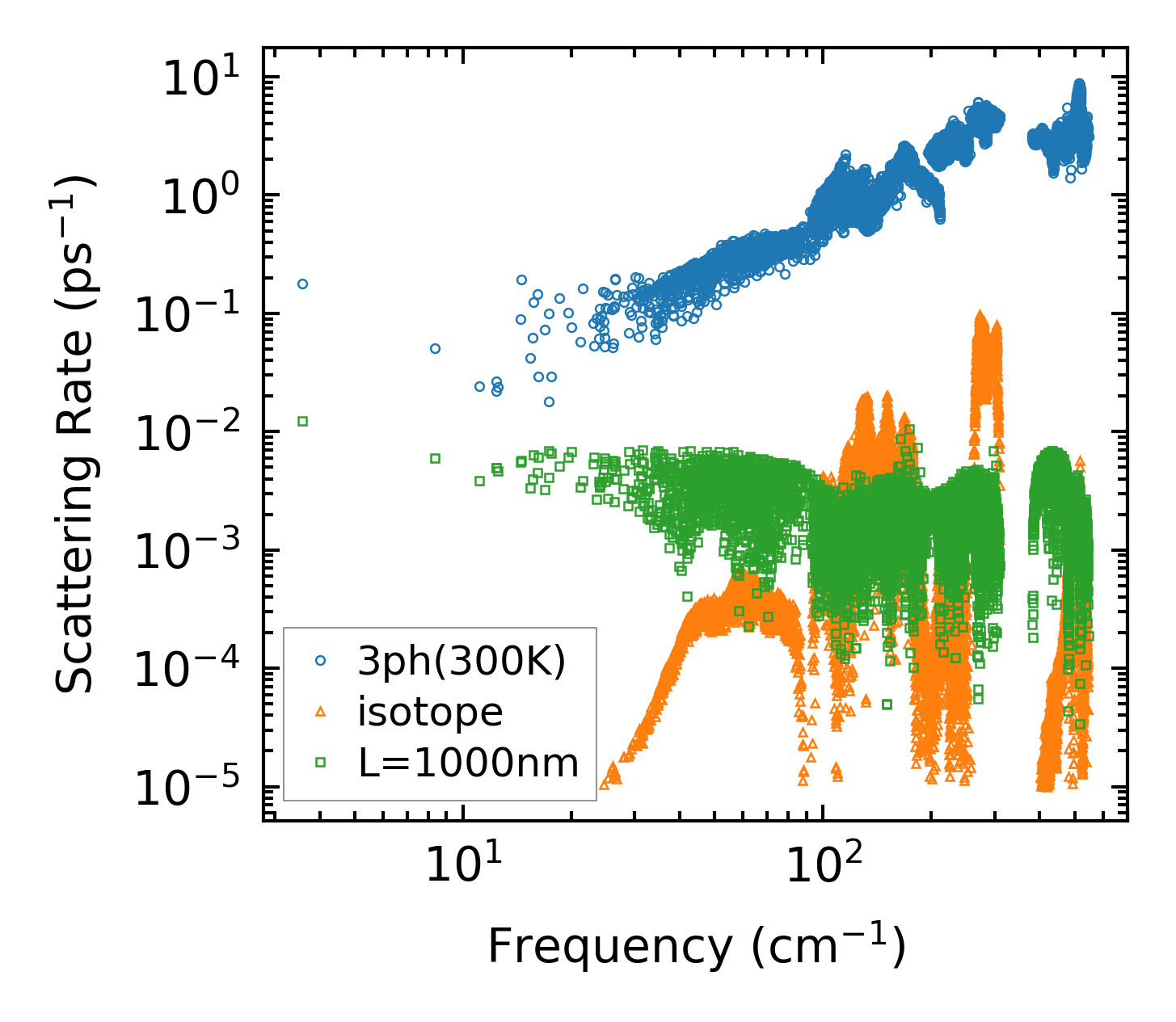

../../_images/fig_scat_rates6334.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6335.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6334.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214525.png — (a) Force constants w.r.t atomic distance

Summary

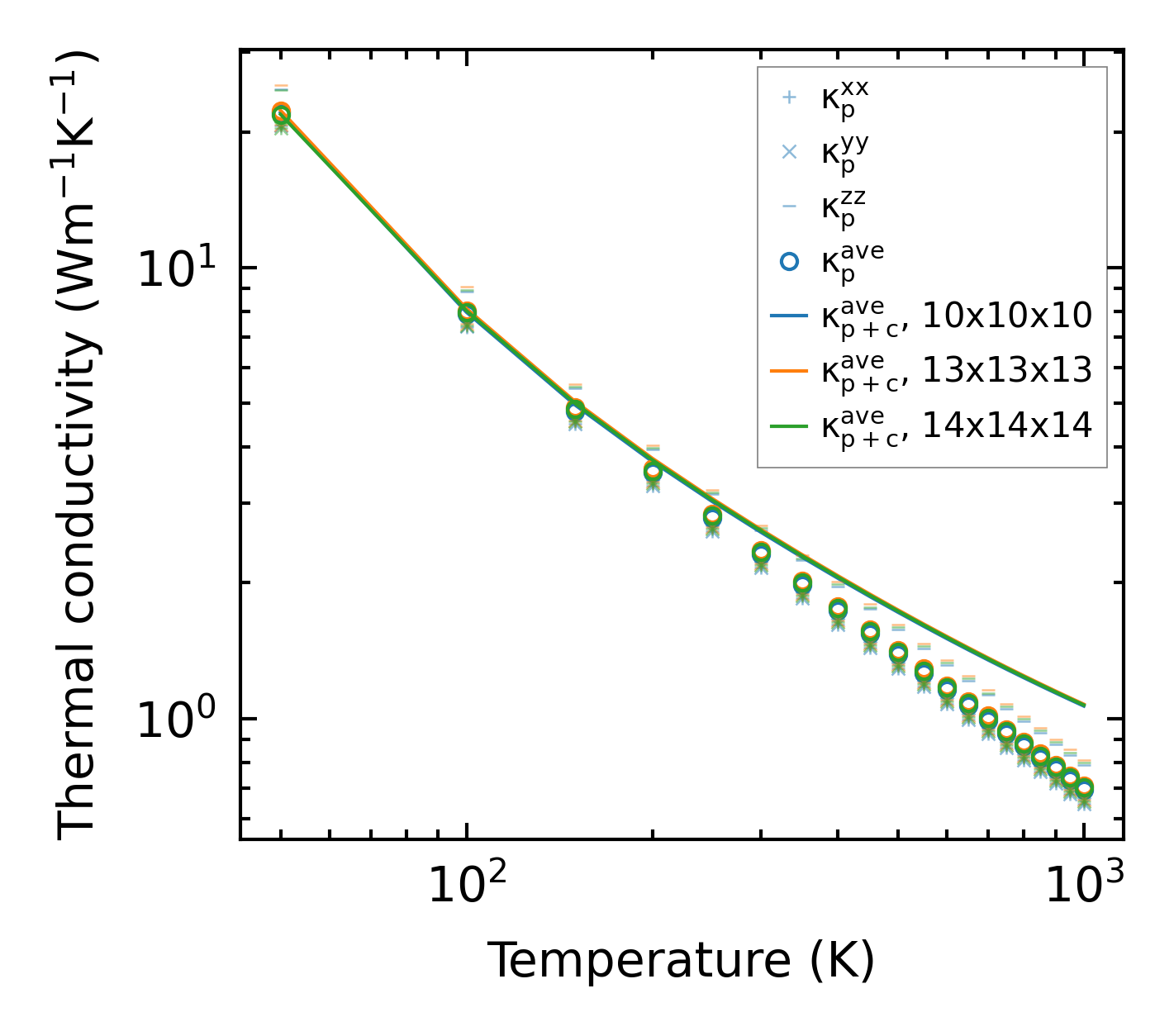

../../_images/fig_kappa12038.png — (a) Temperature-dependent lattice thermal conductivity

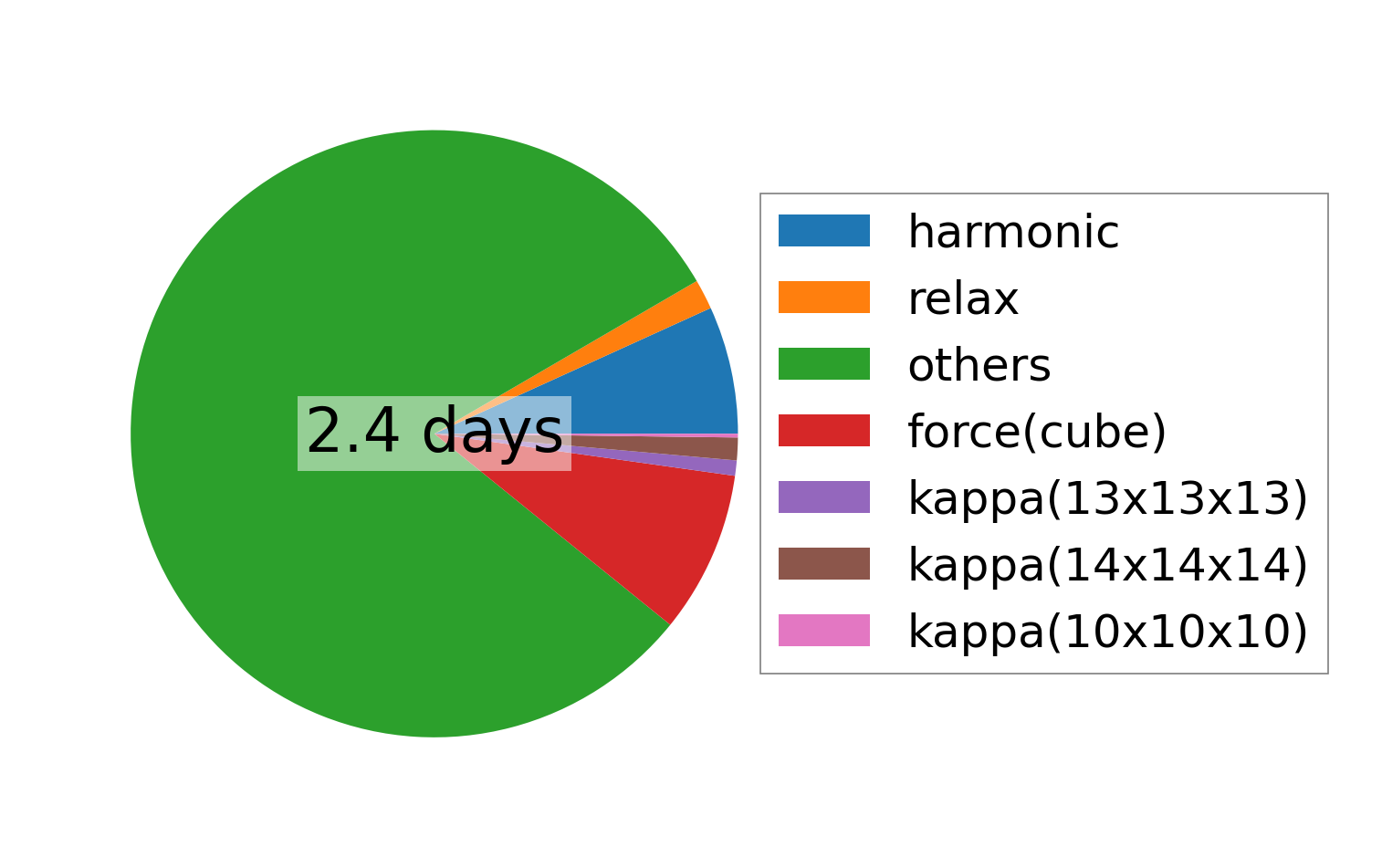

../../_images/fig_times24722.png — (b) Computation time
