mp-13984/CdPdF6/anharm

Space group: R-3 (148)
Link: Materials Project
Download: mp-13984.tar.gz

Harmonic properties

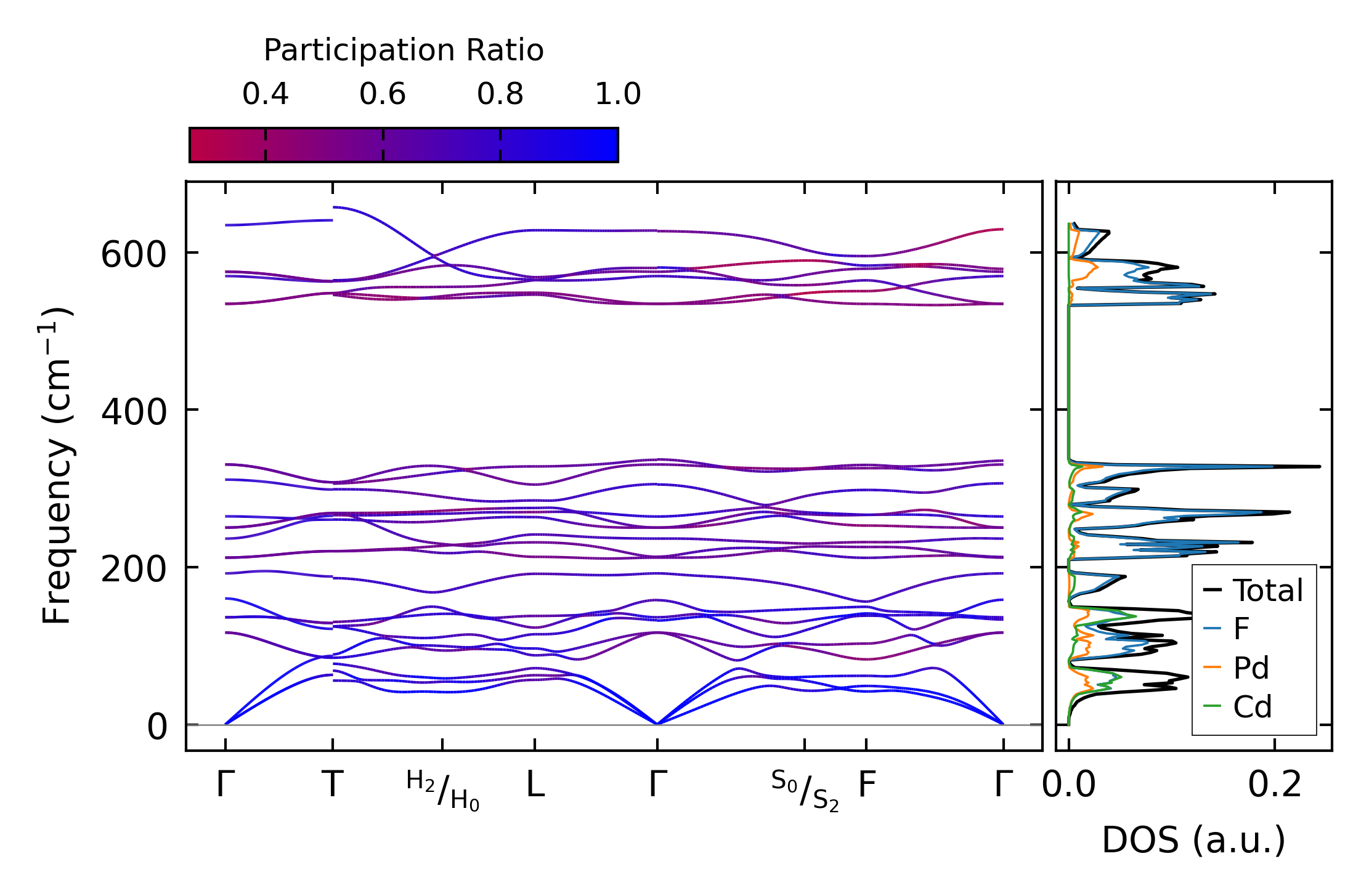

../../_images/fig_bandos_pr15024.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15023.png — (b) Thermodynamic properties

Grüneisen parameters

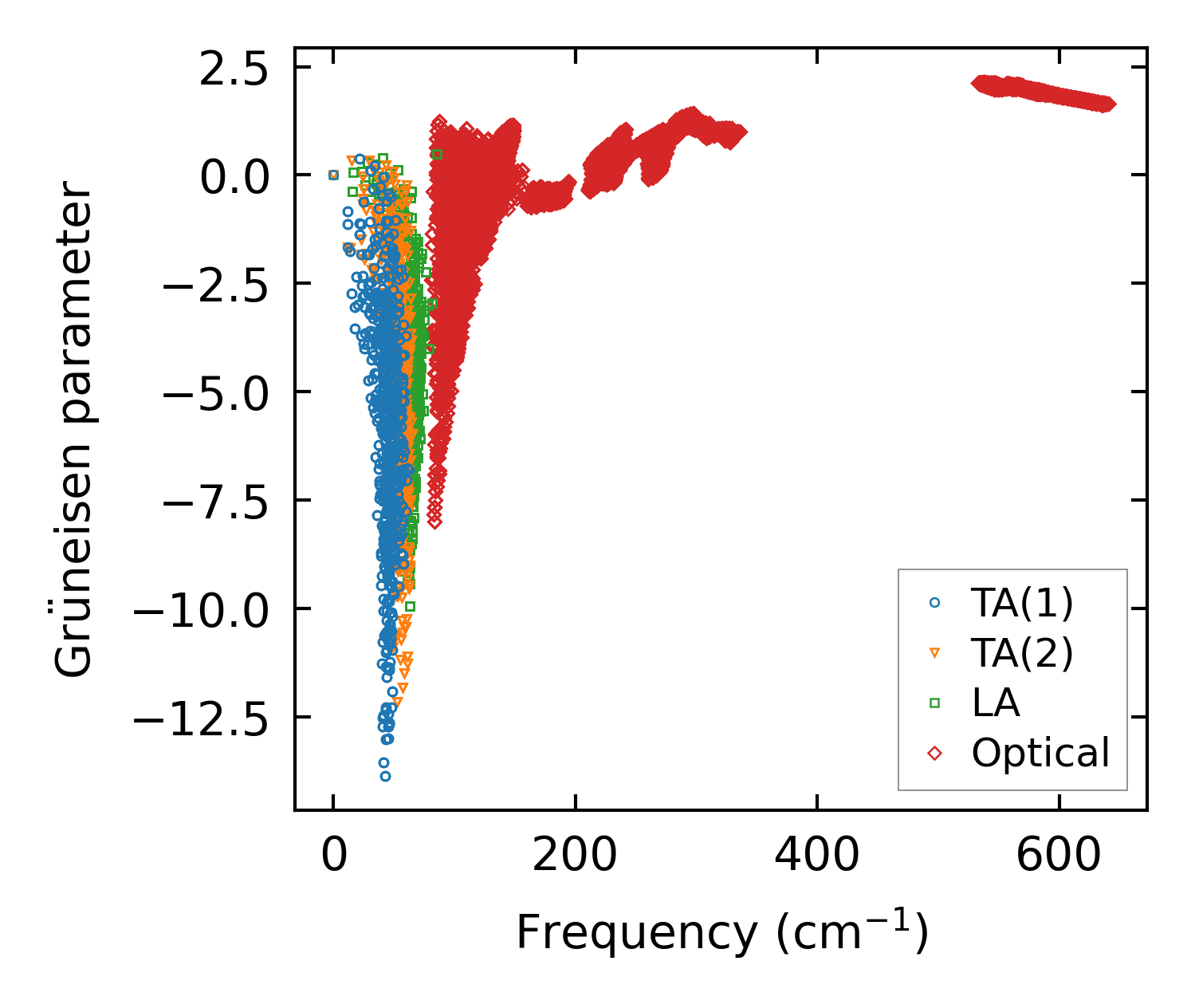

../../_images/fig_gru_all6455.png — (a) Grüneisen parameters

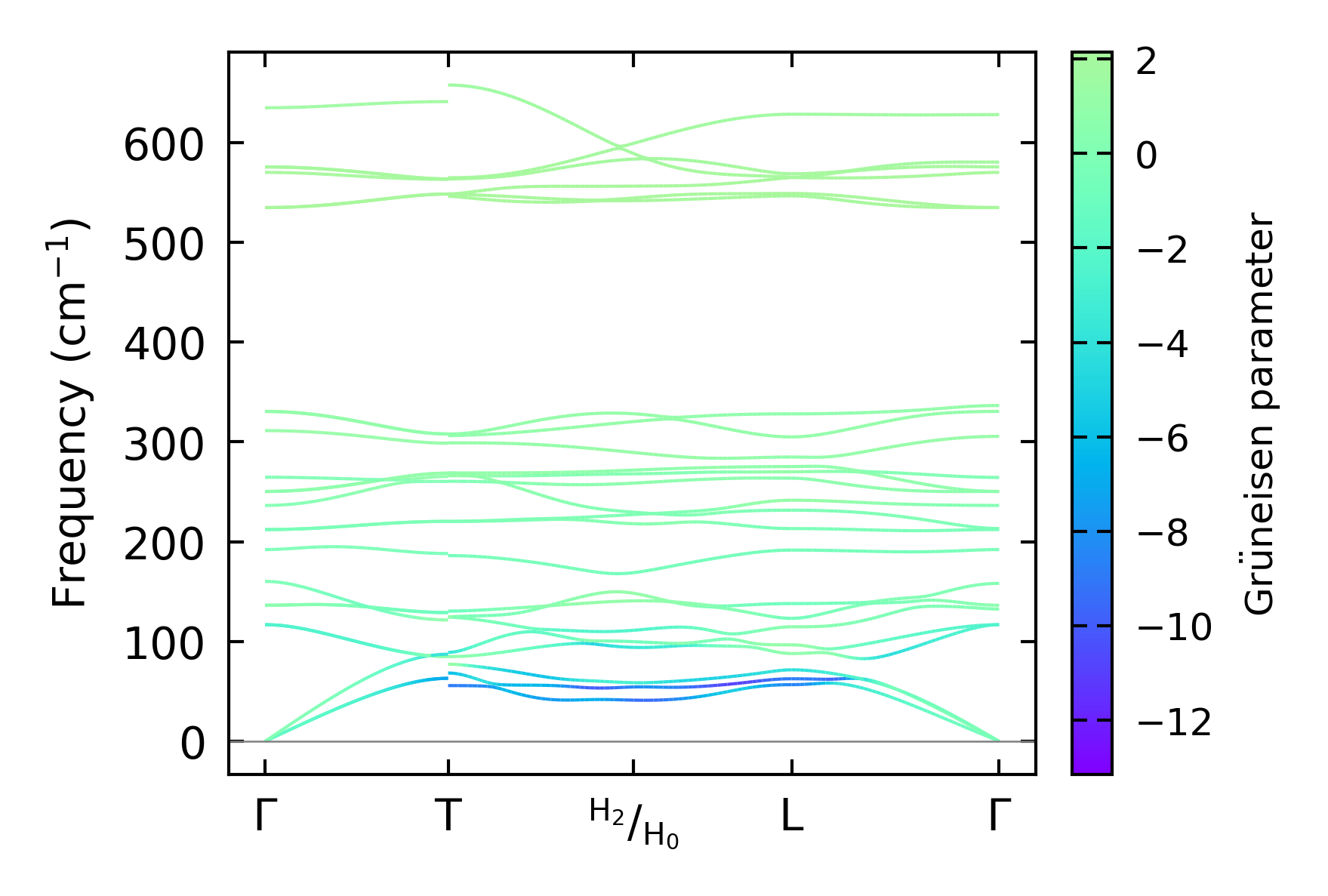

../../_images/fig_gruneisen6455.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x15, supercell: 2x2x1

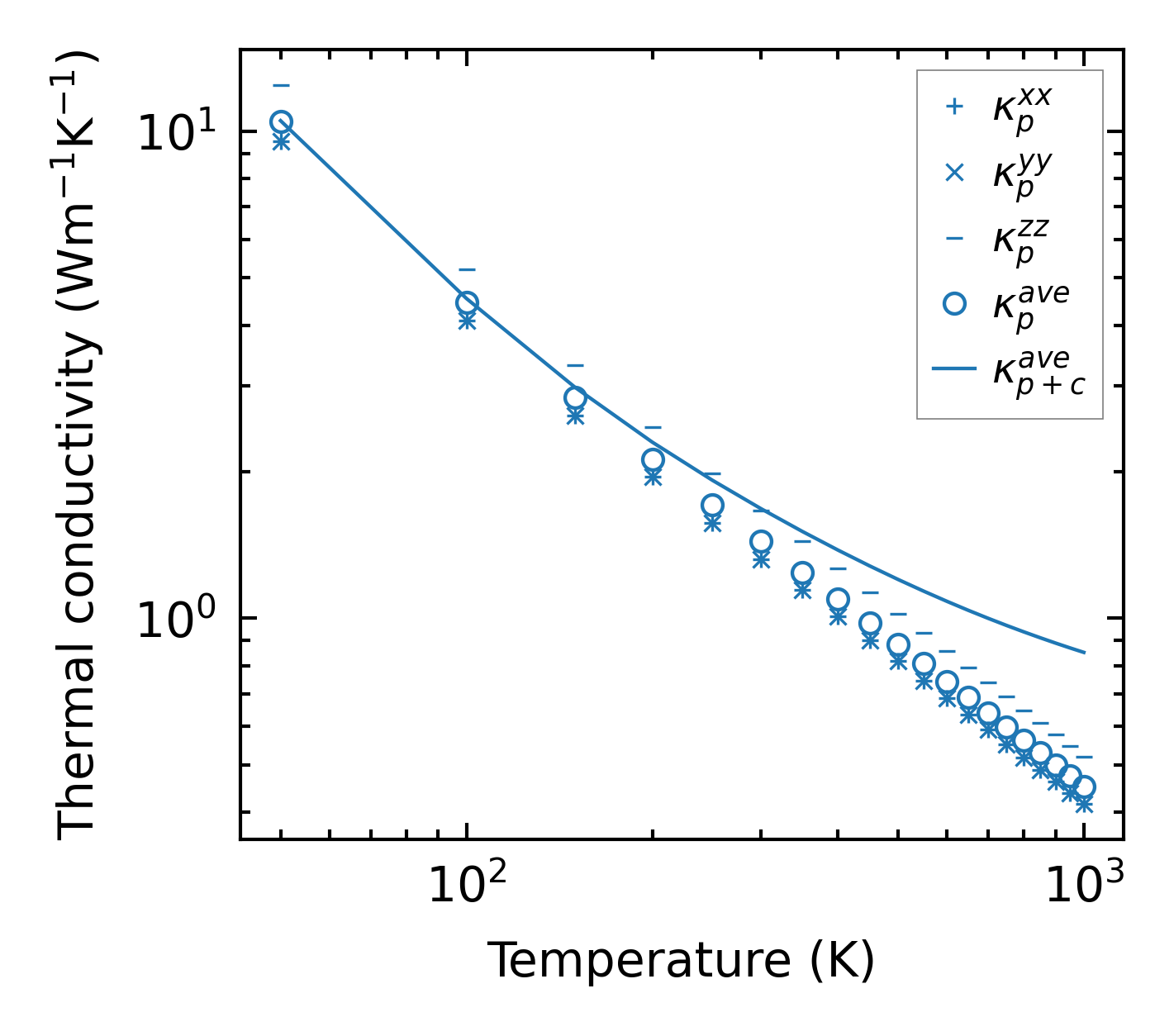

../../_images/fig_kappa12140.png — (a) Temperature-dependent lattice thermal conductivity

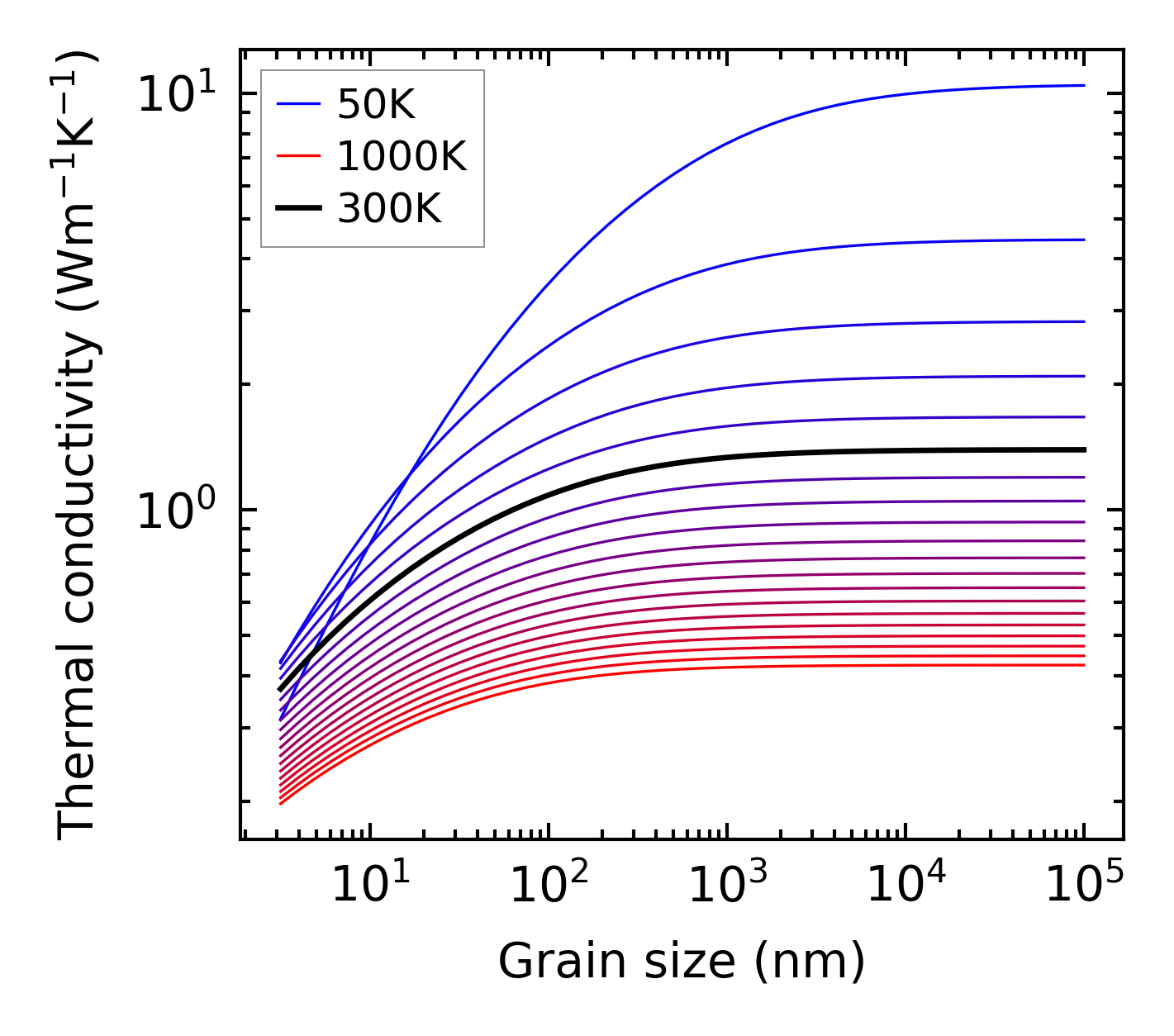

../../_images/fig_kappa_vs_grain_size6532.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

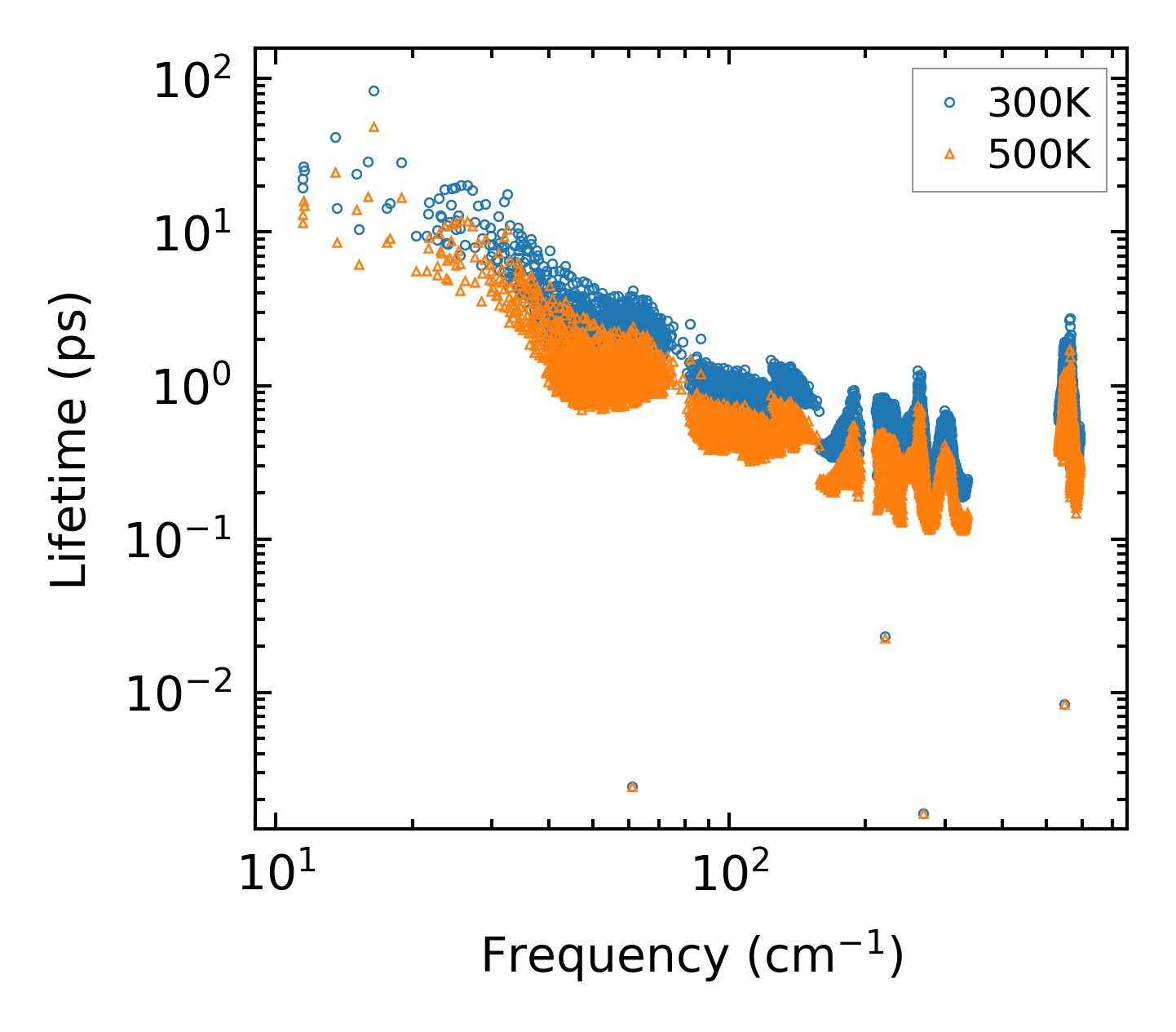

../../_images/fig_lifetime6389.png — (a) Phonon lifetime due to phonon-phonon scattering

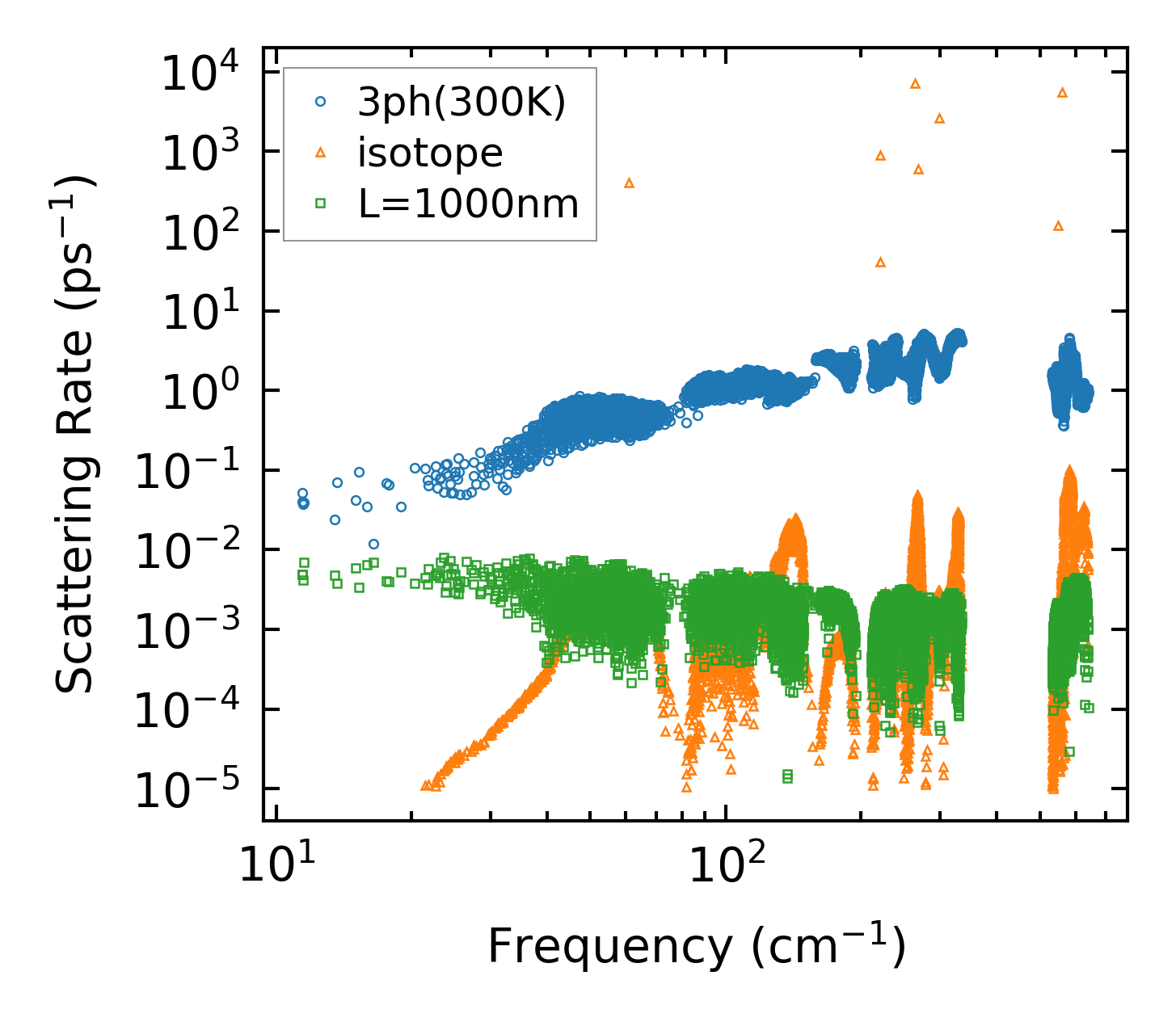

../../_images/fig_scat_rates6388.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6389.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6388.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214641.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa12141.png — (a) Temperature-dependent lattice thermal conductivity

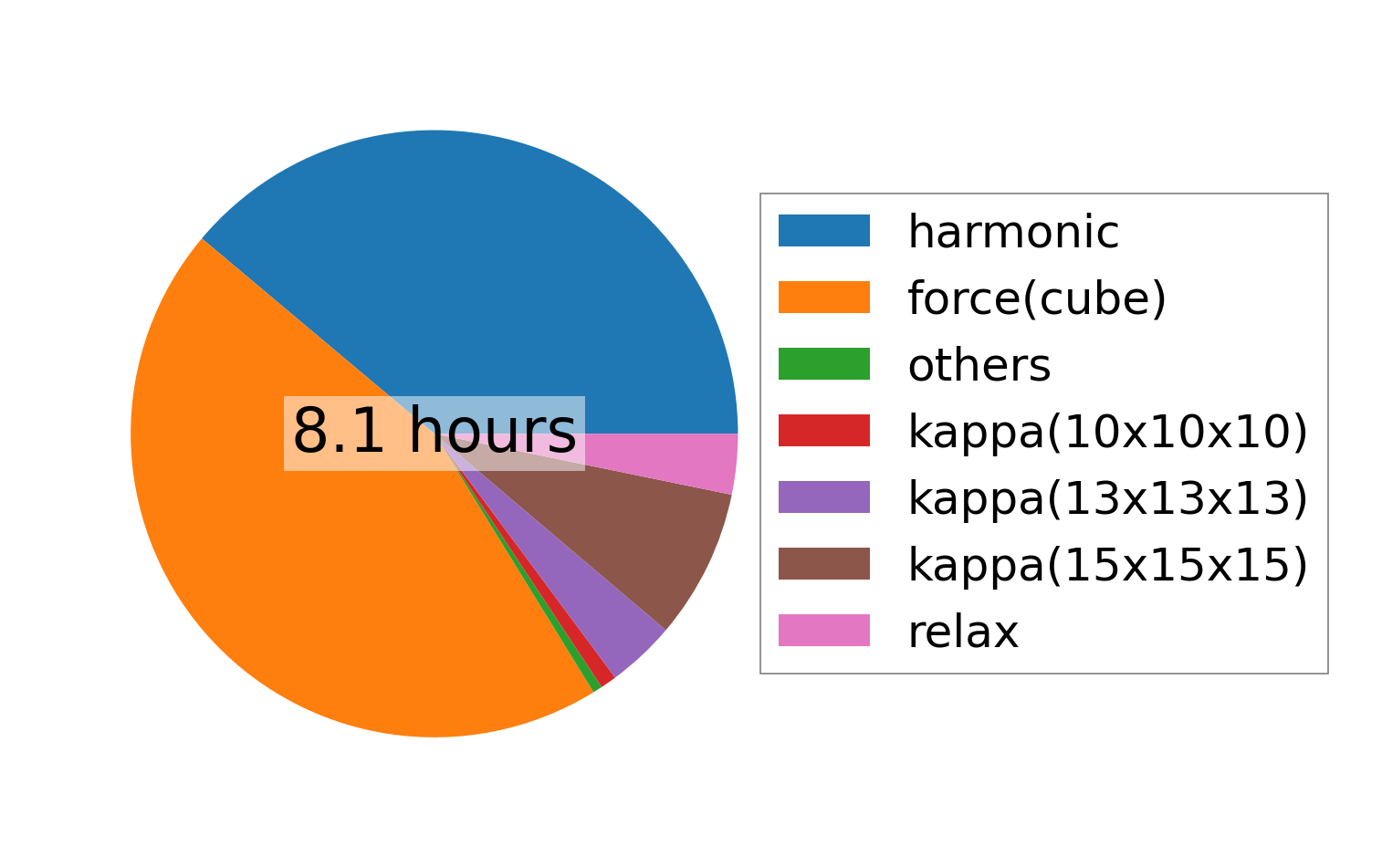

../../_images/fig_times24865.png — (b) Computation time
