mp-13925/Cs2NaYF6/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-13925.tar.gz

Equation of state

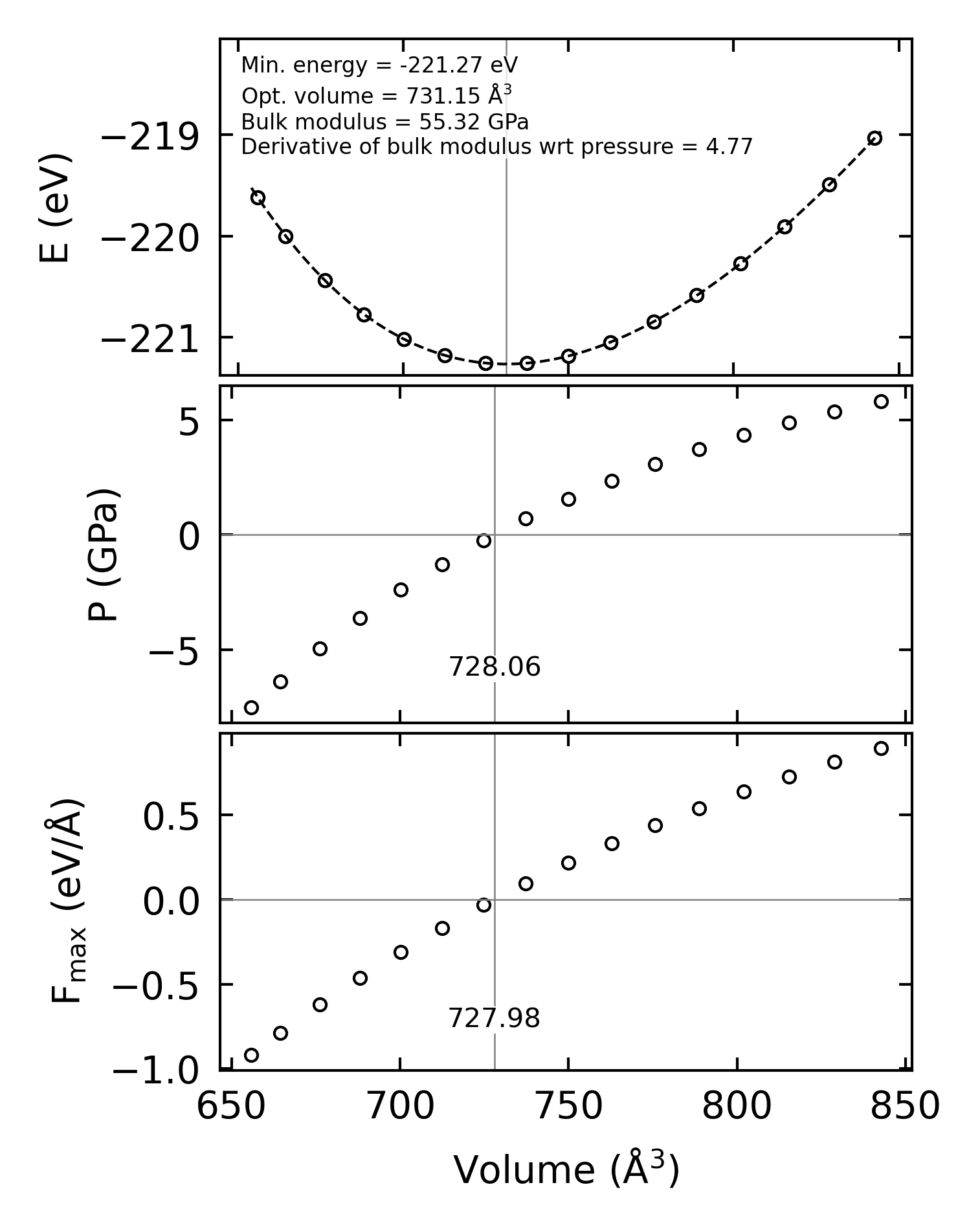

../../_images/fig_bm7521.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr14993.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14992.png — (b) Thermodynamic properties

Grüneisen parameters

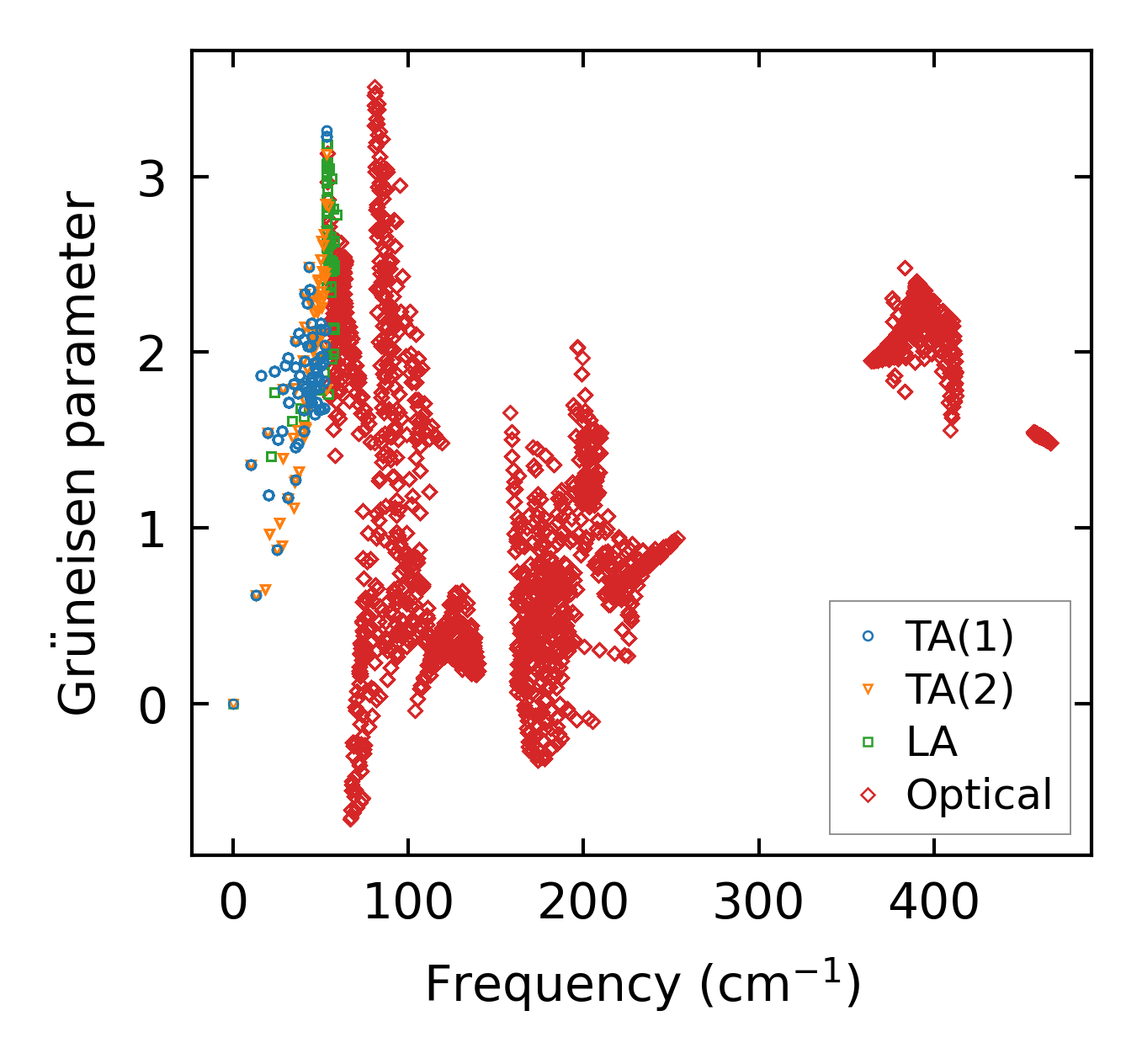

../../_images/fig_gru_all6438.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6438.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x12, supercell: 1x1x1

../../_images/fig_kappa12107.png — (a) Temperature-dependent lattice thermal conductivity

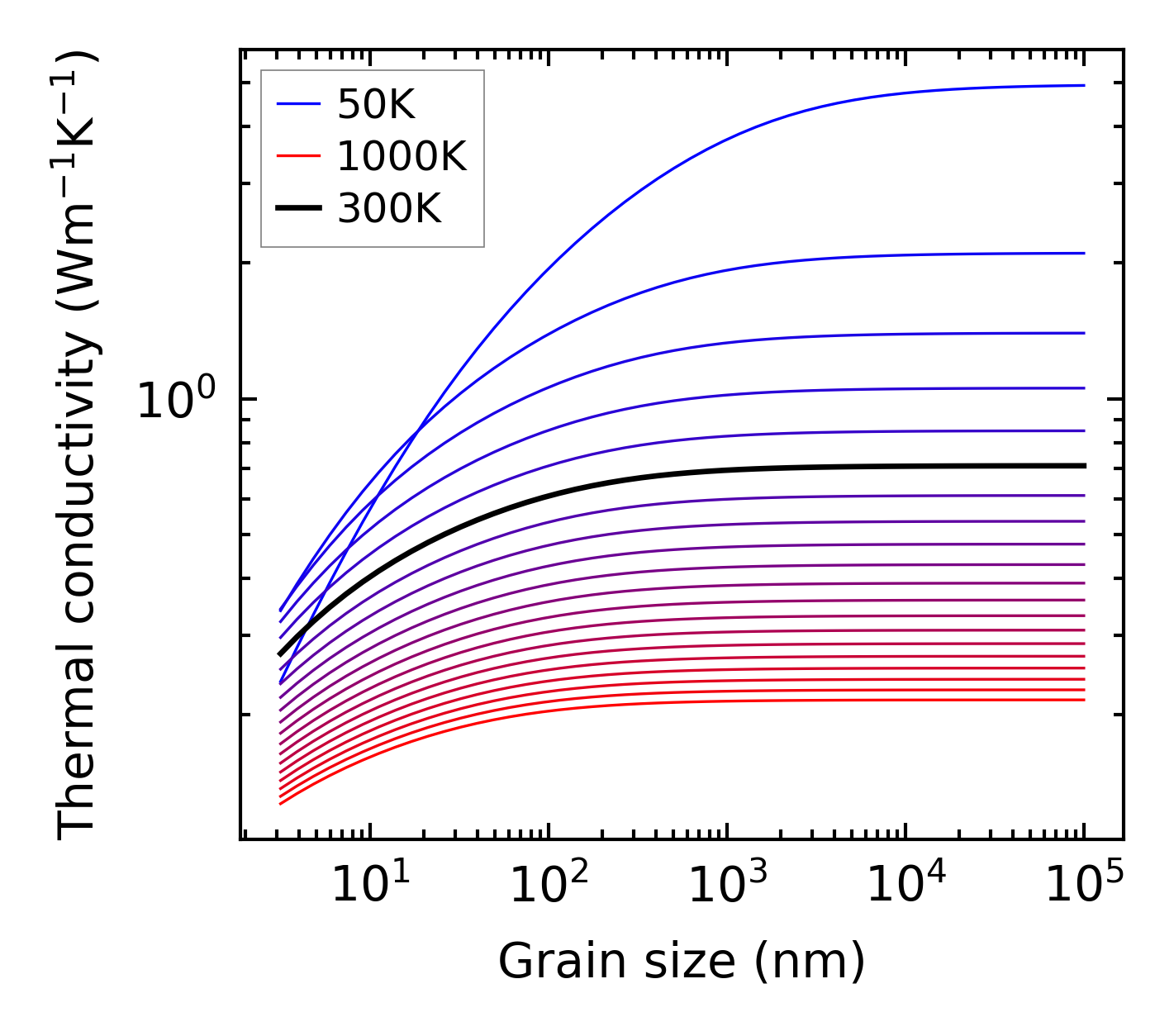

../../_images/fig_kappa_vs_grain_size6515.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

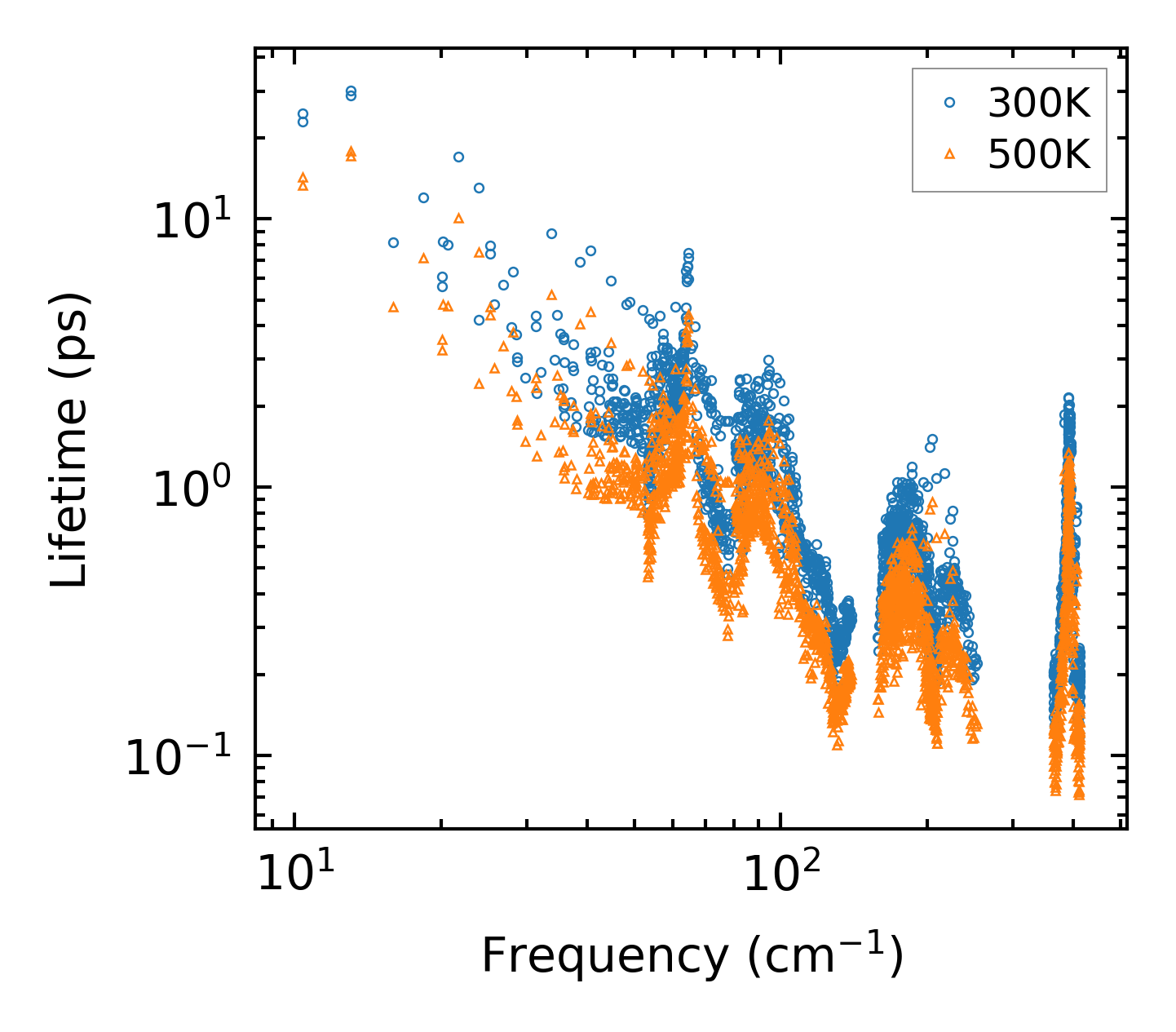

../../_images/fig_lifetime6372.png — (a) Phonon lifetime due to phonon-phonon scattering

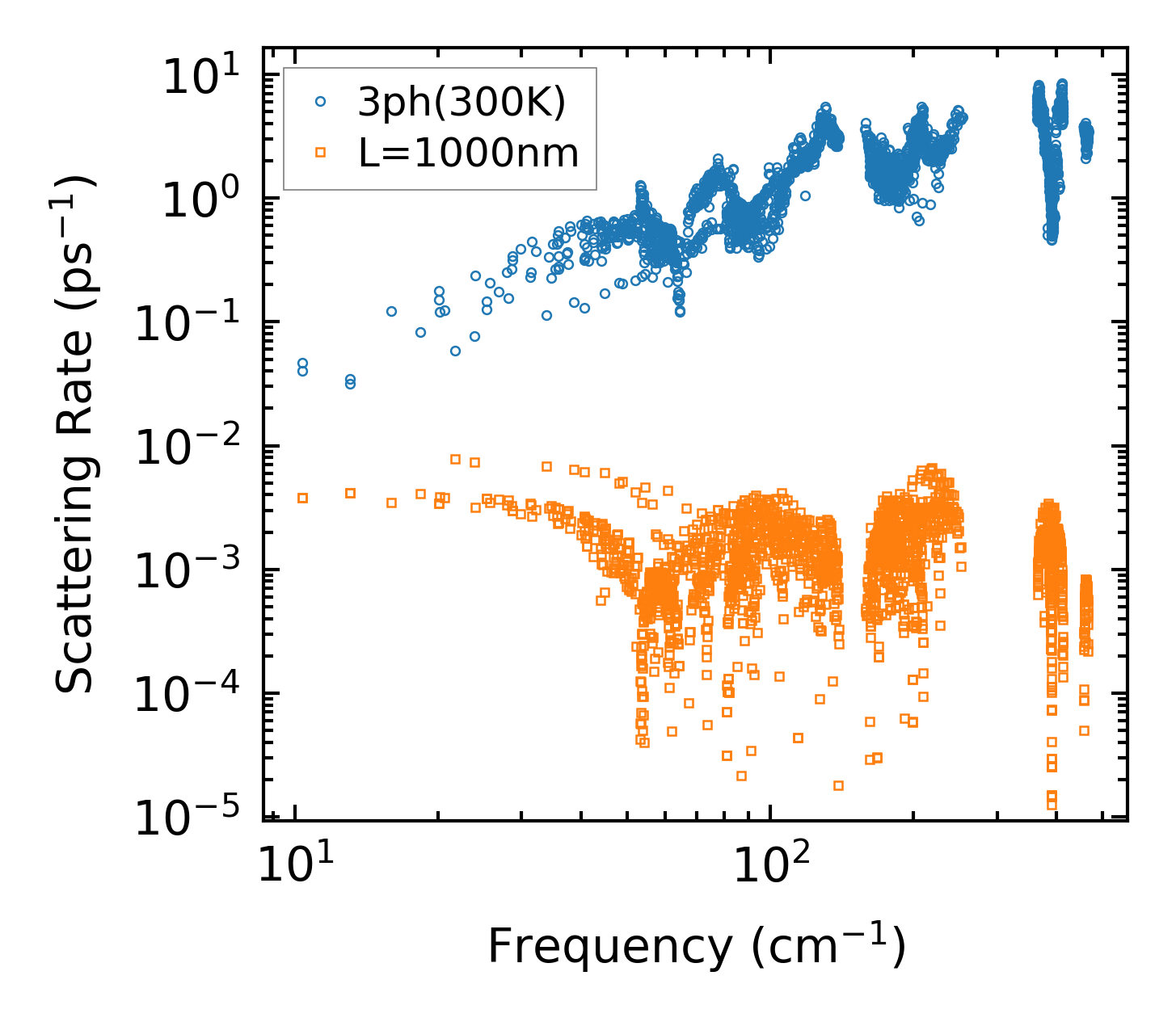

../../_images/fig_scat_rates6371.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

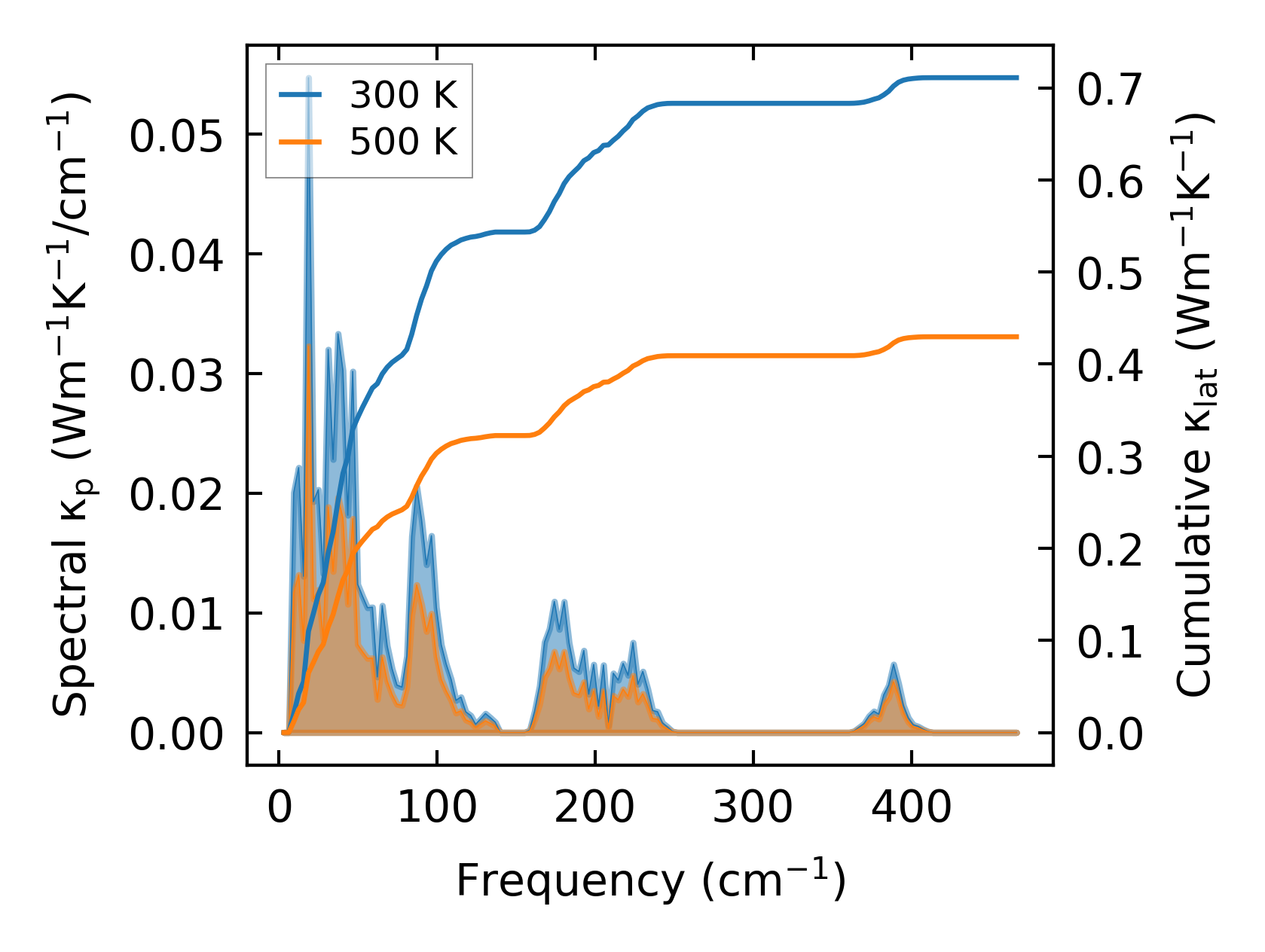

../../_images/fig_cumu_frequency6372.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6371.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

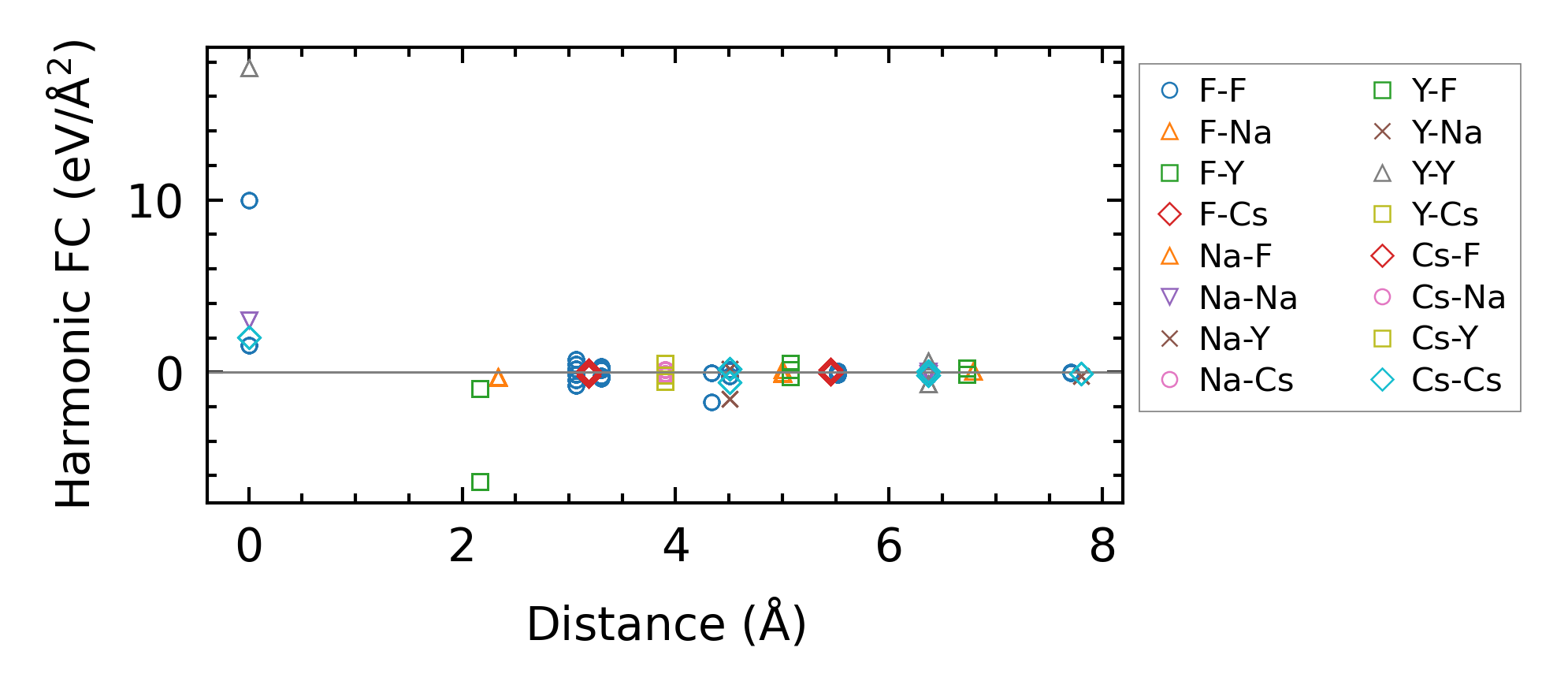

../../_images/fig_fc214610.png — (a) Force constants w.r.t atomic distance

Summary

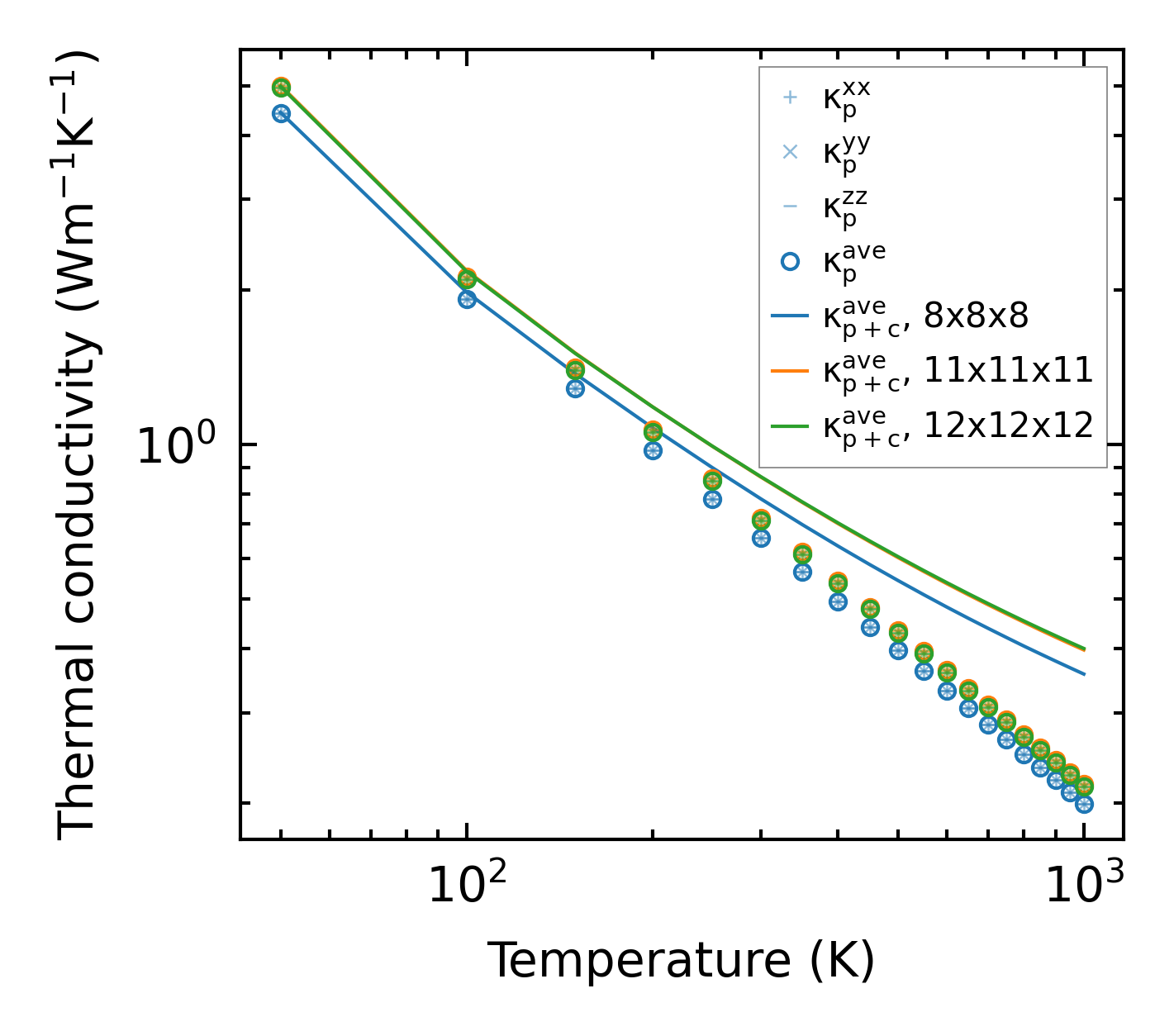

../../_images/fig_kappa12108.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times24832.png — (b) Computation time
