mp-13589-2/CuBC4N4/anharm

Space group: P-43m (215)
Link: Materials Project
Download: mp-13589-2.tar.gz

Equation of state

../../_images/fig_bm7466.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr14902.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14902.png — (b) Thermodynamic properties

Grüneisen parameters

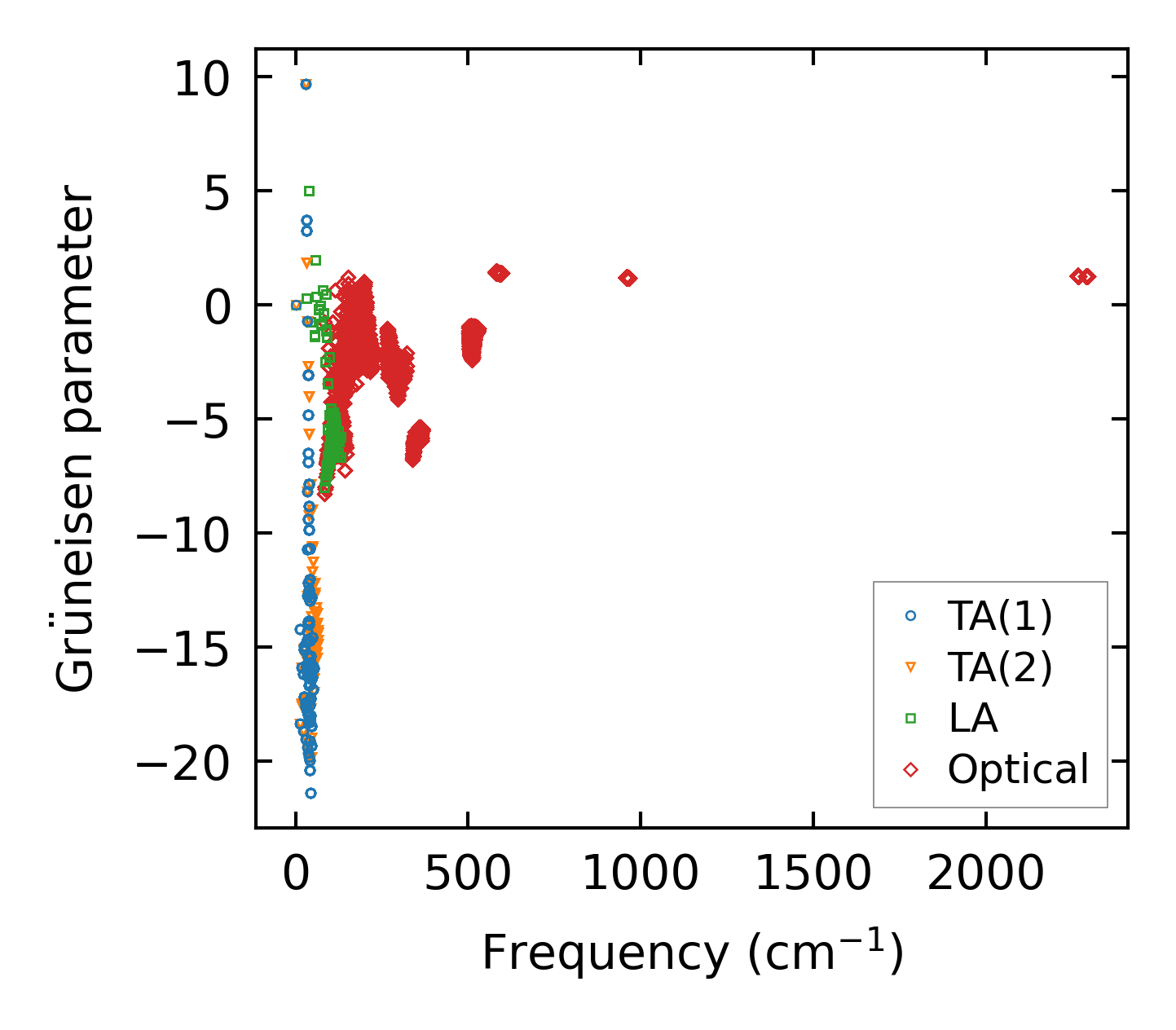

../../_images/fig_gru_all6397.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6397.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 2x2x2

../../_images/fig_kappa12031.png — (a) Temperature-dependent lattice thermal conductivity

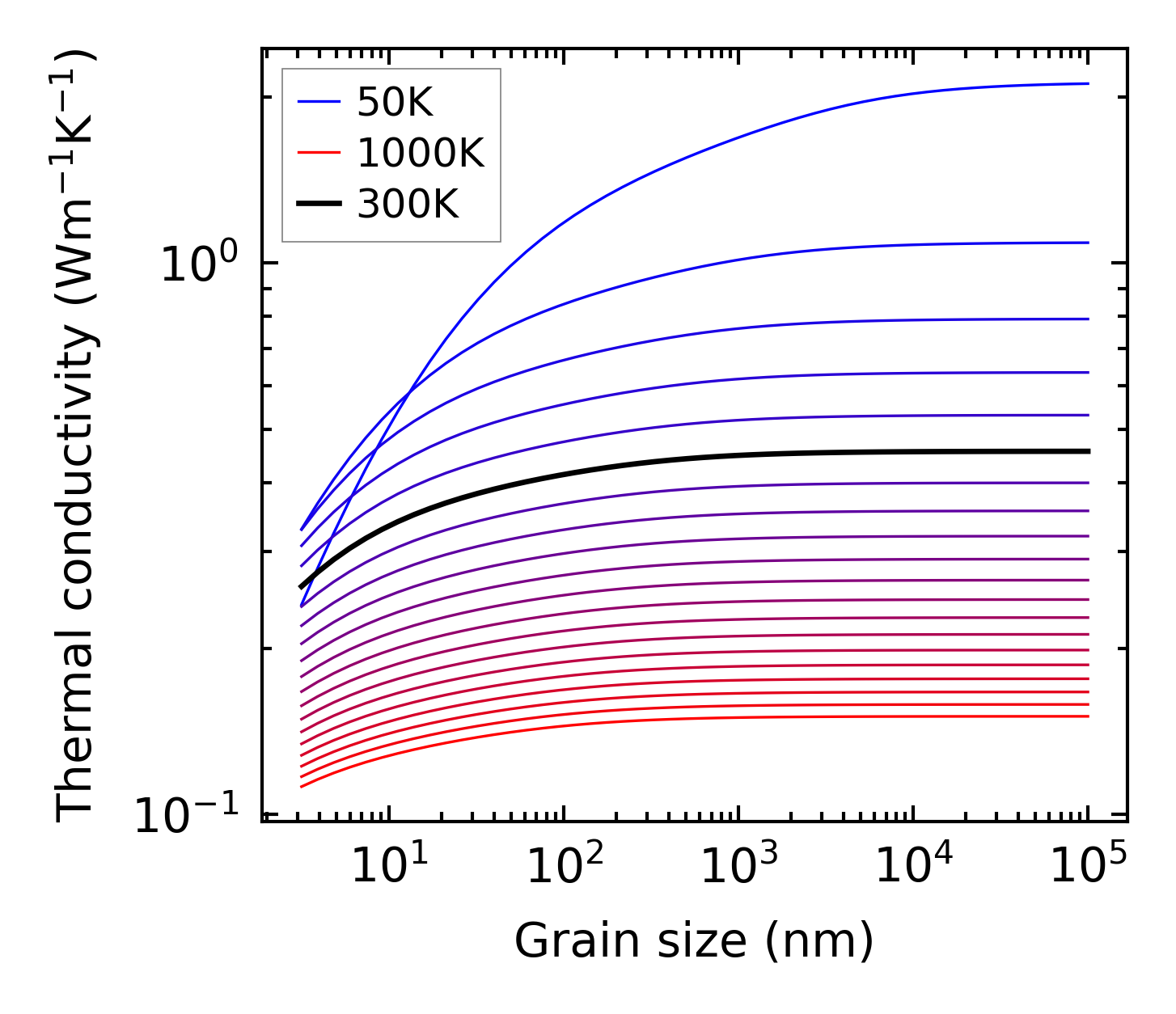

../../_images/fig_kappa_vs_grain_size6474.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

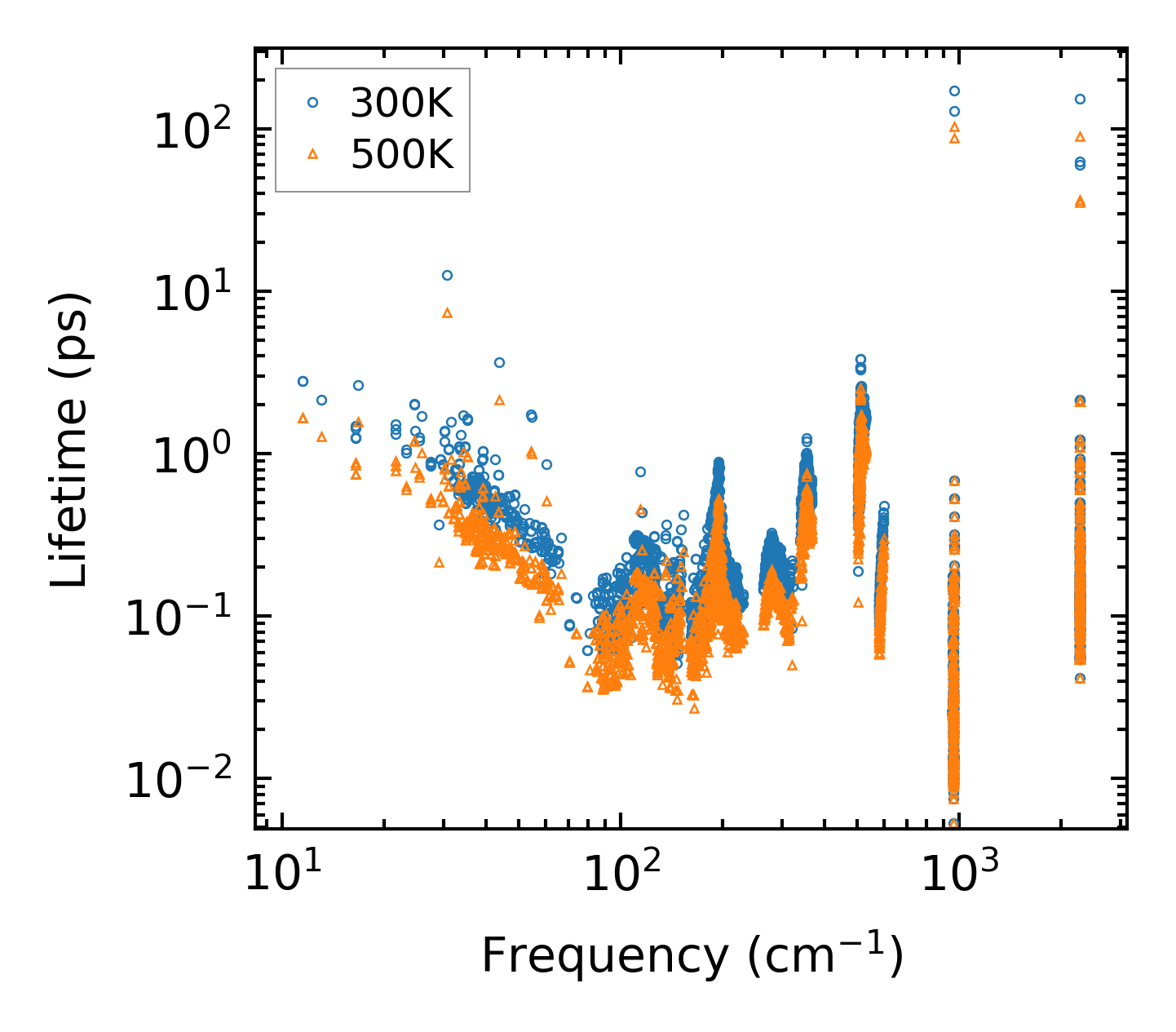

../../_images/fig_lifetime6332.png — (a) Phonon lifetime due to phonon-phonon scattering

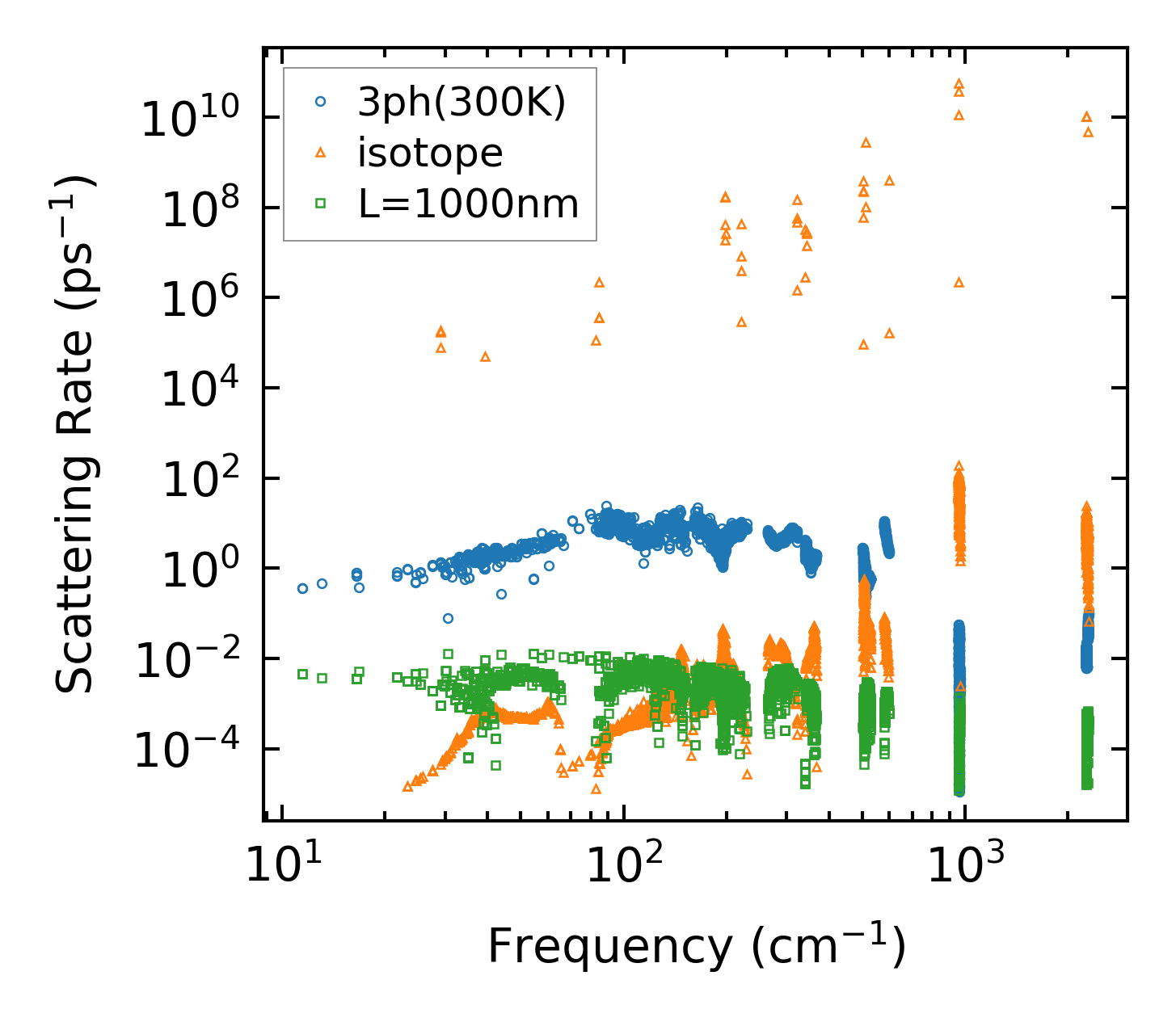

../../_images/fig_scat_rates6331.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

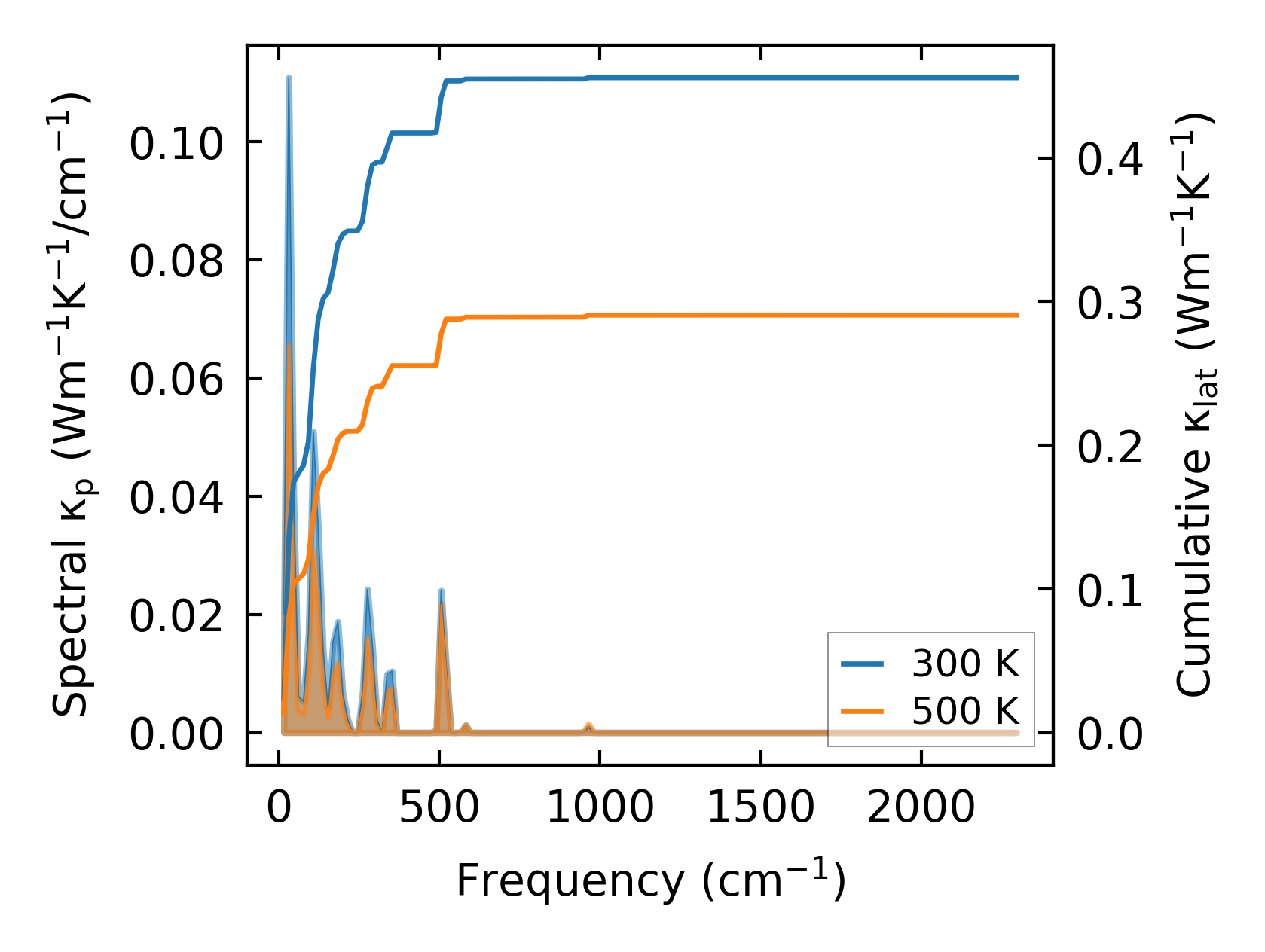

../../_images/fig_cumu_frequency6332.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

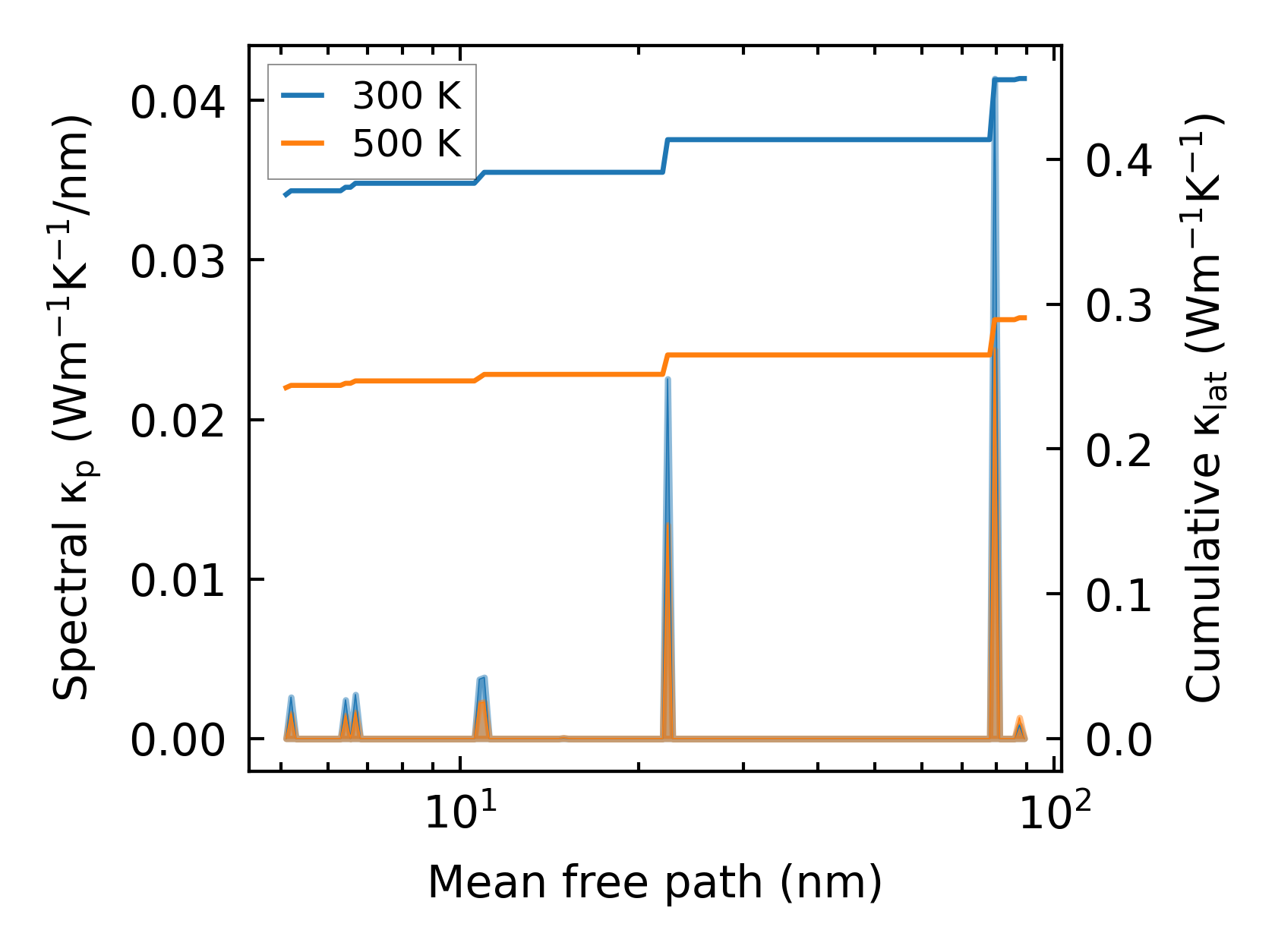

../../_images/fig_cumu_mfp6331.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

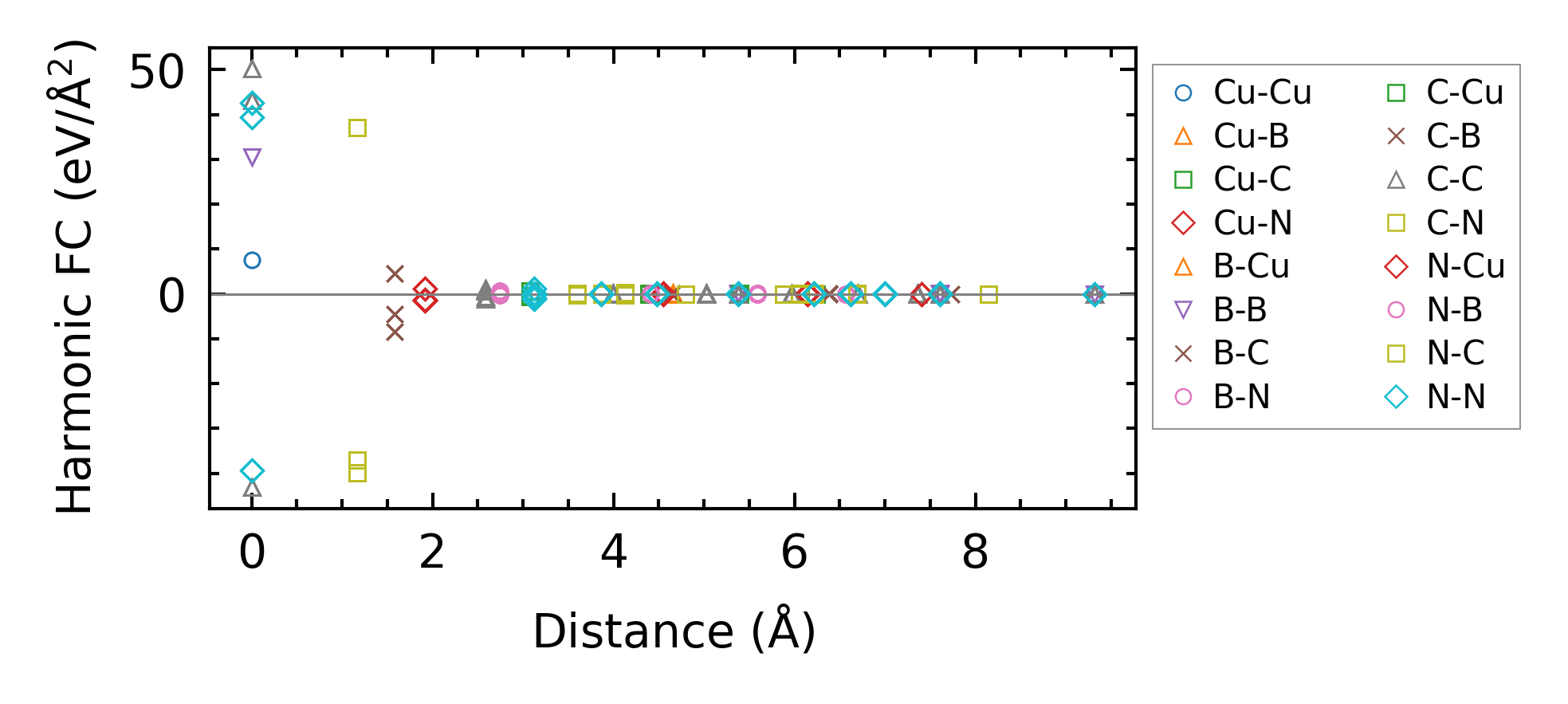

../../_images/fig_fc214519.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa12032.png — (a) Temperature-dependent lattice thermal conductivity

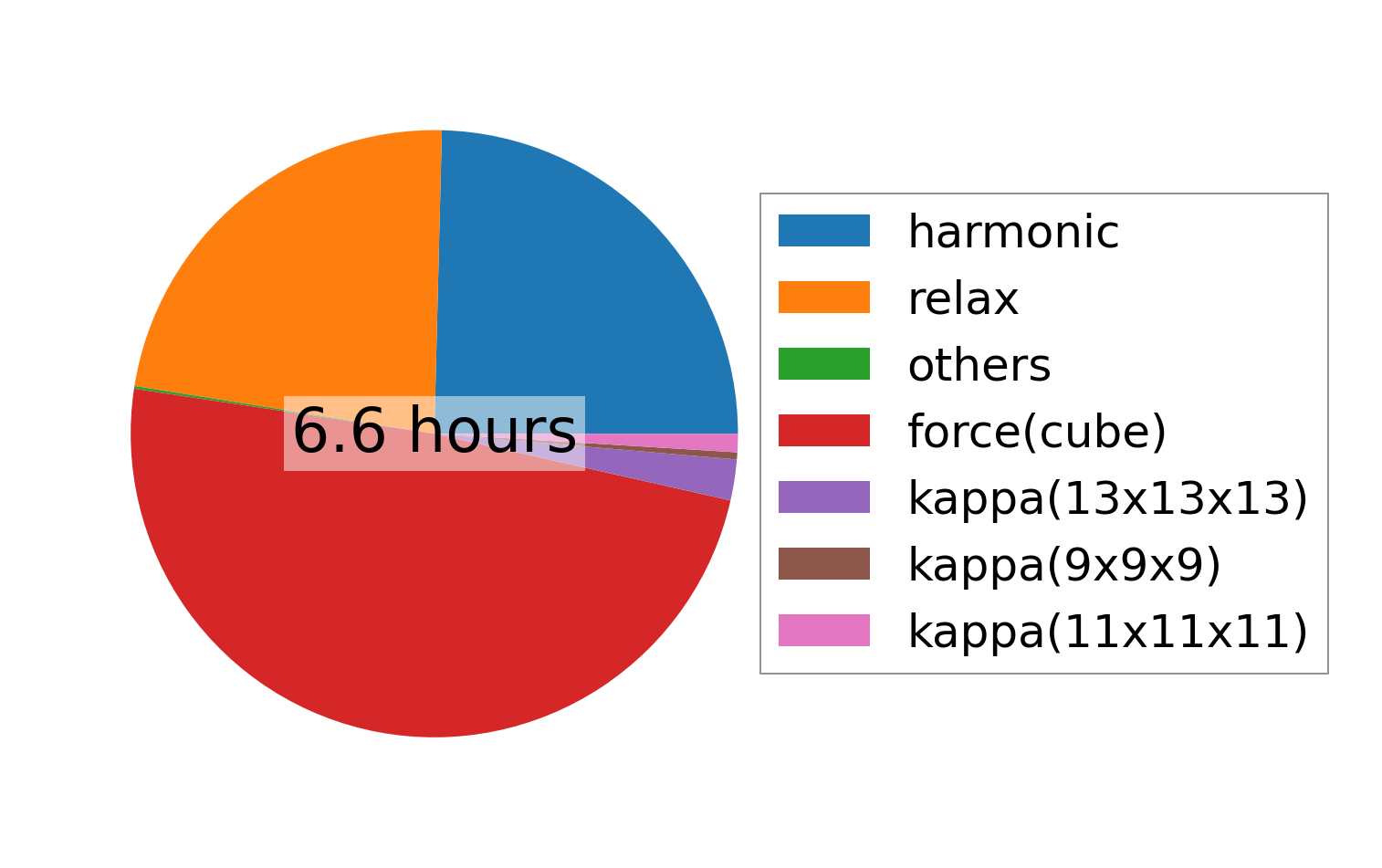

../../_images/fig_times24713.png — (b) Computation time
