mp-13949-2/CdGa2Te4/anharm

Space group: I-4 (82)
Link: Materials Project
Download: mp-13949-2.tar.gz

Equation of state

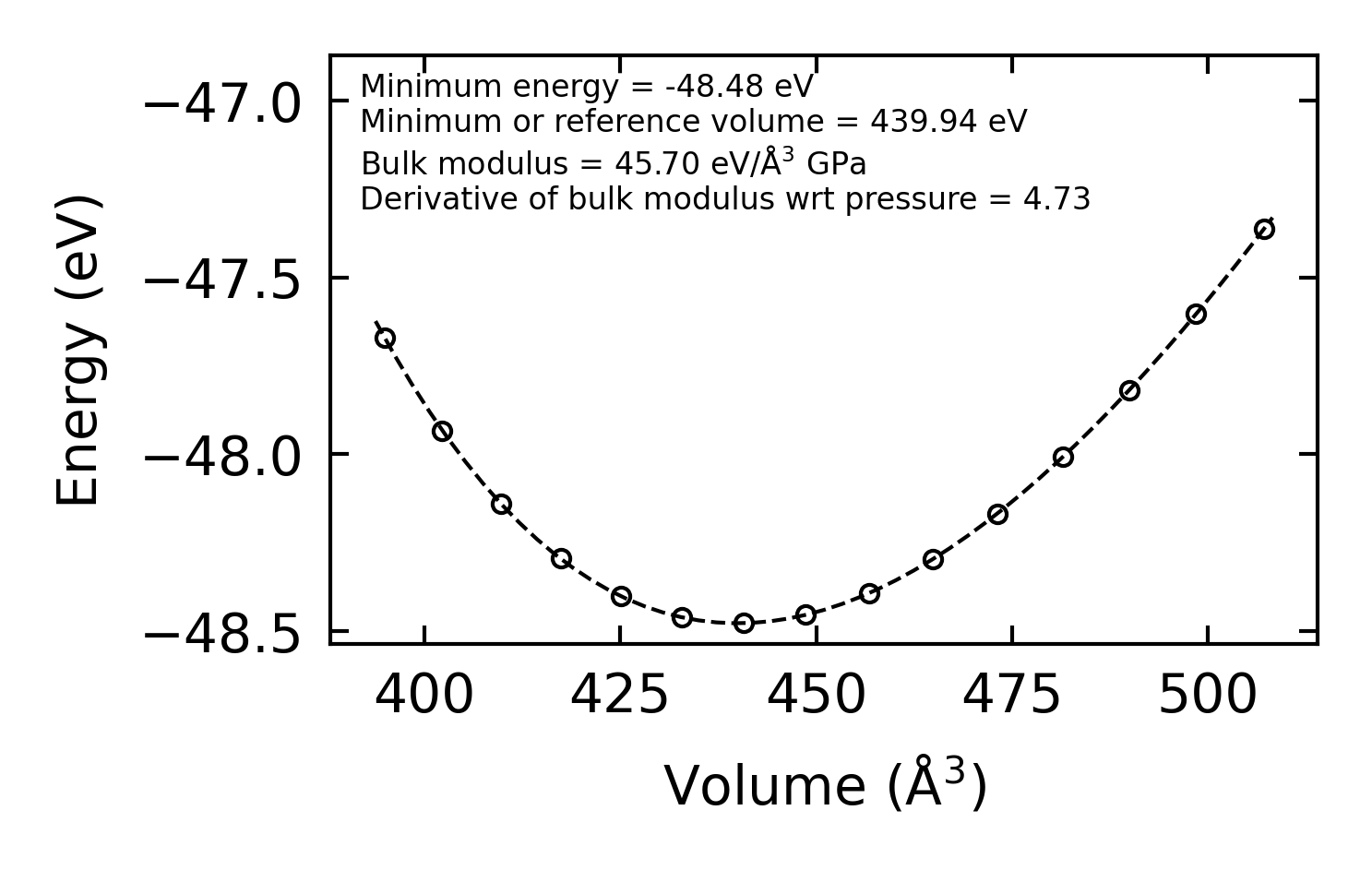

../../_images/fig_bm7527.png — (a) Equation of state

Harmonic properties

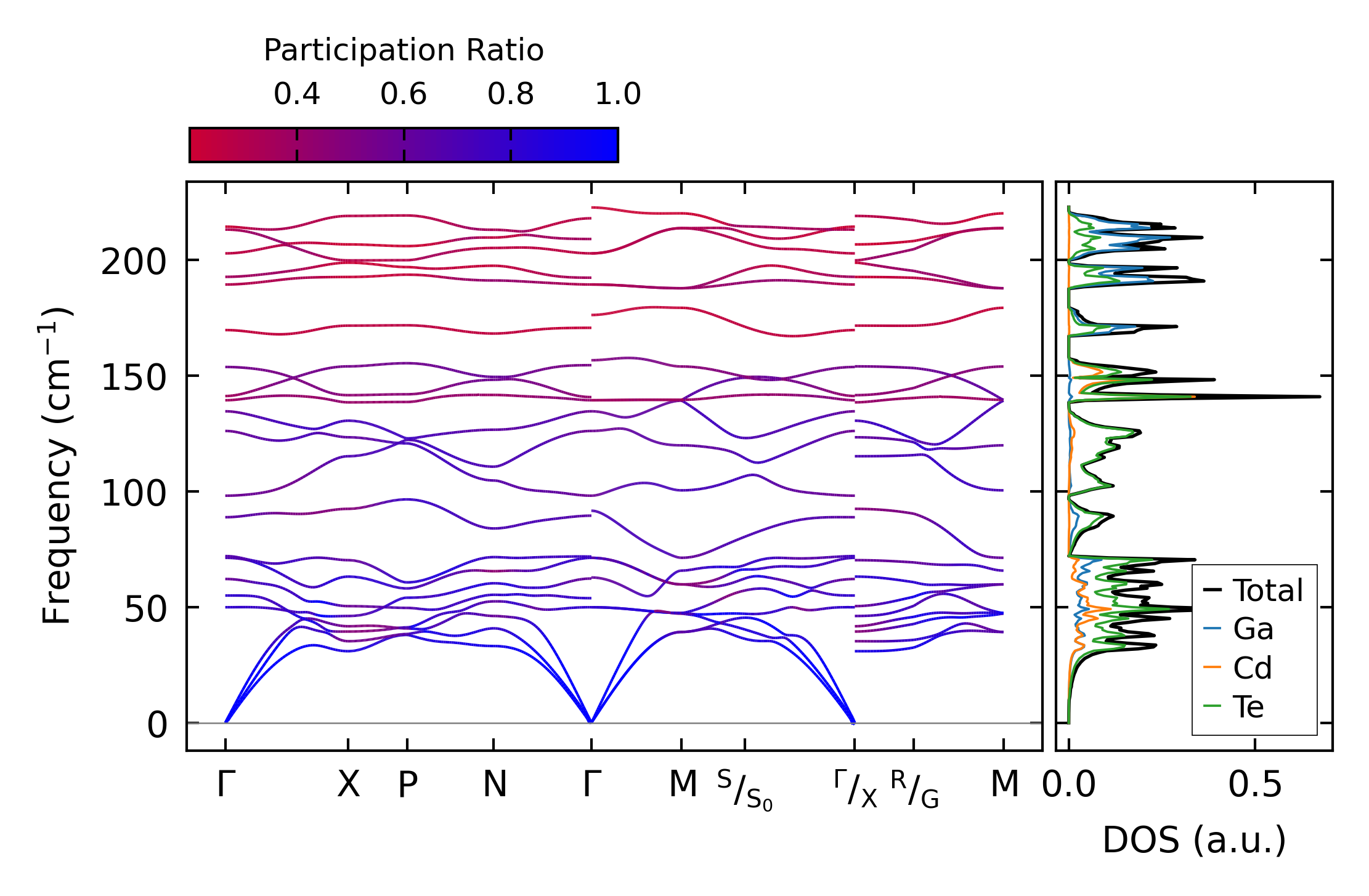

../../_images/fig_bandos_pr15004.png — (a) Phonon dispersion with participation ratio and DOS

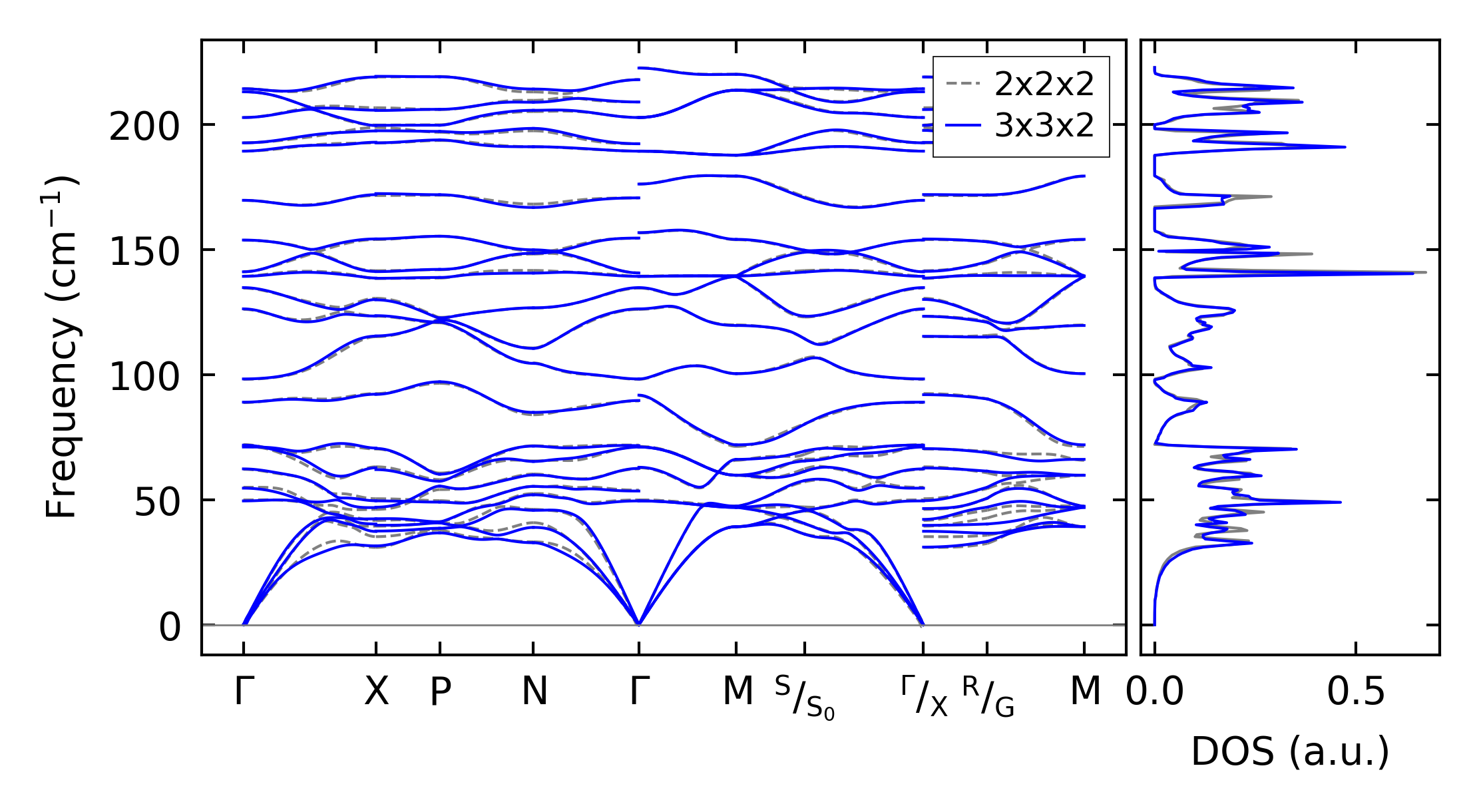

../../_images/fig_bandos19361.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo15003.png — (c) Thermodynamic properties

Grüneisen parameters

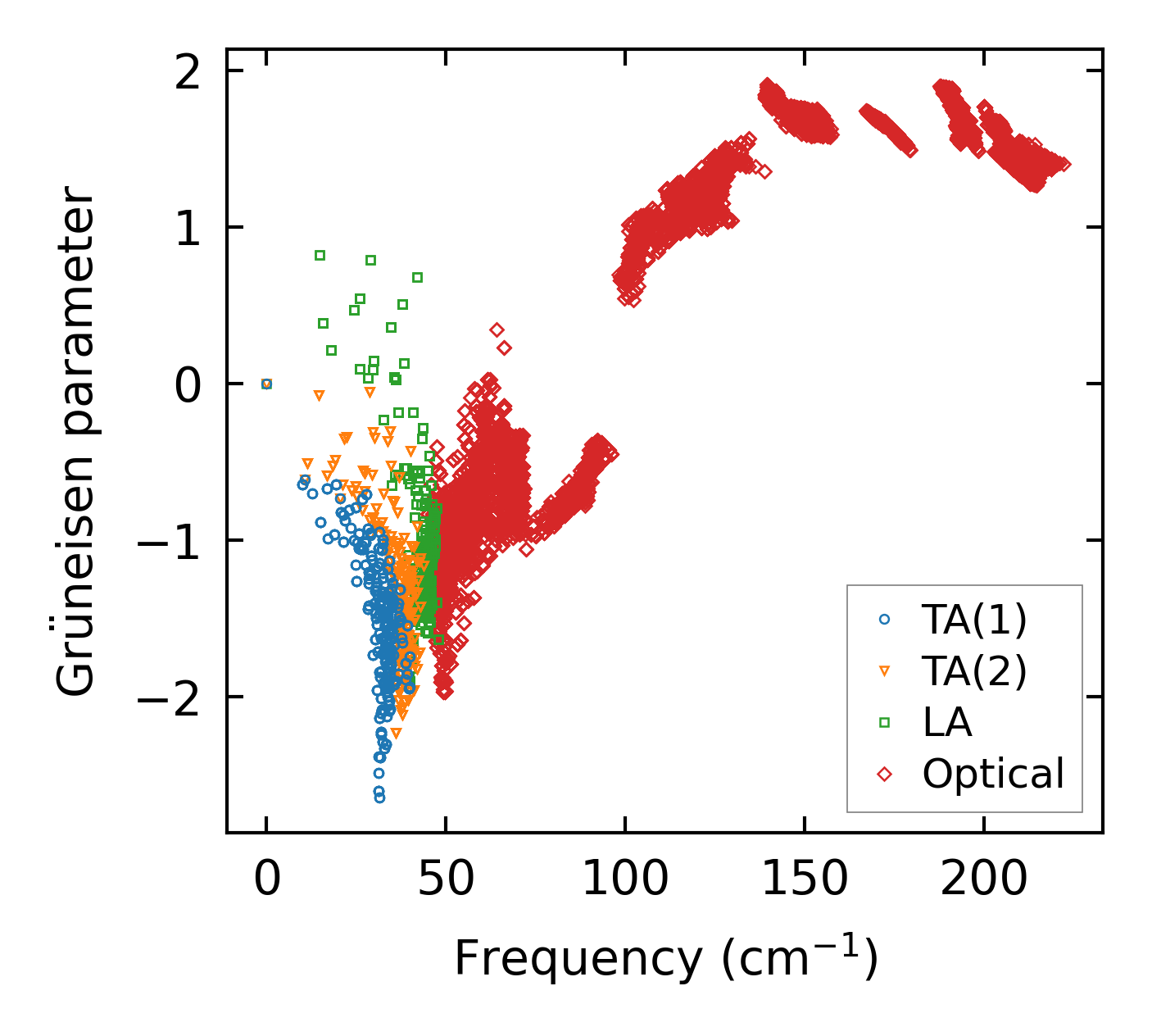

../../_images/fig_gru_all6444.png — (a) Grüneisen parameters

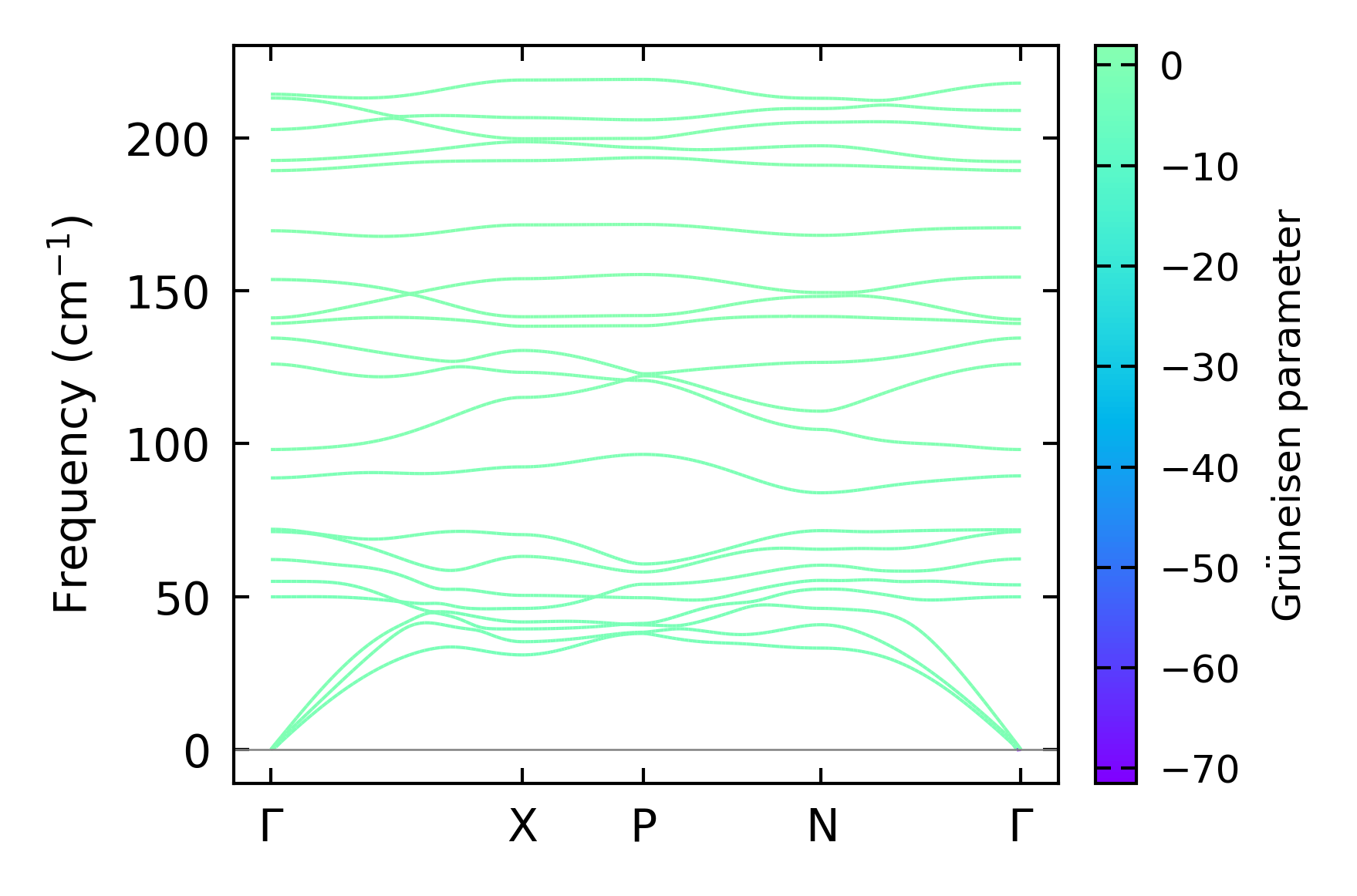

../../_images/fig_gruneisen6444.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 3x3x2 — q-mesh: 11x11x11, supercell: 3x3x2

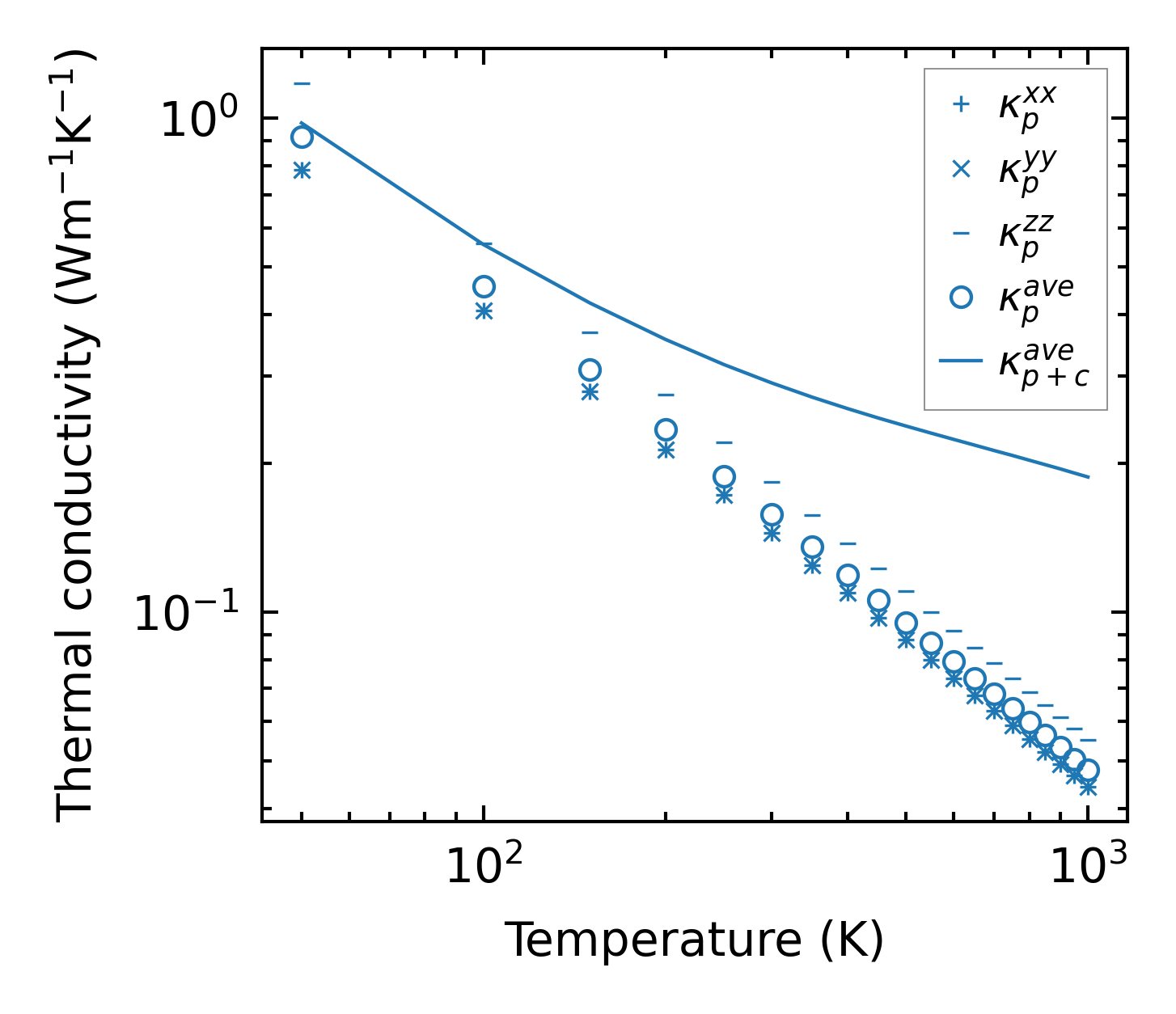

../../_images/fig_kappa12119.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6521.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime6378.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6377.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6378.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

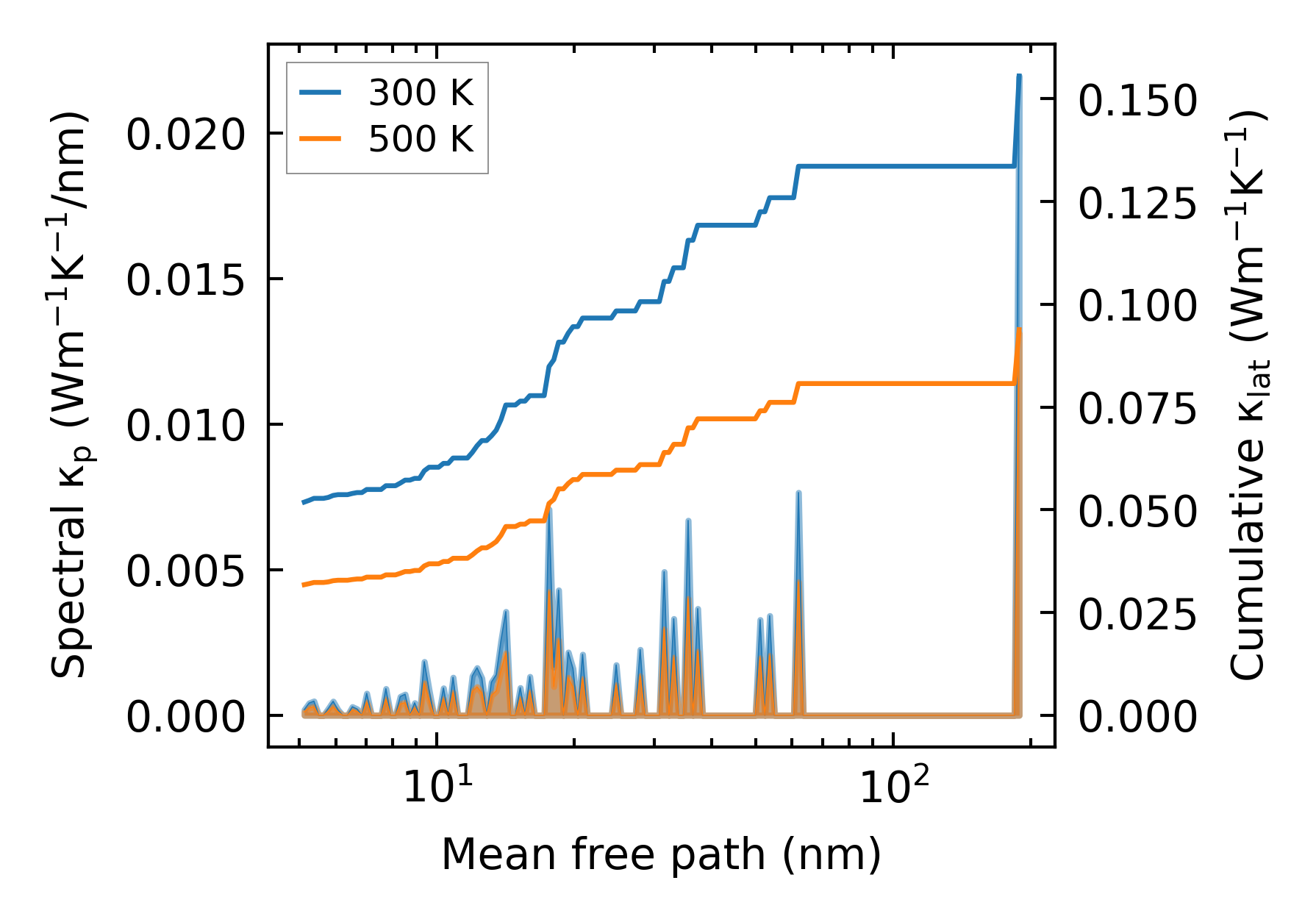

../../_images/fig_cumu_mfp6377.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214621.png — (a) Force constants w.r.t atomic distance

Summary

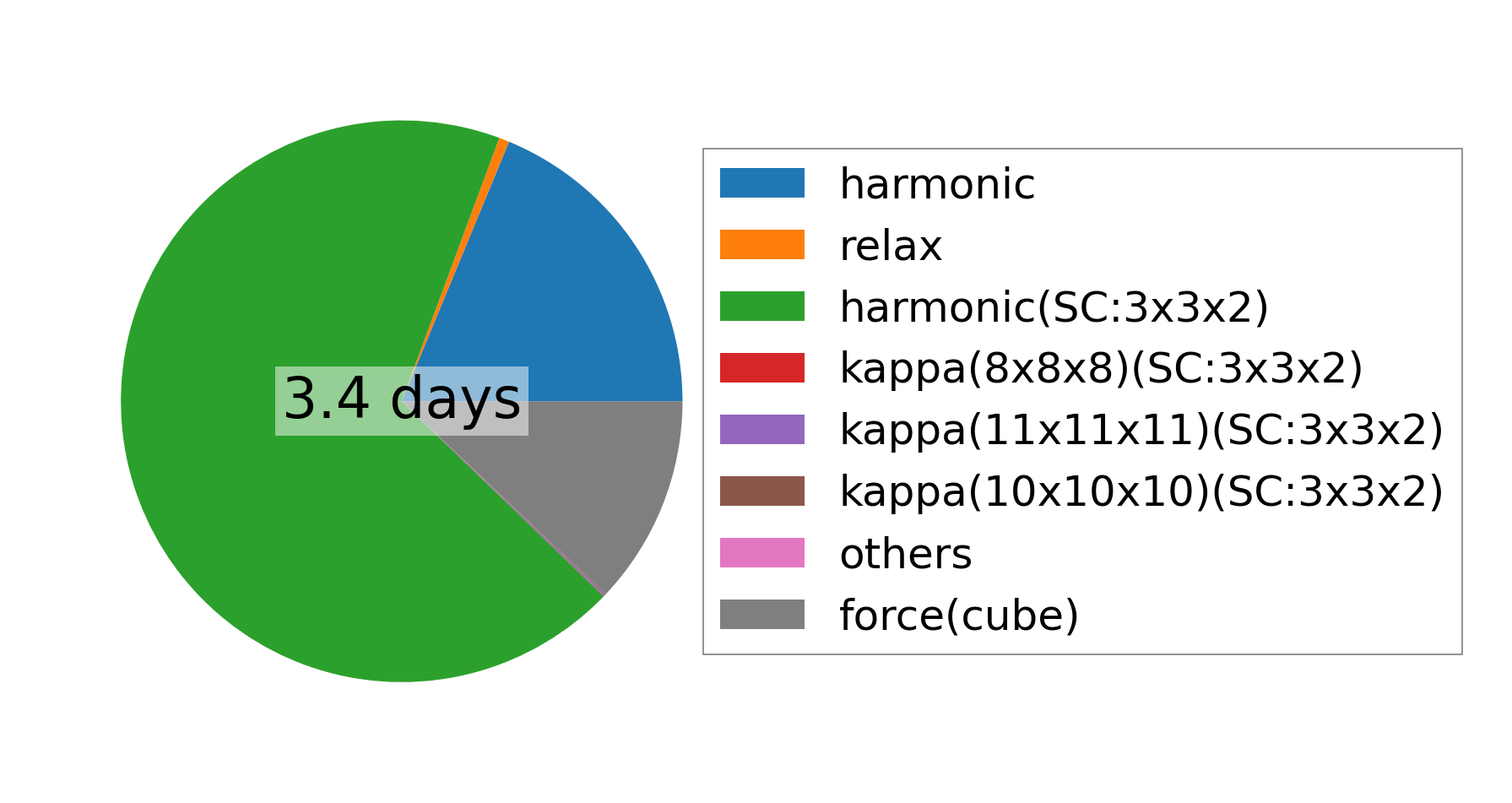

../../_images/fig_times24843.png — (a) Computation time
