mp-13064/Dy2O3/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-13064.tar.gz

Harmonic properties

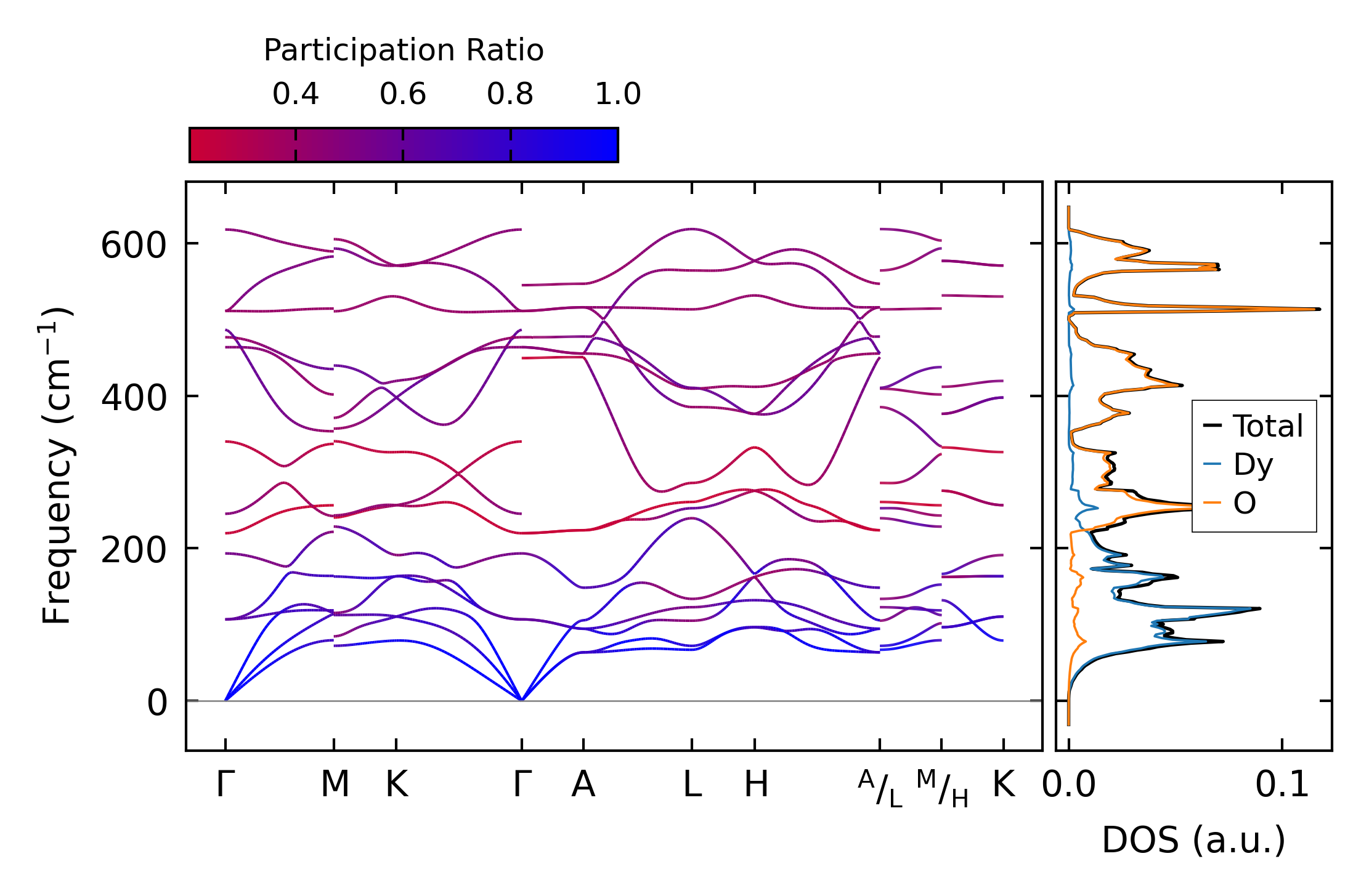

../../_images/fig_bandos_pr15183.png — (a) Phonon dispersion with participation ratio and DOS

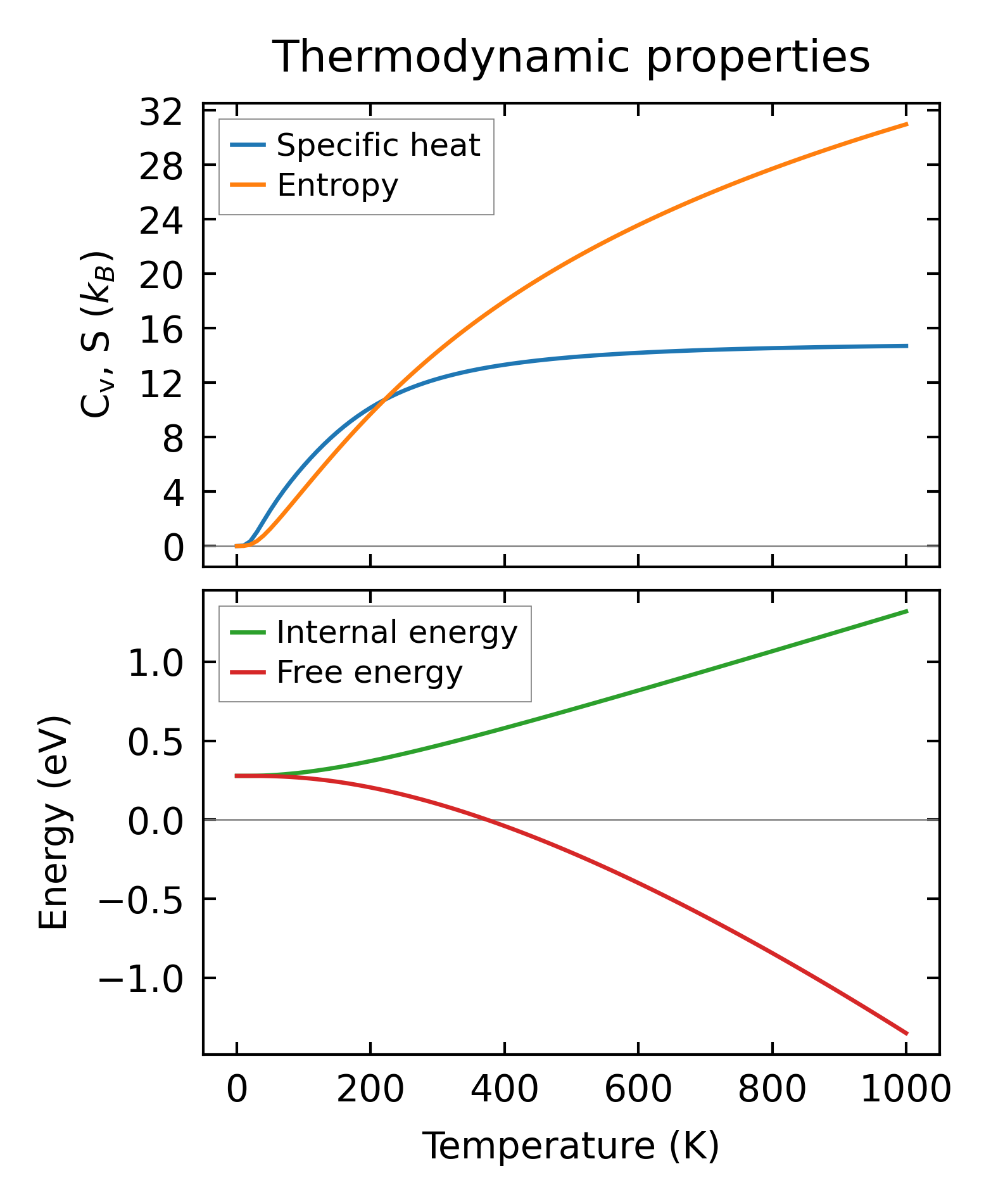

../../_images/fig_thermo15182.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6524.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6524.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 20x20x13, supercell: 3x3x2

../../_images/fig_kappa12278.png — (a) Temperature-dependent lattice thermal conductivity

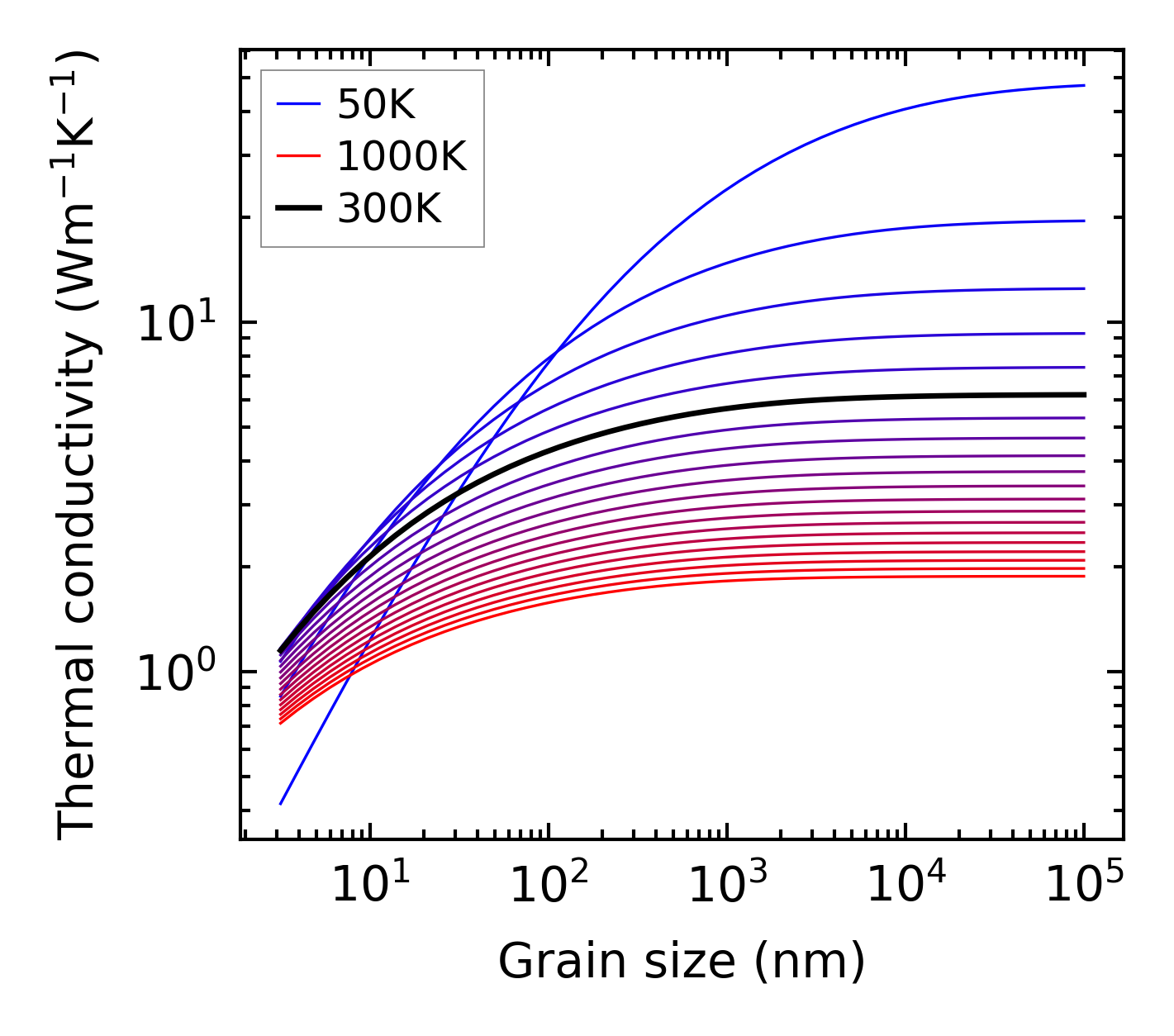

../../_images/fig_kappa_vs_grain_size6601.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

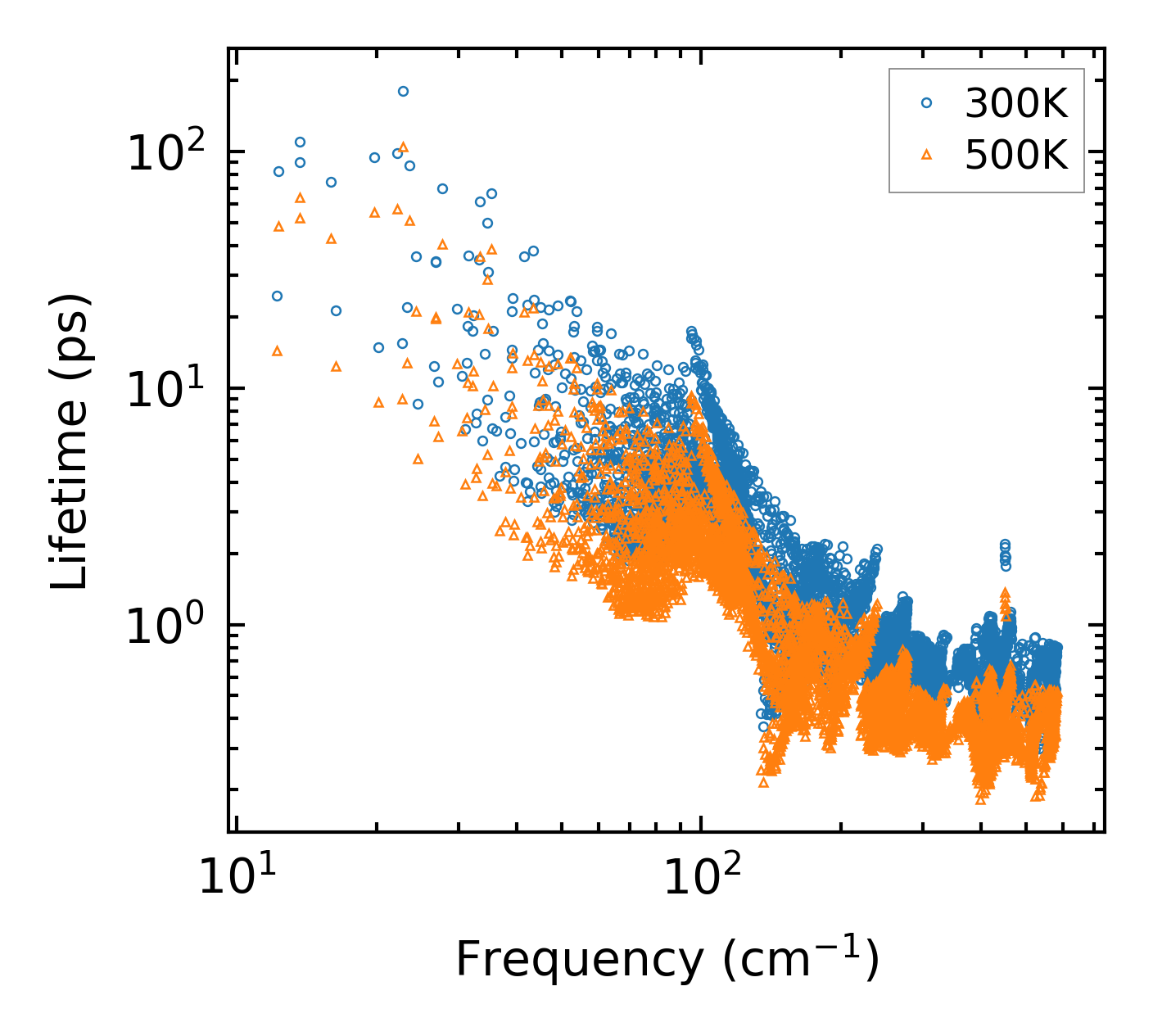

../../_images/fig_lifetime6458.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6457.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6458.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

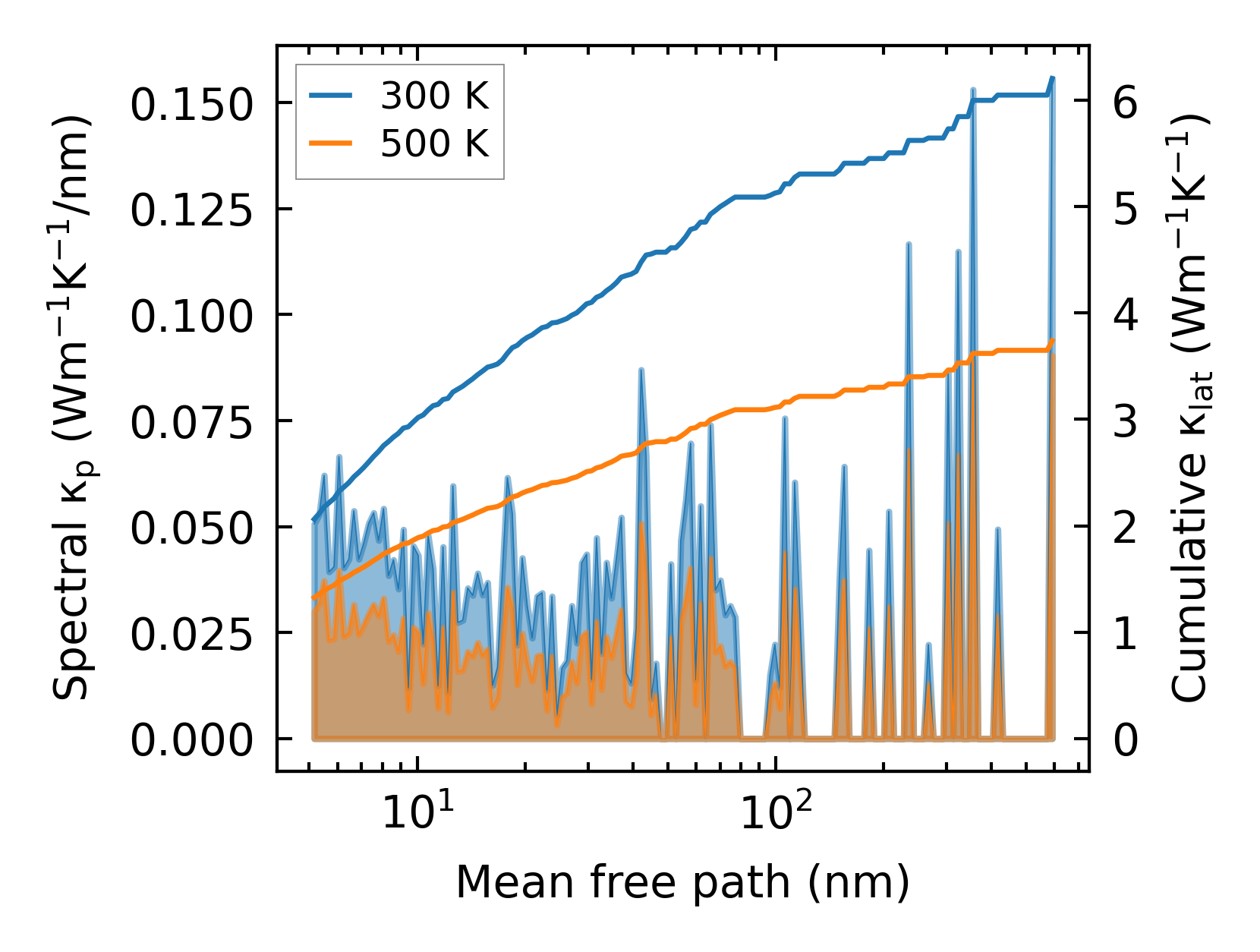

../../_images/fig_cumu_mfp6457.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

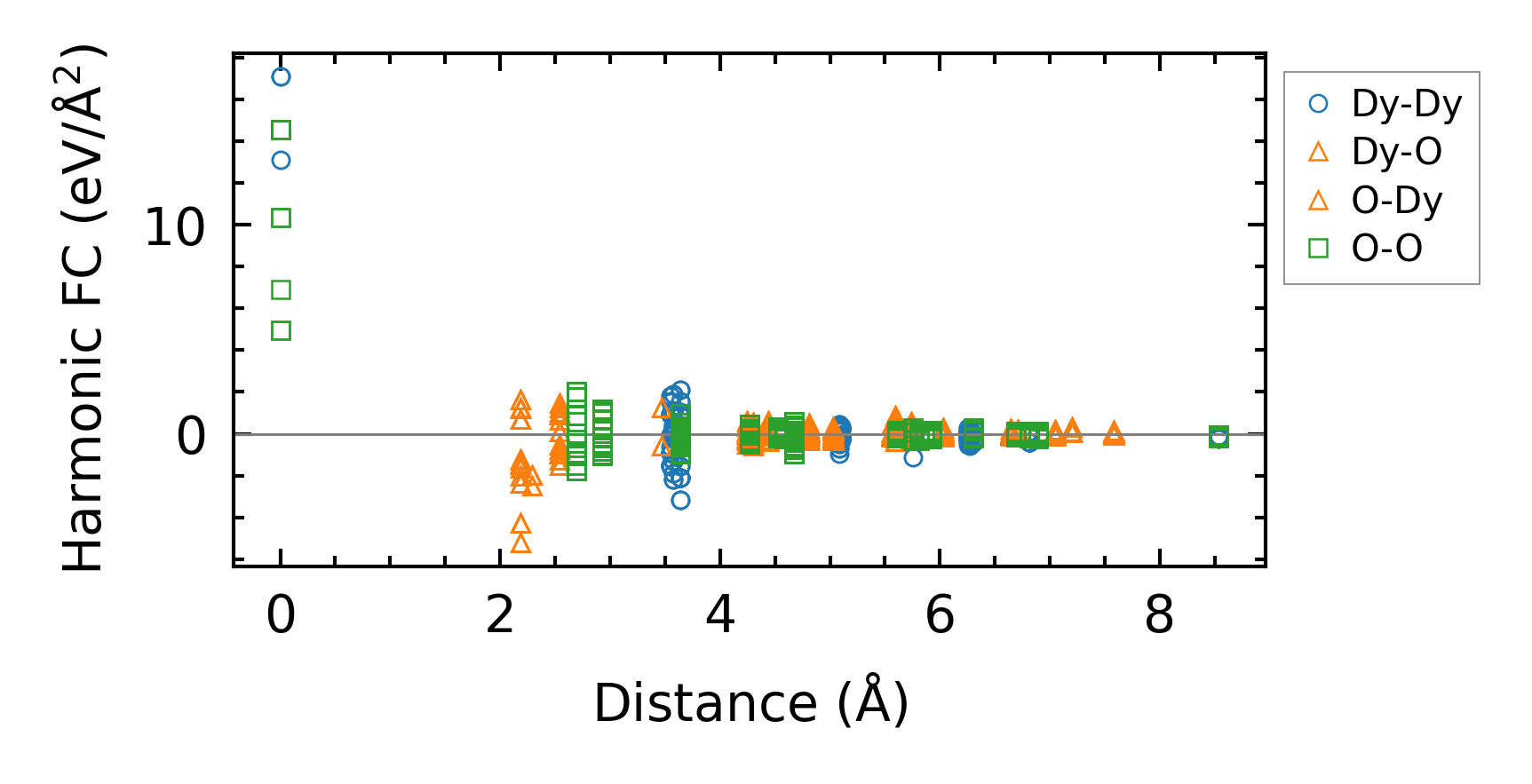

../../_images/fig_fc214795.png — (a) Force constants w.r.t atomic distance

Summary

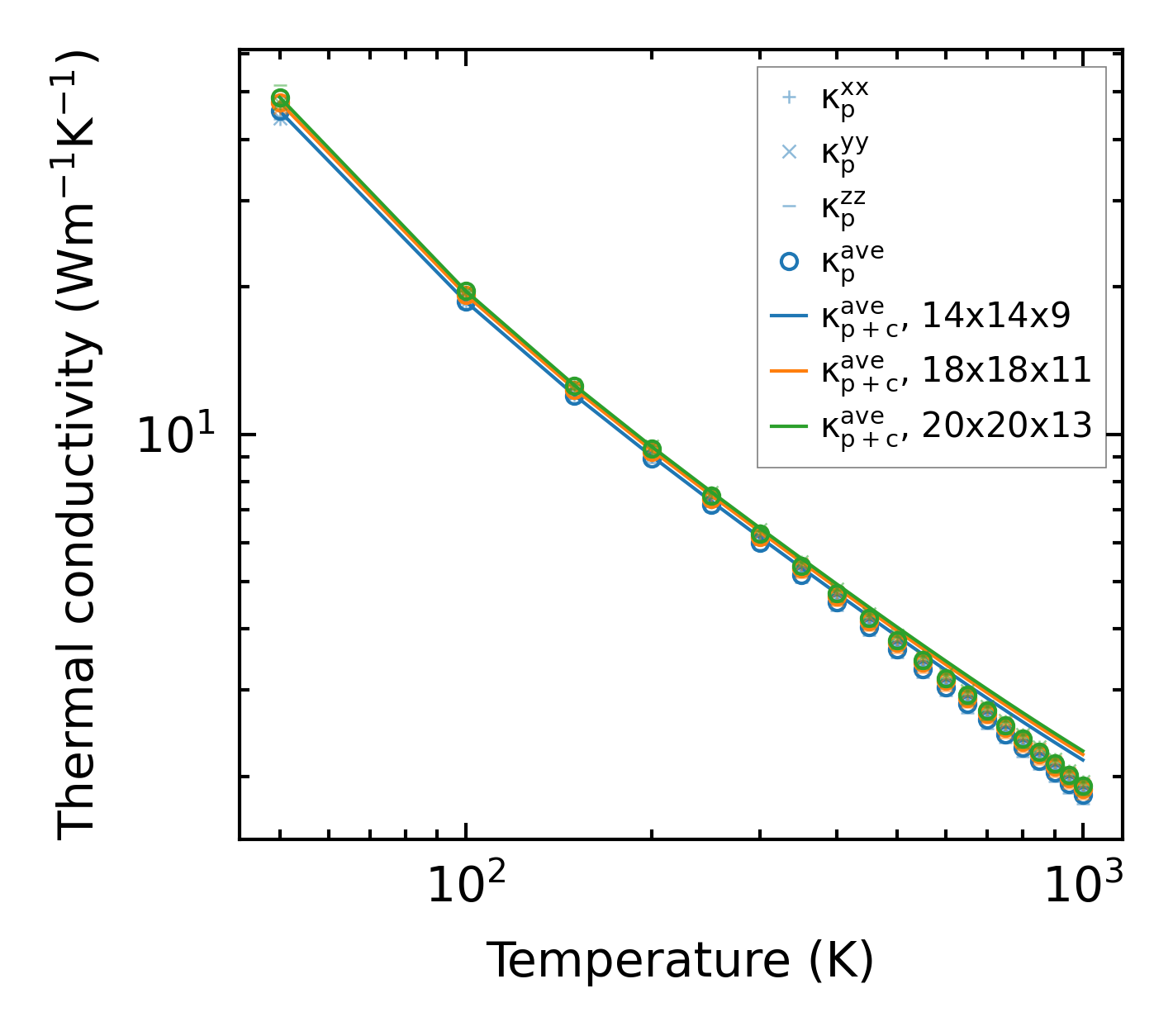

../../_images/fig_kappa12279.png — (a) Temperature-dependent lattice thermal conductivity

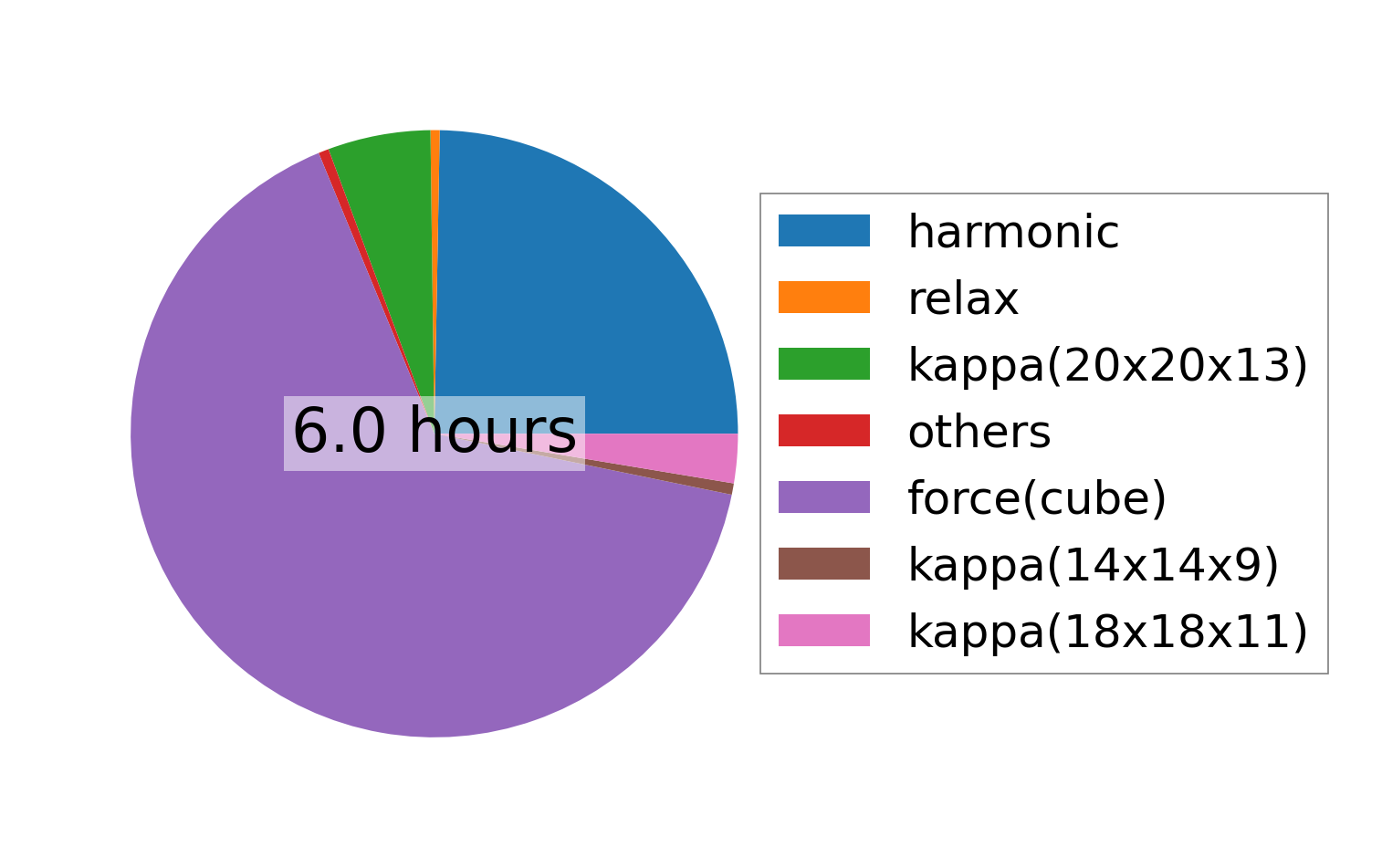

../../_images/fig_times25128.png — (b) Computation time
