mp-13682-2/PdS2/anharm

Space group: Pbca (61)
Link: Materials Project
Download: mp-13682-2.tar.gz

Equation of state

../../_images/fig_bm7483.png — (a) Equation of state

Harmonic properties

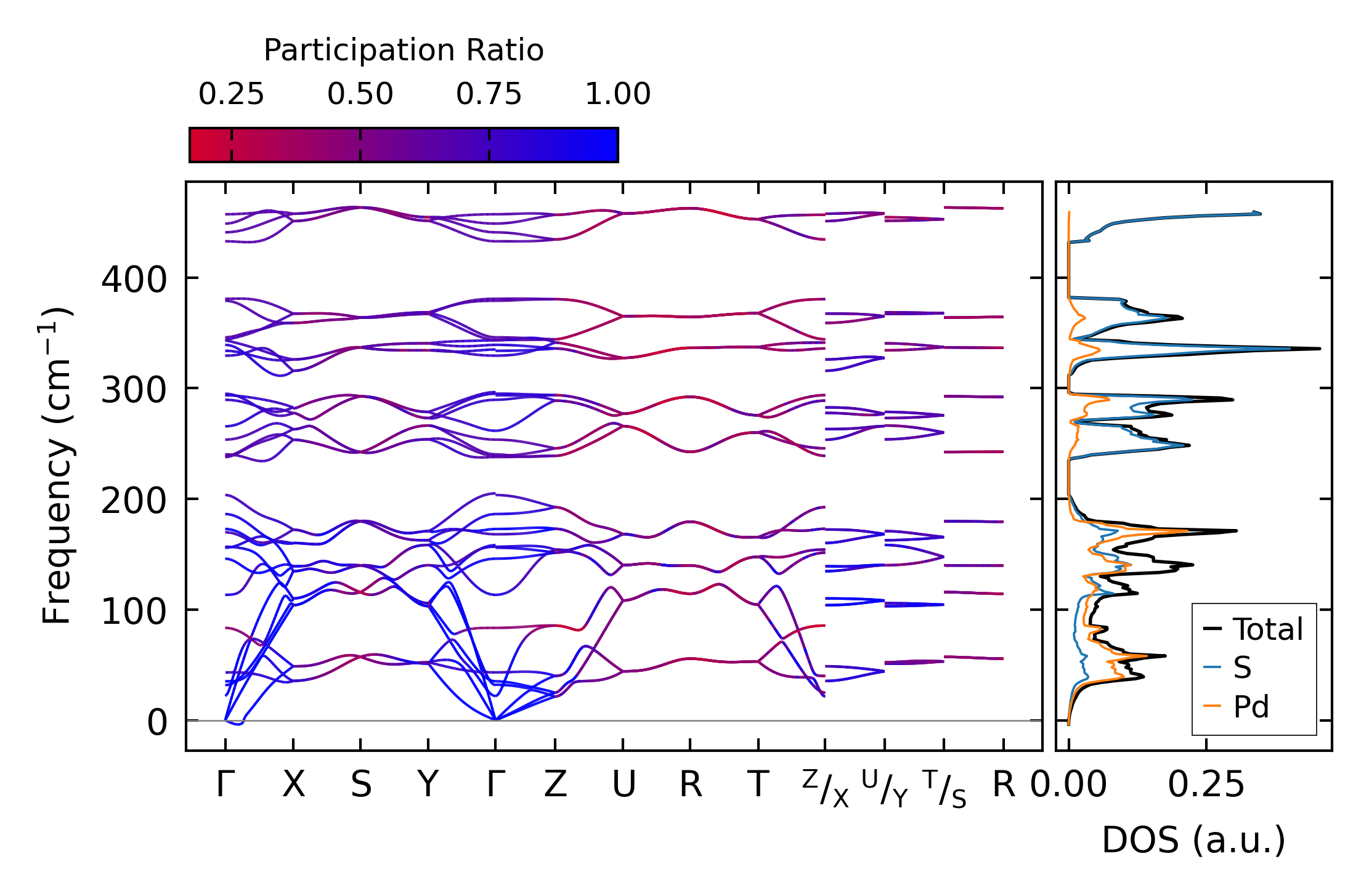

../../_images/fig_bandos_pr14932.png — (a) Phonon dispersion with participation ratio and DOS

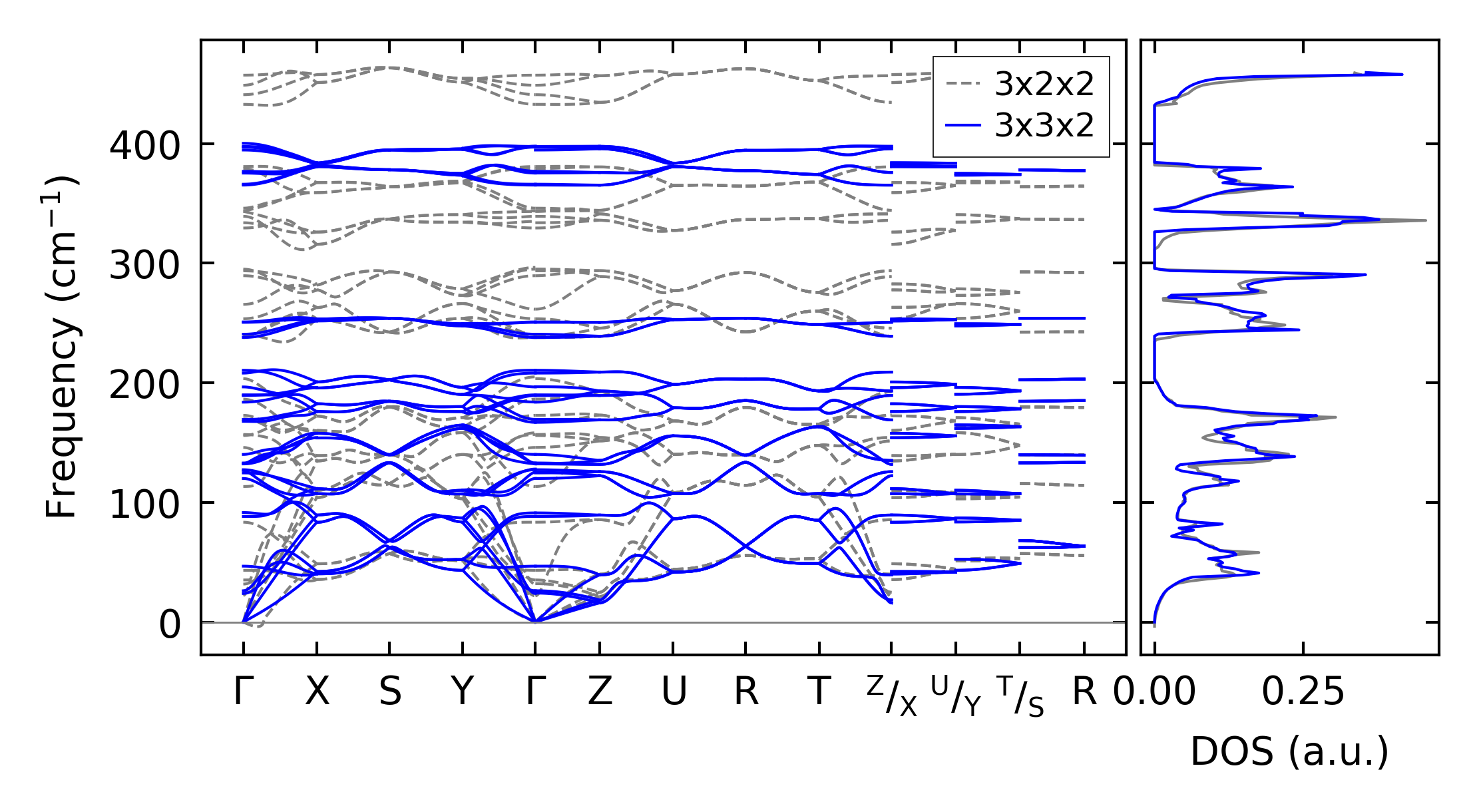

../../_images/fig_bandos19295.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo14932.png — (c) Thermodynamic properties

Grüneisen parameters

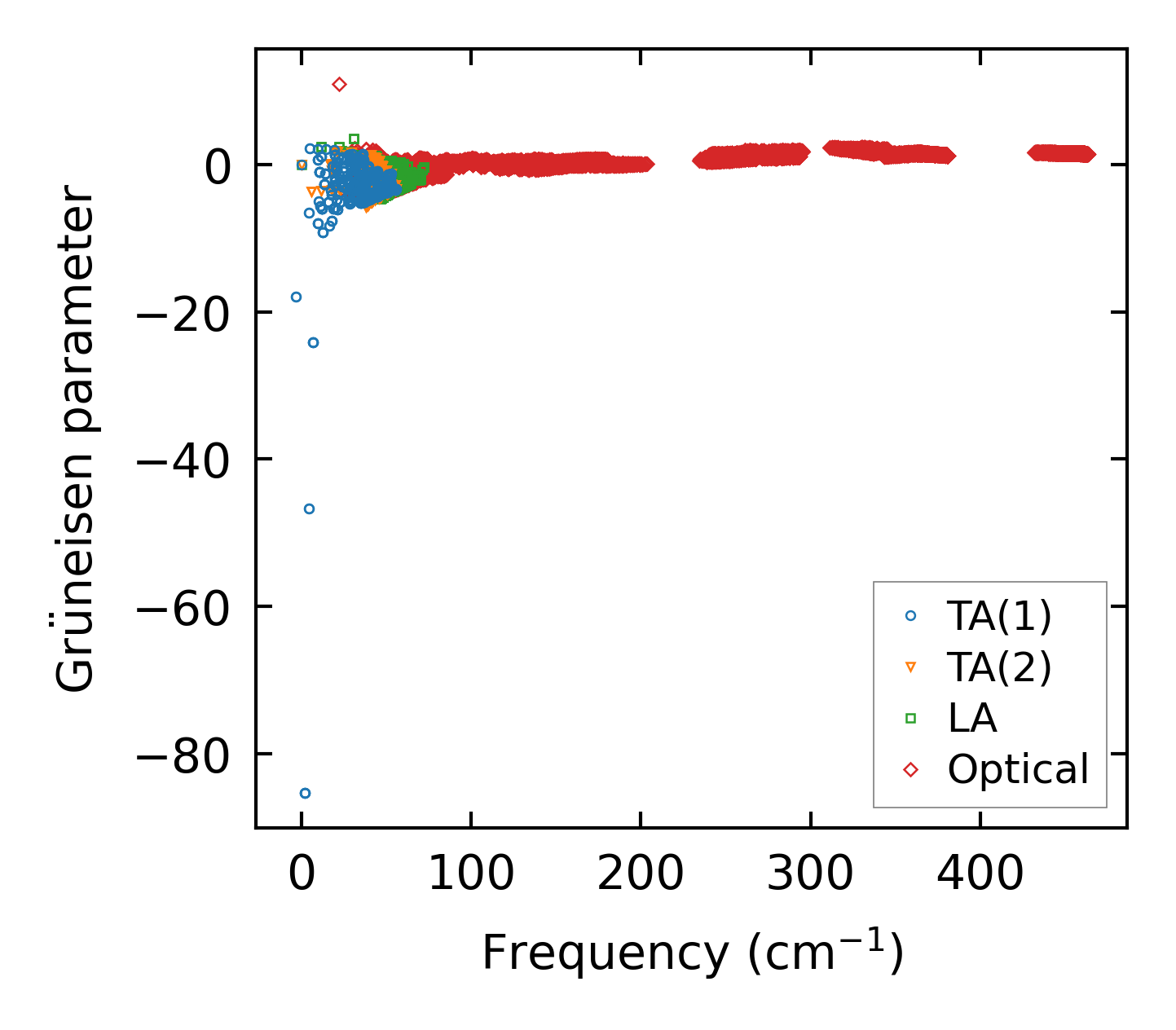

../../_images/fig_gru_all6410.png — (a) Grüneisen parameters

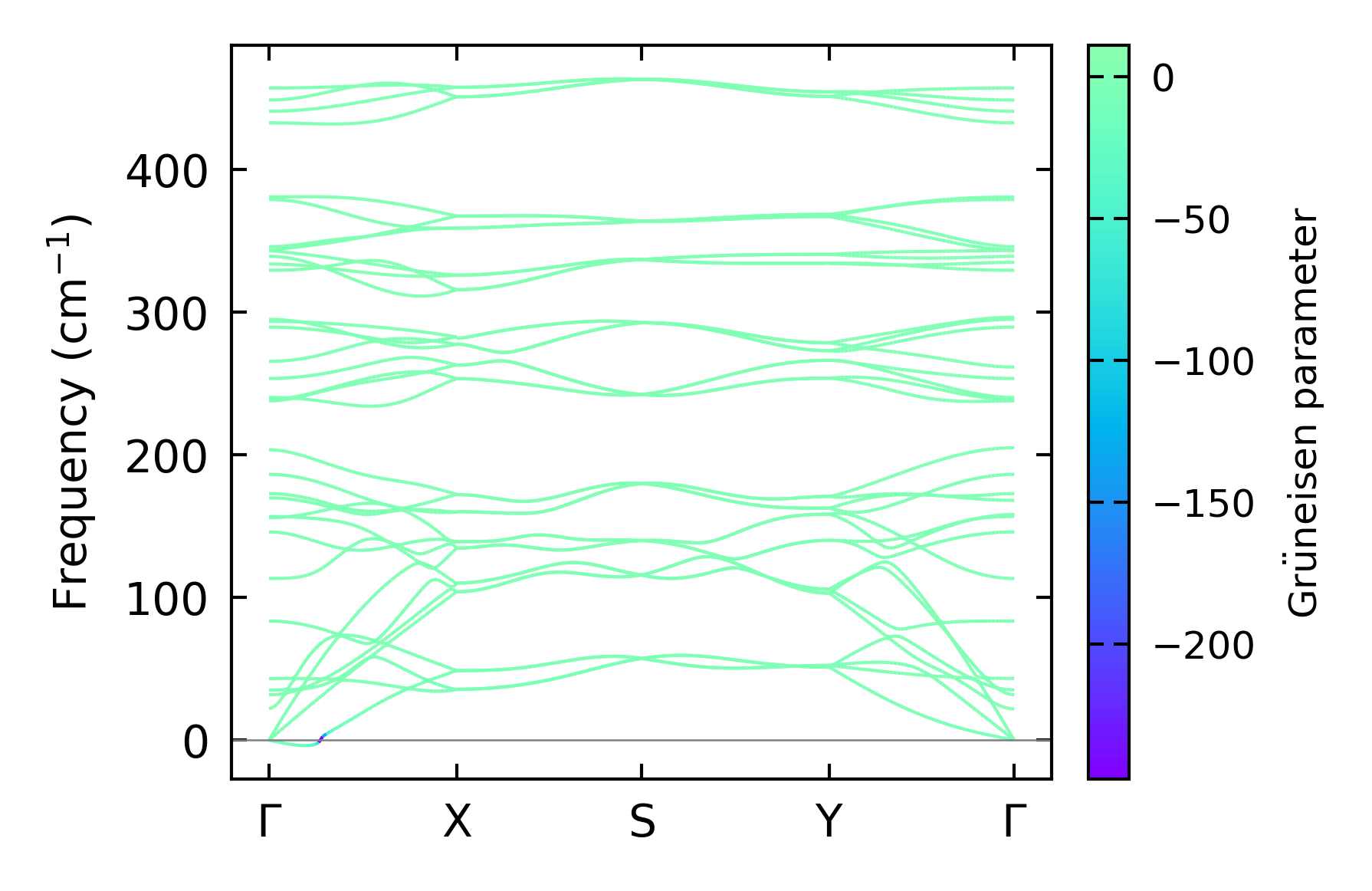

../../_images/fig_gruneisen6410.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 3x3x2 — q-mesh: 13x12x9, supercell: 3x3x2

../../_images/fig_kappa12055.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6487.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

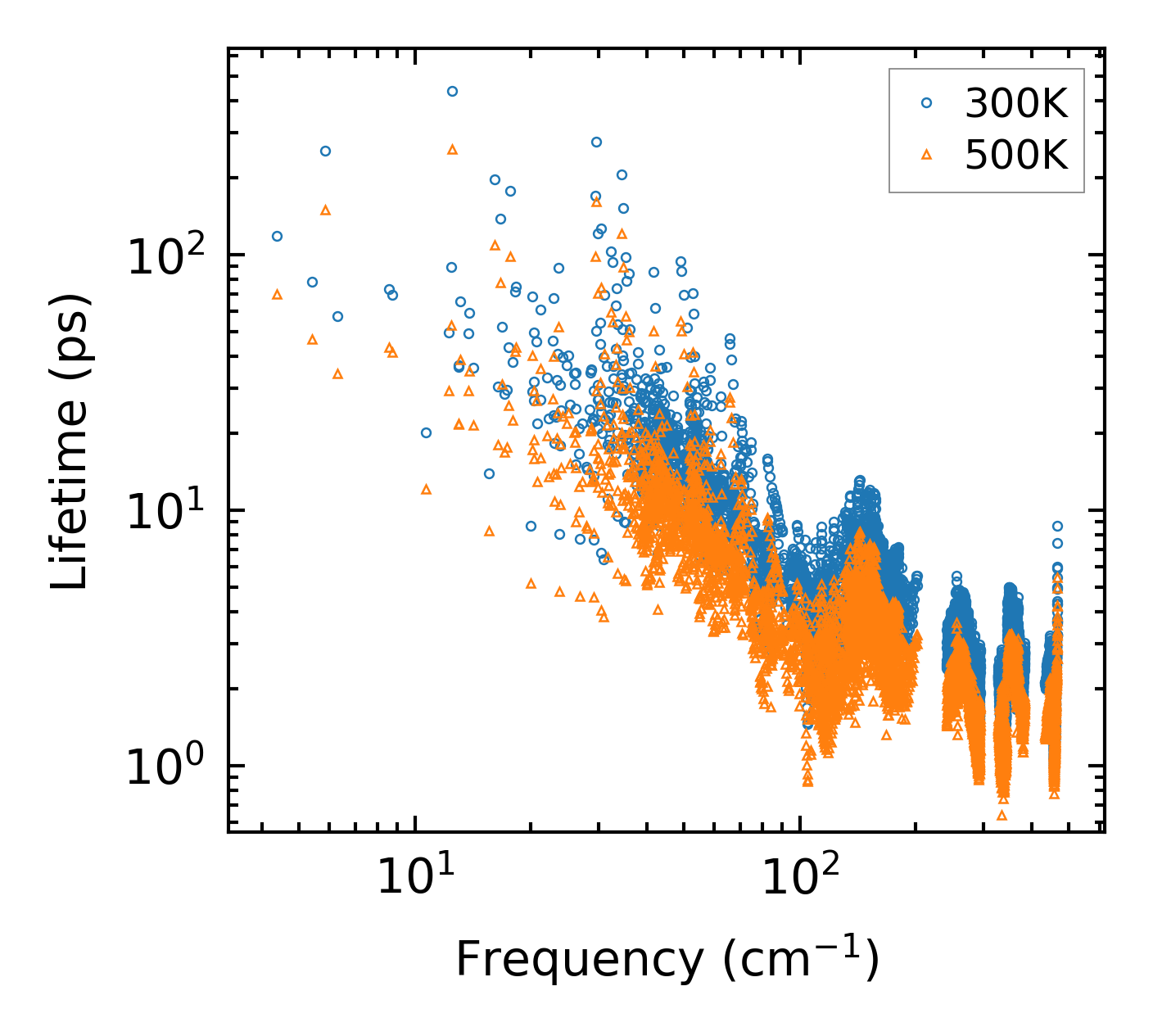

../../_images/fig_lifetime6344.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6343.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

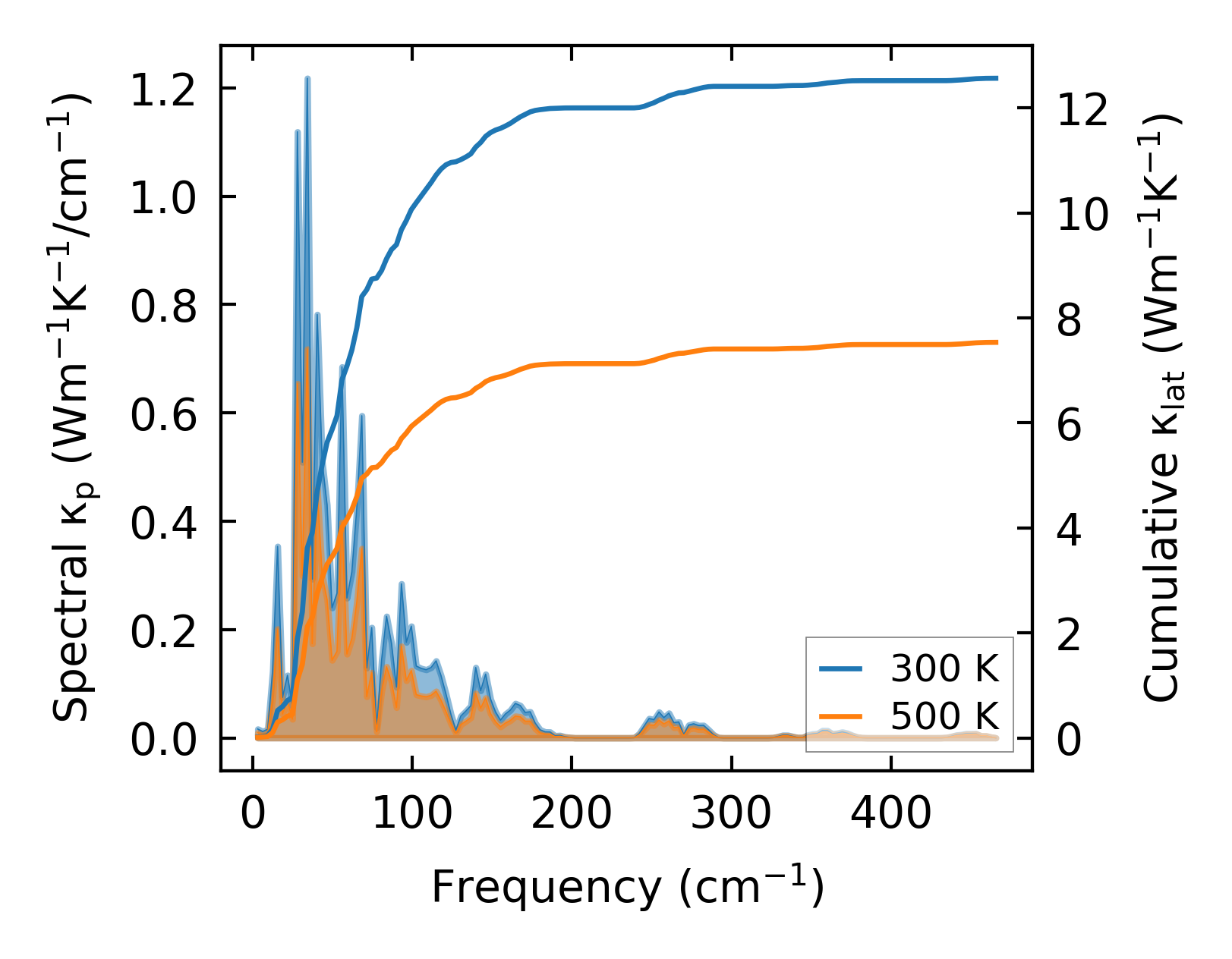

../../_images/fig_cumu_frequency6344.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

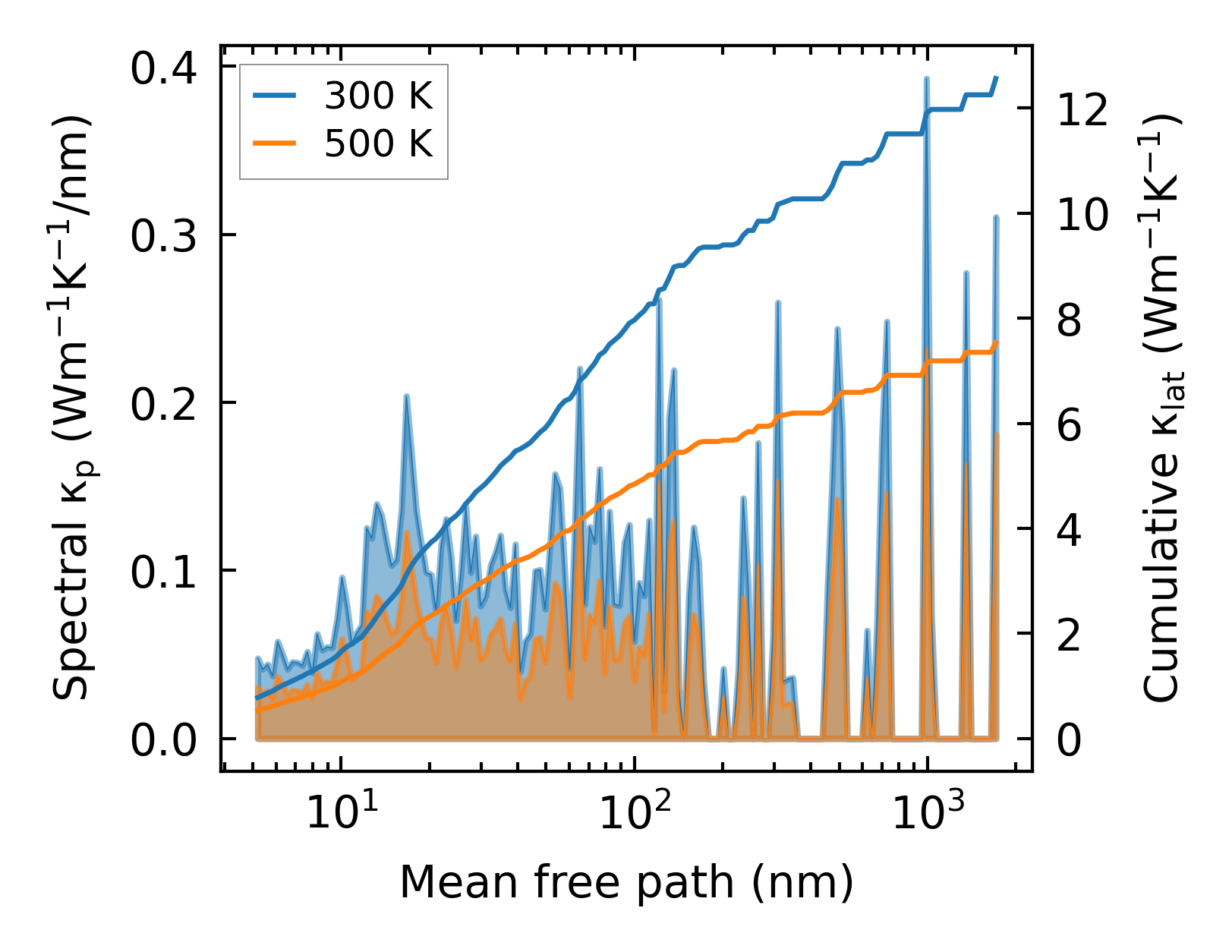

../../_images/fig_cumu_mfp6343.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214549.png — (a) Force constants w.r.t atomic distance

Summary

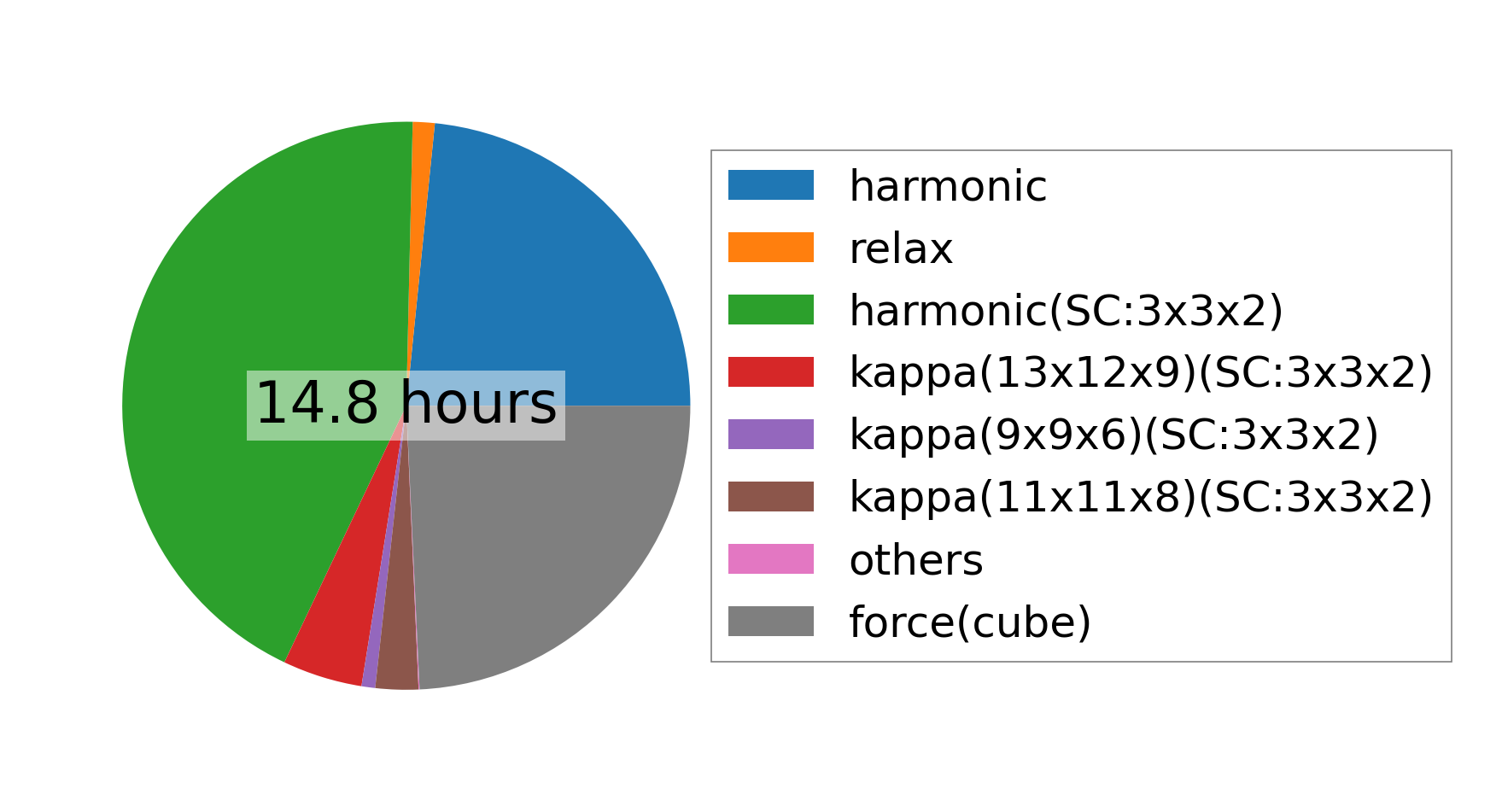

../../_images/fig_times24752.png — (a) Computation time
