mp-12902/ErAgTe2/anharm

Space group: P-42_1m (113)
Link: Materials Project
Download: mp-12902.tar.gz

Equation of state

../../_images/fig_bm7673.png — (a) Equation of state

Harmonic properties

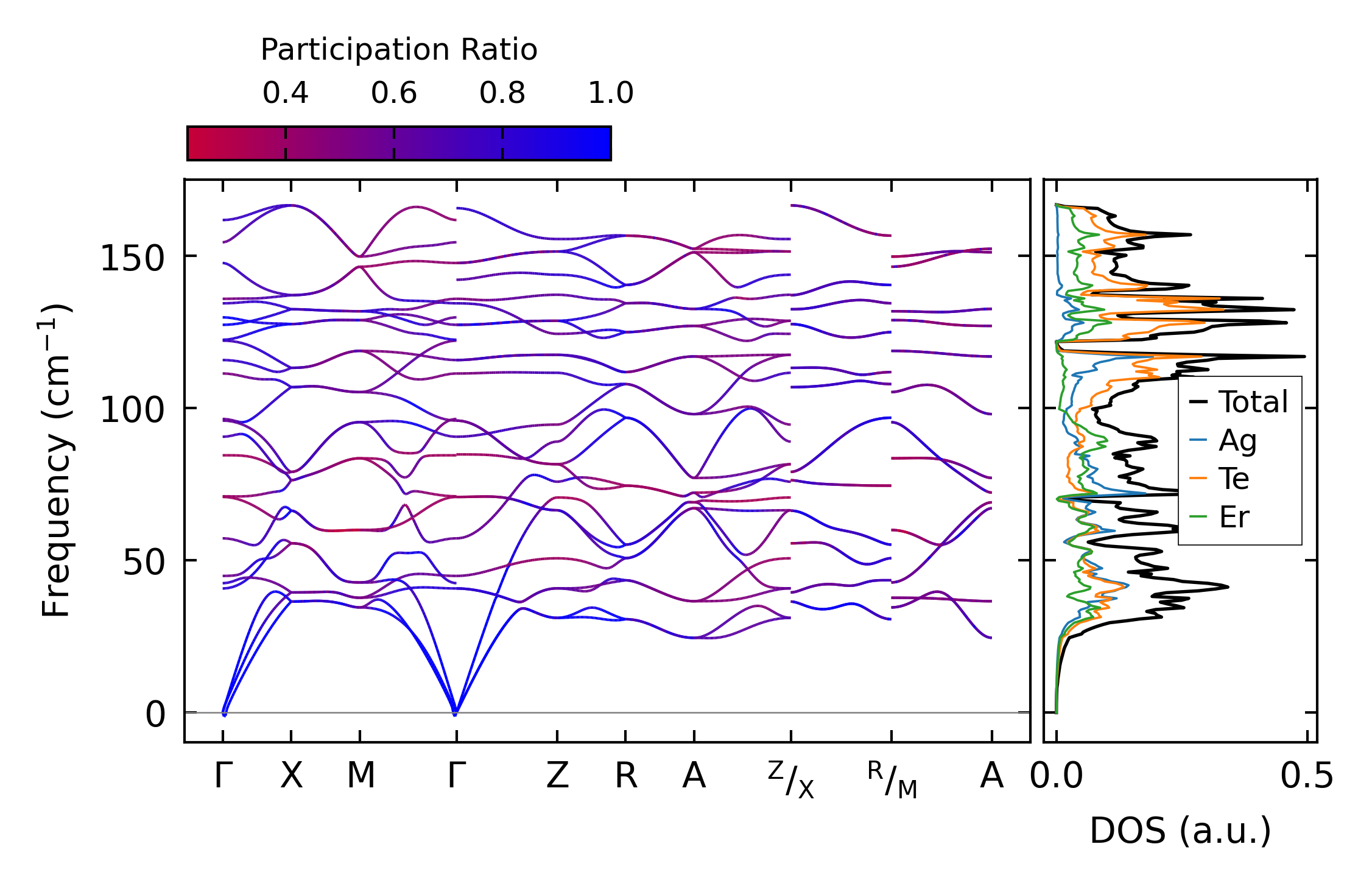

../../_images/fig_bandos_pr15719.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos20081.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo15718.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6805.png — (a) Grüneisen parameters

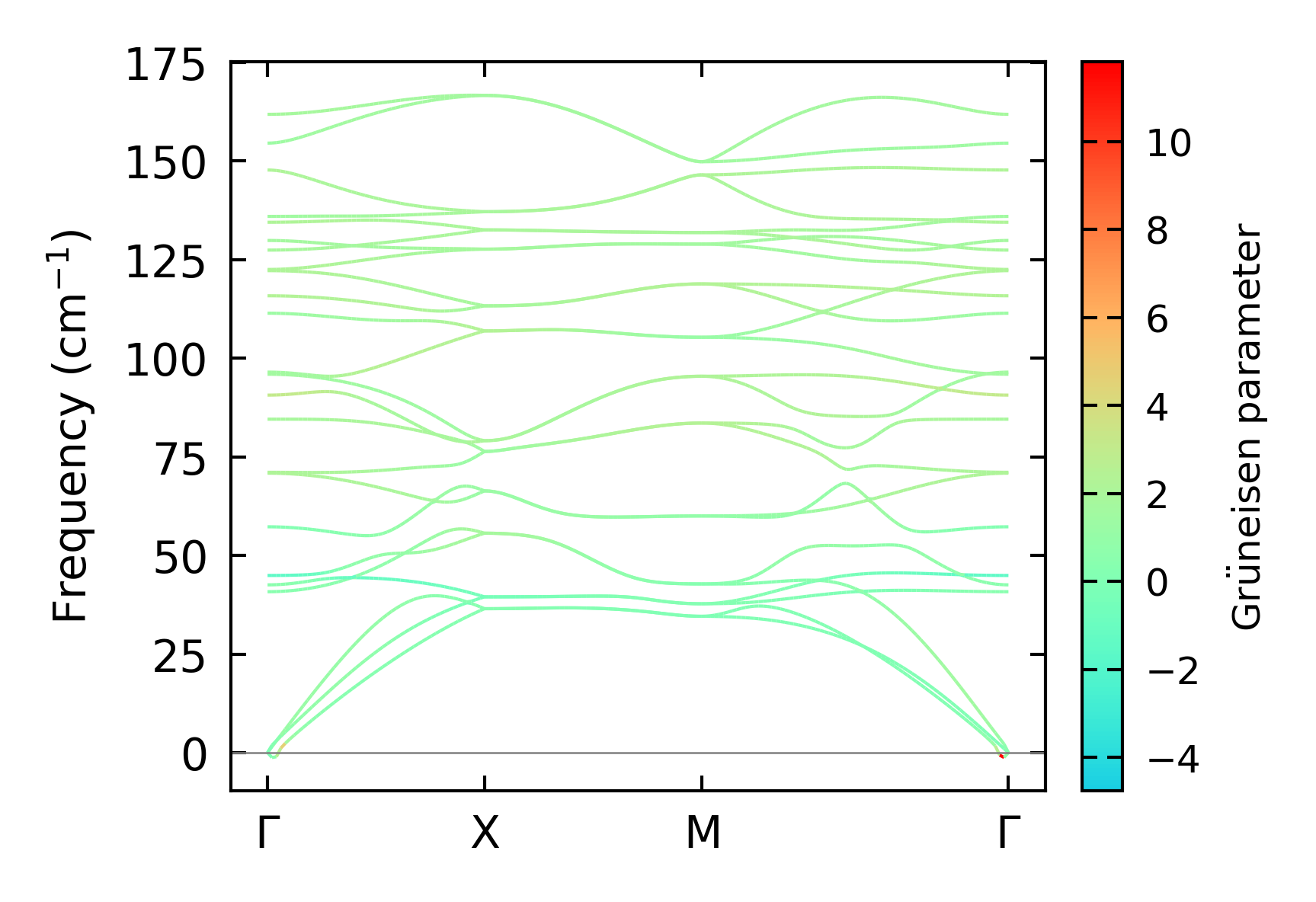

../../_images/fig_gruneisen6805.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 3x3x3 — q-mesh: 10x10x15, supercell: 3x3x3

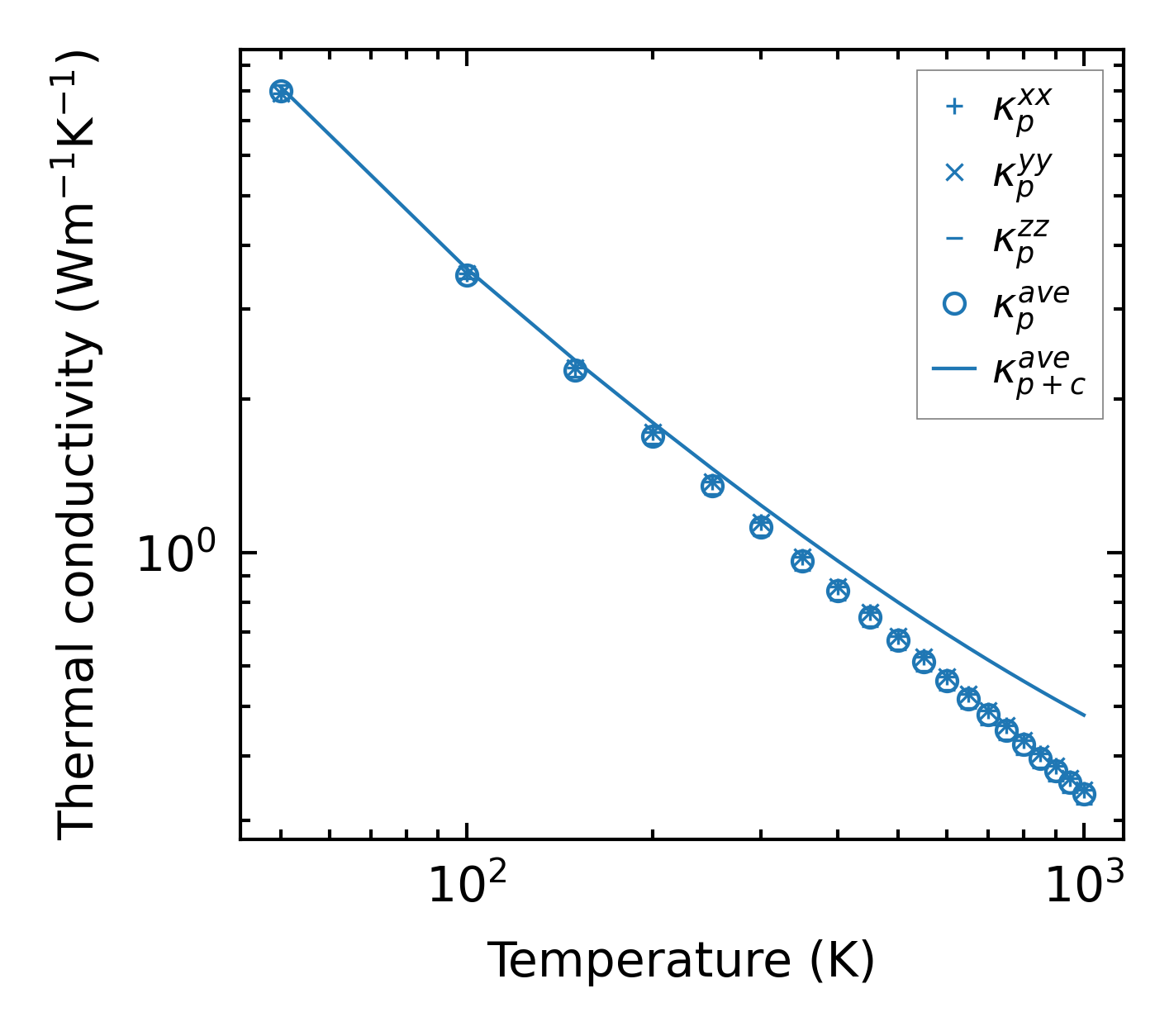

../../_images/fig_kappa12821.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6885.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

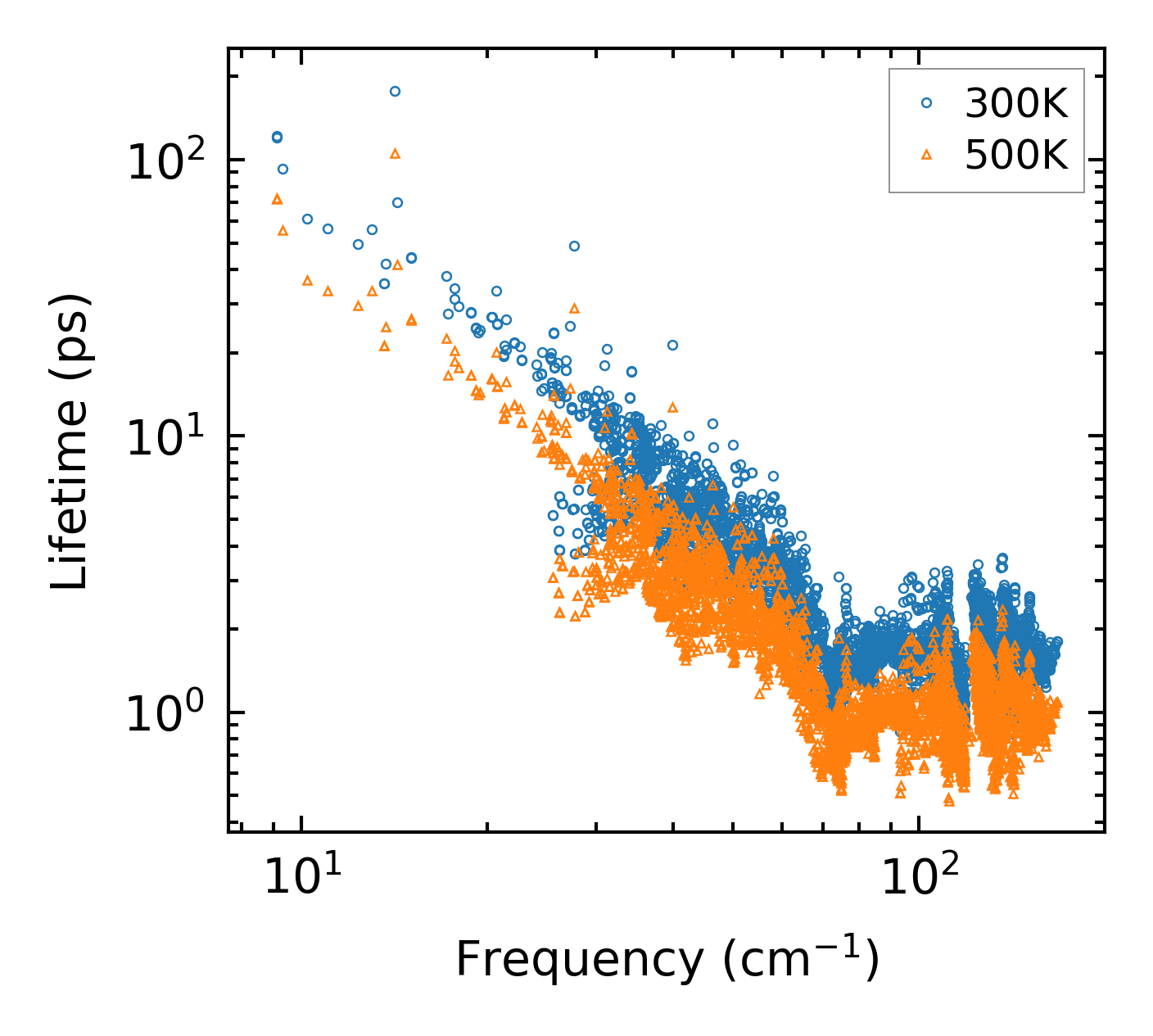

../../_images/fig_lifetime6739.png — (a) Phonon lifetime due to phonon-phonon scattering

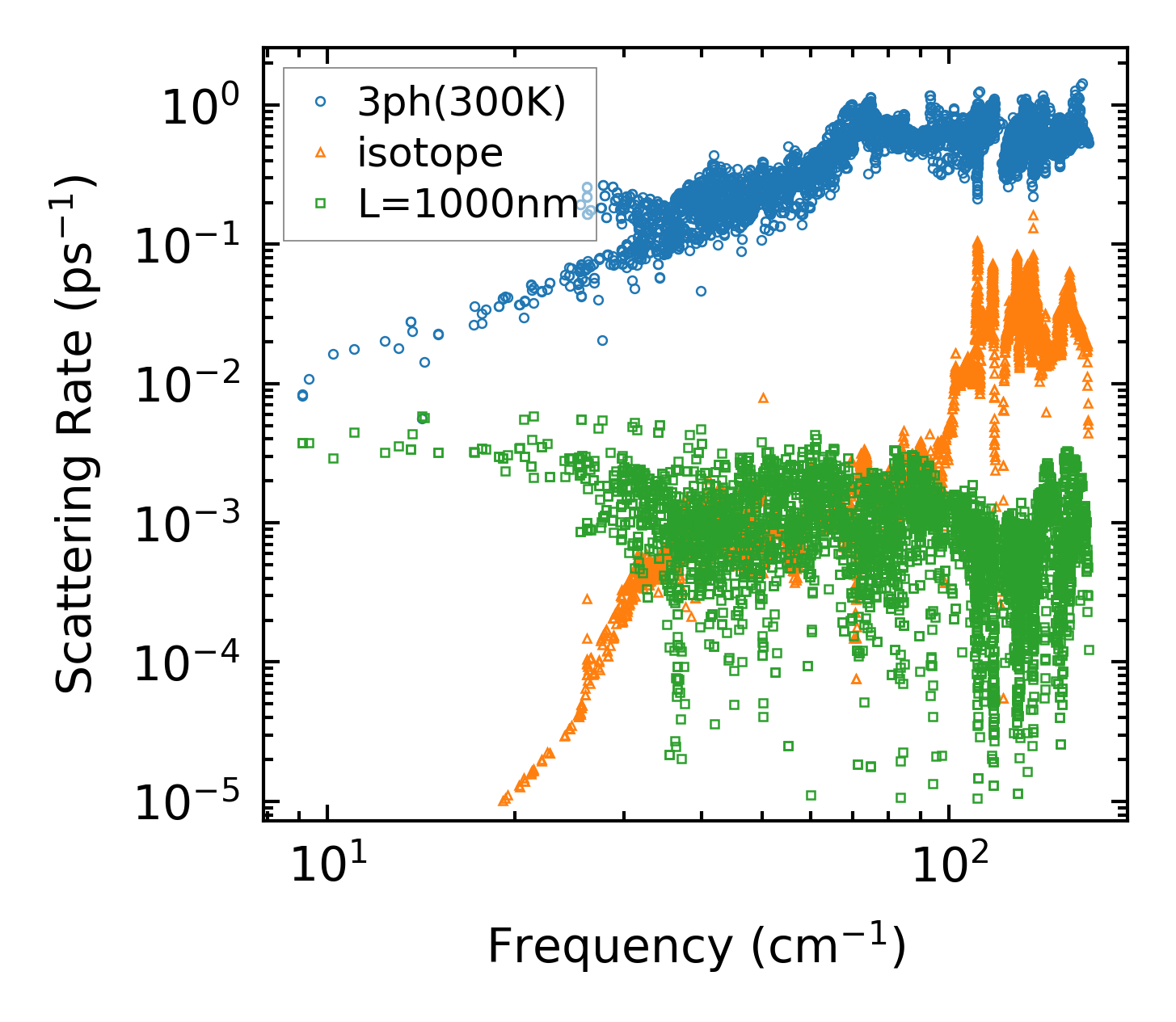

../../_images/fig_scat_rates6738.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

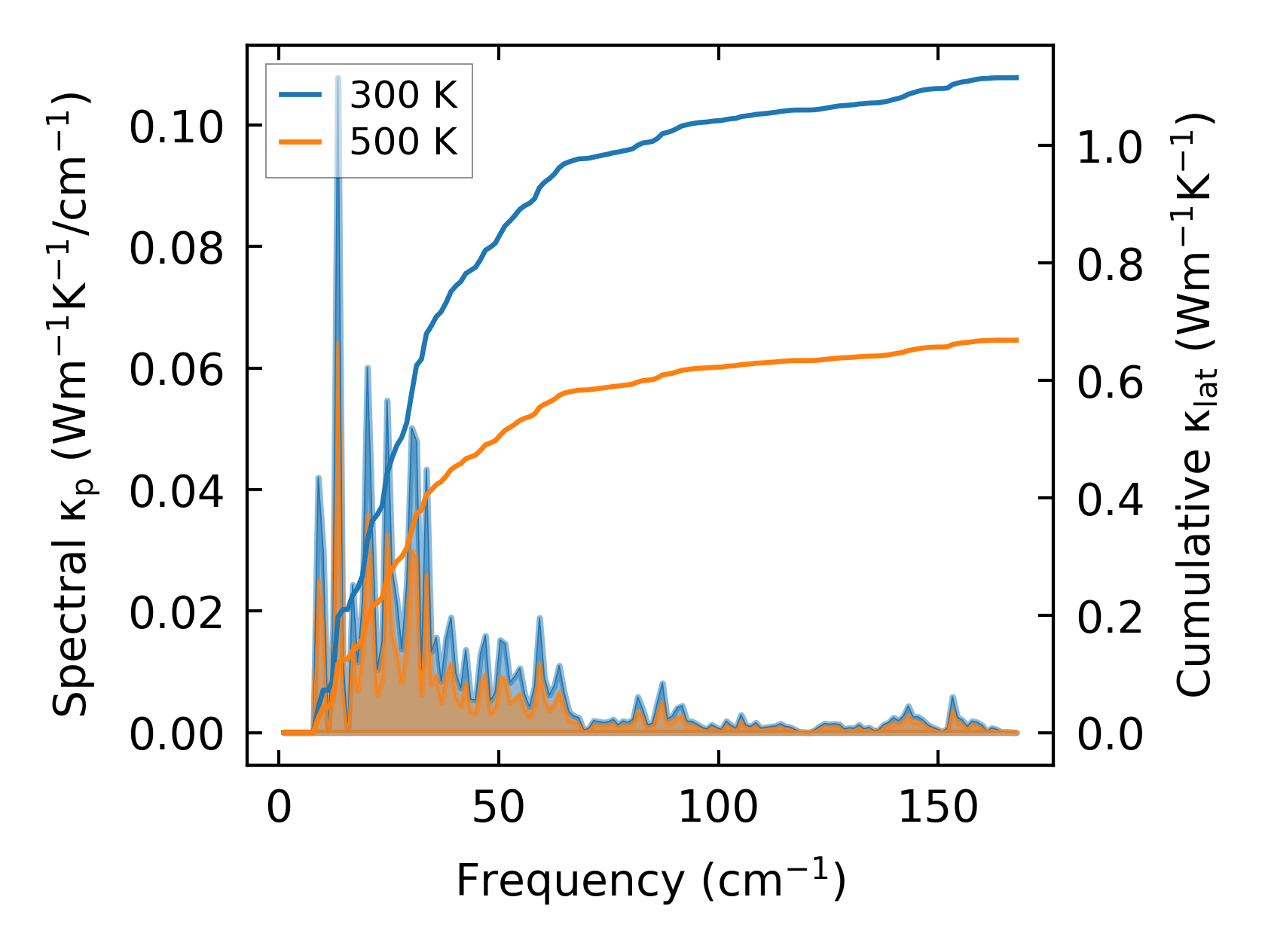

../../_images/fig_cumu_frequency6739.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6738.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

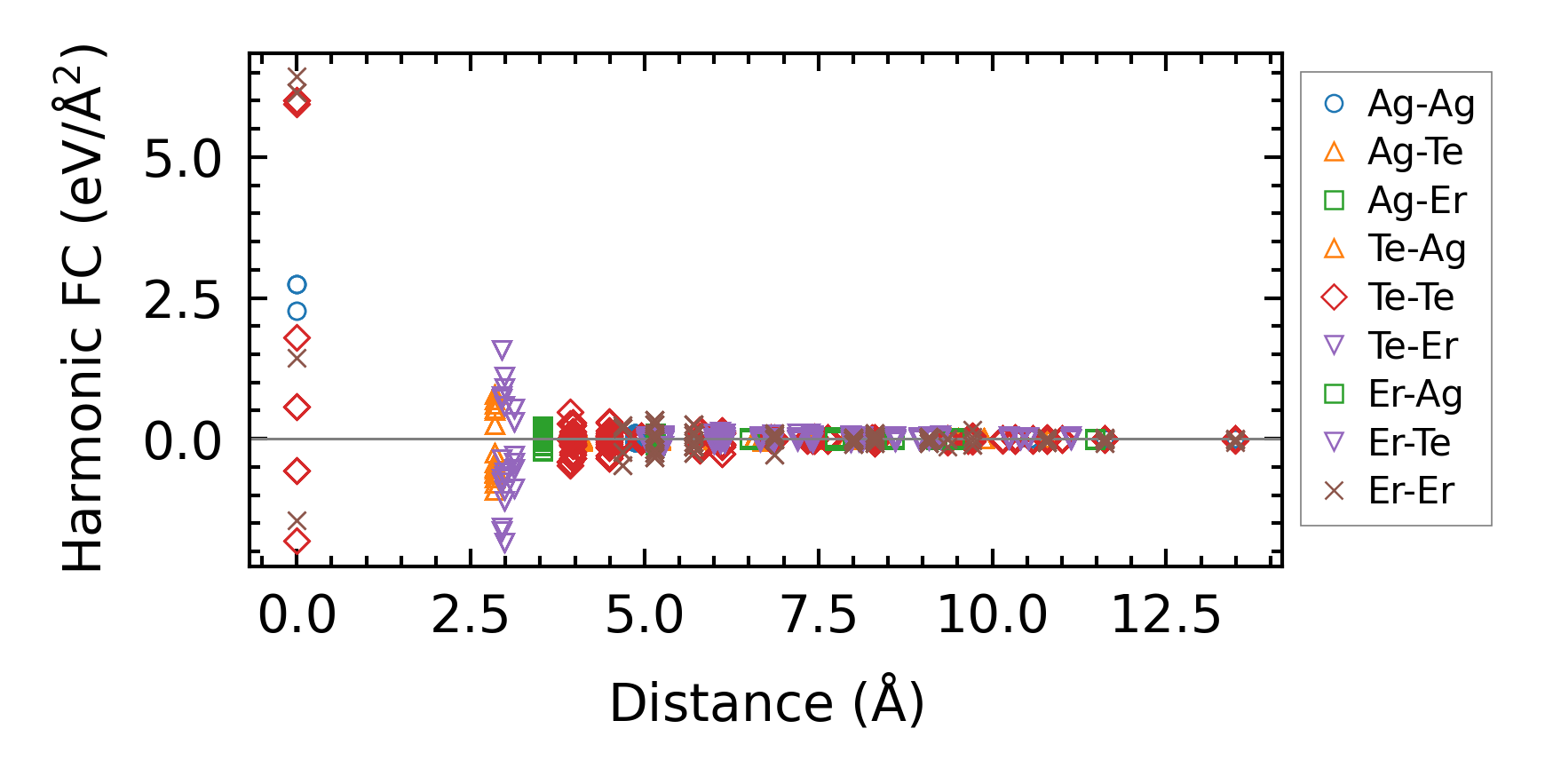

../../_images/fig_fc215314.png — (a) Force constants w.r.t atomic distance

Summary

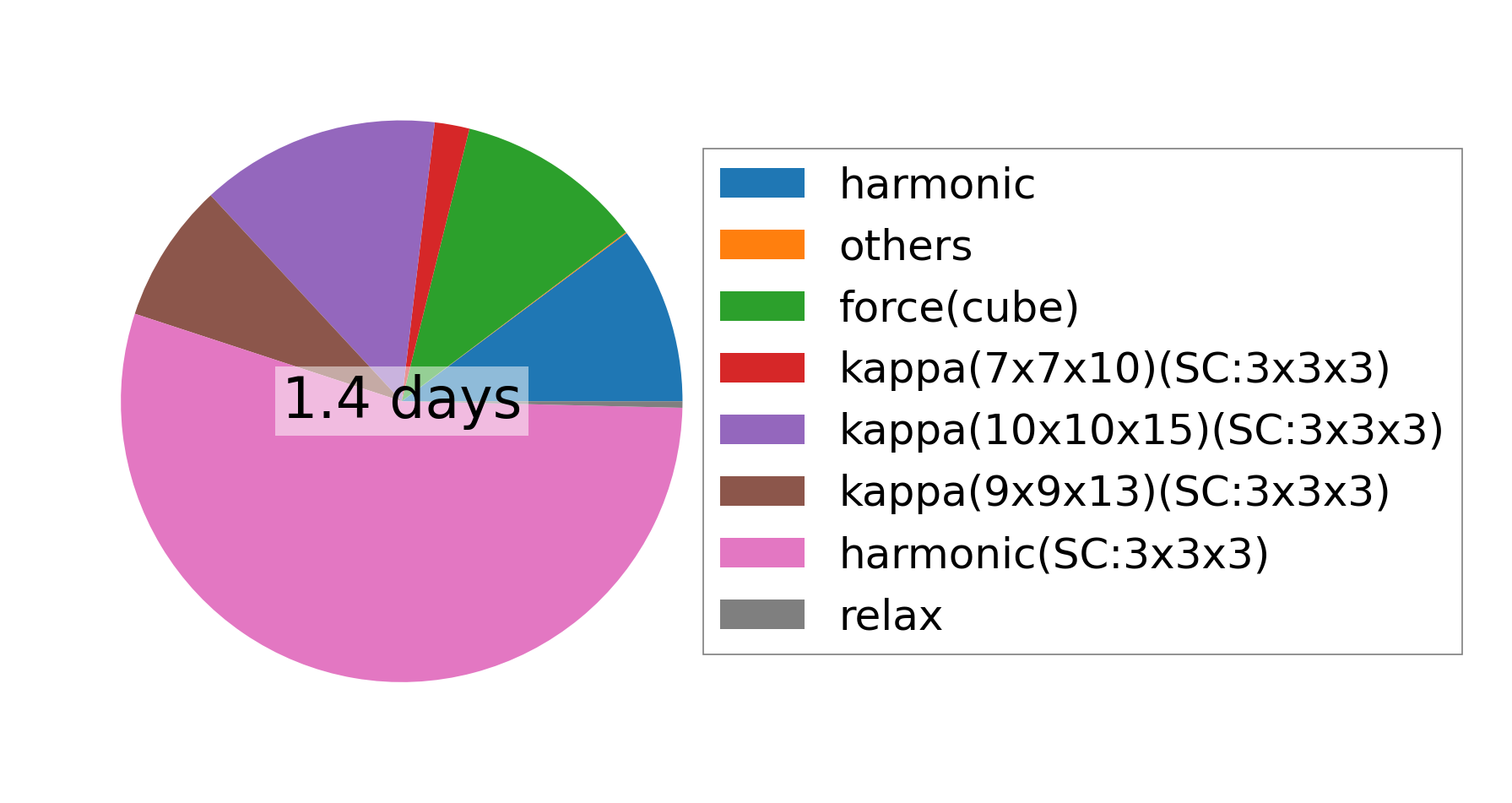

../../_images/fig_times25900.png — (a) Computation time
