mp-12669/Dy2SO2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-12669.tar.gz

Harmonic properties

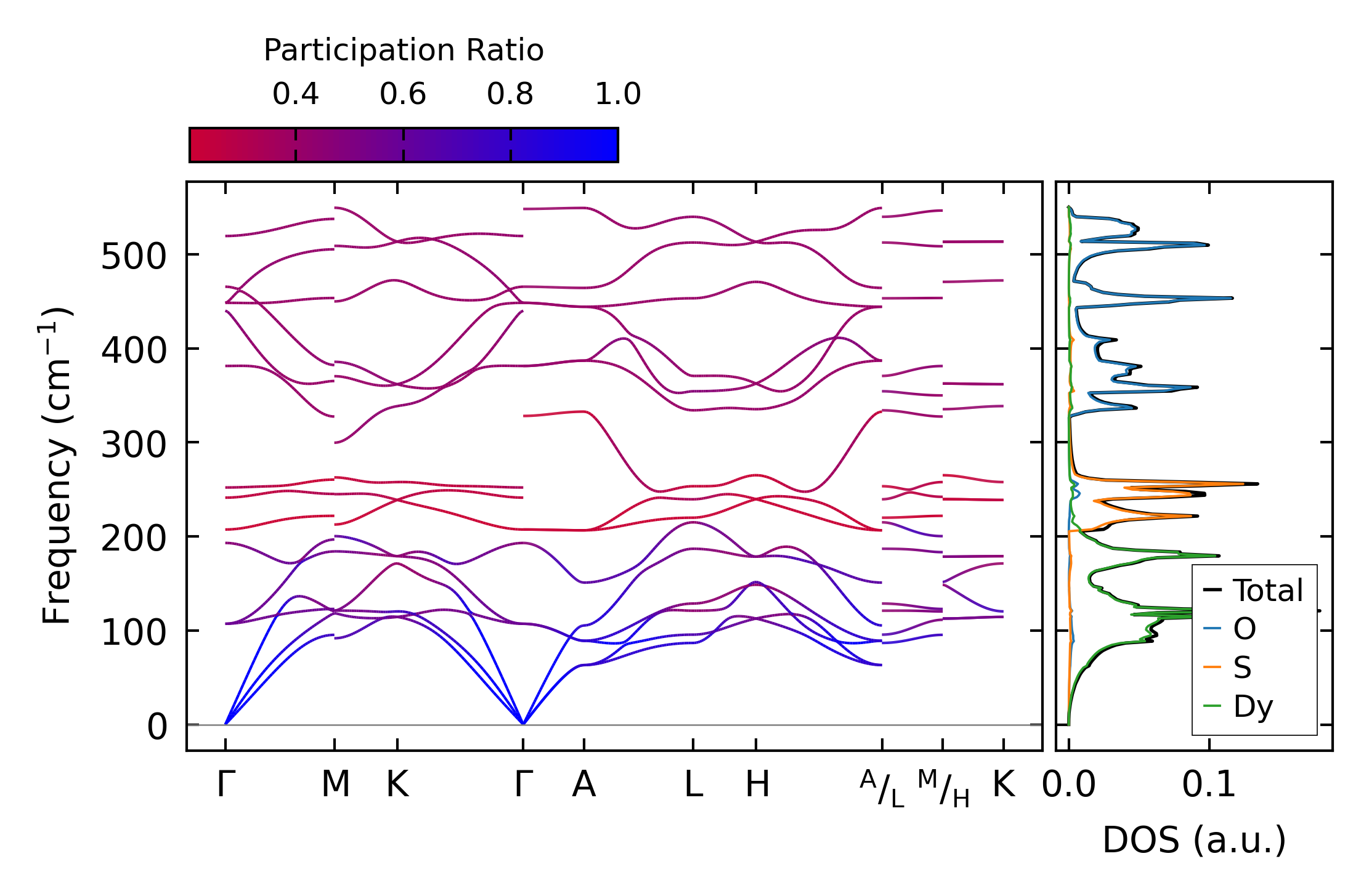

../../_images/fig_bandos_pr15685.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15684.png — (b) Thermodynamic properties

Grüneisen parameters

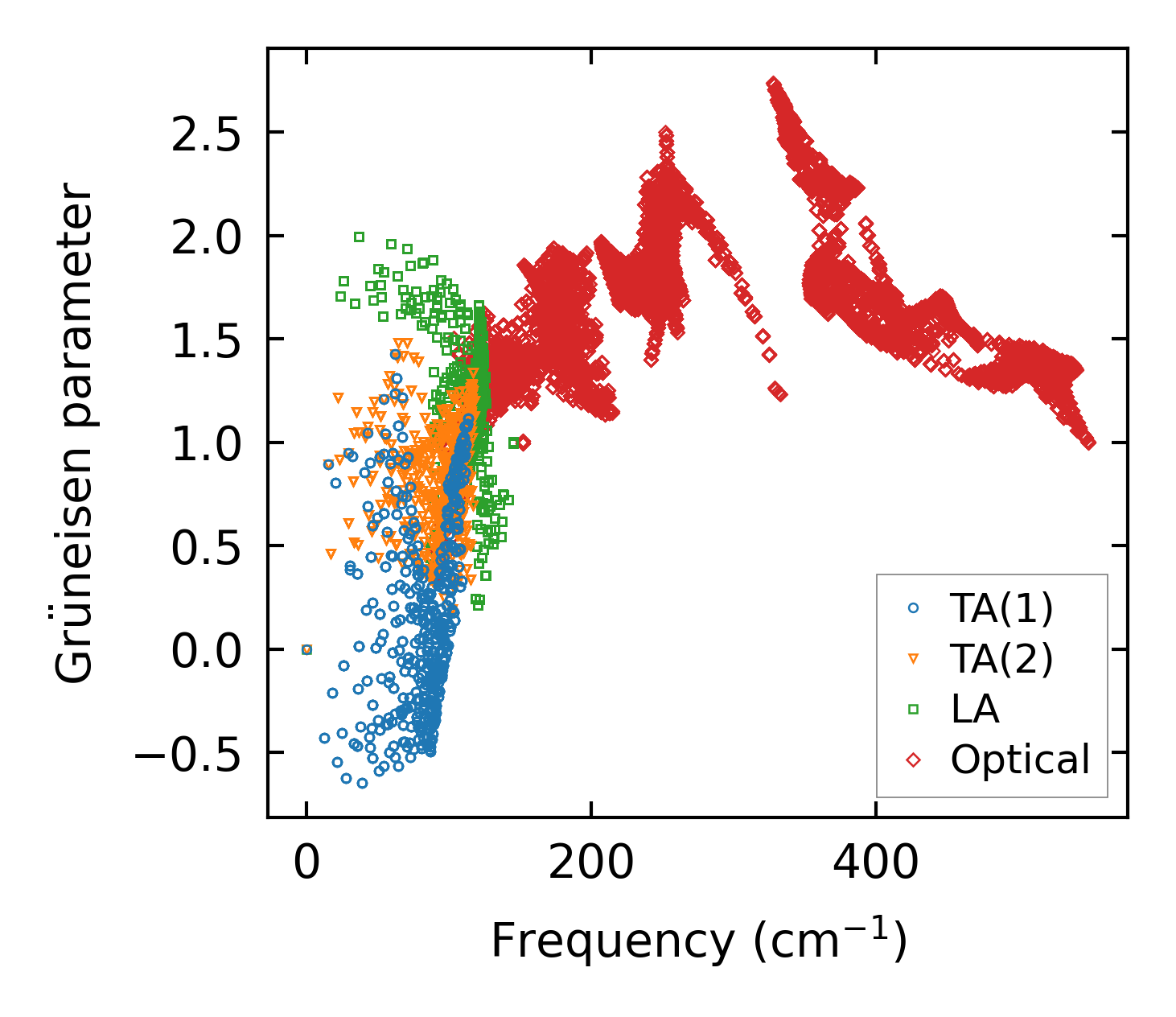

../../_images/fig_gru_all6789.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6789.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 20x20x11, supercell: 3x3x2

../../_images/fig_kappa12789.png — (a) Temperature-dependent lattice thermal conductivity

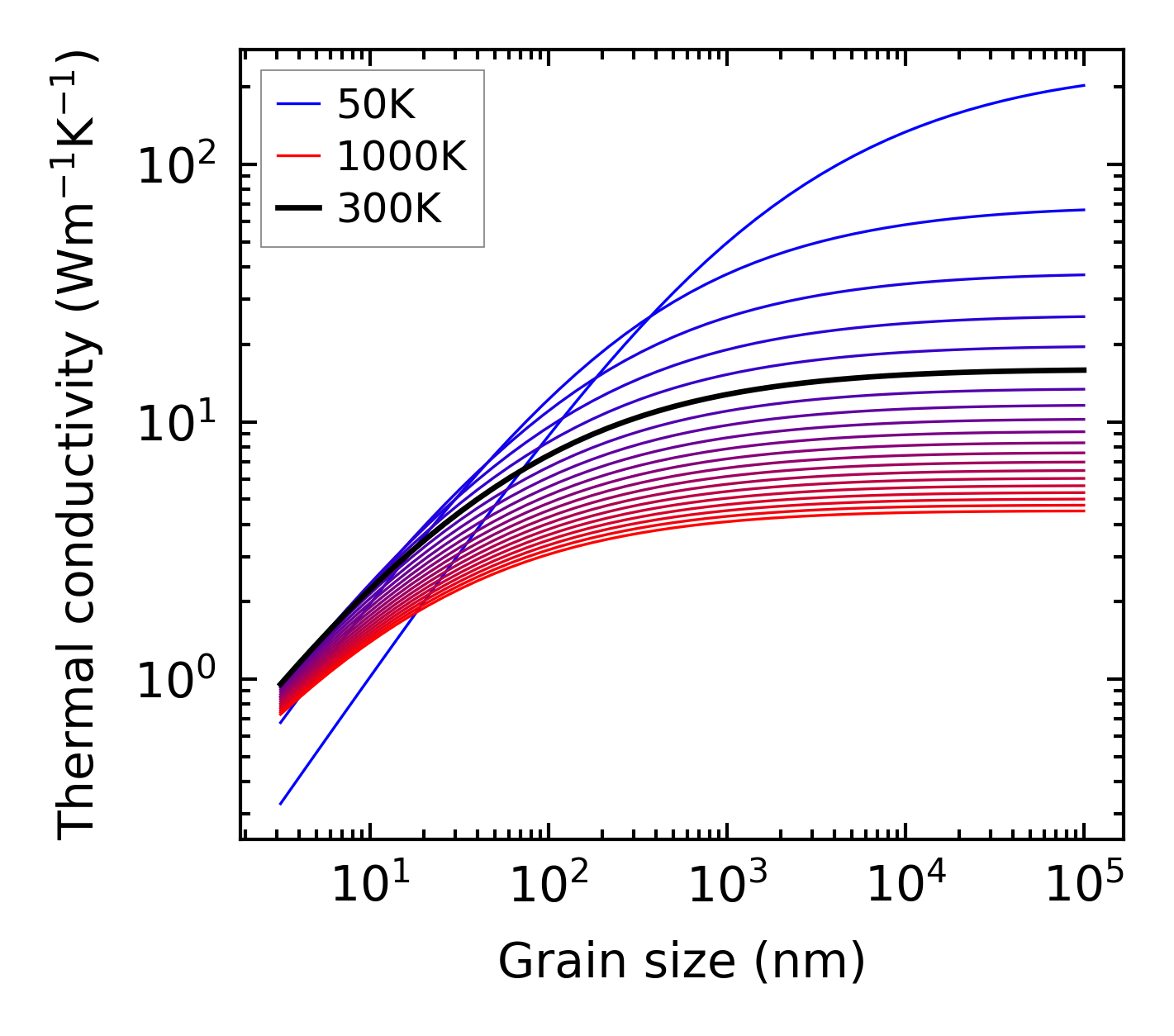

../../_images/fig_kappa_vs_grain_size6869.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

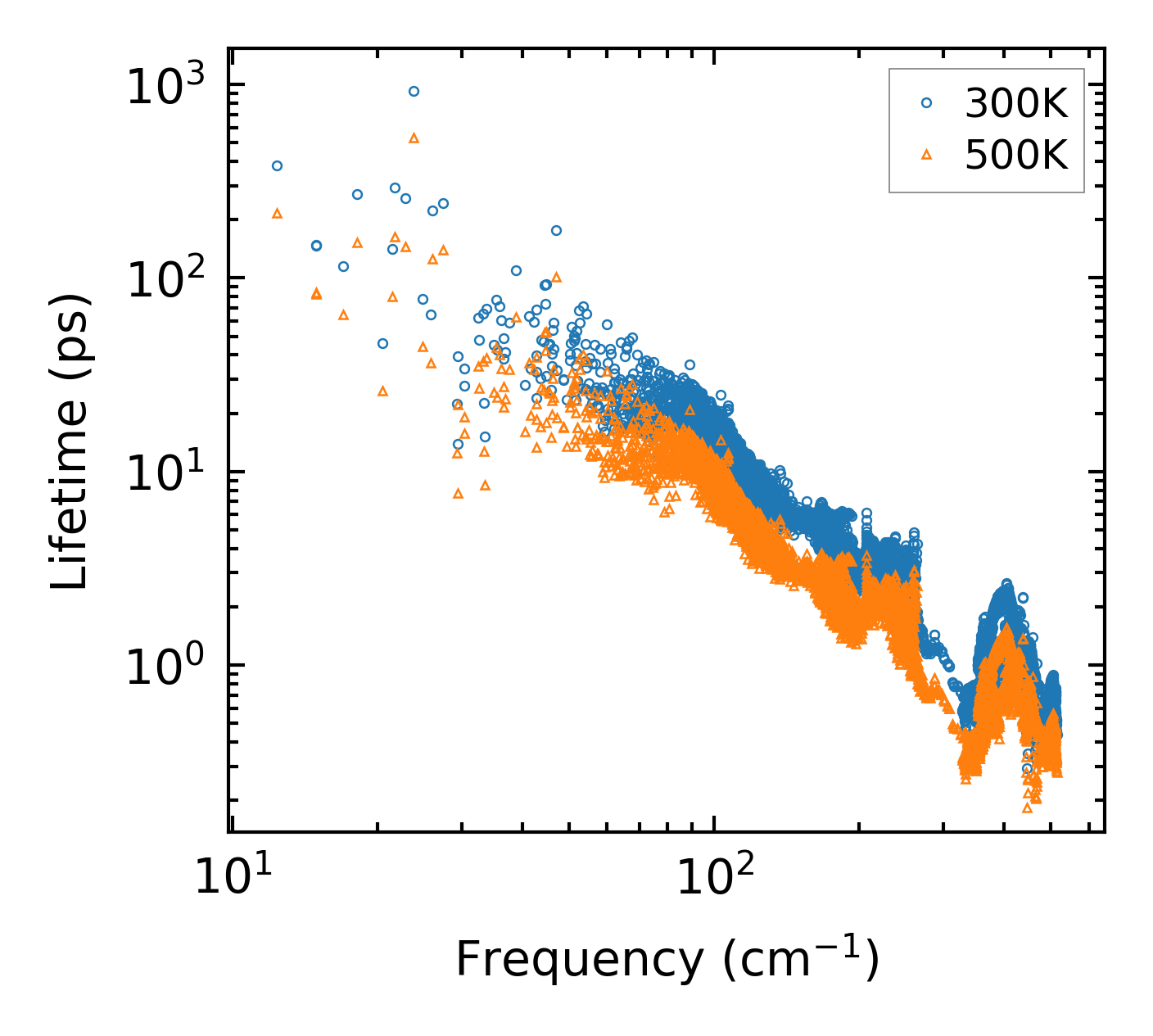

../../_images/fig_lifetime6723.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6722.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6723.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

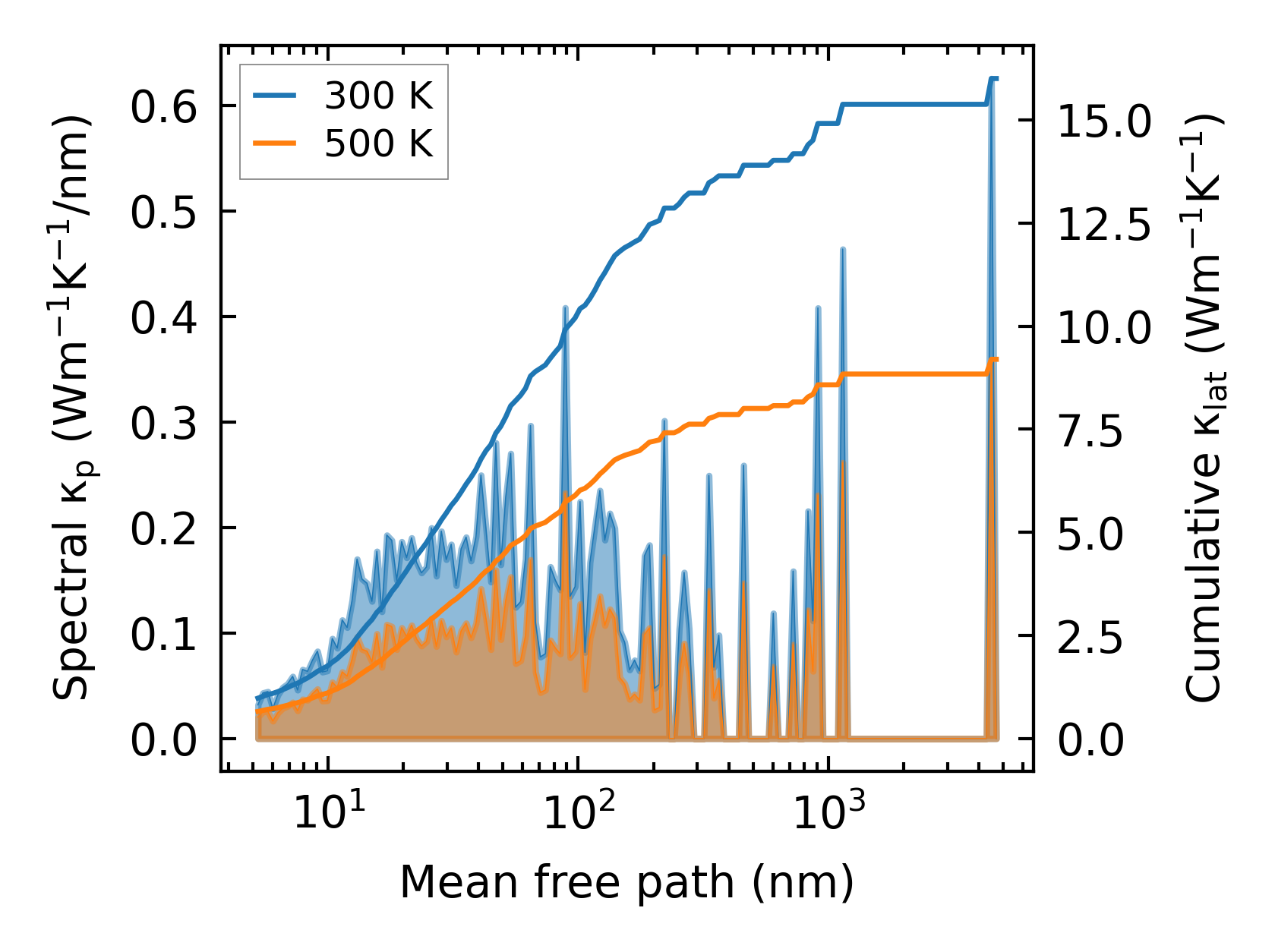

../../_images/fig_cumu_mfp6722.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

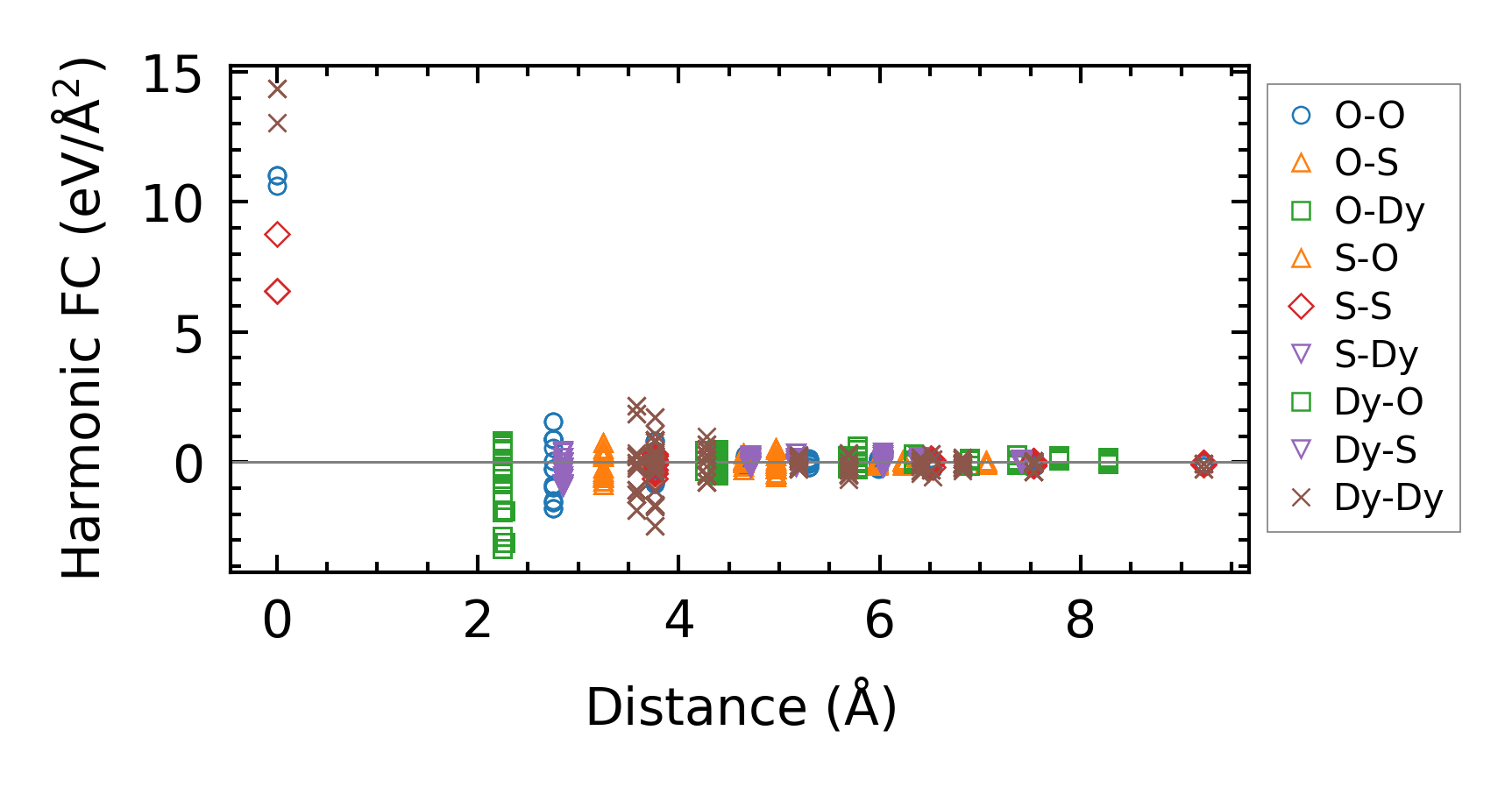

../../_images/fig_fc215280.png — (a) Force constants w.r.t atomic distance

Summary

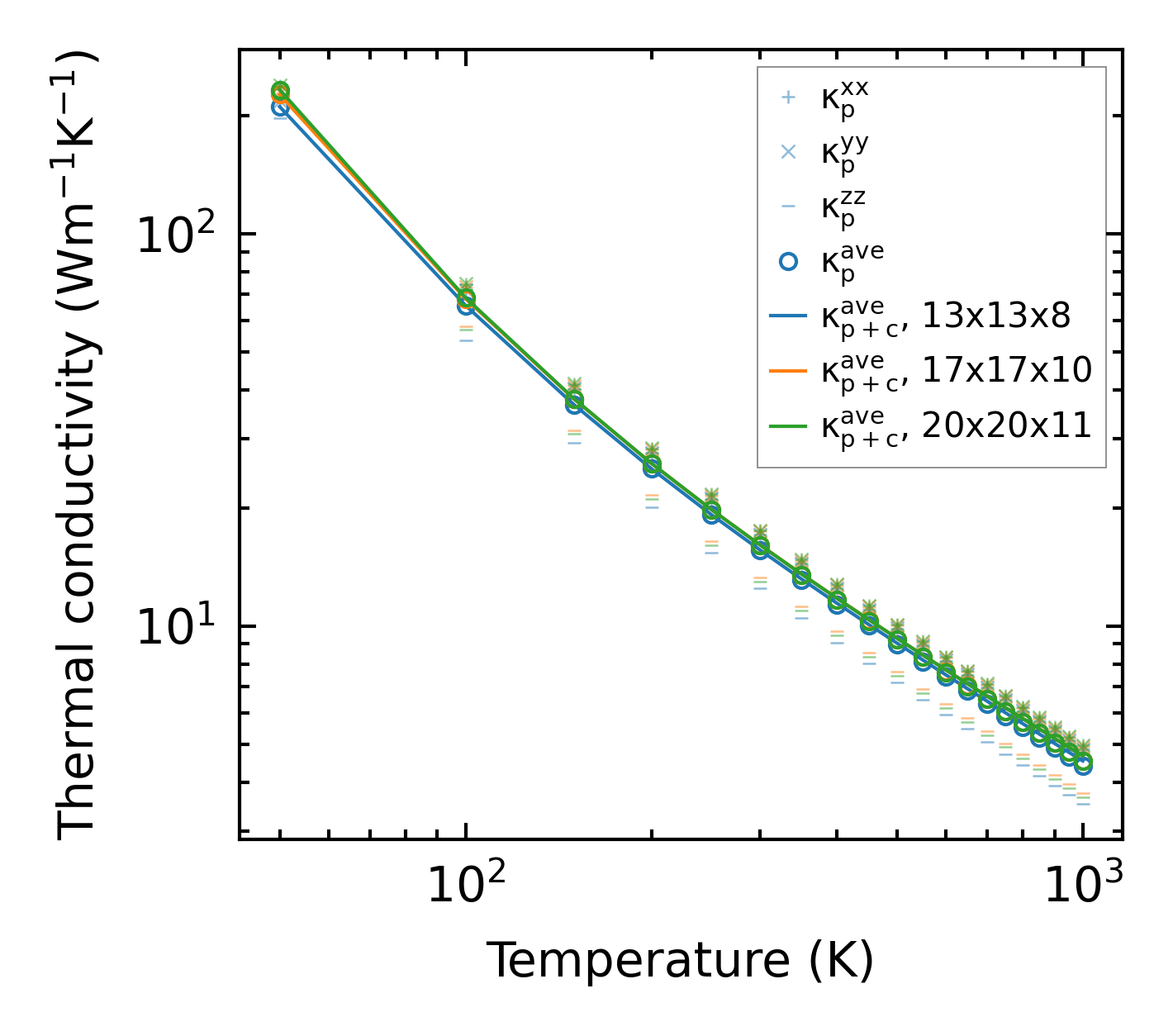

../../_images/fig_kappa12790.png — (a) Temperature-dependent lattice thermal conductivity

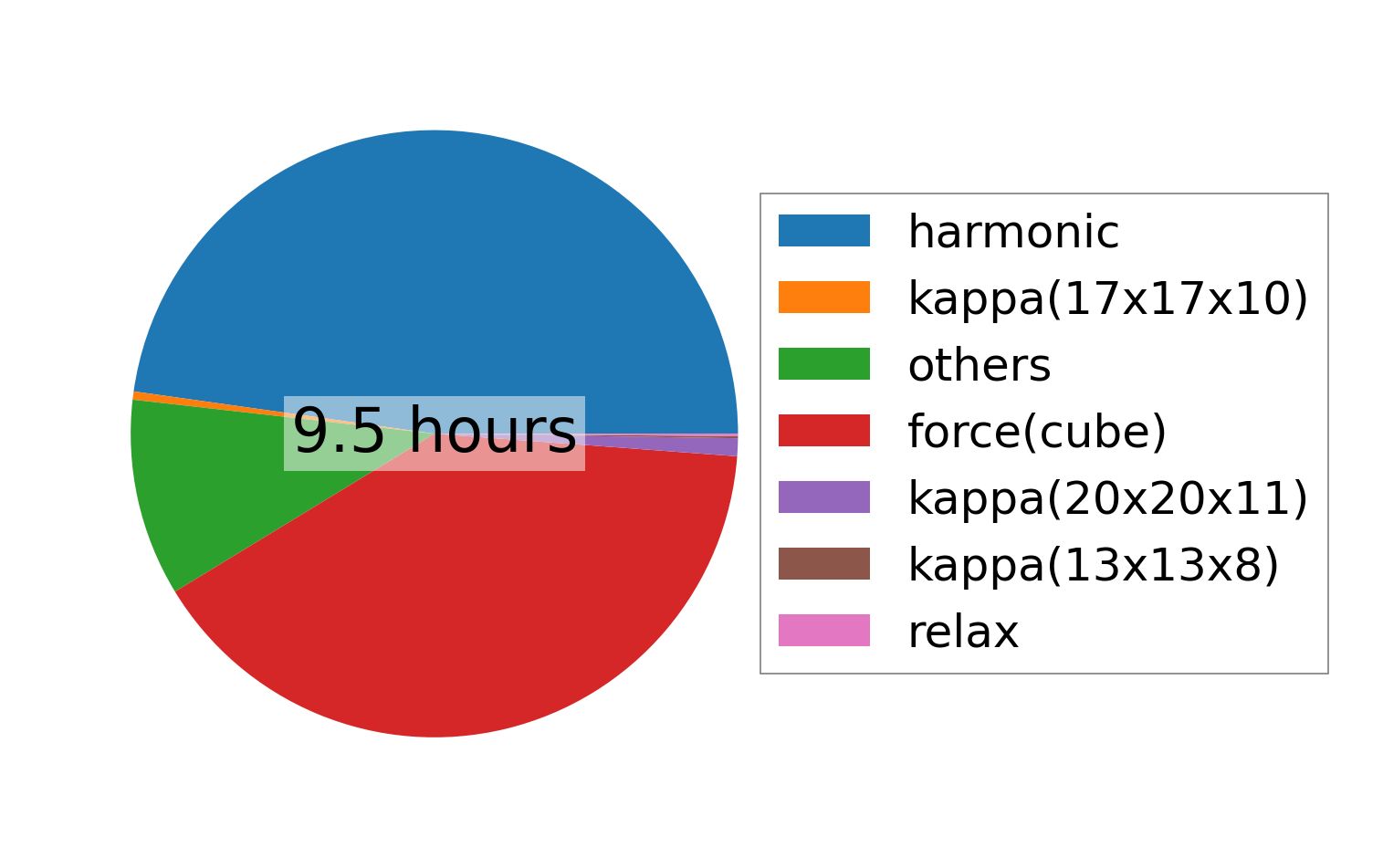

../../_images/fig_times25864.png — (b) Computation time
