mp-12803/BaEr2F8/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-12803.tar.gz

Harmonic properties

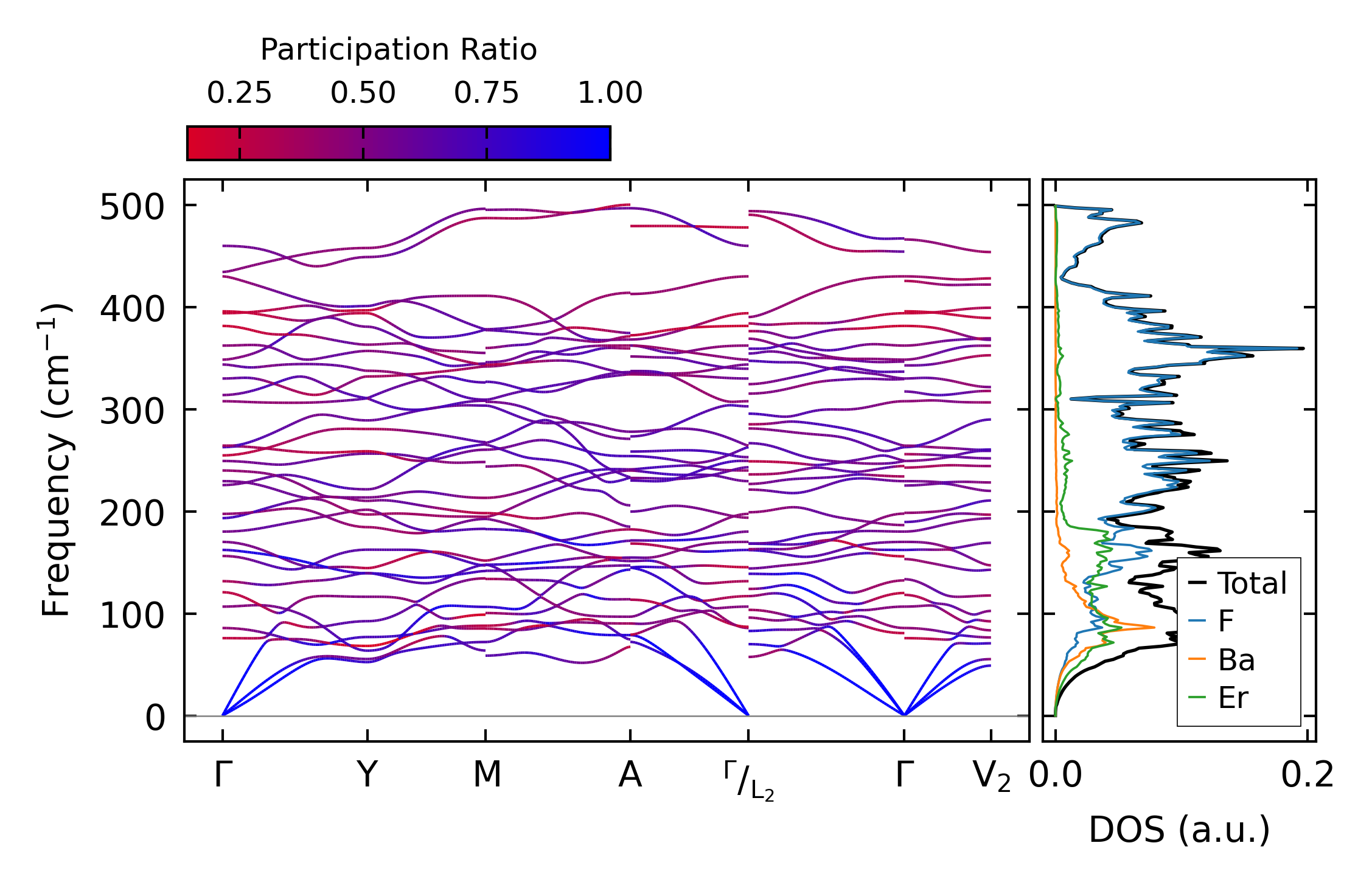

../../_images/fig_bandos_pr15697.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15696.png — (b) Thermodynamic properties

Grüneisen parameters

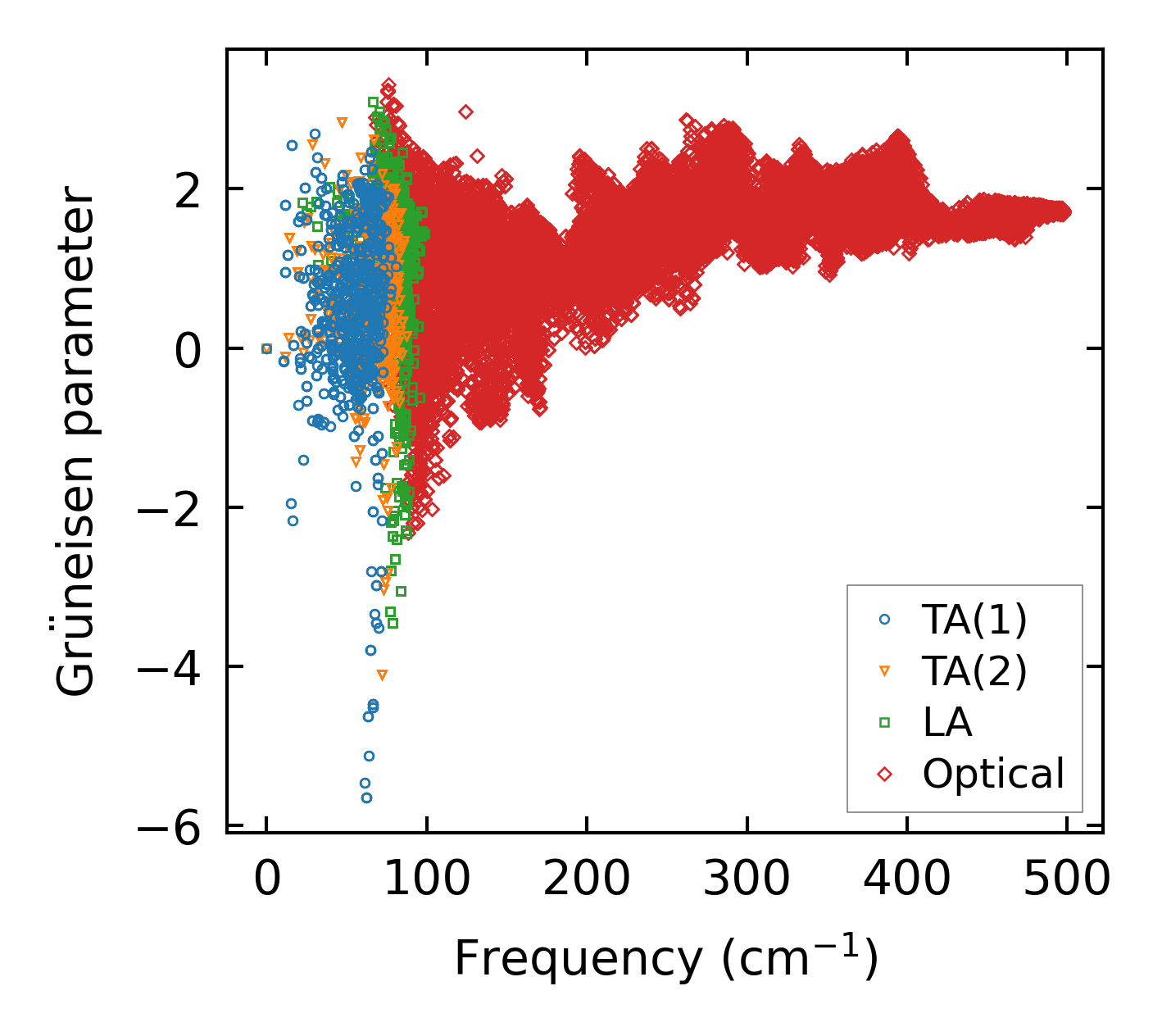

../../_images/fig_gru_all6797.png — (a) Grüneisen parameters

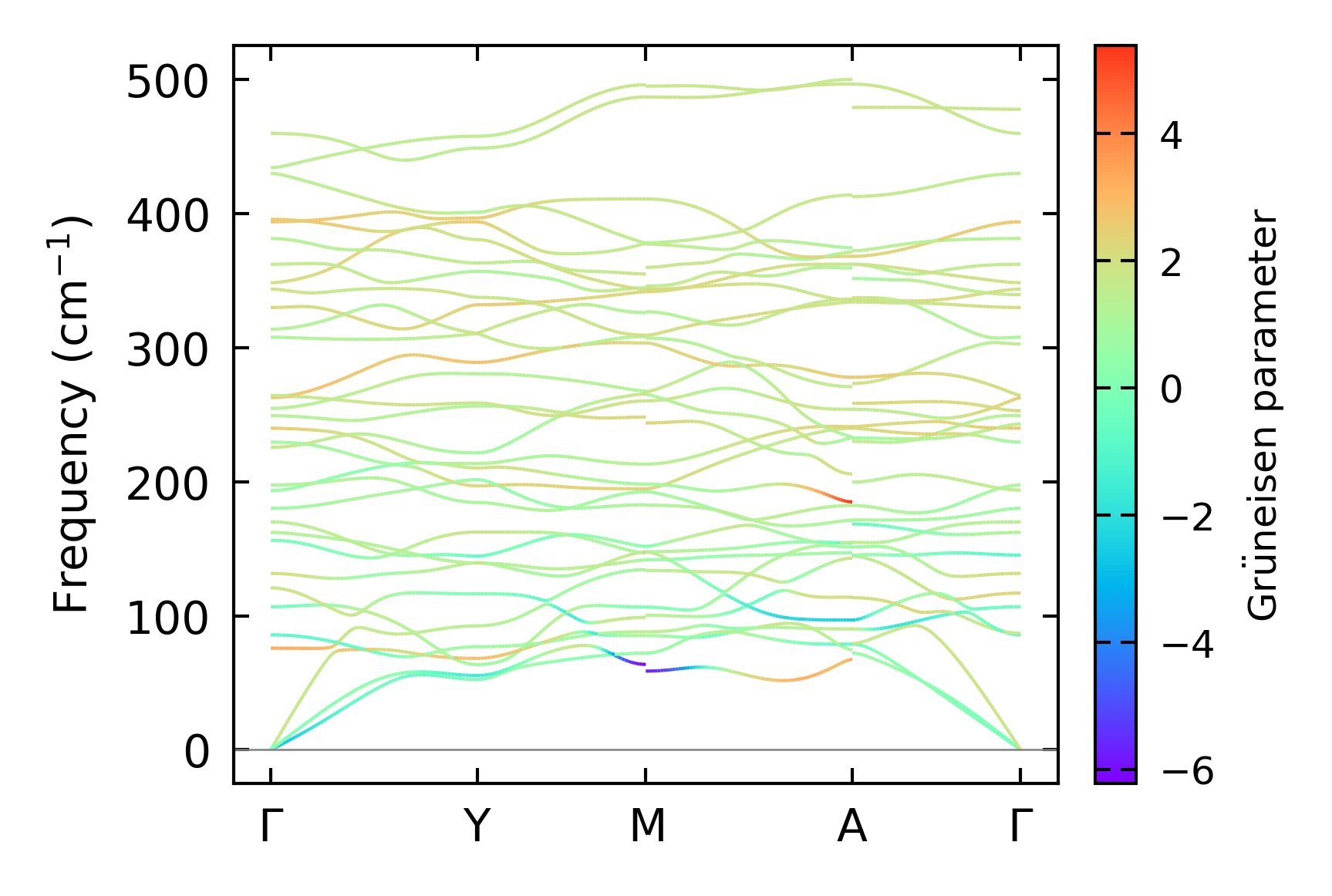

../../_images/fig_gruneisen6797.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x17, supercell: 2x1x3

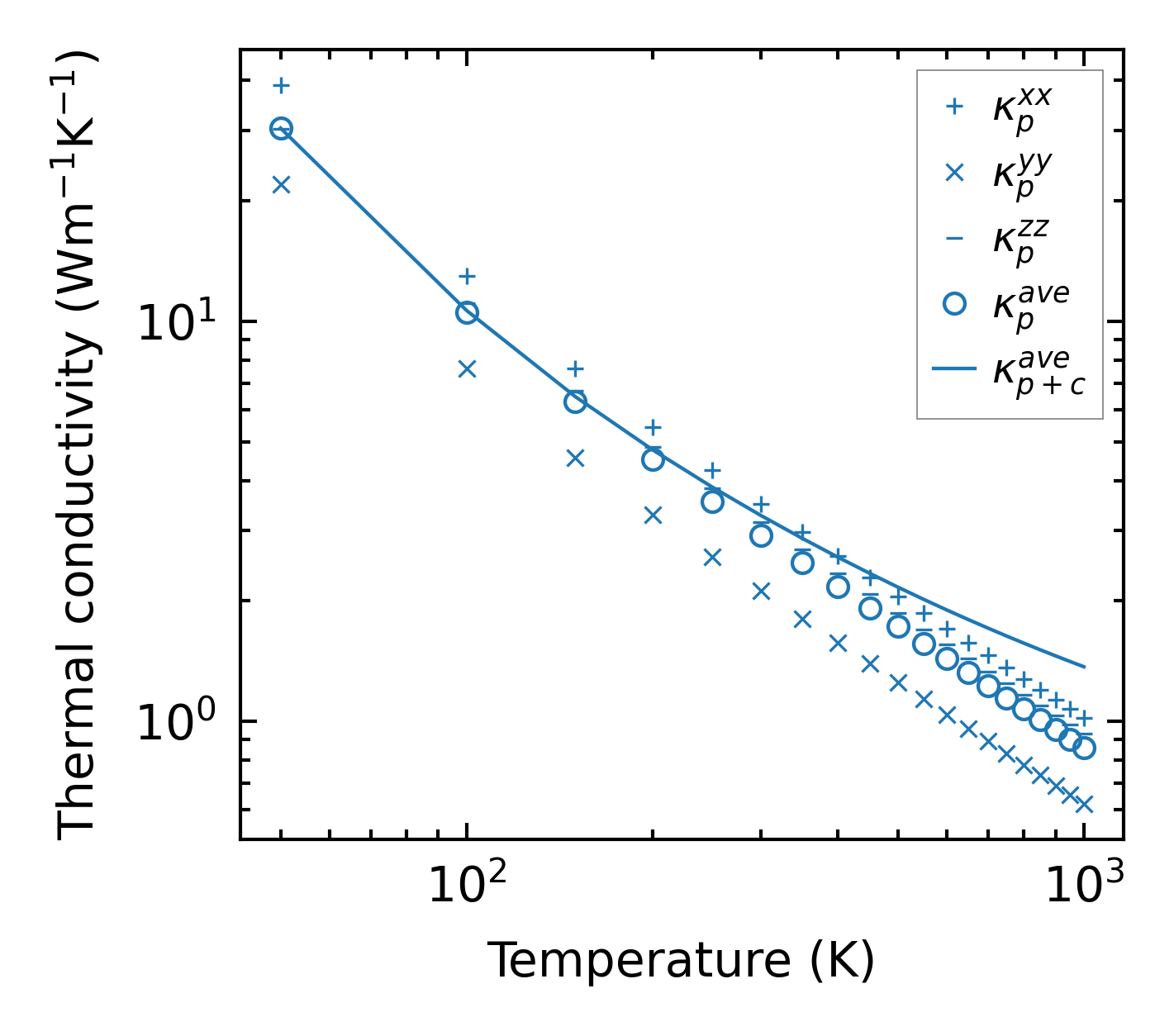

../../_images/fig_kappa12805.png — (a) Temperature-dependent lattice thermal conductivity

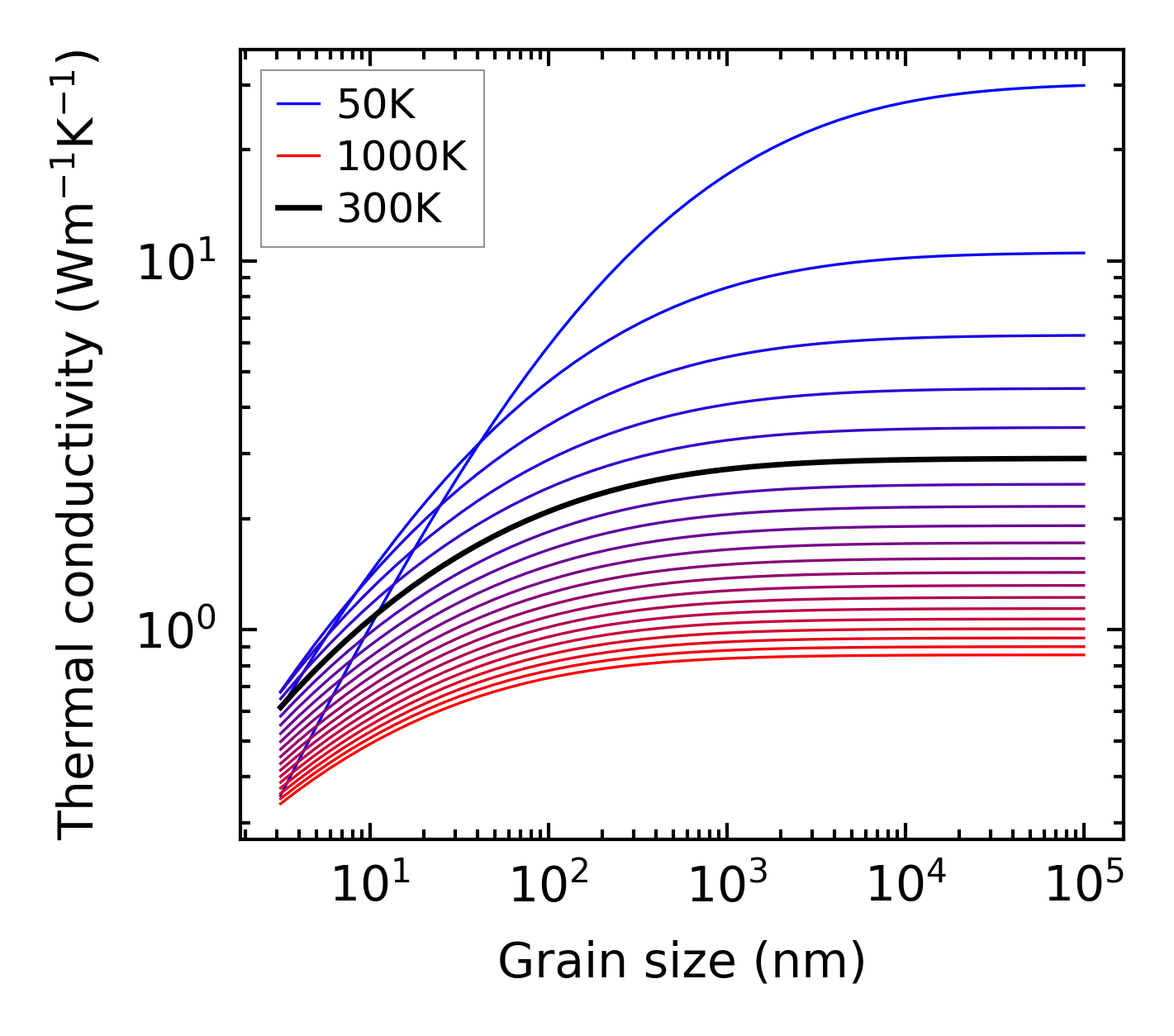

../../_images/fig_kappa_vs_grain_size6877.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

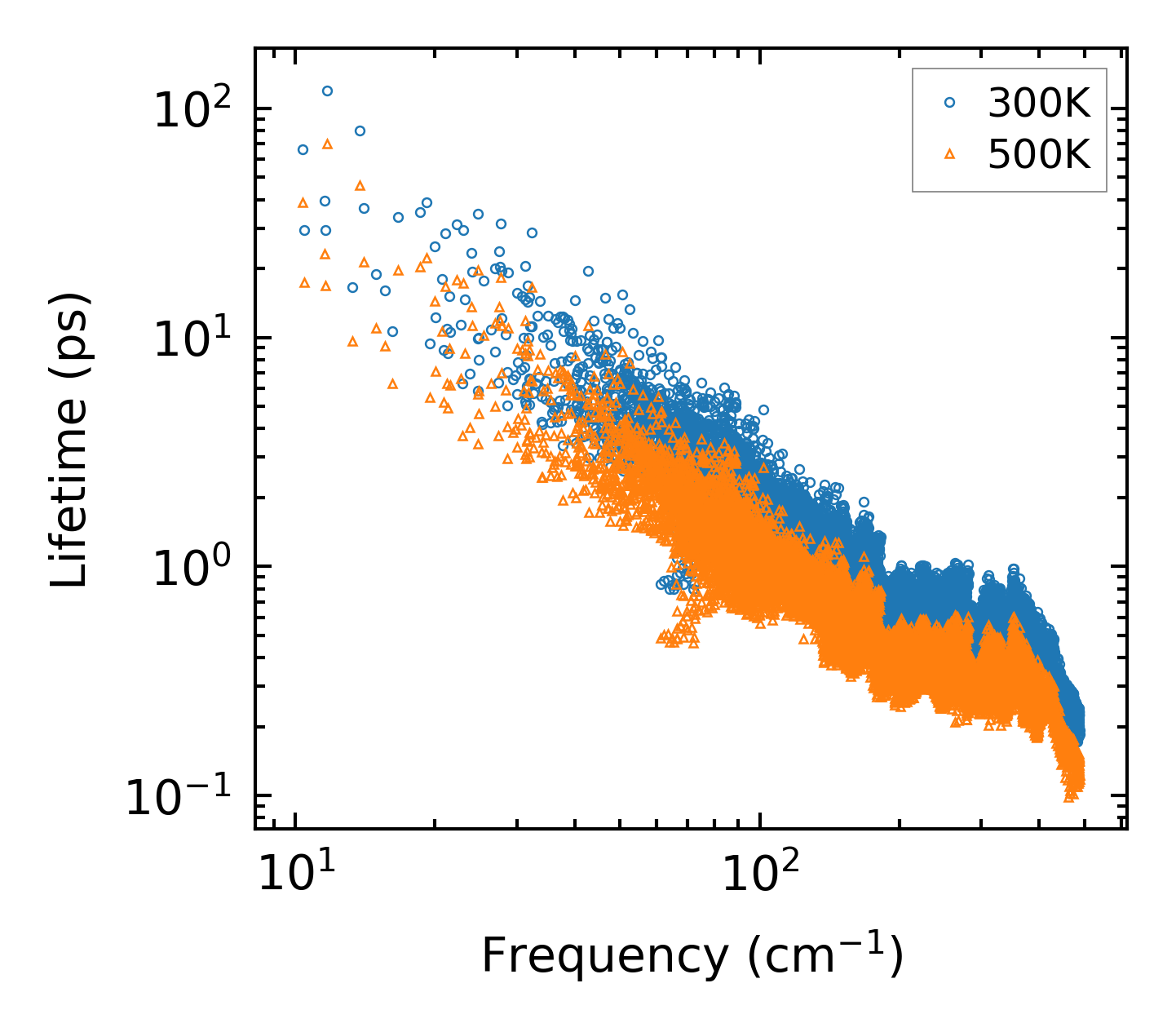

../../_images/fig_lifetime6731.png — (a) Phonon lifetime due to phonon-phonon scattering

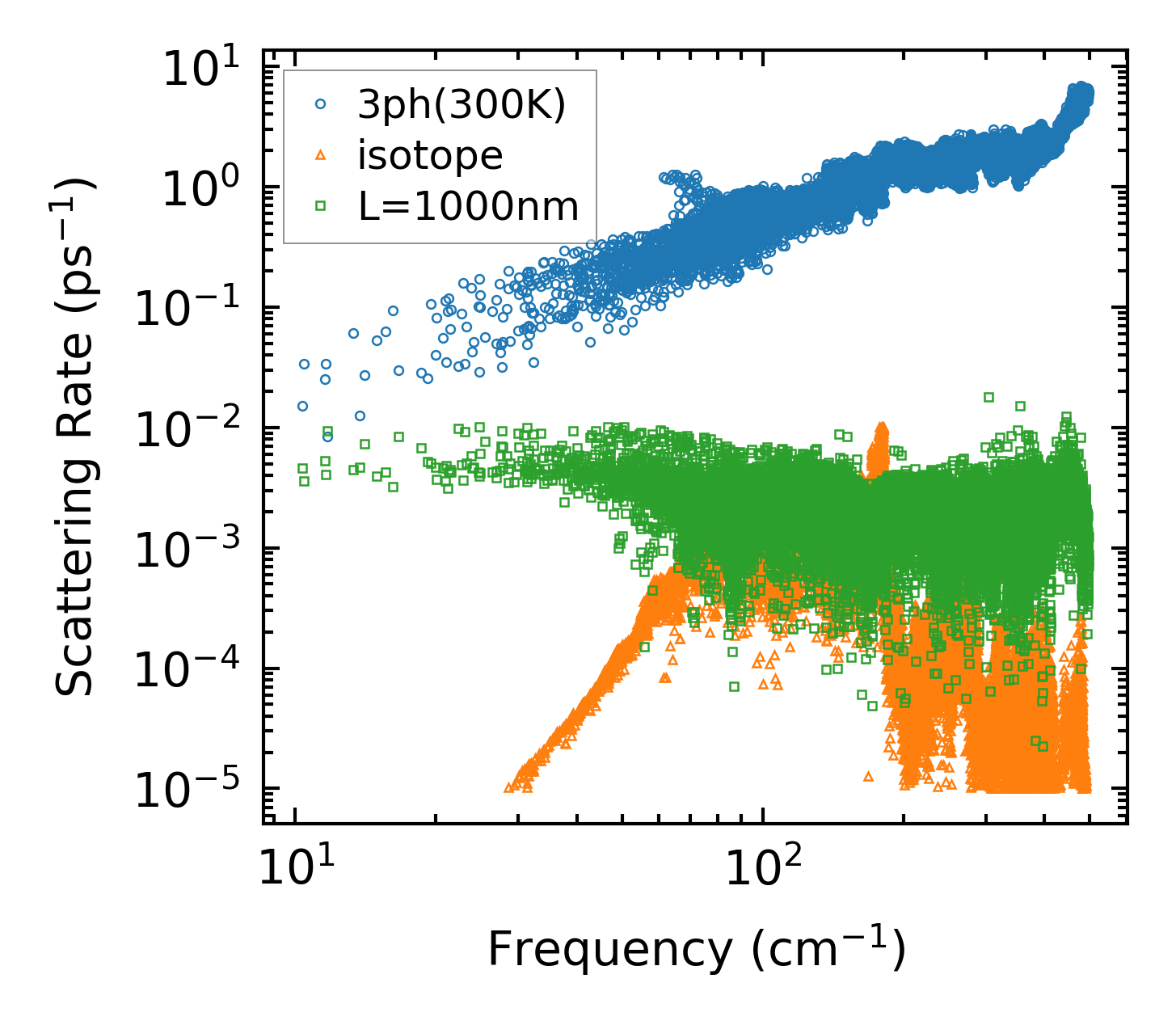

../../_images/fig_scat_rates6730.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

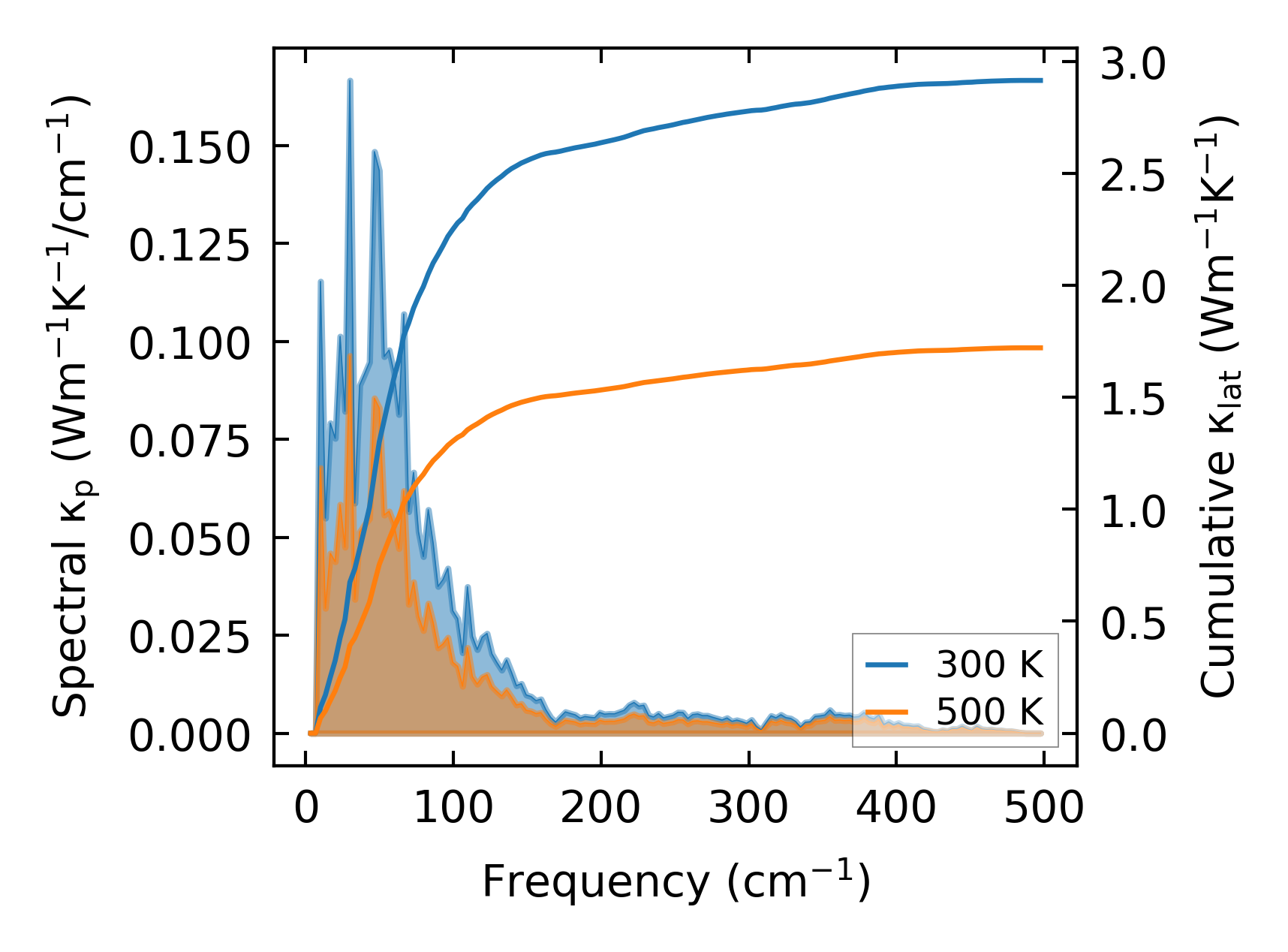

../../_images/fig_cumu_frequency6731.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

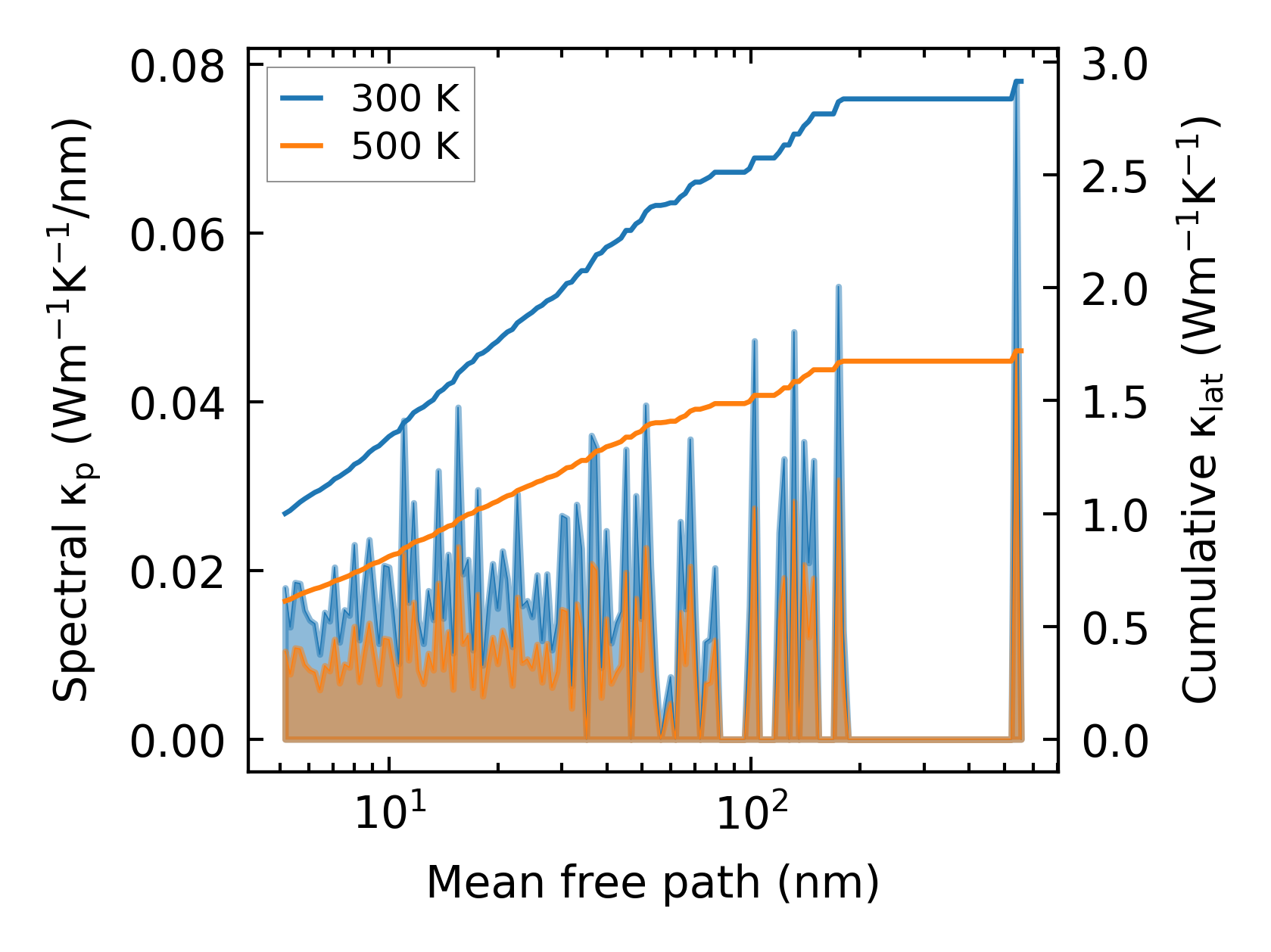

../../_images/fig_cumu_mfp6730.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

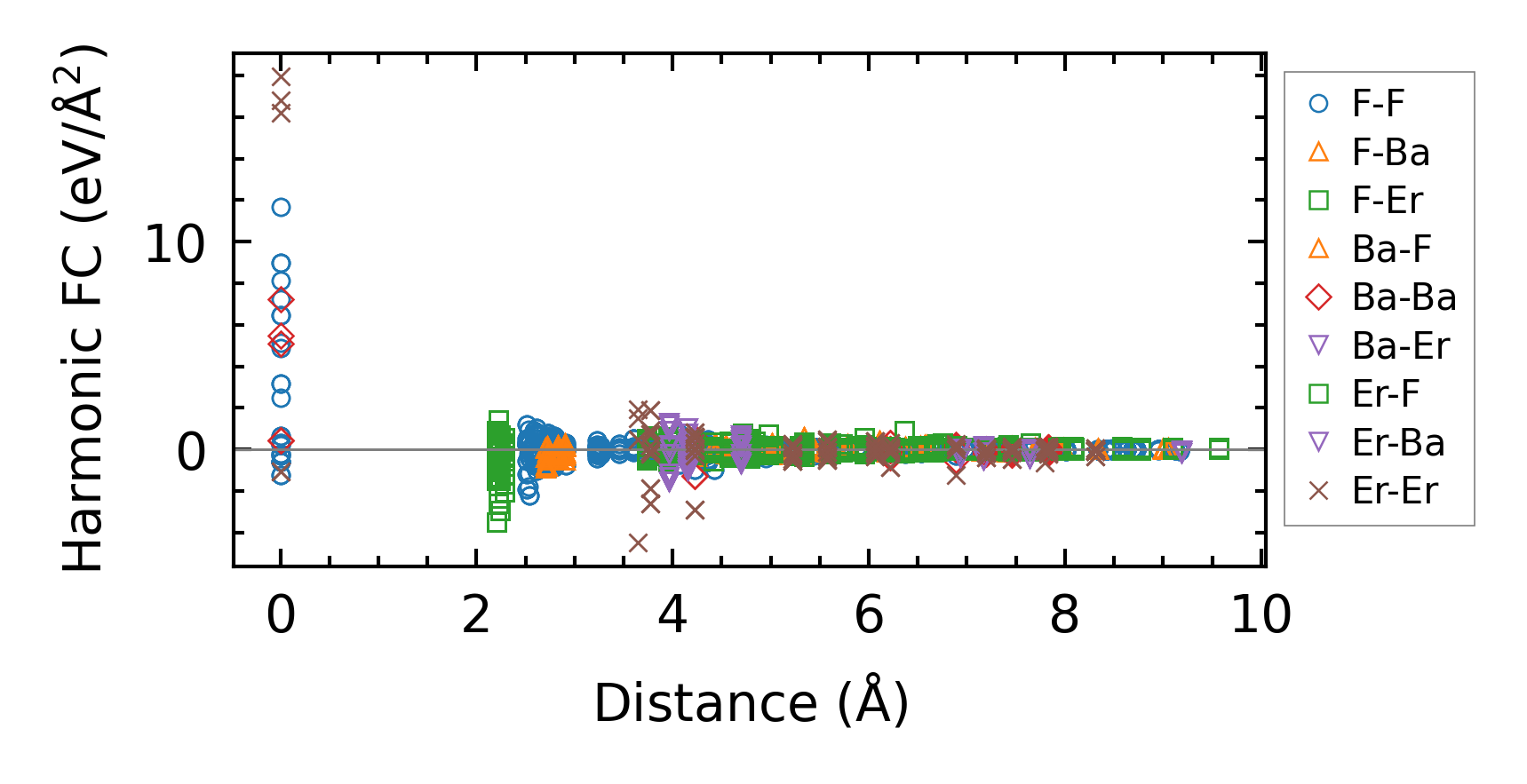

../../_images/fig_fc215292.png — (a) Force constants w.r.t atomic distance

Summary

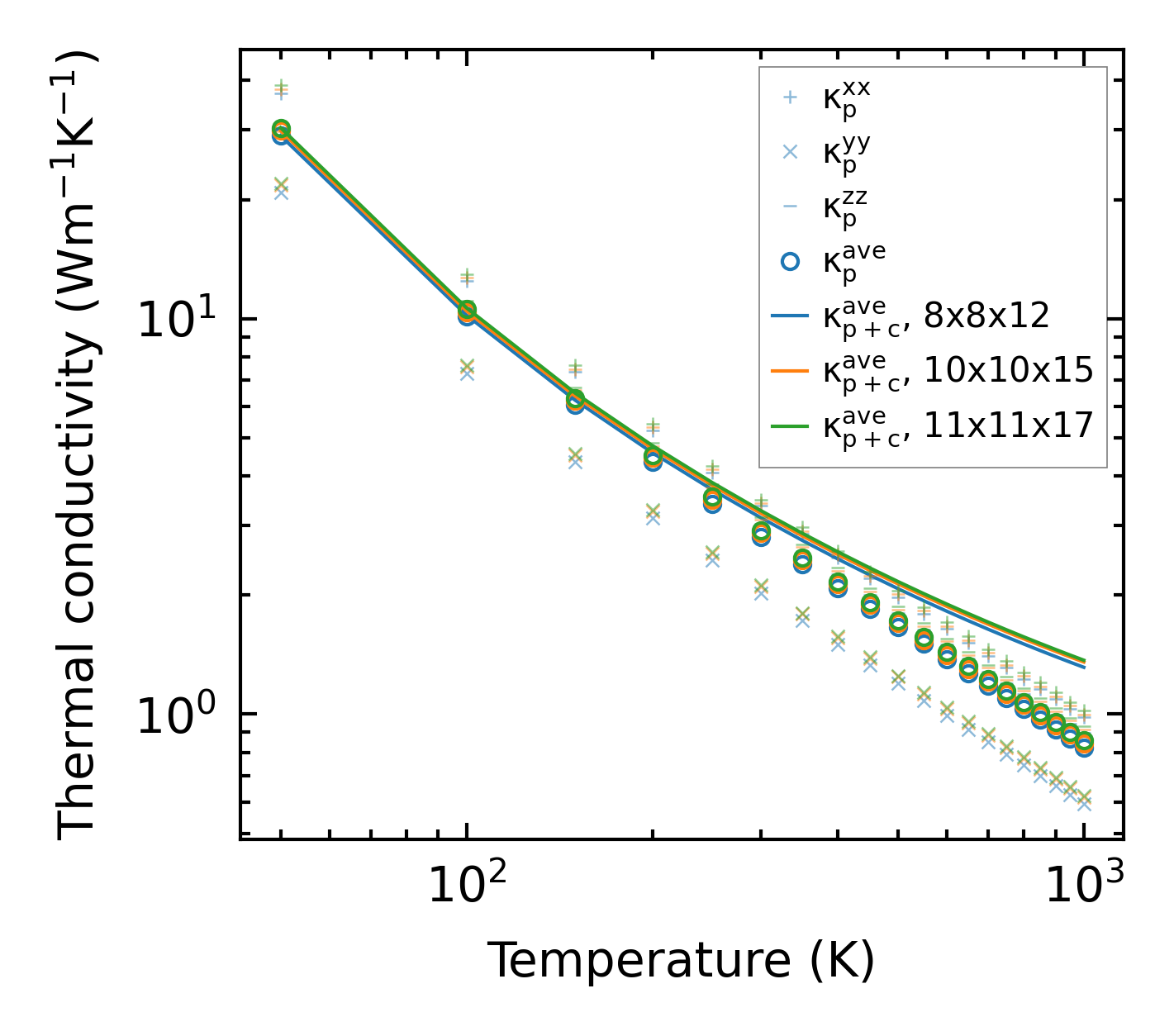

../../_images/fig_kappa12806.png — (a) Temperature-dependent lattice thermal conductivity

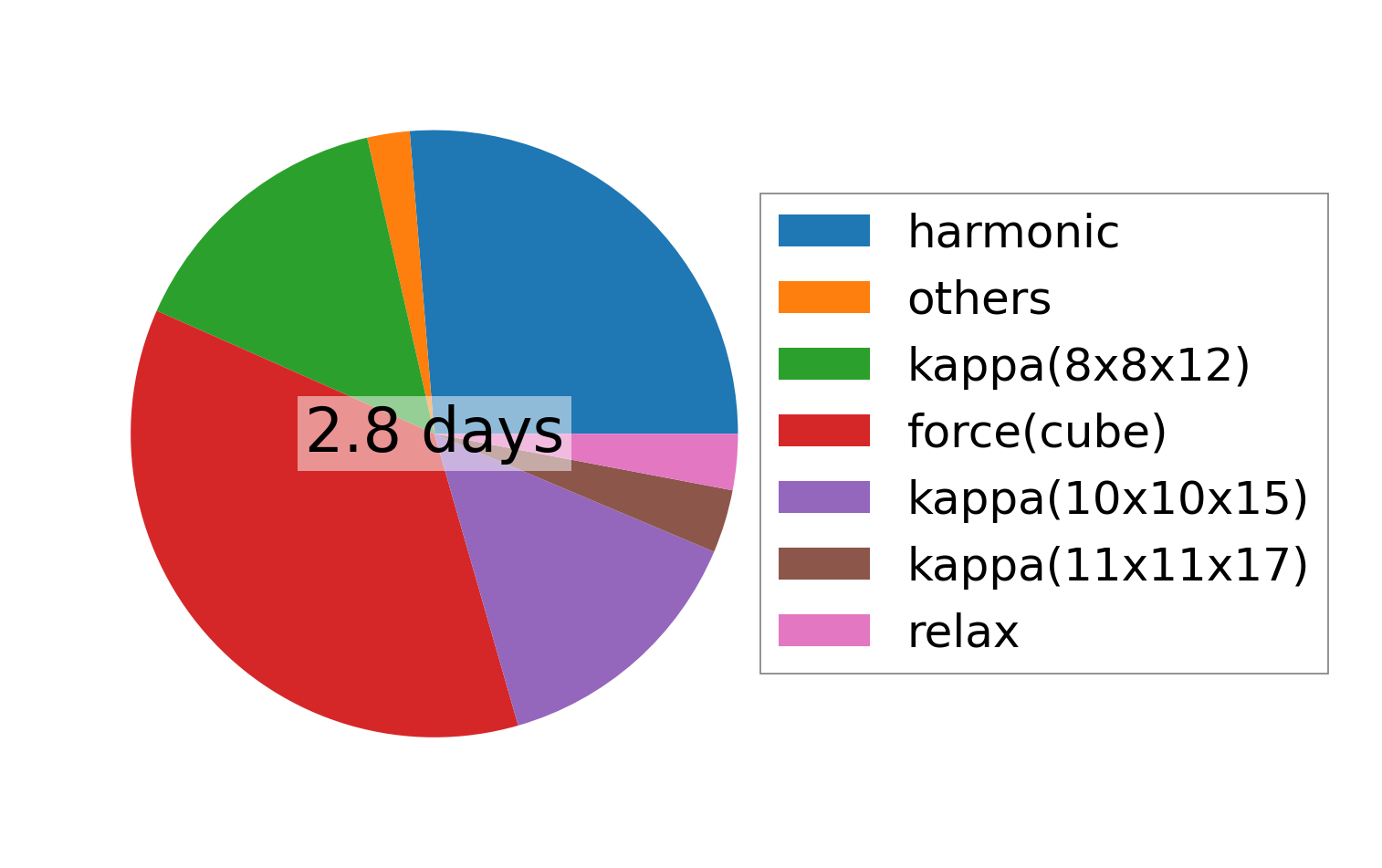

../../_images/fig_times25878.png — (b) Computation time
