mp-12623-2/BaPdF4/anharm

Space group: I4/mcm (140)
Link: Materials Project
Download: mp-12623-2.tar.gz

Harmonic properties

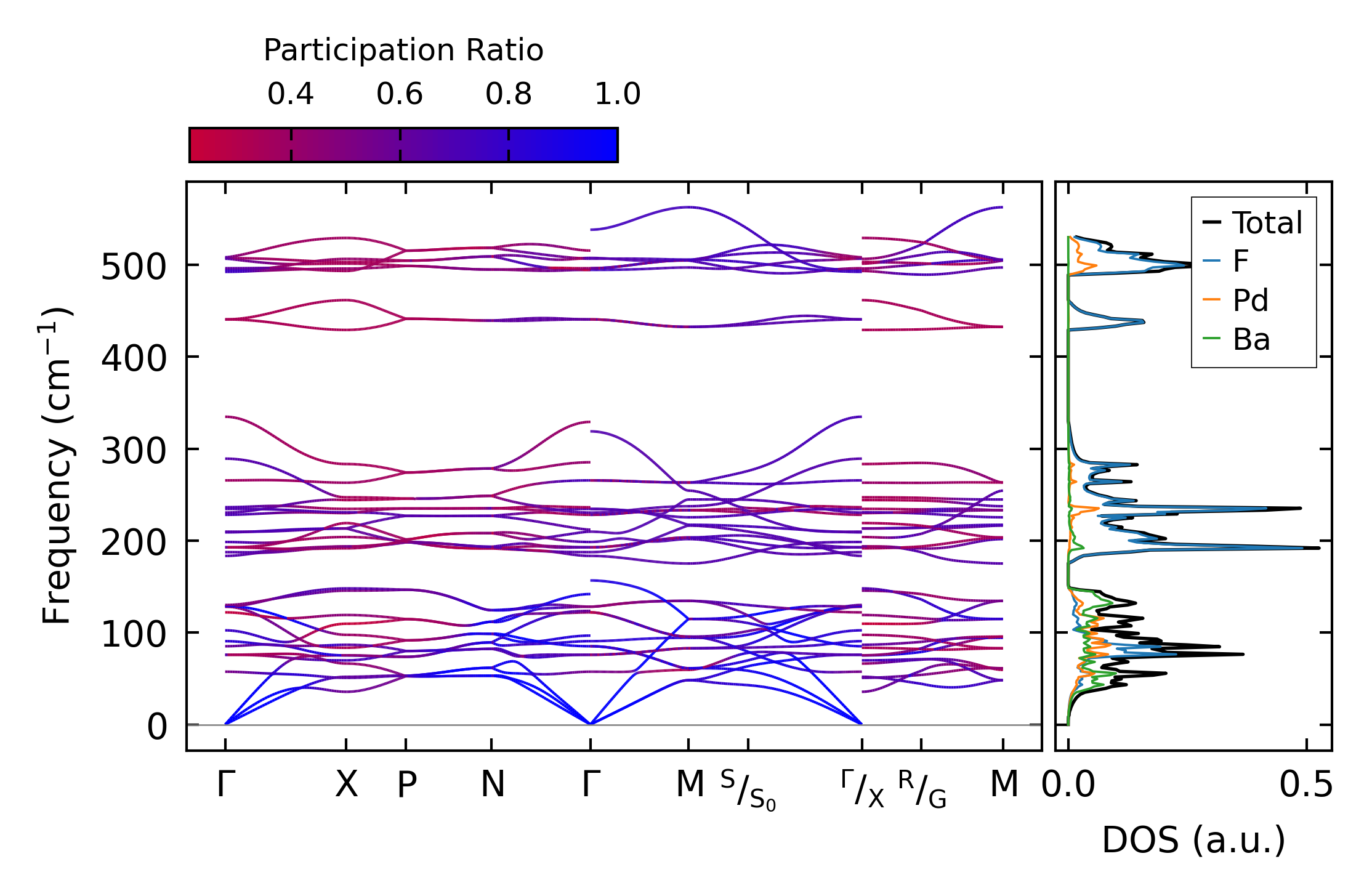

../../_images/fig_bandos_pr15671.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15670.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6786.png — (a) Grüneisen parameters

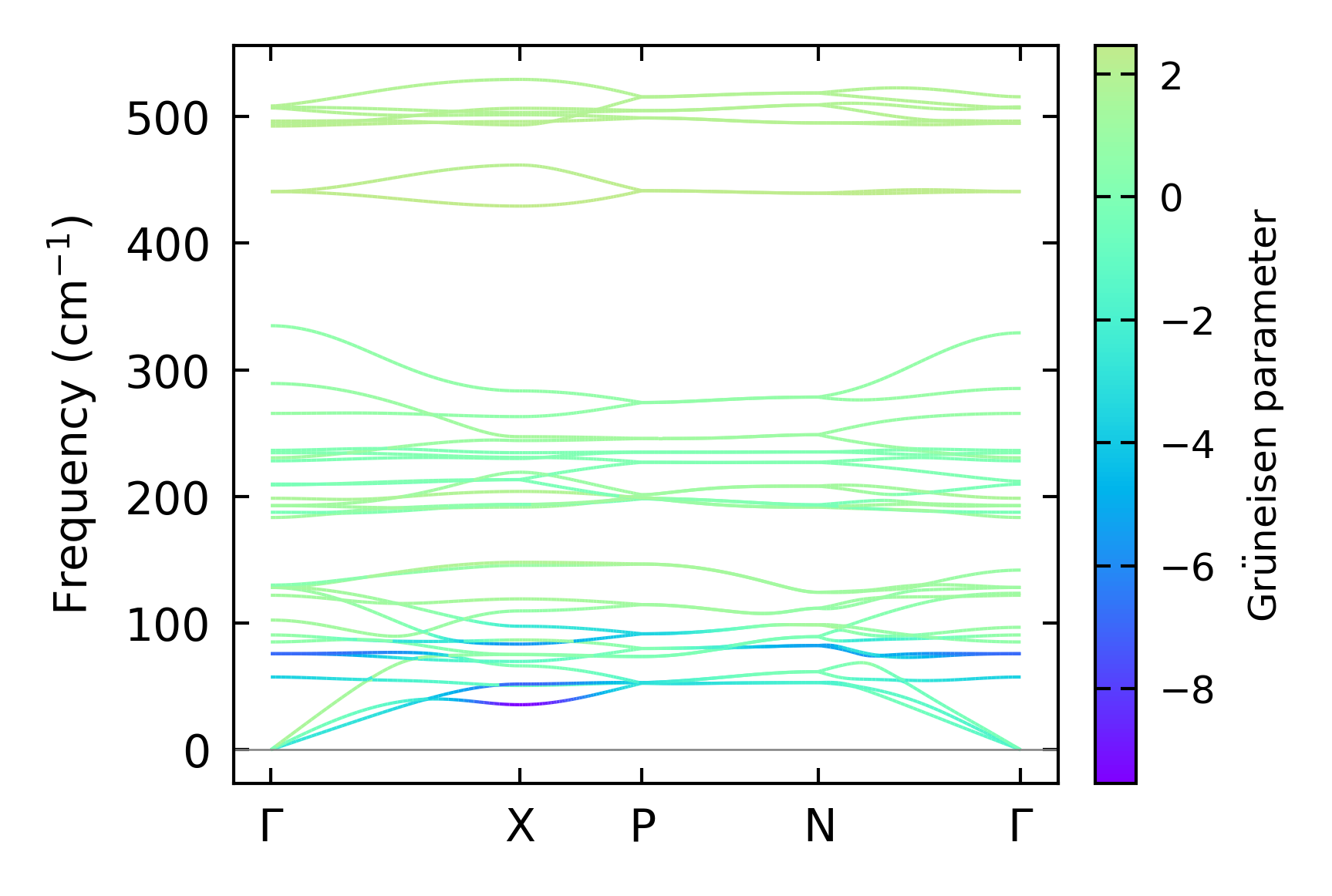

../../_images/fig_gruneisen6786.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x12, supercell: 2x2x1

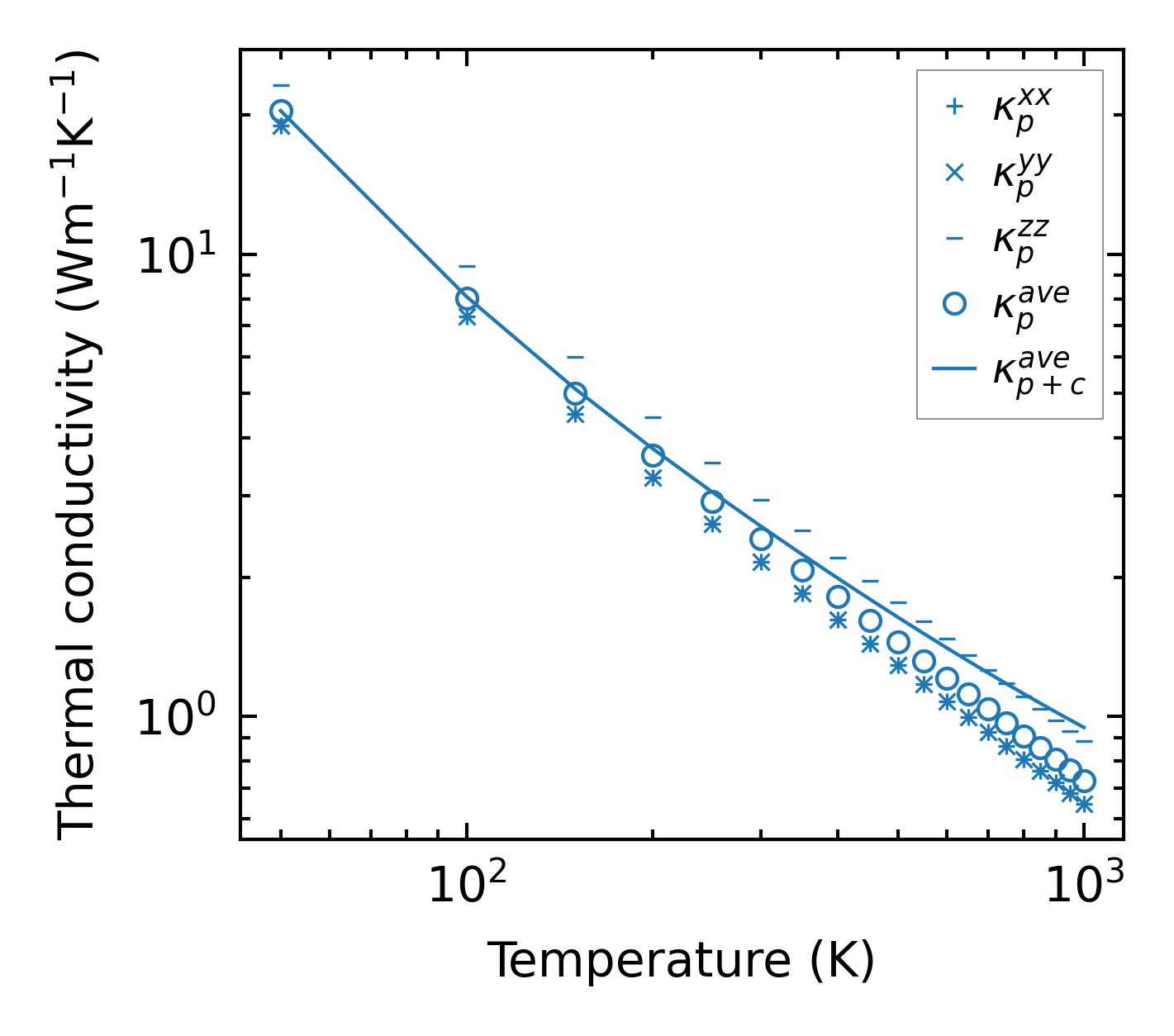

../../_images/fig_kappa12783.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6866.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

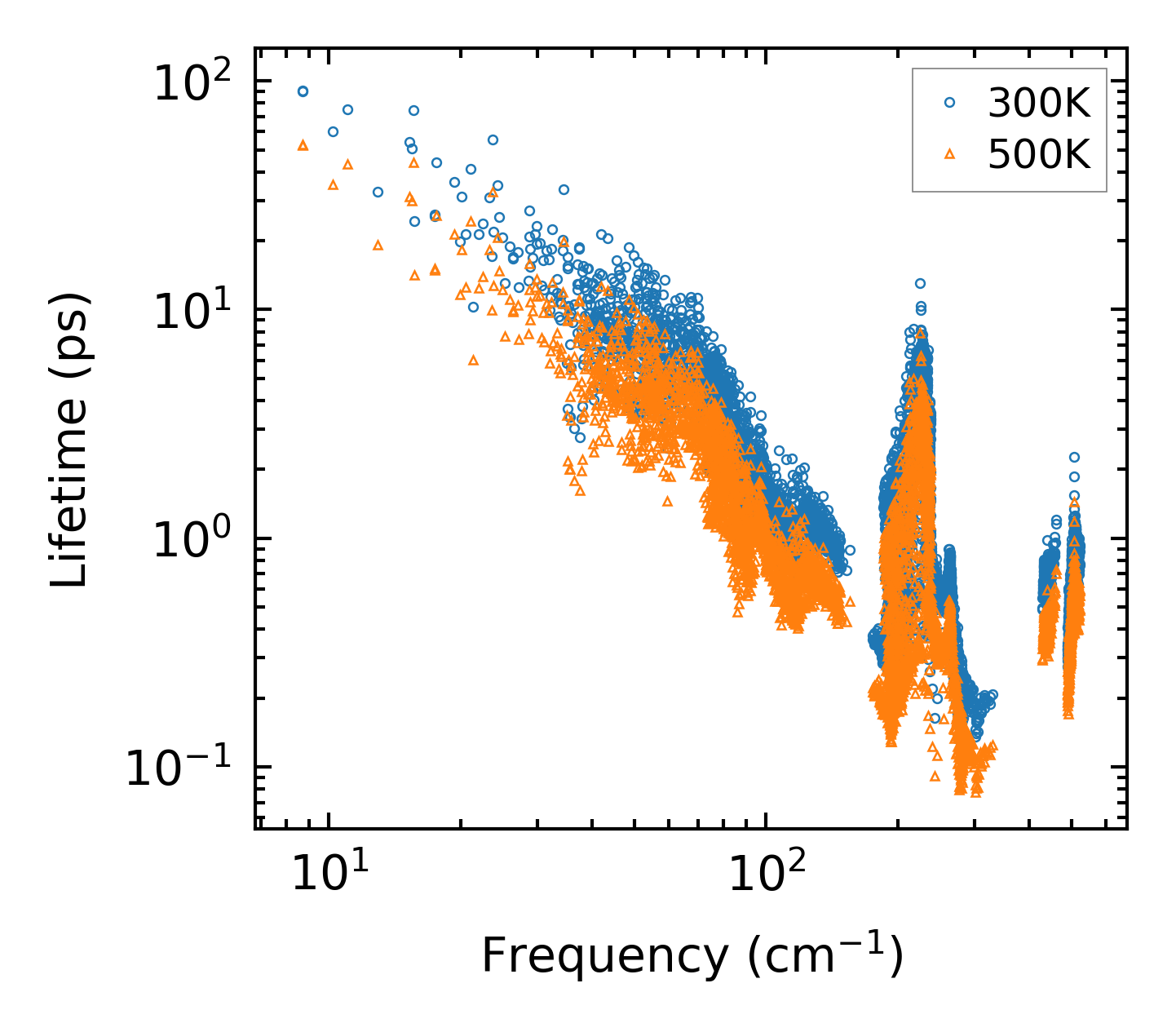

../../_images/fig_lifetime6720.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6719.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6720.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

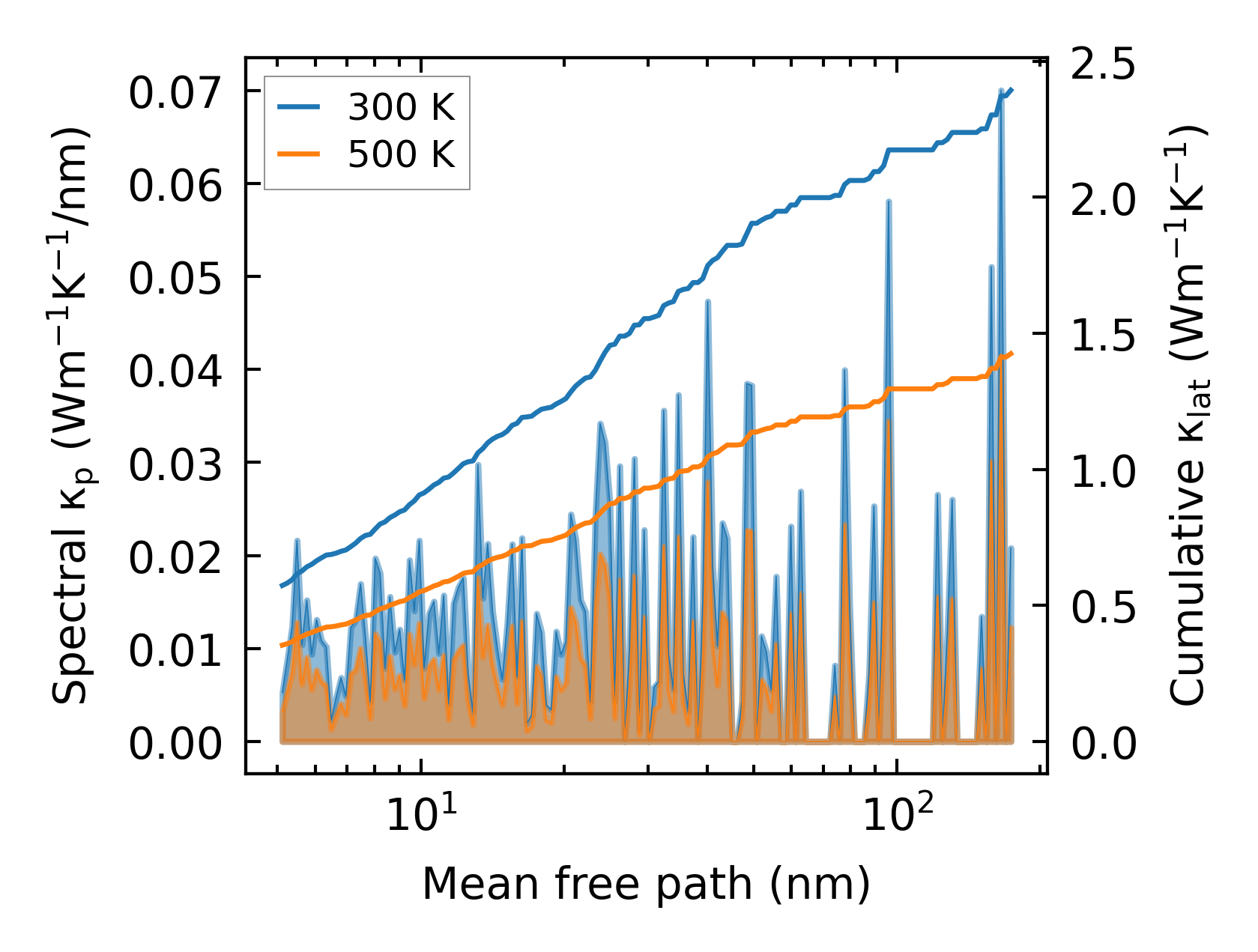

../../_images/fig_cumu_mfp6719.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

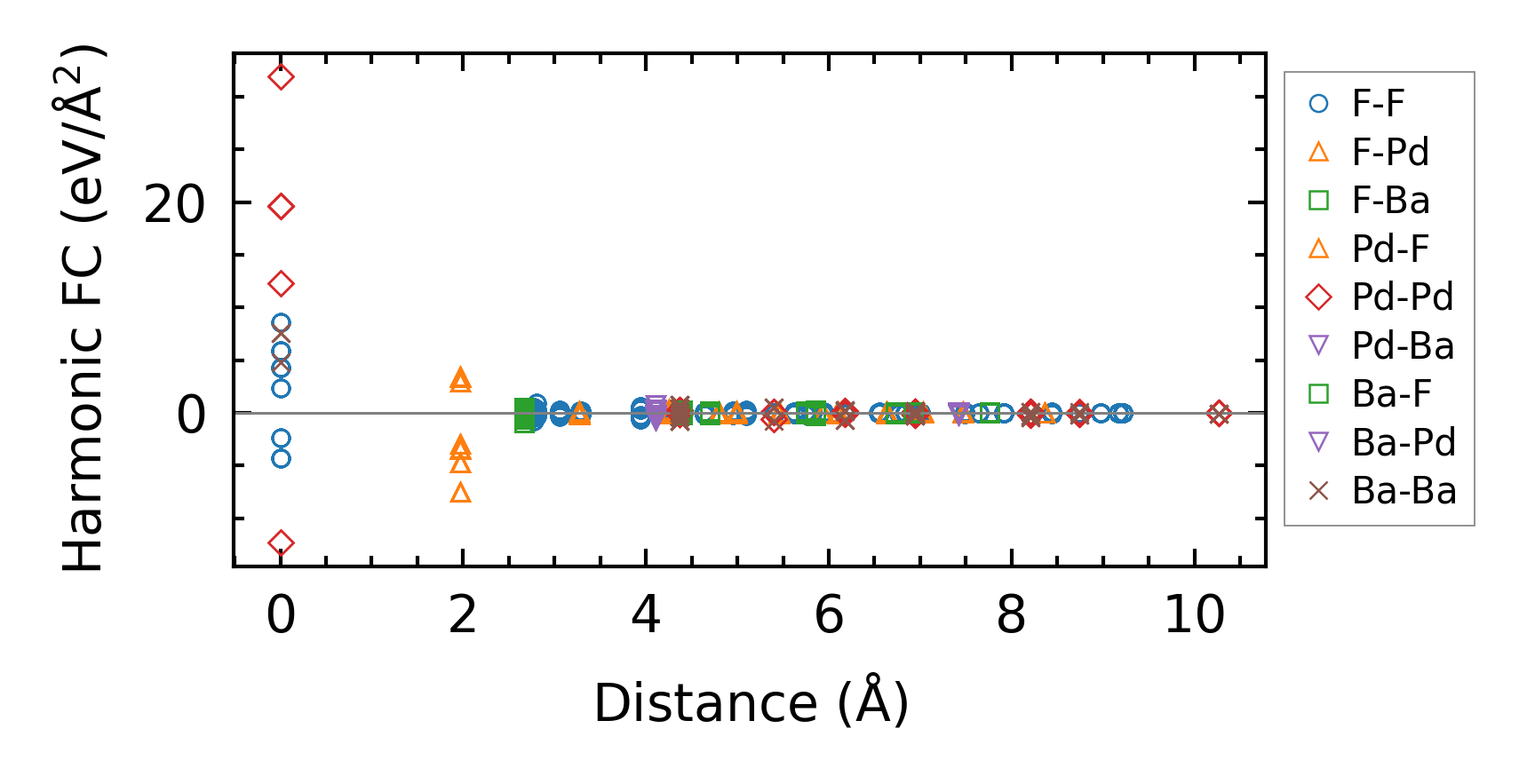

../../_images/fig_fc215266.png — (a) Force constants w.r.t atomic distance

Summary

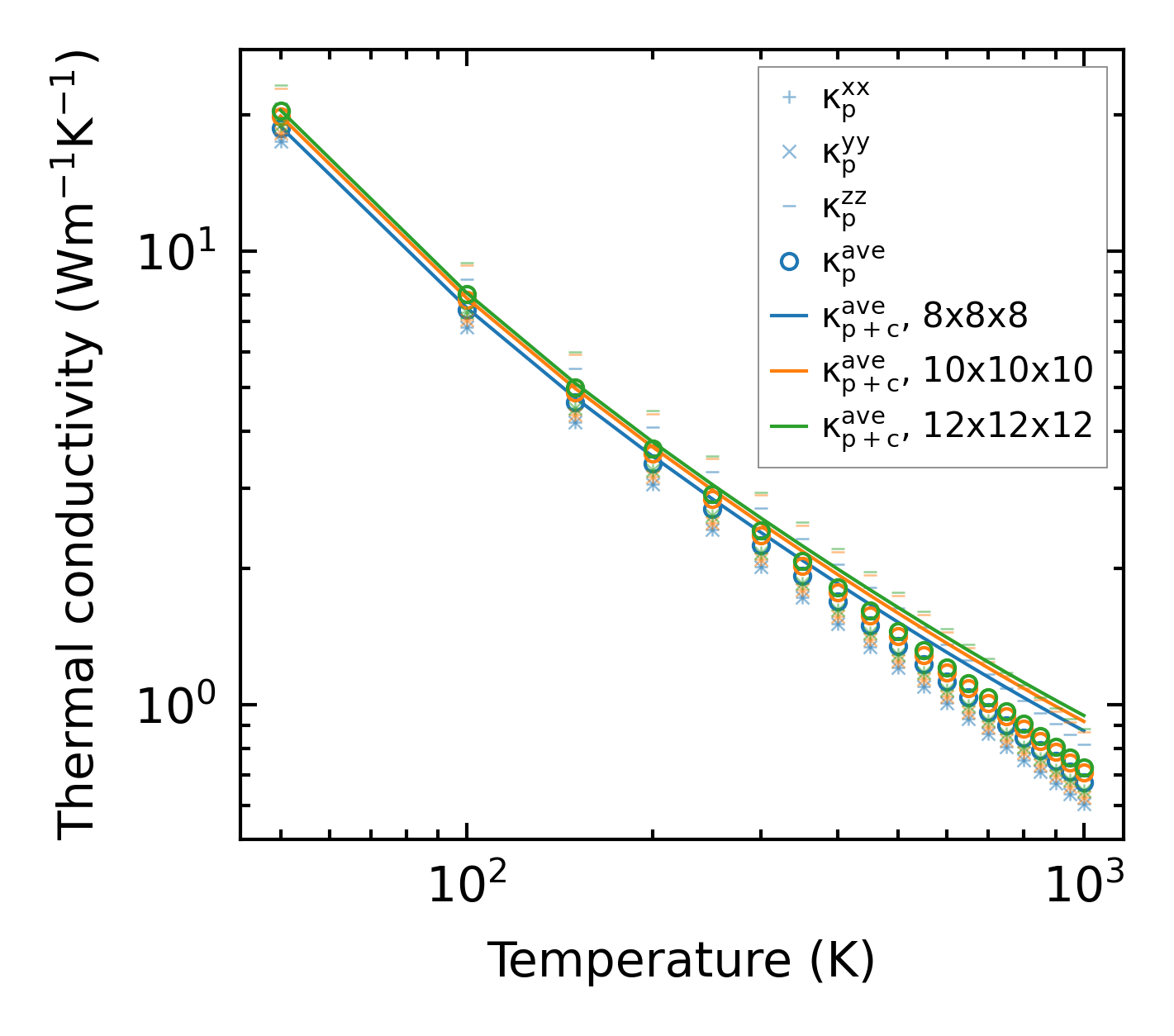

../../_images/fig_kappa12784.png — (a) Temperature-dependent lattice thermal conductivity

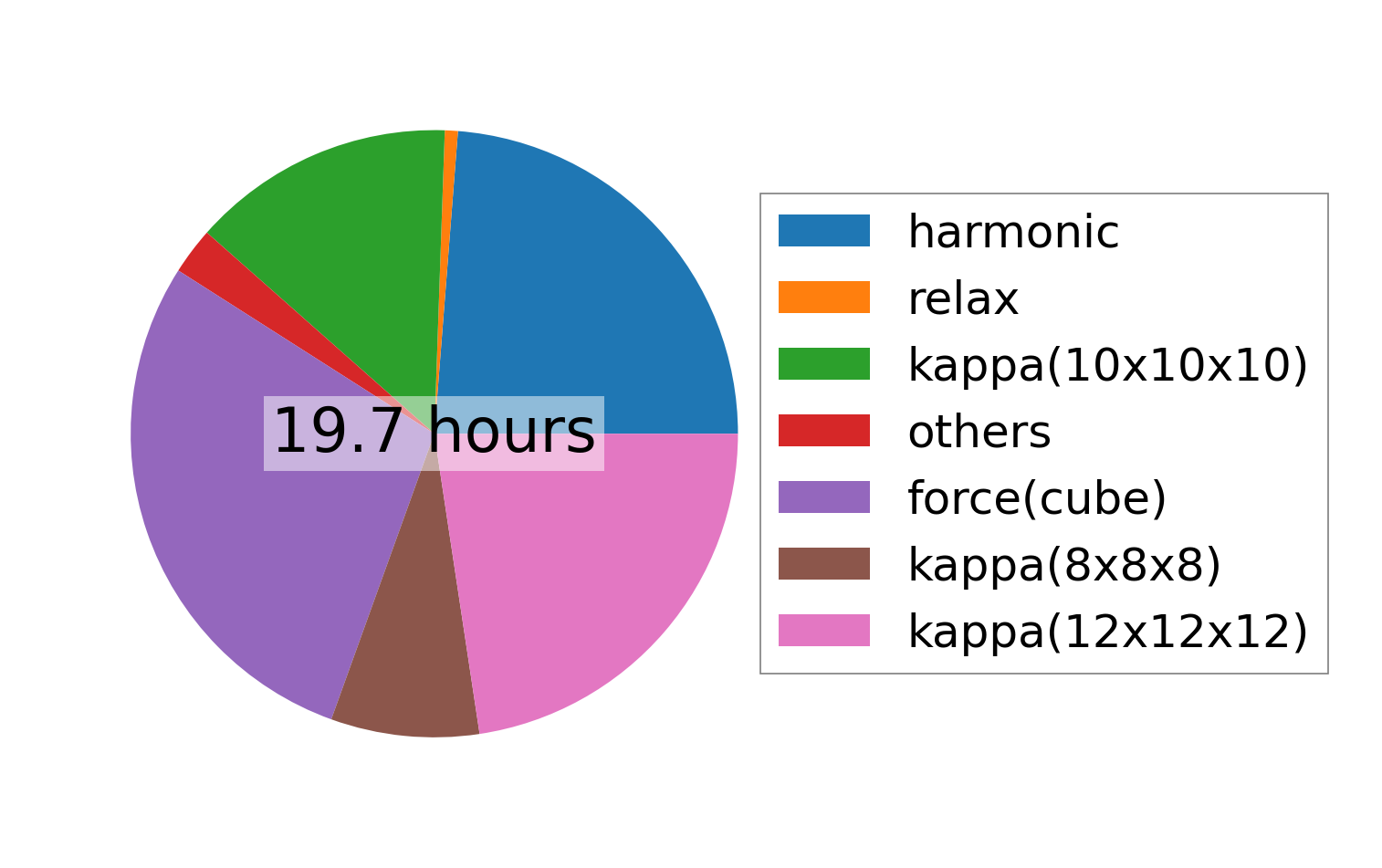

../../_images/fig_times25848.png — (b) Computation time
