mp-12181/BaSnS2/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-12181.tar.gz

Harmonic properties

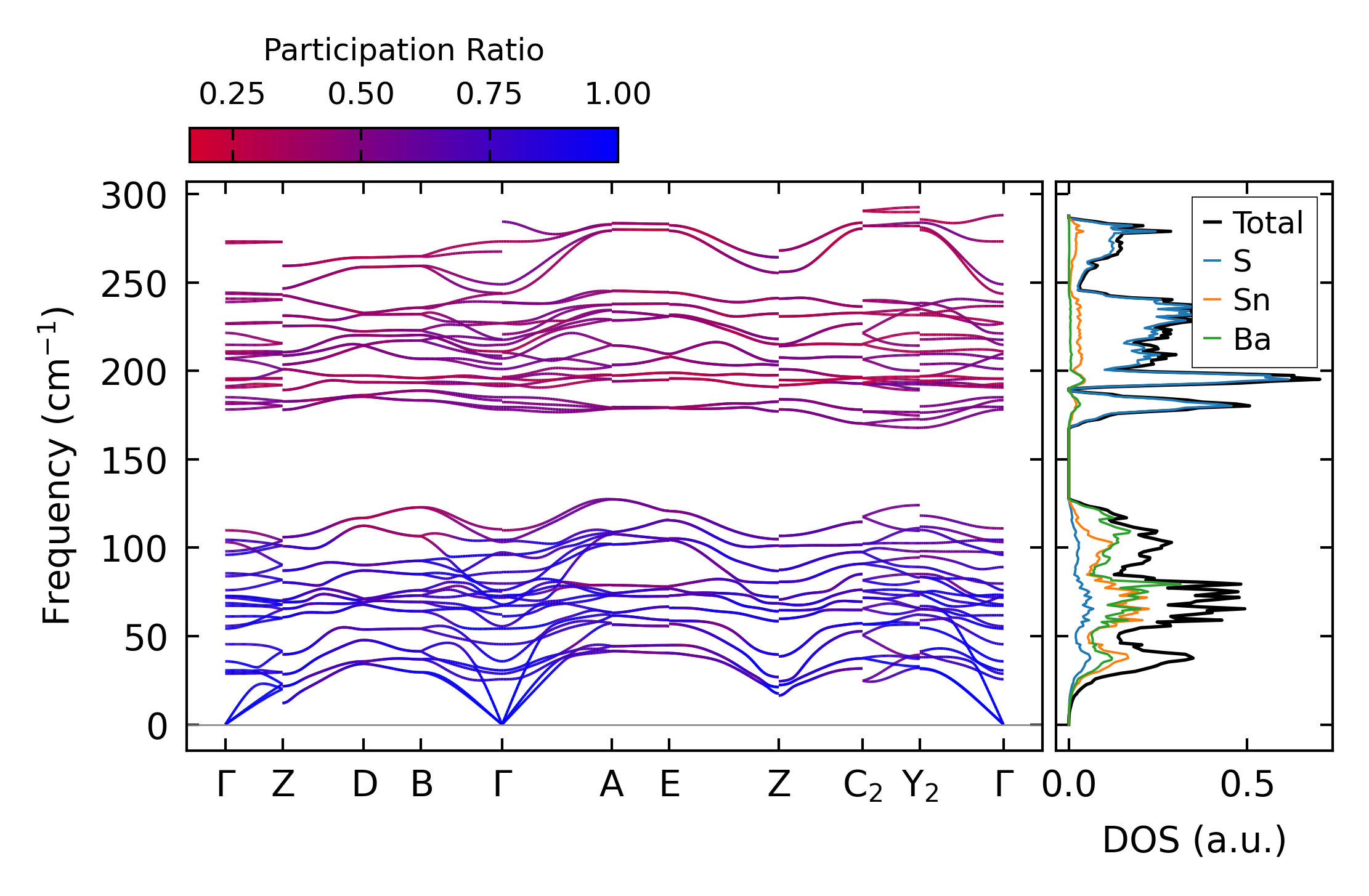

../../_images/fig_bandos_pr15568.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15567.png — (b) Thermodynamic properties

Grüneisen parameters

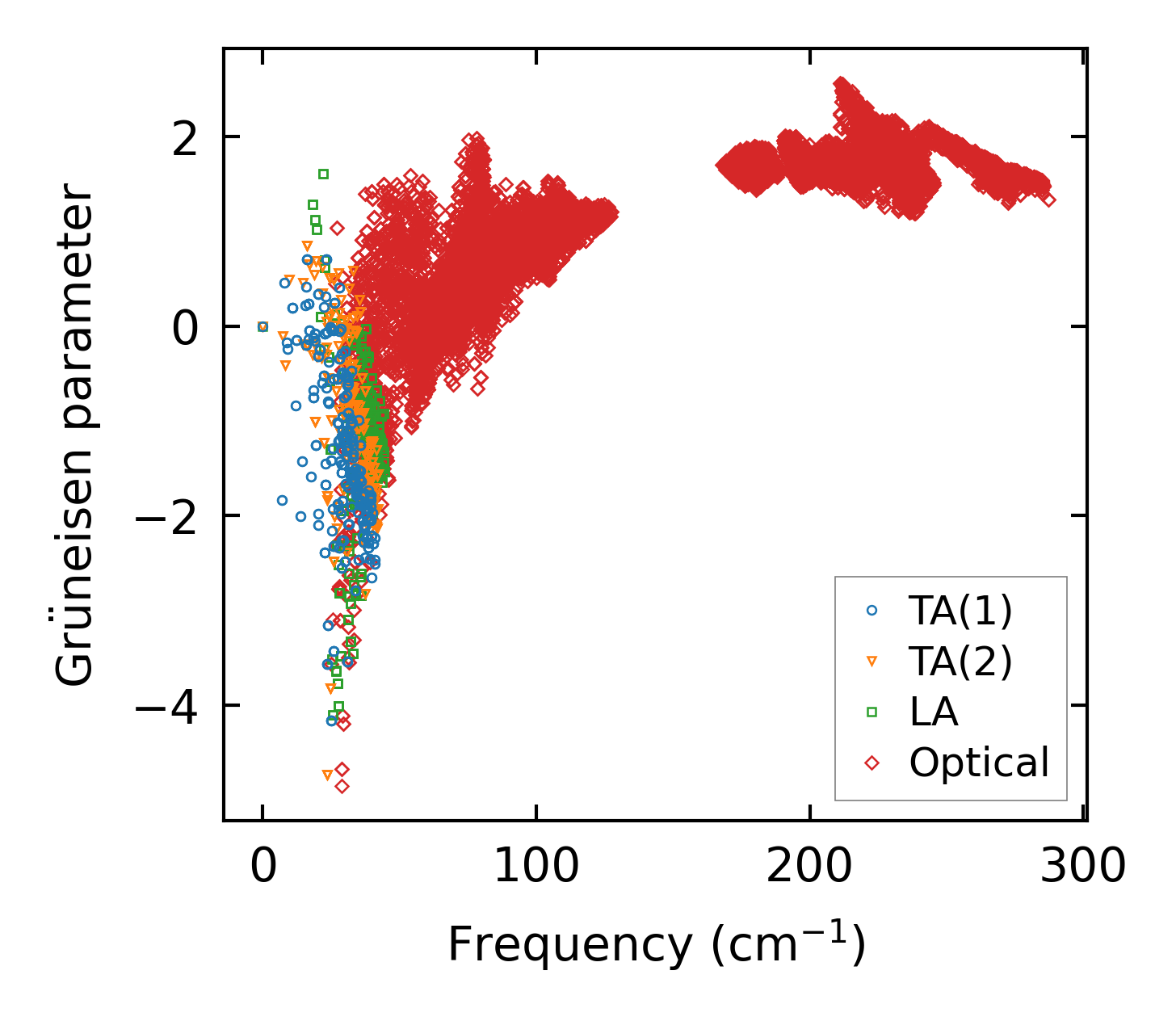

../../_images/fig_gru_all6731.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6731.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x5x11, supercell: 3x1x2

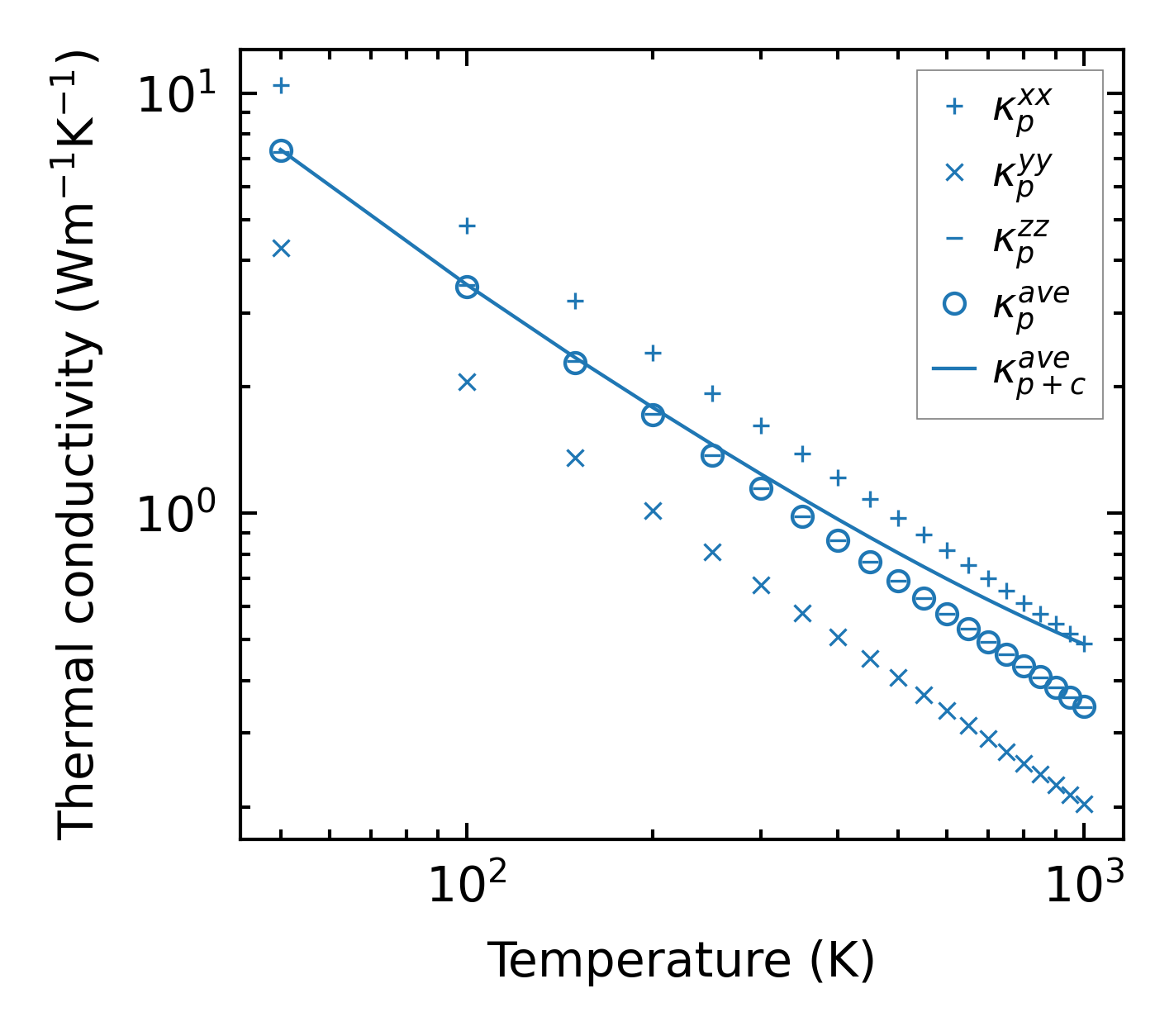

../../_images/fig_kappa12674.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6810.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

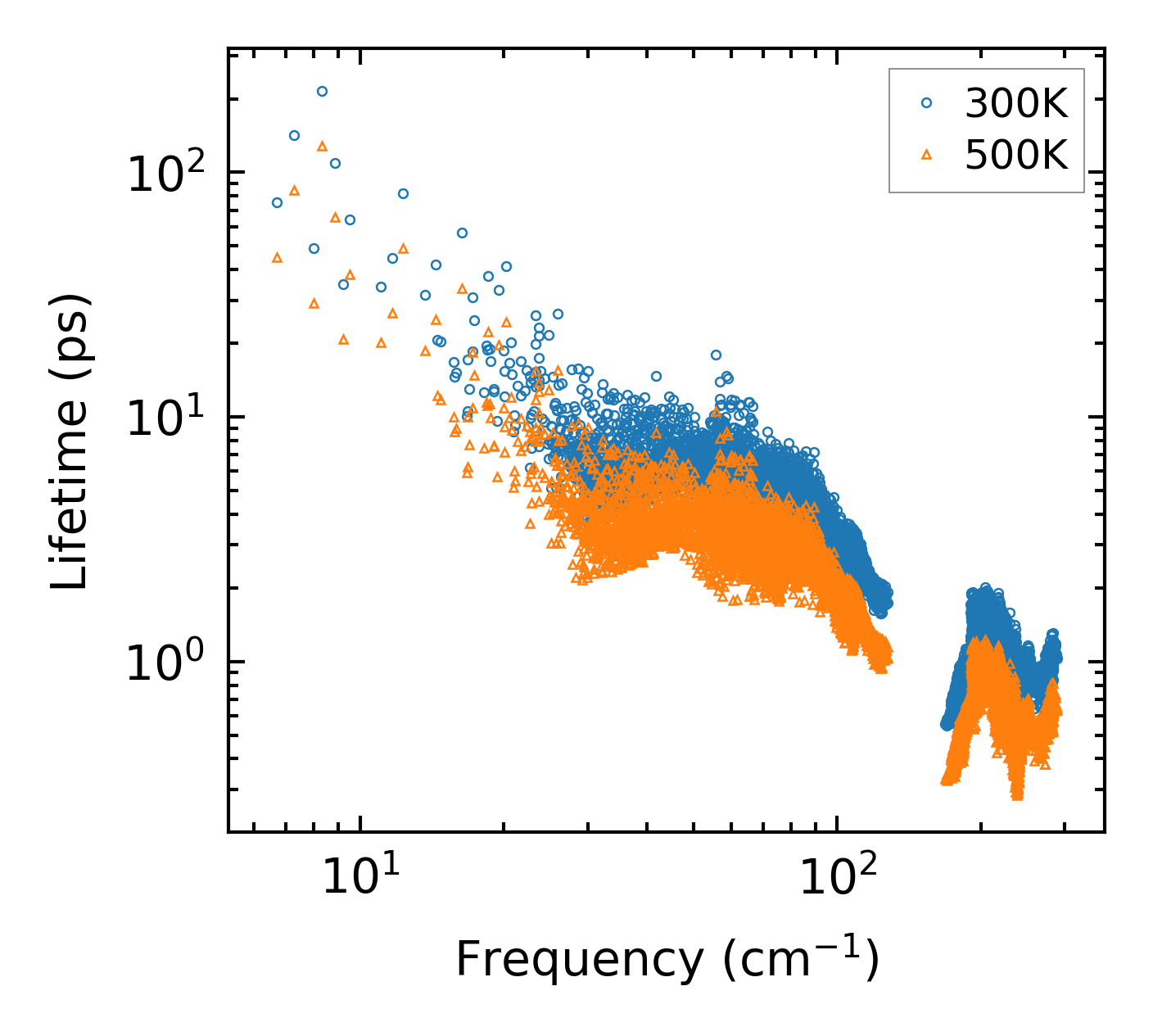

../../_images/fig_lifetime6665.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6664.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

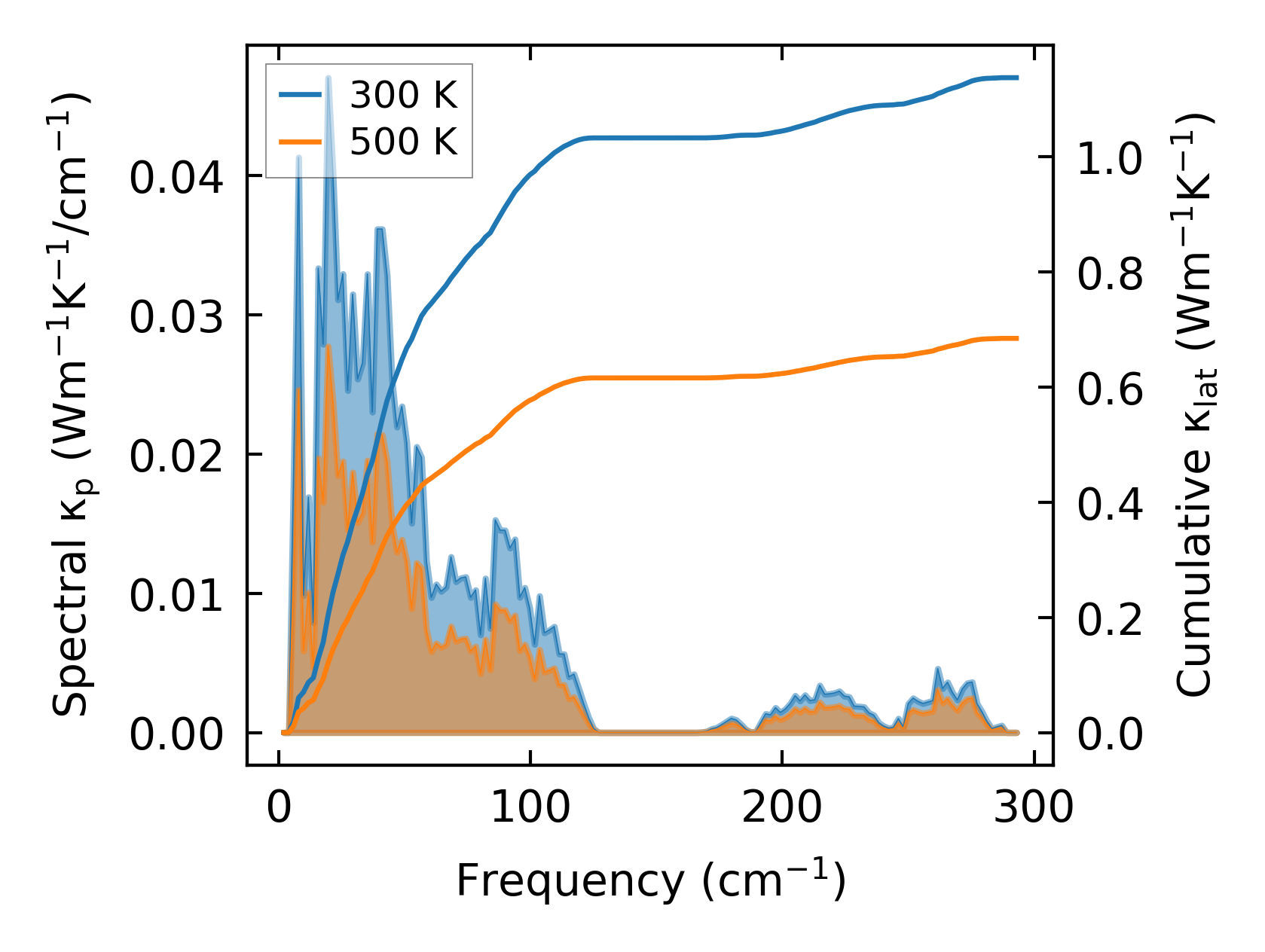

../../_images/fig_cumu_frequency6665.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

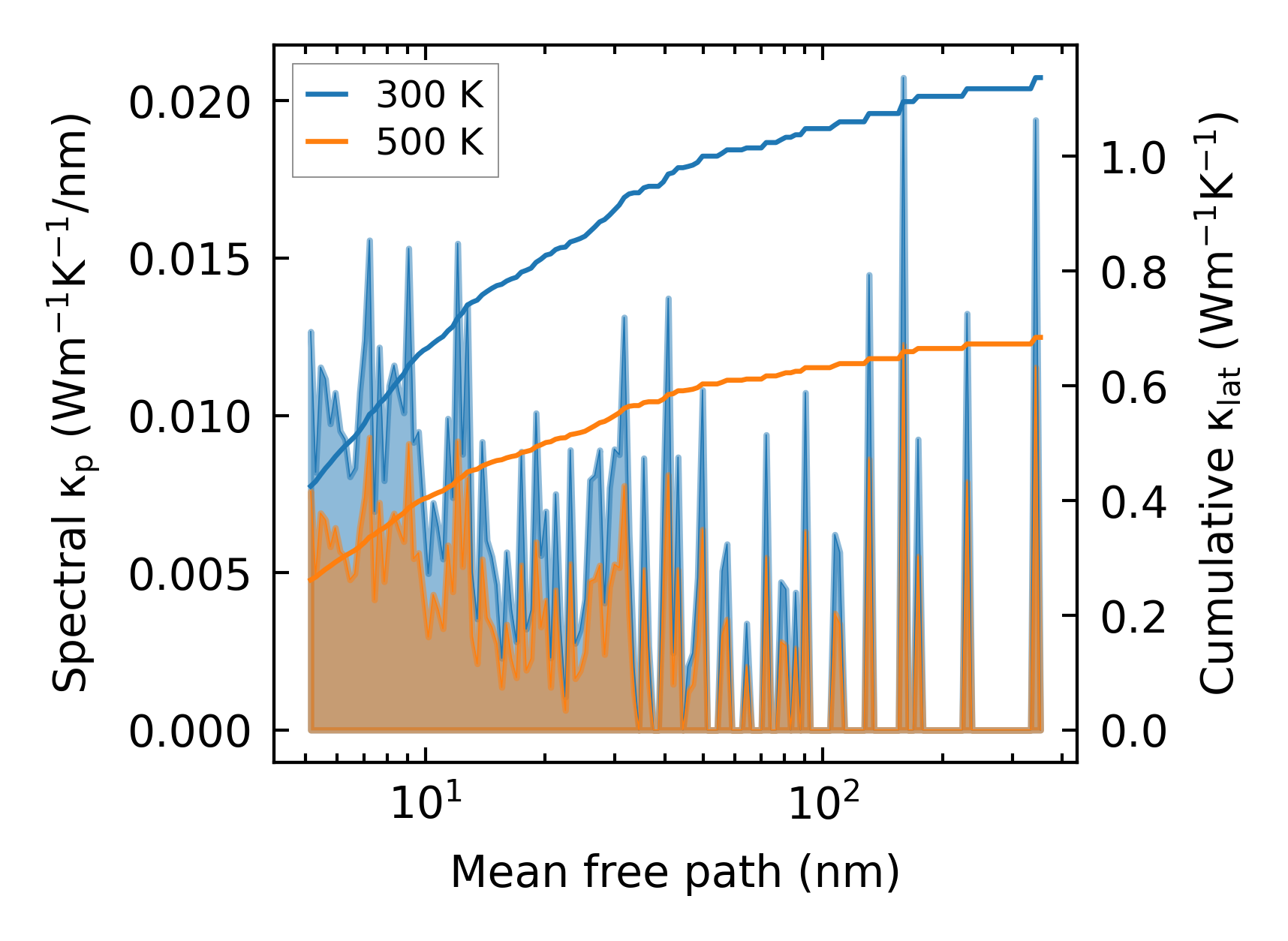

../../_images/fig_cumu_mfp6664.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

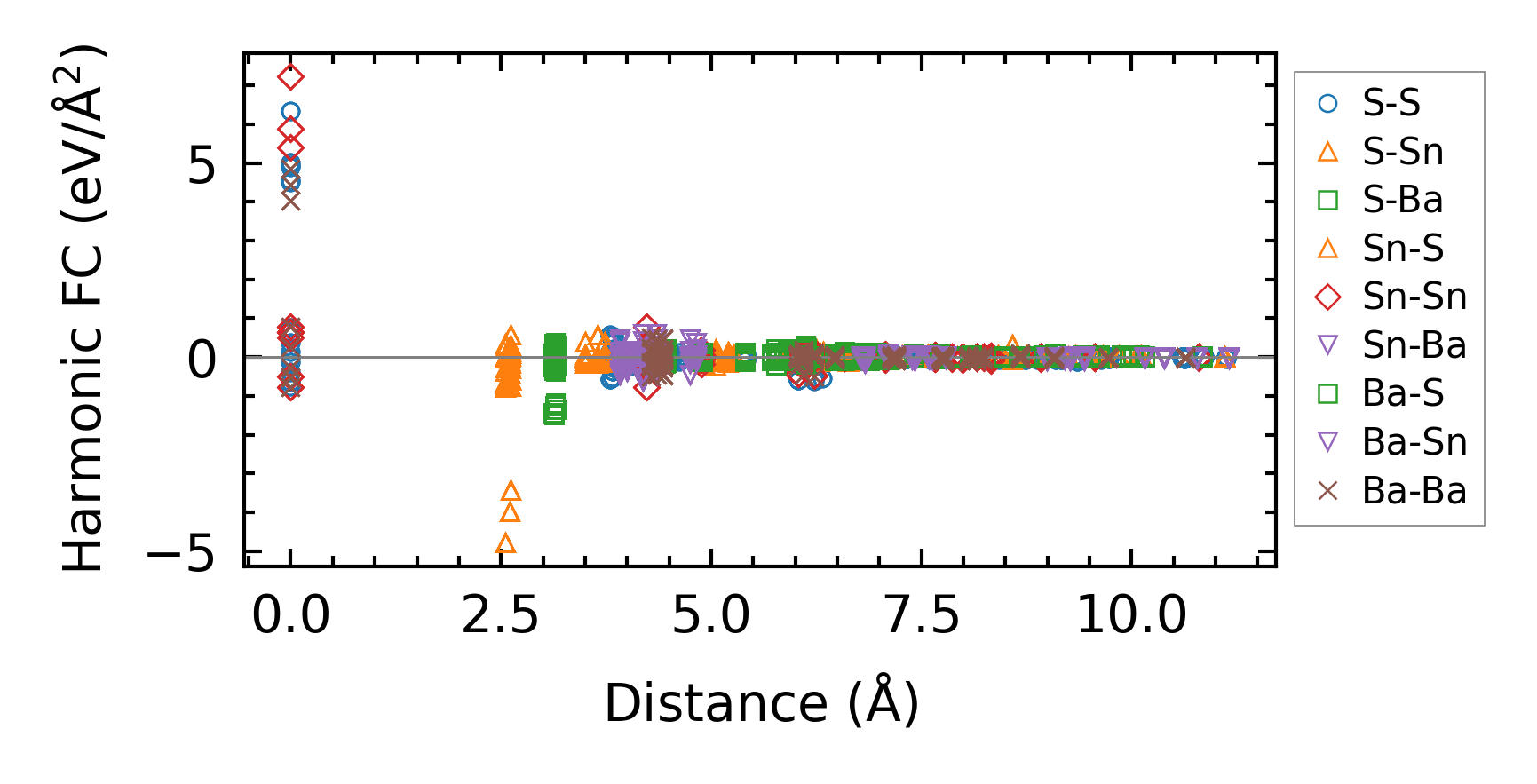

../../_images/fig_fc215163.png — (a) Force constants w.r.t atomic distance

Summary

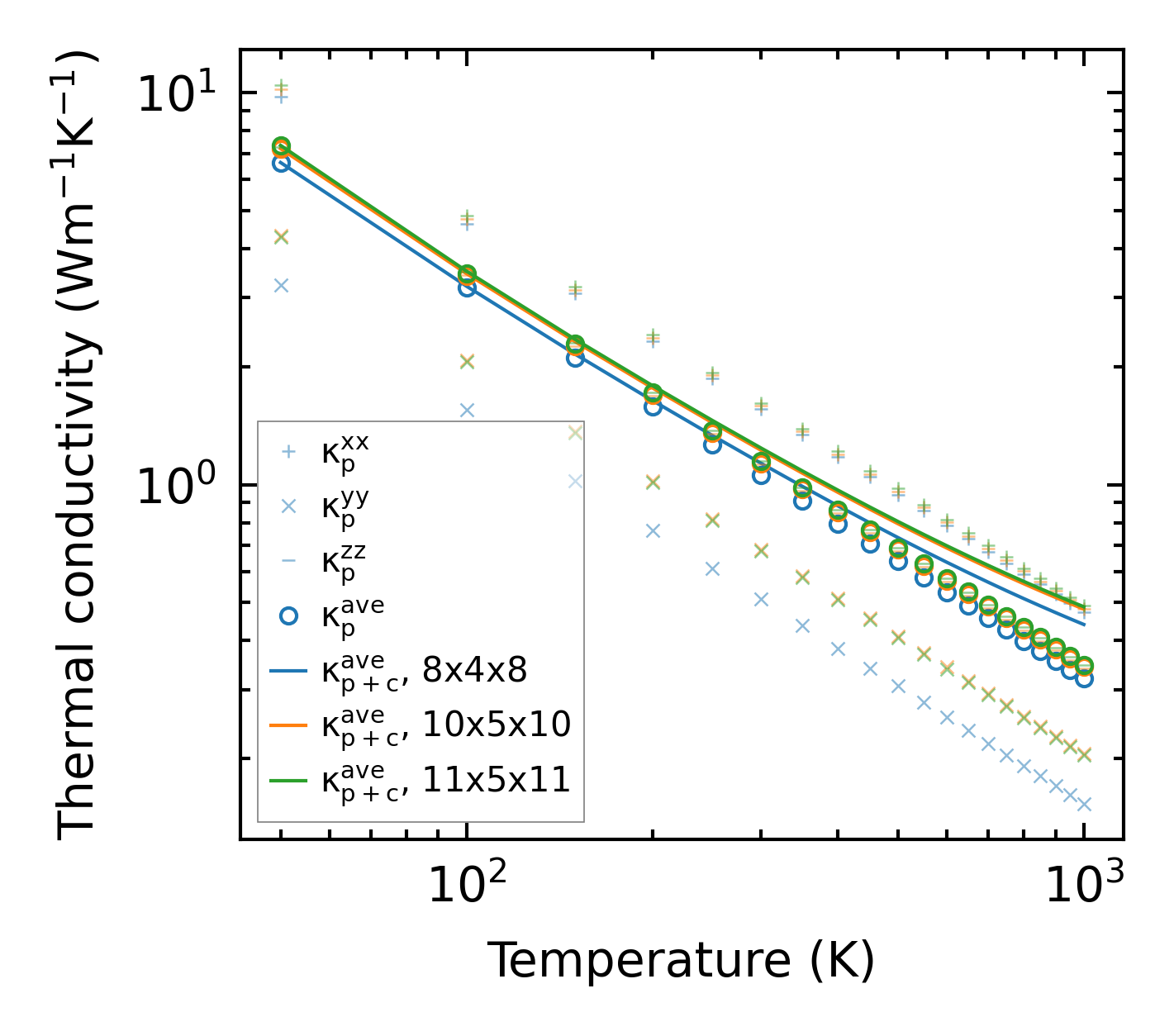

../../_images/fig_kappa12675.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times25726.png — (b) Computation time
