mp-12620-2/NdSeF/anharm

Space group: P4/nmm (129)
Link: Materials Project
Download: mp-12620-2.tar.gz

Harmonic properties

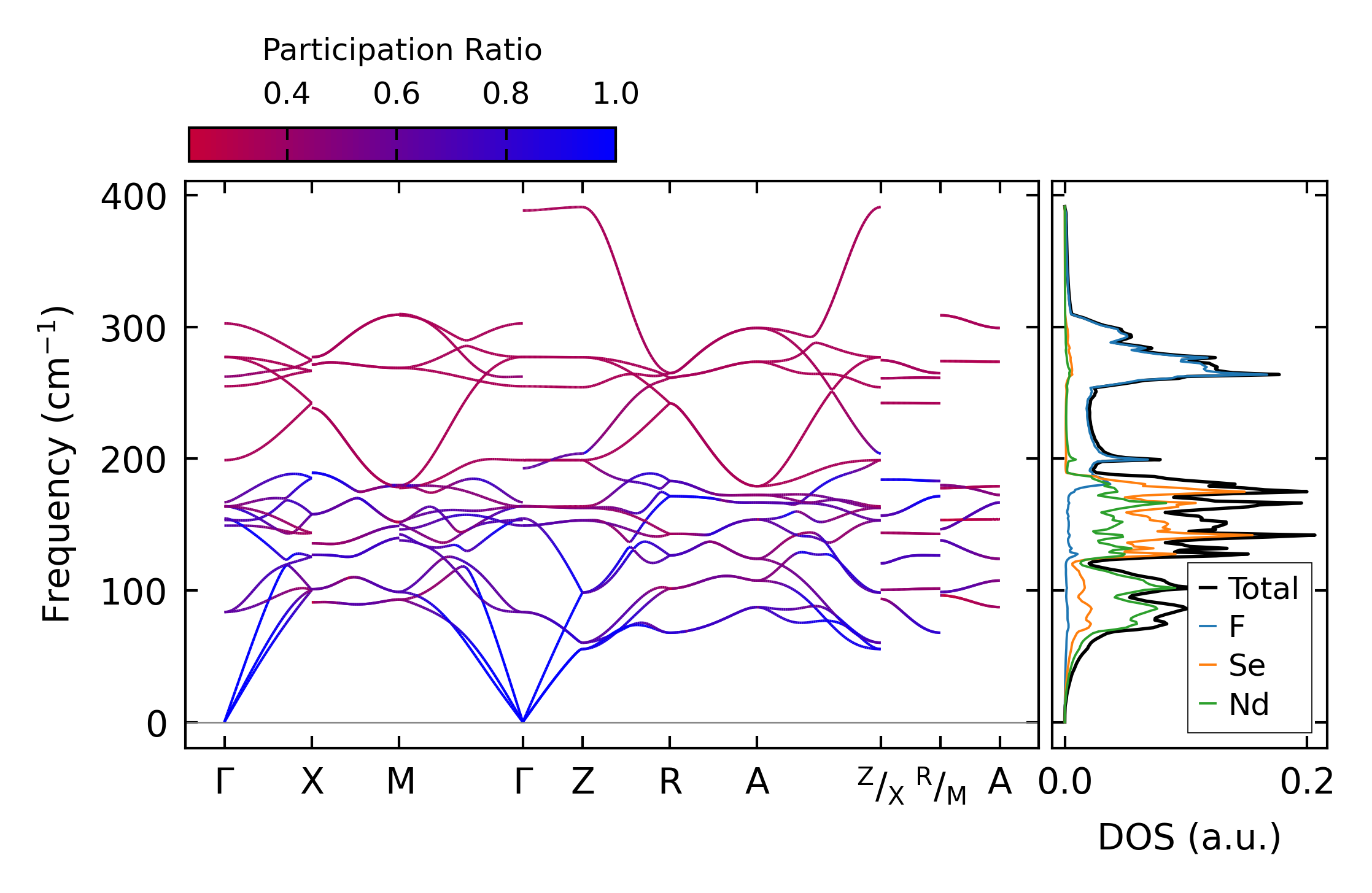

../../_images/fig_bandos_pr15665.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15664.png — (b) Thermodynamic properties

Grüneisen parameters

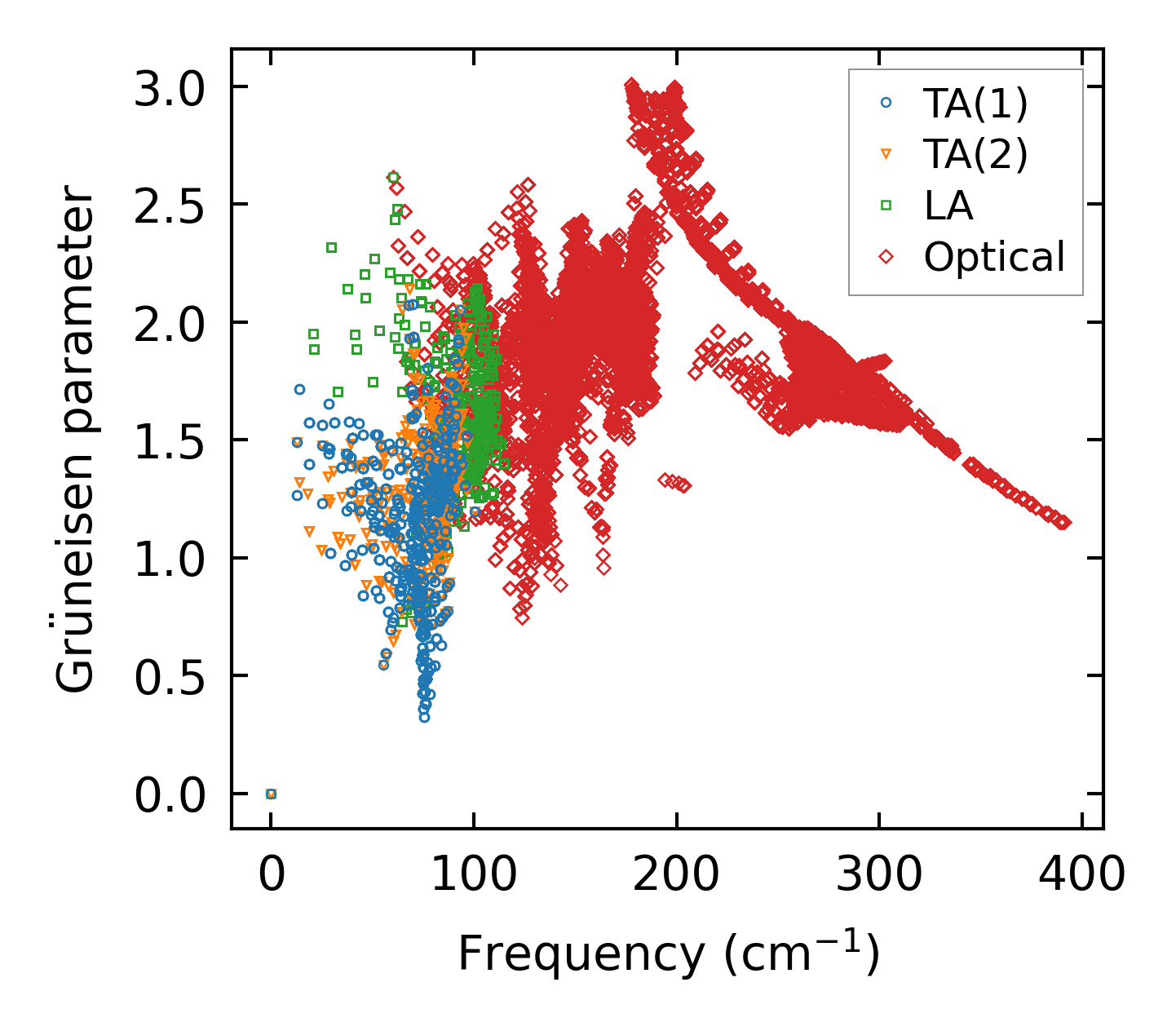

../../_images/fig_gru_all6780.png — (a) Grüneisen parameters

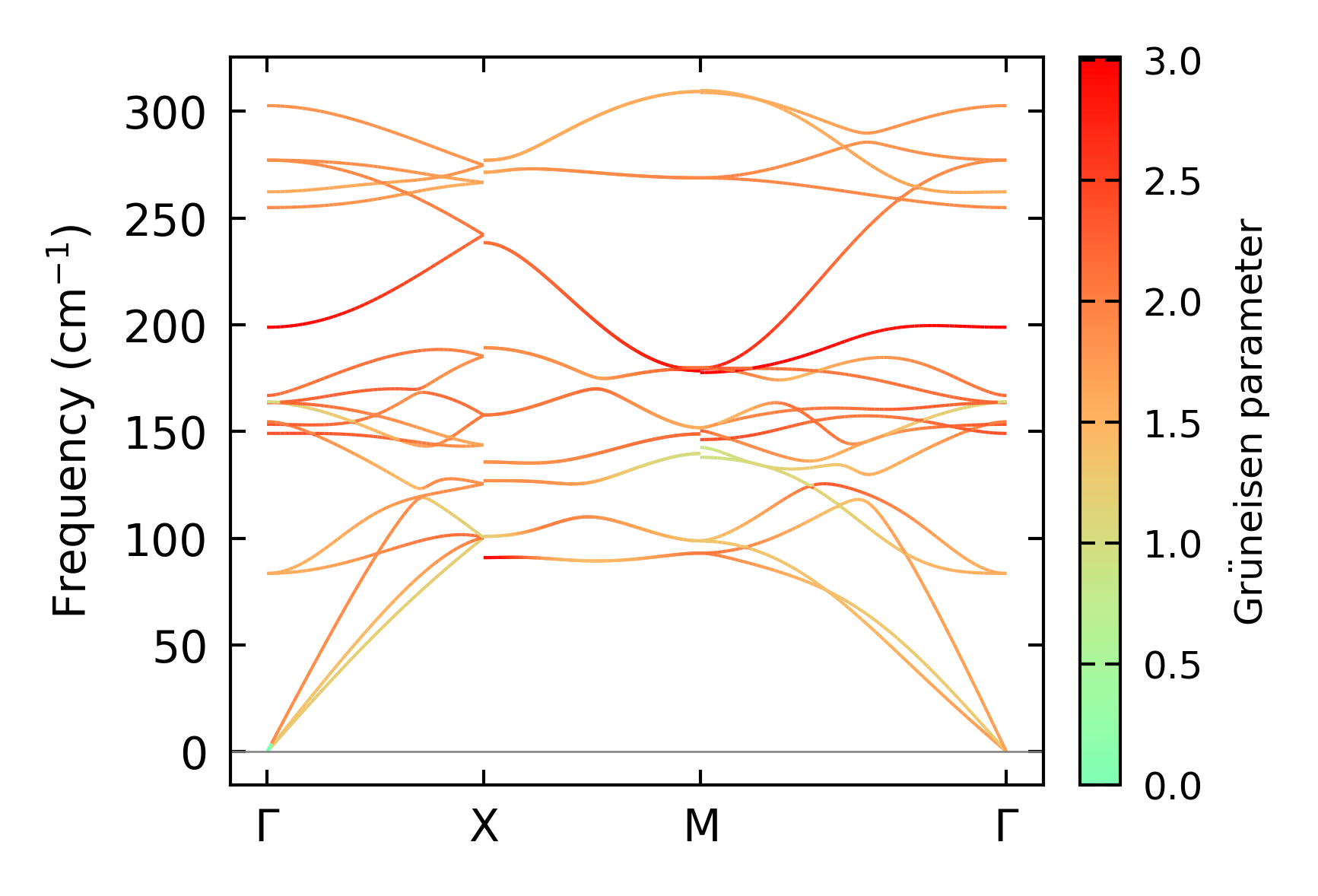

../../_images/fig_gruneisen6780.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 18x18x10, supercell: 3x3x2

../../_images/fig_kappa12771.png — (a) Temperature-dependent lattice thermal conductivity

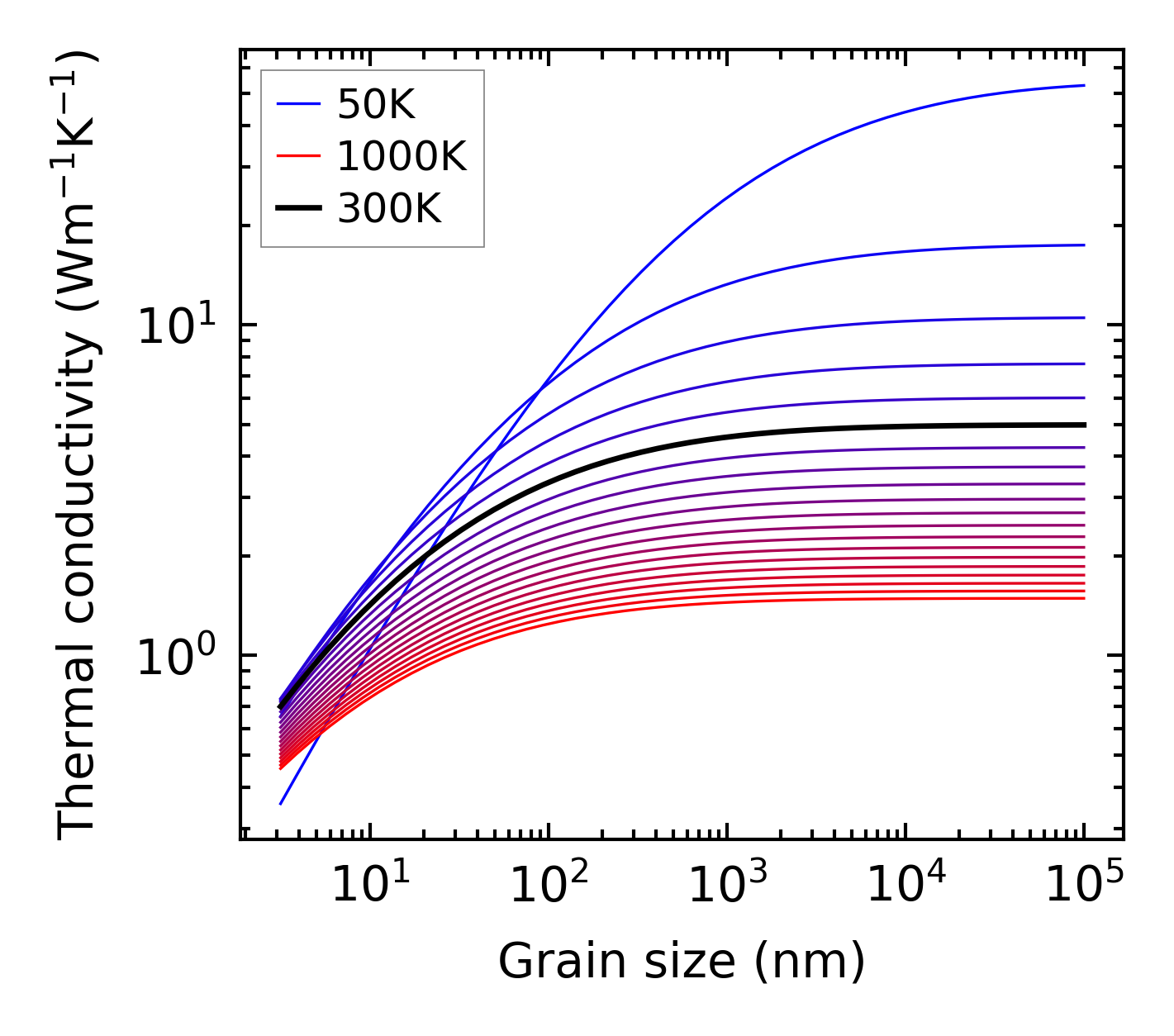

../../_images/fig_kappa_vs_grain_size6860.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

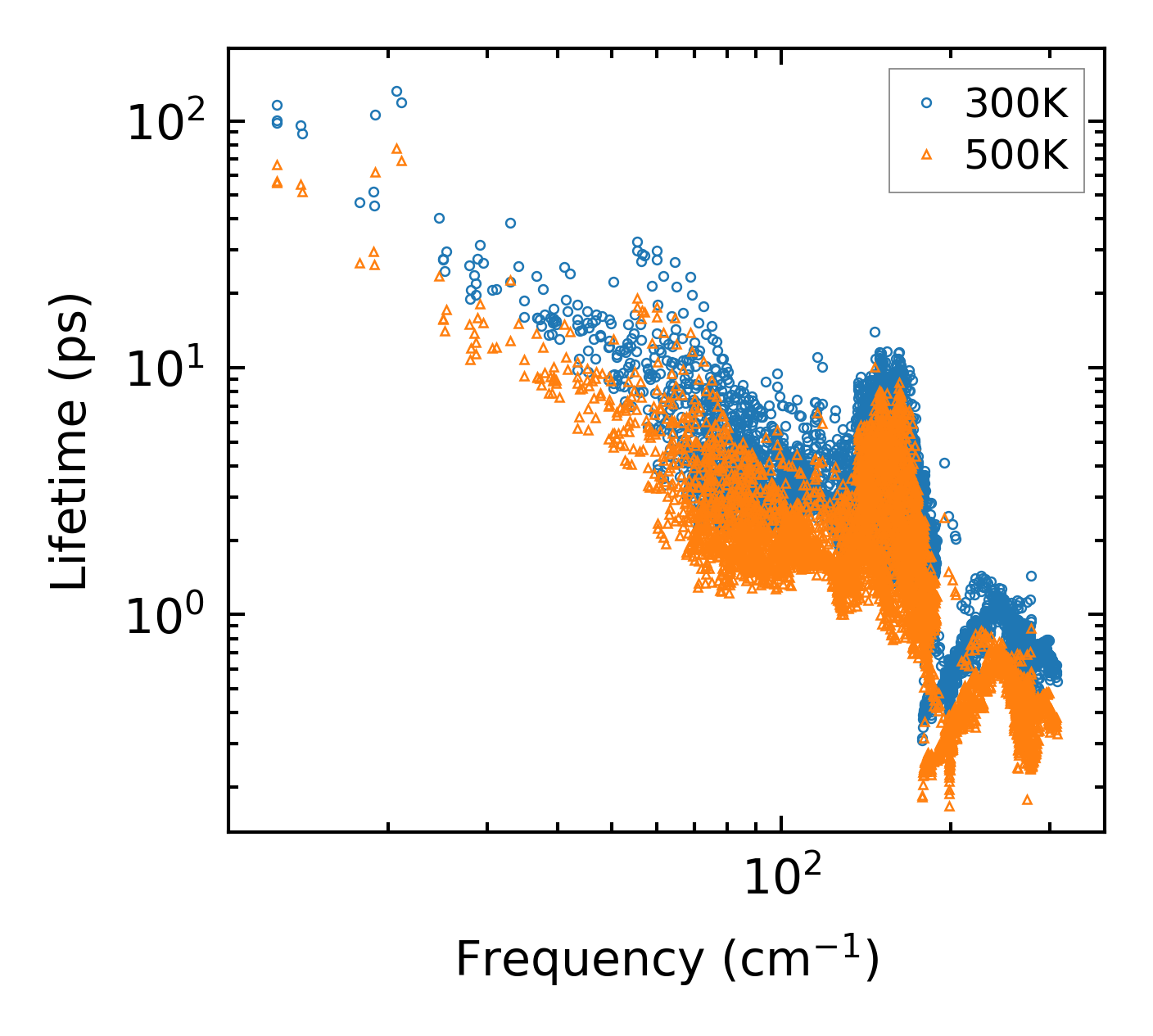

../../_images/fig_lifetime6714.png — (a) Phonon lifetime due to phonon-phonon scattering

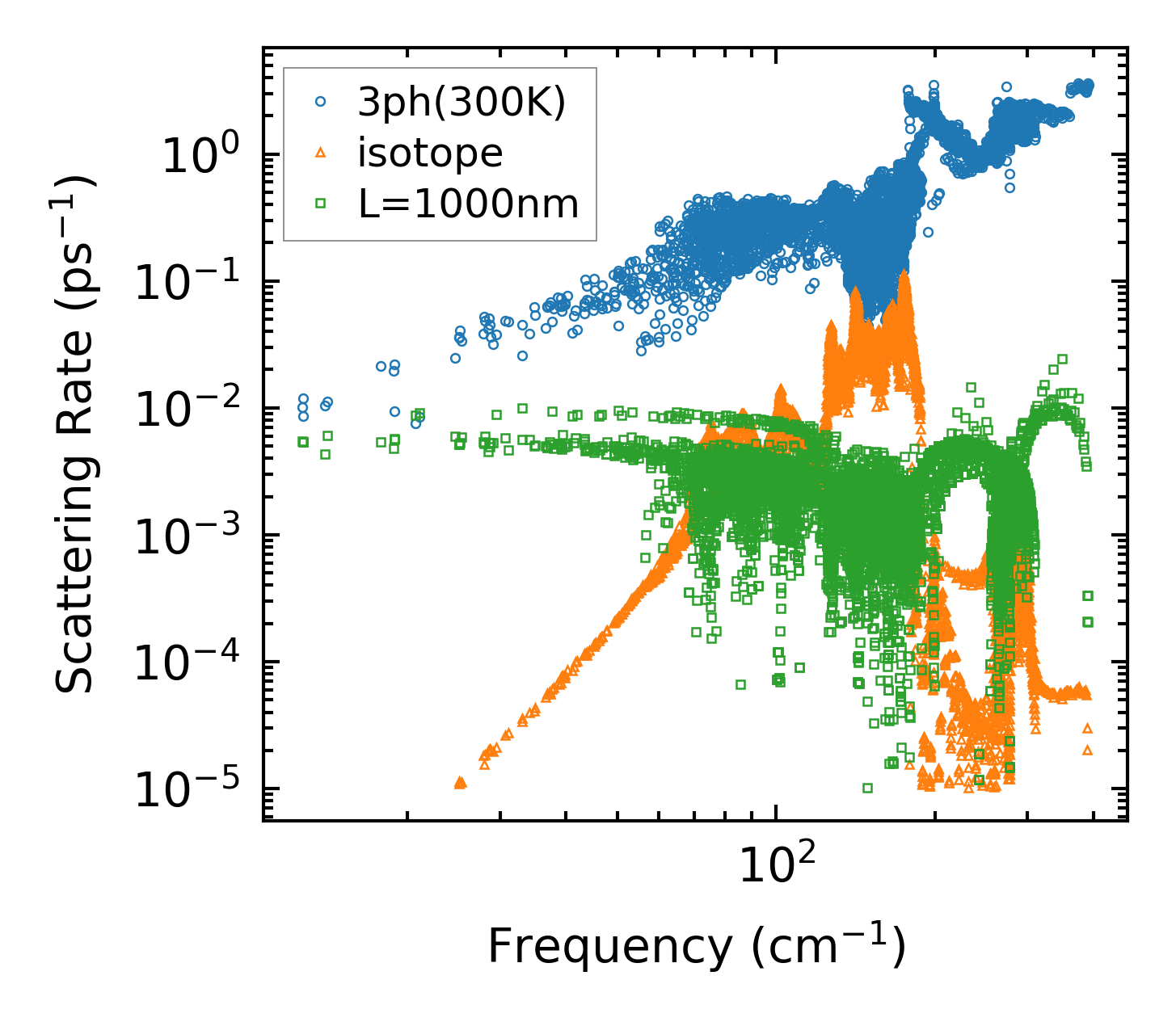

../../_images/fig_scat_rates6713.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6714.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

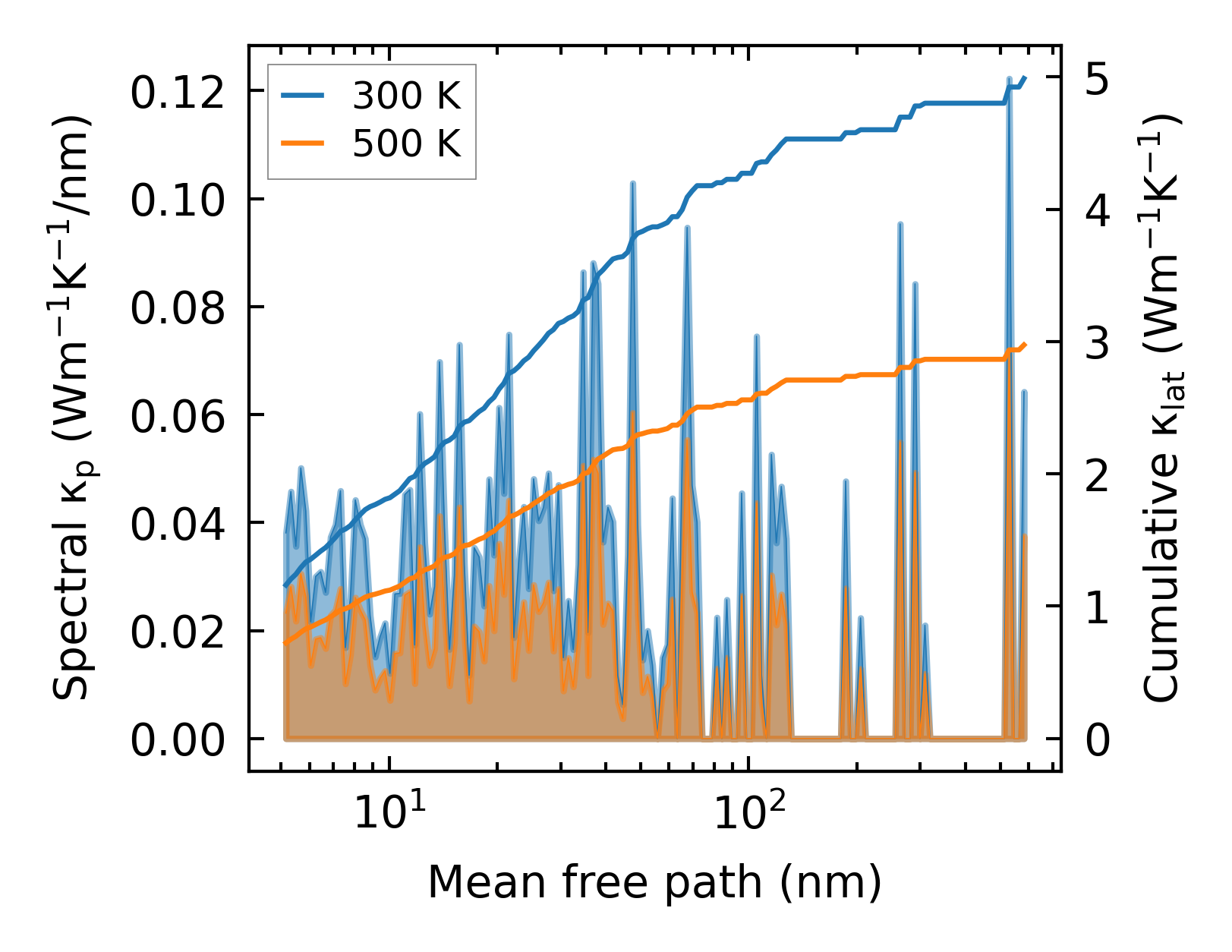

../../_images/fig_cumu_mfp6713.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc215260.png — (a) Force constants w.r.t atomic distance

Summary

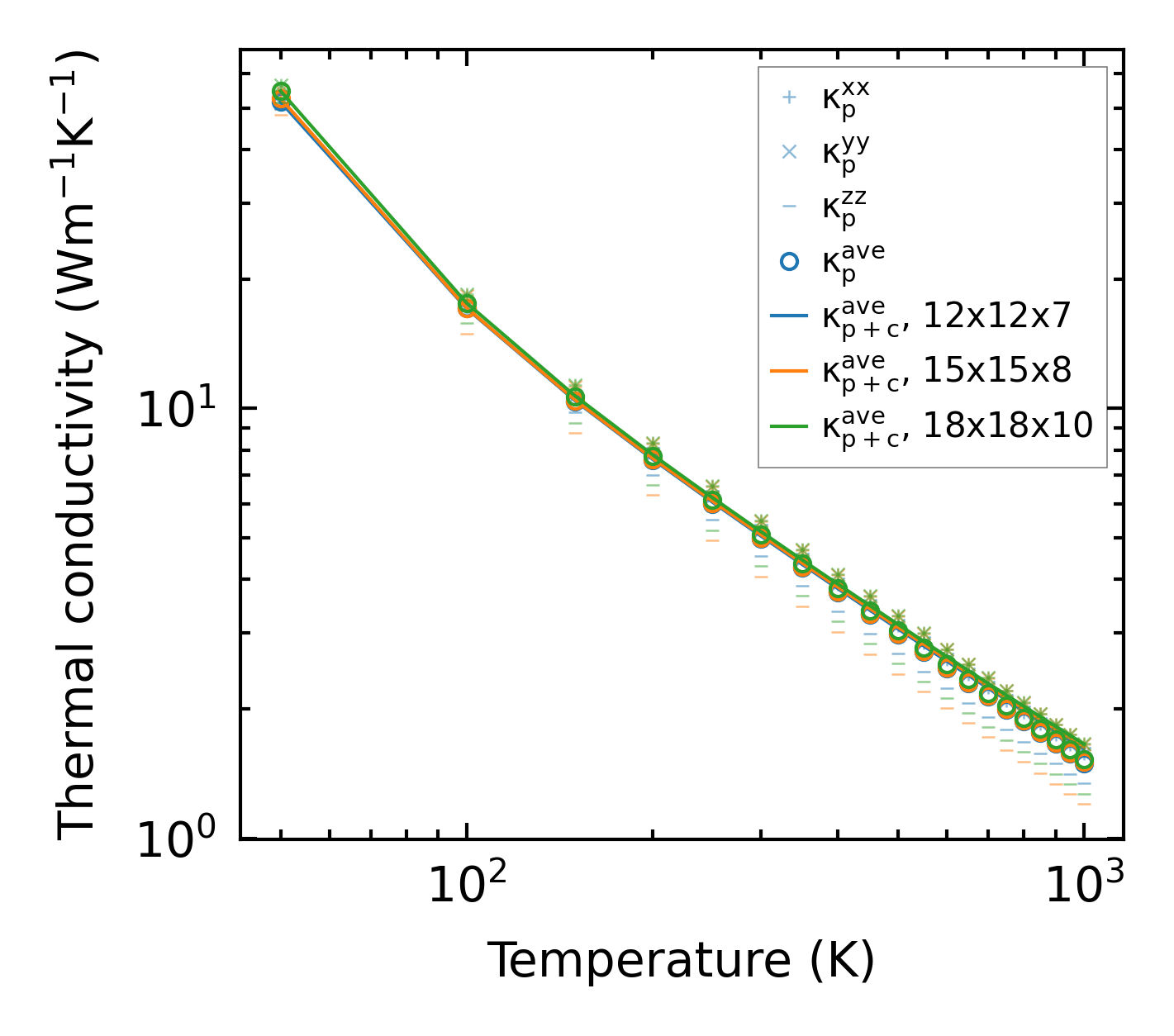

../../_images/fig_kappa12772.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times25842.png — (b) Computation time
