mp-12023/MnSiCu2S4/harm

Equation of state

../../_images/fig_bm7593.png

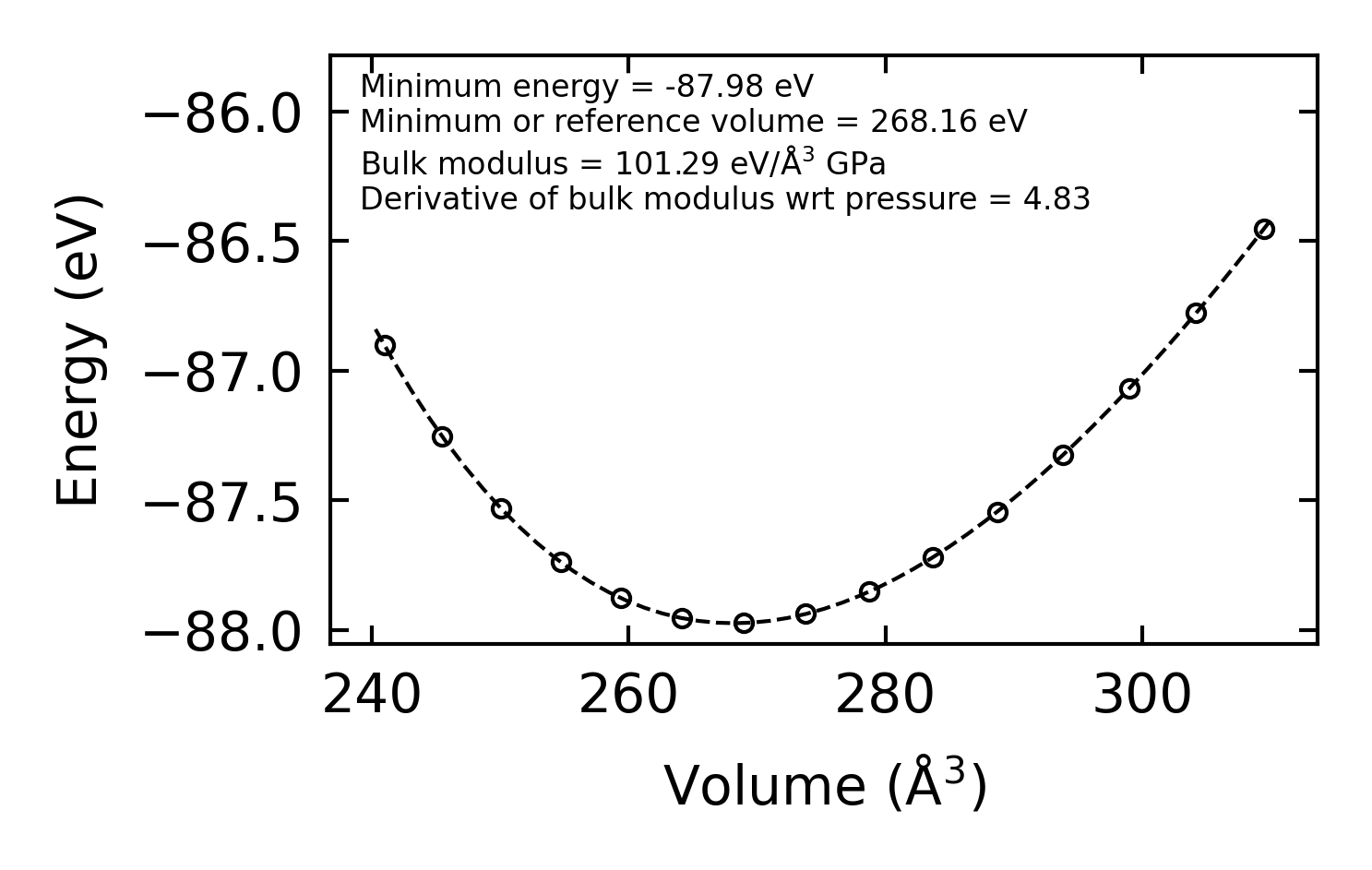

(a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr15553.png

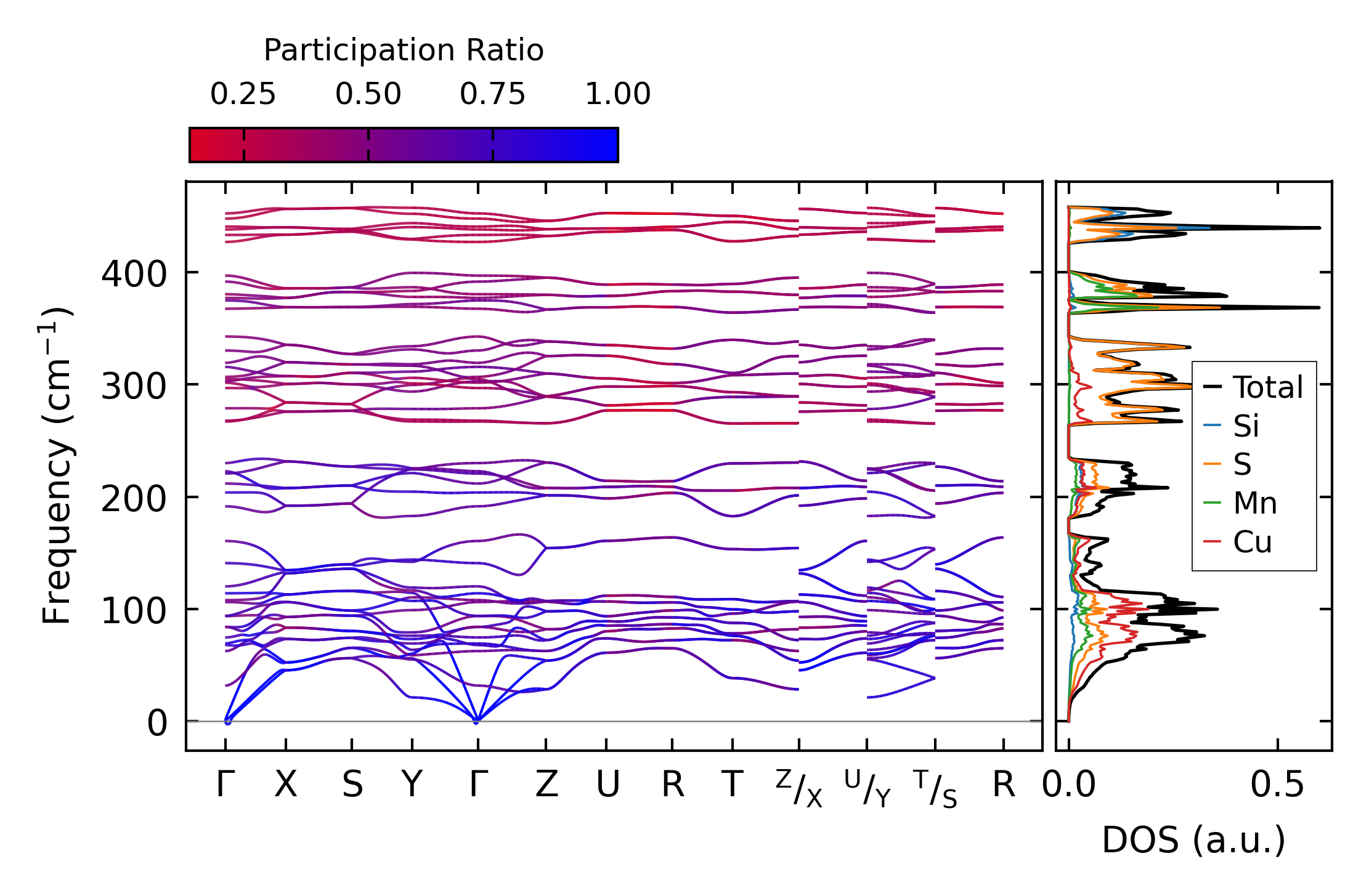

(a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos19961.png

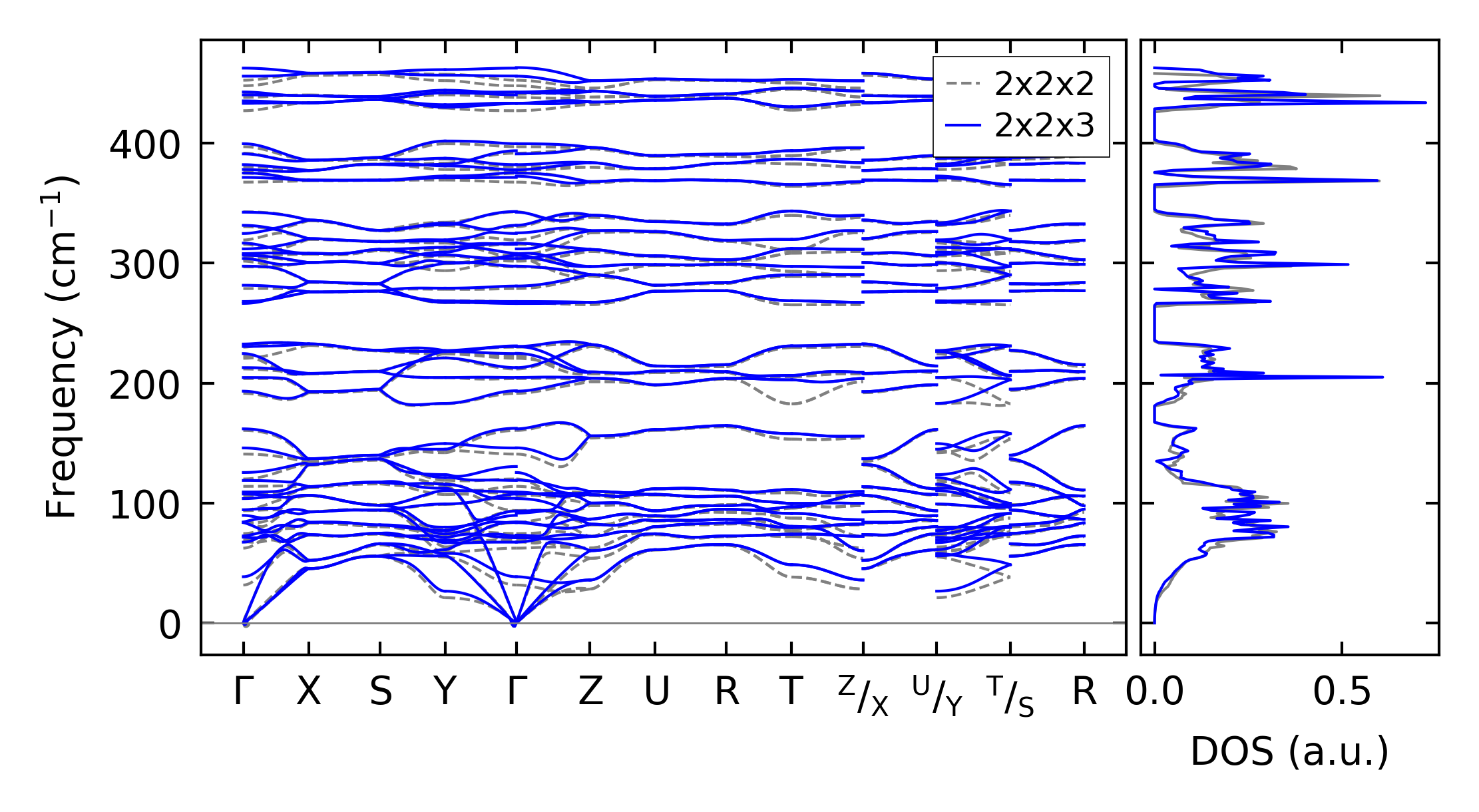

(b) Phonon dispersion and DOS

../../_images/fig_thermo15552.png

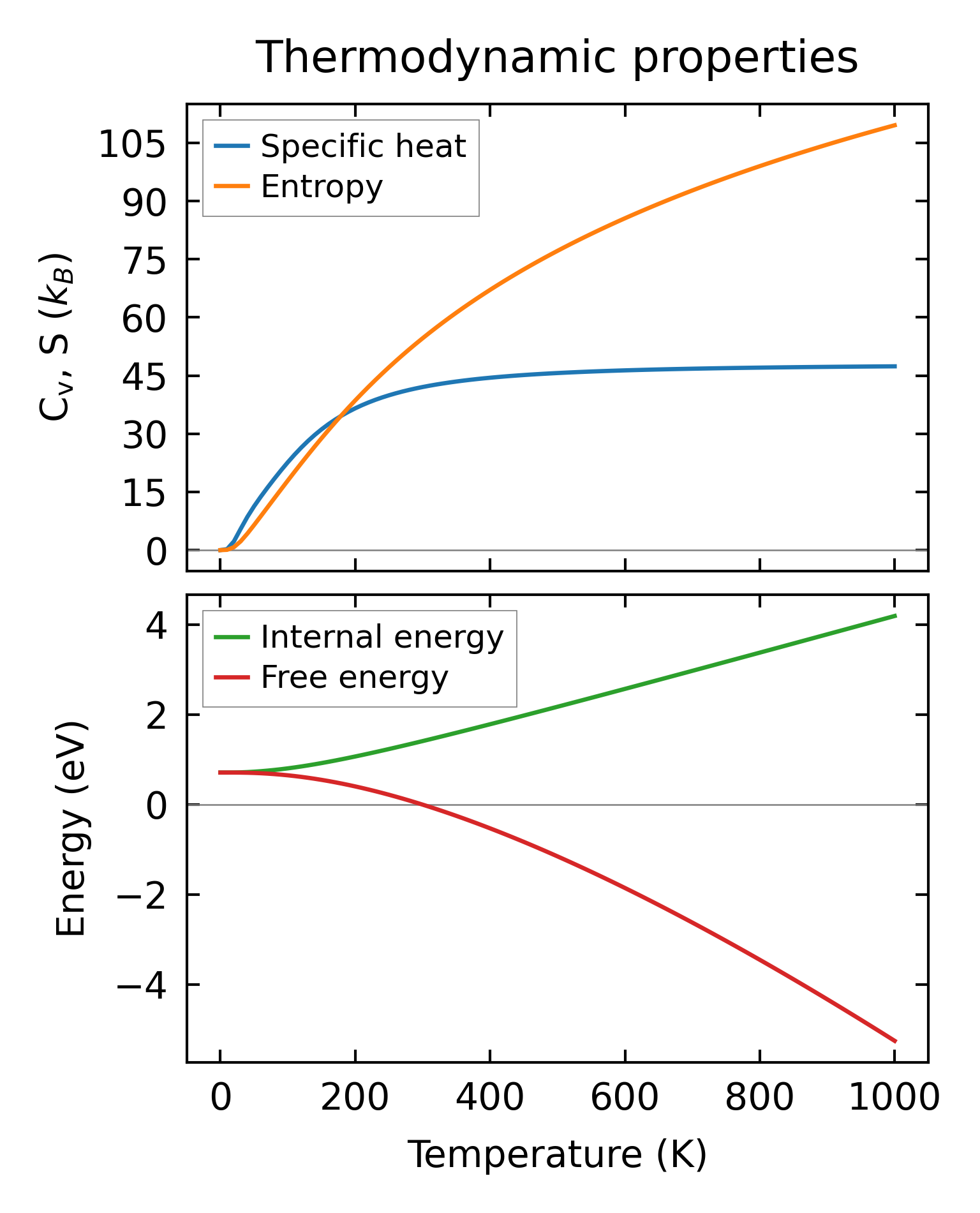

(c) Thermodynamic properties

Force constants

../../_images/fig_fc215148.png

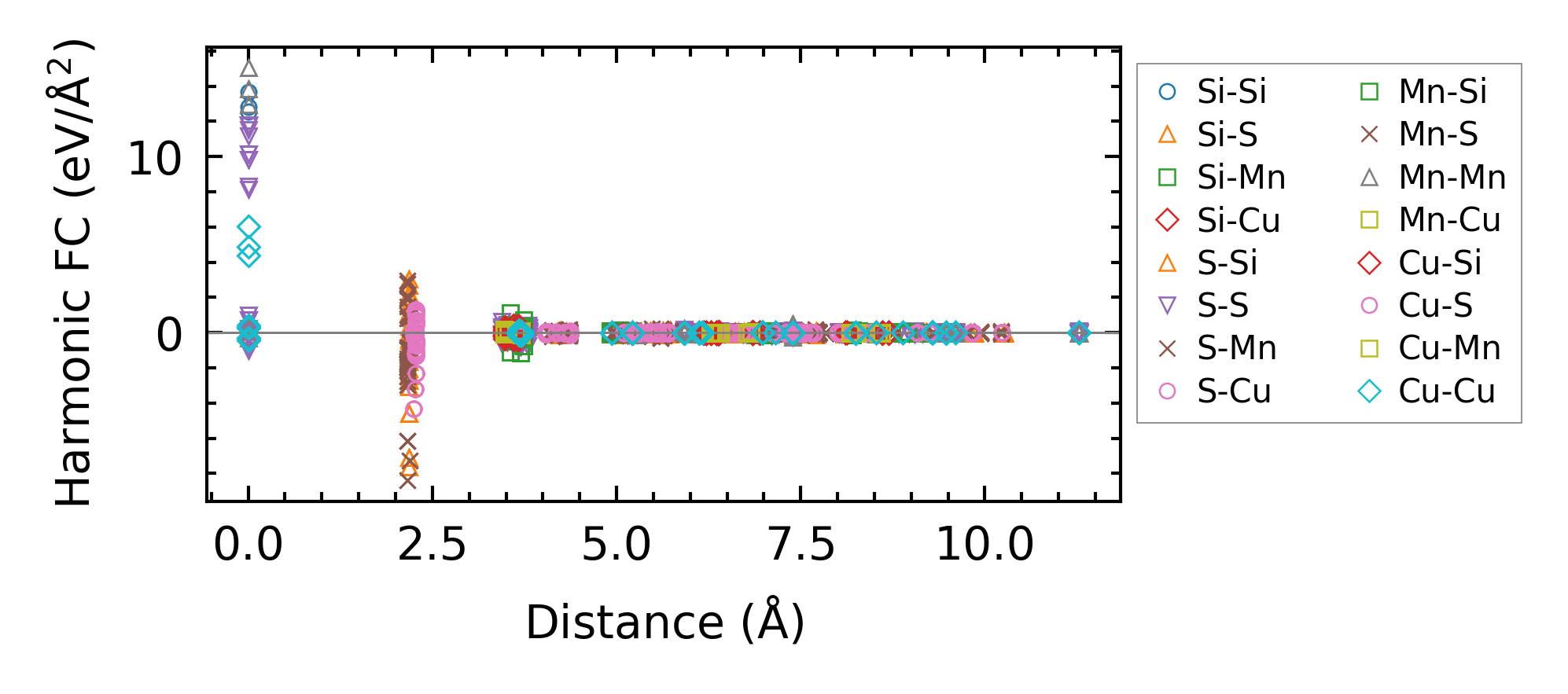

(a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times25707.png

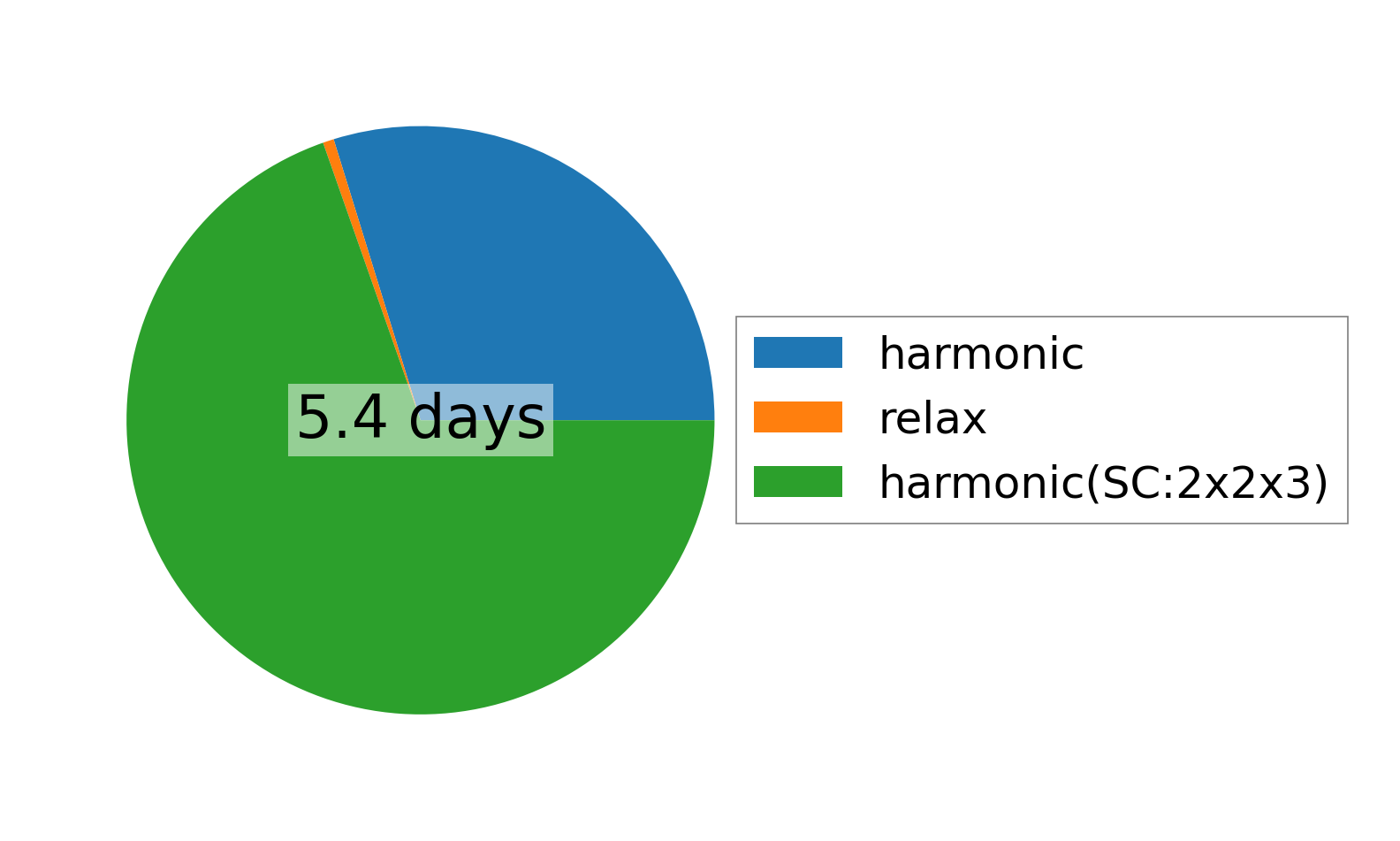

(a) Computation time
