mp-12878-2/Sr2YSbO6/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-12878-2.tar.gz

Harmonic properties

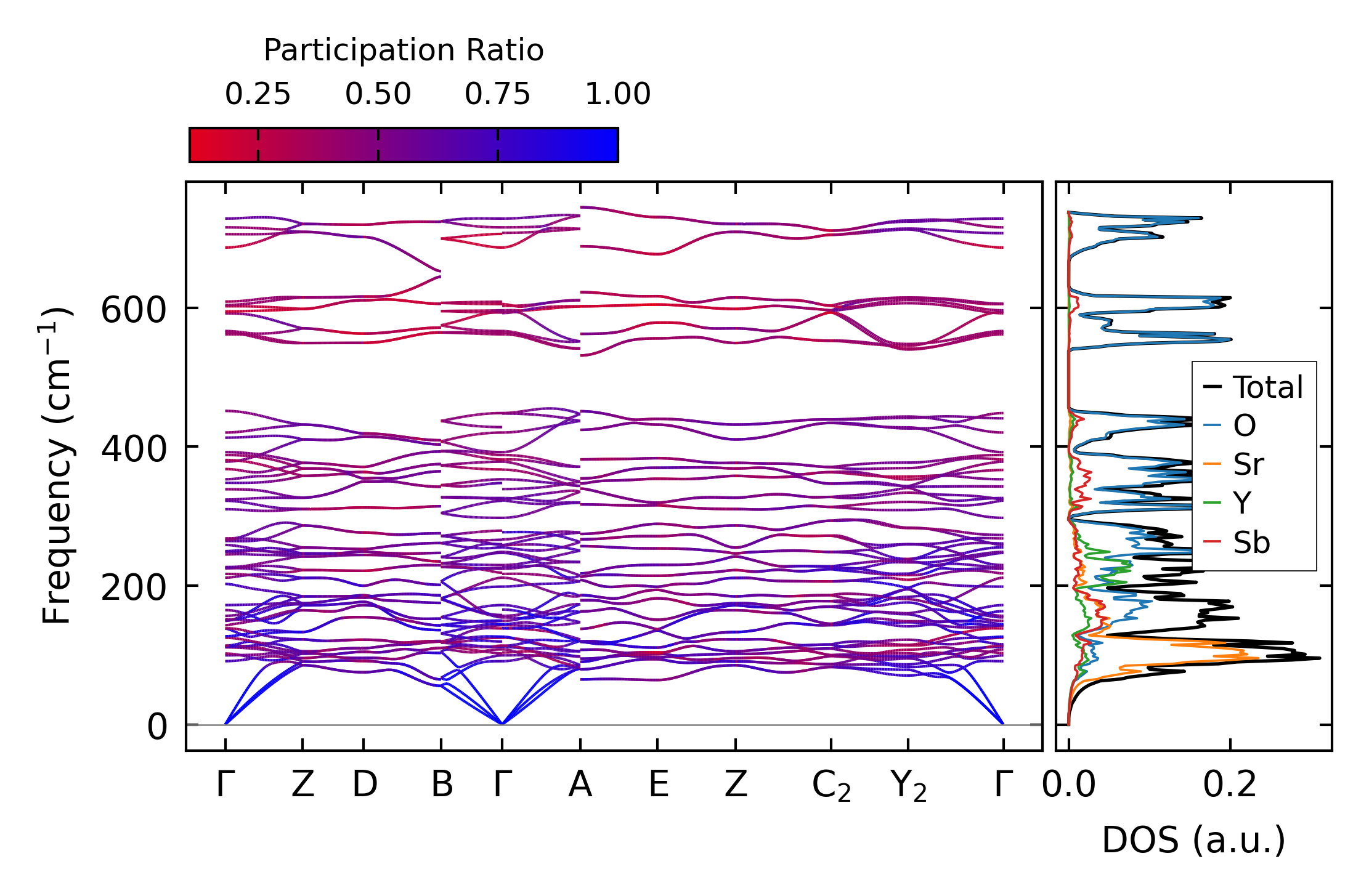

../../_images/fig_bandos_pr15712.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15711.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6803.png — (a) Grüneisen parameters

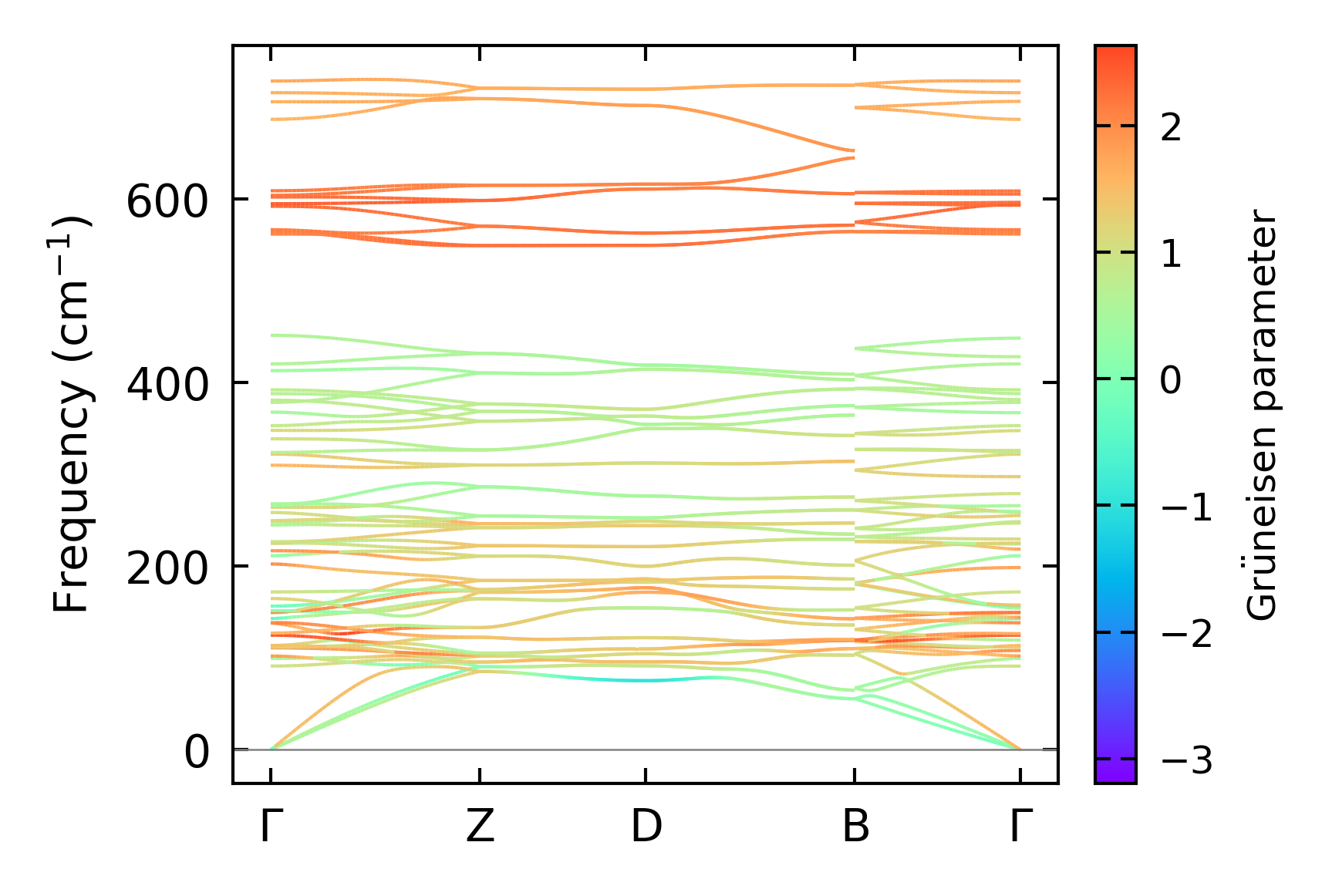

../../_images/fig_gruneisen6803.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x7, supercell: 2x2x1

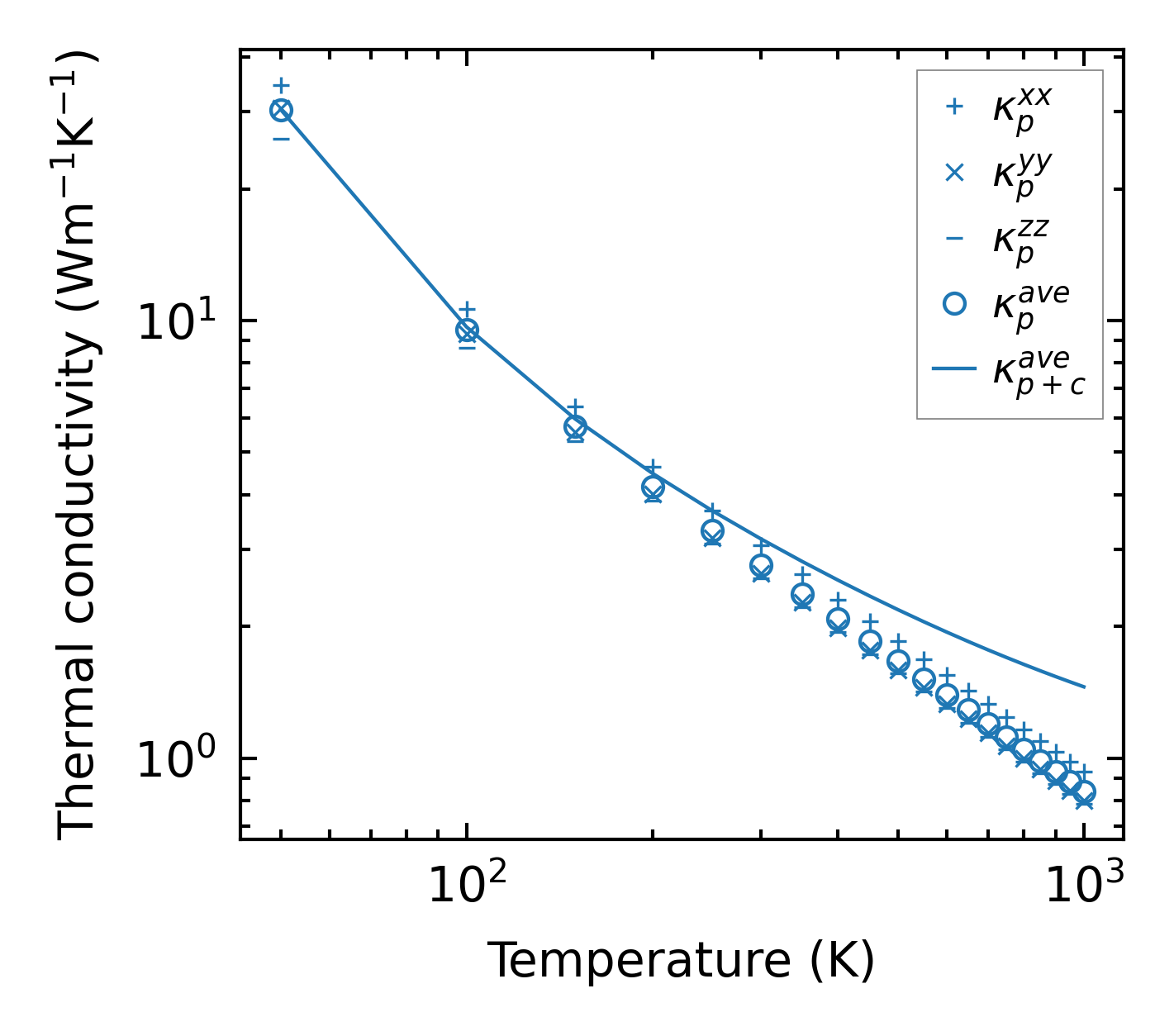

../../_images/fig_kappa12817.png — (a) Temperature-dependent lattice thermal conductivity

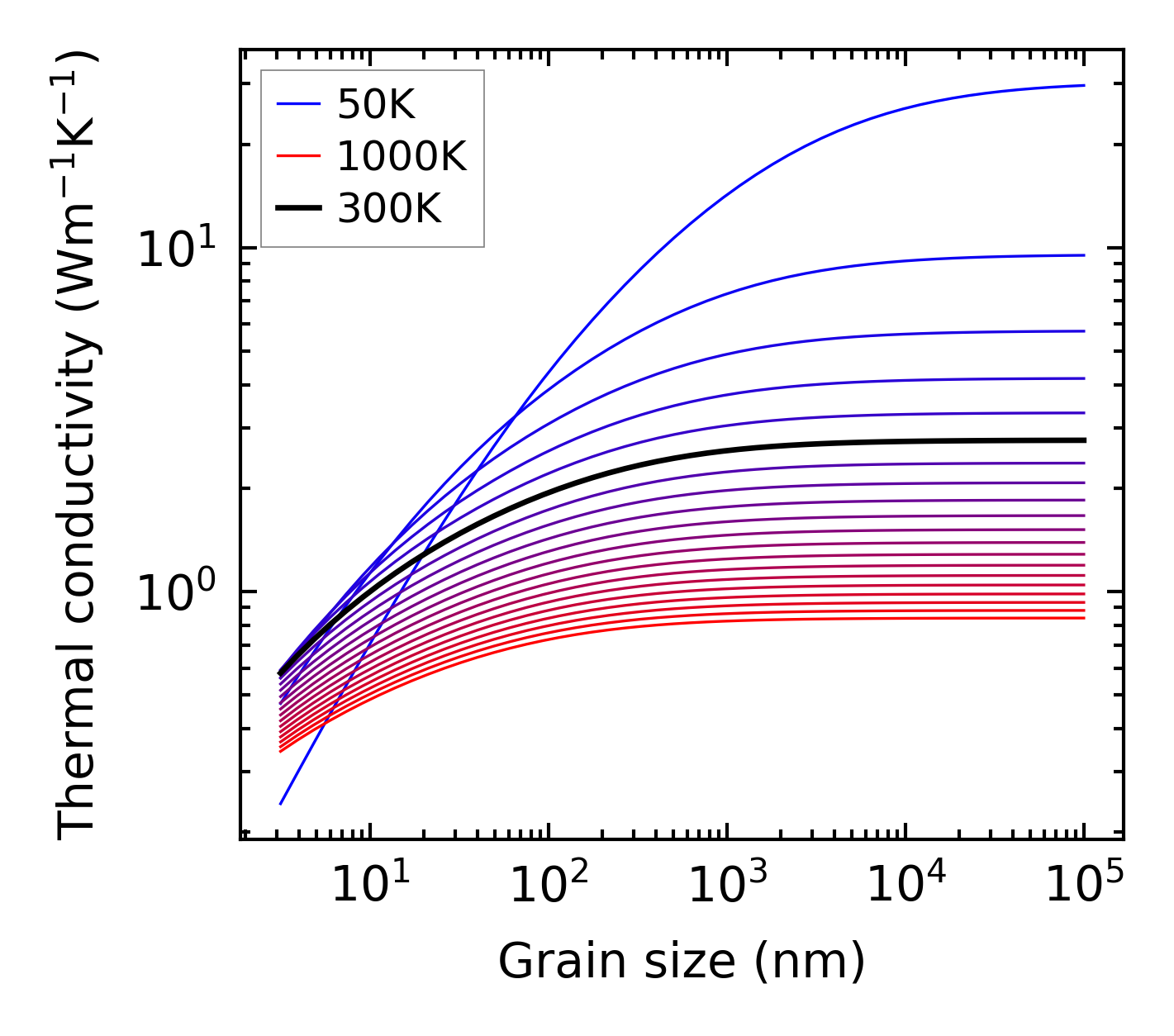

../../_images/fig_kappa_vs_grain_size6883.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

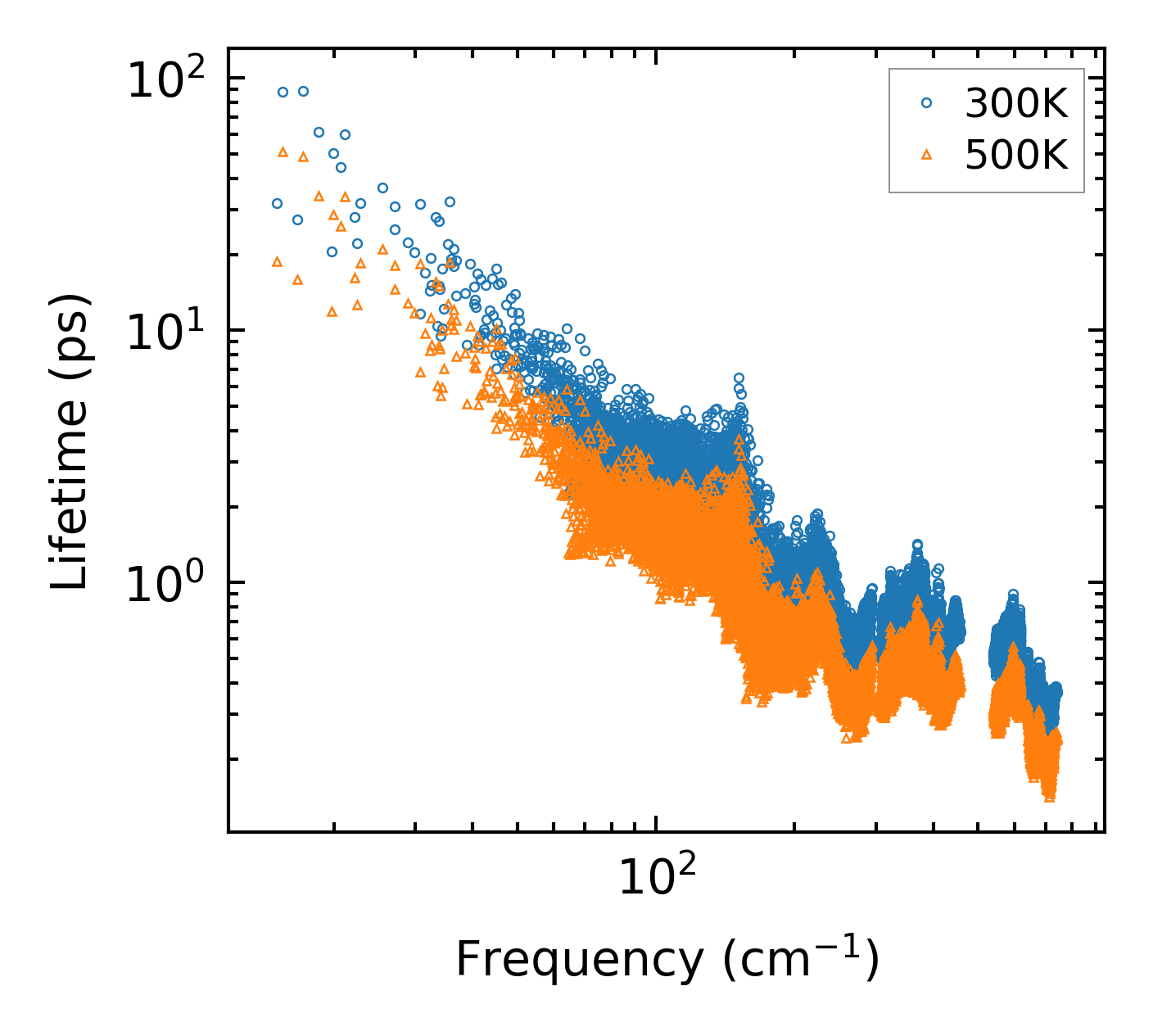

../../_images/fig_lifetime6737.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6736.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

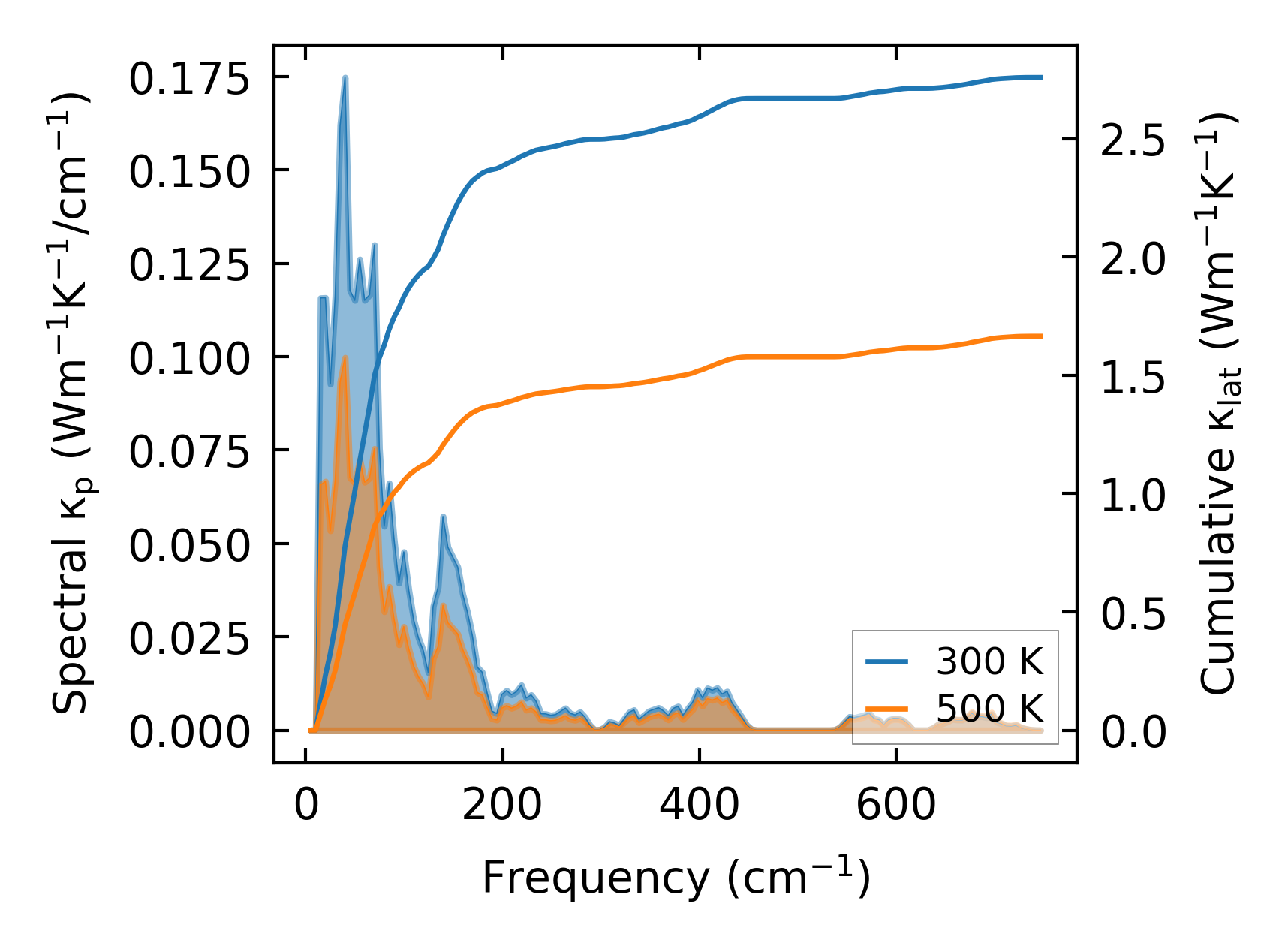

../../_images/fig_cumu_frequency6737.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6736.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

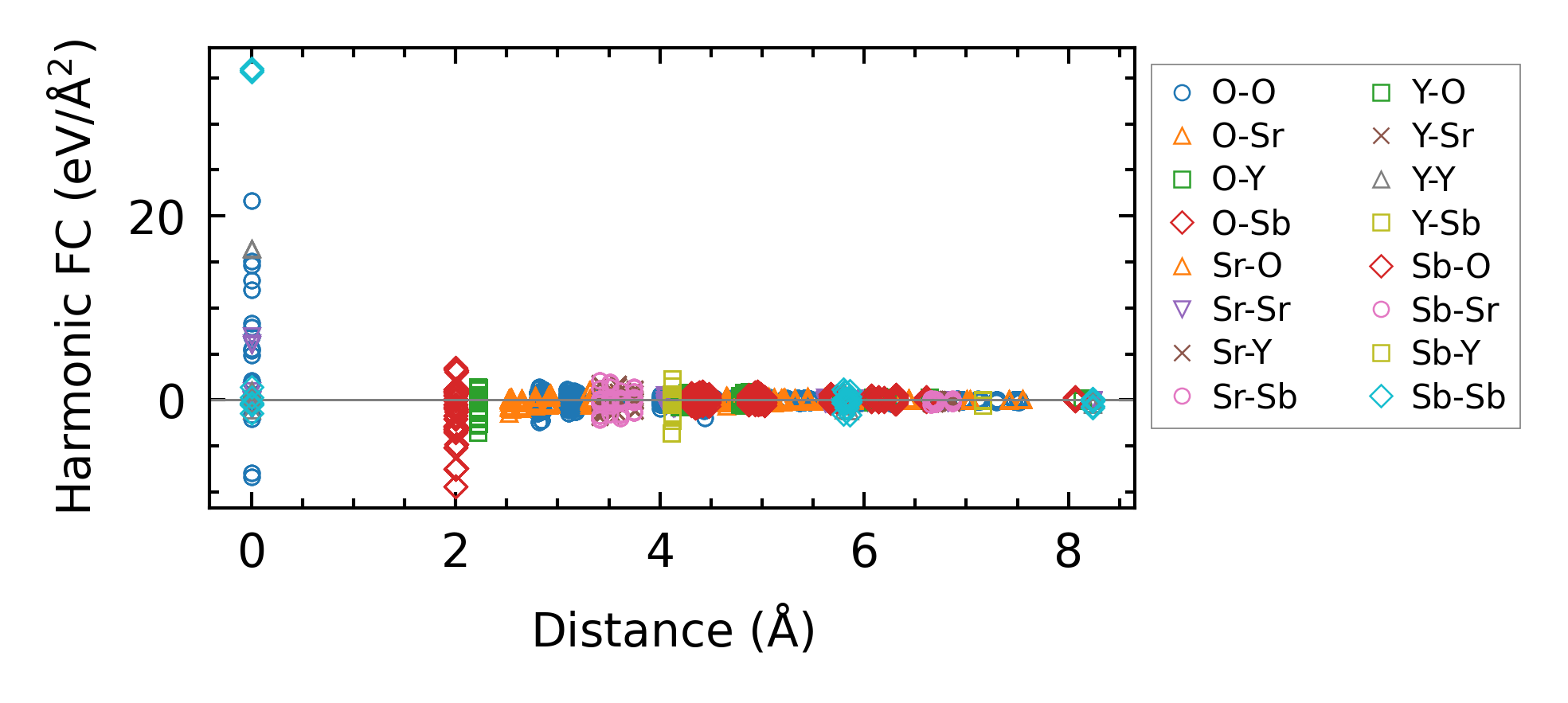

../../_images/fig_fc215307.png — (a) Force constants w.r.t atomic distance

Summary

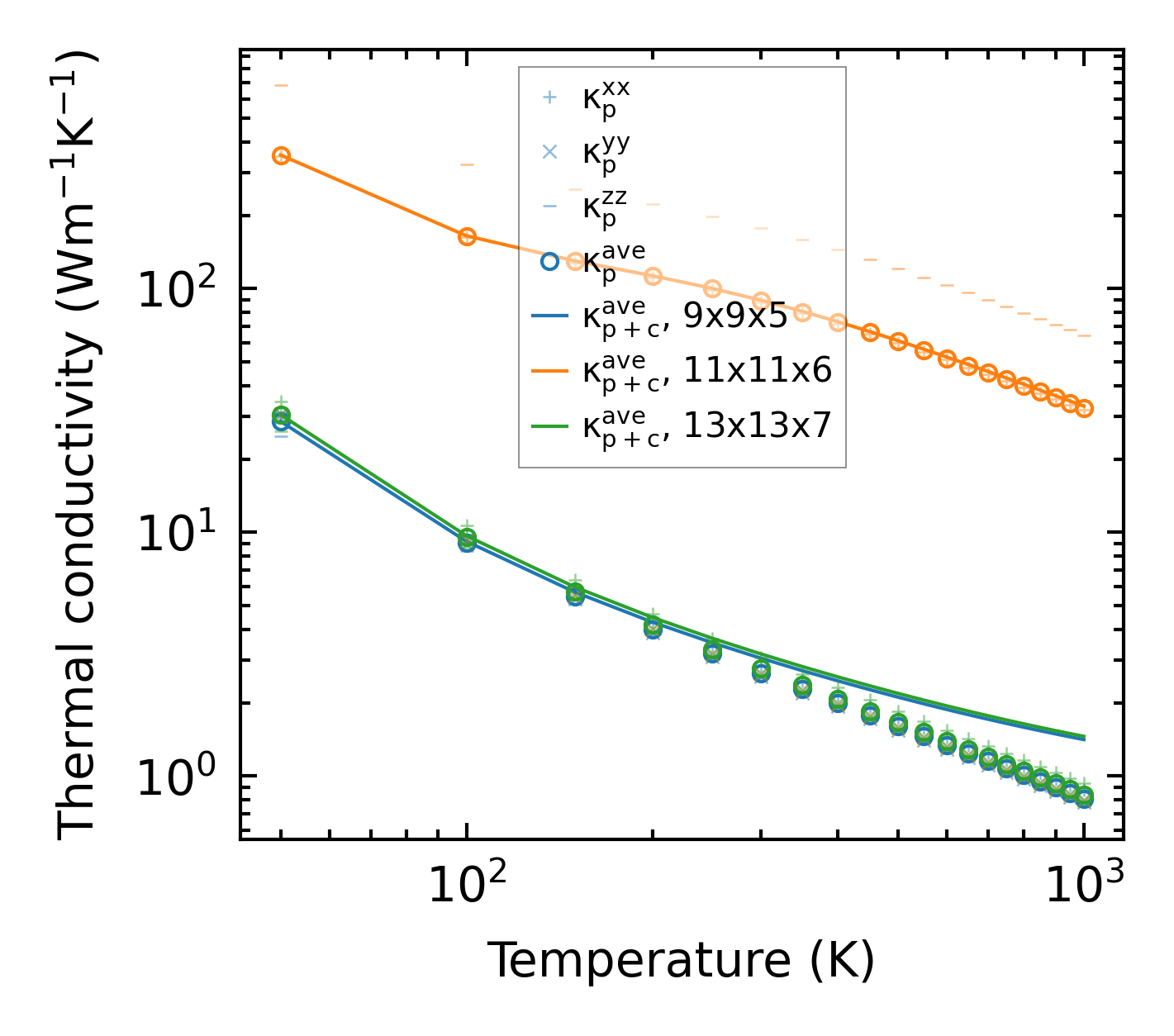

../../_images/fig_kappa12818.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times25893.png — (b) Computation time
