mp-12673-2/Lu2SO2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-12673-2.tar.gz

Harmonic properties

../../_images/fig_bandos_pr15691.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15690.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6795.png — (a) Grüneisen parameters

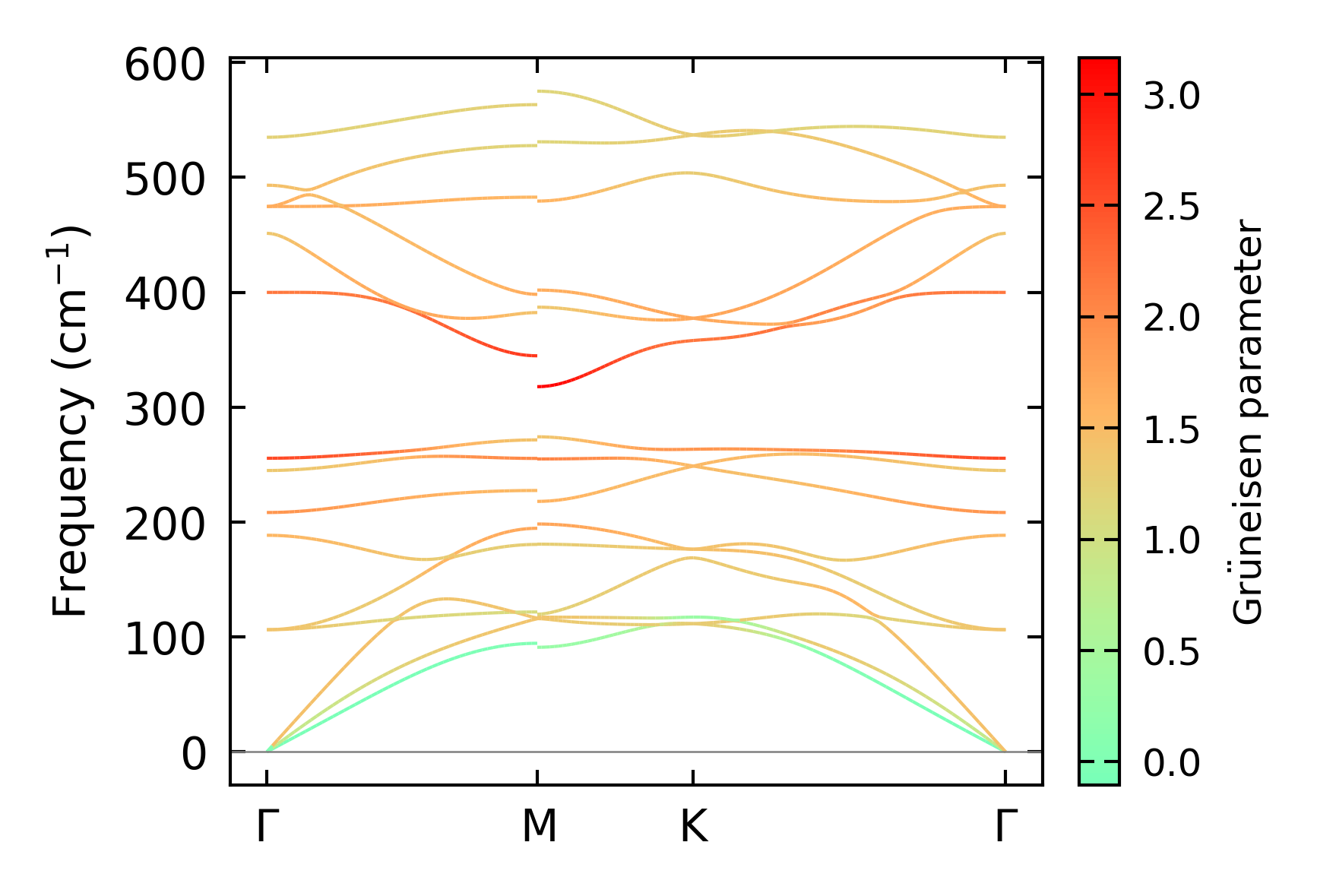

../../_images/fig_gruneisen6795.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 20x20x11, supercell: 3x3x2

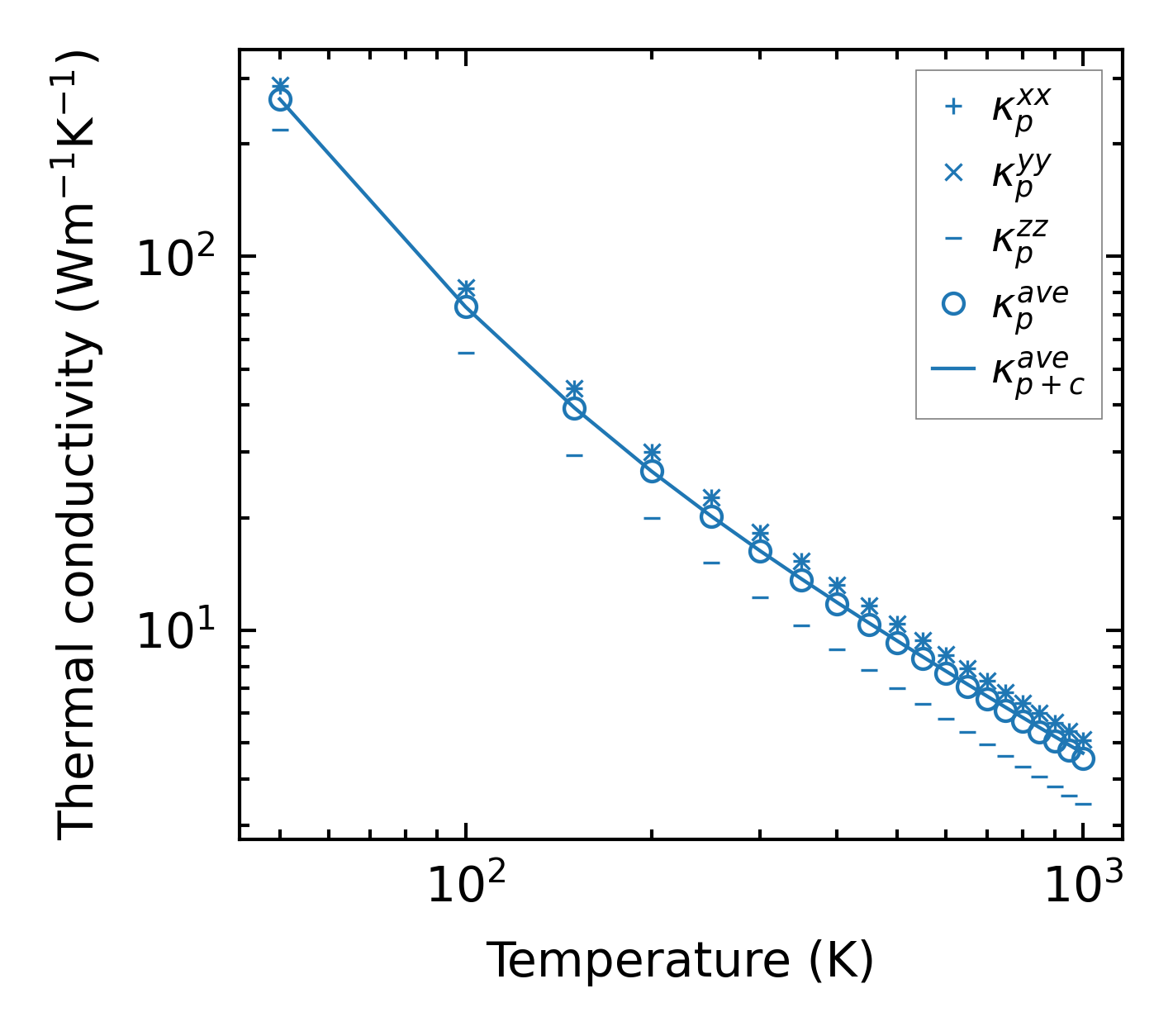

../../_images/fig_kappa12801.png — (a) Temperature-dependent lattice thermal conductivity

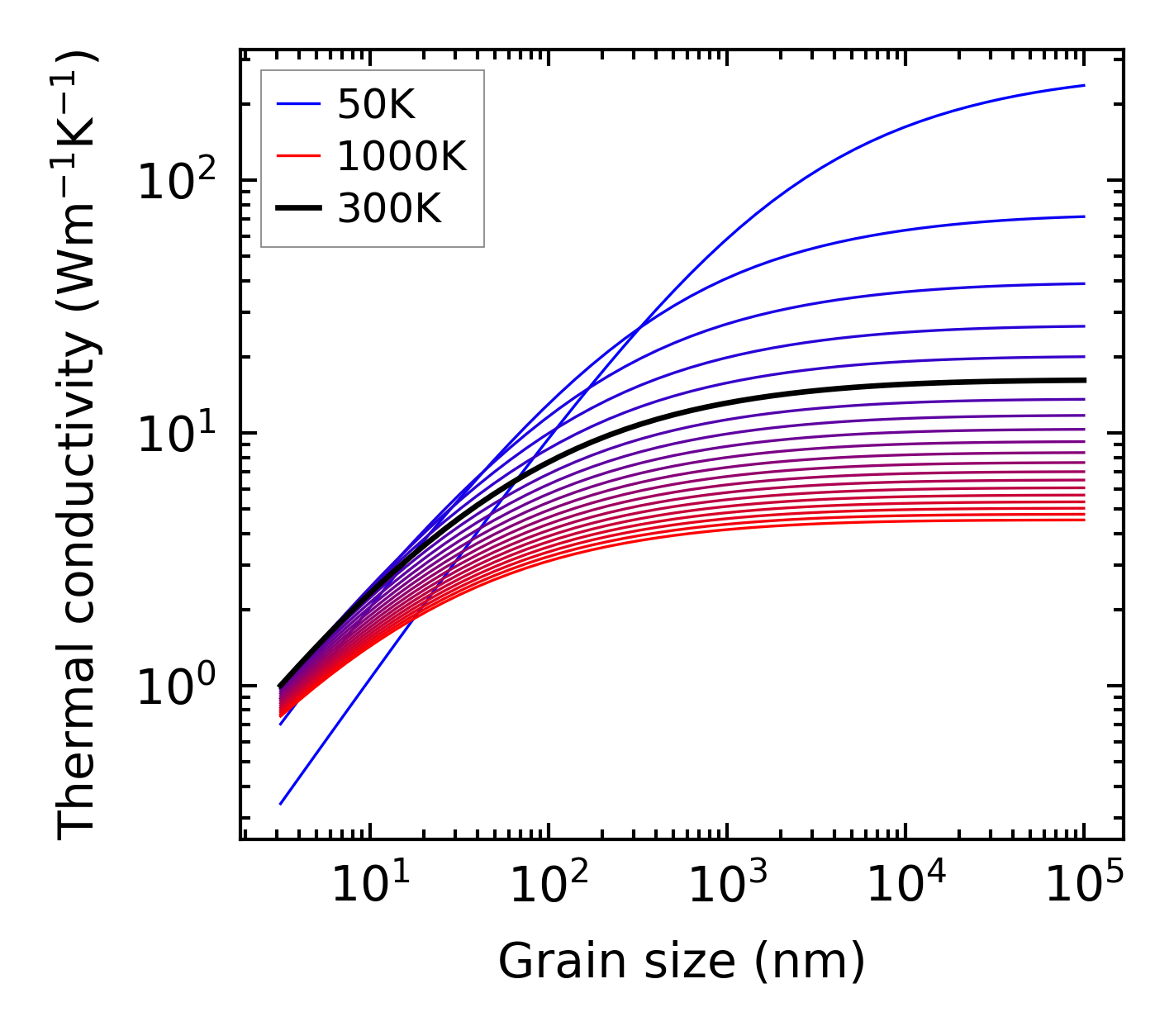

../../_images/fig_kappa_vs_grain_size6875.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

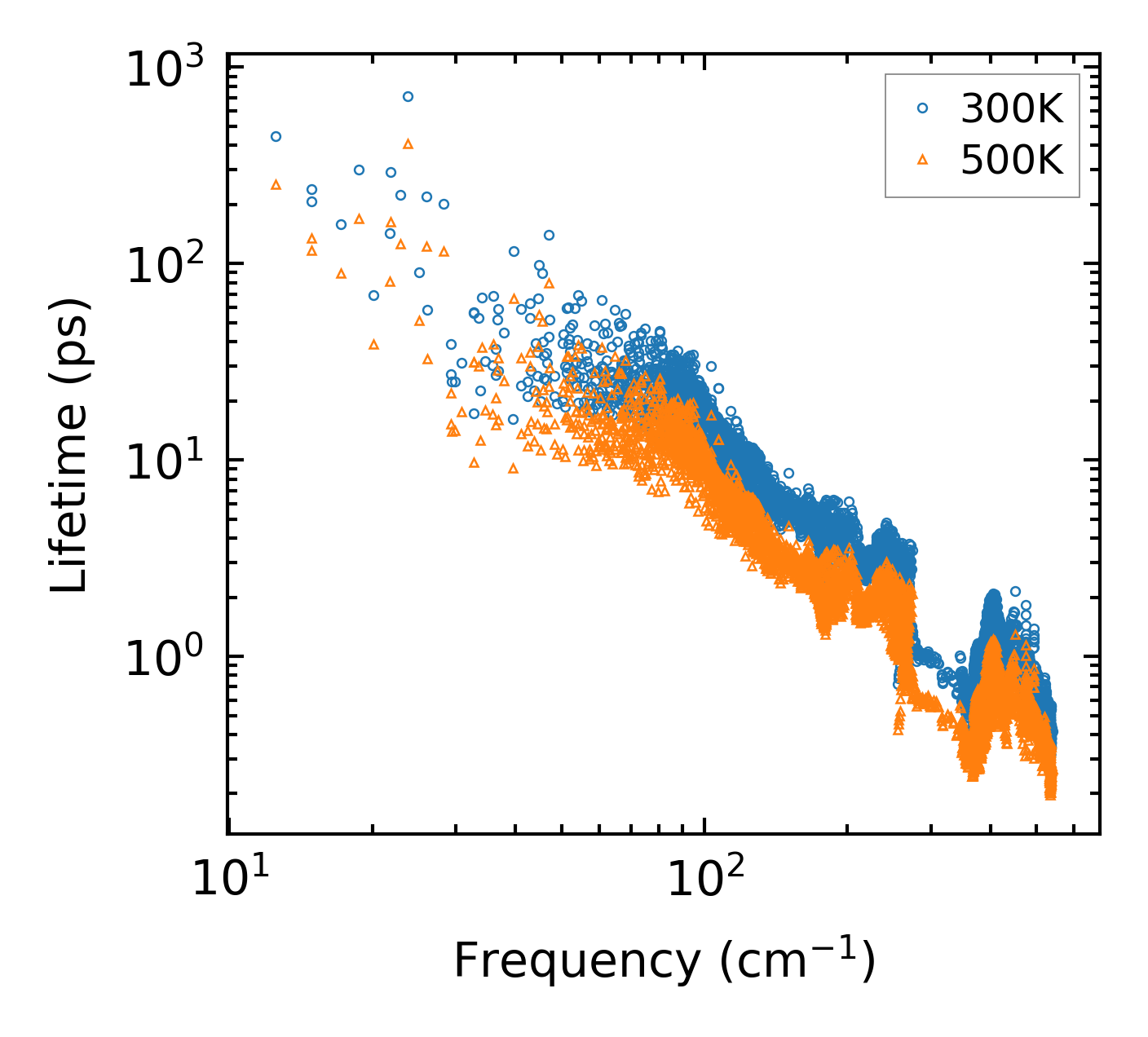

../../_images/fig_lifetime6729.png — (a) Phonon lifetime due to phonon-phonon scattering

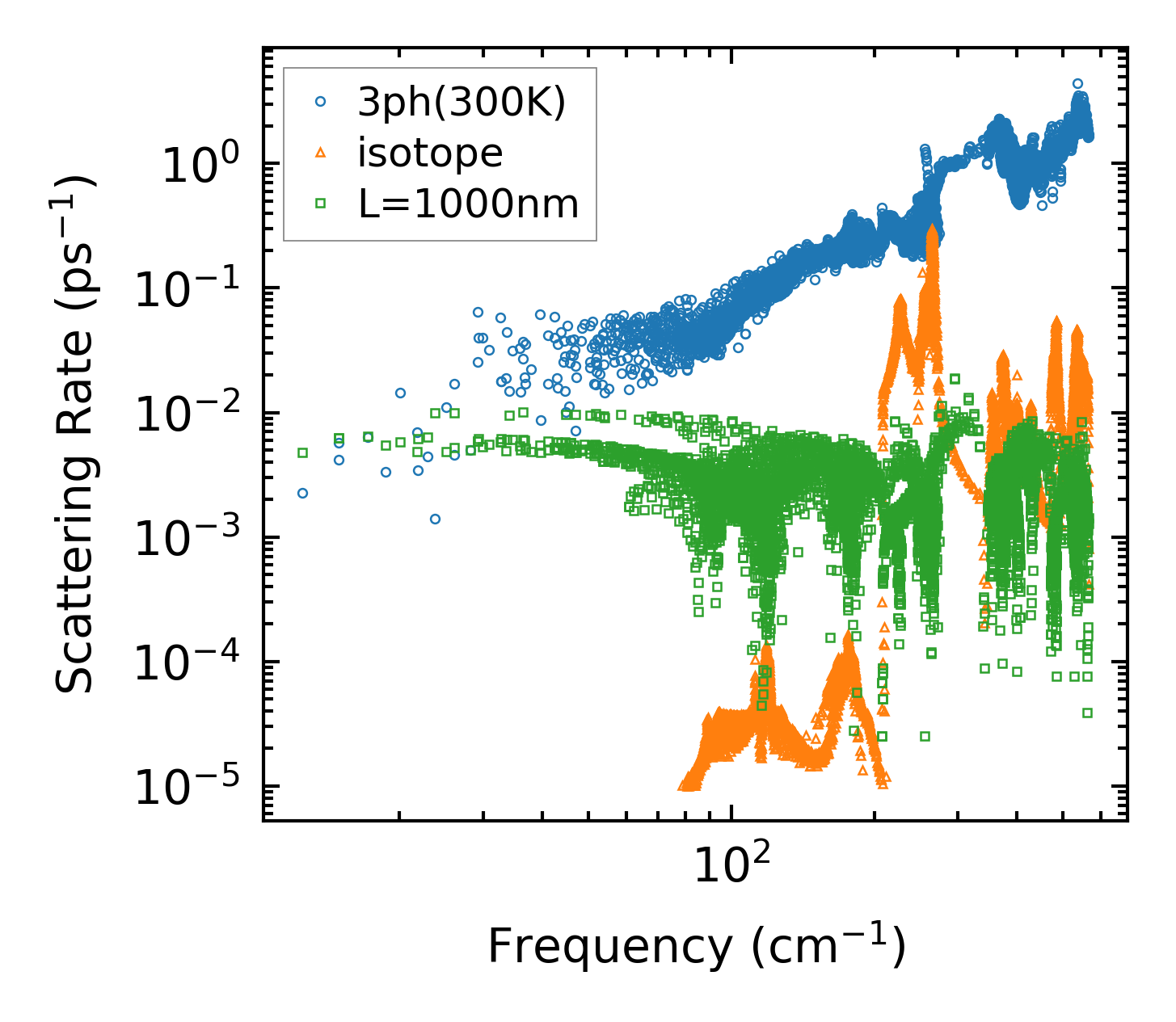

../../_images/fig_scat_rates6728.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6729.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

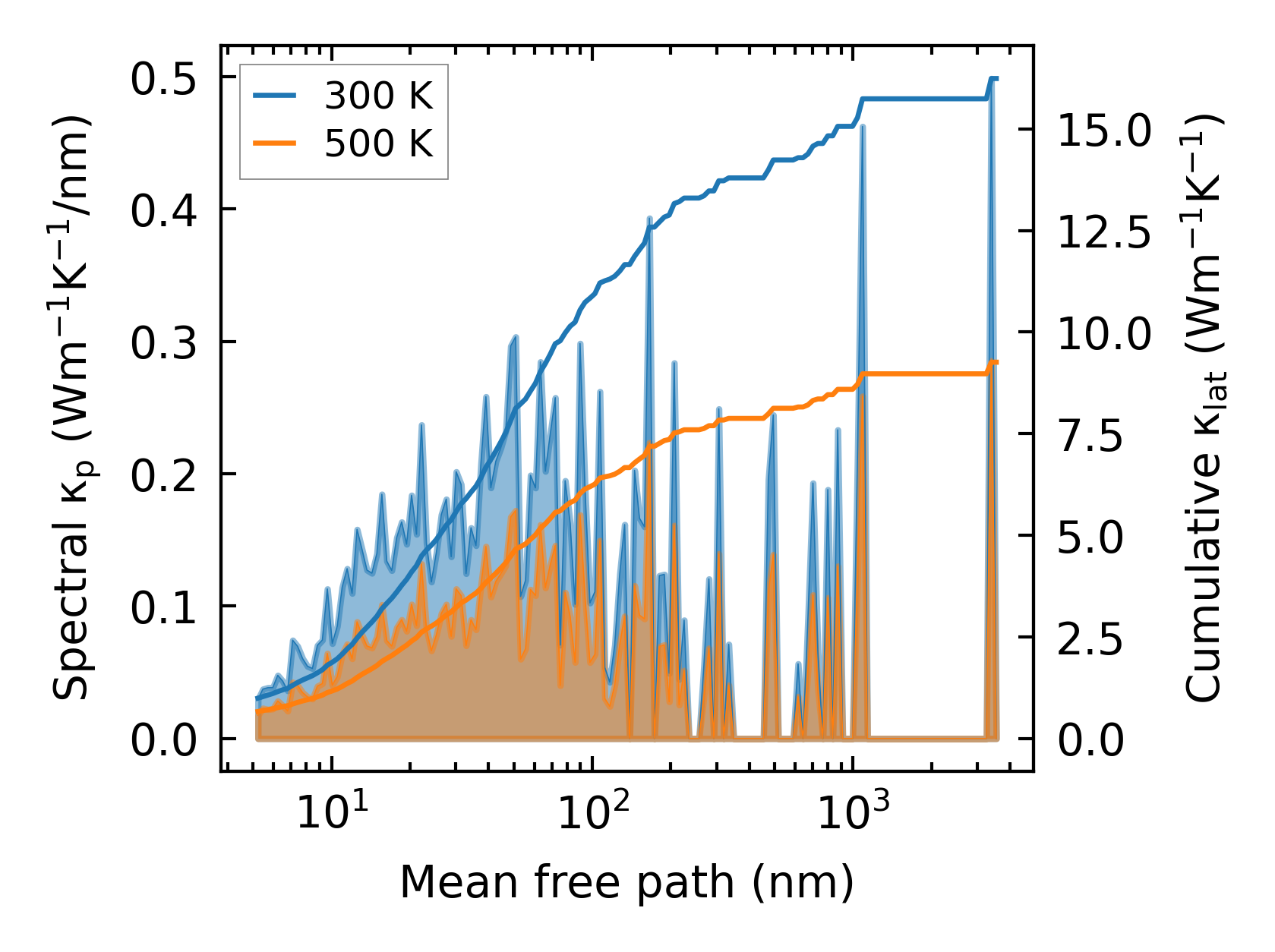

../../_images/fig_cumu_mfp6728.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

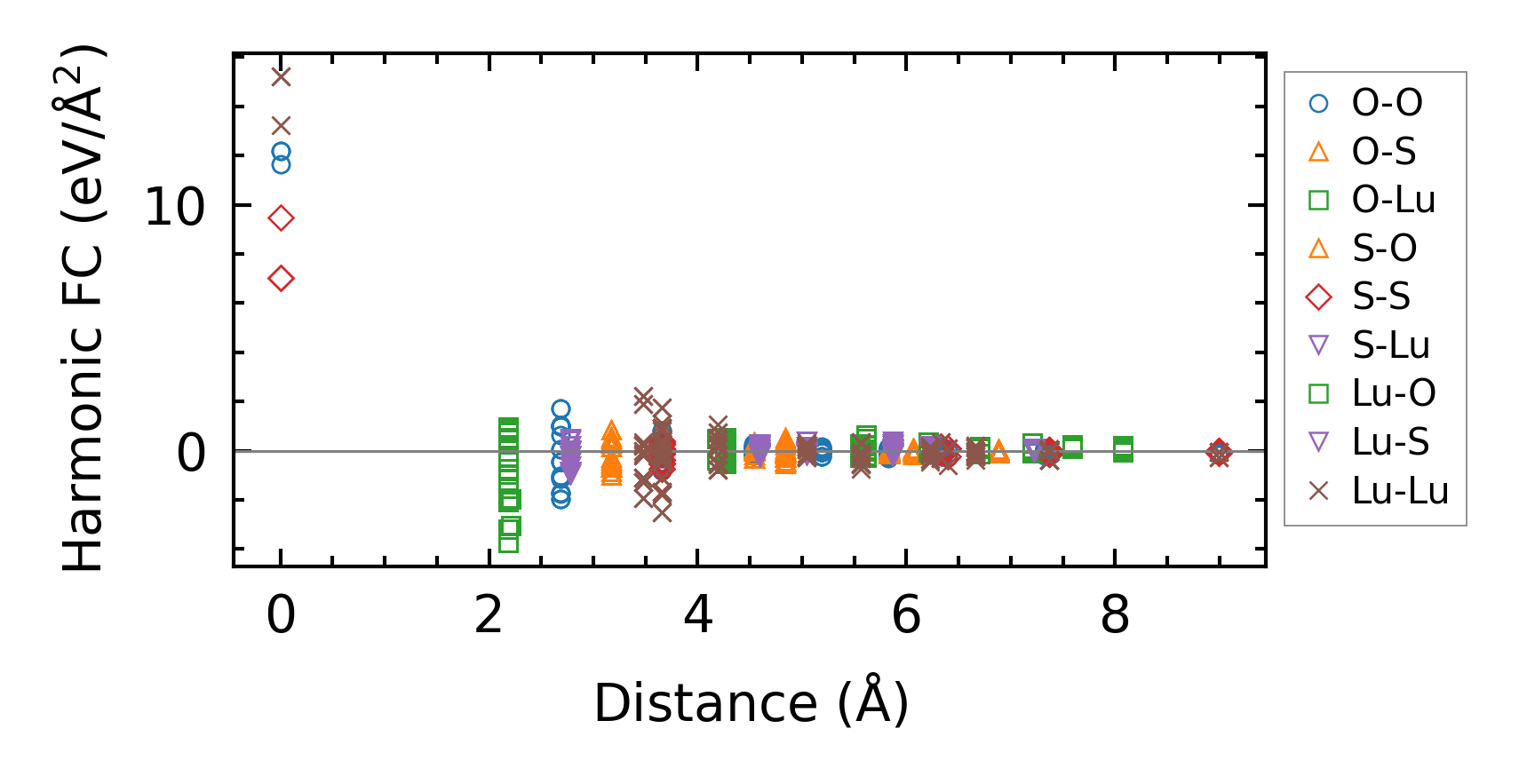

../../_images/fig_fc215286.png — (a) Force constants w.r.t atomic distance

Summary

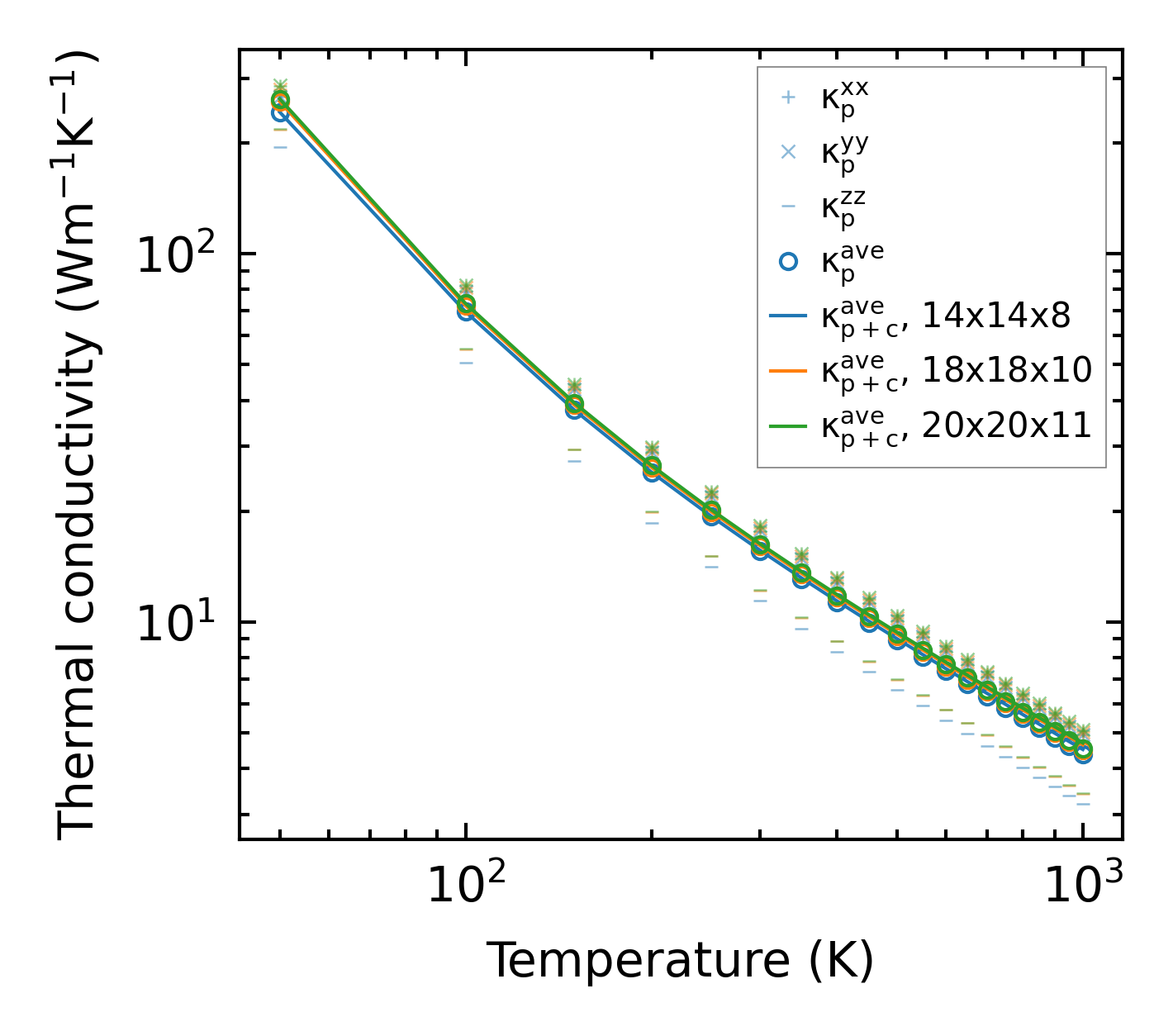

../../_images/fig_kappa12802.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times25870.png — (b) Computation time
