mp-12112/CdP2/anharm

Space group: P4_12_12 (92)
Link: Materials Project
Download: mp-12112.tar.gz

Harmonic properties

../../_images/fig_bandos_pr15559.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15558.png — (b) Thermodynamic properties

Grüneisen parameters

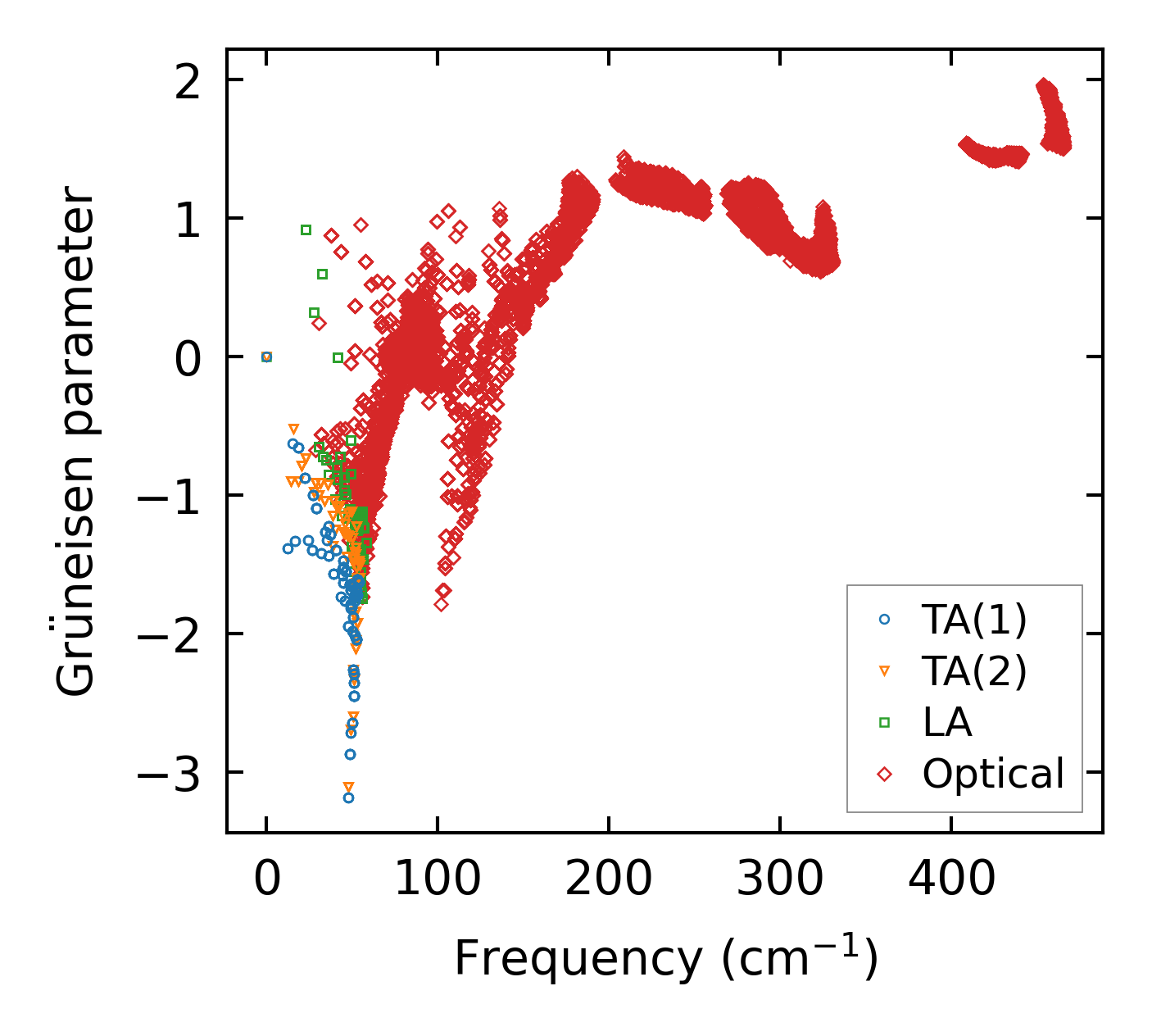

../../_images/fig_gru_all6729.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6729.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x3, supercell: 2x2x1

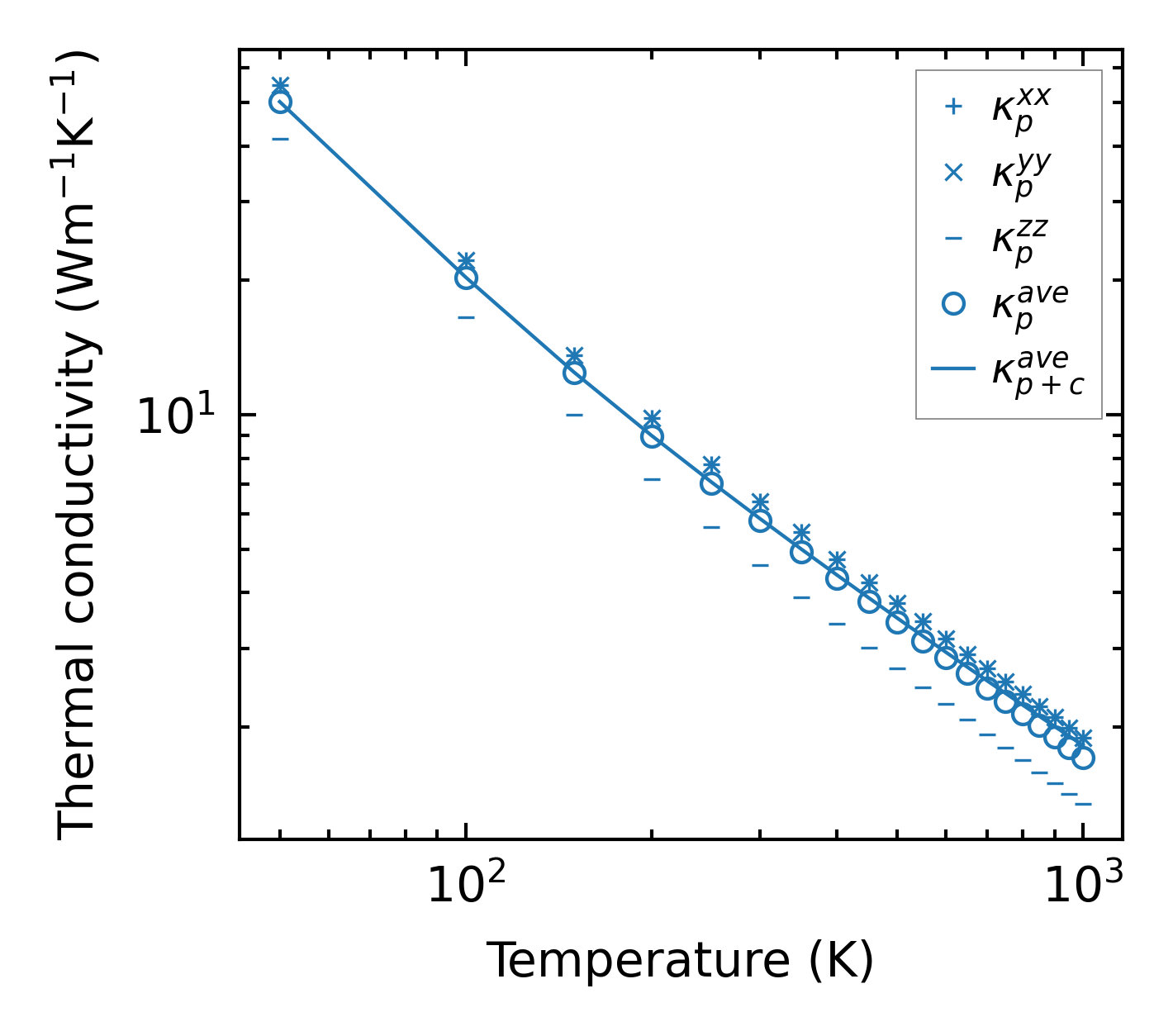

../../_images/fig_kappa12671.png — (a) Temperature-dependent lattice thermal conductivity

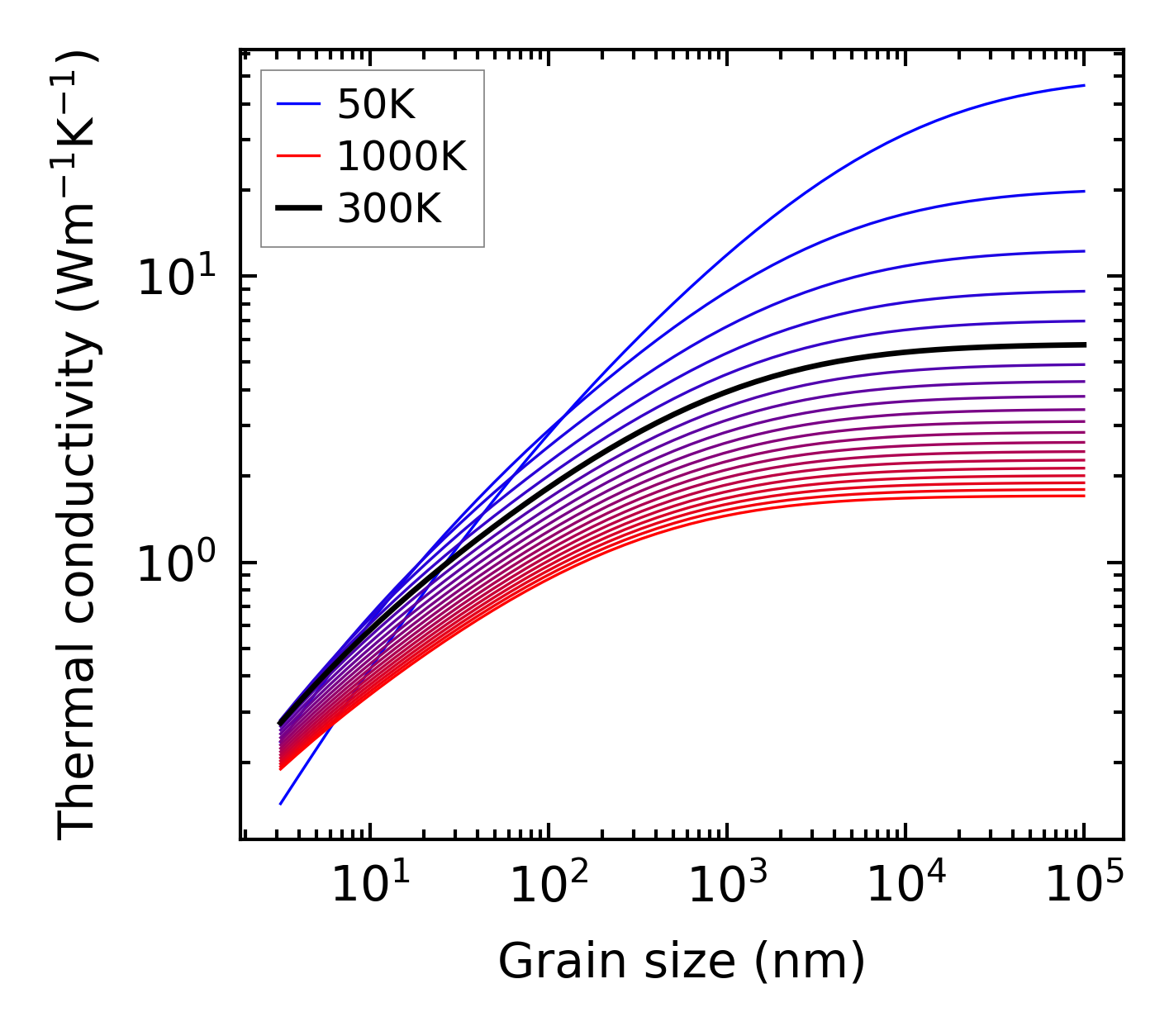

../../_images/fig_kappa_vs_grain_size6808.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

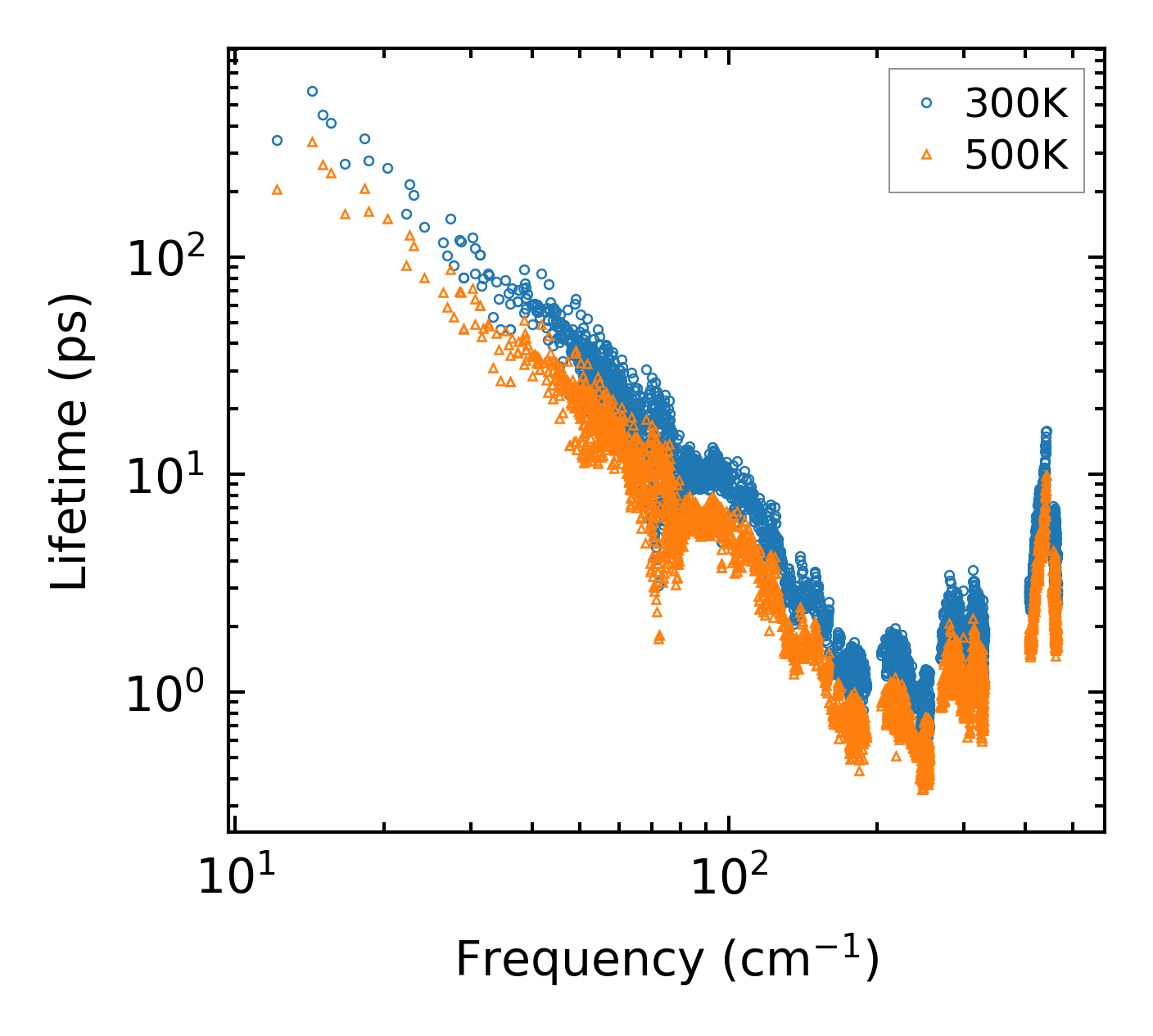

../../_images/fig_lifetime6663.png — (a) Phonon lifetime due to phonon-phonon scattering

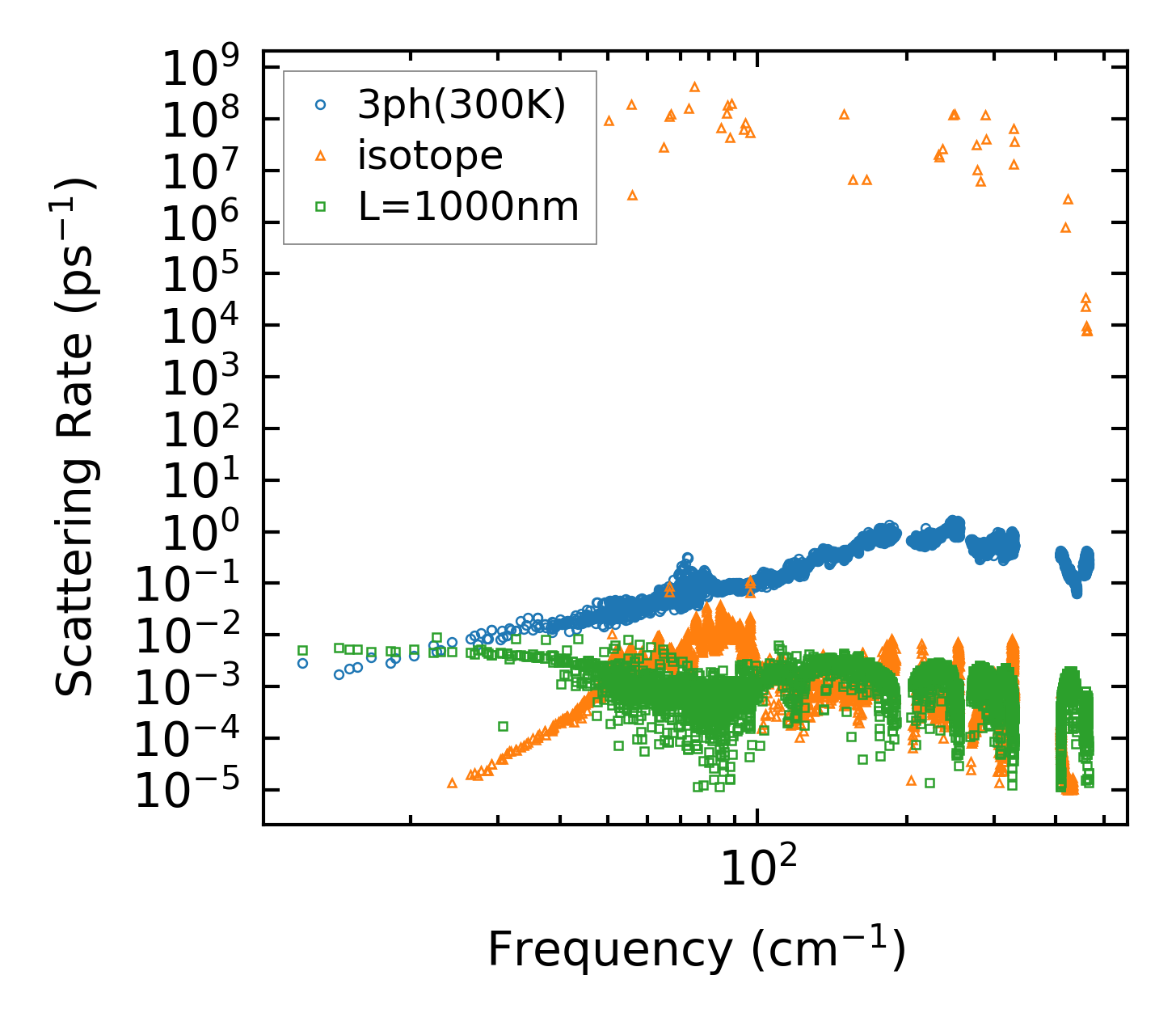

../../_images/fig_scat_rates6662.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

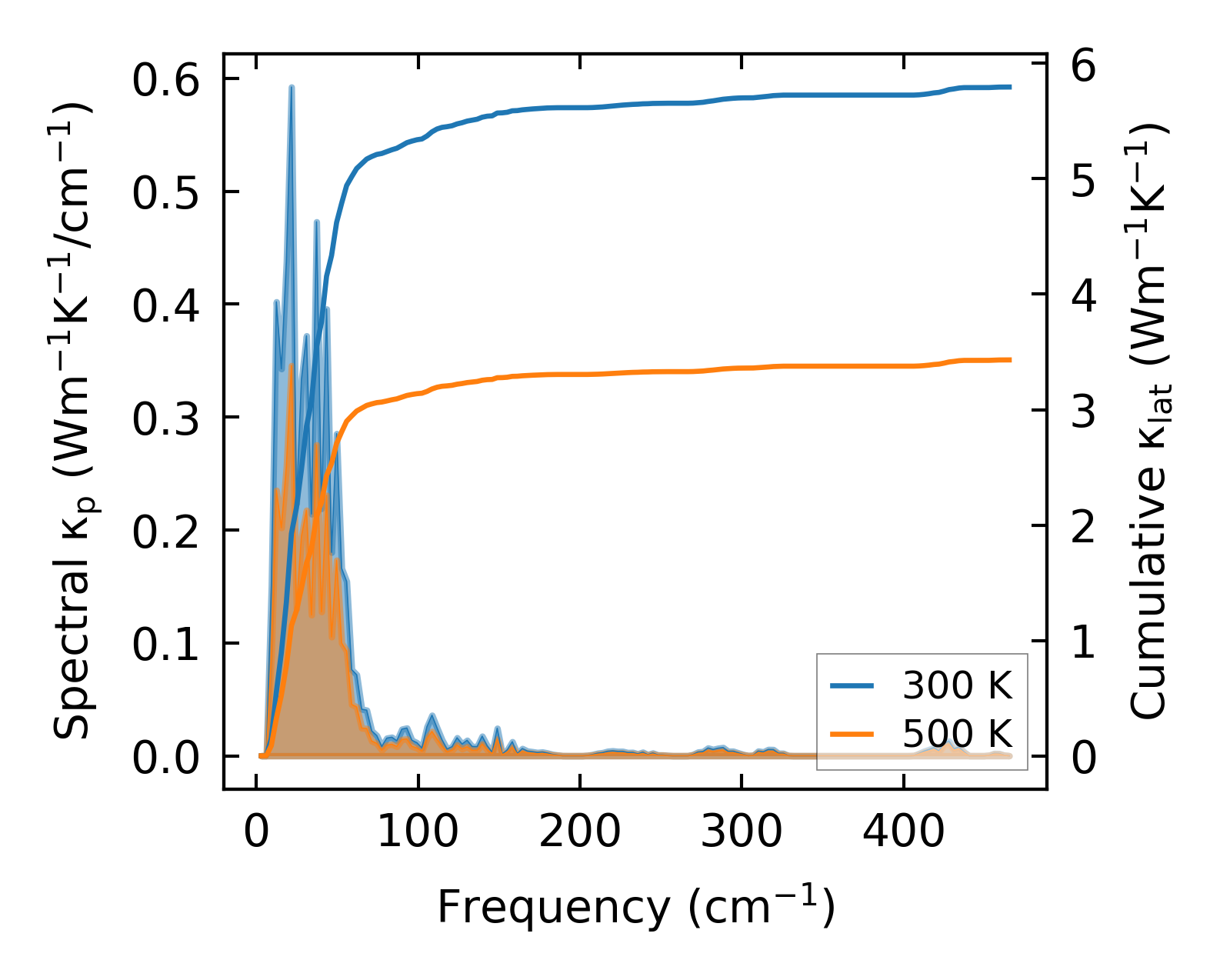

../../_images/fig_cumu_frequency6663.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

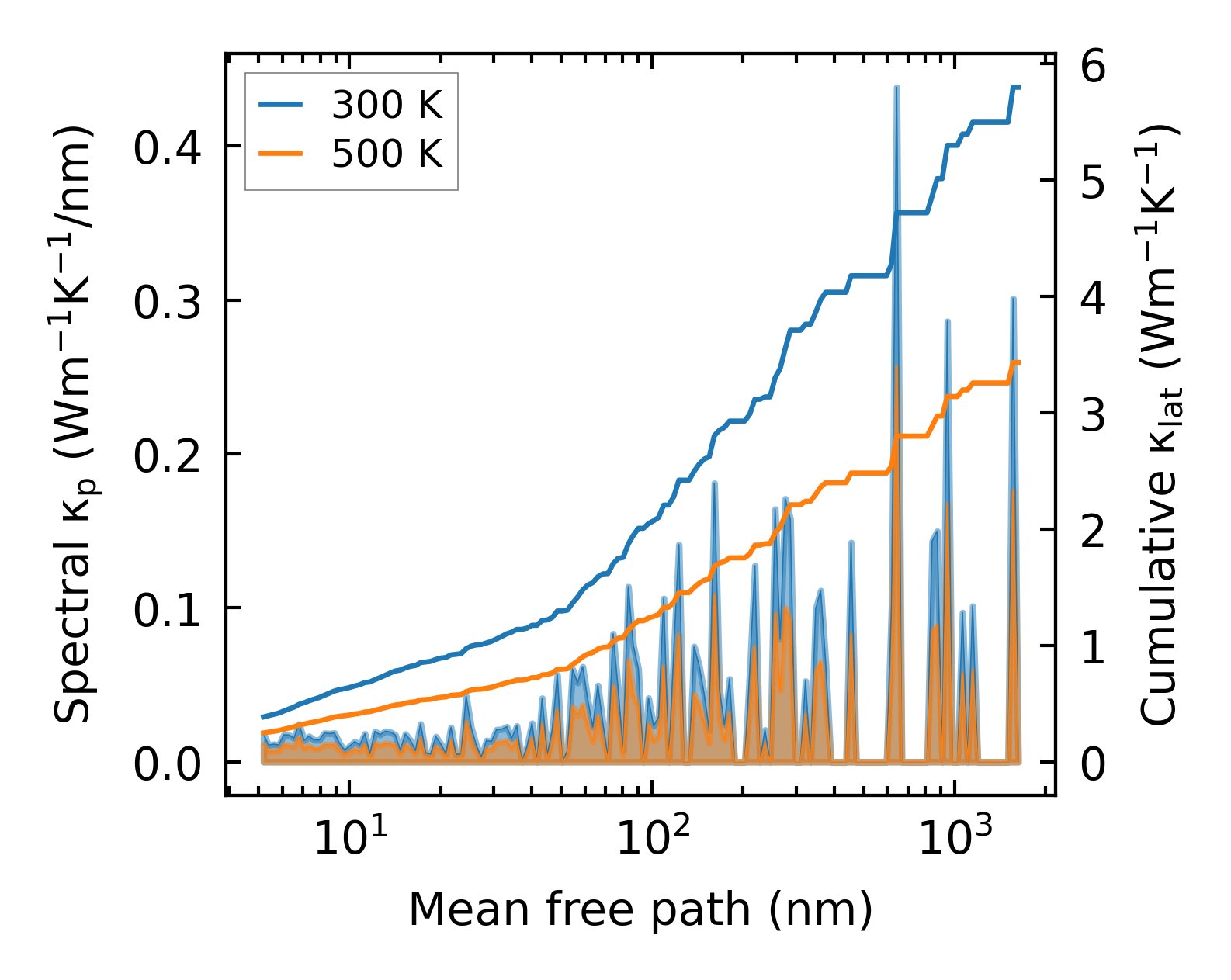

../../_images/fig_cumu_mfp6662.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

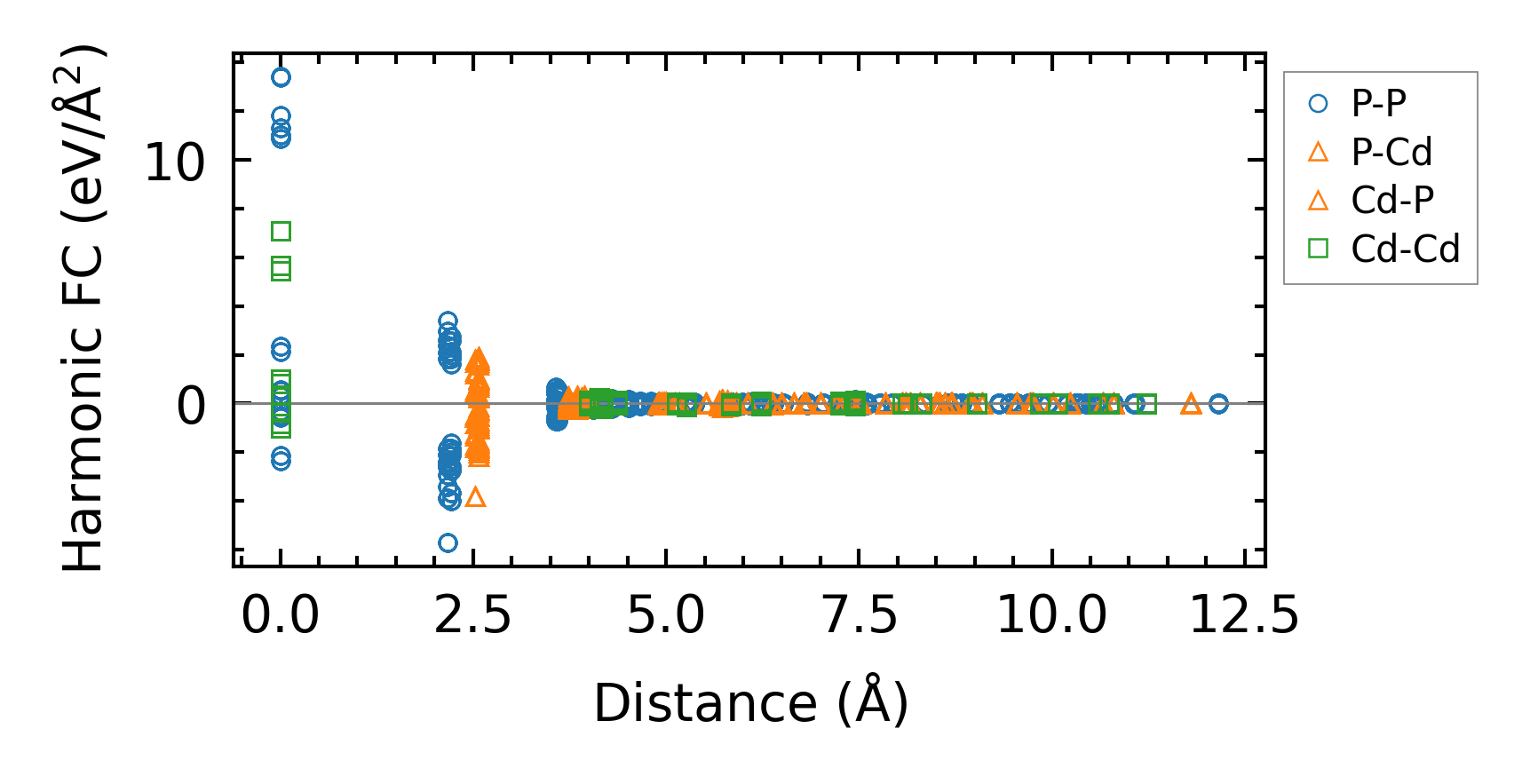

../../_images/fig_fc215154.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa12672.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times25715.png — (b) Computation time
