mp-12492/CsLuCdTe3/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-12492.tar.gz

Equation of state

../../_images/fig_bm7640.png — (a) Equation of state

Harmonic properties

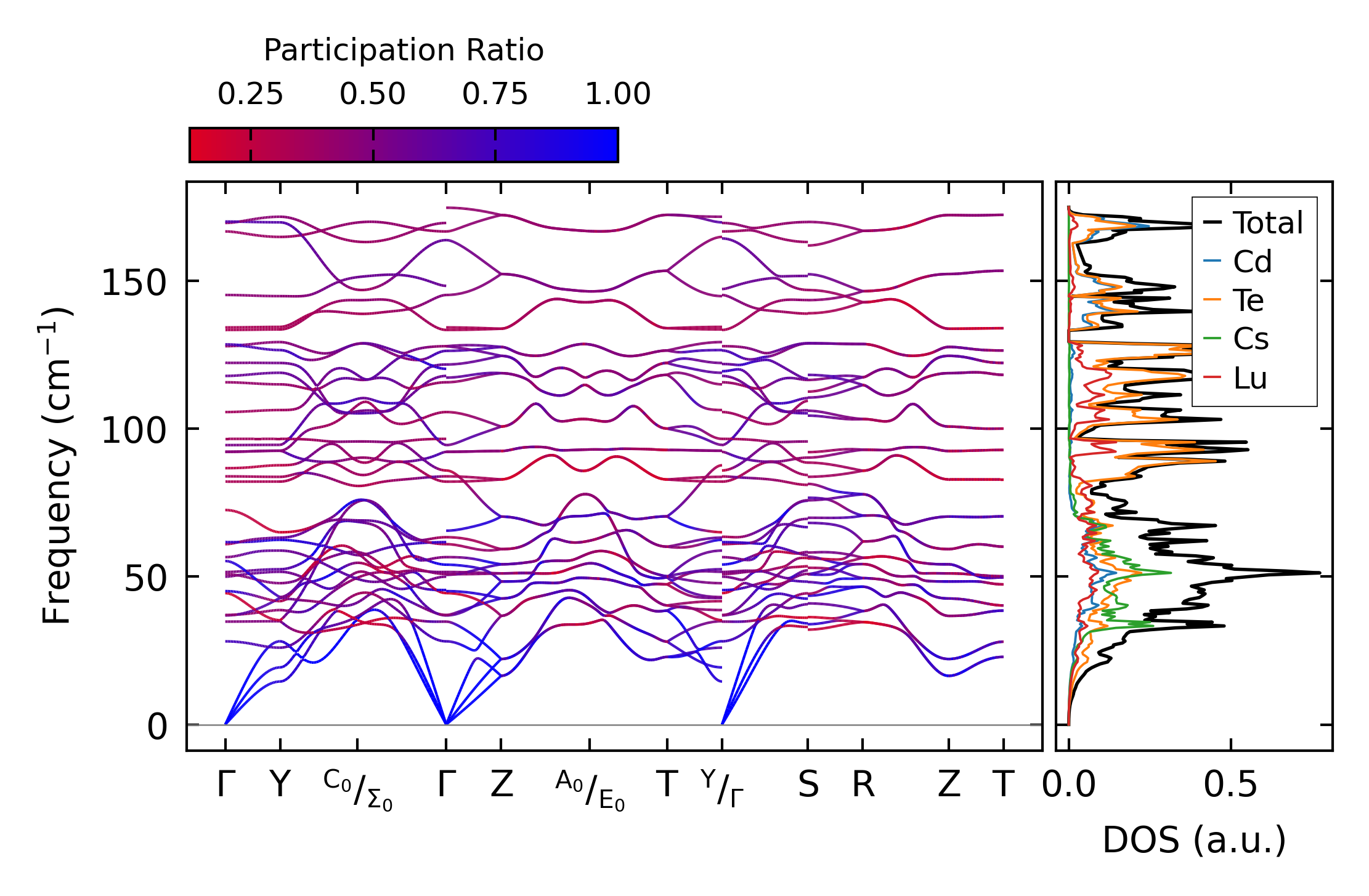

../../_images/fig_bandos_pr15649.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15648.png — (b) Thermodynamic properties

Grüneisen parameters

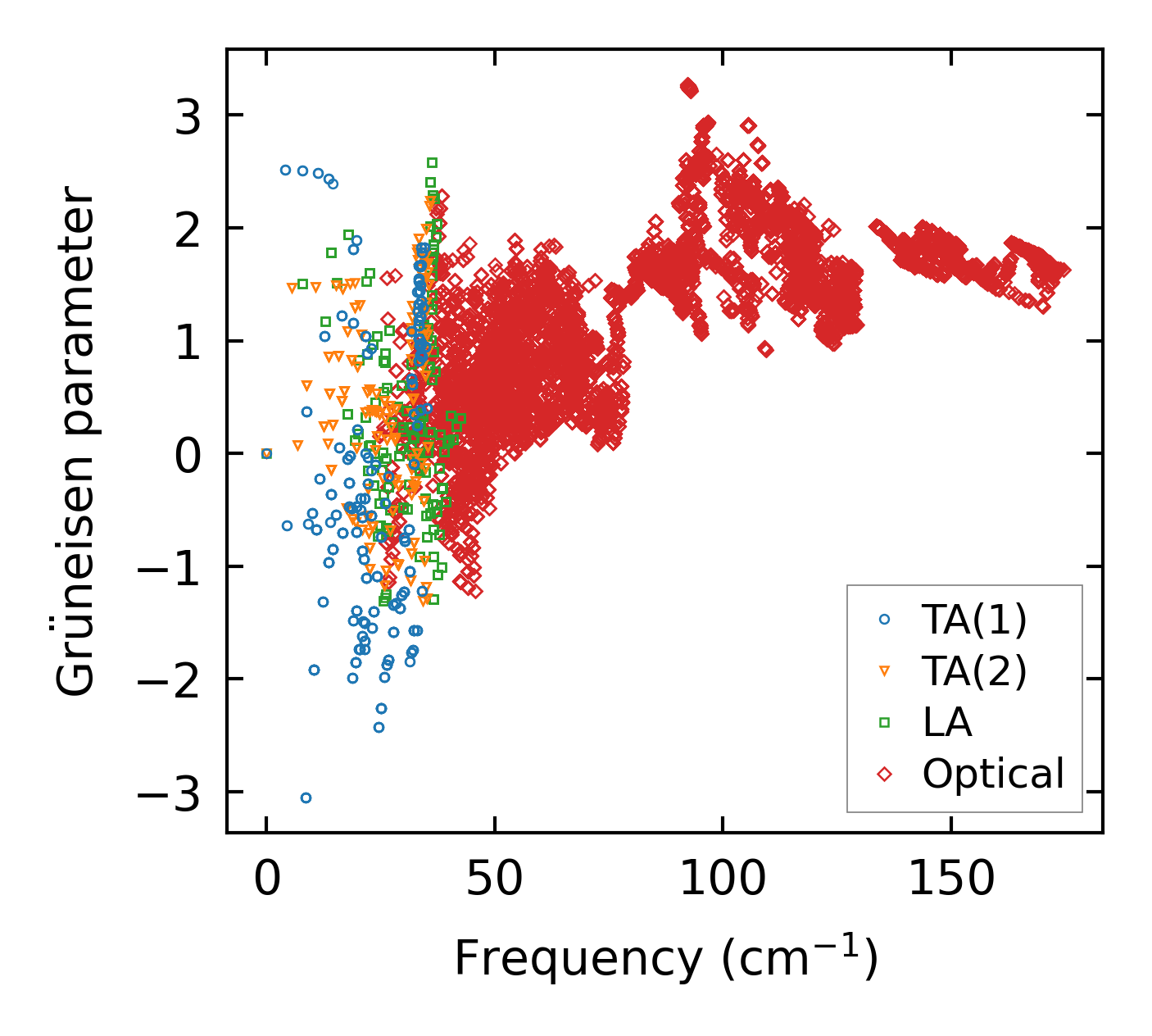

../../_images/fig_gru_all6768.png — (a) Grüneisen parameters

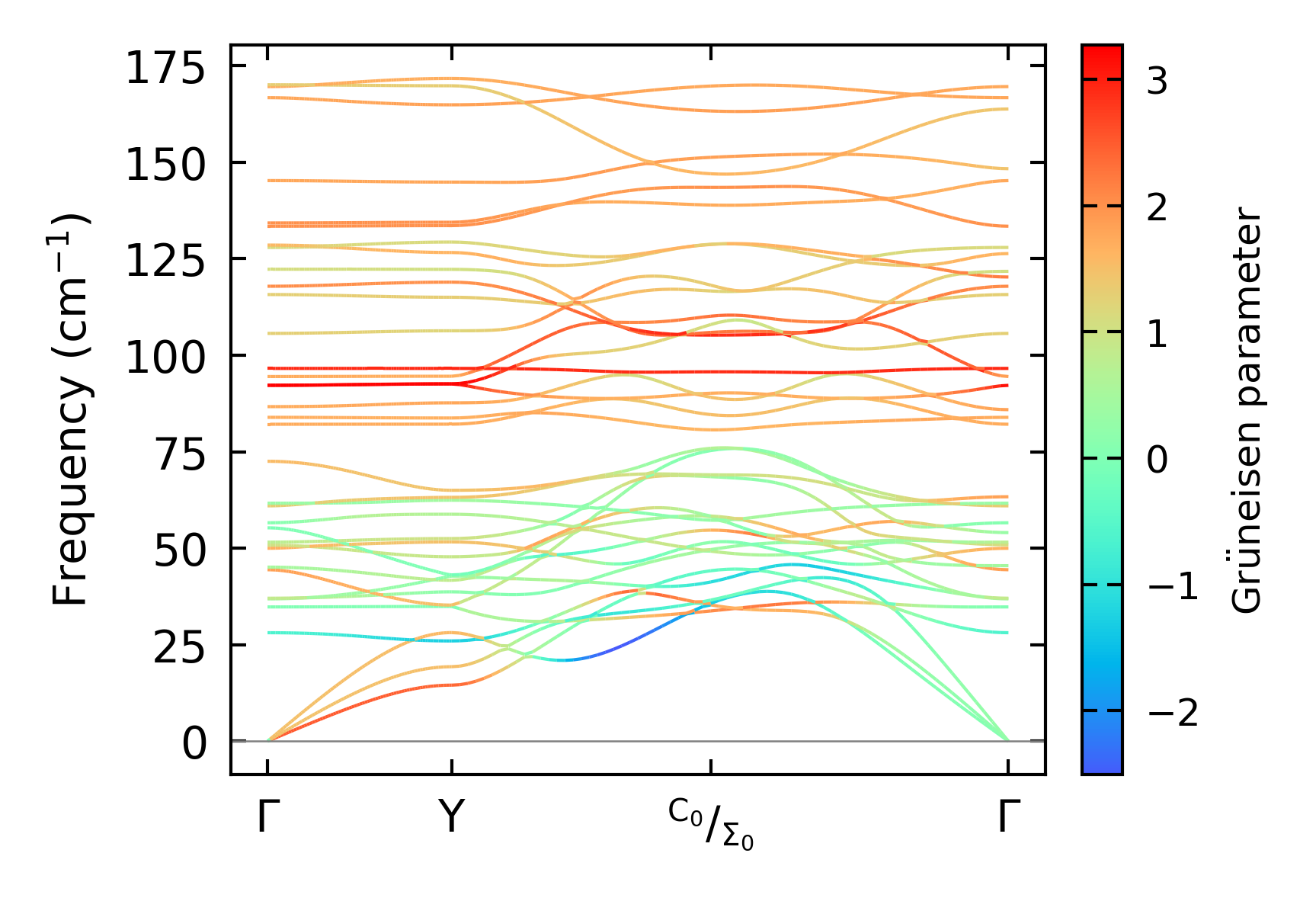

../../_images/fig_gruneisen6768.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x7, supercell: 3x1x2

../../_images/fig_kappa12747.png — (a) Temperature-dependent lattice thermal conductivity

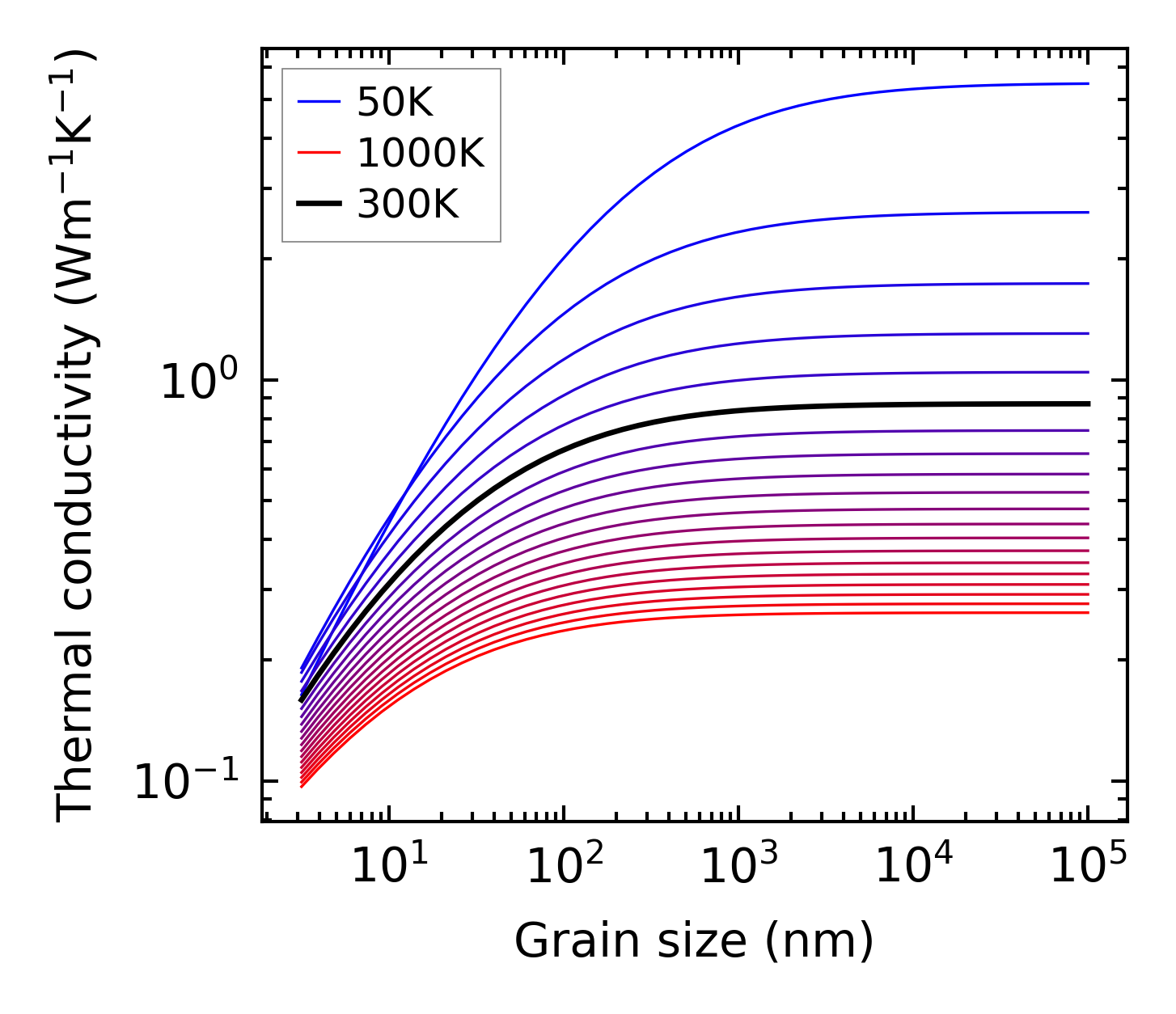

../../_images/fig_kappa_vs_grain_size6848.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

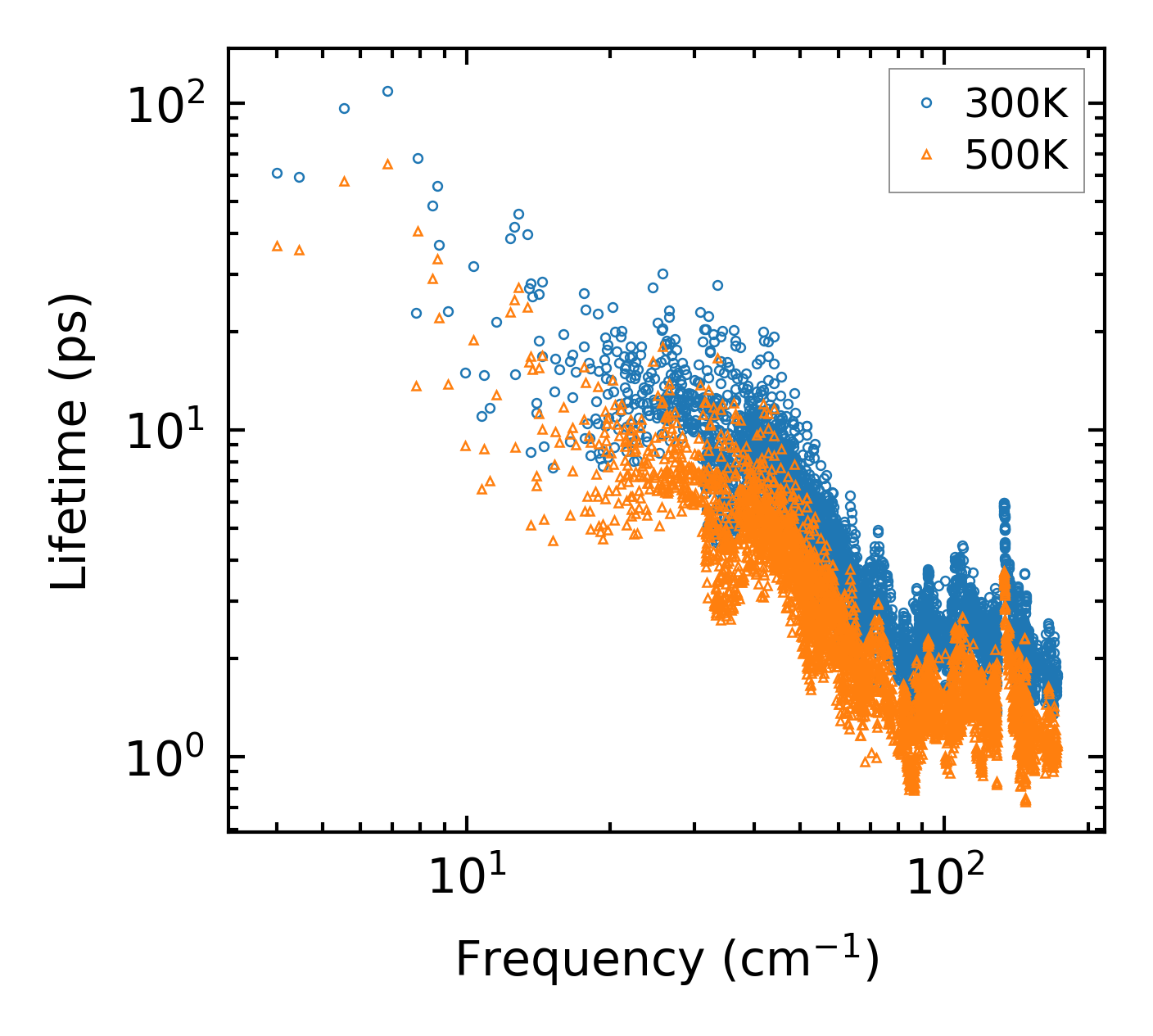

../../_images/fig_lifetime6702.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6701.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

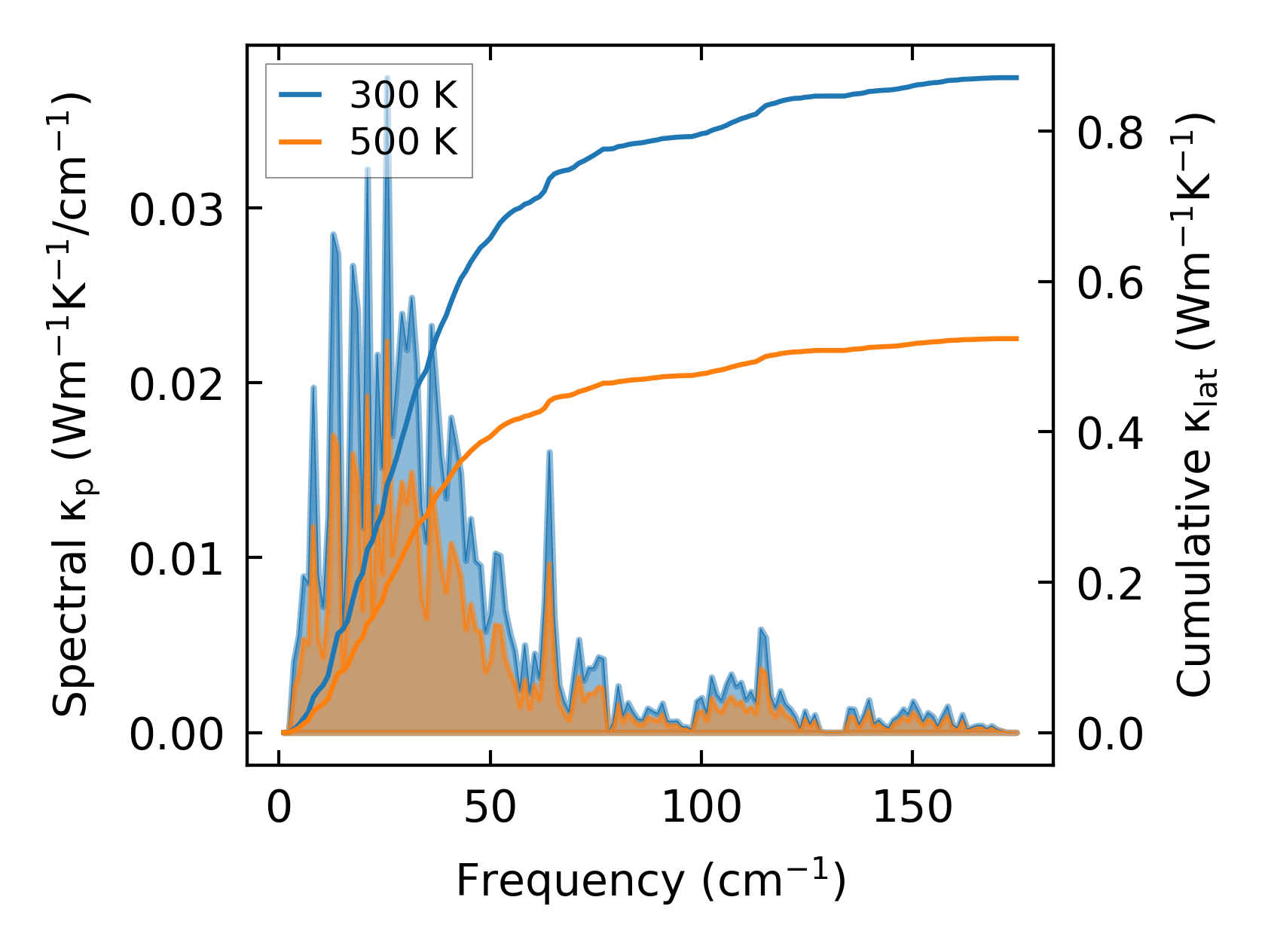

../../_images/fig_cumu_frequency6702.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6701.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

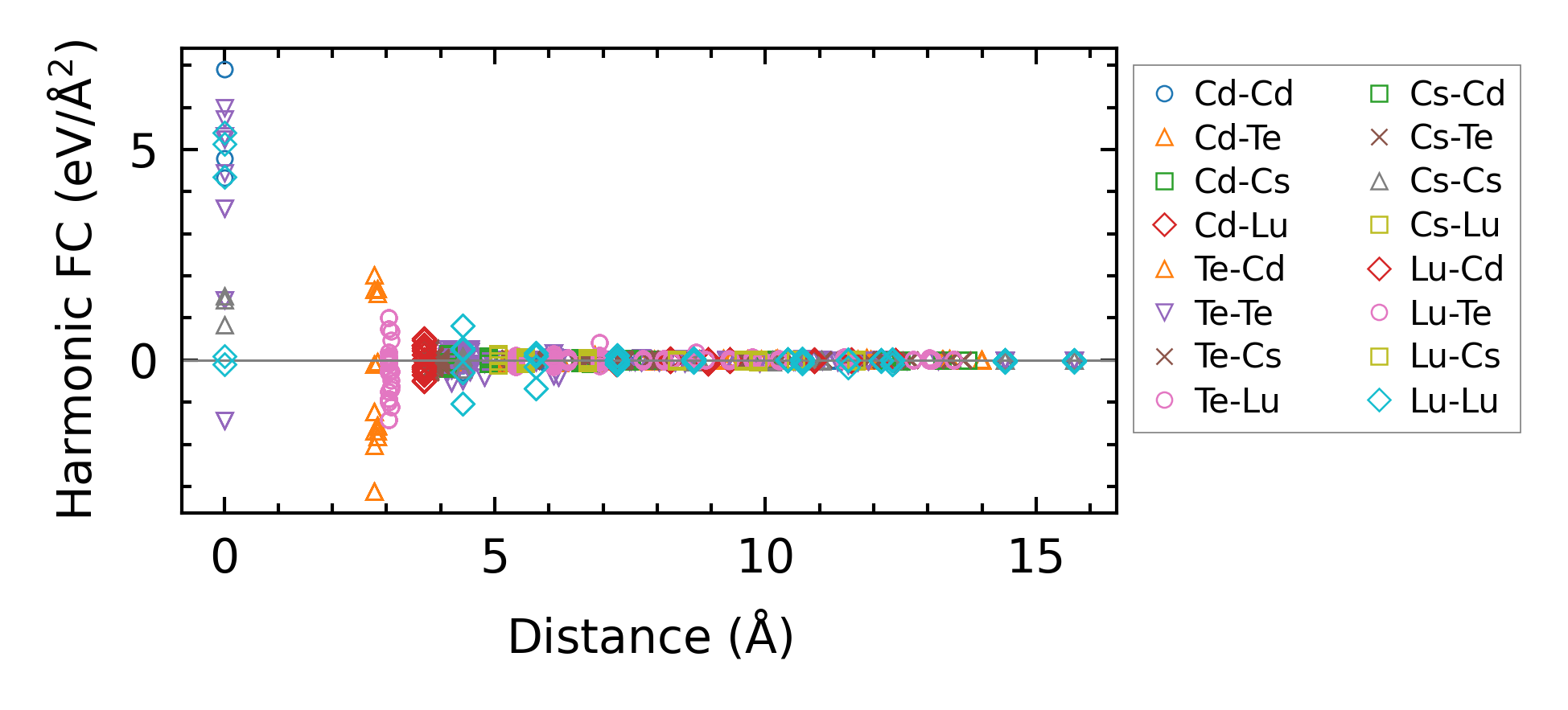

../../_images/fig_fc215244.png — (a) Force constants w.r.t atomic distance

Summary

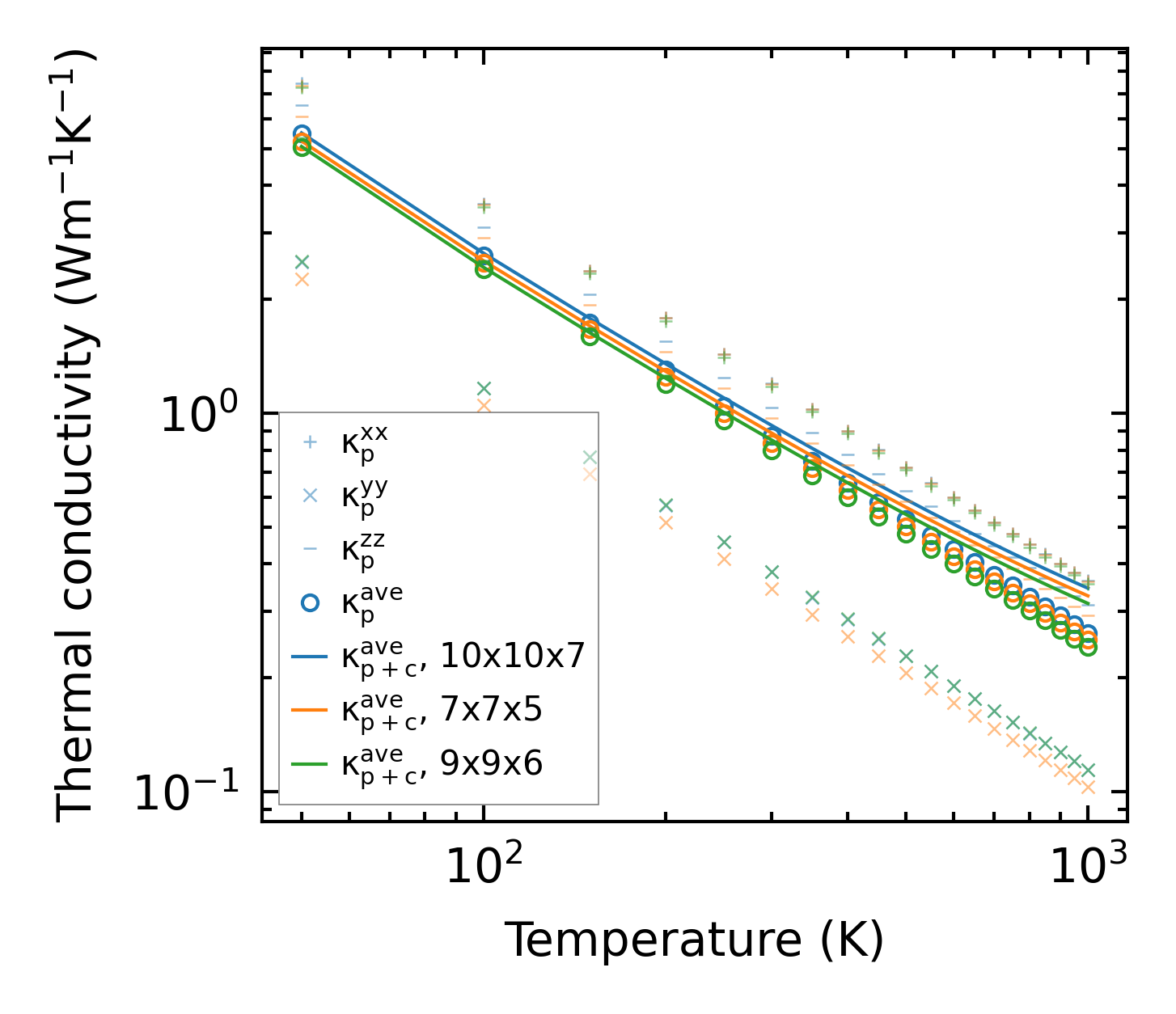

../../_images/fig_kappa12748.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times25823.png — (b) Computation time
