mp-556978/Na2S/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-556978.tar.gz

Harmonic properties

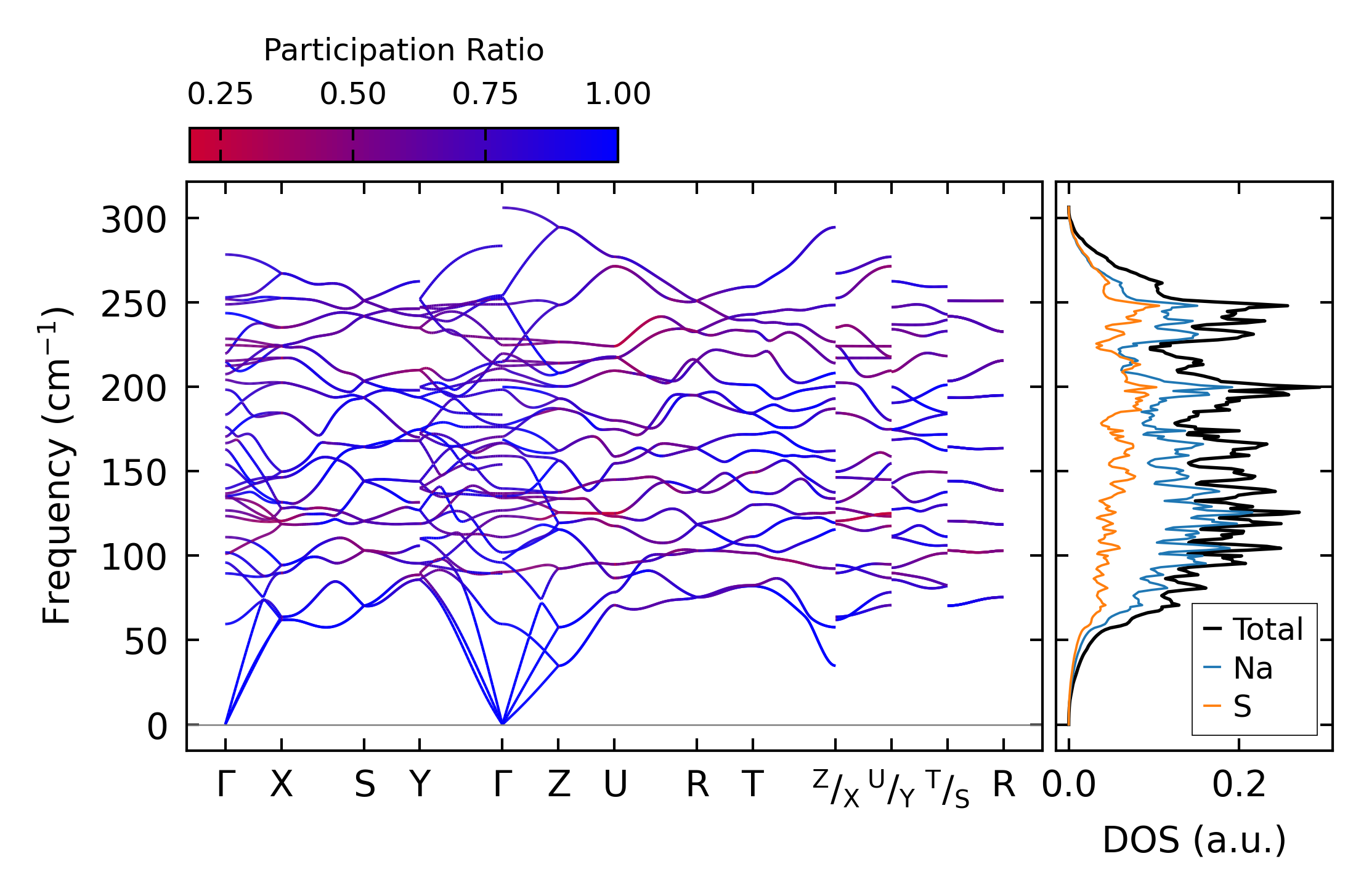

../../_images/fig_bandos_pr8338.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo8338.png — (b) Thermodynamic properties

Grüneisen parameters

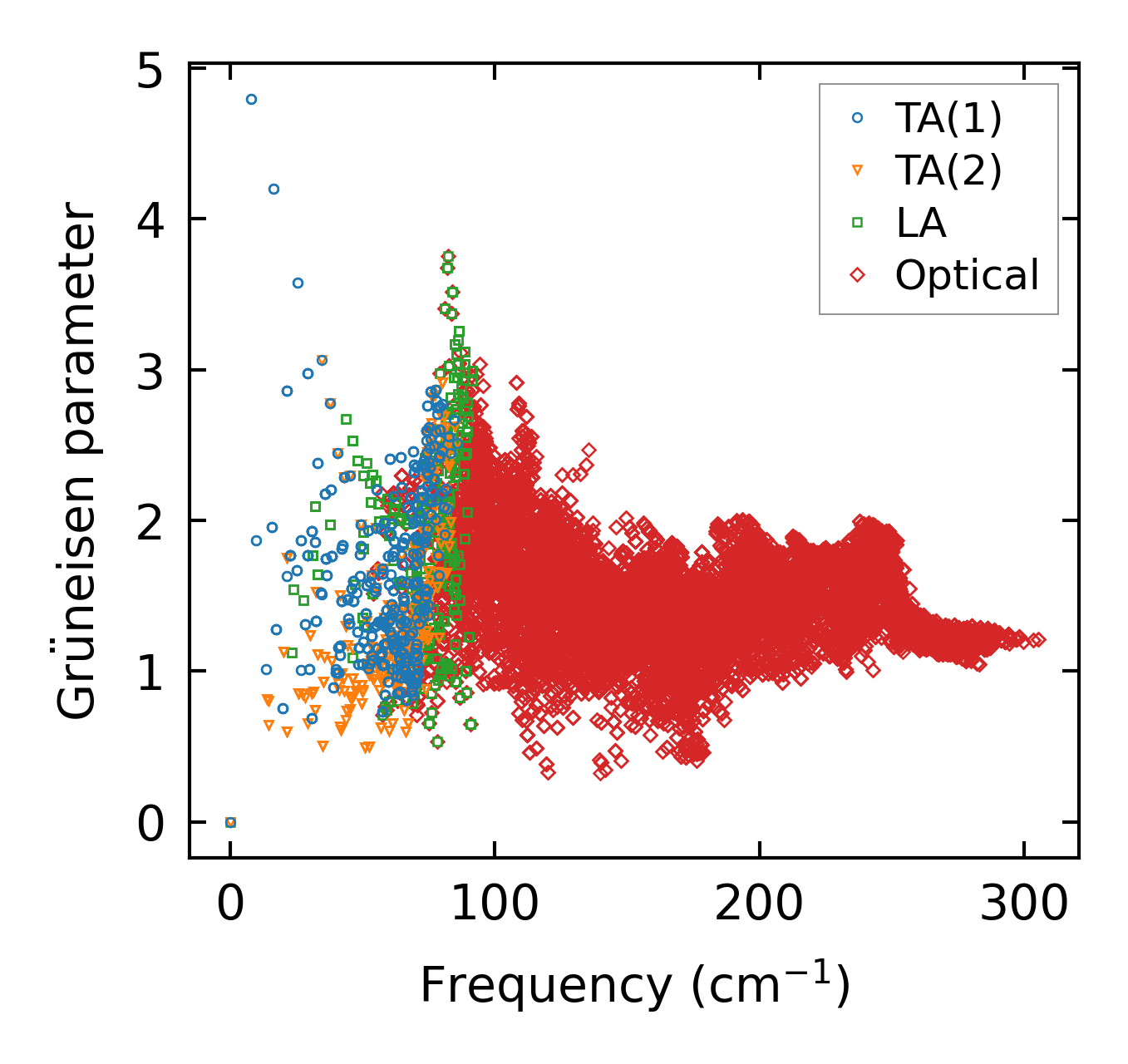

../../_images/fig_gru_all3400.png — (a) Grüneisen parameters

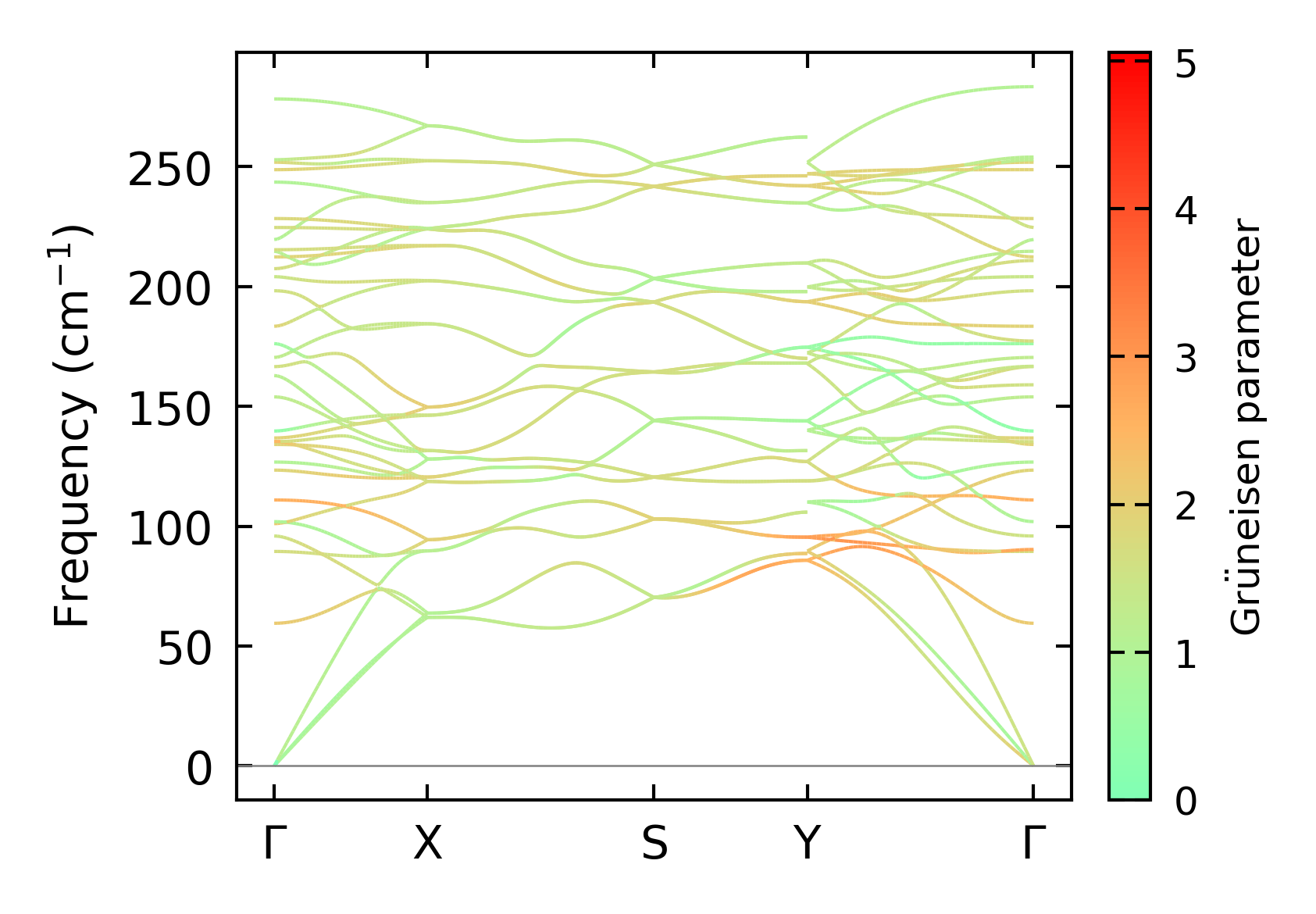

../../_images/fig_gruneisen3400.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x16x8, supercell: 2x3x2

../../_images/fig_kappa6431.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3444.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

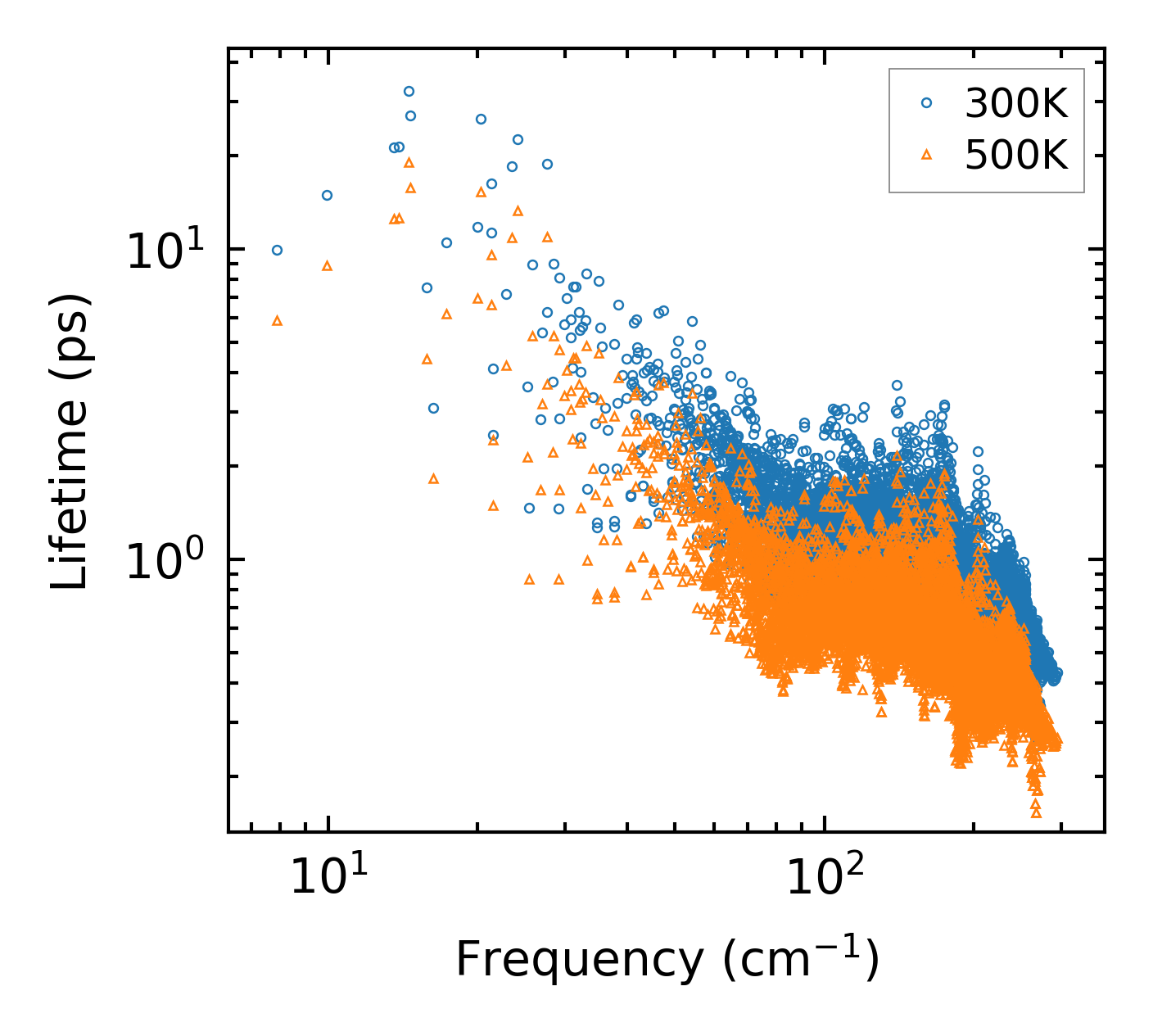

../../_images/fig_lifetime3369.png — (a) Phonon lifetime due to phonon-phonon scattering

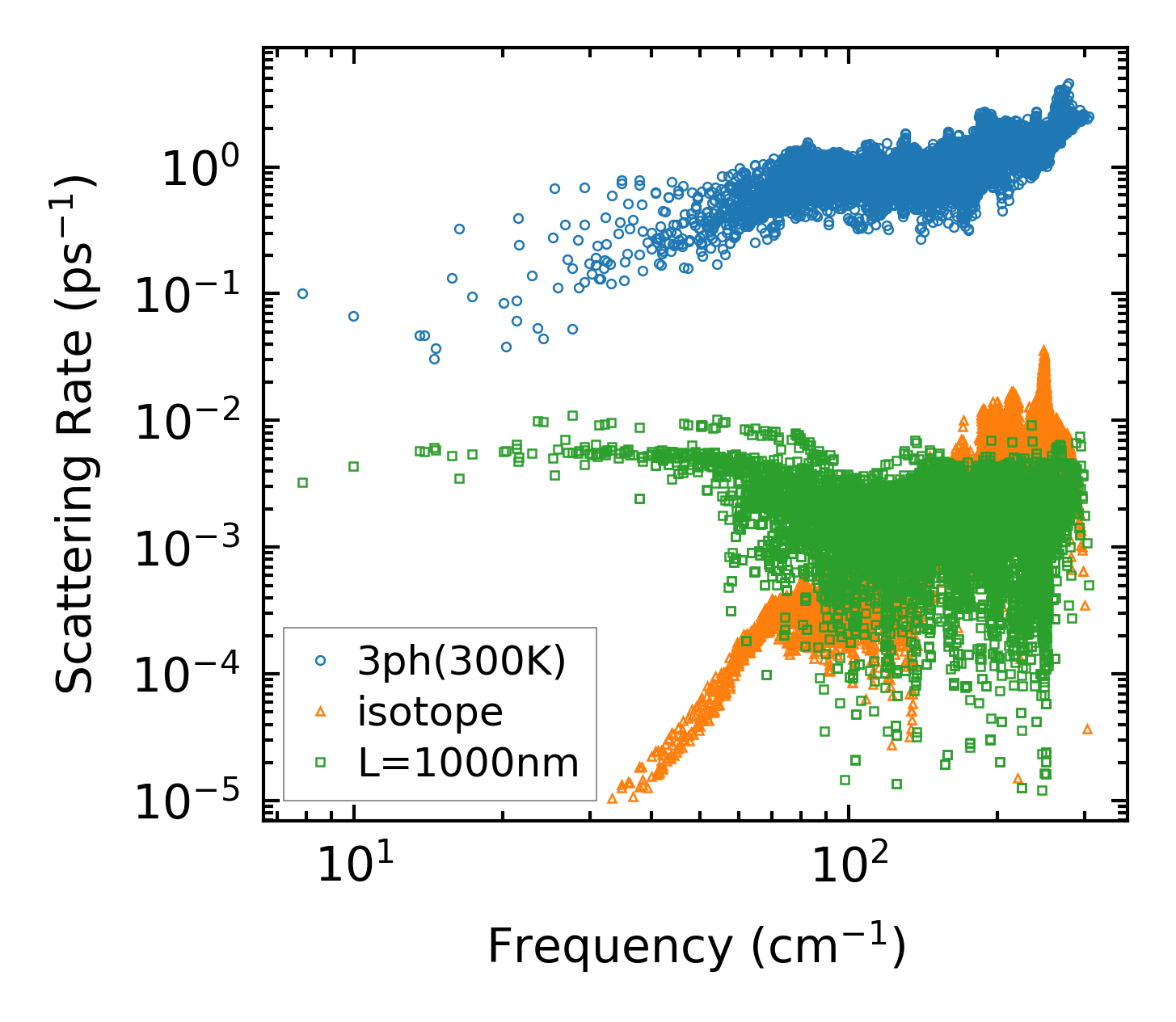

../../_images/fig_scat_rates3368.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

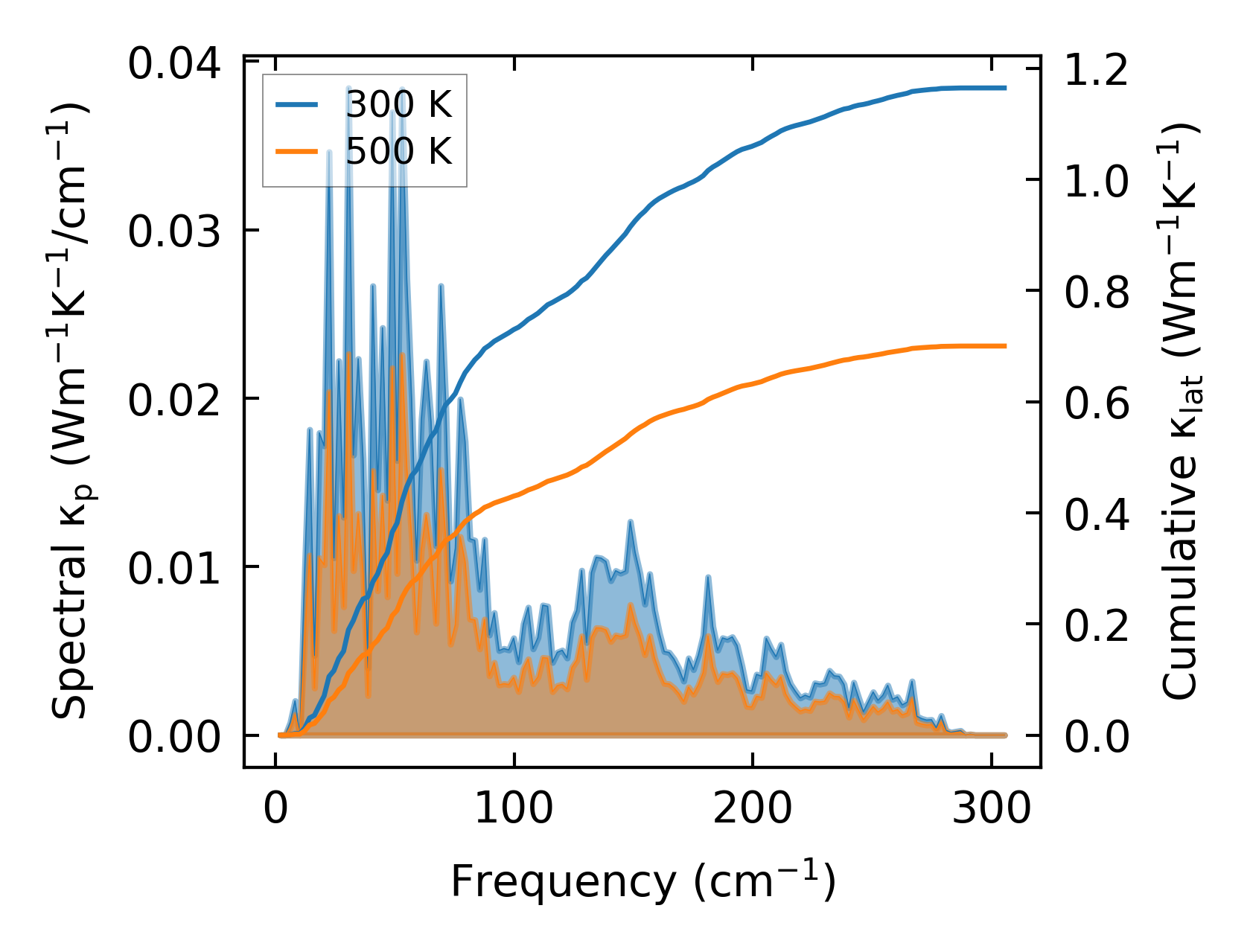

../../_images/fig_cumu_frequency3369.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

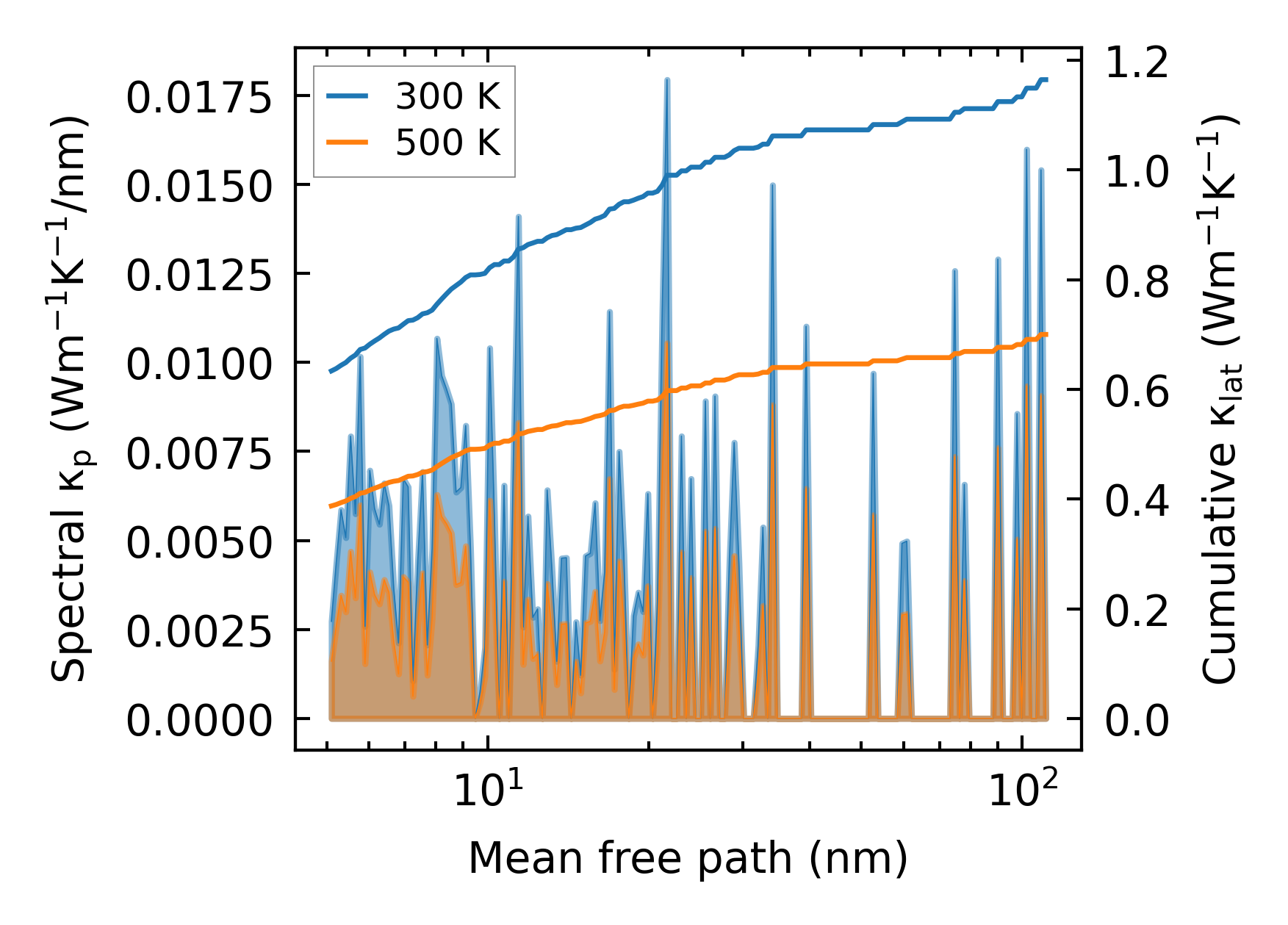

../../_images/fig_cumu_mfp3368.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc28100.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa6432.png — (a) Temperature-dependent lattice thermal conductivity

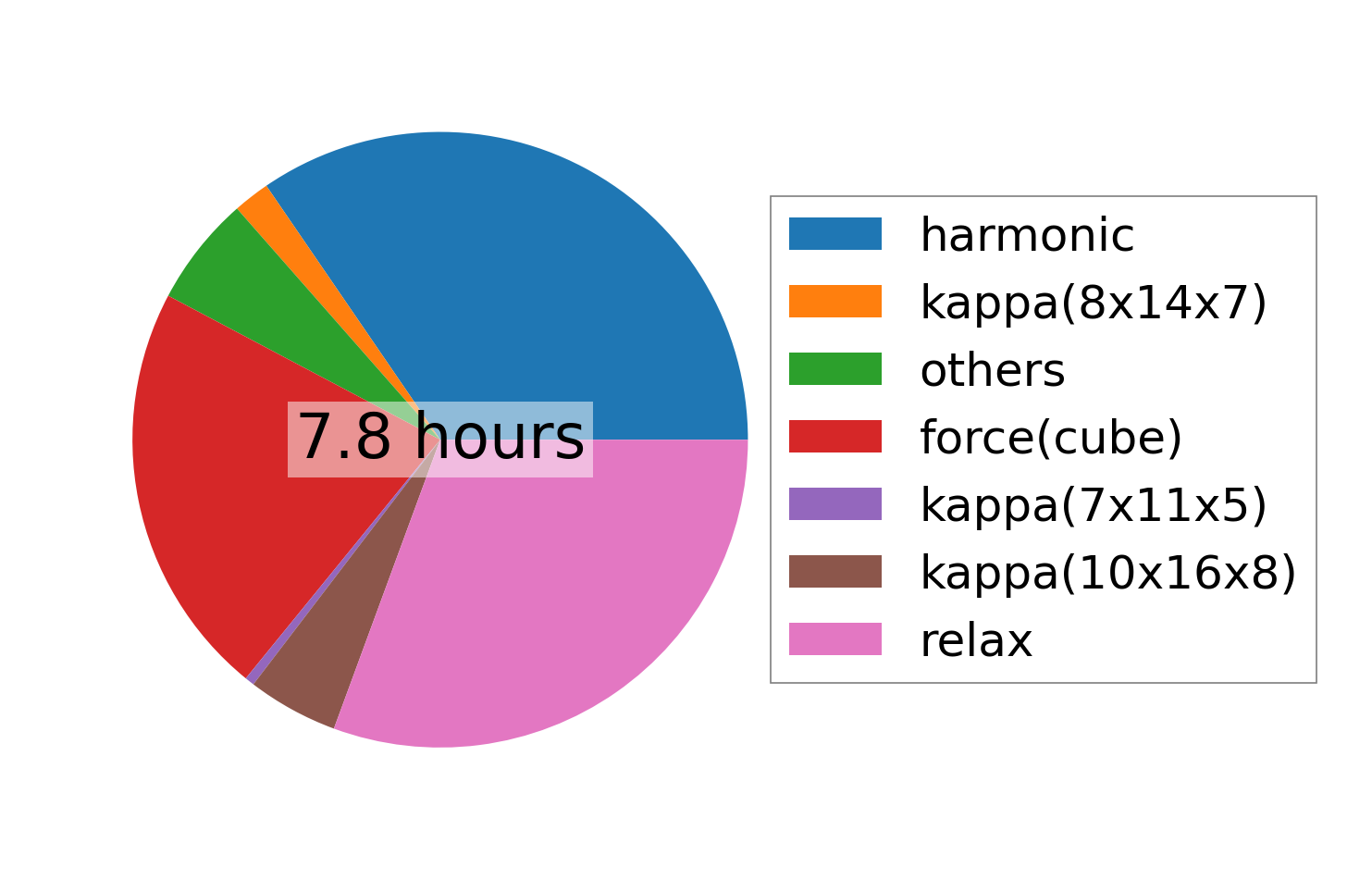

../../_images/fig_times14650.png — (b) Computation time
