mp-556814/LiNdGeO4/anharm

Space group: Pbcn (60)
Link: Materials Project
Download: mp-556814.tar.gz

Harmonic properties

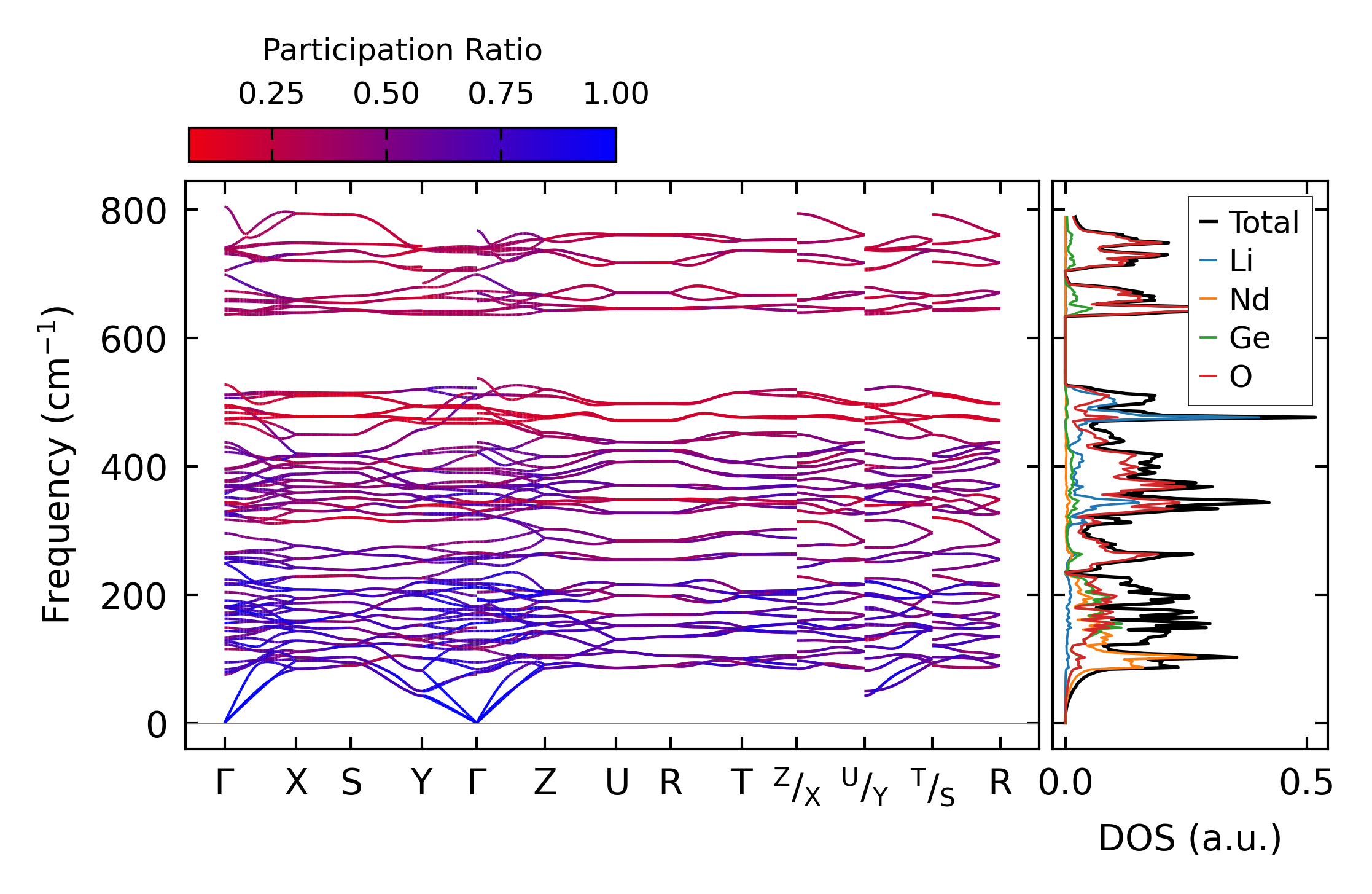

../../_images/fig_bandos_pr8302.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo8302.png — (b) Thermodynamic properties

Grüneisen parameters

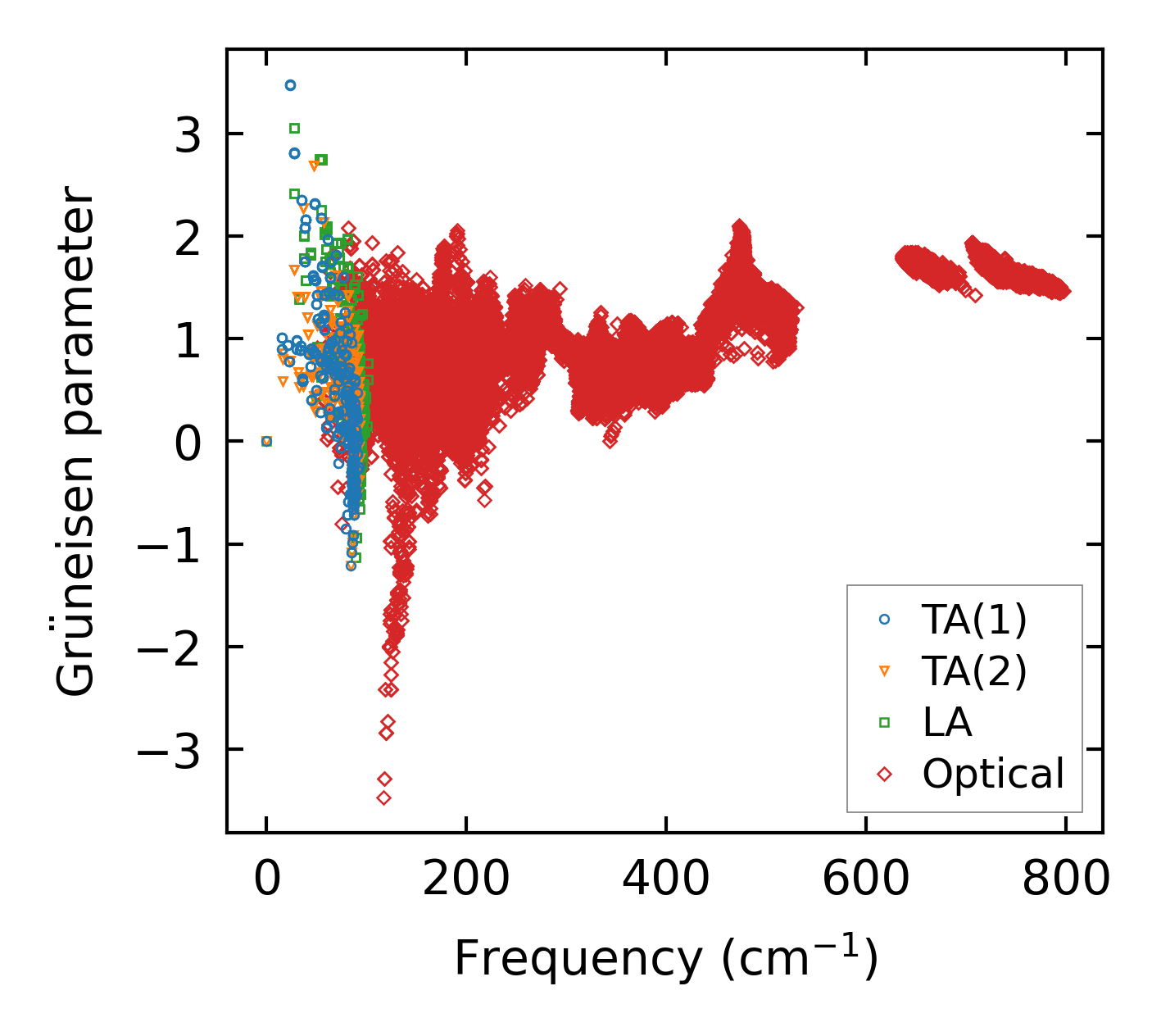

../../_images/fig_gru_all3387.png — (a) Grüneisen parameters

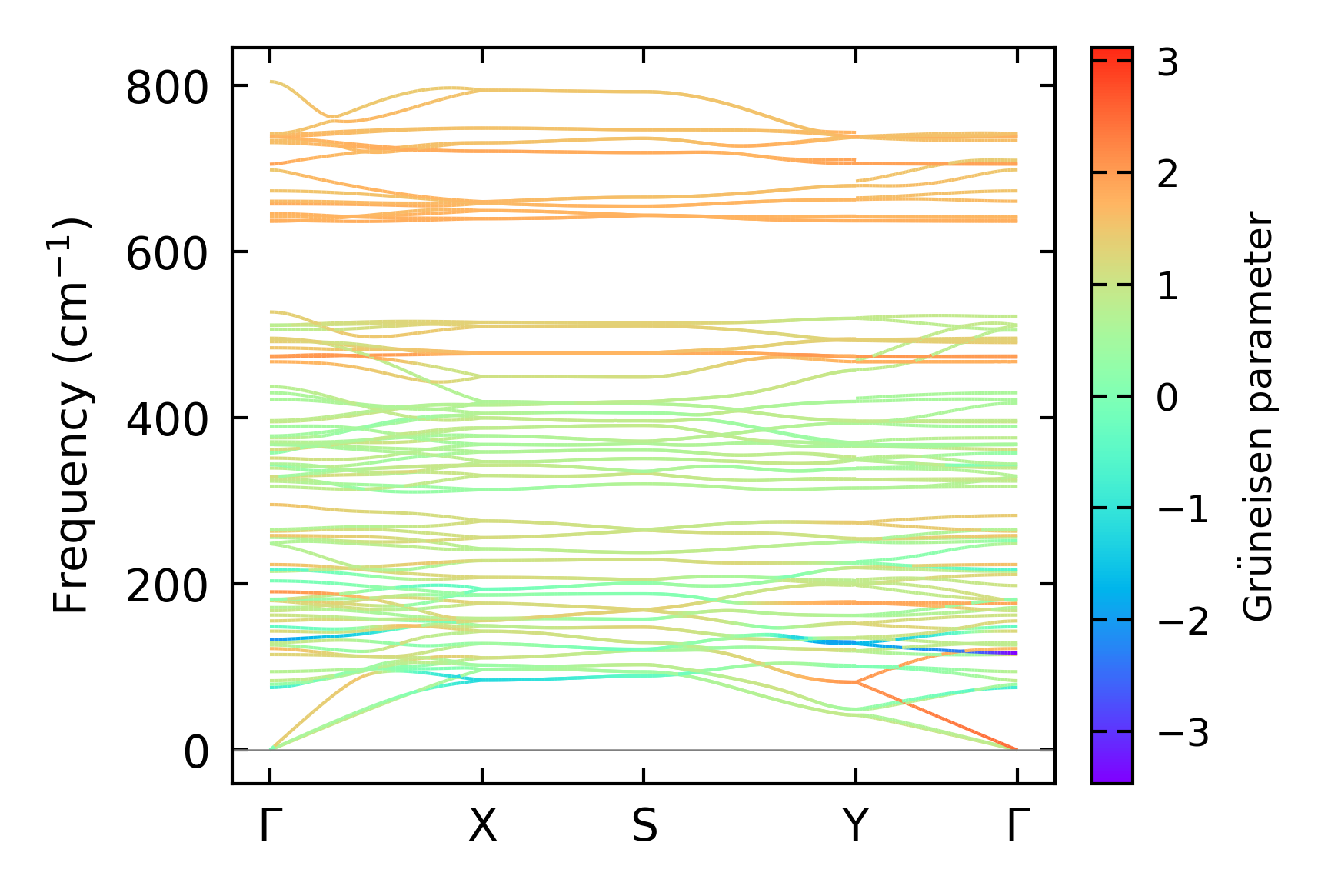

../../_images/fig_gruneisen3387.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x6x13, supercell: 2x1x2

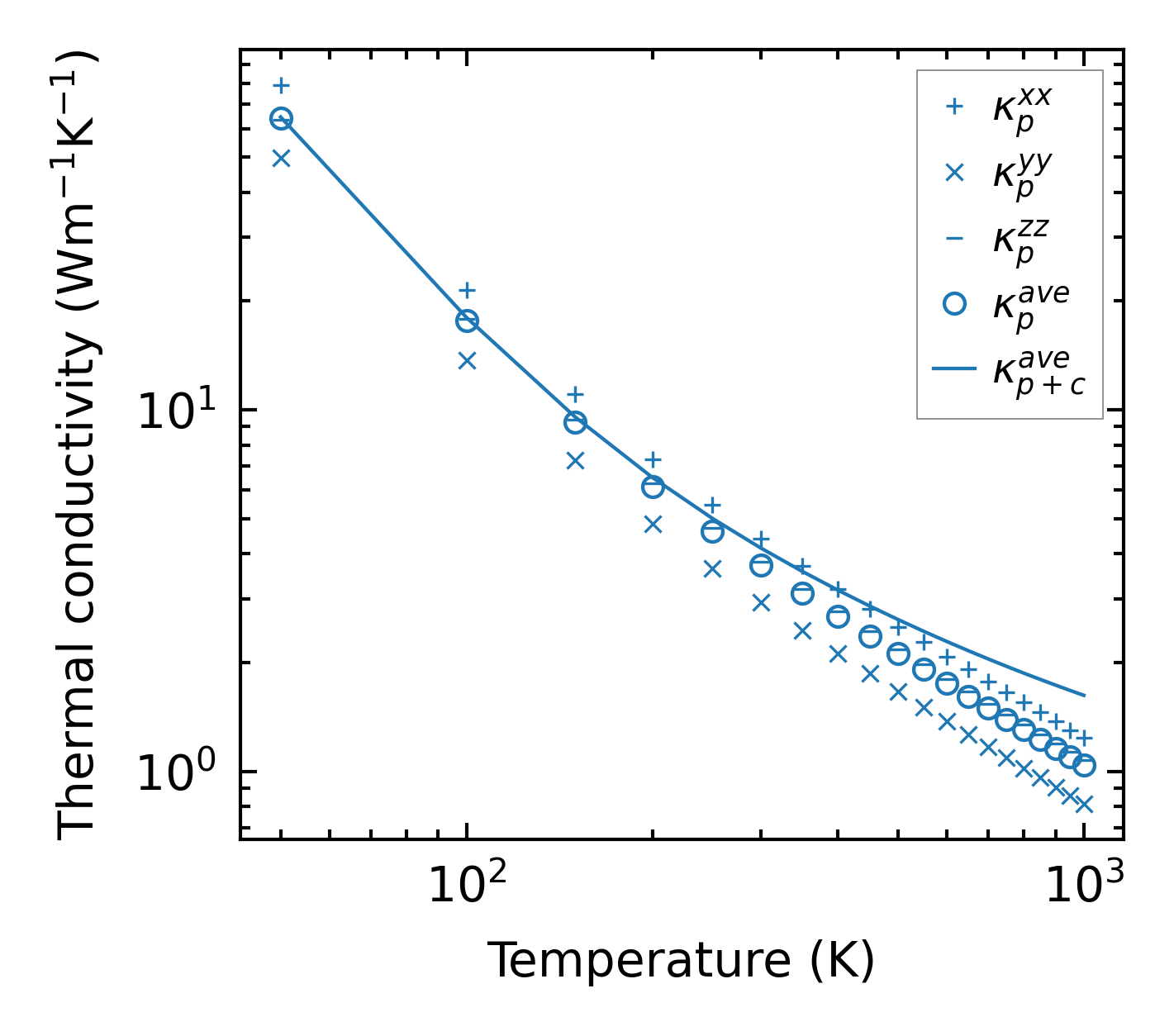

../../_images/fig_kappa6407.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3431.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

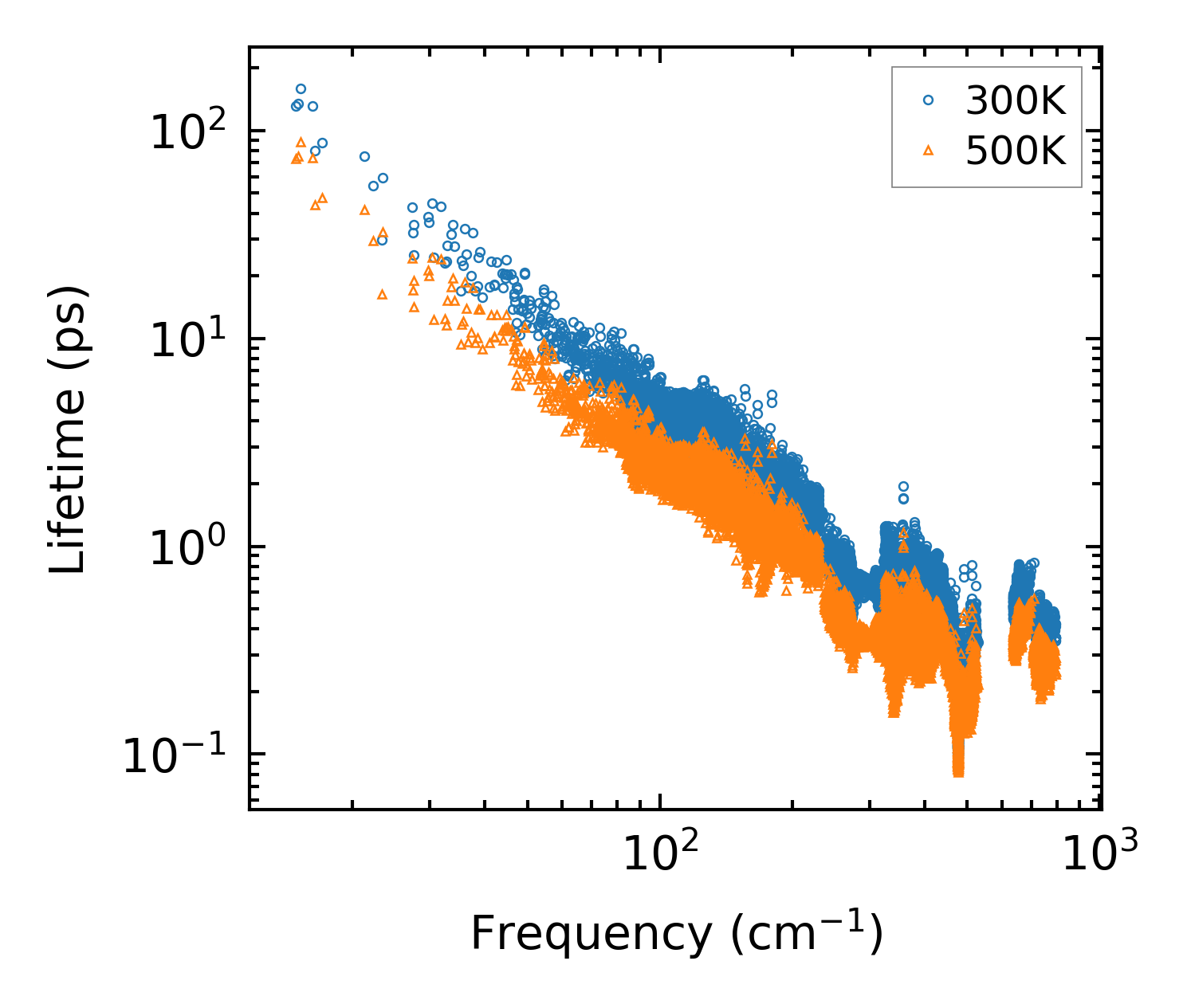

../../_images/fig_lifetime3356.png — (a) Phonon lifetime due to phonon-phonon scattering

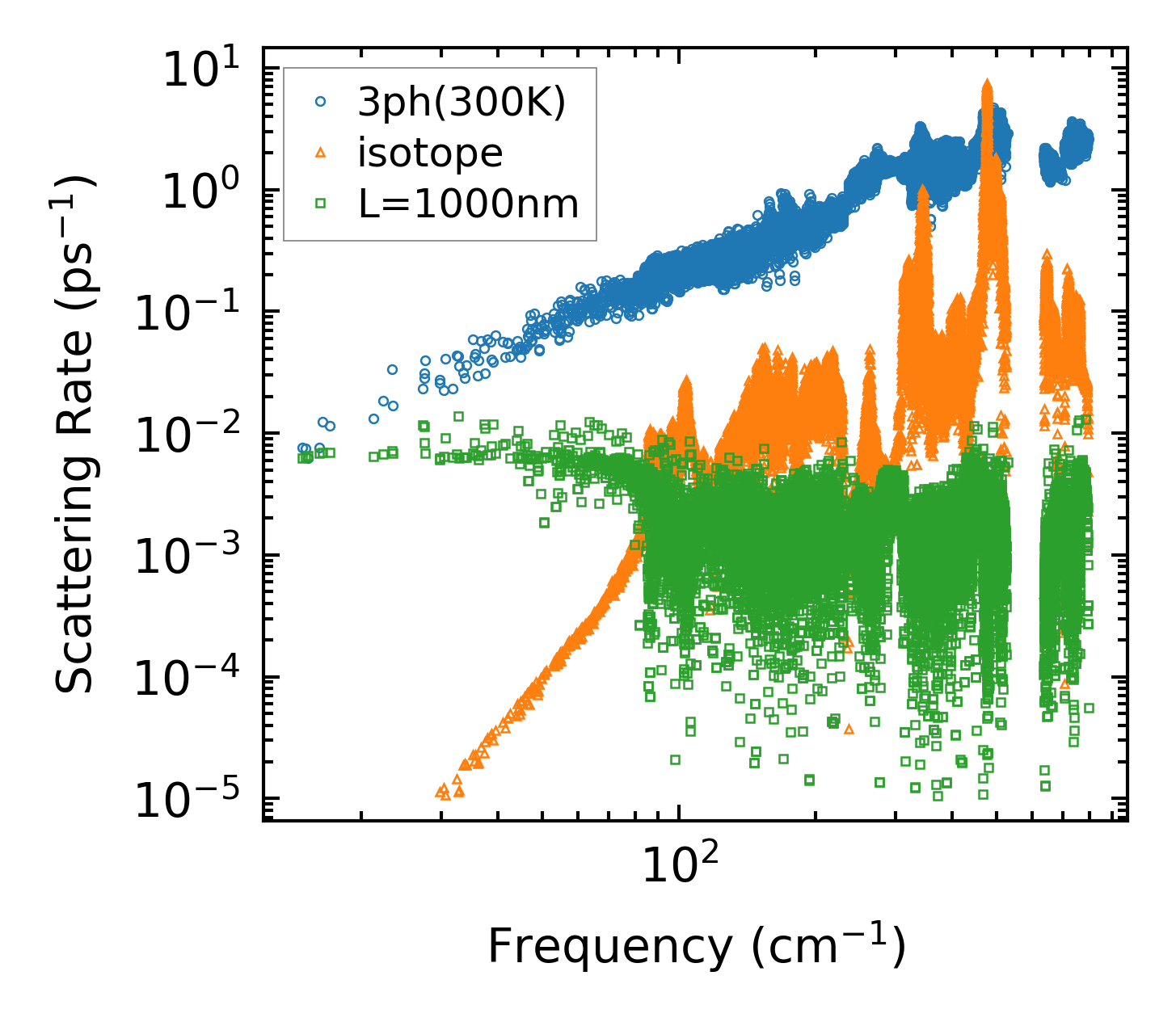

../../_images/fig_scat_rates3355.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency3356.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3355.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc28064.png — (a) Force constants w.r.t atomic distance

Summary

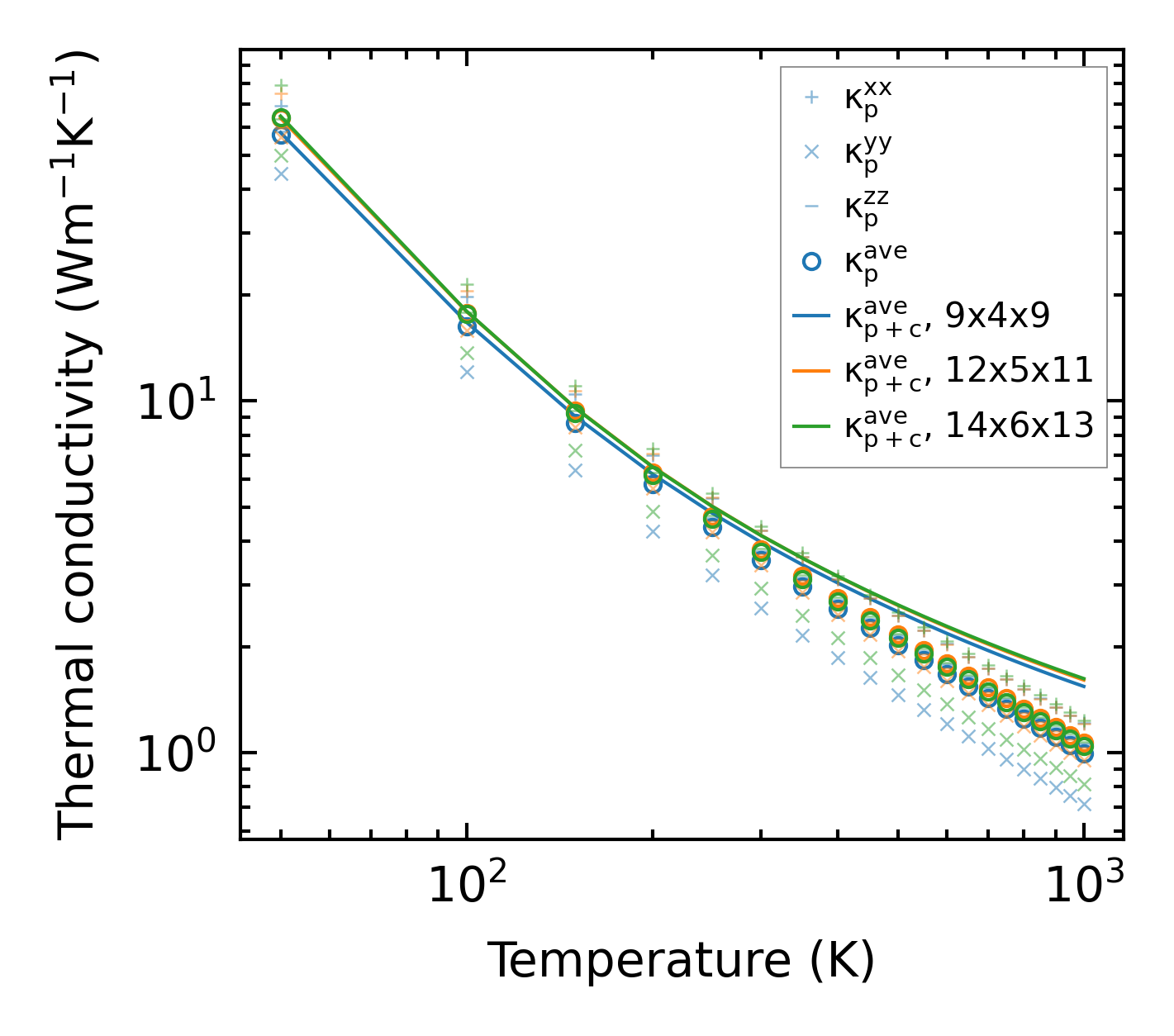

../../_images/fig_kappa6408.png — (a) Temperature-dependent lattice thermal conductivity

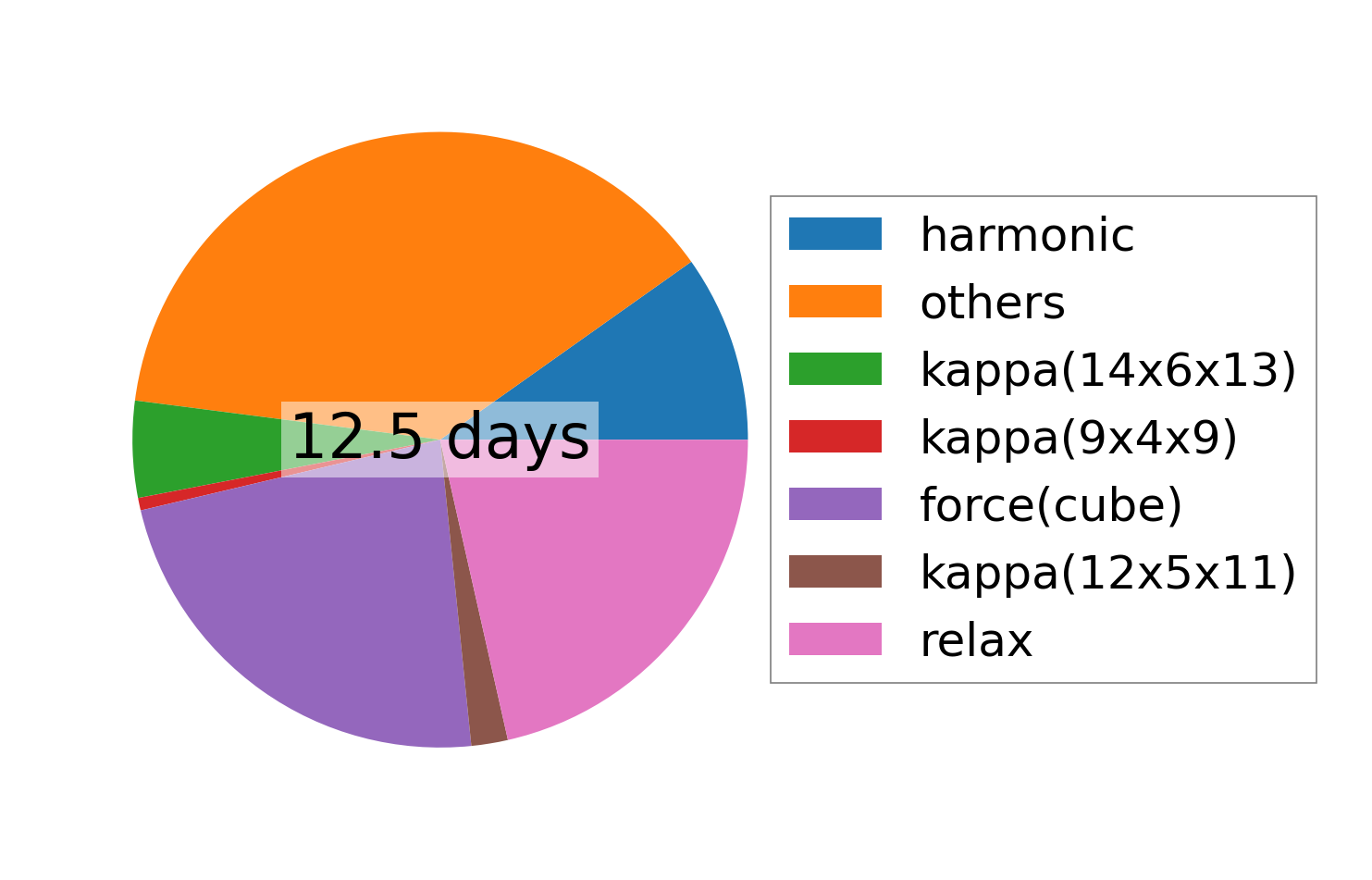

../../_images/fig_times14592.png — (b) Computation time
