mp-556714/BaCu6Ge2S8/anharm

Space group: Pbcm (57)
Link: Materials Project
Download: mp-556714.tar.gz

Harmonic properties

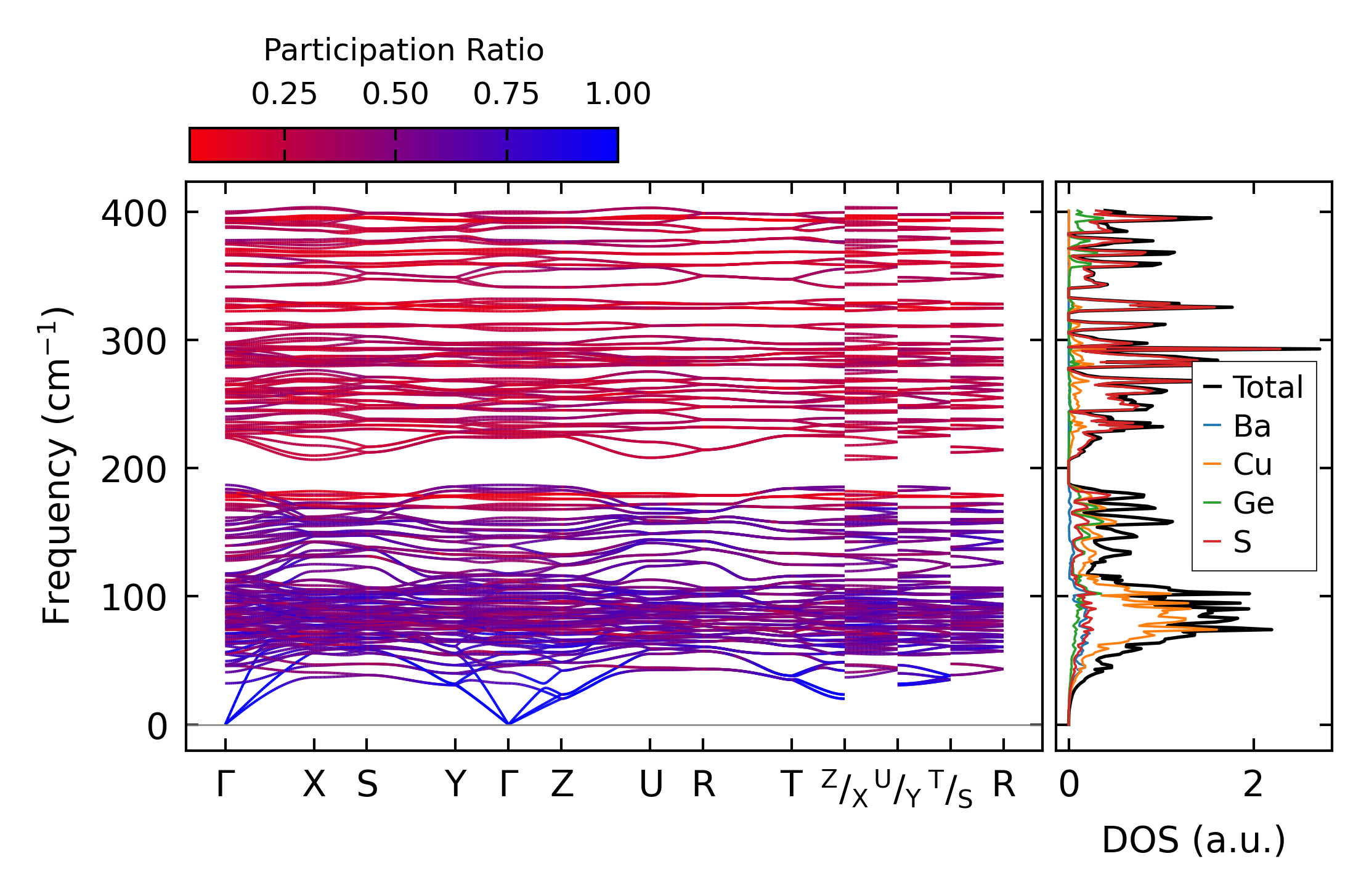

../../_images/fig_bandos_pr8594.png — (a) Phonon dispersion with participation ratio and DOS

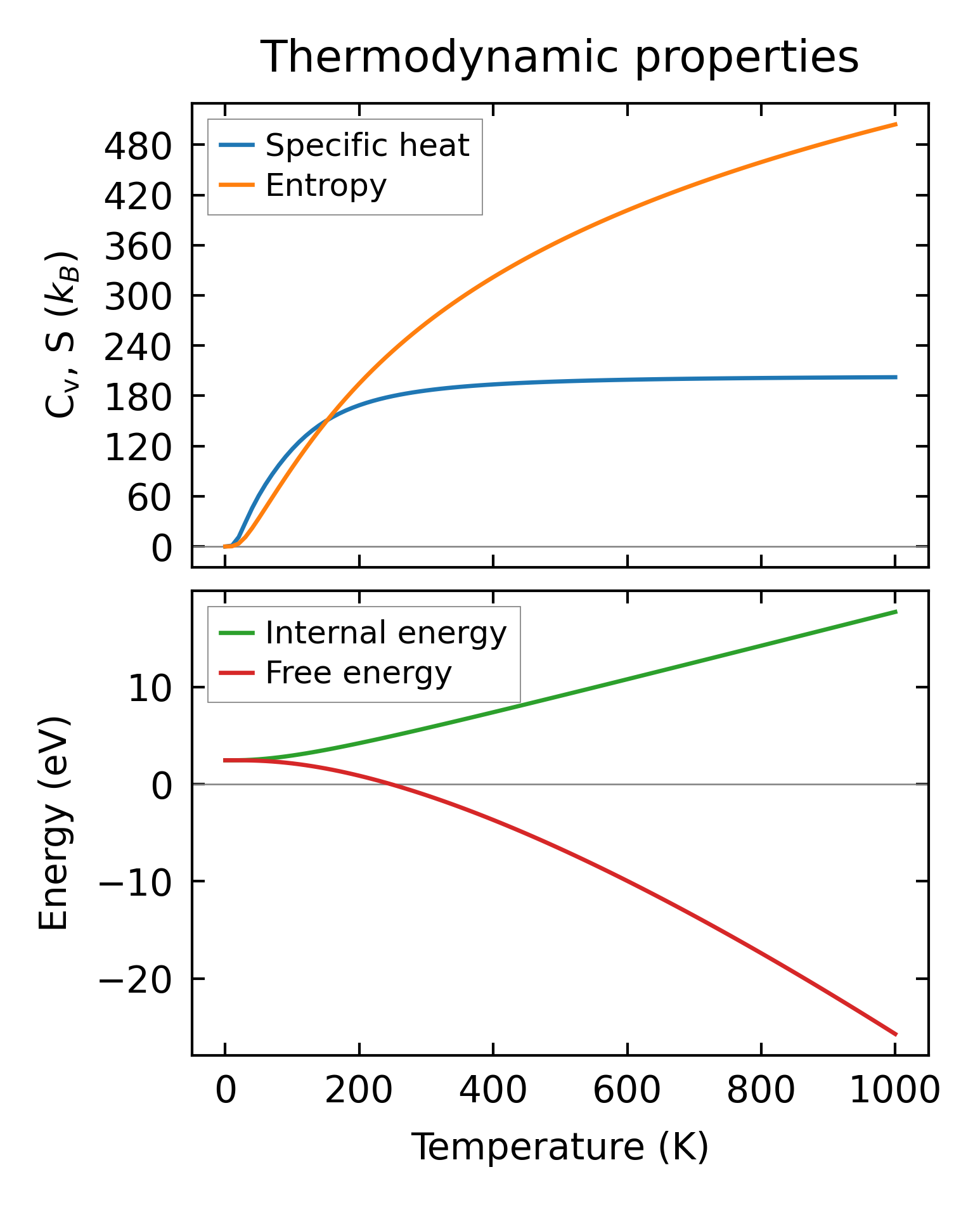

../../_images/fig_thermo8594.png — (b) Thermodynamic properties

Grüneisen parameters

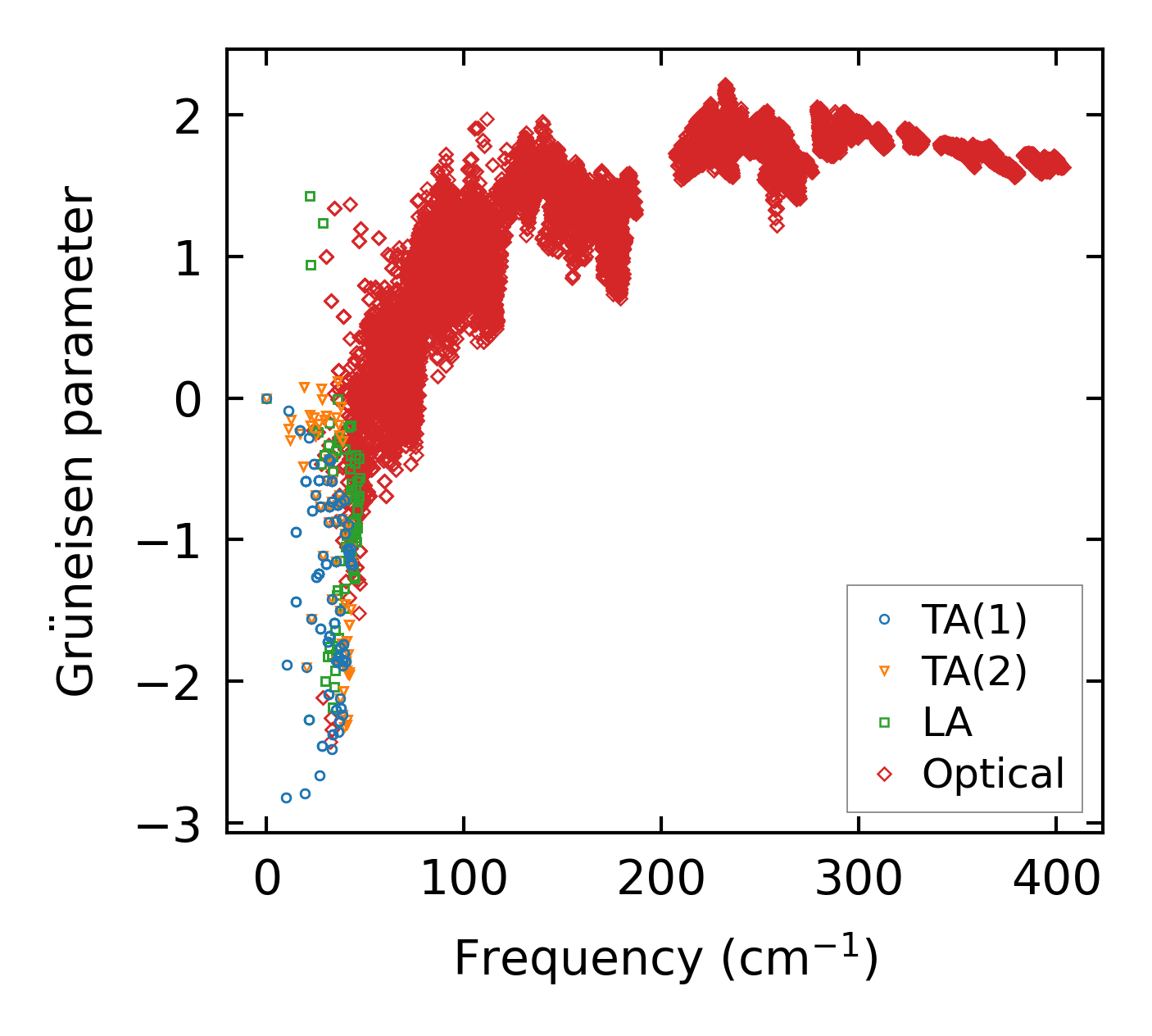

../../_images/fig_gru_all3491.png — (a) Grüneisen parameters

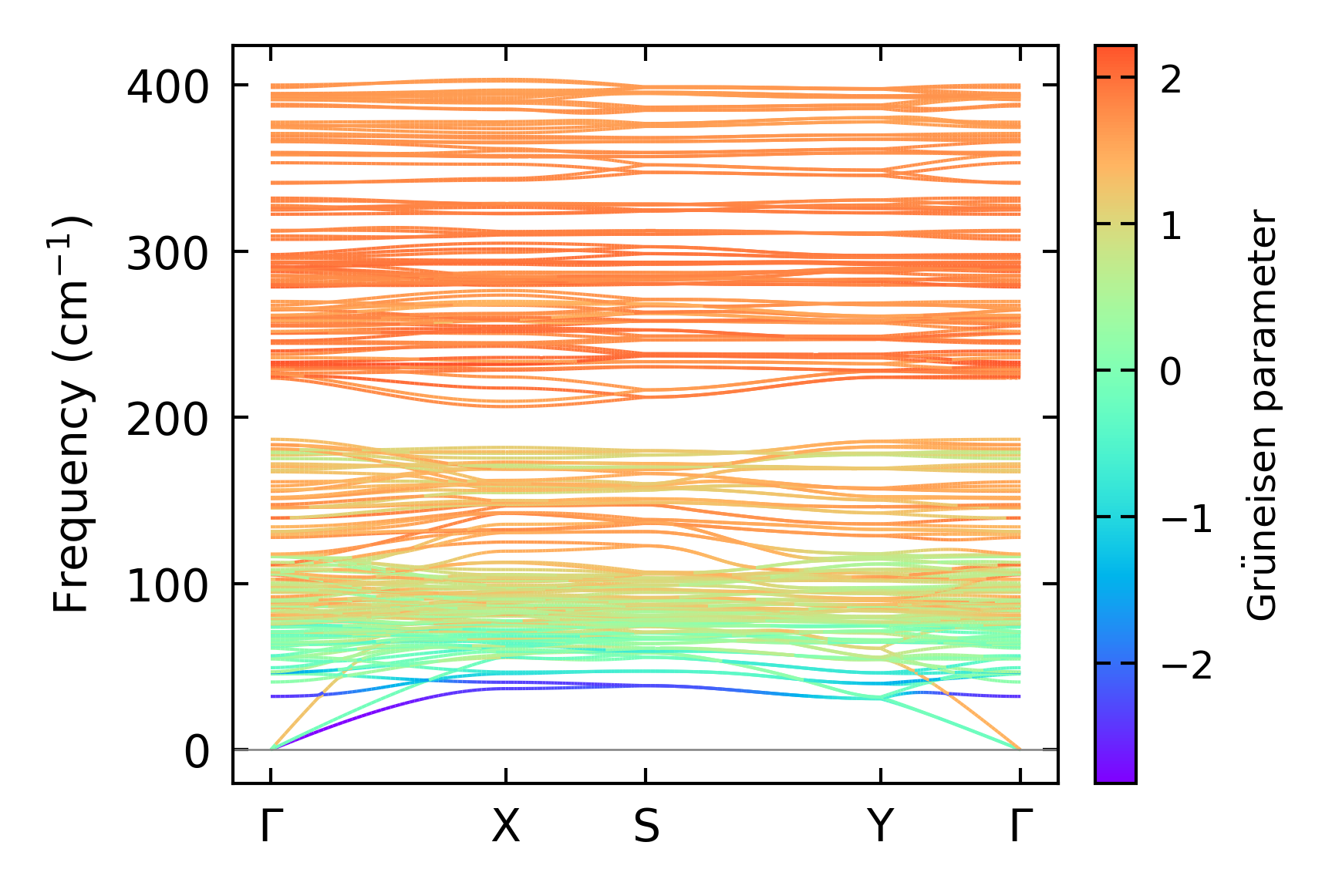

../../_images/fig_gruneisen3491.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x6x4, supercell: 2x1x1

../../_images/fig_kappa6602.png — (a) Temperature-dependent lattice thermal conductivity

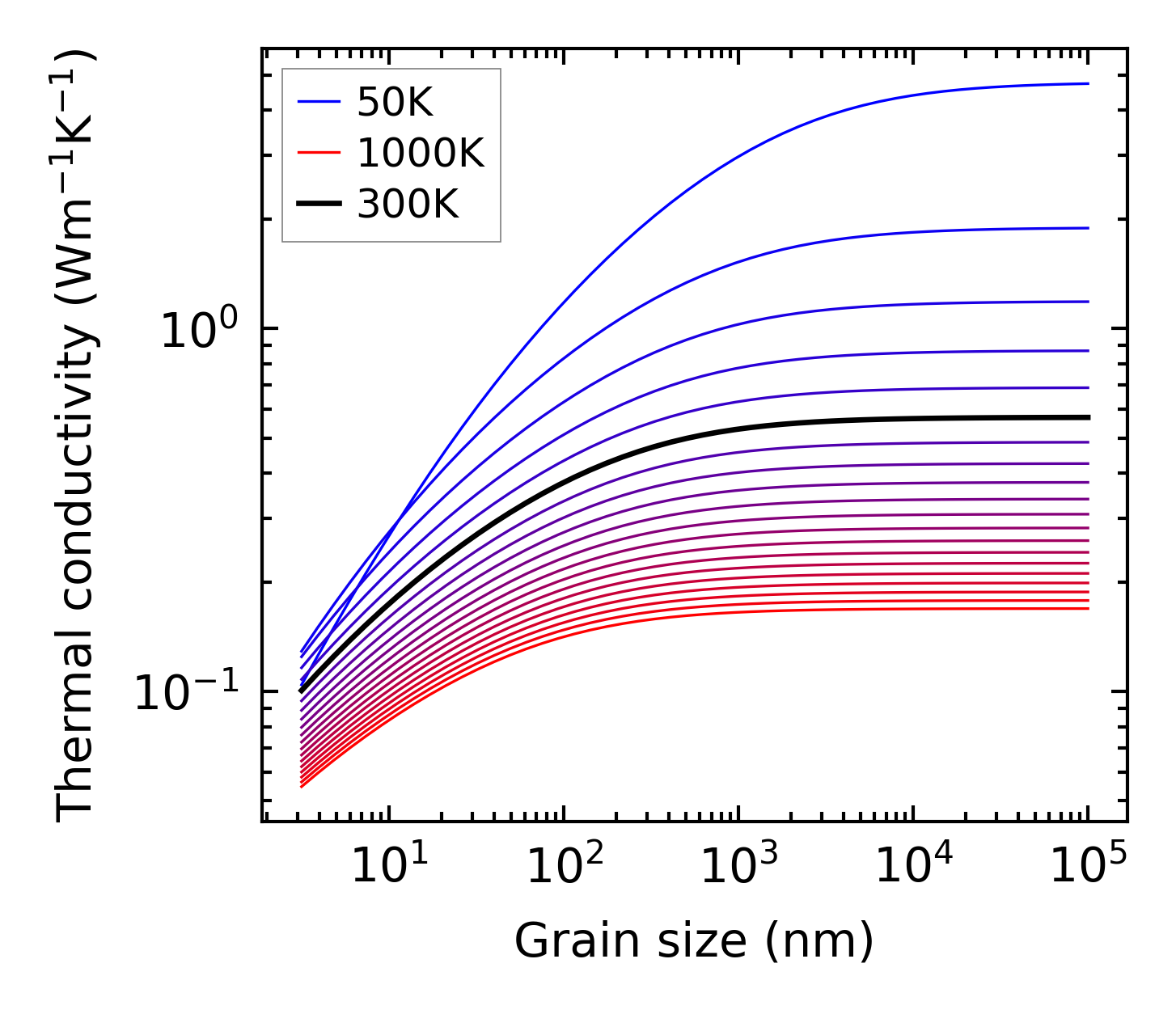

../../_images/fig_kappa_vs_grain_size3535.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

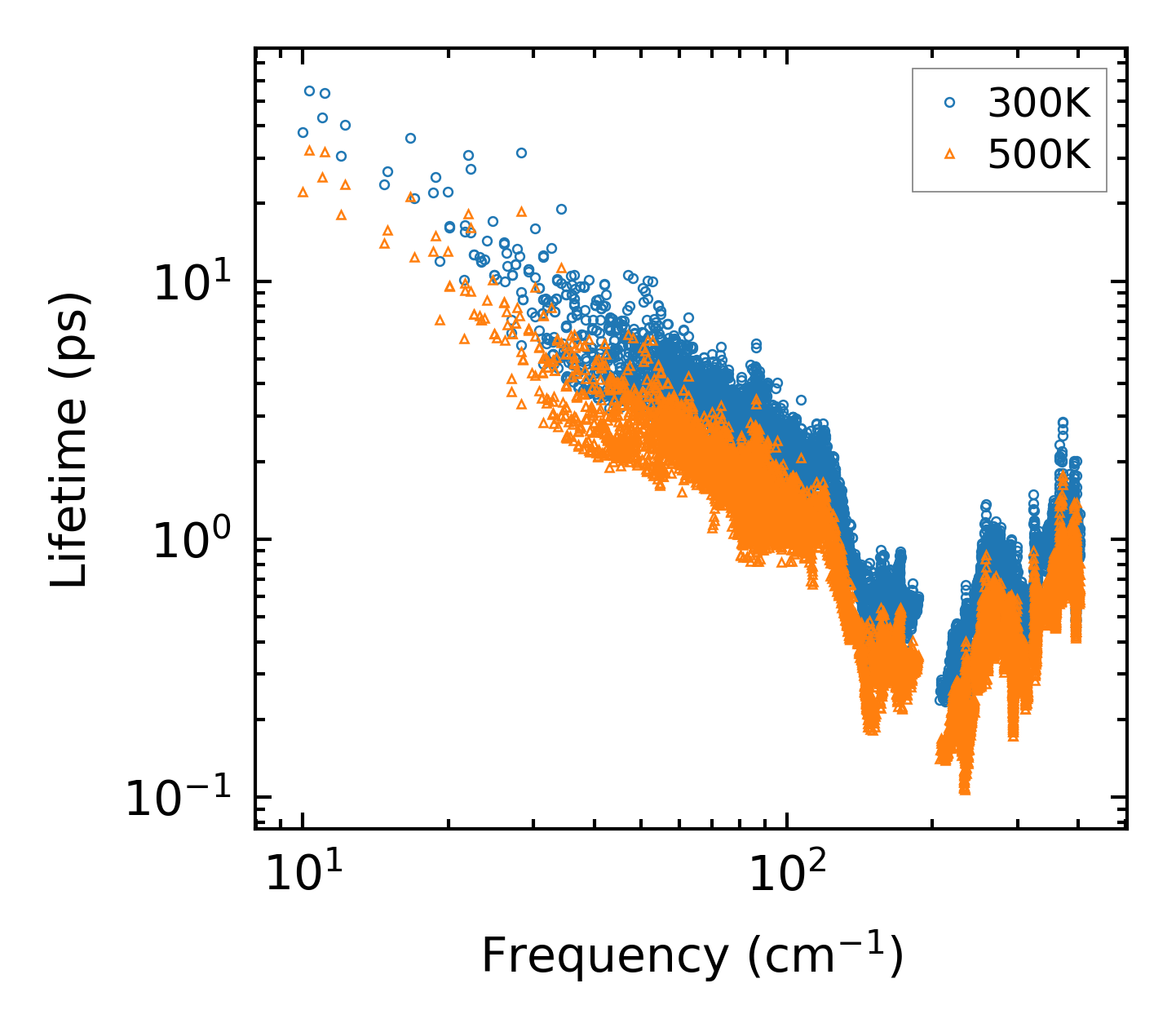

../../_images/fig_lifetime3458.png — (a) Phonon lifetime due to phonon-phonon scattering

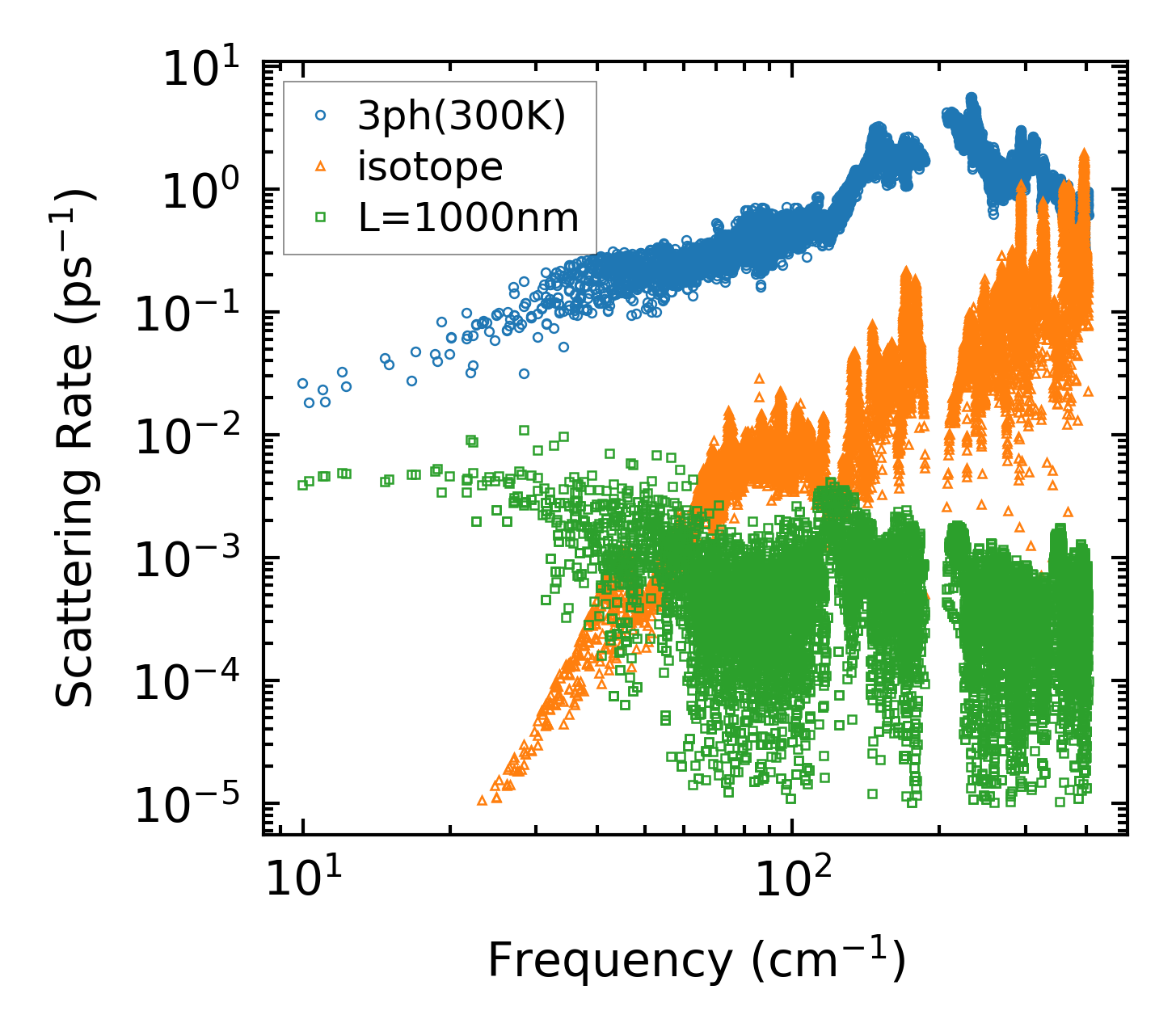

../../_images/fig_scat_rates3457.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

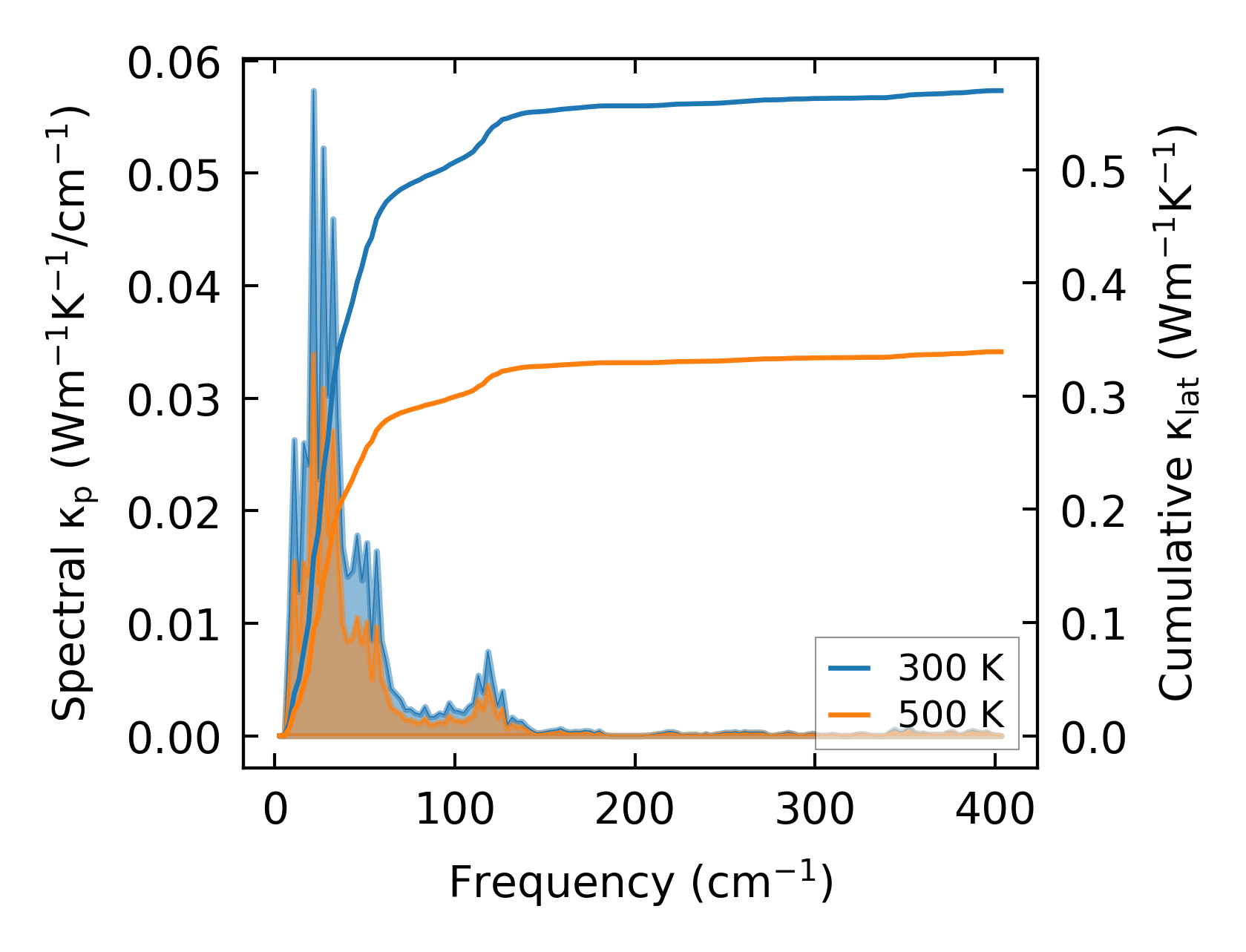

../../_images/fig_cumu_frequency3458.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

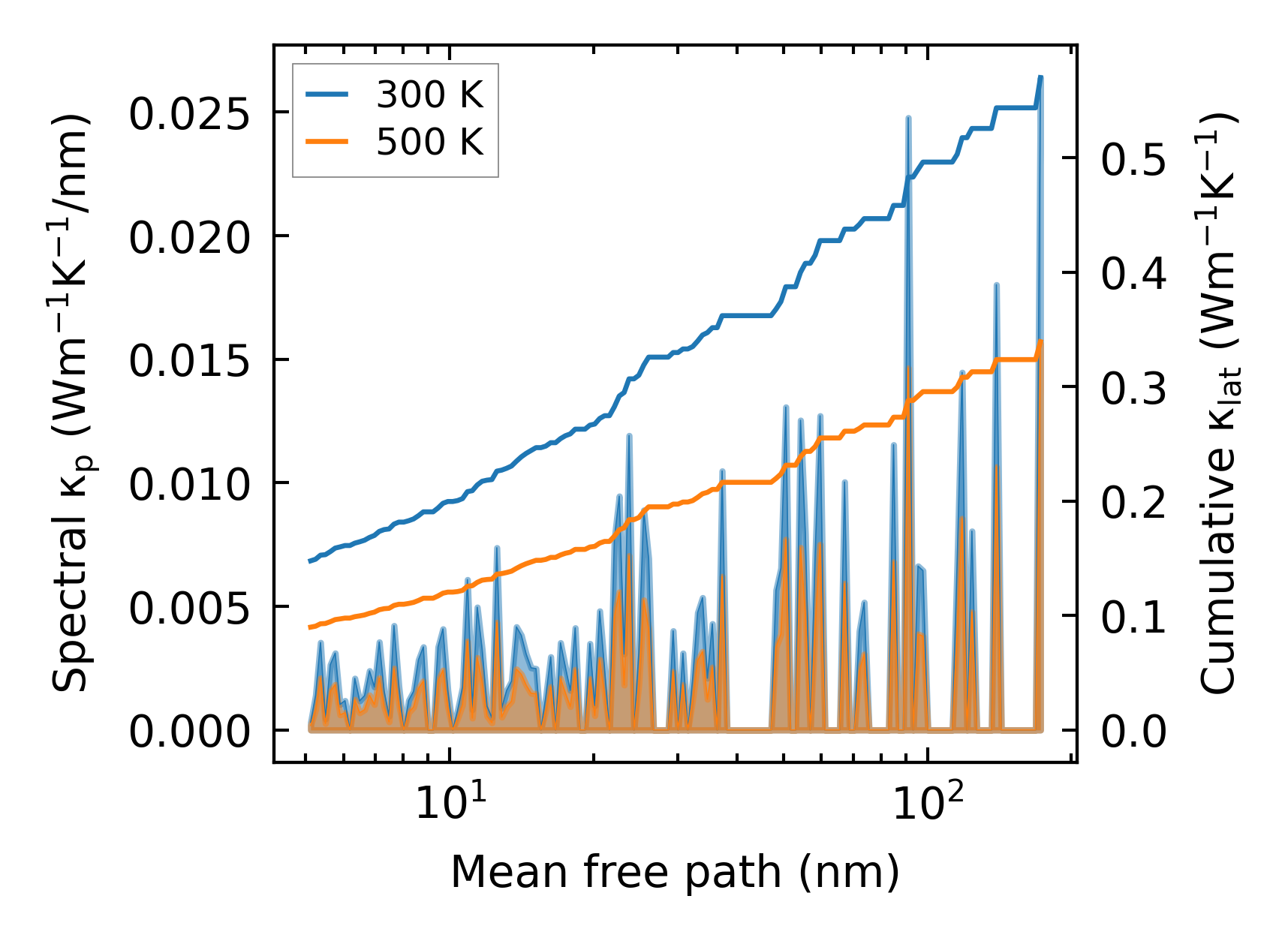

../../_images/fig_cumu_mfp3457.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

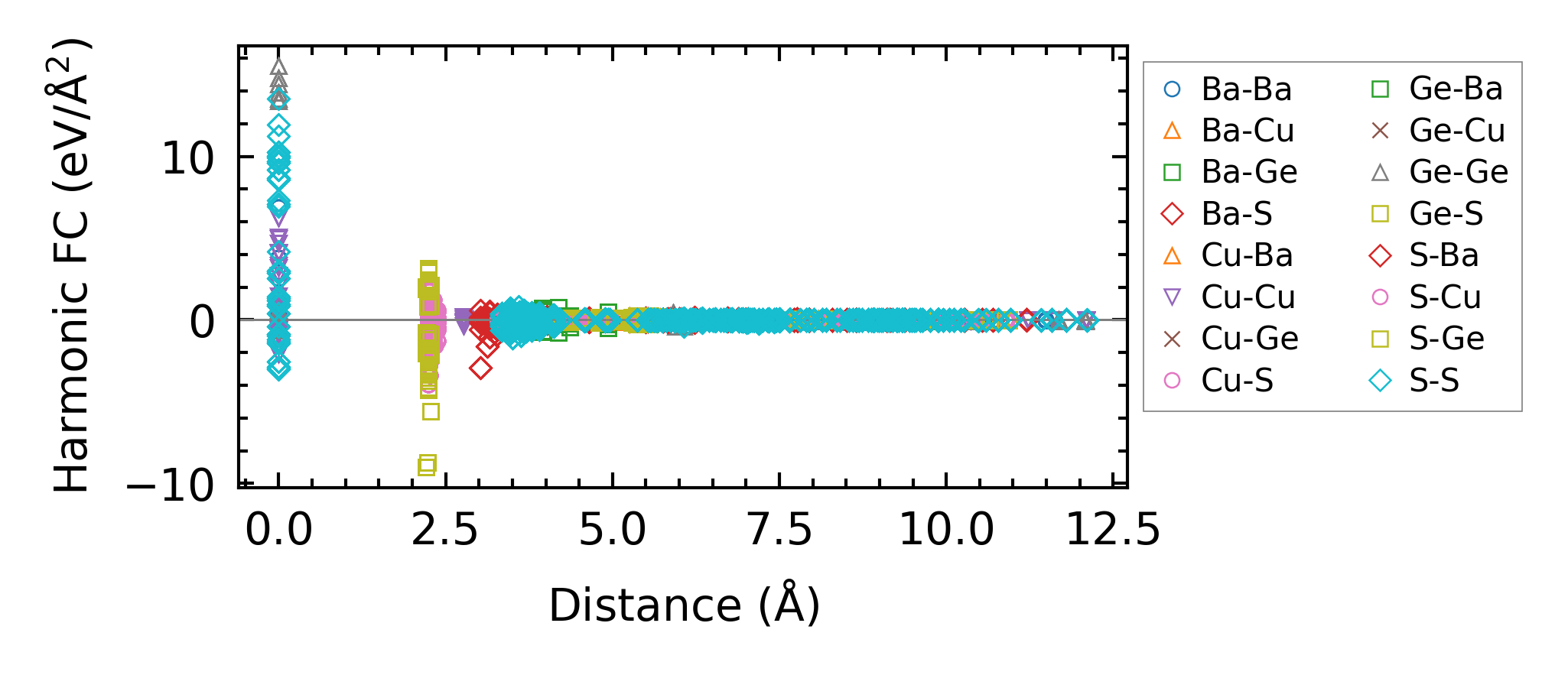

../../_images/fig_fc28355.png — (a) Force constants w.r.t atomic distance

Summary

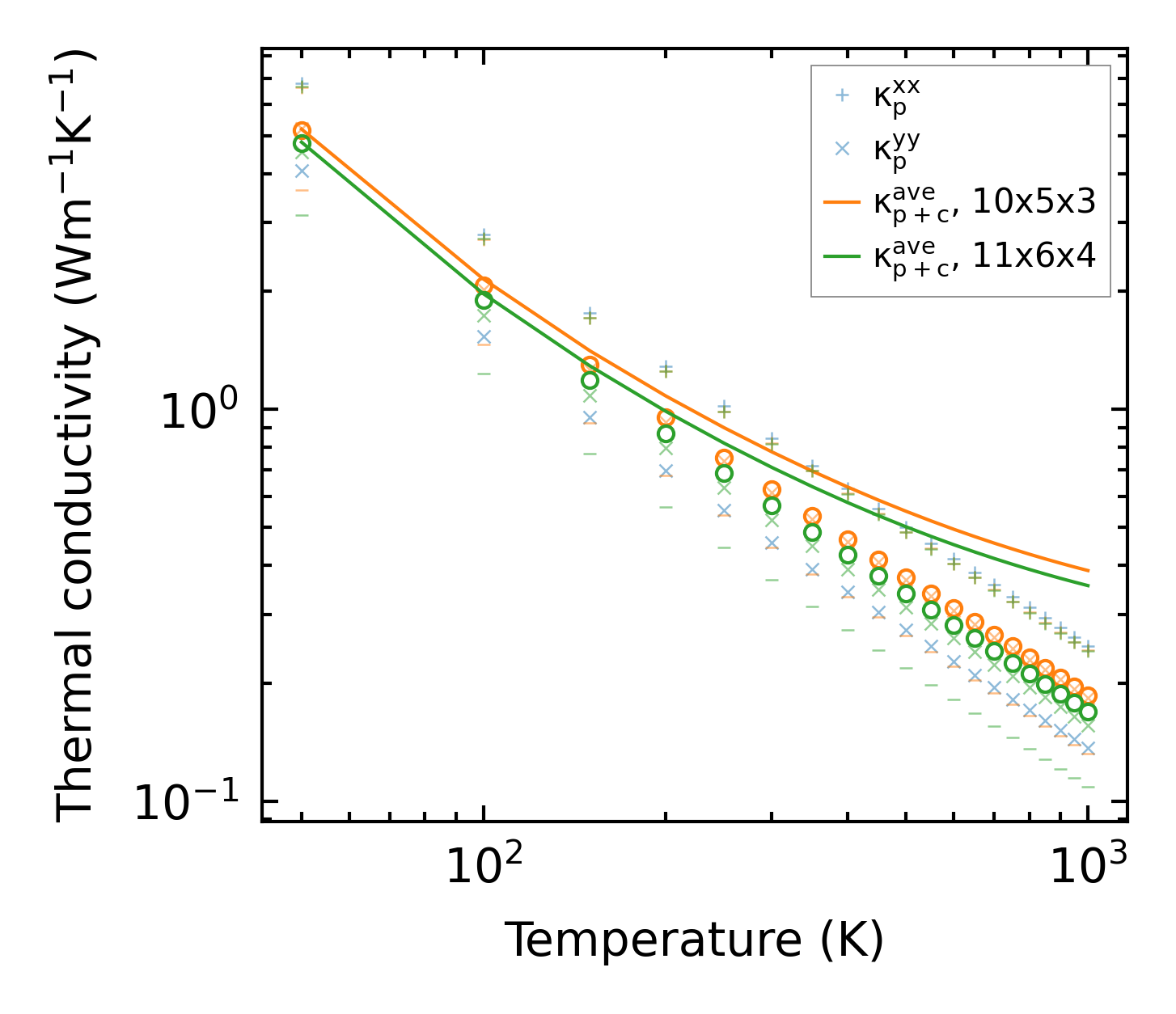

../../_images/fig_kappa6603.png — (a) Temperature-dependent lattice thermal conductivity

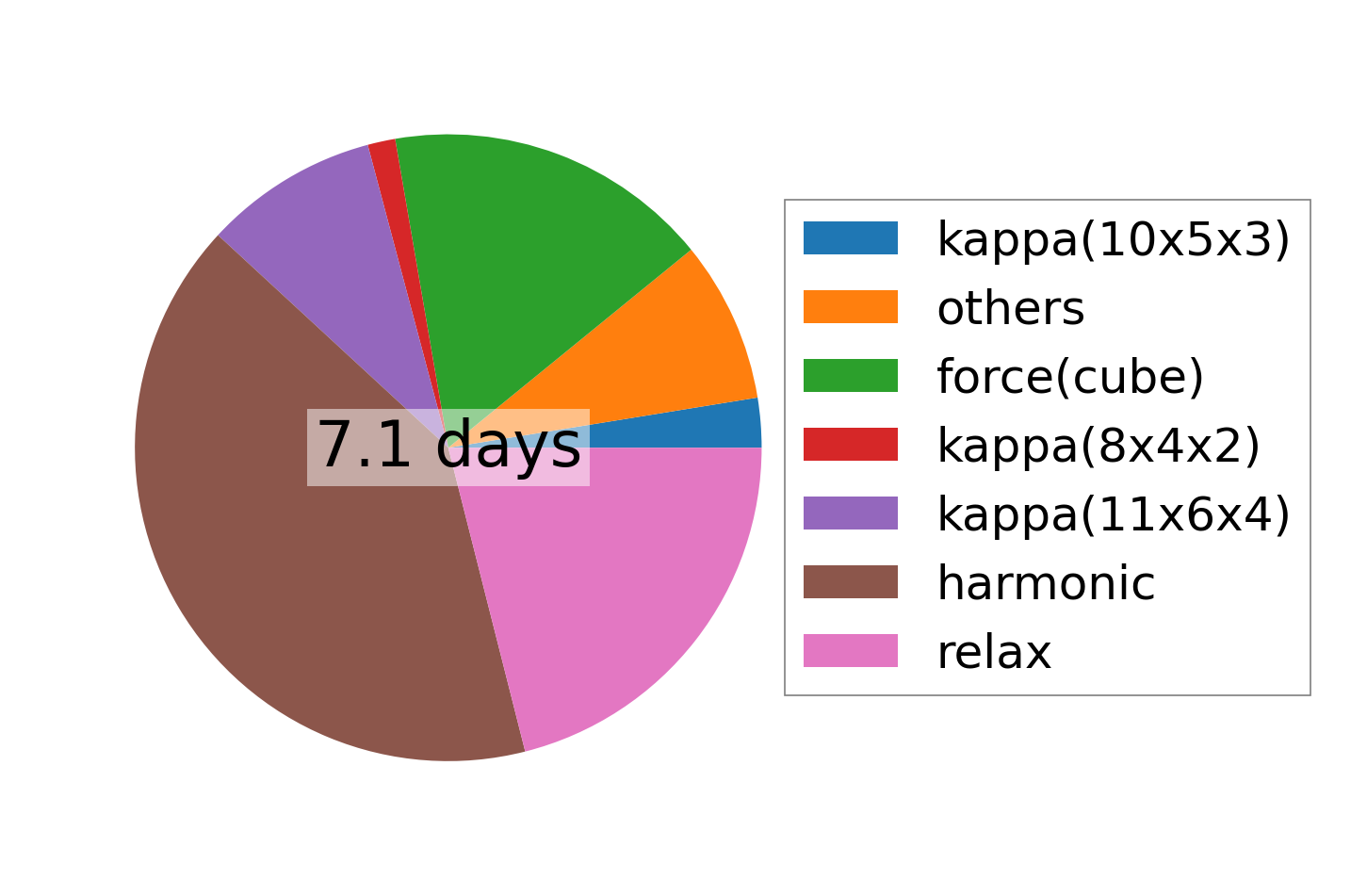

../../_images/fig_times15082.png — (b) Computation time
