mp-556712-2/Ga2BiS4/anharm

Space group: P4/nnc (126)
Link: Materials Project
Download: mp-556712-2.tar.gz

Equation of state

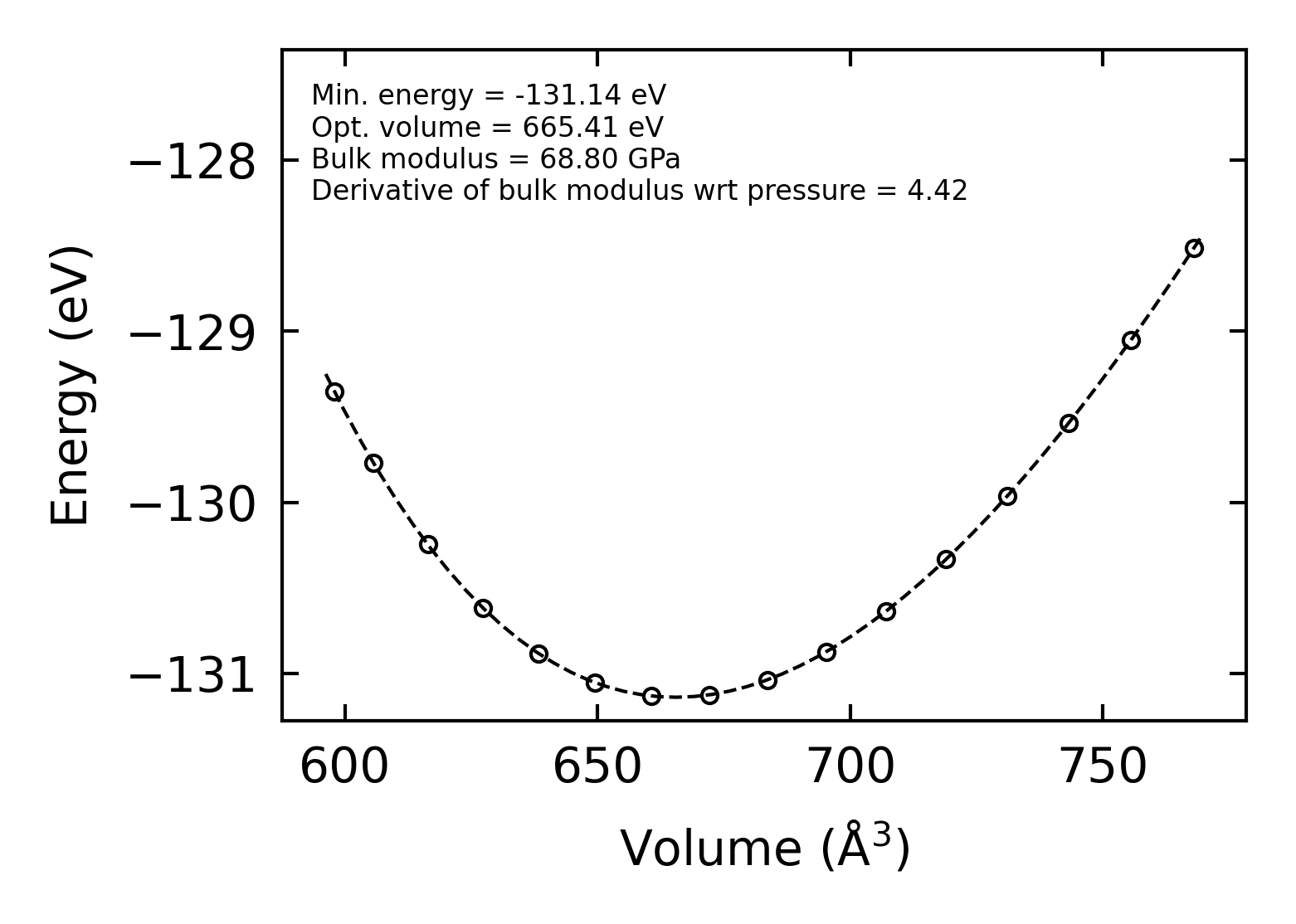

../../_images/fig_bm4352.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr8593.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo8593.png — (b) Thermodynamic properties

Grüneisen parameters

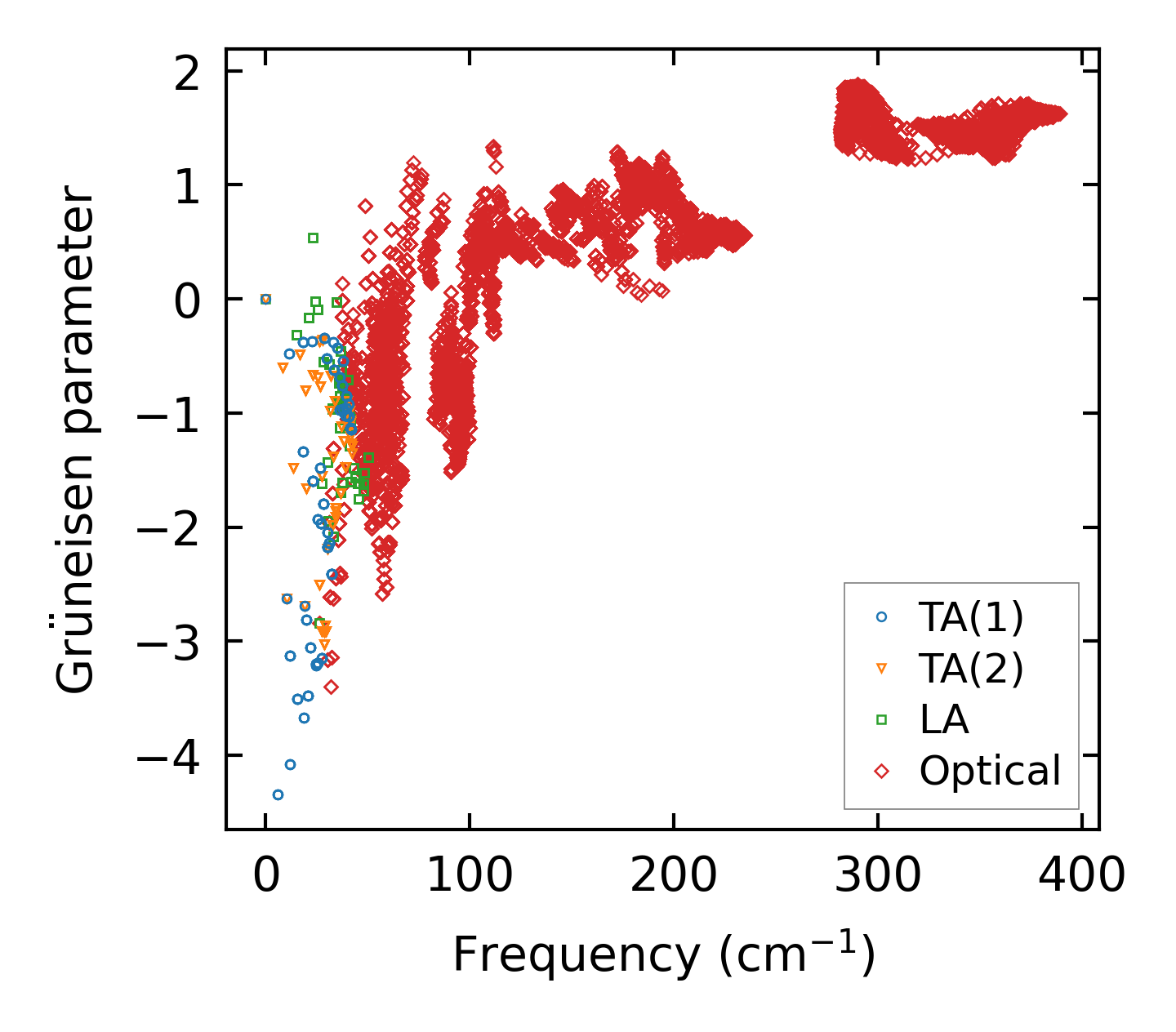

../../_images/fig_gru_all3490.png — (a) Grüneisen parameters

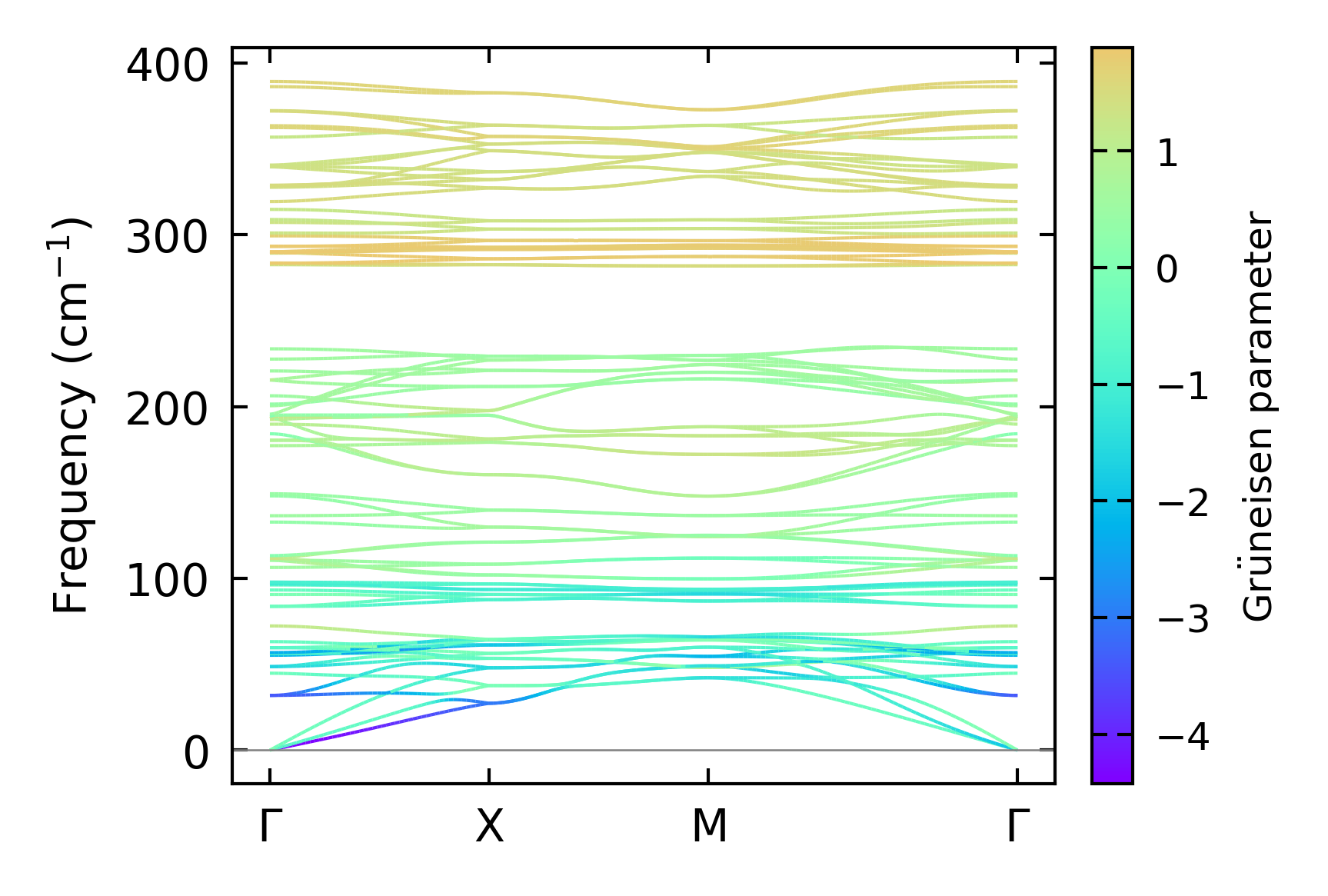

../../_images/fig_gruneisen3490.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x5, supercell: 2x2x1

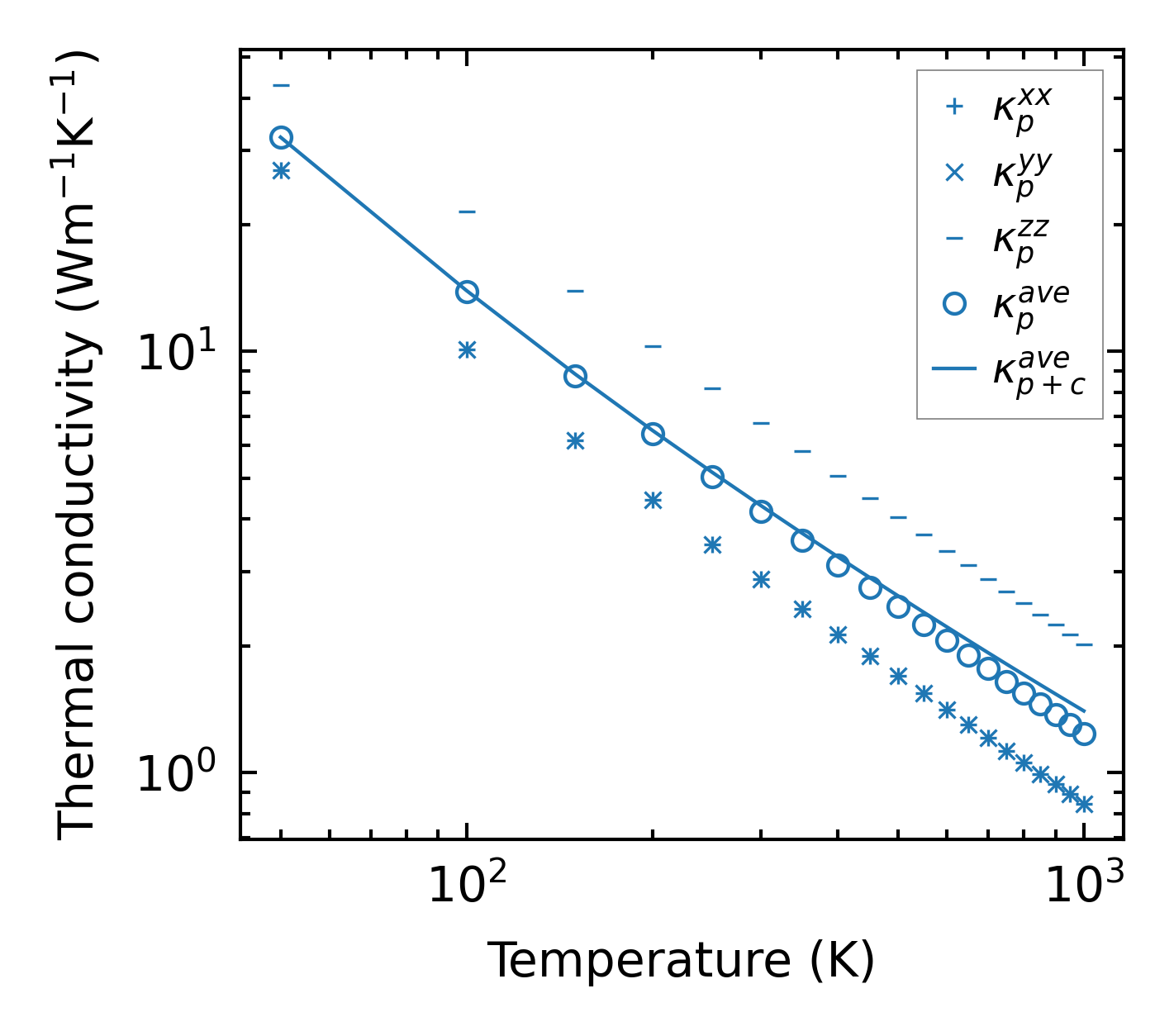

../../_images/fig_kappa6600.png — (a) Temperature-dependent lattice thermal conductivity

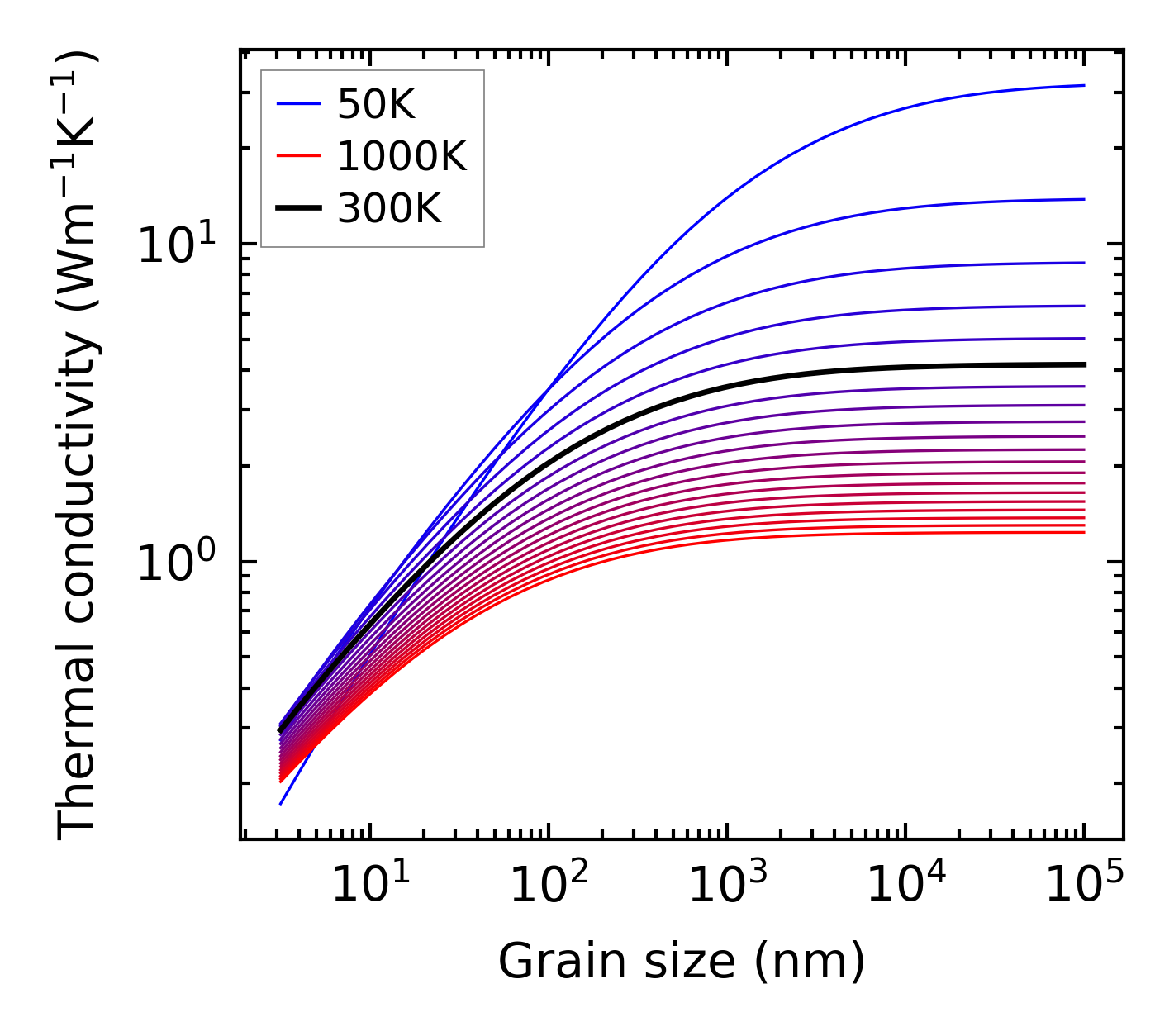

../../_images/fig_kappa_vs_grain_size3534.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3457.png — (a) Phonon lifetime due to phonon-phonon scattering

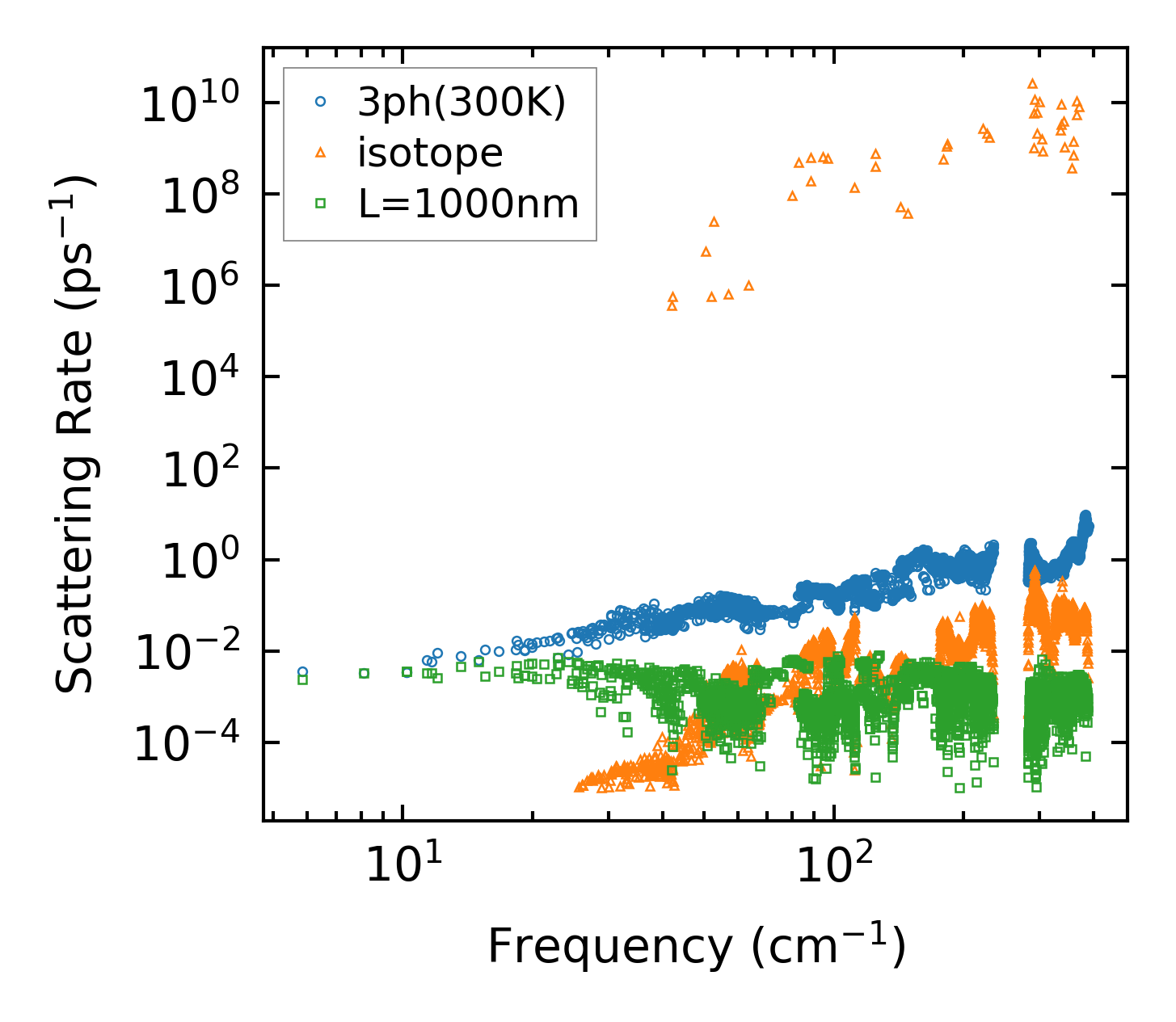

../../_images/fig_scat_rates3456.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency3457.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3456.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

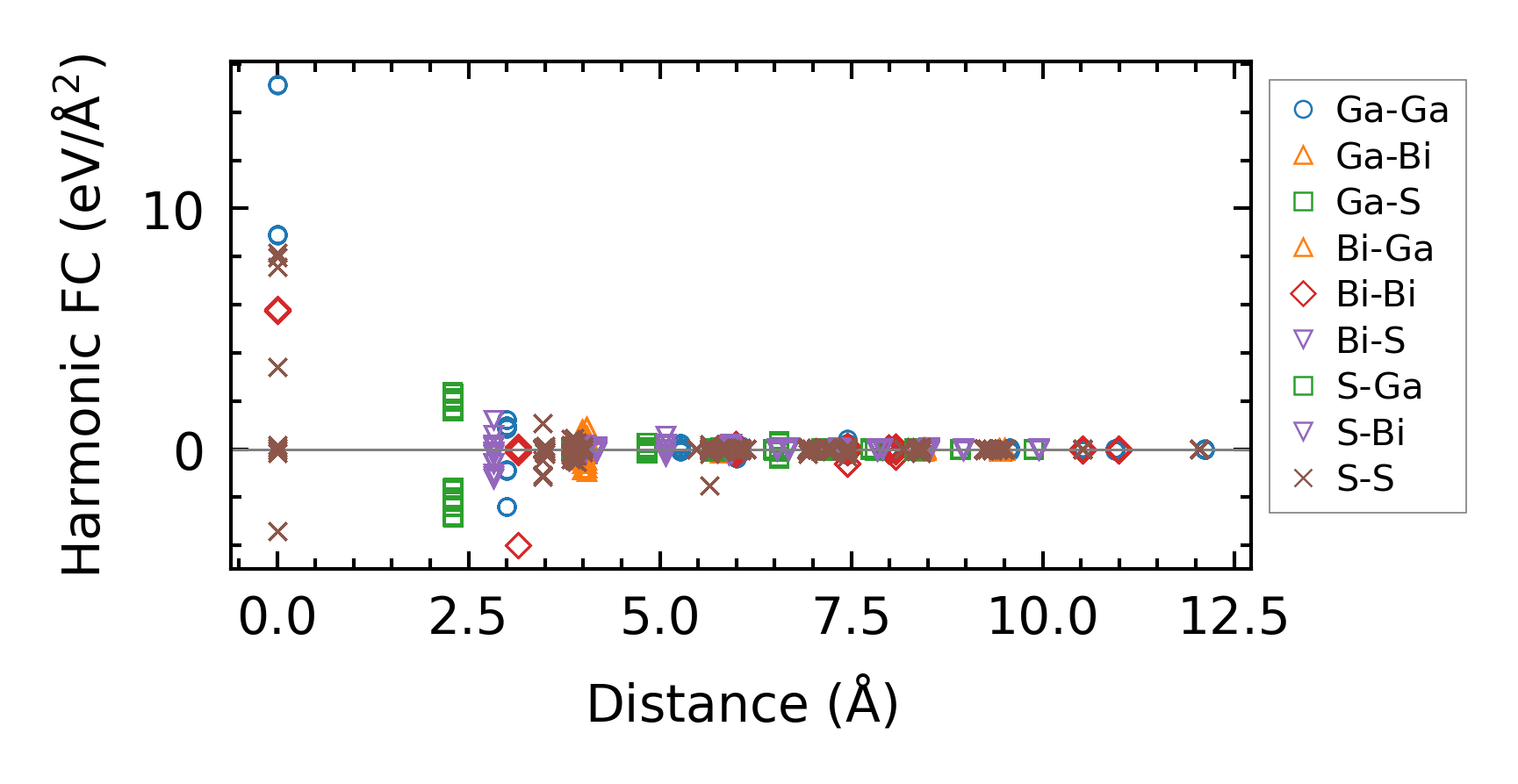

../../_images/fig_fc28354.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa6601.png — (a) Temperature-dependent lattice thermal conductivity

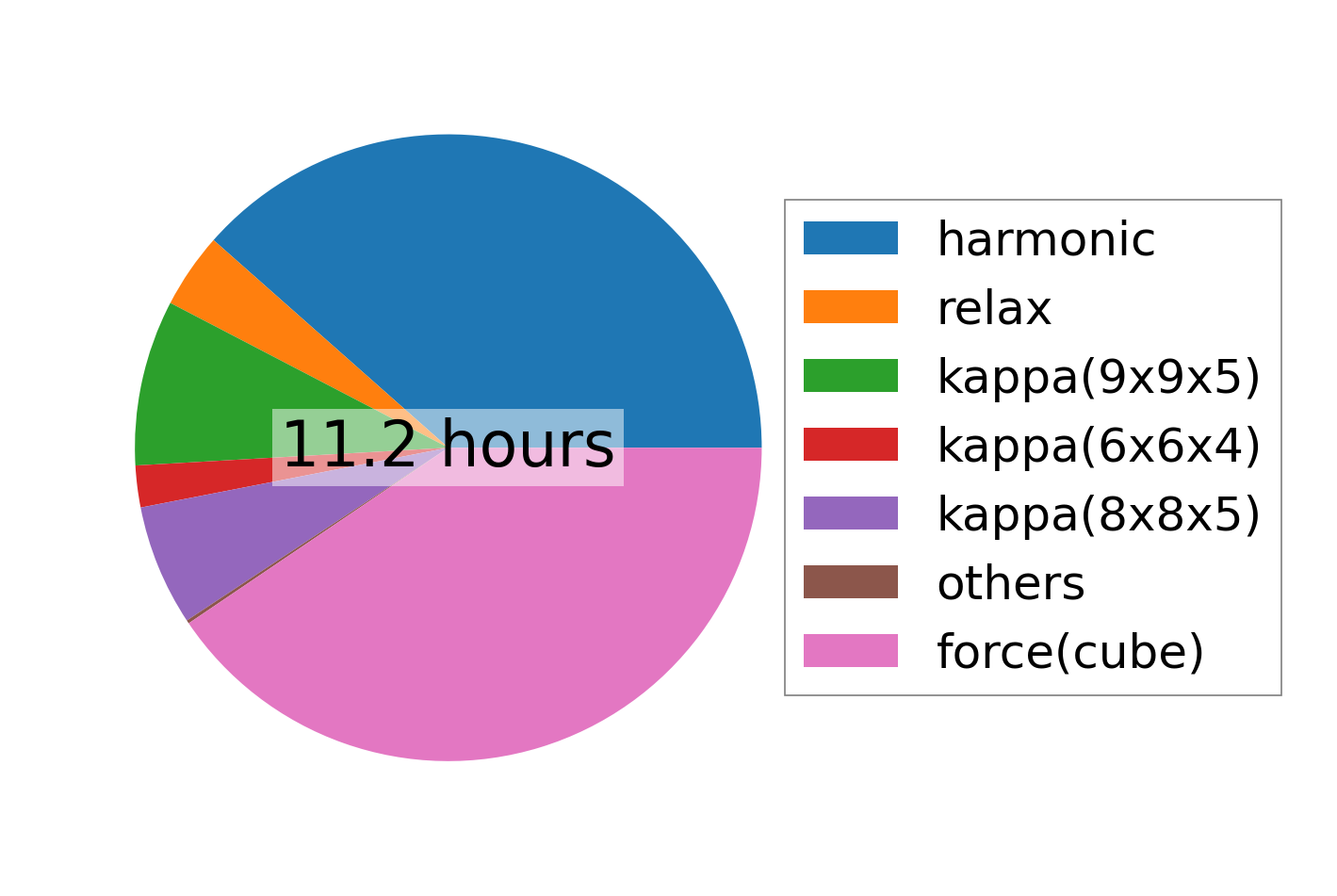

../../_images/fig_times15081.png — (b) Computation time
