mp-556712/Ga2BiS4/anharm

Space group: P4/nnc (126)
Link: Materials Project
Download: mp-556712.tar.gz

Harmonic properties

../../_images/fig_bandos_pr8592.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo8592.png — (b) Thermodynamic properties

Grüneisen parameters

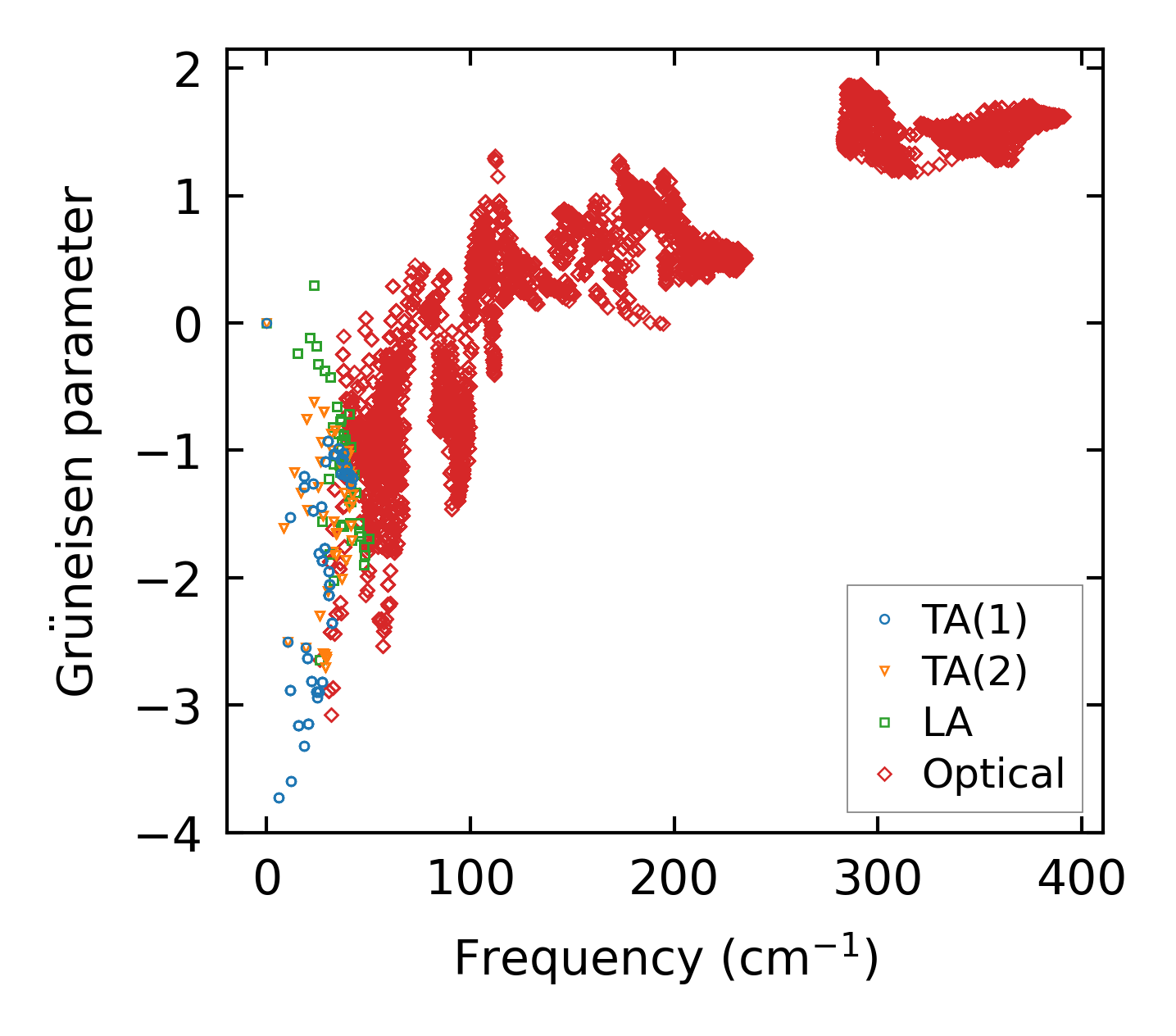

../../_images/fig_gru_all3489.png — (a) Grüneisen parameters

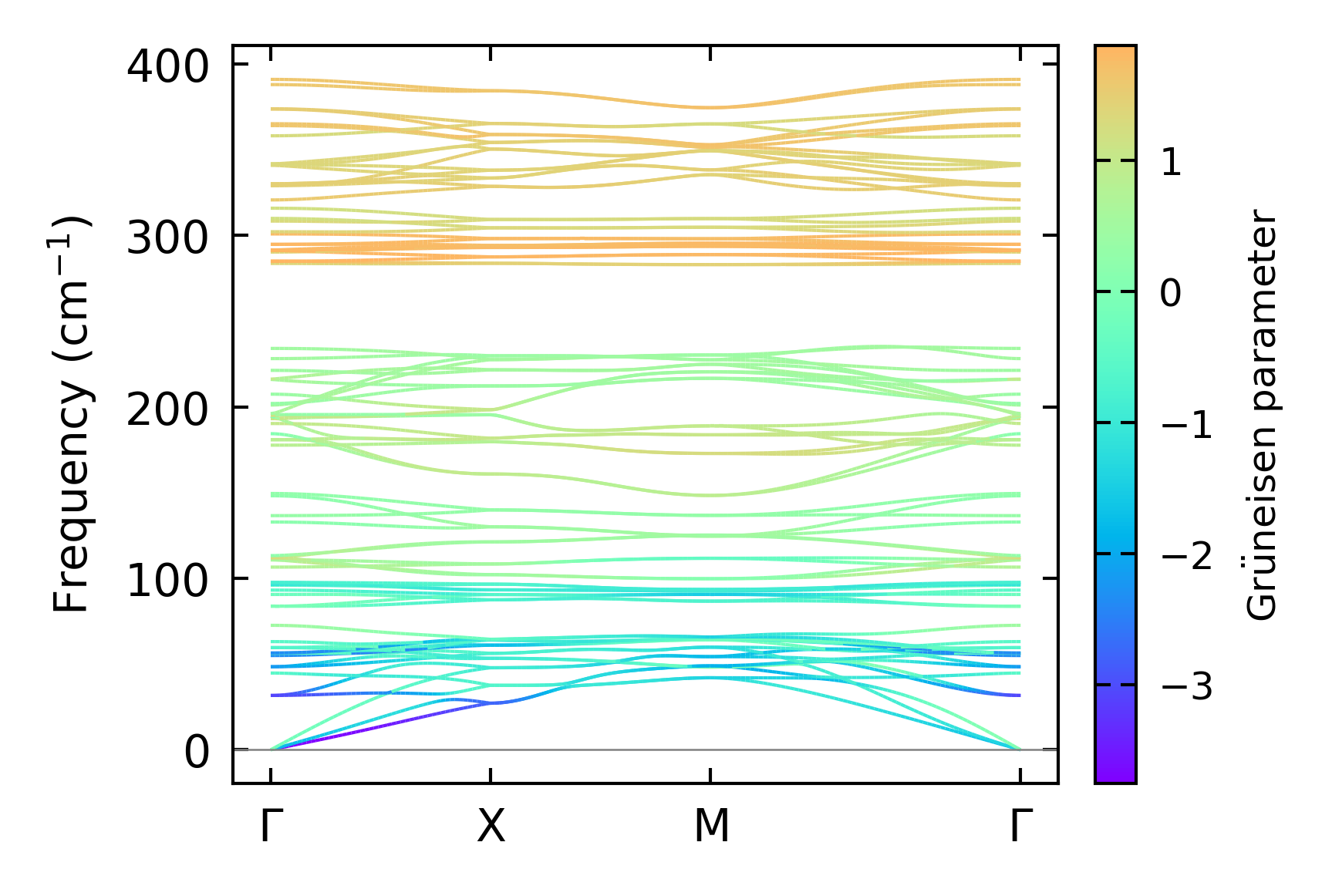

../../_images/fig_gruneisen3489.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x5, supercell: 2x2x1

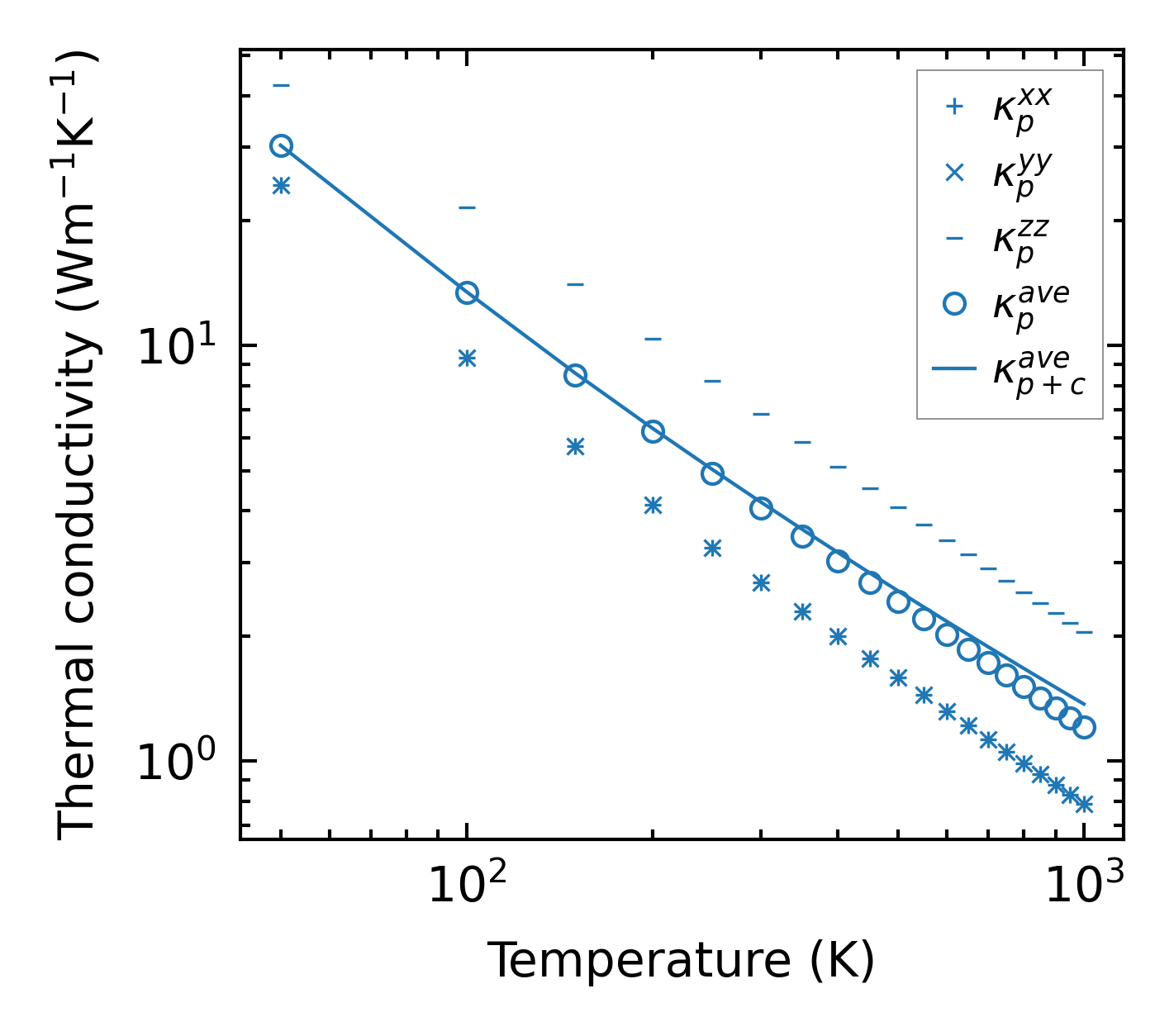

../../_images/fig_kappa6598.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3533.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3456.png — (a) Phonon lifetime due to phonon-phonon scattering

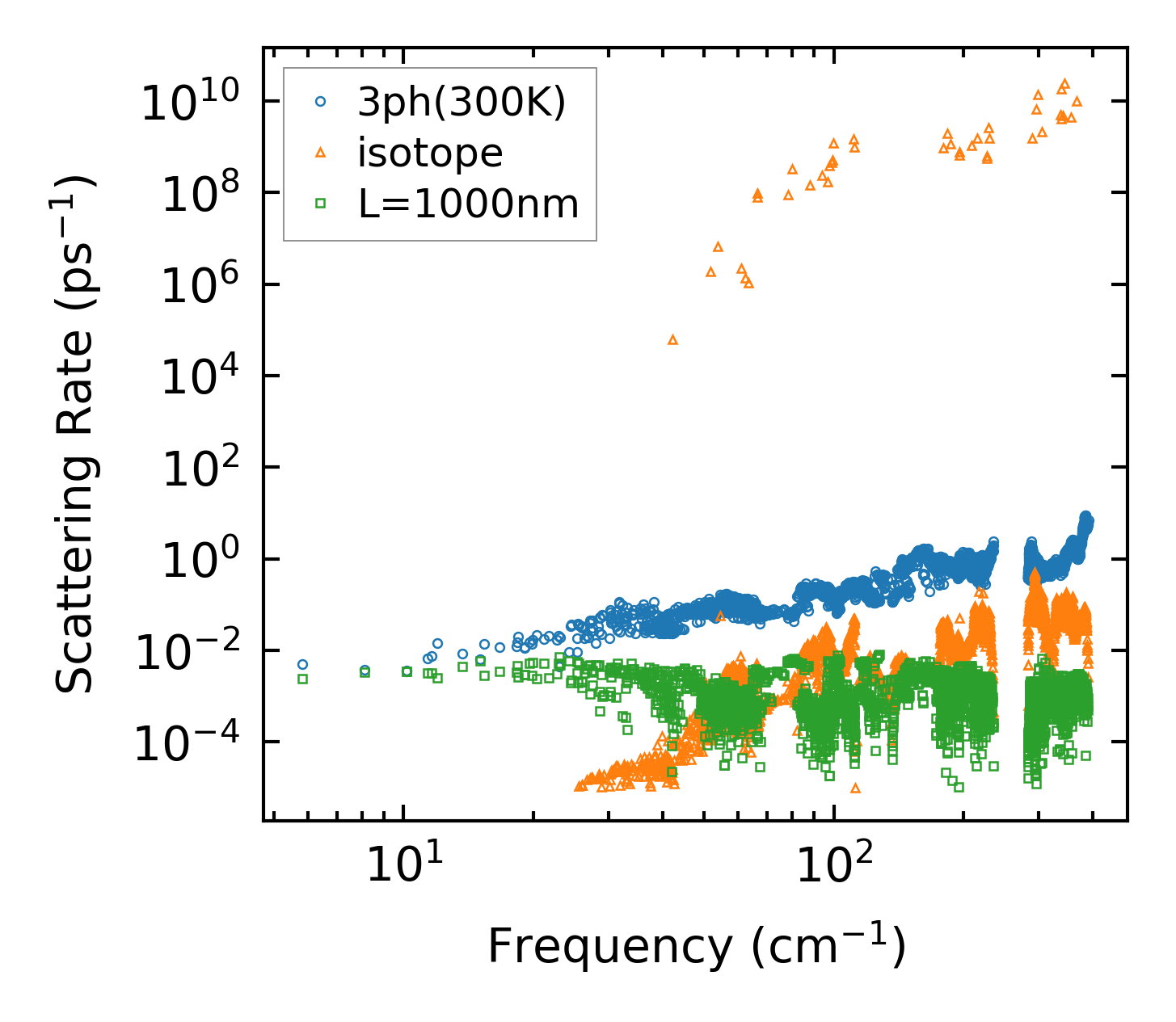

../../_images/fig_scat_rates3455.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

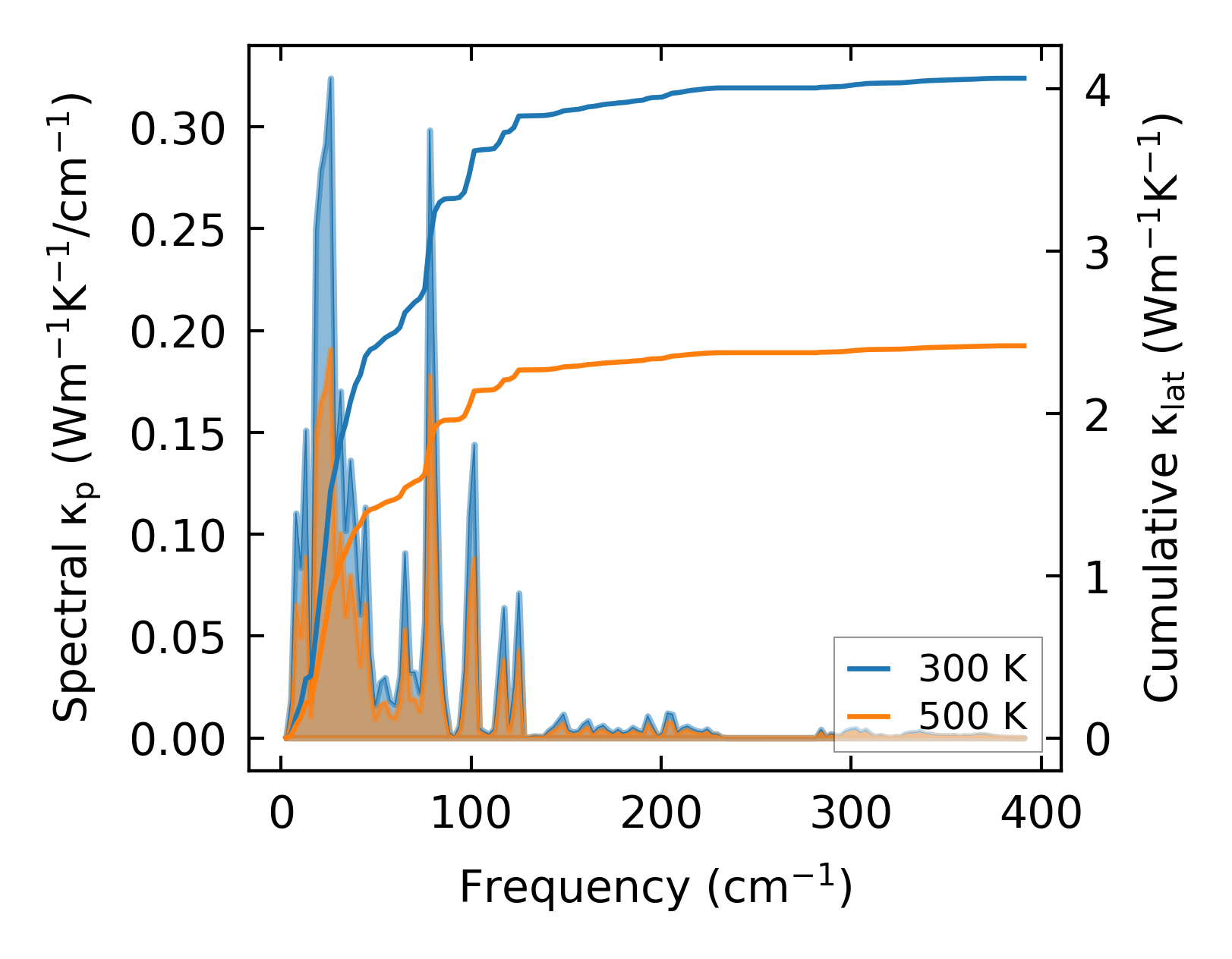

../../_images/fig_cumu_frequency3456.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

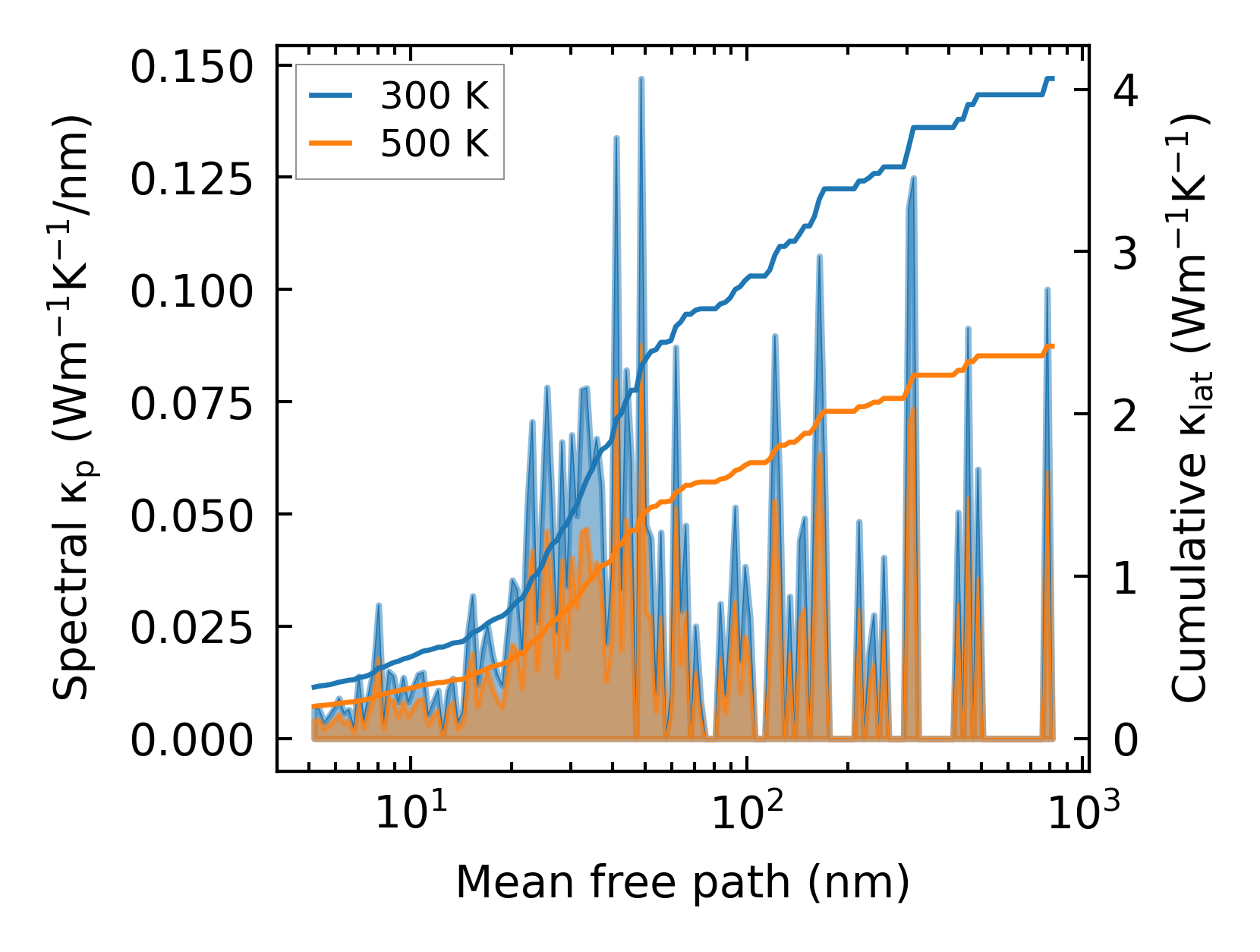

../../_images/fig_cumu_mfp3455.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

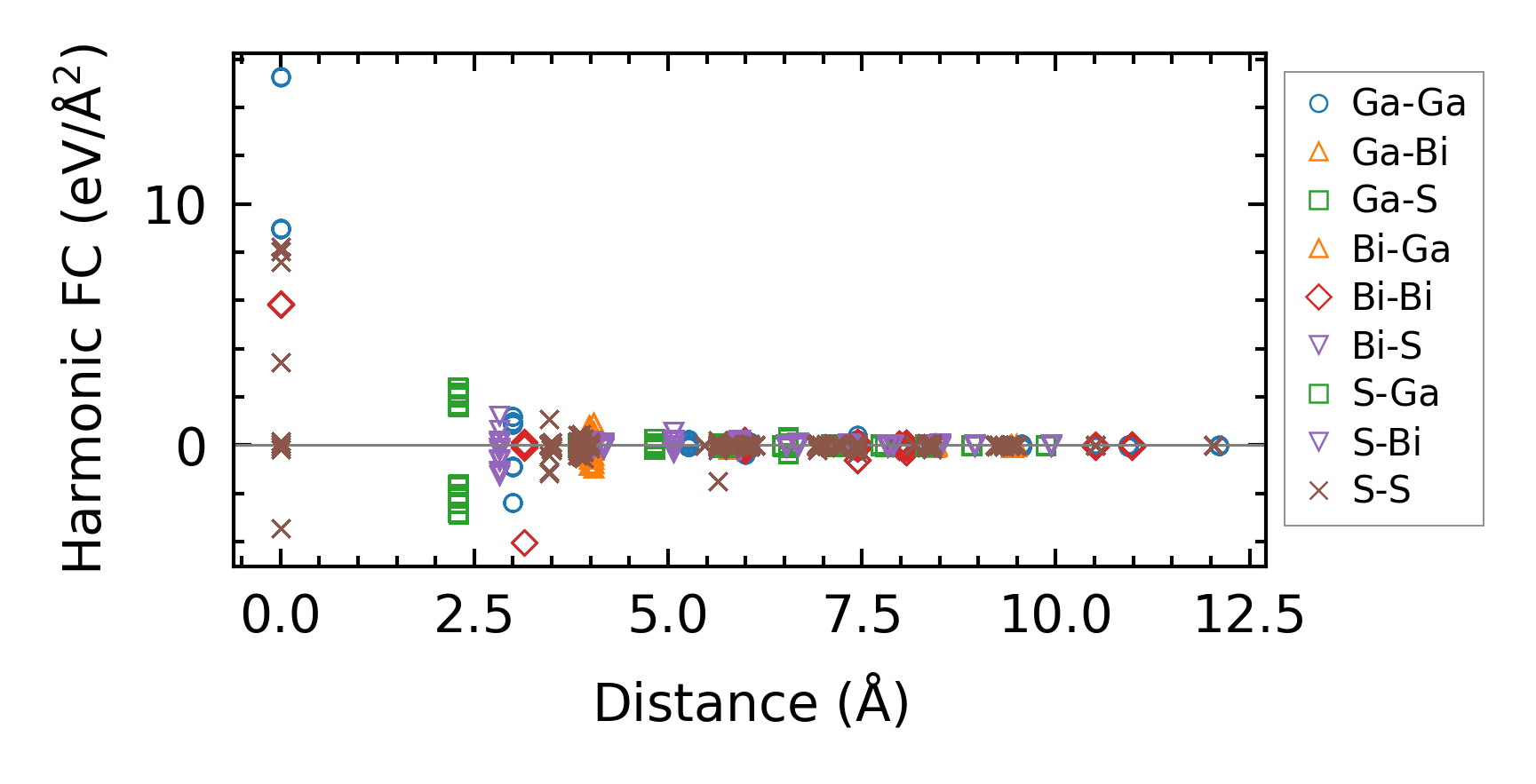

../../_images/fig_fc28353.png — (a) Force constants w.r.t atomic distance

Summary

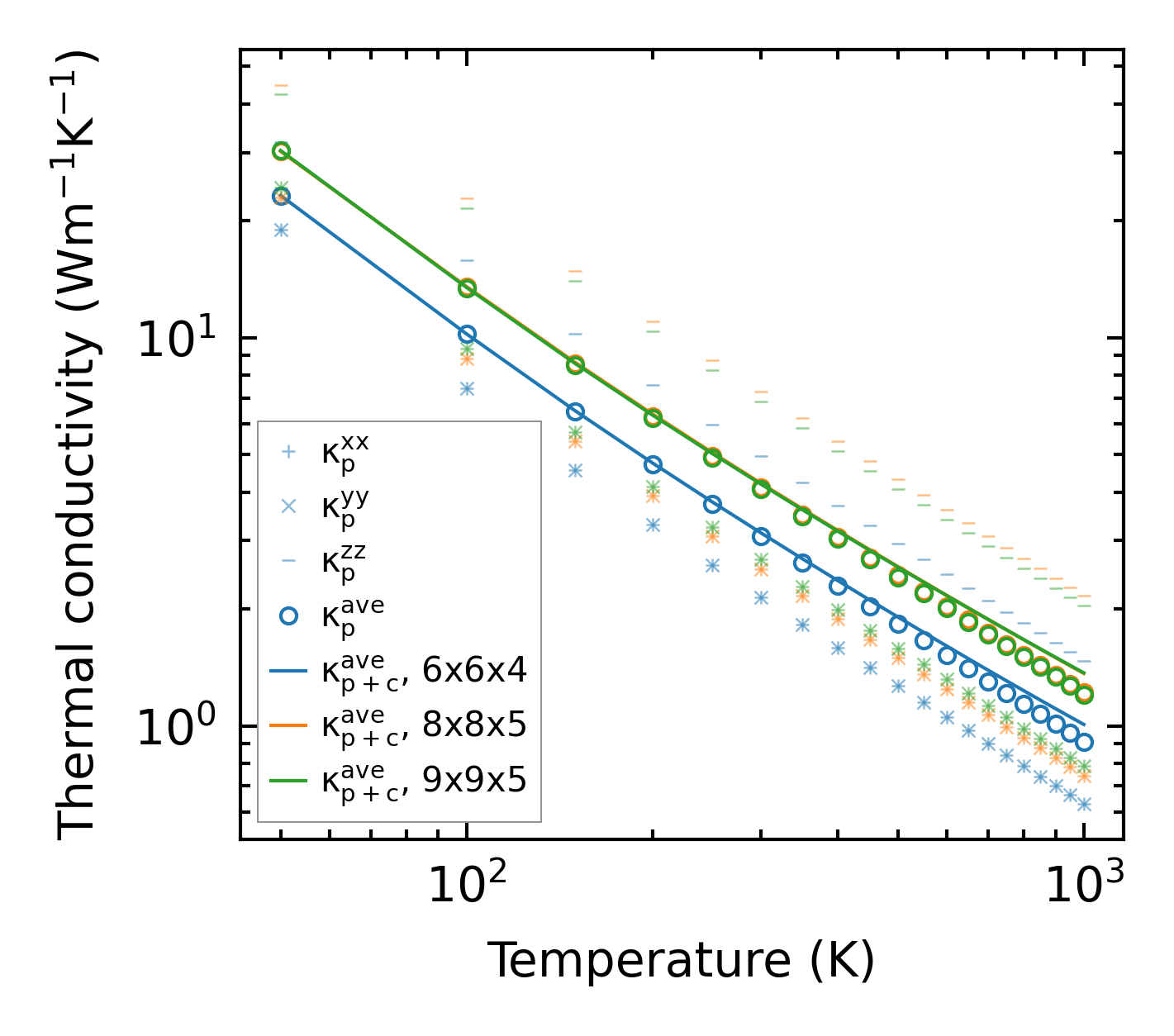

../../_images/fig_kappa6599.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times15080.png — (b) Computation time
